bevbor's armor

[BlacRoseImmortal]

Holy Moley! Your BR WIP thingy is amazing!..... I see alot of more praise in the near future for you ^^



[LastSpartan]

You should sell those A1 templates in rolls!

I'm sure you'd get money! ^^



[Loess]

Awesome! The LOM templates look perfect, and this is a great application for them.



[bevbor]

Holy Moley! Your BR WIP thingy is amazing!..... I see alot of more praise in the near future for you ^^

You should sell those A1 templates in rolls!

I'm sure you'd get money! ^^

I have no time to do this. Se non è vero, e ben trovato.

Awesome! The LOM templates look perfect, and this is a great application for them.

Thanks.

I need to say - I made this model on demand of Macattack64, the great warrior. Without his kicks I'd never started such a thing

eDrawings model of this thingy is here
Password for ZIP: masterchief



- - - - - - - - - - - - - - - - -

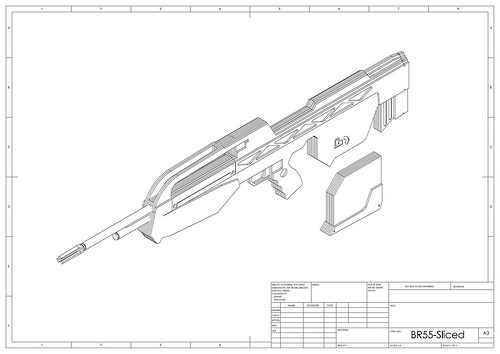

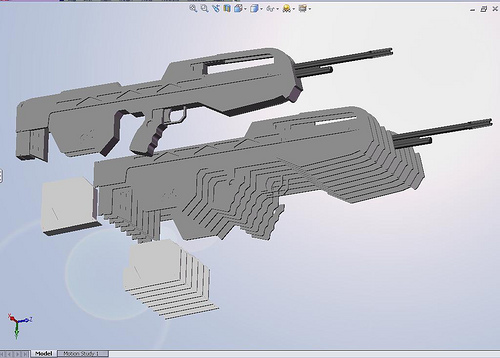

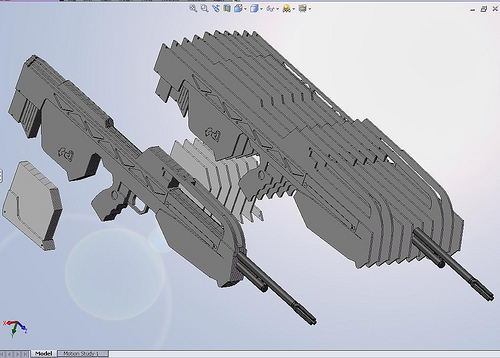

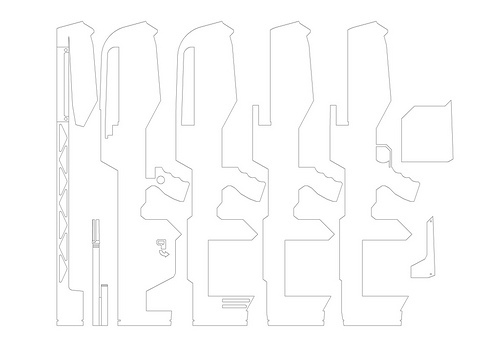

BR55 Battle Rifle Slices:
Scale 1:1.2.
Big brackets - each x2
small clip brackets - x2
big clip brackets - x6.
Paper format - A1
Picture is very big - 6622 x 4677 pixels
You can print it yourself if you'll find (or buy) A1 or larger printer
I used HP Designjet 110 PNR

Click picture (carefully) to enlarge, it may stuck your computer

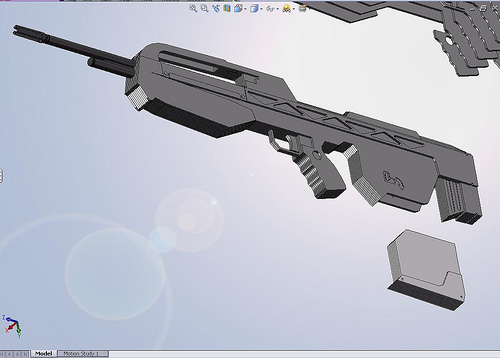

Nao model looks like this:

Click a picture to enlarge it.















There you can get PDO file of it.
Password for ZIP: masterchief
Unfold at 15 cm high.
Pepakura file is not for actual building, but you can divide slices to print them to smaller paper than A1.



[smilie120]

THIS IS EPIC. That br looks awesome. And.. Easy? Ish.. More hands on that pepakura.. I HAVE TO TRY THIS!



[Loess]

An awesome new model from Bevbor, and a long weekend for projects..... I know what I'm doing on labor day.

Thanks Bevbor!



[bevbor]

Thanks guys

Here we go and I'm continue with BR

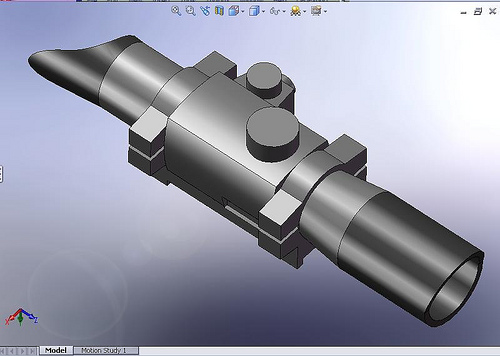

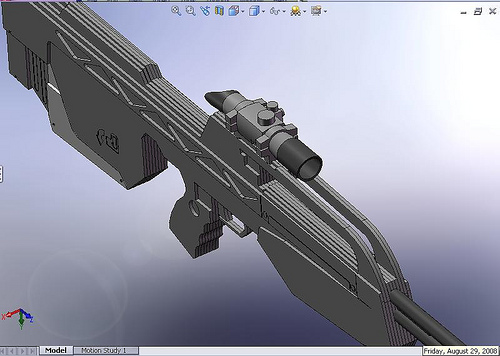

I've modeled a scope

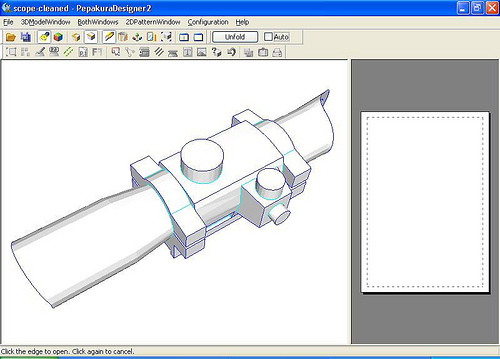

Sure I'm immediately cast it to pep file.
Password: masterchief




Unfold at 4 cm high.
WBR,



[tlither]

More great work Bevbor! Thank you.



[LastSpartan]

Well I think that Staples got a A1 printer !

Thanks for the files Bevbor, amazing! ^^



[bevbor]

Tanks guys

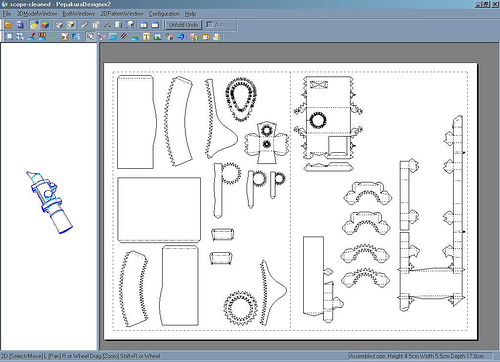

Now, I unfolded this thingy.
(Click image to enlarge)


Unfolded PDO
Password: masterchief


Somebody want to try it?

WBR,



[tlither]

I'm on it! Let you know soon.

Edit: Wow! Converted to Letter. There are a lot of small folds on about 8 pieces. It's doable but will take some work on those tiny folds. Overall not real bad unless you want it built in 5 minutes.



[bevbor]

(Click image to enlarge)
​

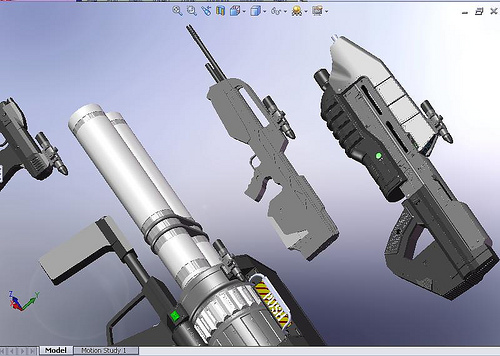

Just put in one heap my whole virtual armory, just for fun.
All weapons supplied with my new scope



[Chazodude]

Lol at the rocket launcher!

Uber cool scope, doing it now!
| | | | | | | | | |
V V V V V V V V V V

Pdf for poor little mac users?

pwease?



[bevbor]

Lol at the rocket launcher!

Uber cool scope, doing it now!
| | | | | | | | | |
V V V V V V V V V V

Pdf for poor little mac users?

pwease?

Haha, you'll get it there.
I did it With Edge ID and Without Edge ID for Letter and A4 formats (4 files)
I advice cut and glue those that No Edge ID have.
With Edge ID files are for reference only!
When you'll start, you'll understand WHY!!!

WBR



[Chazodude]

Thanks you so much!!!


Yikes, i see why!!!



[Overlord Ian]

Looks great. I'm looking forward to seeing you in your full suit!



[bevbor]

Sorry for necroing, but I want to revive my progress thread a lil
Well...
Want to know, how to make Mk6 forearms in one day between this and then?

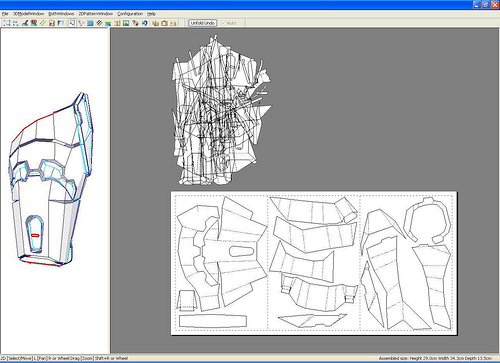

1. Edit PDO file and drop out all not-so-important parts. Switch off Edge ID and Flaps.
(I took FlyingSquirl's Medium Def forearms)

(Click on pictures to enlarge)



2. Print out your pep patterns, prepare hot glue, scissors, exacto knives, slice of cardboard, etc.

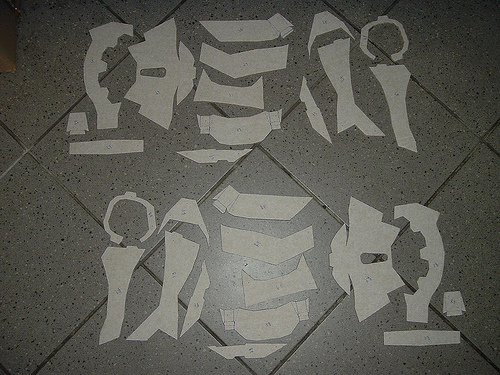

3. Cut patterns out of paper.

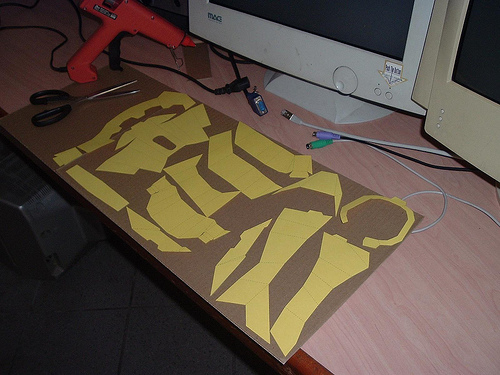

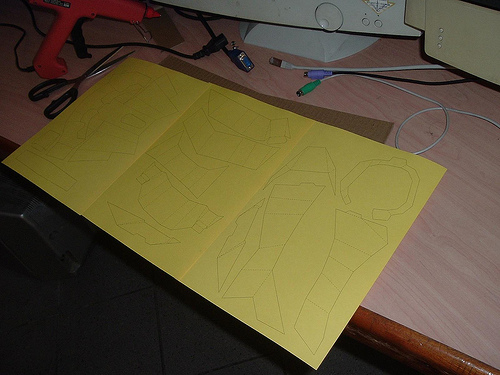

4. Transfer contours of patterns to cardboard.
(Twice - one time for left forearm, than flip pattern and do it contour for right forearm)



5. Cut parts out of cardboard.

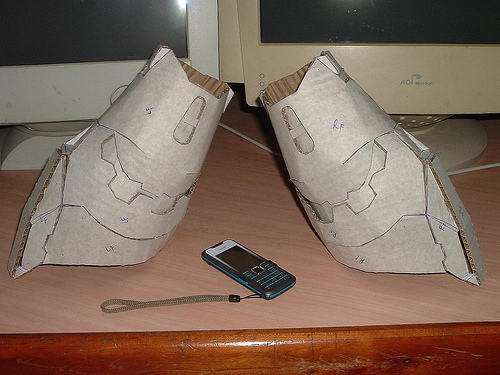

6. Stick them together!



7. Resin a lot (fiberglass part may be omitted bcause of cardboard inside), bondo, paint, wear, enjoy.



Regards



[Yodajammies]

Bev, you are a modeling master.

I nominate this guy for user of the month



[Loess]

BRILLIANT!

Bev, you are a modeling master.

I nominate this guy for user of the month

Seconded.



[JediStumpy]

I use kinda the same idea for my forearms. I use the "non" HD files (robo's first "HD" file). I glued cb on top to give it detail and the resin made the cb really hard and nice. the cb just sucks in the resin good. Your is all cb and adding resin over it will work great. Just try to get in inside of the "comb" of the cb.
Your looks really smooth already! Saves on bondo!
Thanks for sharing n' showing
