Well, Maybe I'll introduce myself first... I have never posted anywhere but the noob forum but this is my 4th helmet build and I guess I can't post there any longer...

I am Igor and this is a build of my 4th Daft Punk helmet...

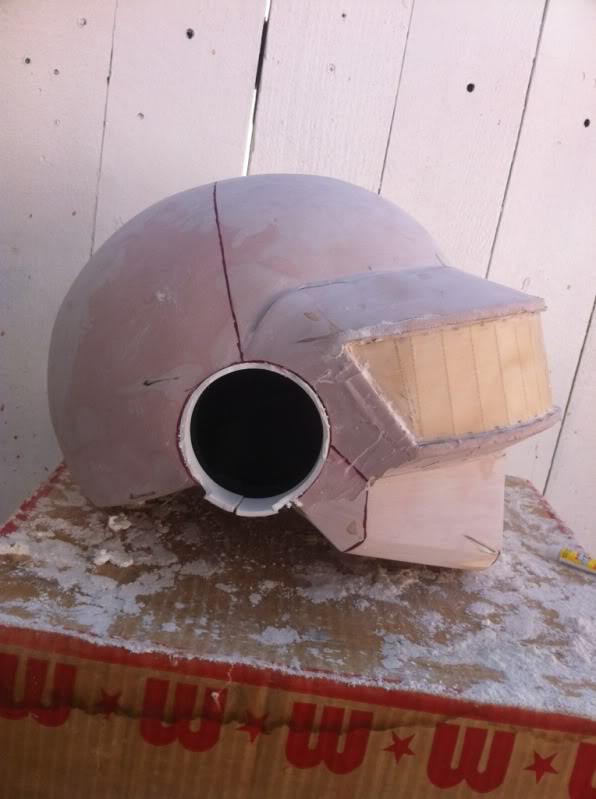

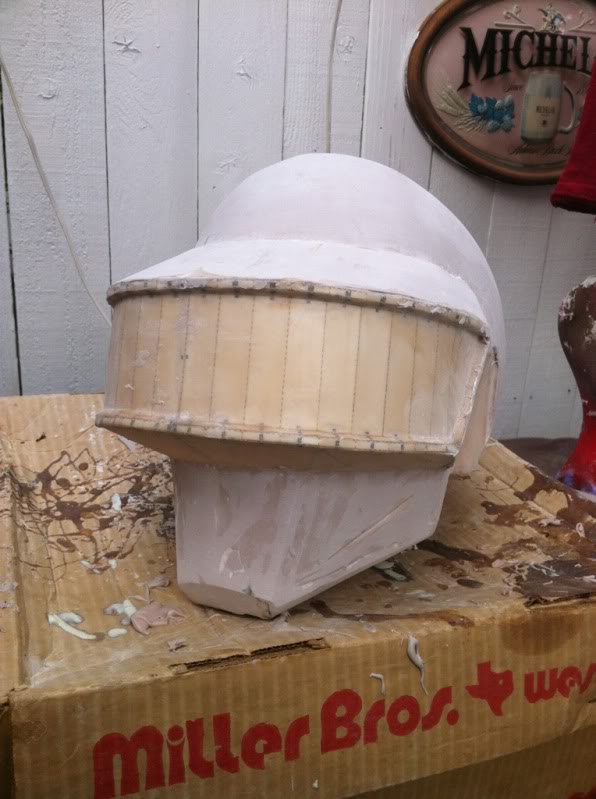

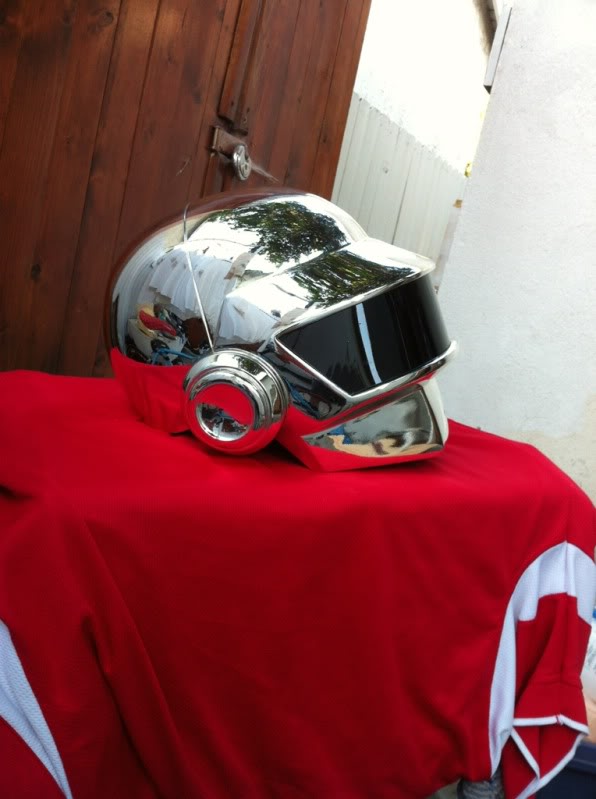

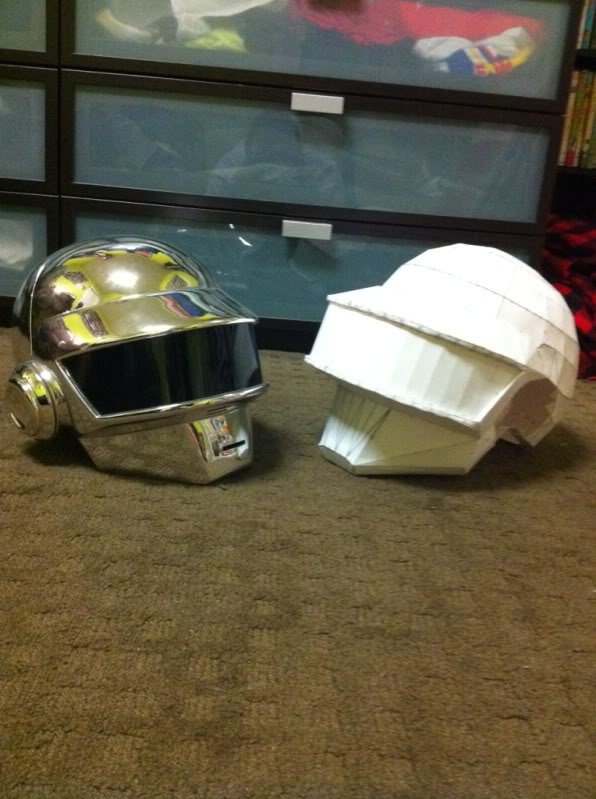

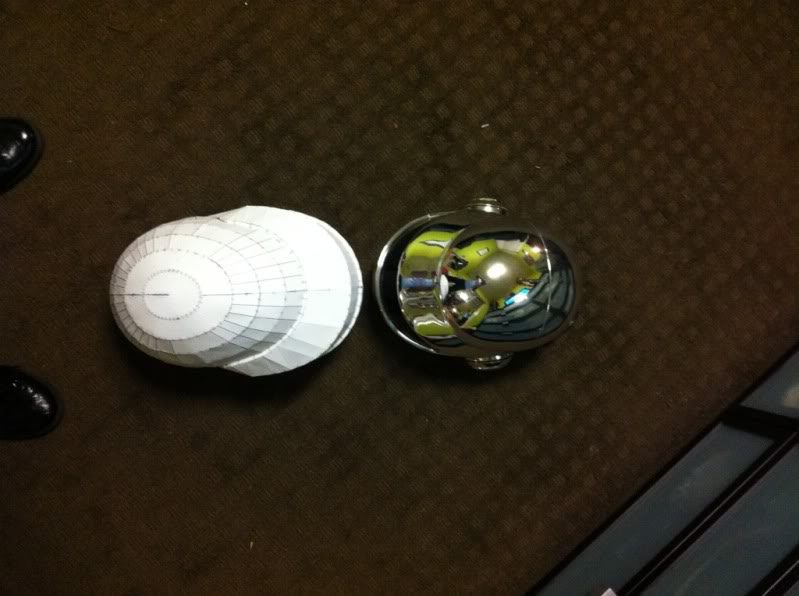

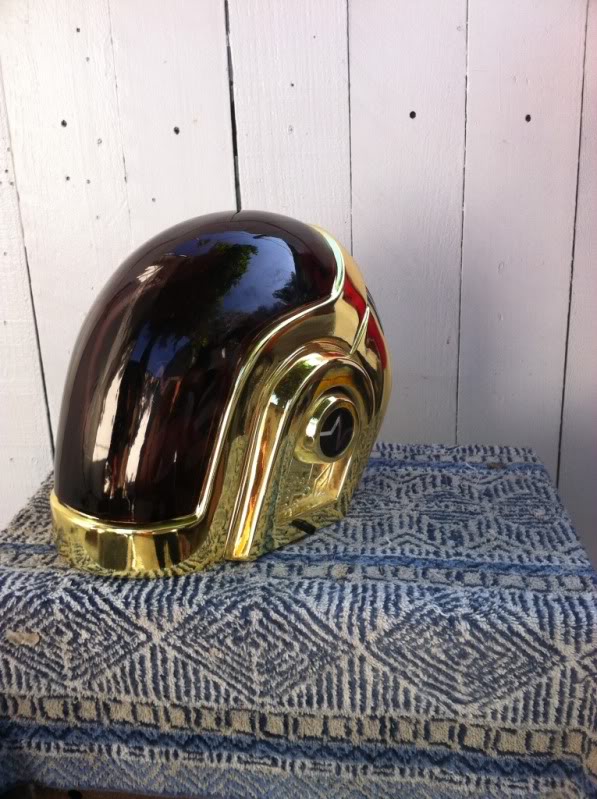

I don't know if you have seen my other builds but here are the end products of the first 3:

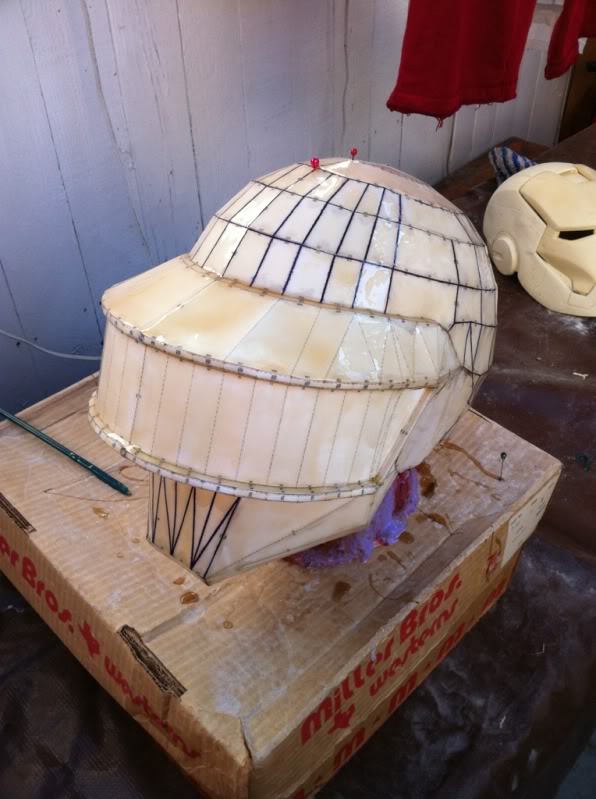

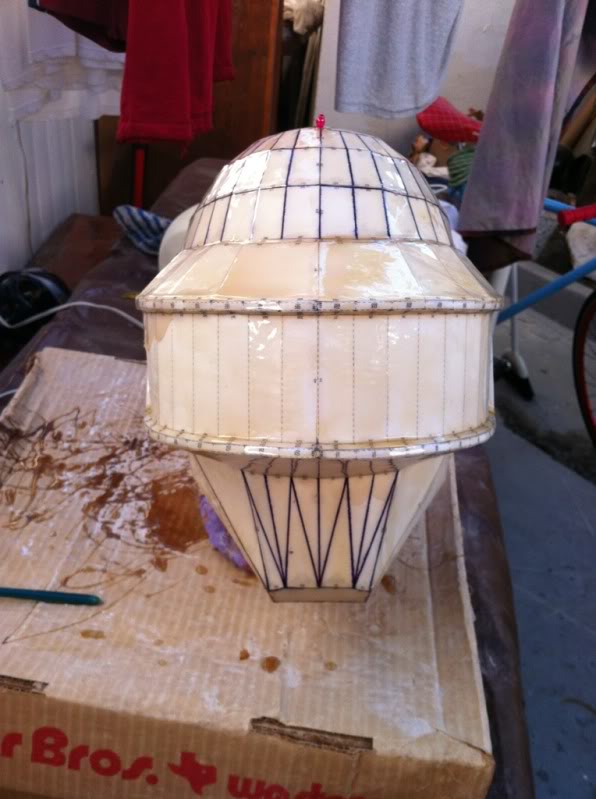

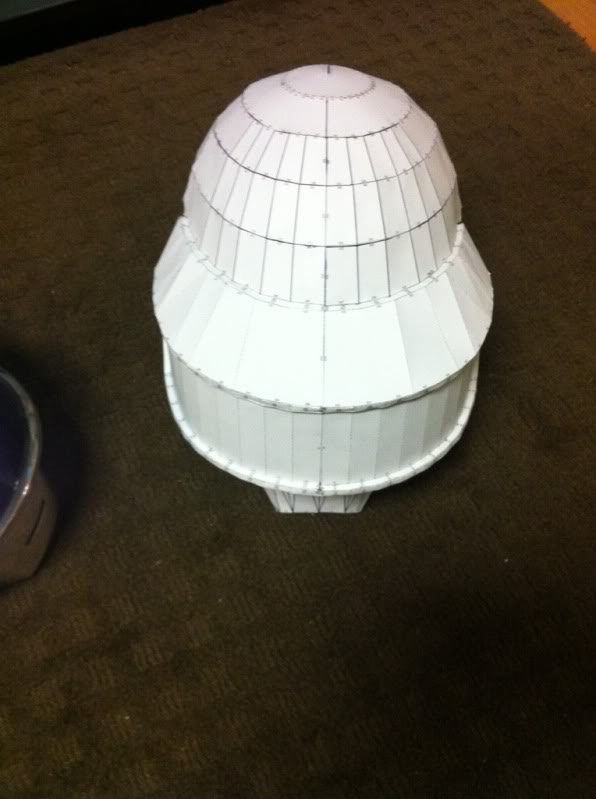

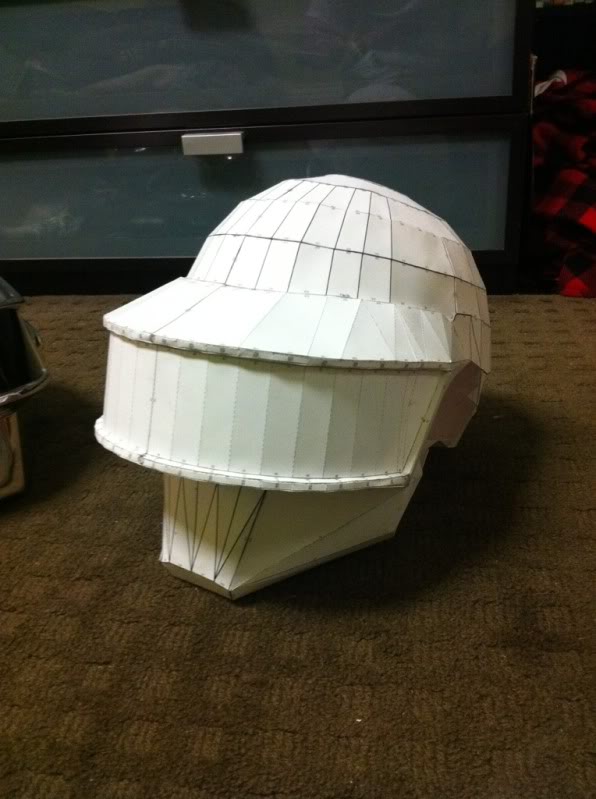

I don't think anyone else has built this helmet from a pep yet so... Here we go!

I didn't rescale the .pdo at all because I was told it would fit me fine, I am 5' 10" and have a 20" shoulder span.







Mrpinski

Jr Member

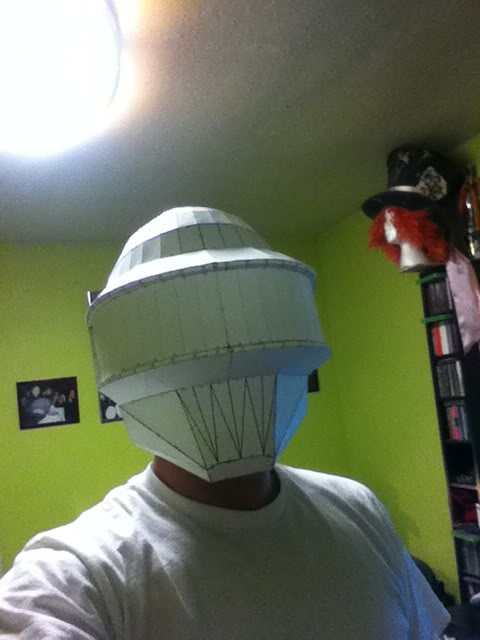

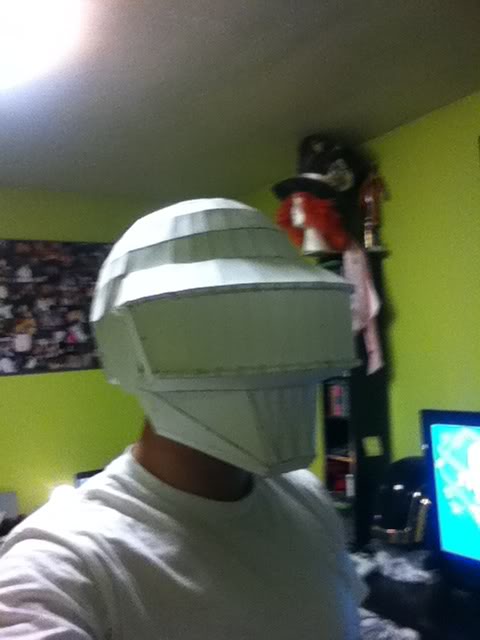

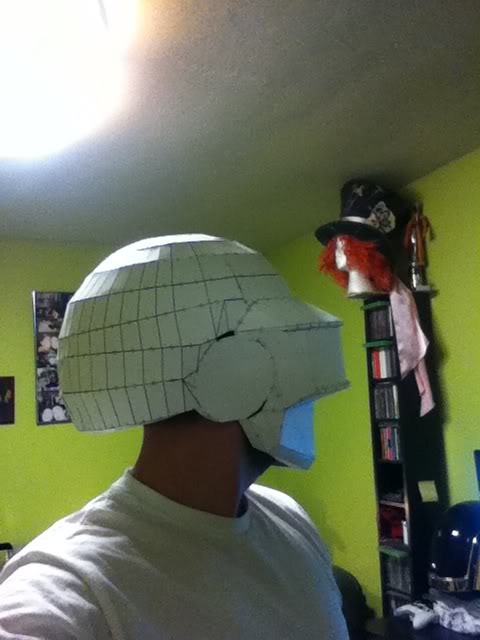

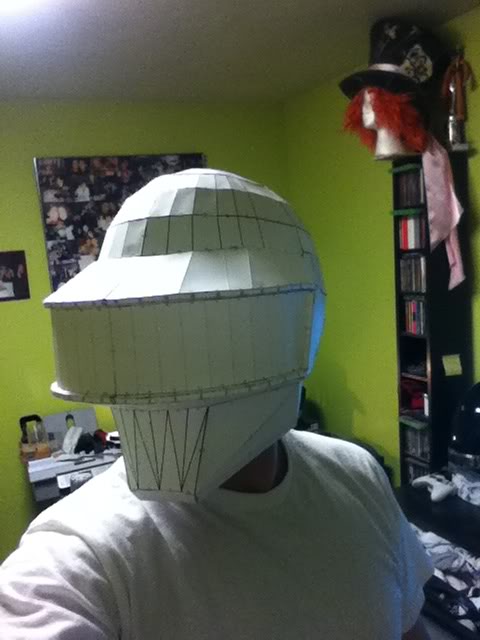

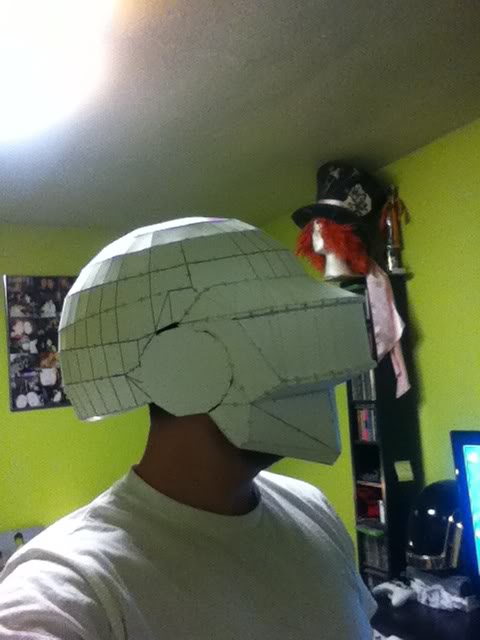

This is what it looks like on my head...







My only objection is that it is a little long for my taste... but we will see what happens as I go...


Mrpinski

Jr Member

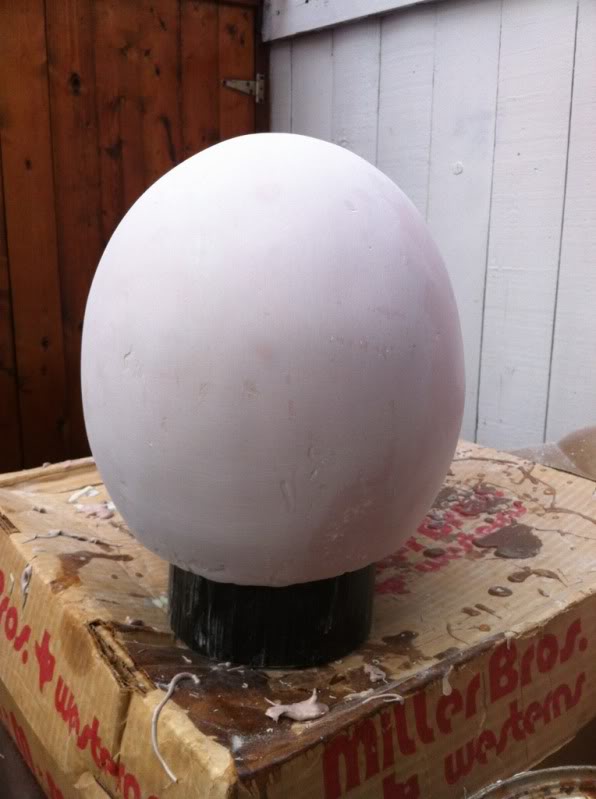

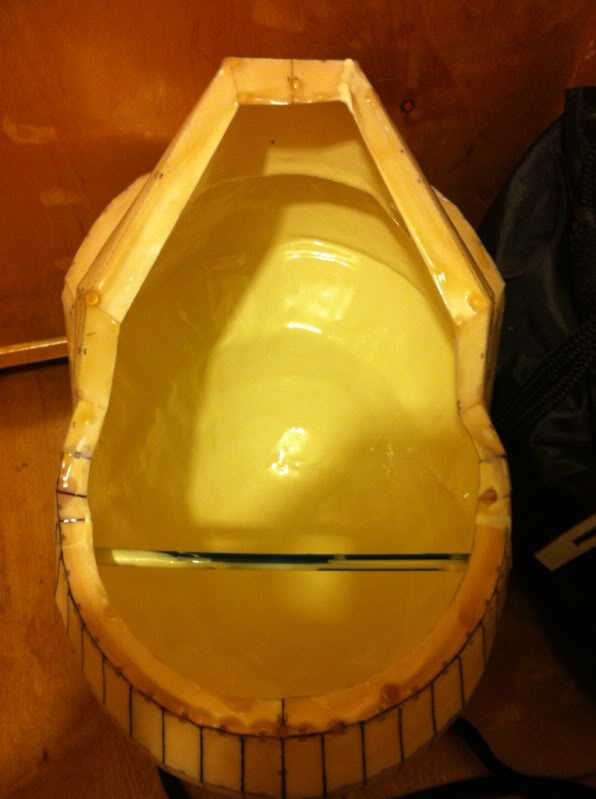

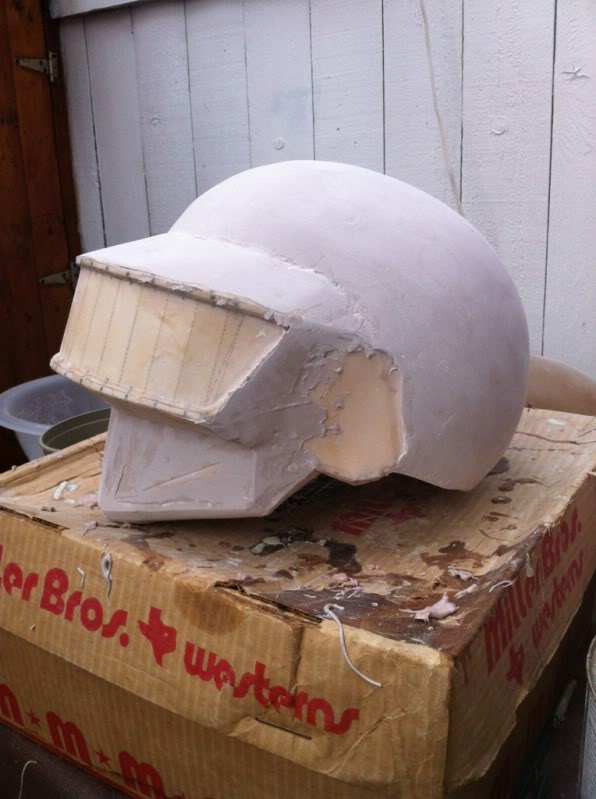

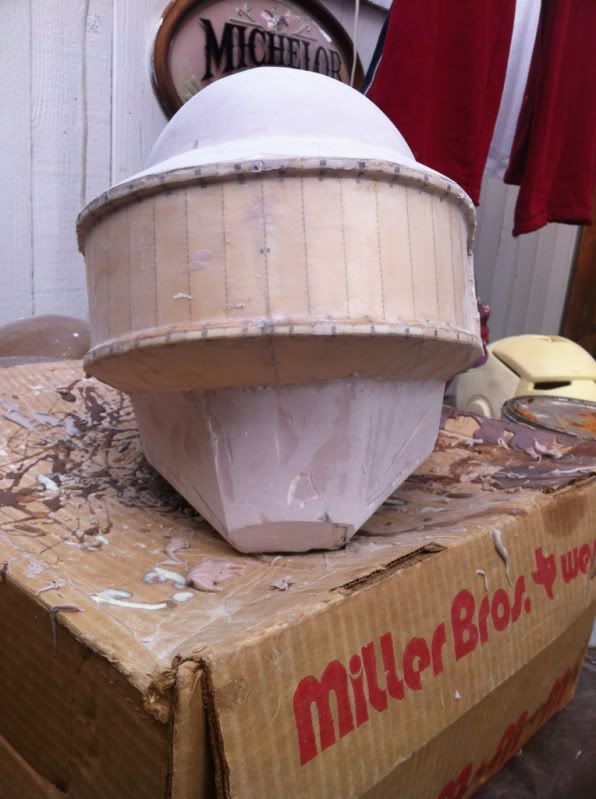

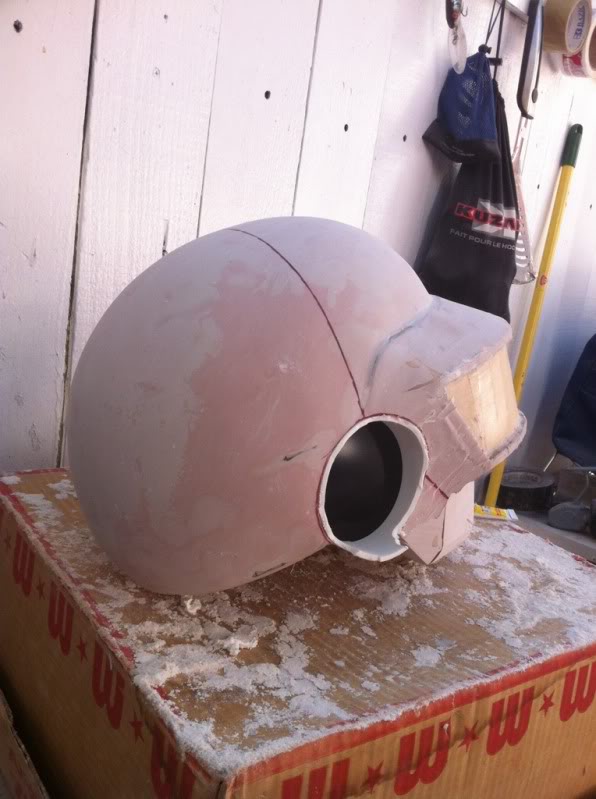

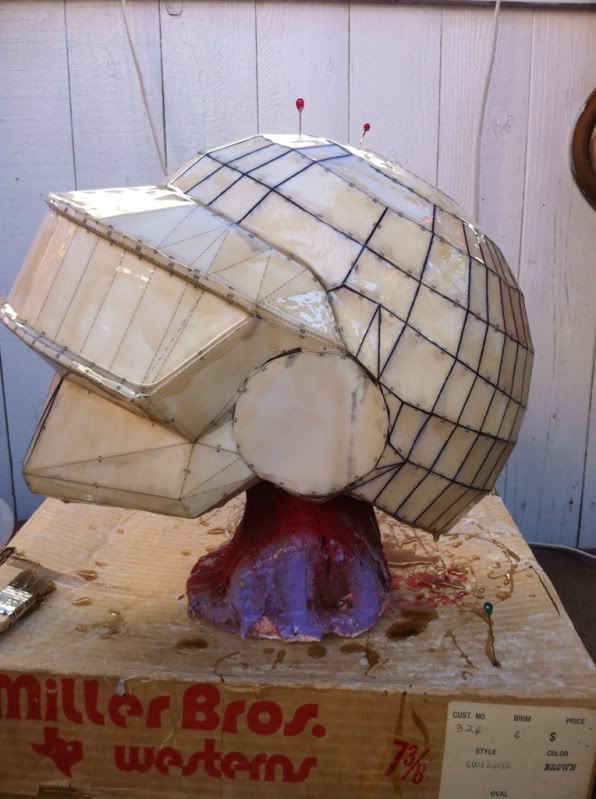

Now instead of Rondo or fiberglassing the interior of the helmet... I used some casting resin and slushed it around the inside. This is much easier and faster, and there are no rough edges to smooth out on the inside of the bucket...



The stick in there is to keep the helmet from buckling and becoming too narrow... More to come later...


Hyperballistik

Well-Known Member
Its looking great so far, but got a question why are you building a pep version of this helmet since you already built what i would say is an awesome Thomas helmet already, Im building this same helmet but V3 of it im about 75% finished just never made a build thread and I think I would reather have done the baseball helmet mod but since im building it for a friend I just went with pep. Keep us posted keep up the great job


Mrpinski

Jr Member
Its looking great so far, but got a question why are you building a pep version of this helmet since you already built what i would say is an awesome Thomas helmet already, Im building this same helmet but V3 of it im about 75% finished just never made a build thread and I think I would reather have done the baseball helmet mod but since im building it for a friend I just went with pep. Keep us posted keep up the great job
What is V3 ??? I looked all over here for the unfold of this model and this was the only thing I could find... Can you send it my way? What's different???


Hyperballistik

Well-Known Member
What is V3 ??? I looked all over here for the unfold of this model and this was the only thing I could find... Can you send it my way? What's different???
I guess there are 4 versions of the helmet that Dungbeetle had made, the 4th version has the ear parts attached to the helmet and is more accurate on the ear parts,PM me your email and I will send you the files that I have, I have a couple you can choose from and are smooth unfolds so less bondo work


Mrpinski

Jr Member
Soooo... Another update....

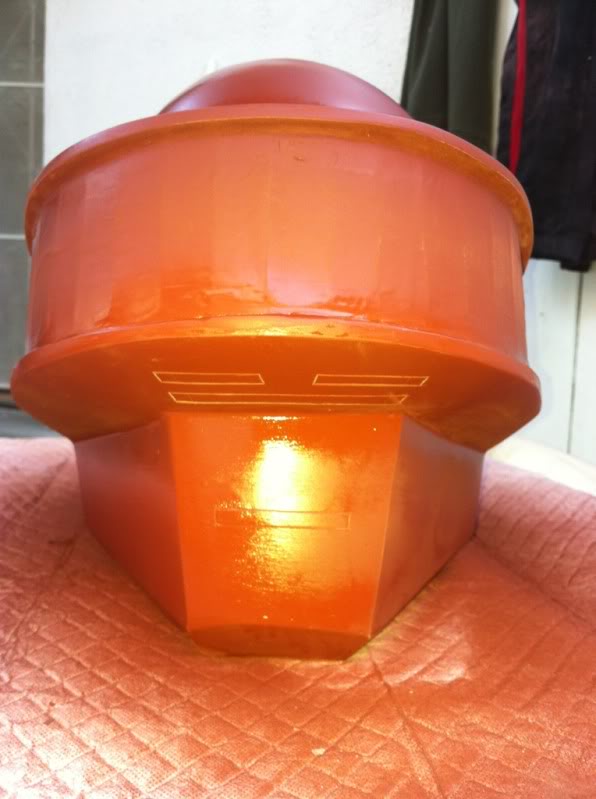

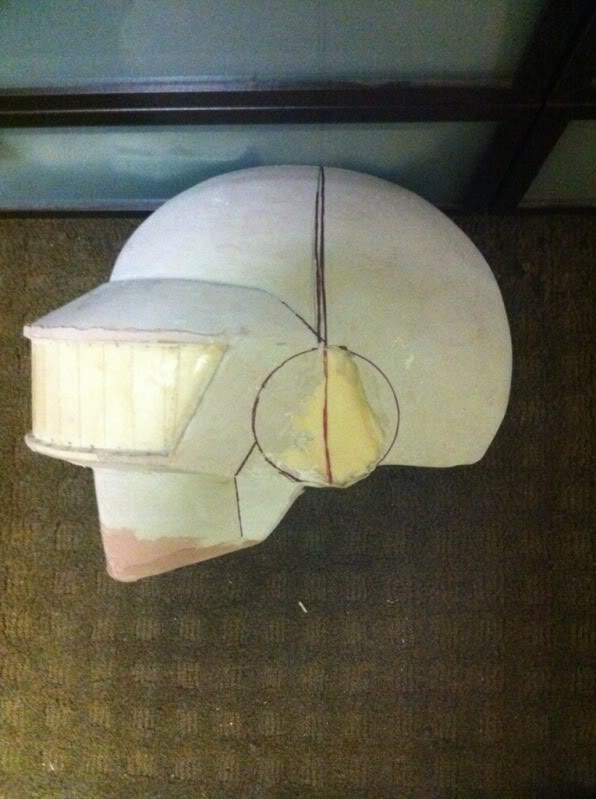

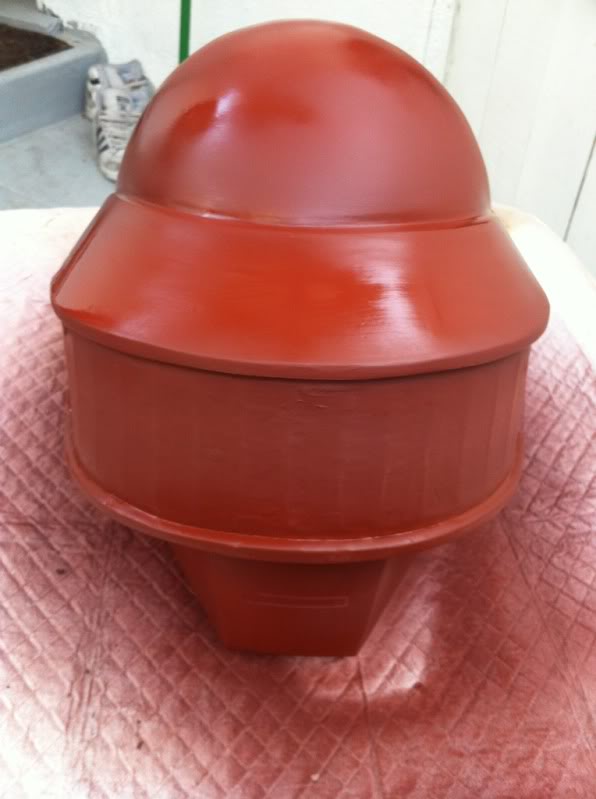

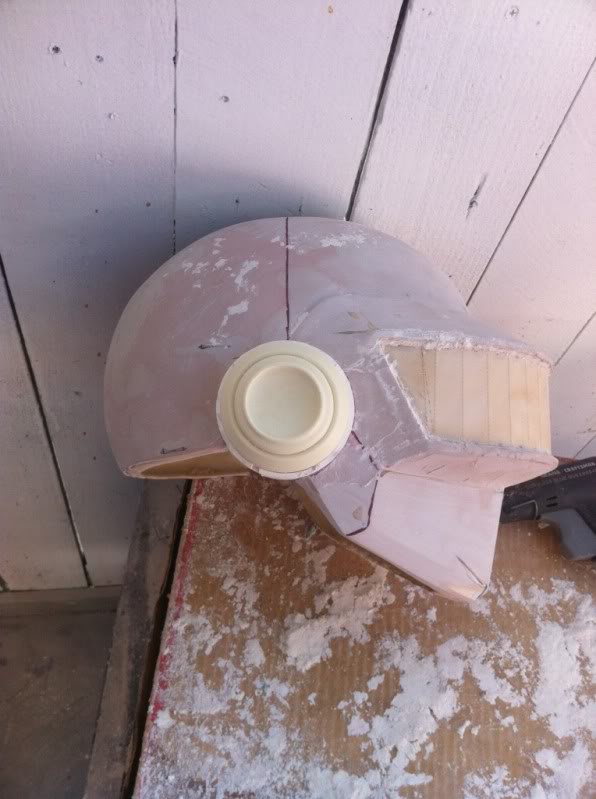

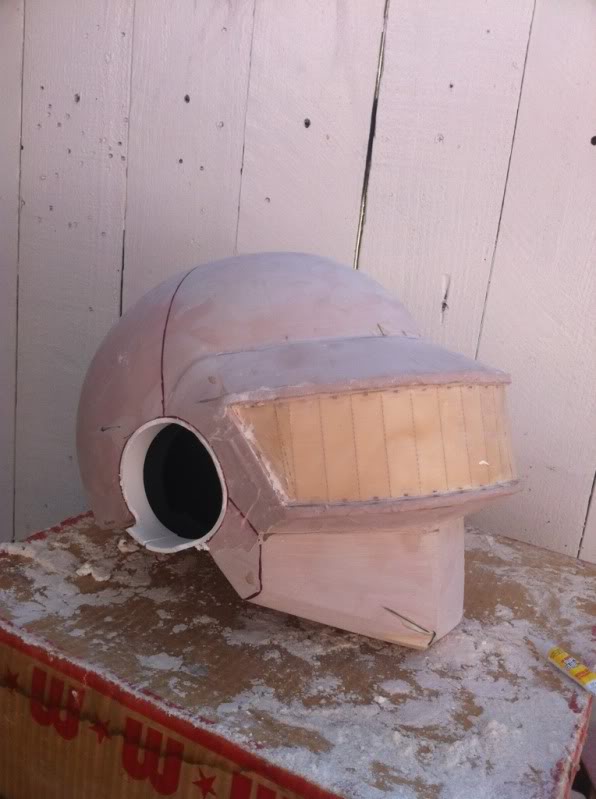

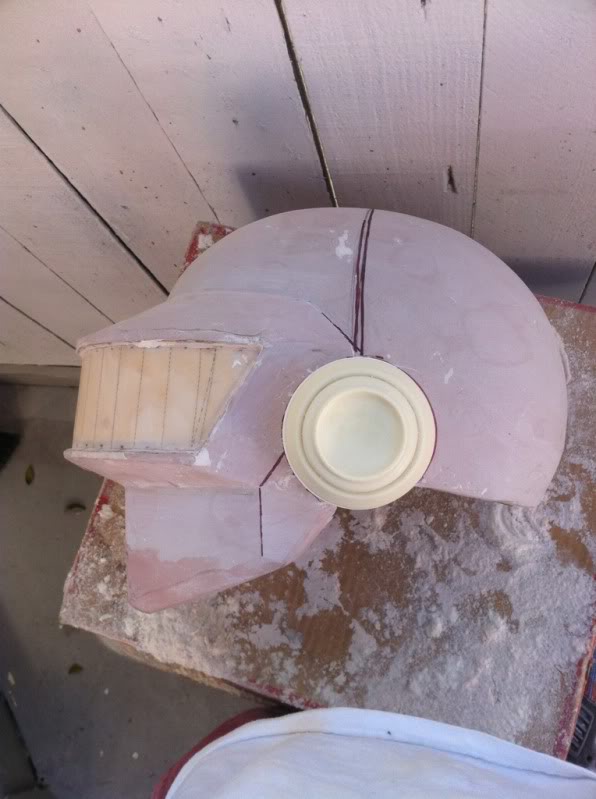

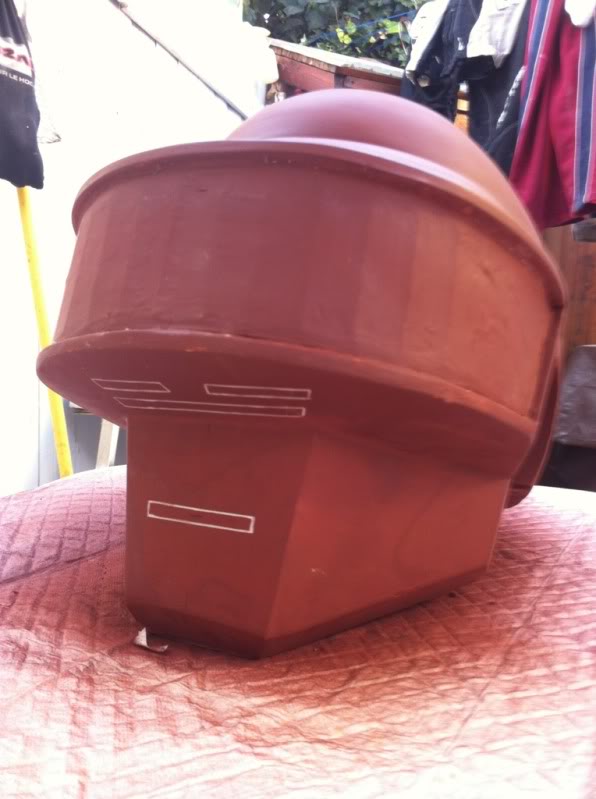

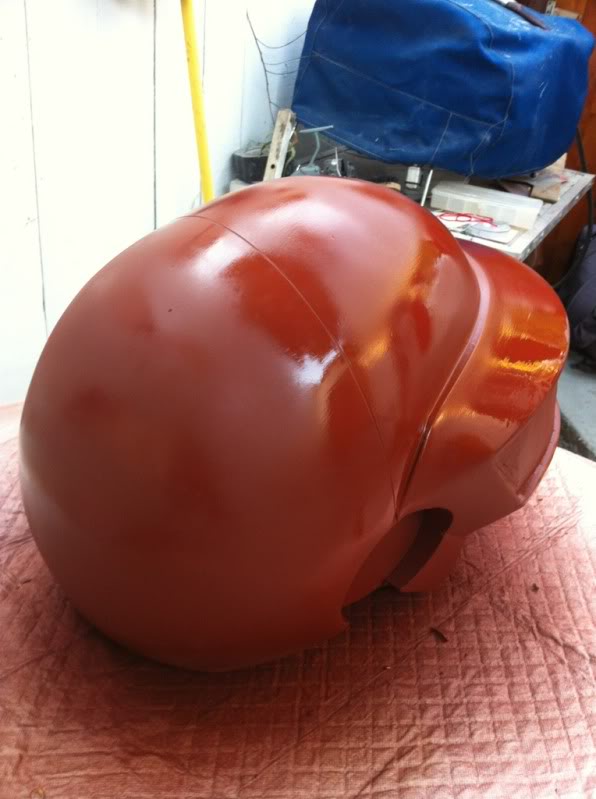

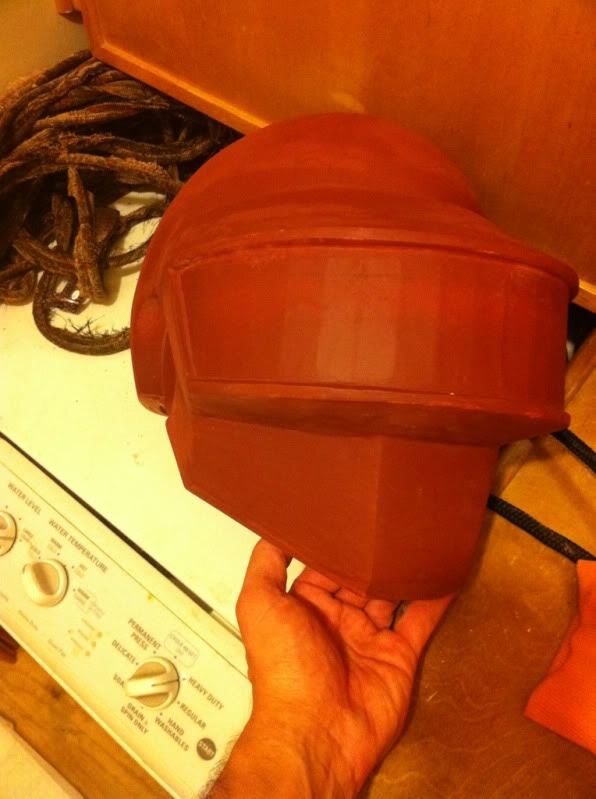

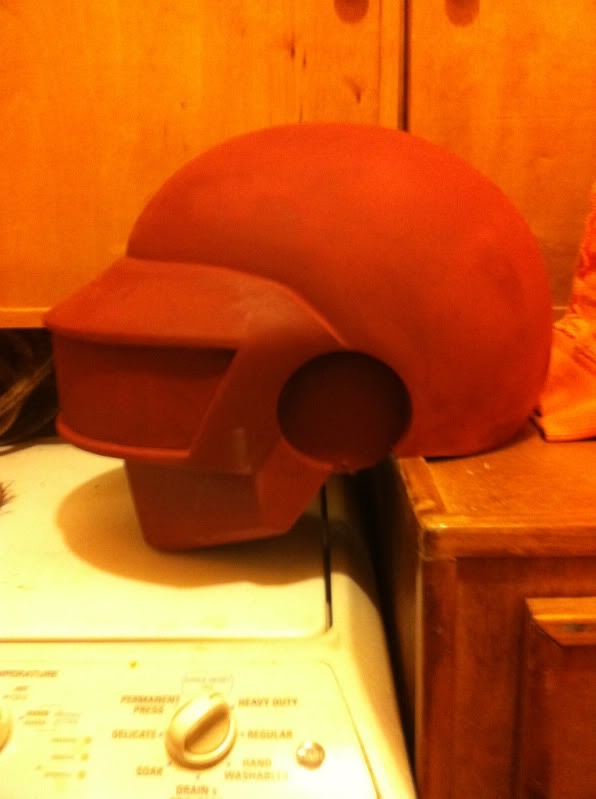

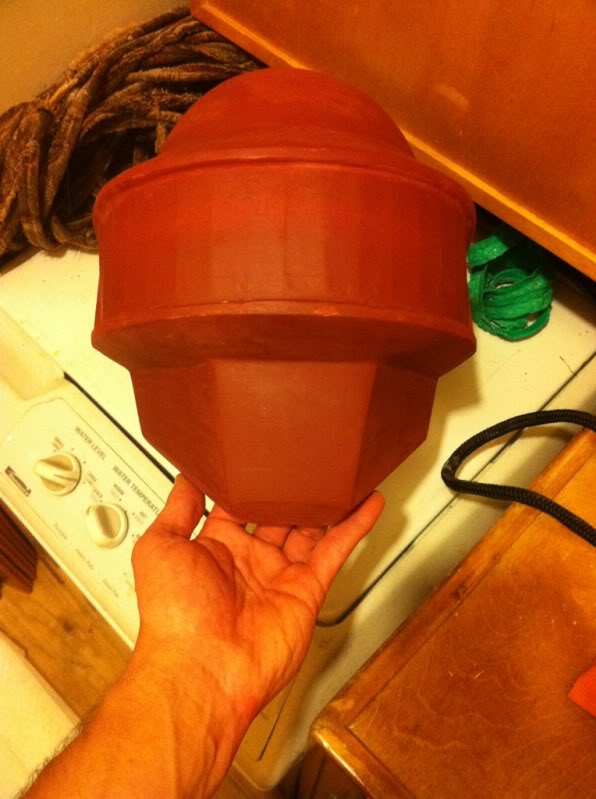

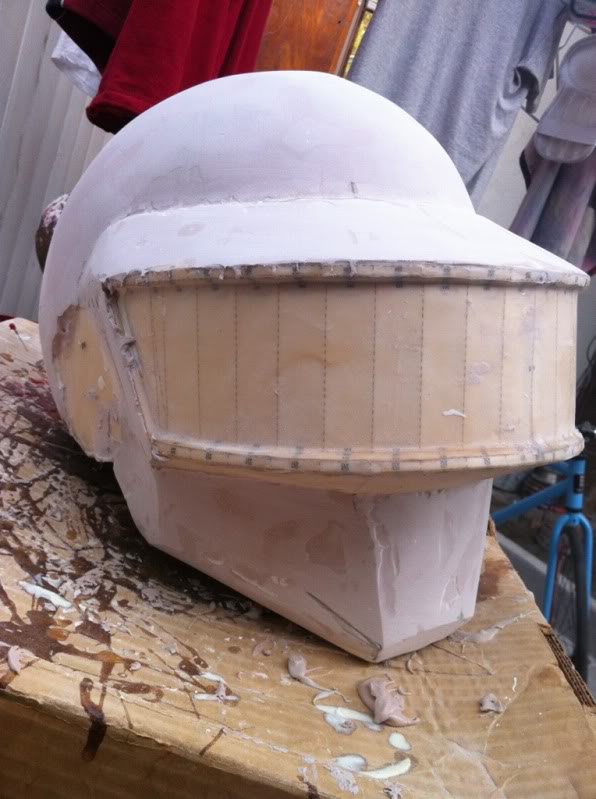

I carved out grooves for the holes in the nose and mouth. I chose to do it this way to give more versatility to the helmet. This way both types of mouths can be cut out and if you choose to make the nose smaller, you can. On to the pics!!!

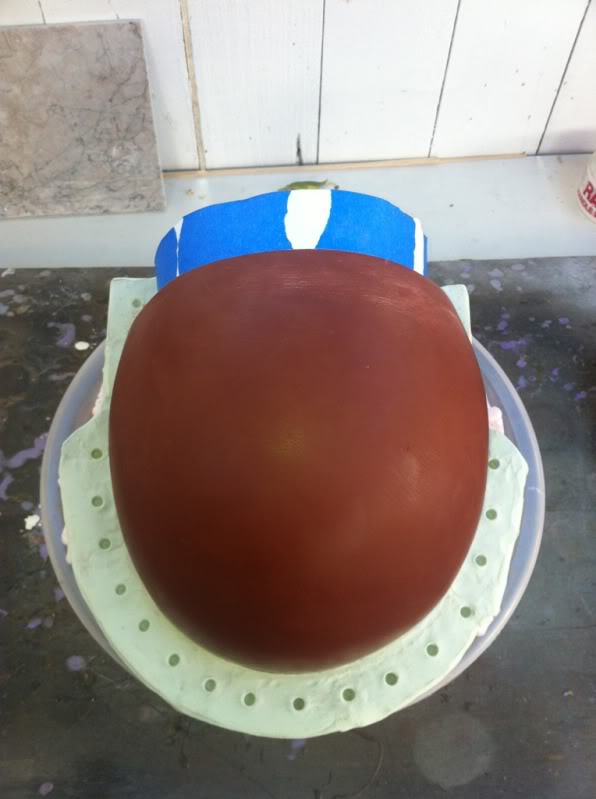

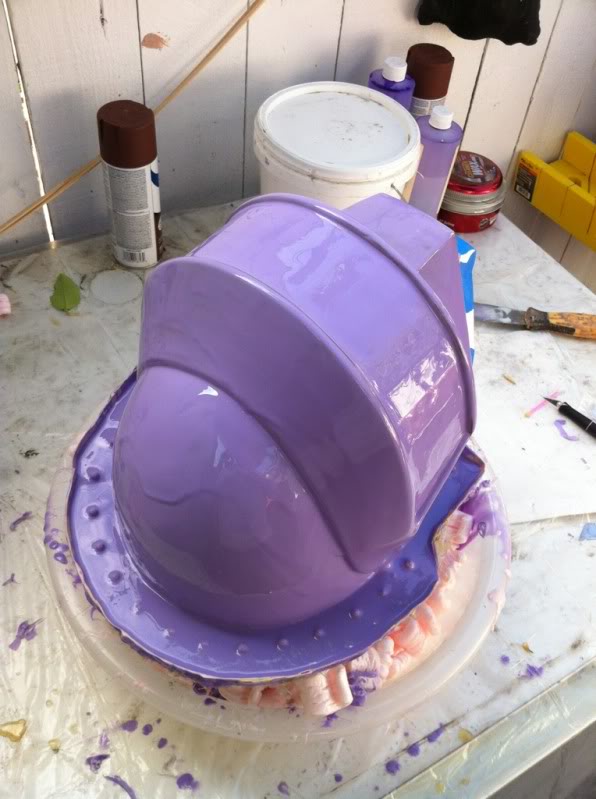

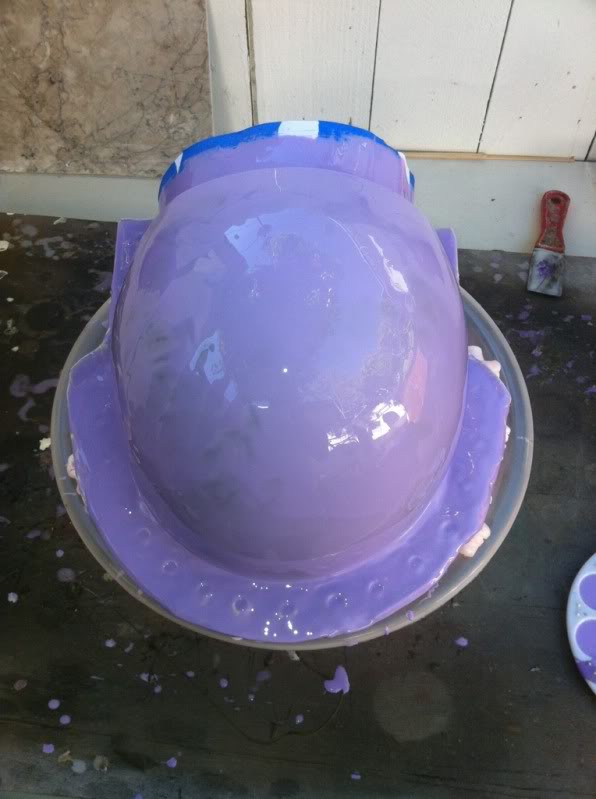

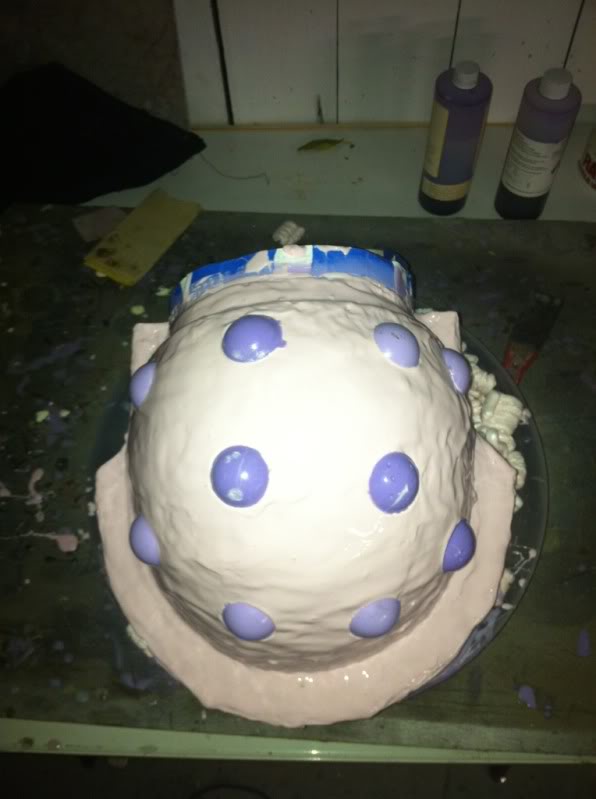

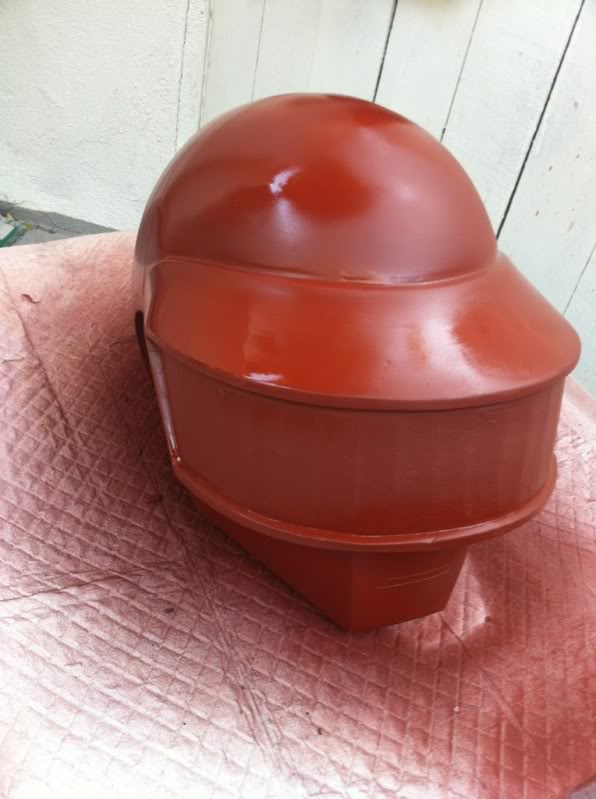

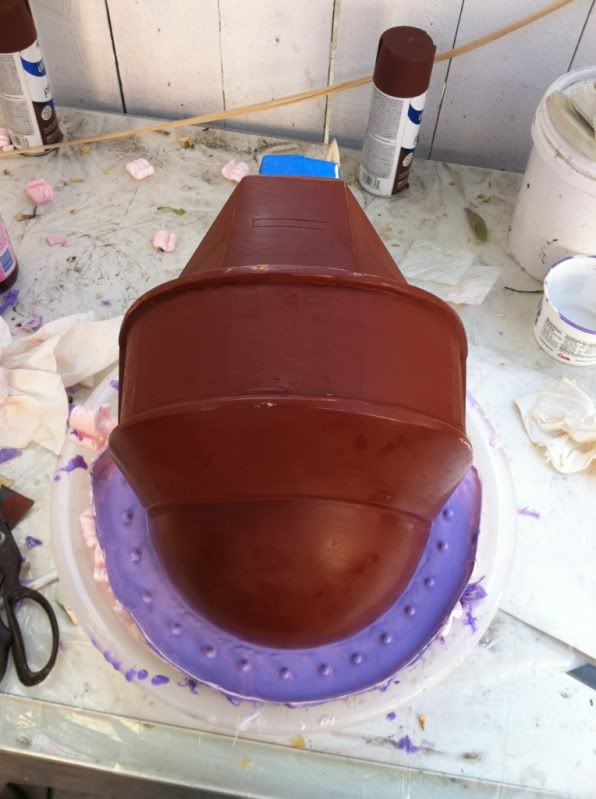

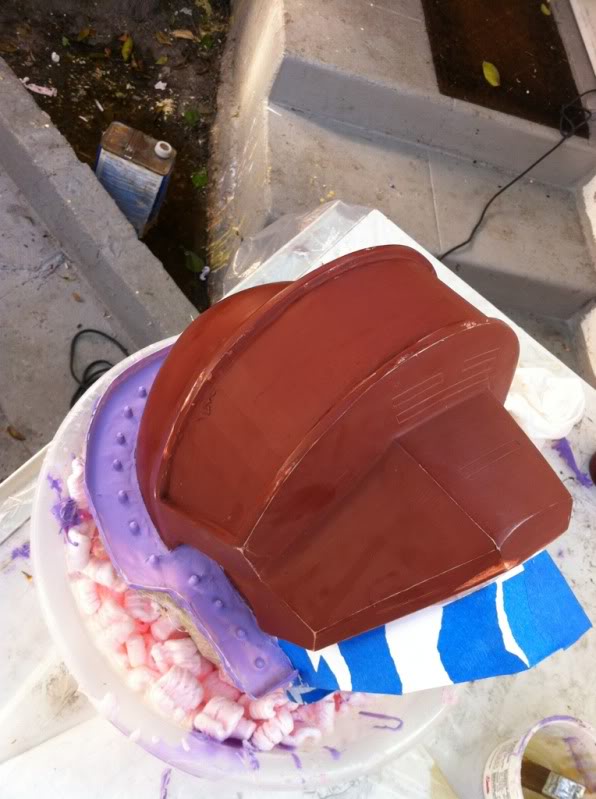

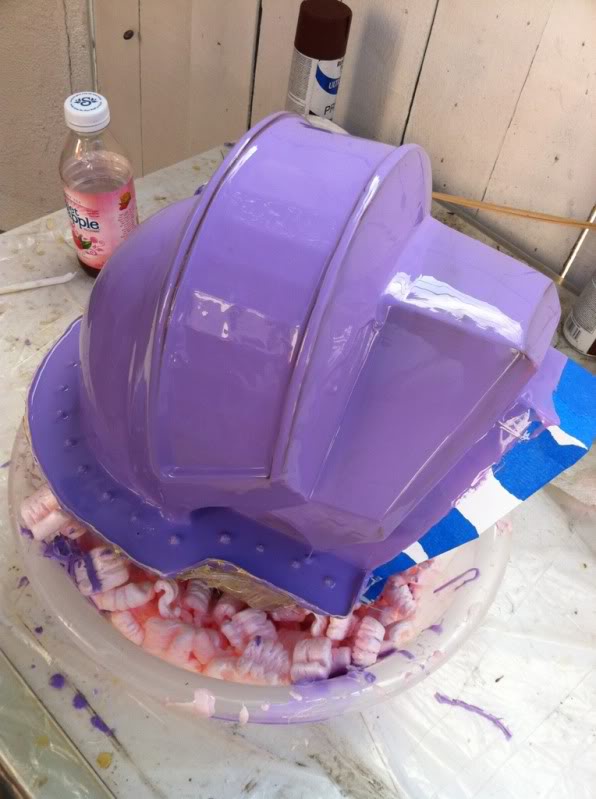

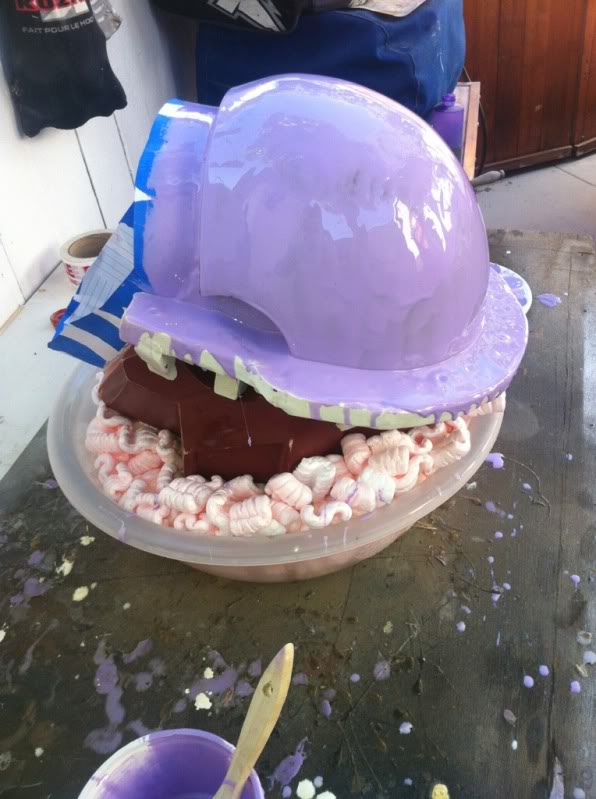

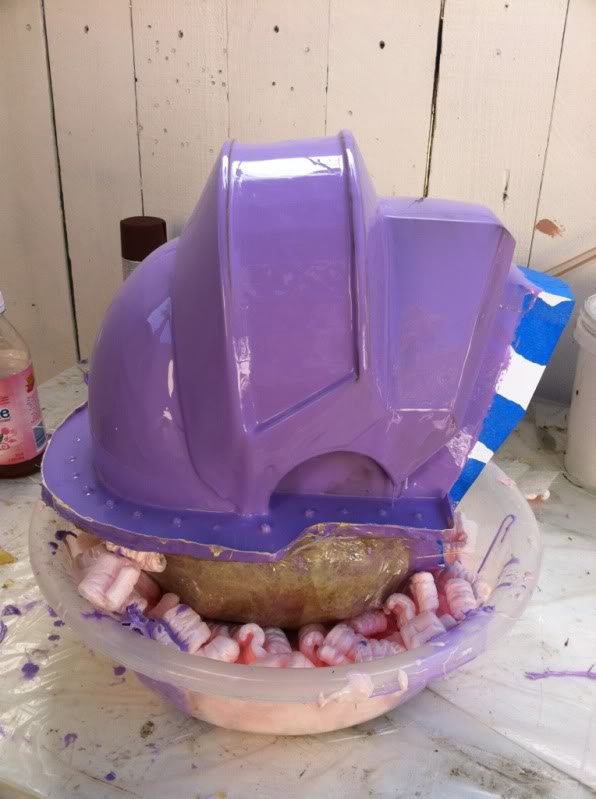

Almost ready for rubbbbbbbbeeeerrrrrrr!!!!! Yessss!!!!


Mrpinski

Jr Member

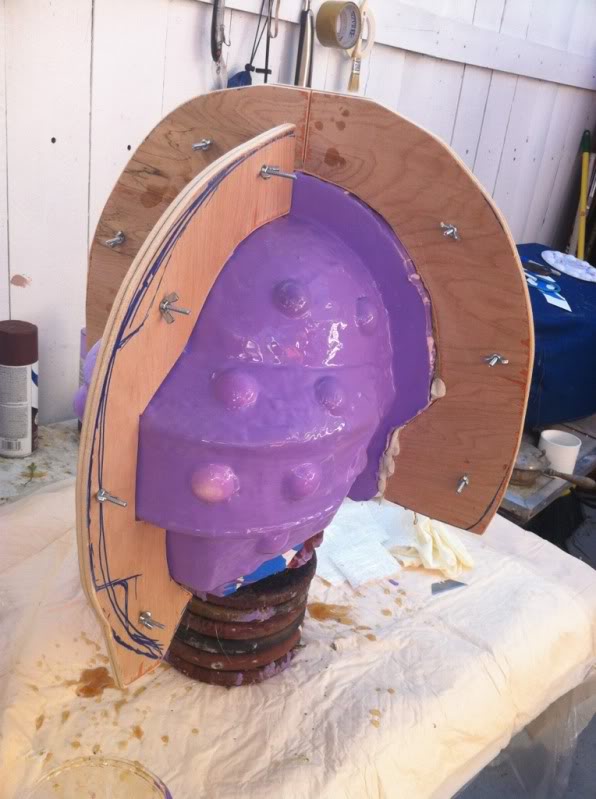

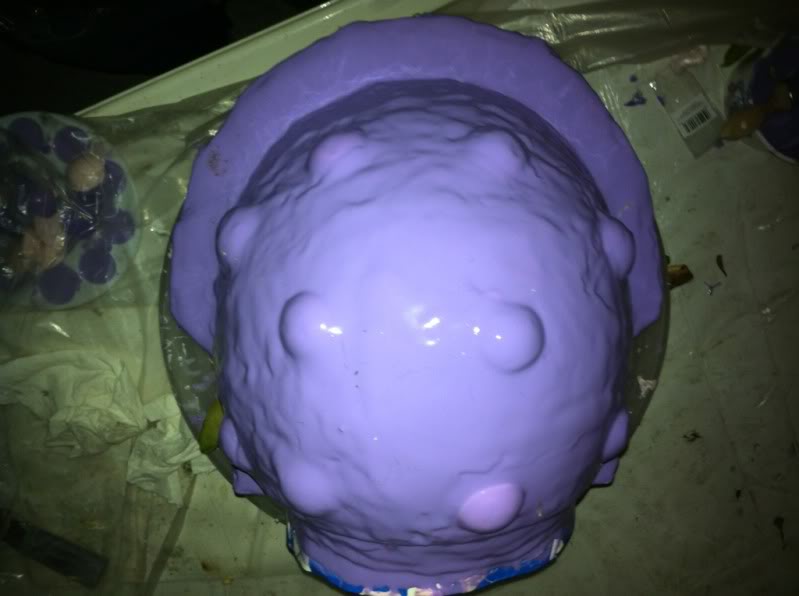

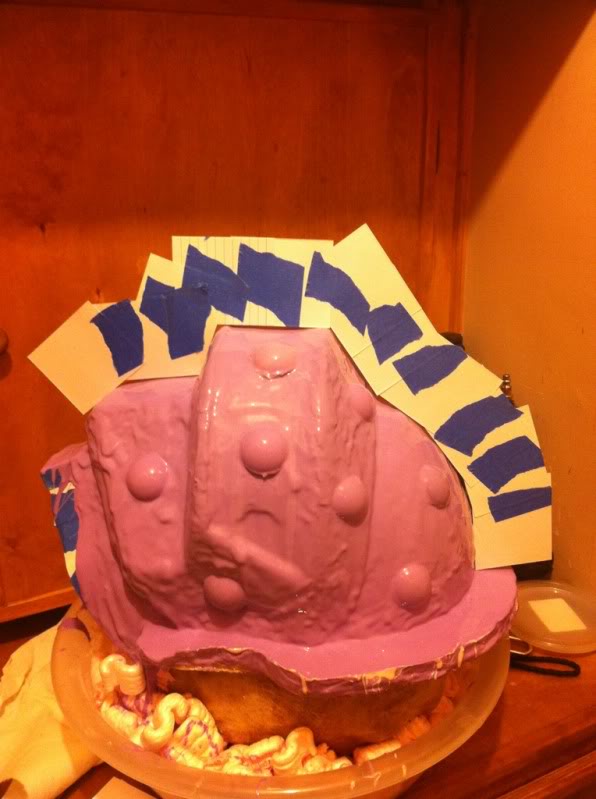

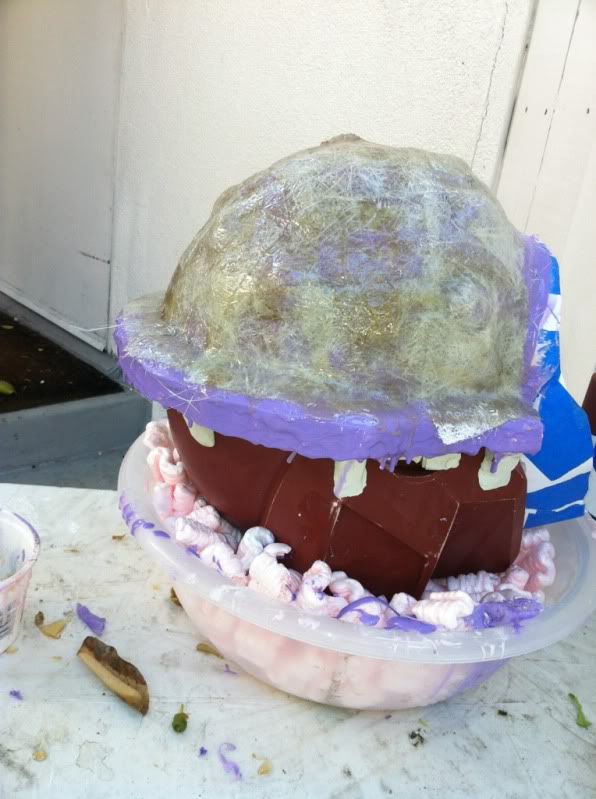

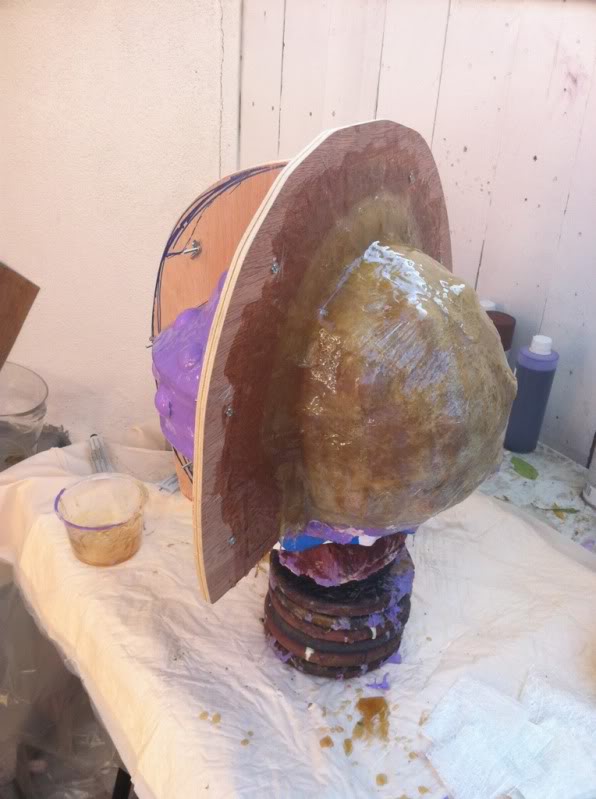

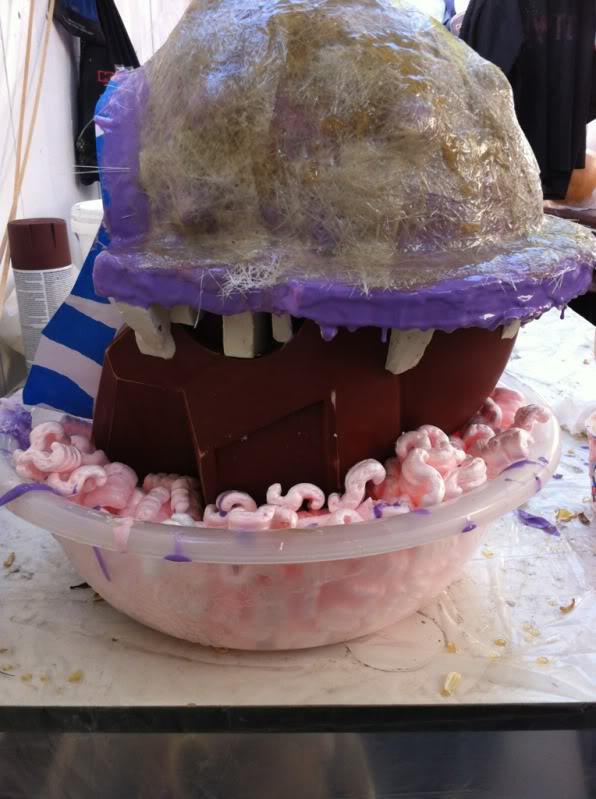

Made my templates for my mothermold sections with index cards.... I know I know... High tech ;-)

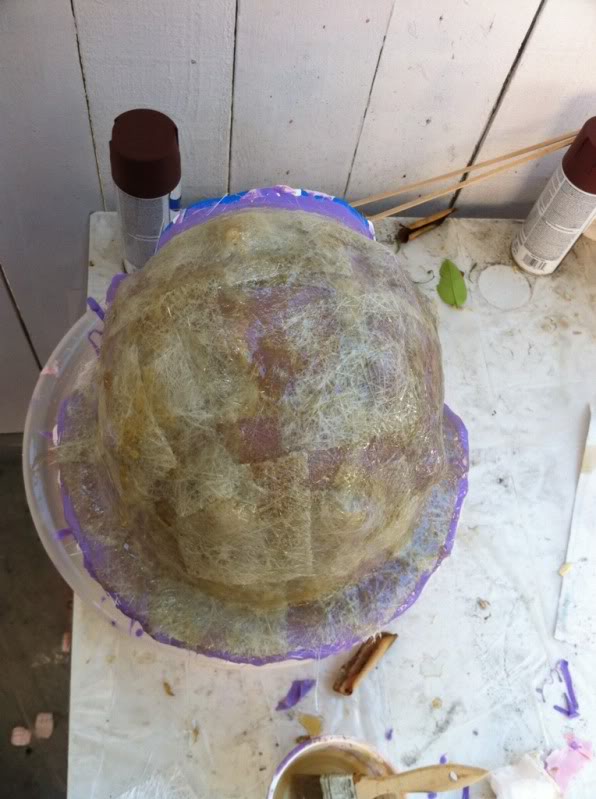

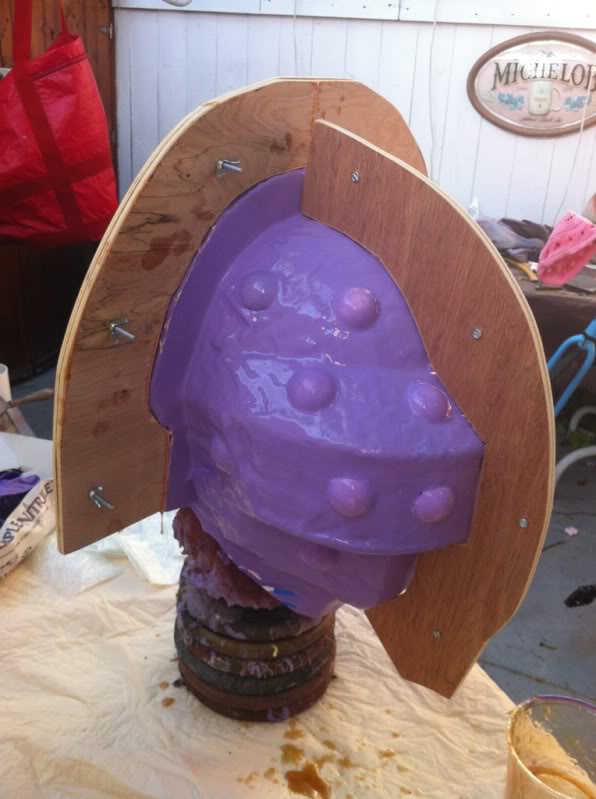

Traced it out onto some doubled up ply, cut it out, now the back half of the mothermold is done!





More to come soon.


Mrpinski

Jr Member

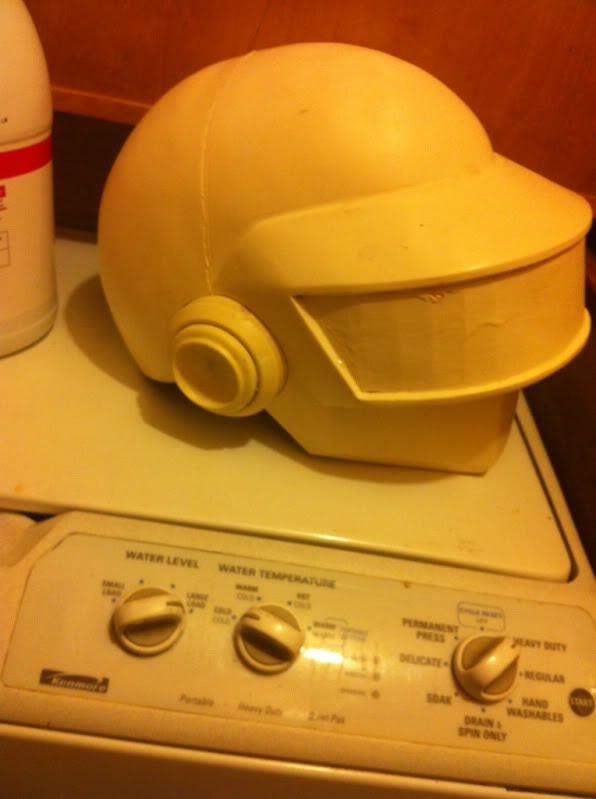

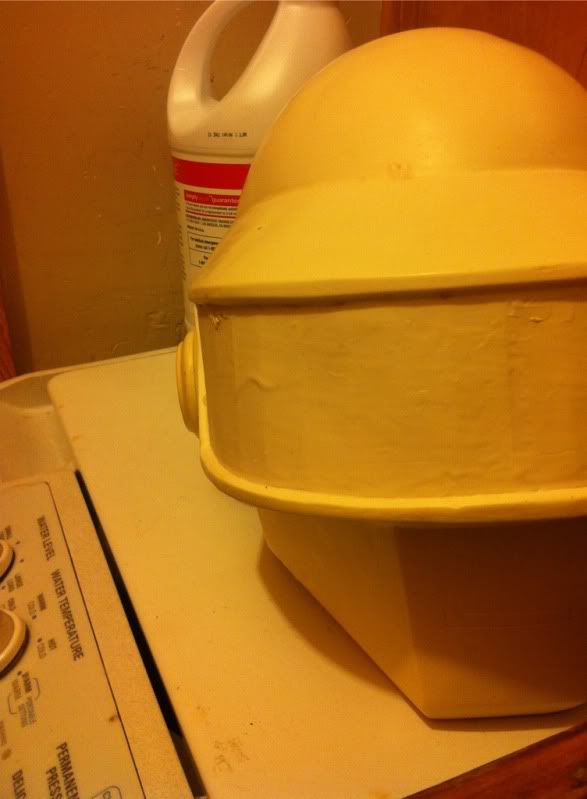

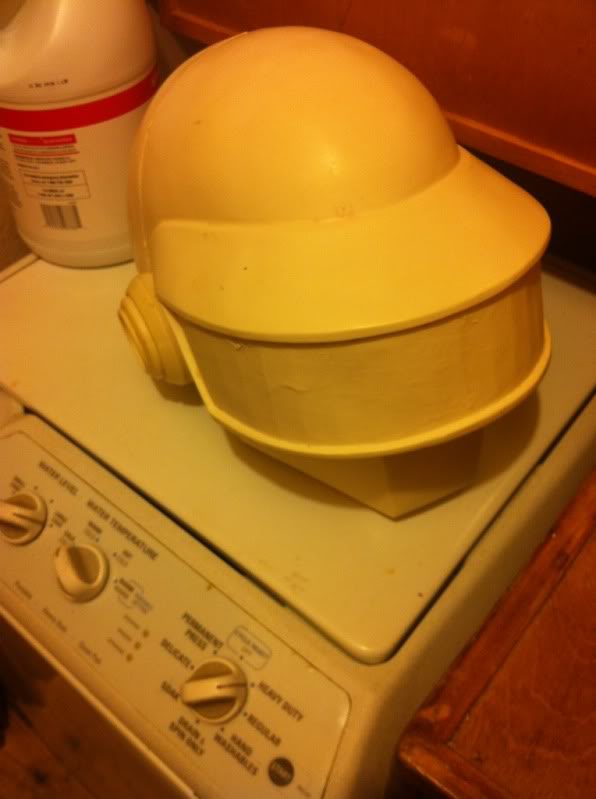

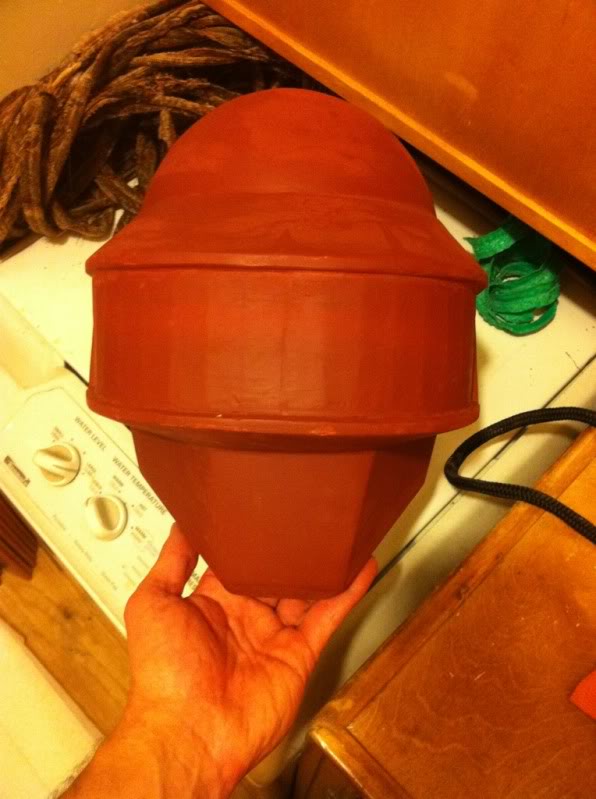

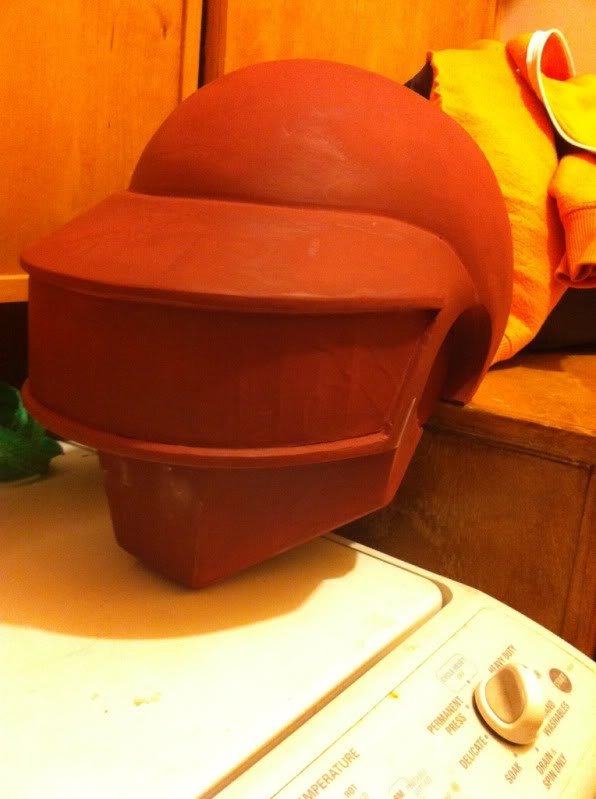

Test helmet pull.

It's got some small divots here and there but it's not bad for my first two part mold I think...
