Hello, Since I have been MIA on building props or being active on here, I figure it was time to slowly crawl out of the hole and build something. That something is another Flamethrower from Halo 3. First thing is I built a new frame for the flamethrower.

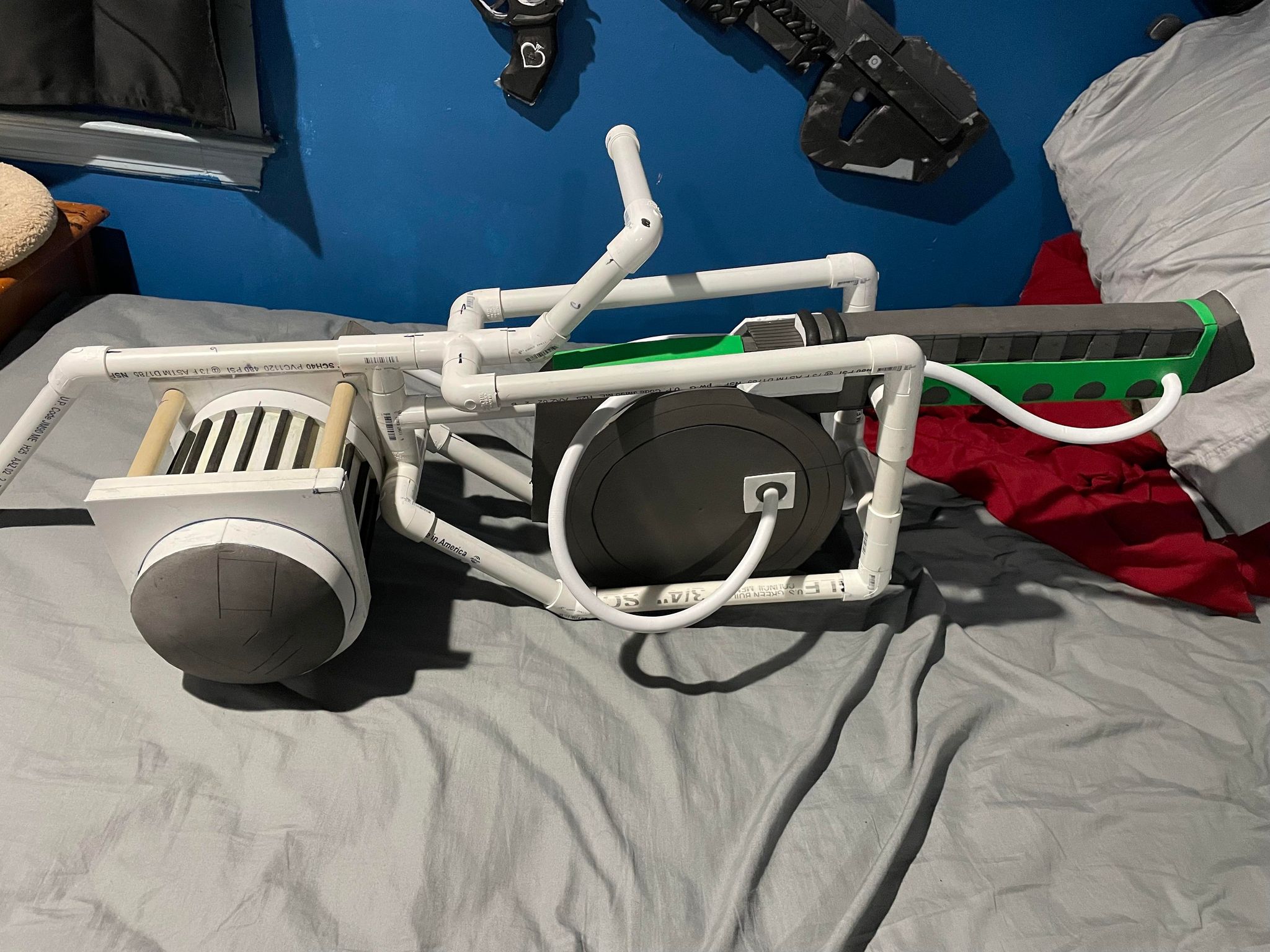

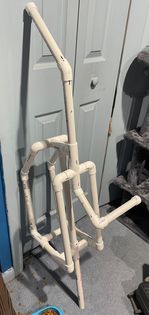

I used 3/4 inch PVC pipe for the frame.

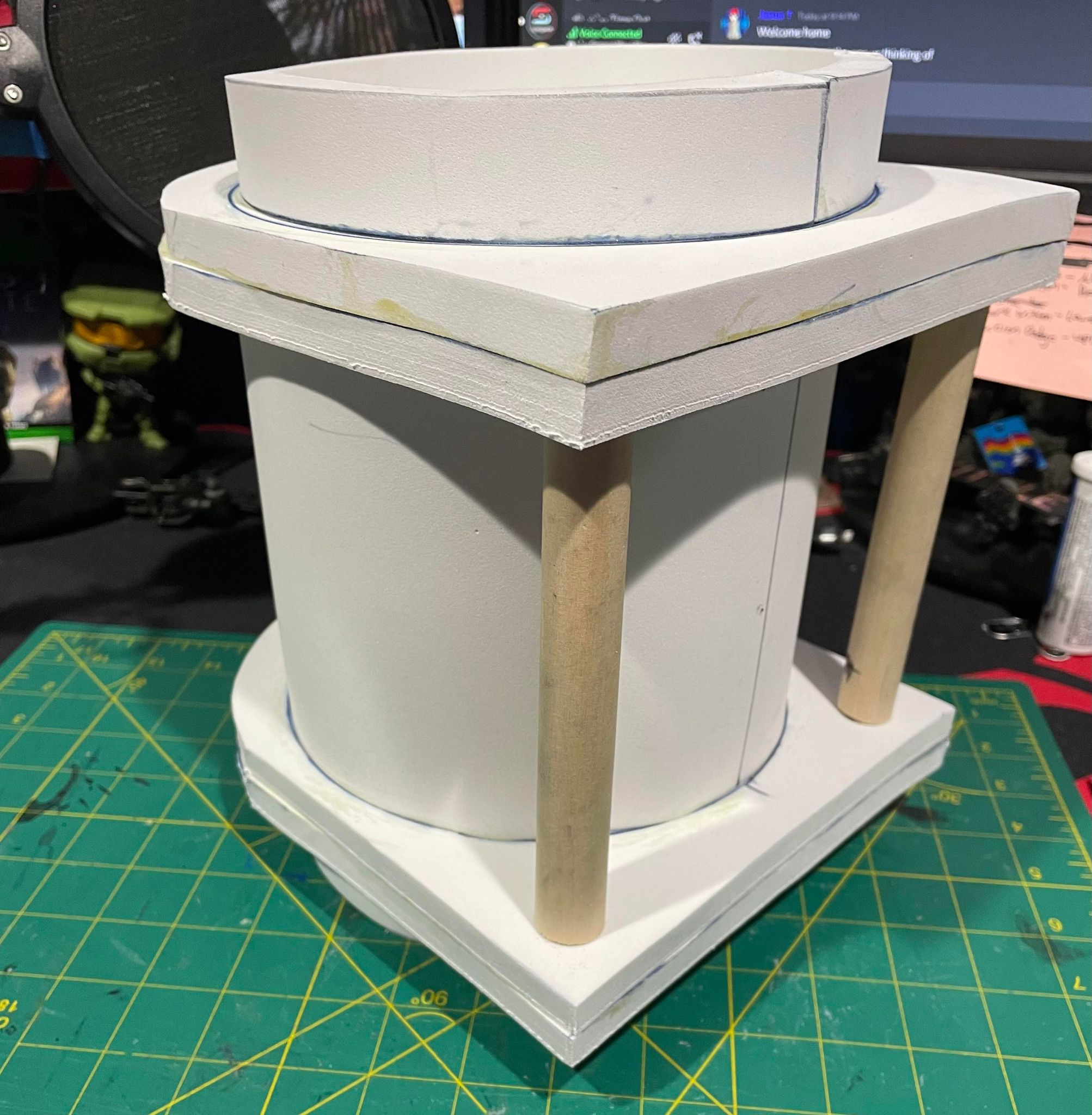

Then I made this part for the fuel canister and used a bowl as a go to for lining it up.
This will be the inner part of the canister. It is 5.5 inches wide.

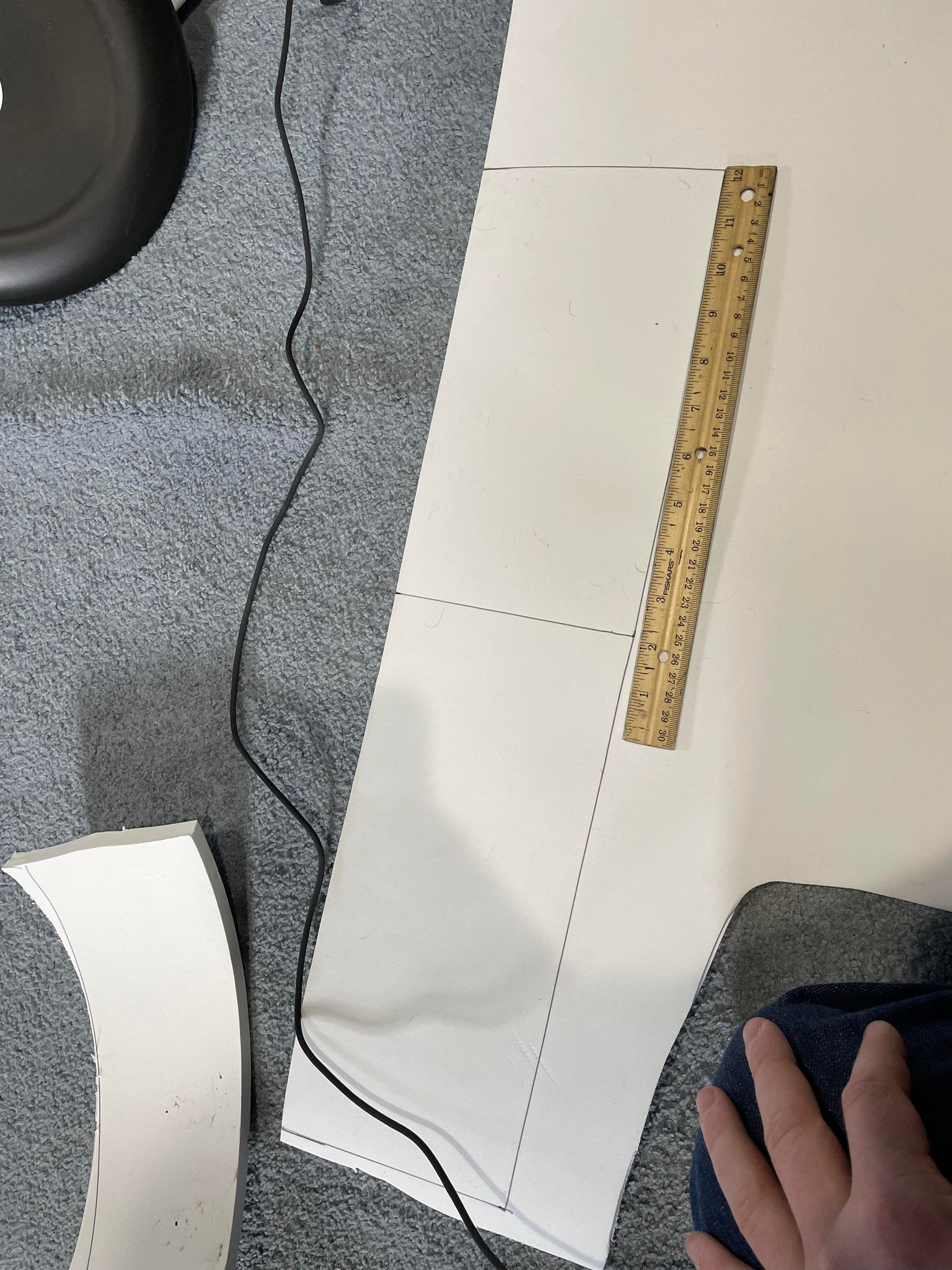

Once I made the inner part I made the outer parts with 1 inch tall on both sides.

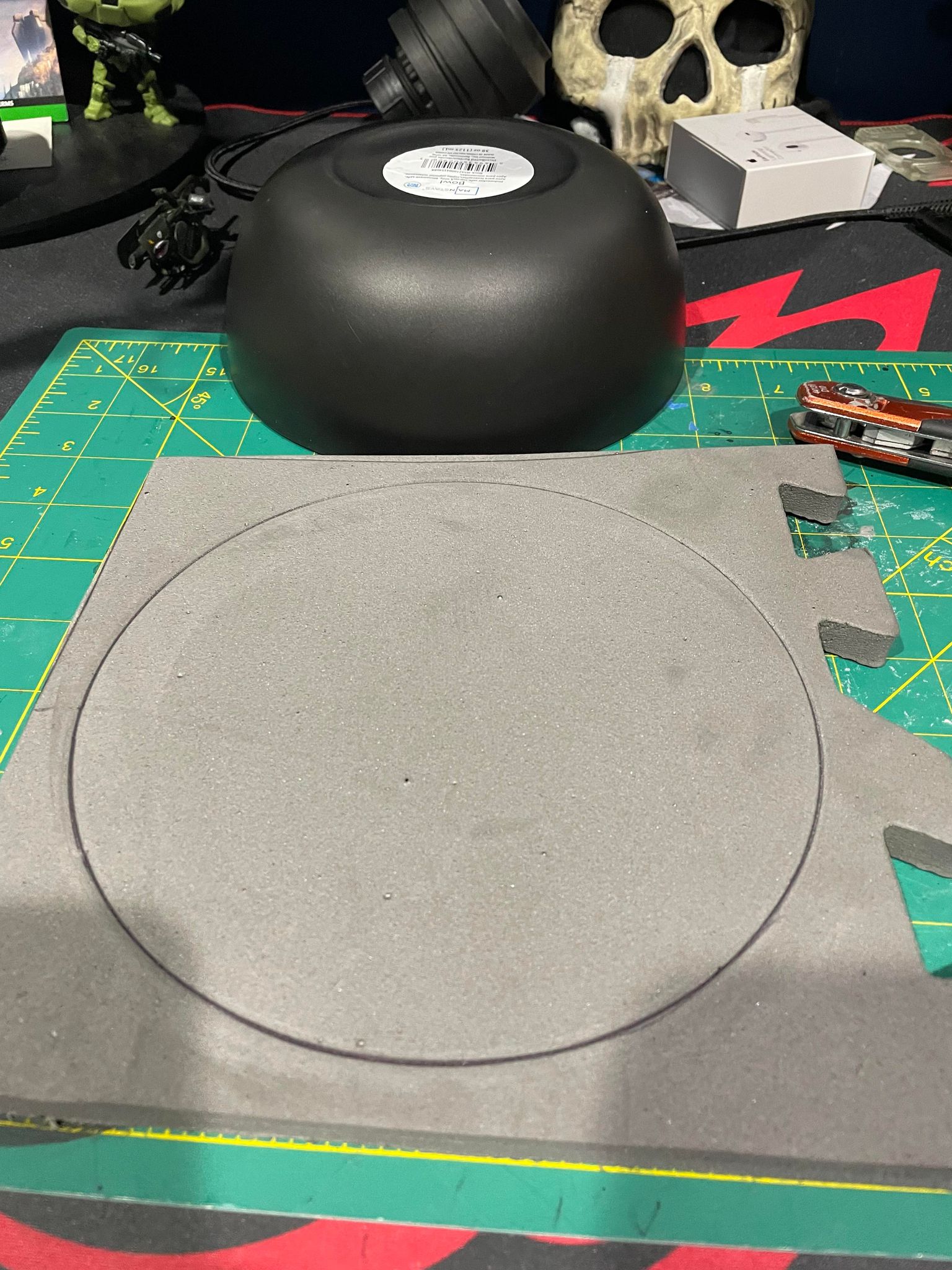

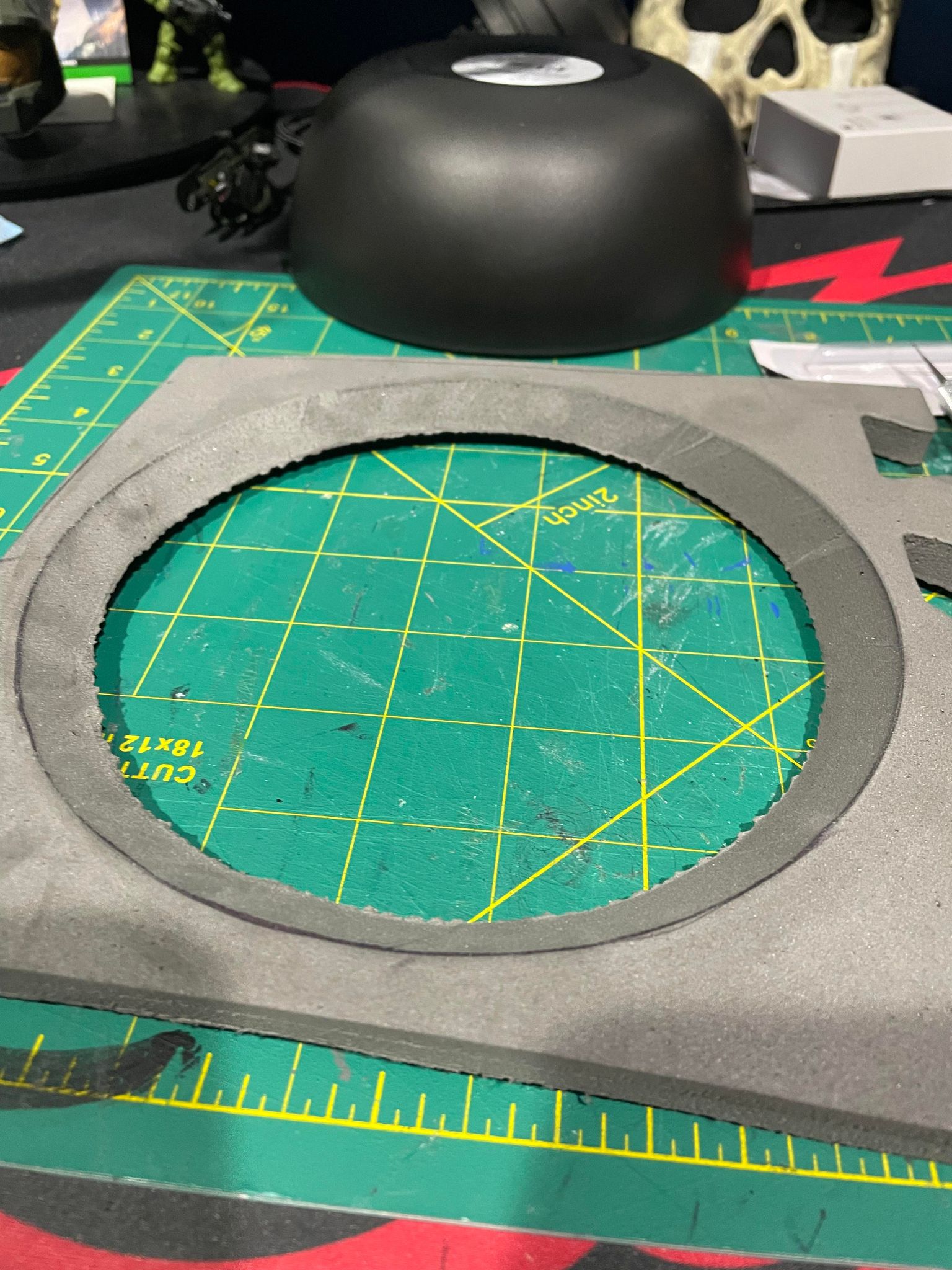

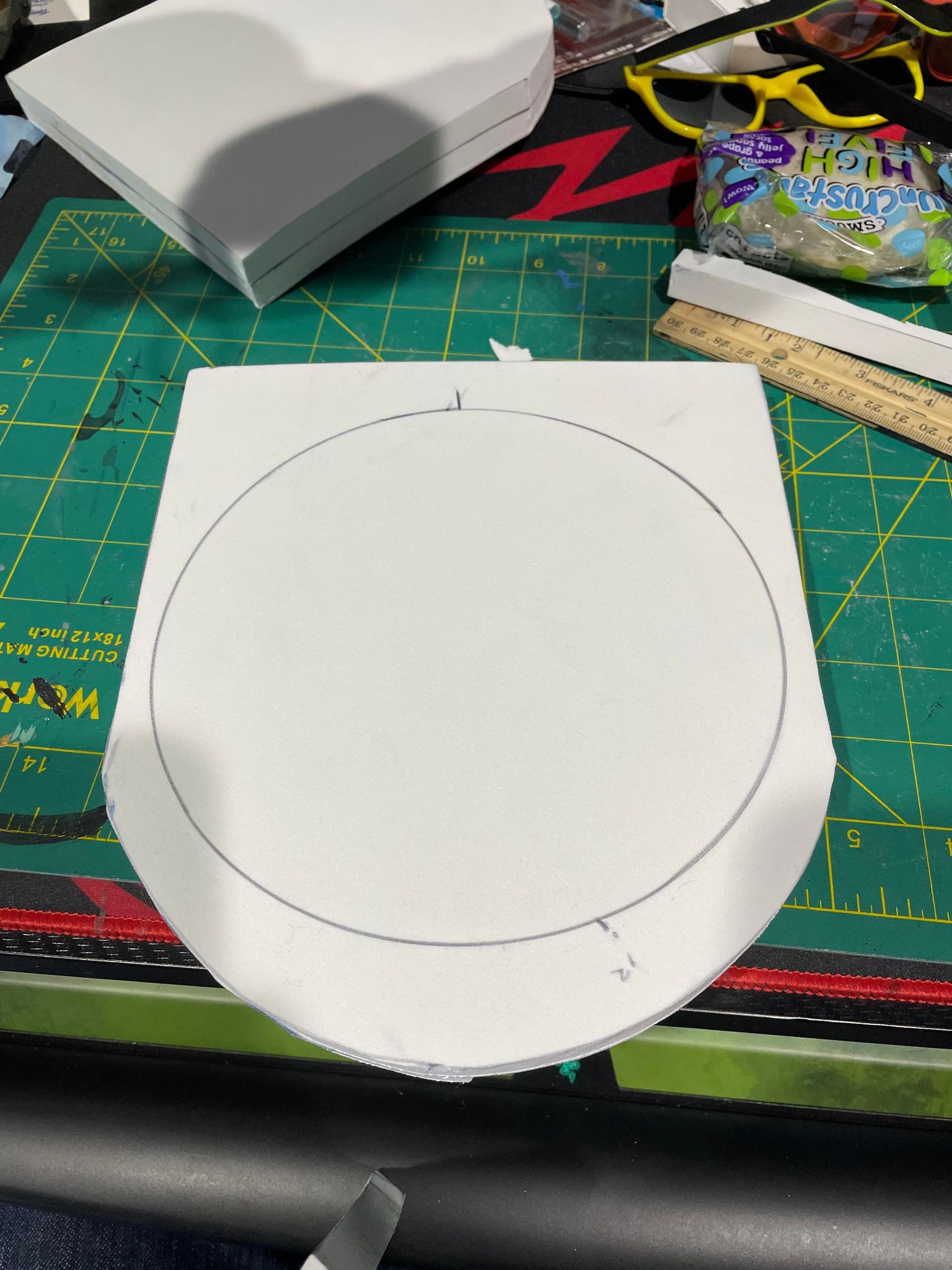

Once again I used a bowl to trace it out. You can get a cheap bowl from Walmart.
I cut it at a 45 degree angle

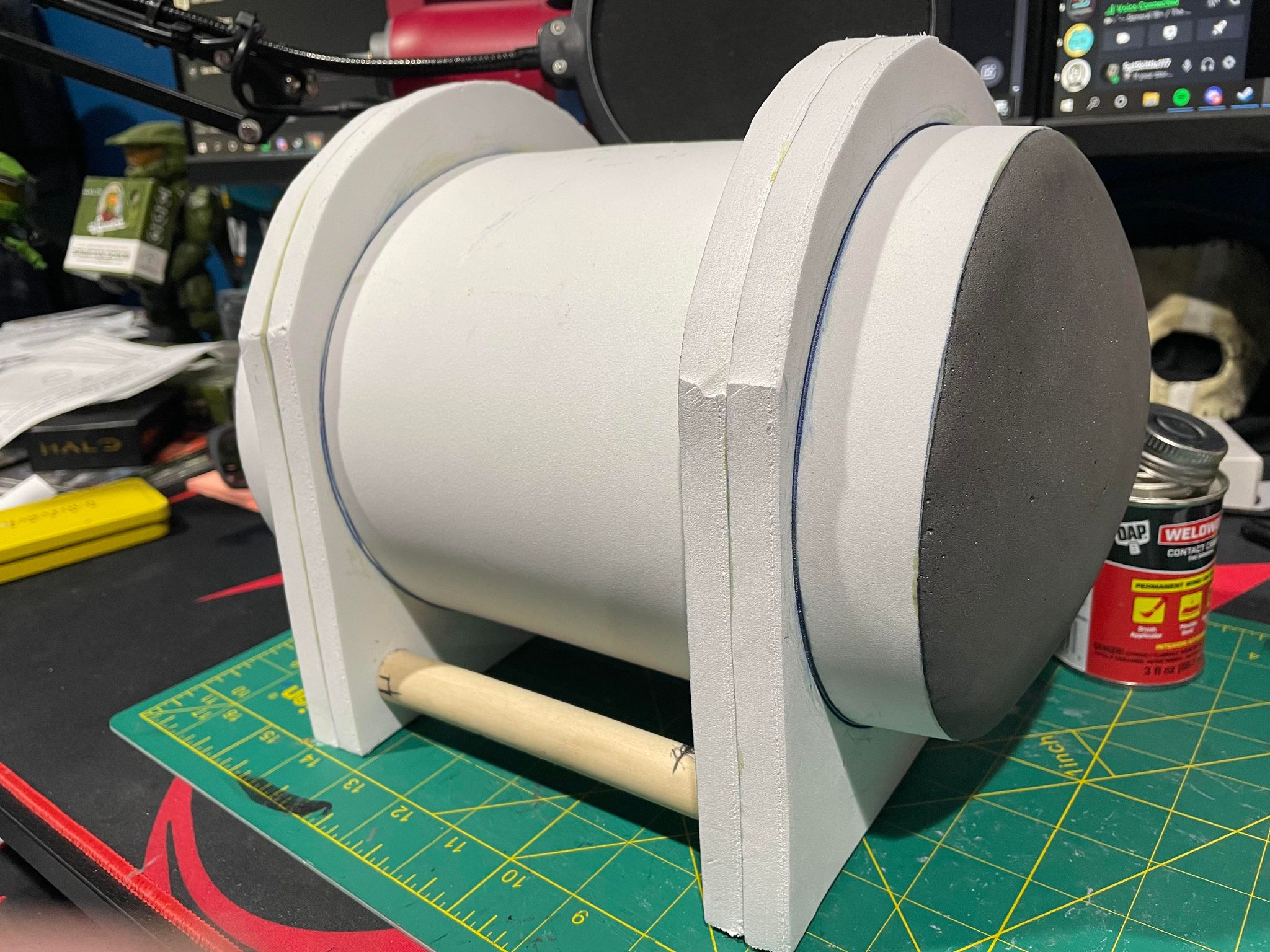

. 6.jpg
Glued it on to both sides.

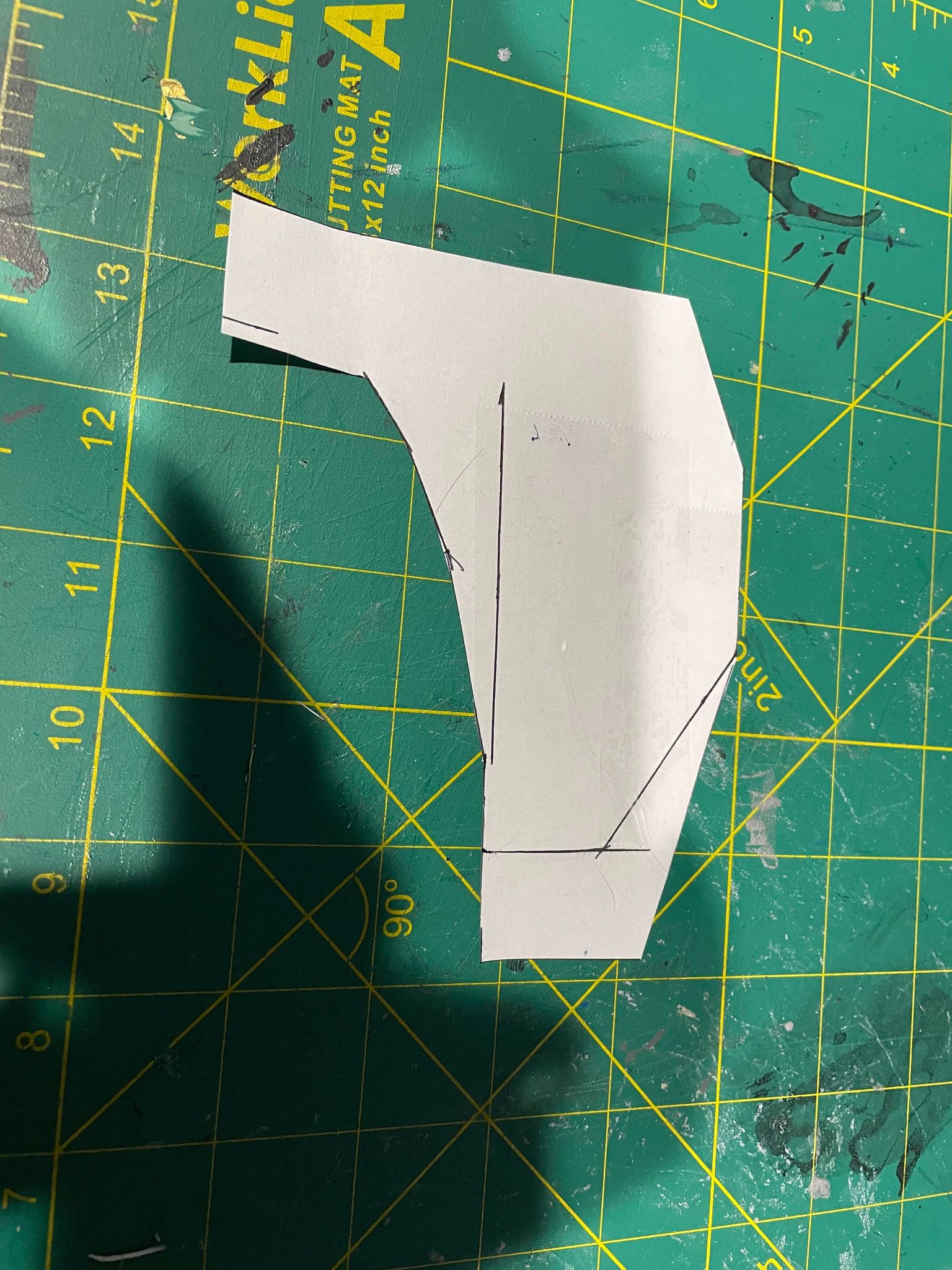

I kinda eyed it up from the toy and measured some of this part.

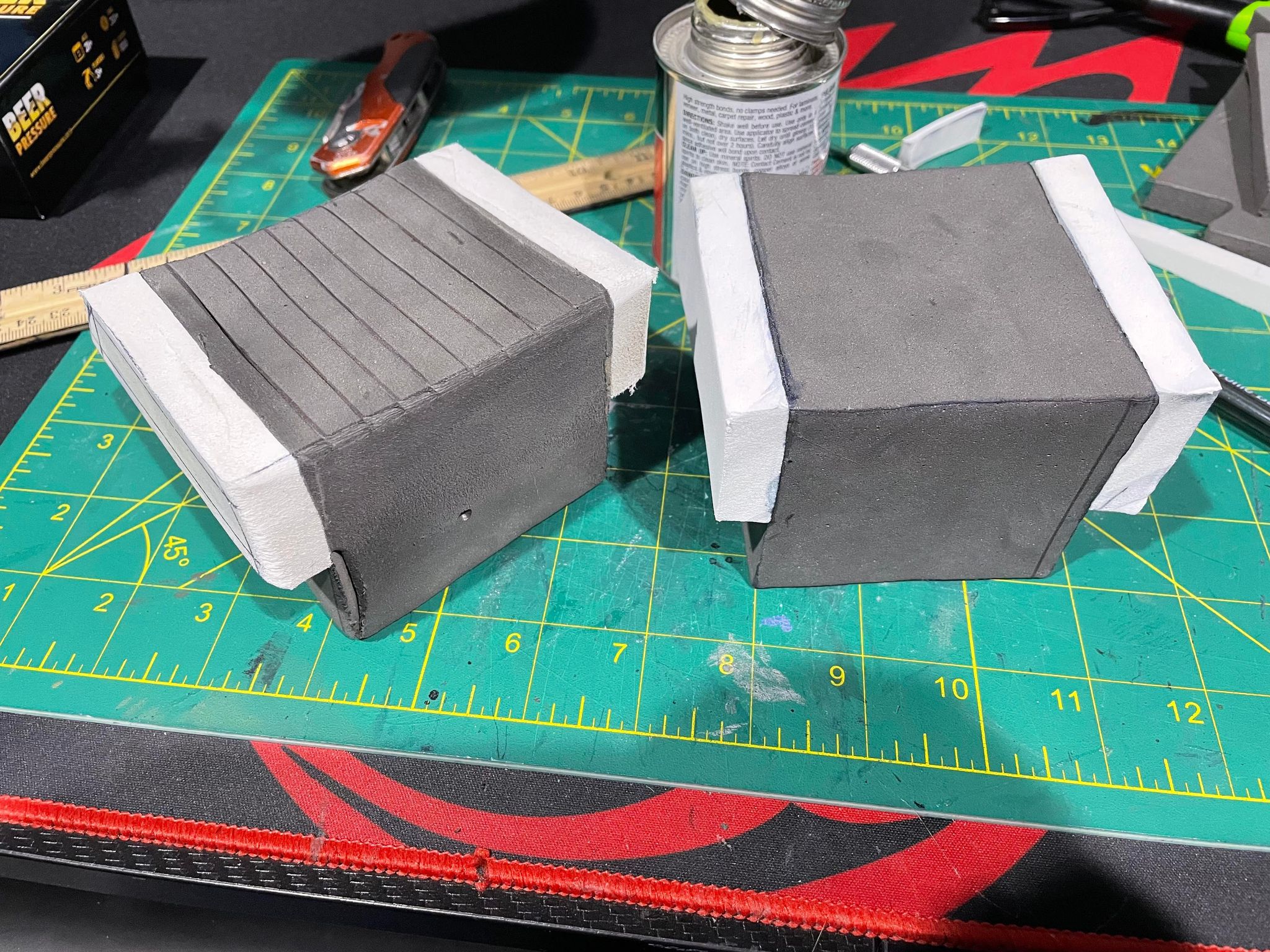

Made a couple then glued it together.

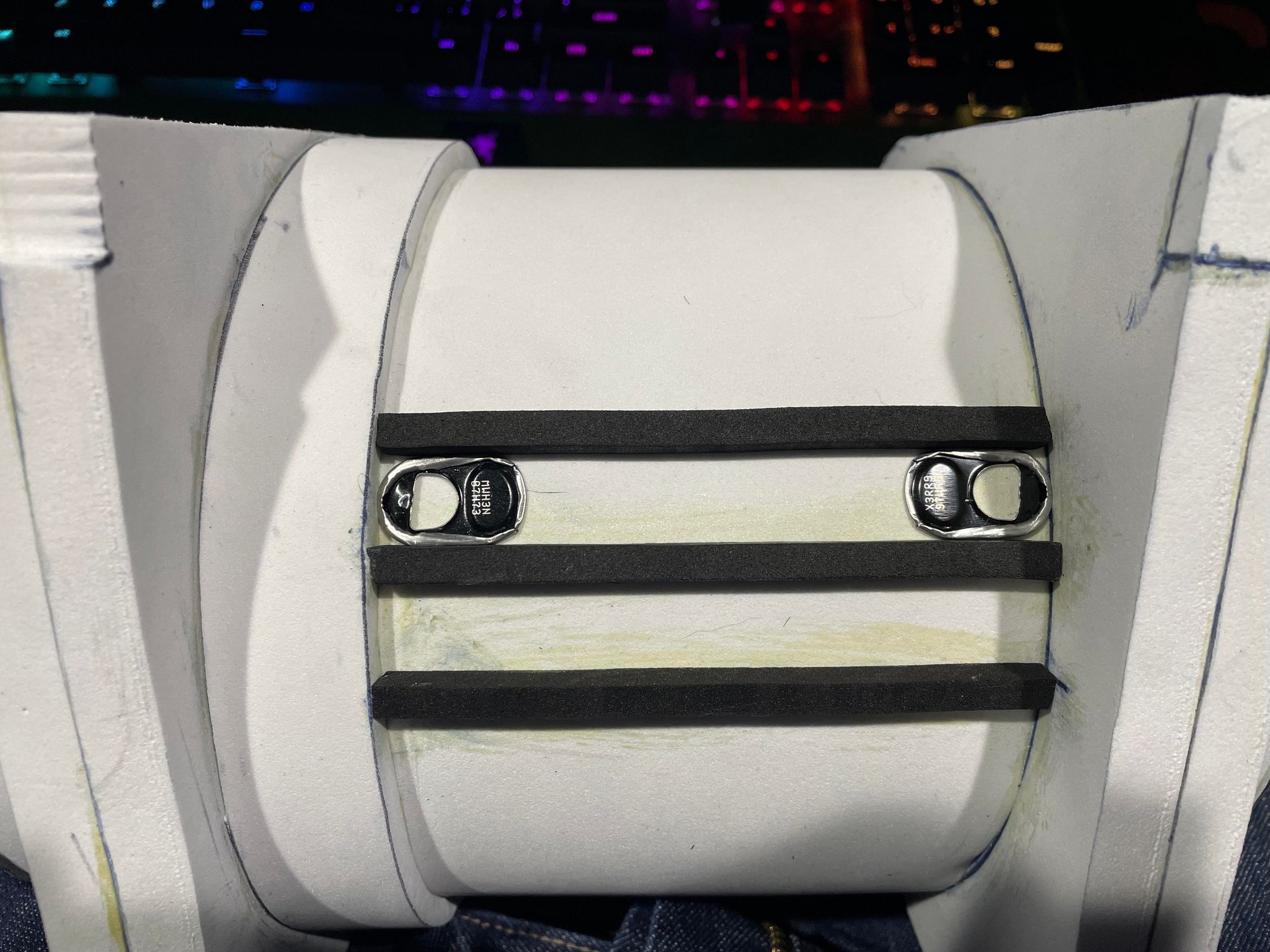

One of my friends mentioned I should use quarters as spacing but I figure I use the Rockstar tabs.

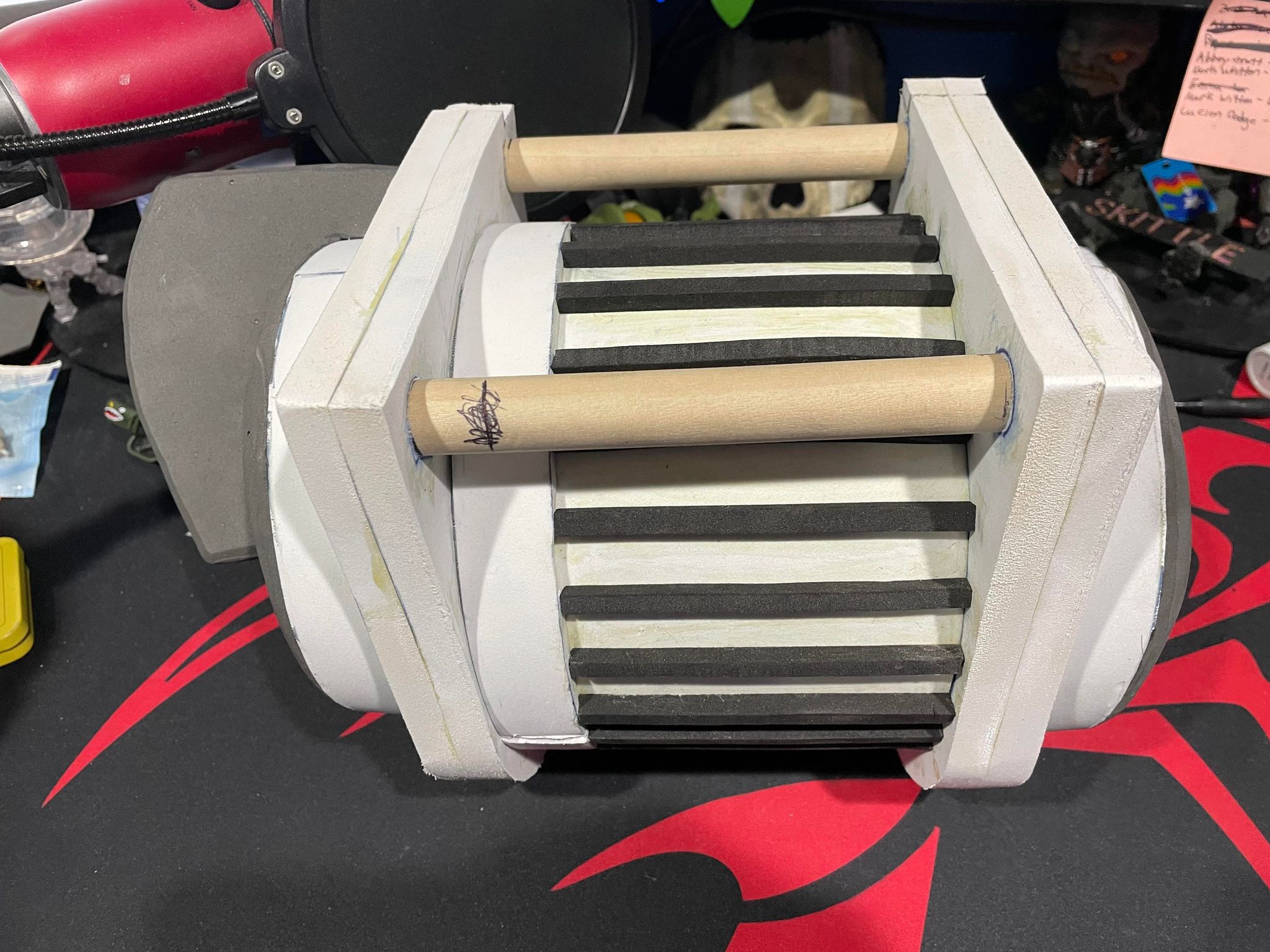

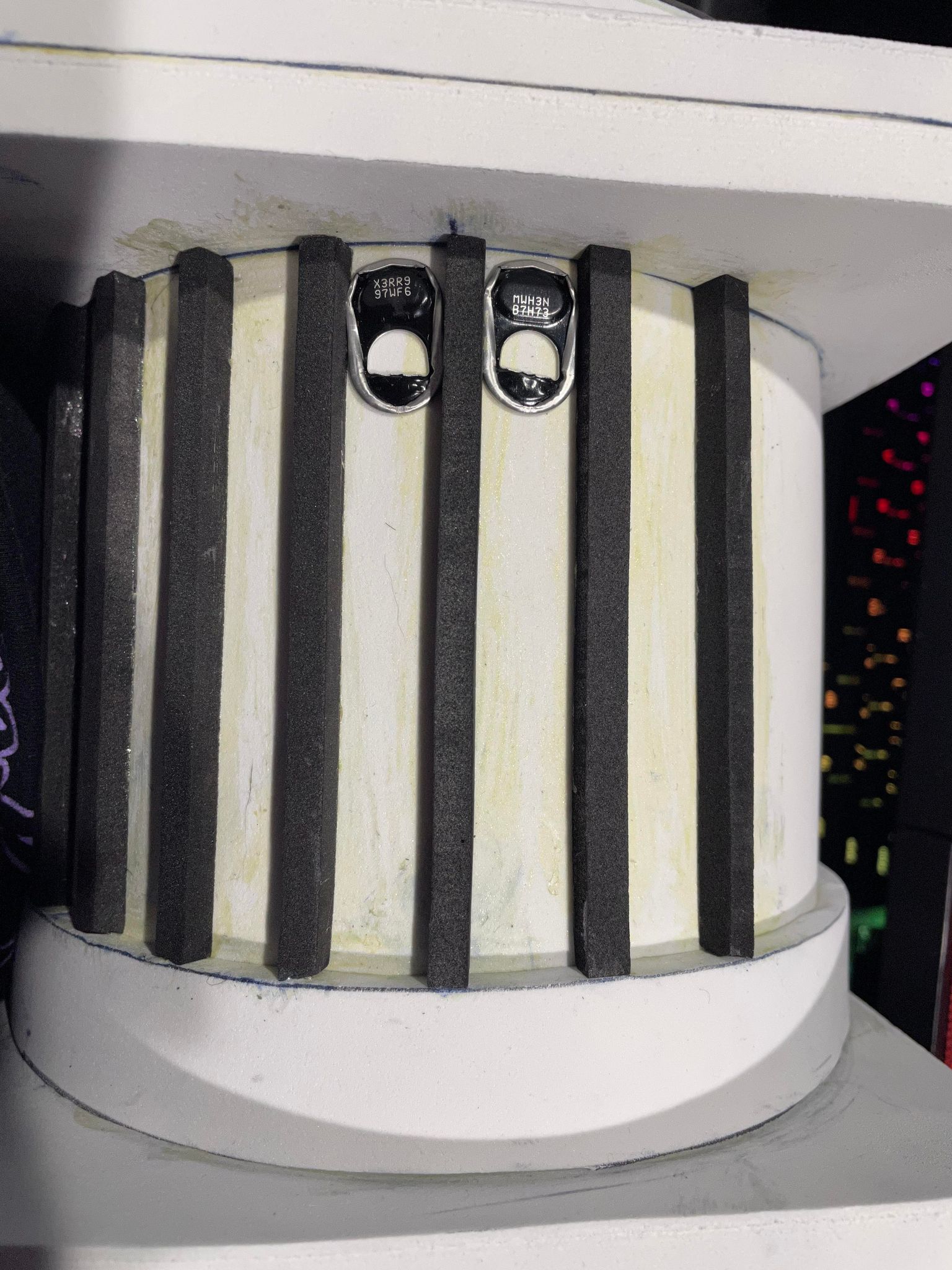

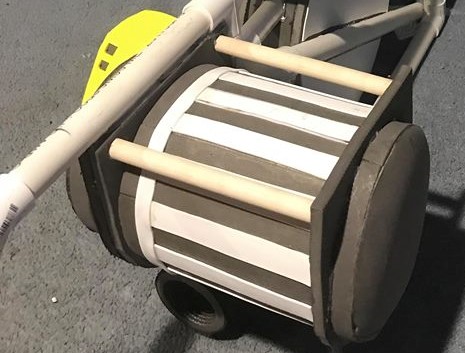

Cut 28 of these parts out to put it in.

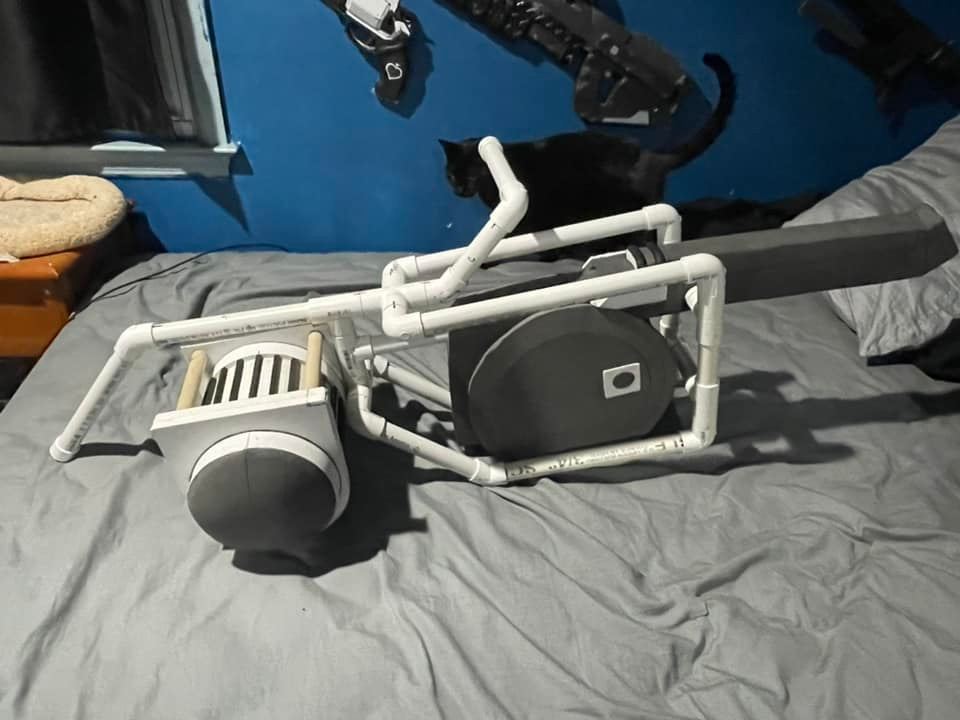

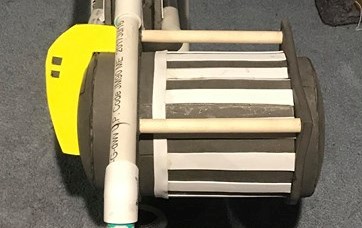

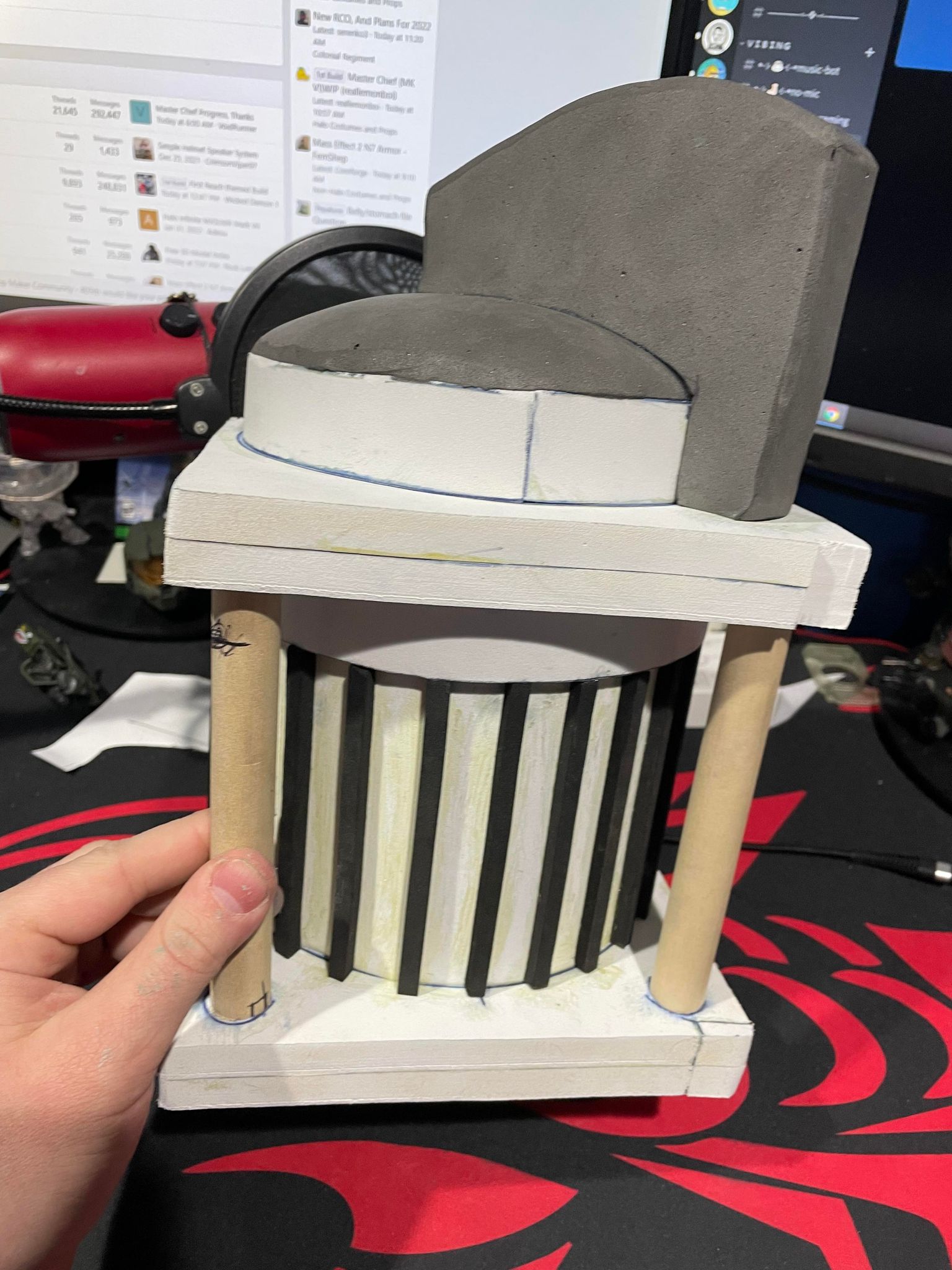

This is what its at currently above.
14.jpg 16.jpg
This is version 1.

Last edited:

SgtSkittle117

Member
Member DIN
S666

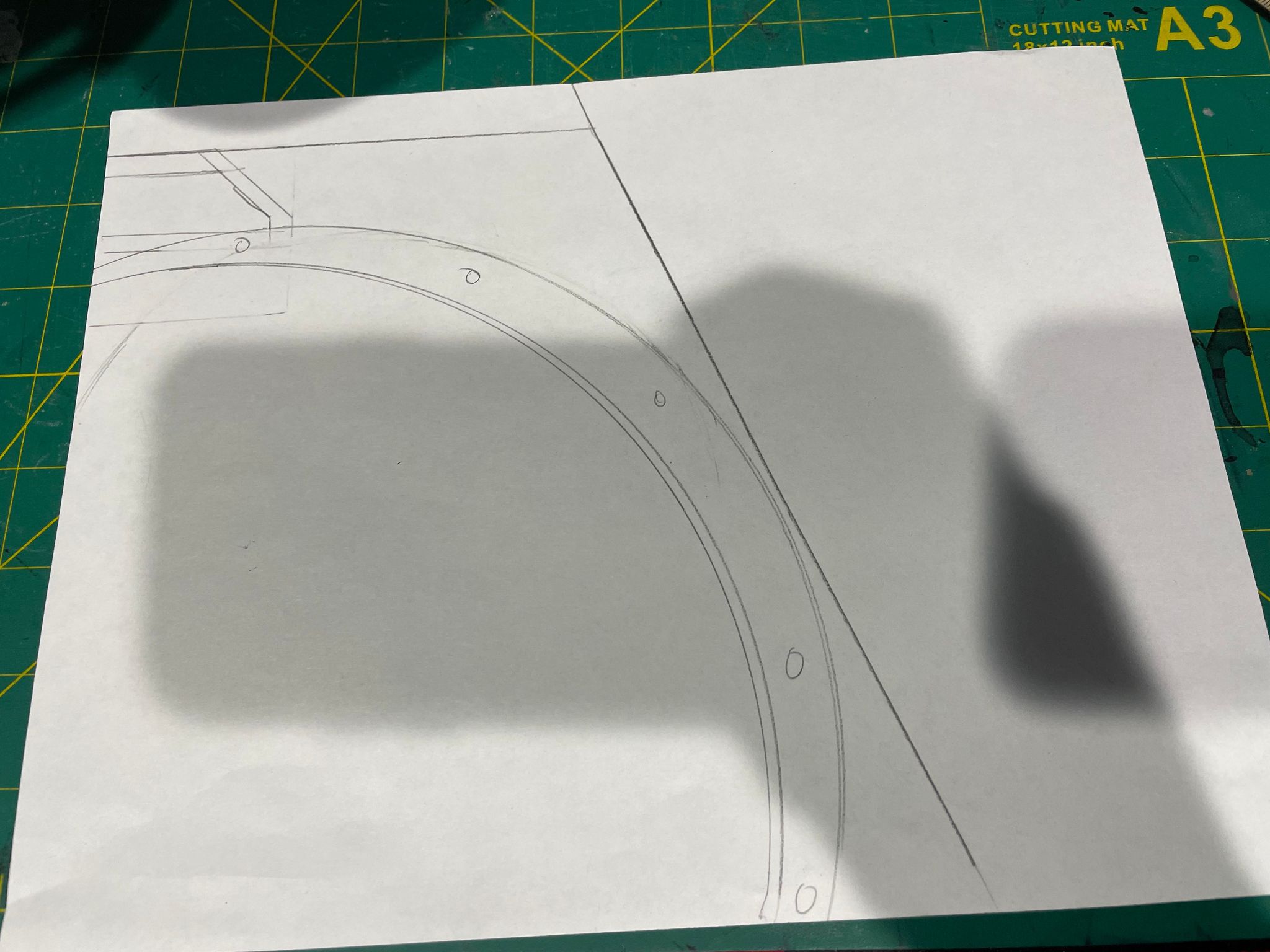

So I made a little more progress on this project. I was looking at the toy as a reference and tried drawing up so plans.
272875230_688970545447192_8351786056938344654_n.jpg 273007165_635975074352495_1495691642523428922_n.jpg

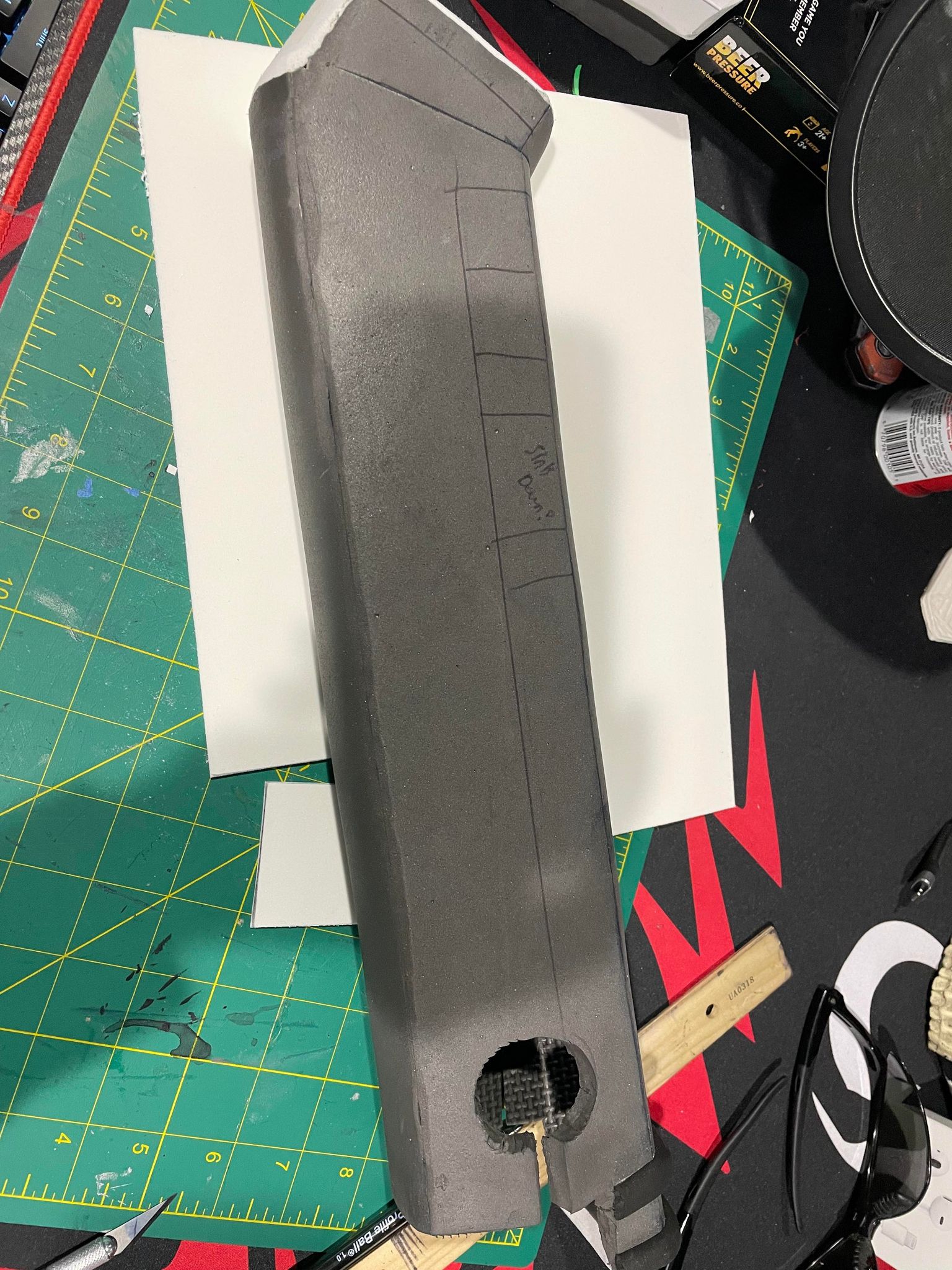

Then I made the main core of the barrel. More details will be put on later.

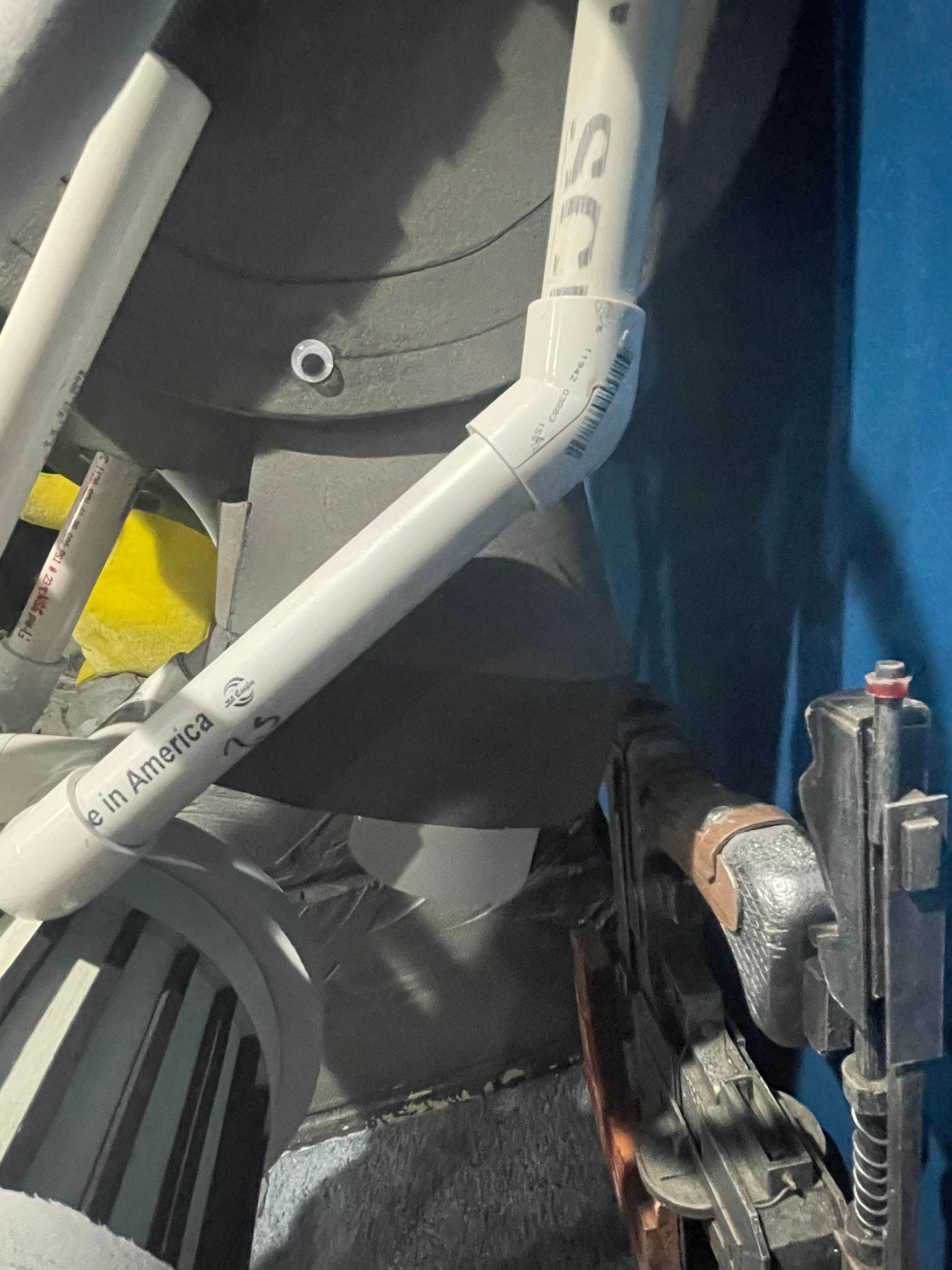

Then I made this part where the barrel and tubes meet the other tubes and round part. the one on the right was the 3rd attempted. the left was the 2nd while trying to sand some parts to not make it curved.

Last edited:

SgtSkittle117

Member
Member DIN
S666

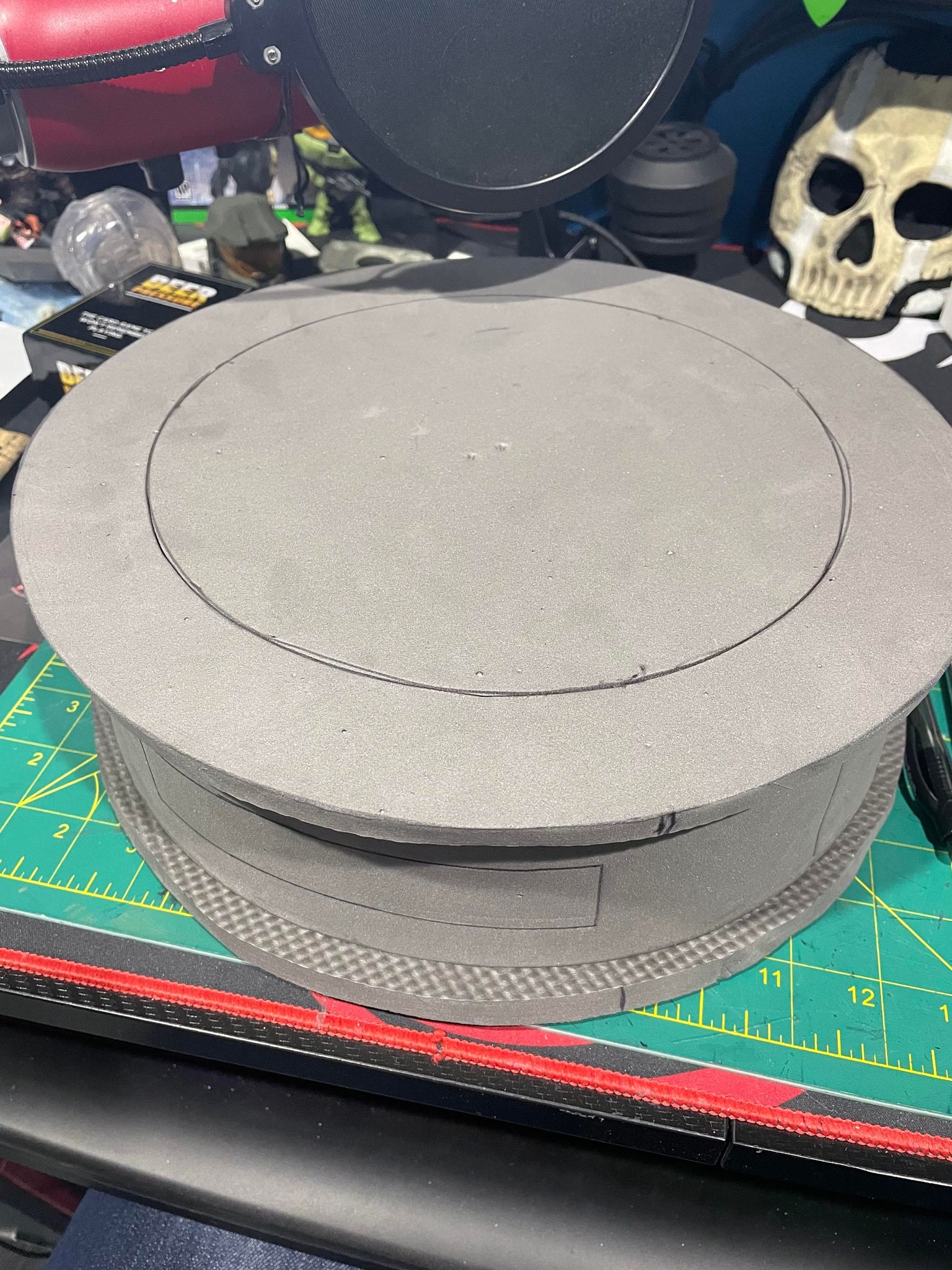

Some more progress has been made. The big round tank in the center. I had to bust out a ruler and put a smaller hole at the end to make this circle.

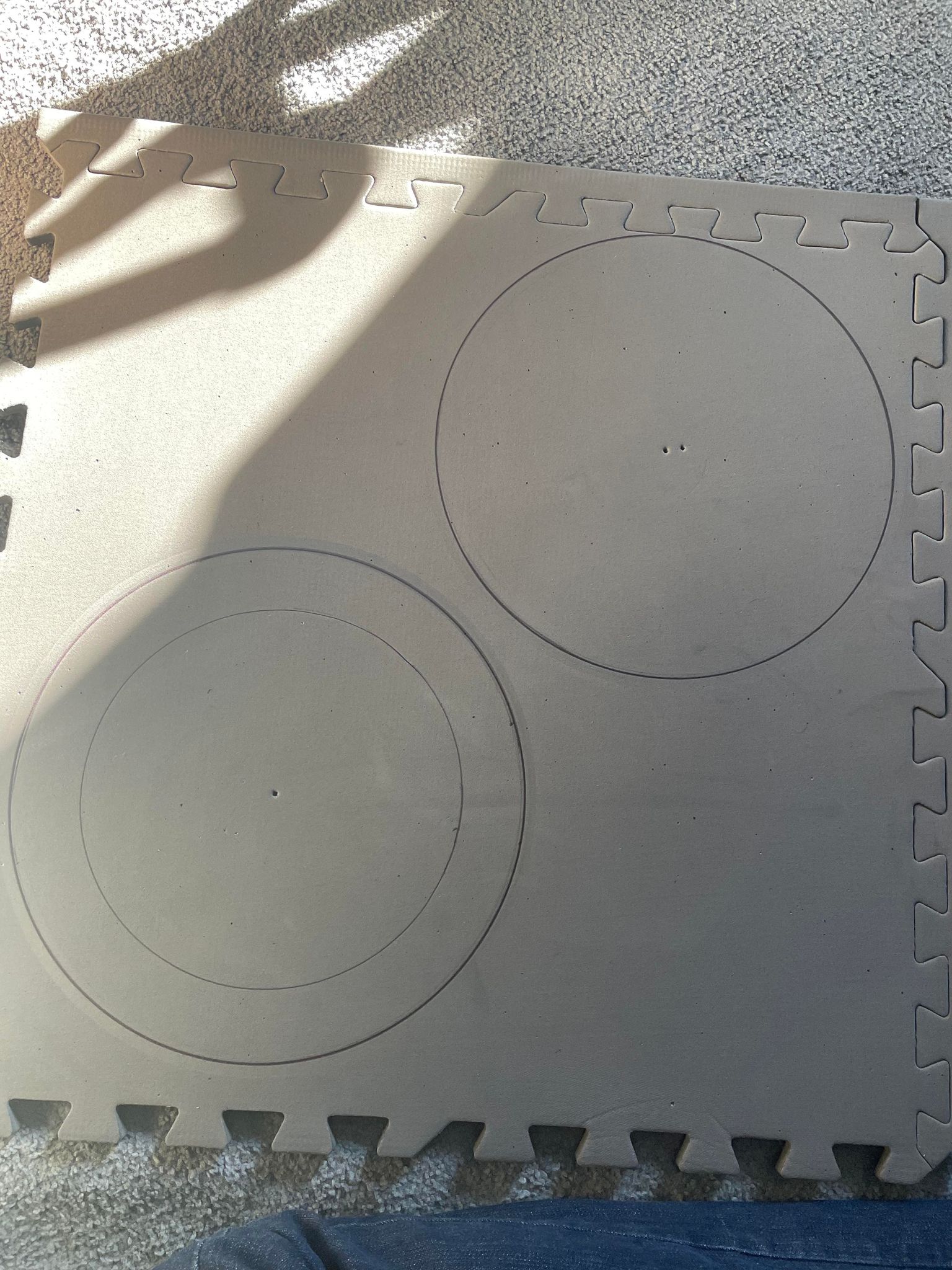

I had made 2 big circles to cut out and 2 smaller ones to make for details.

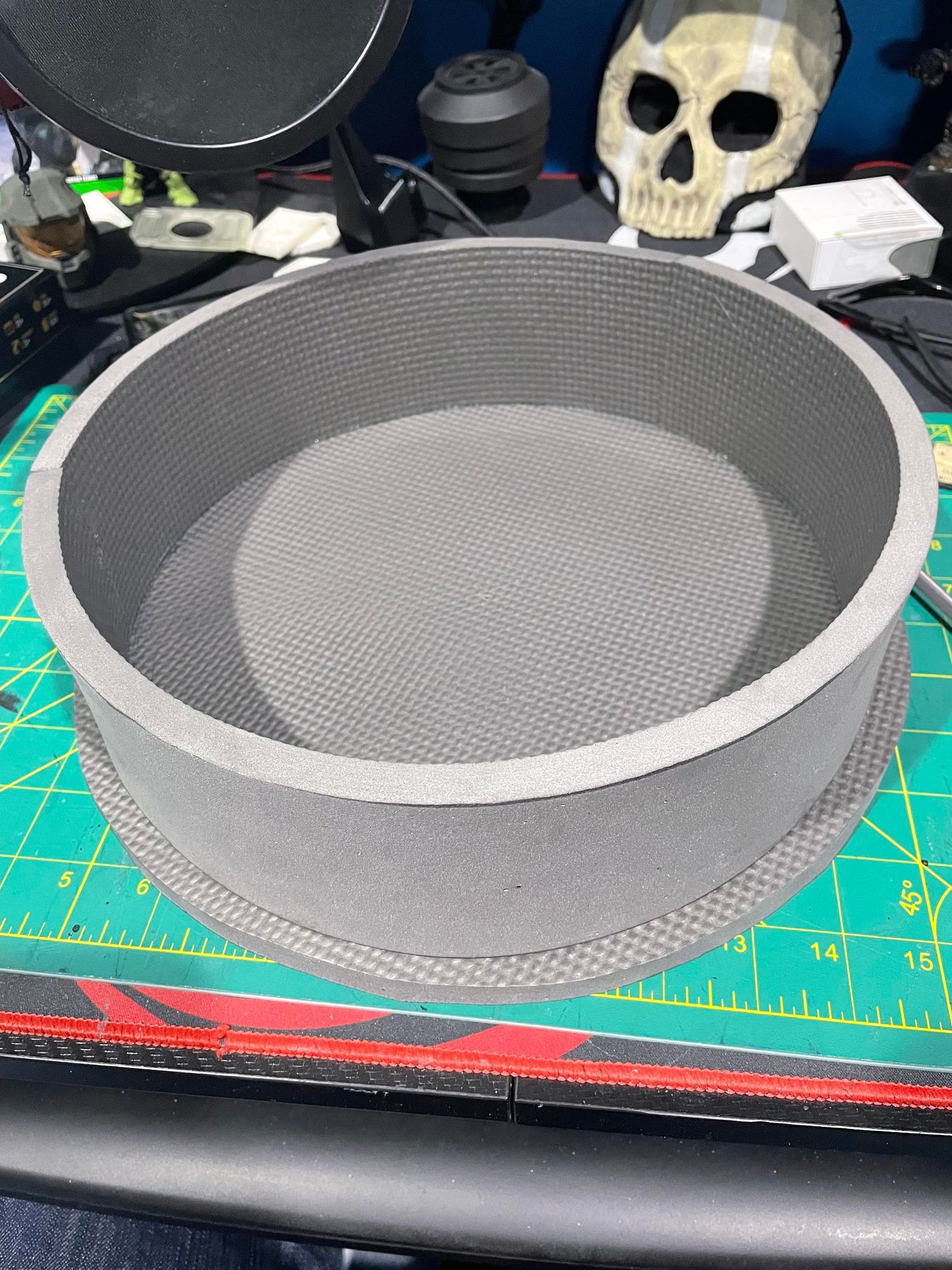

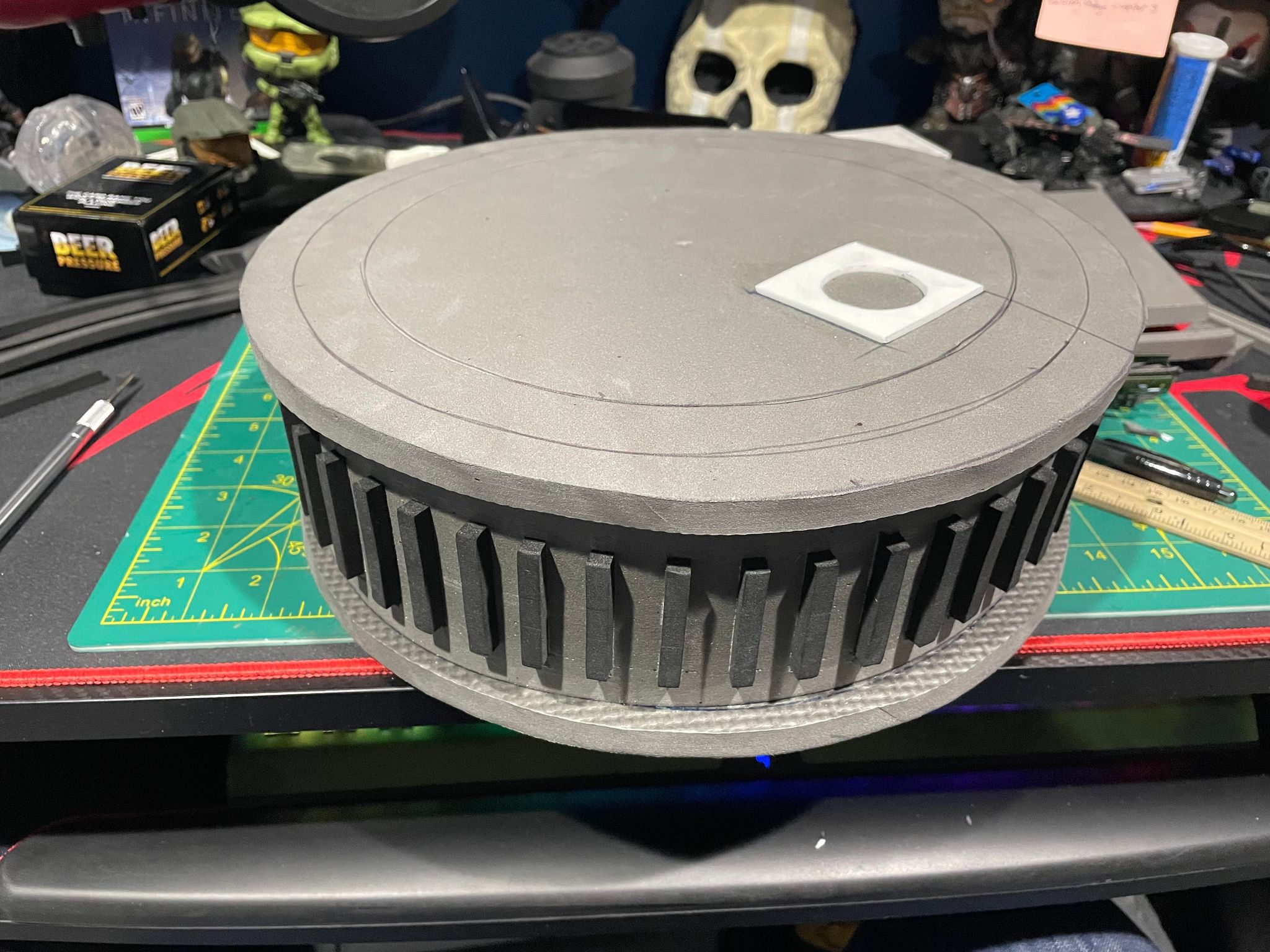

I cut both out and made the center piece 3.5" thick. Glued them together. Took a ruler to cut out a few inches so the pipe can lay in there properly

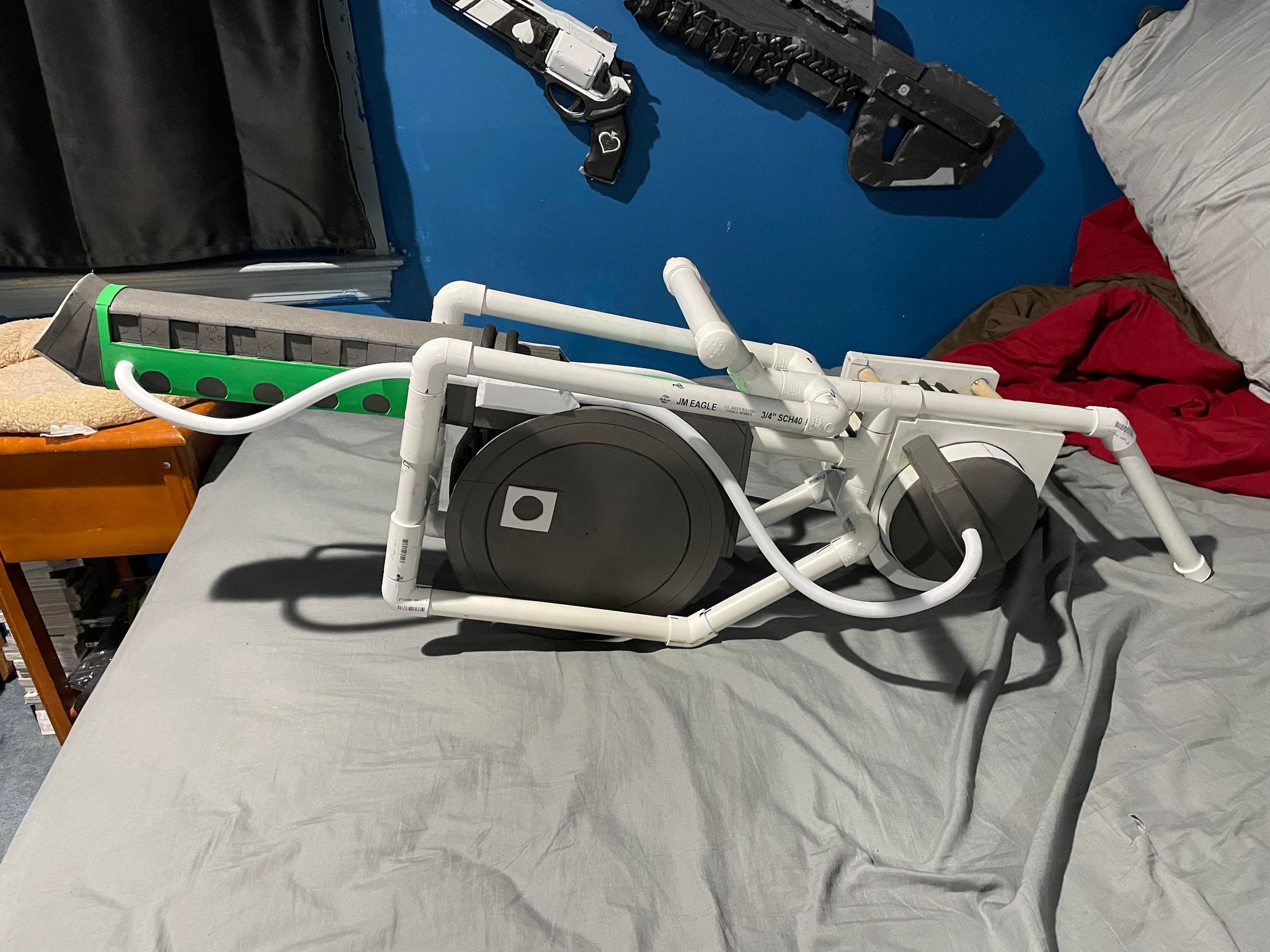

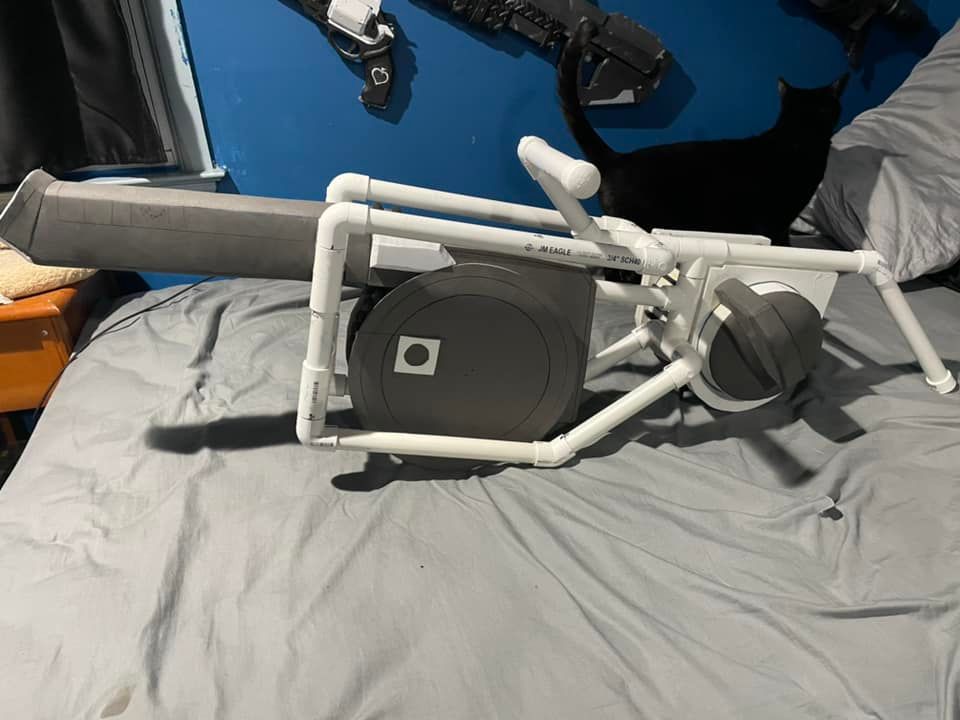

273879710_1012901166245045_2375270937334810910_n.jpg 272253974_1027021241220215_7594658256966788469_n.jpg -


CobaltEclipse

New Member

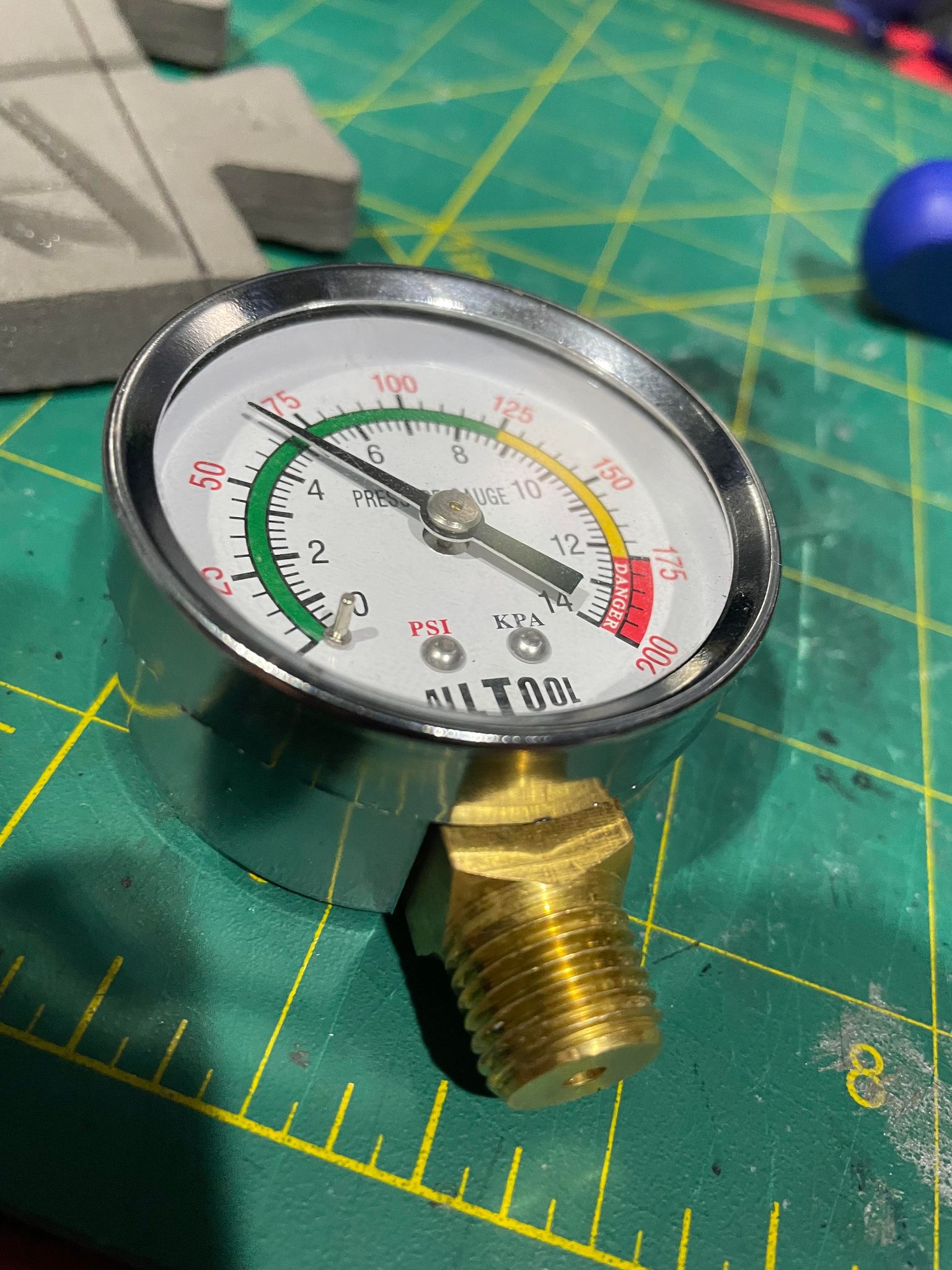

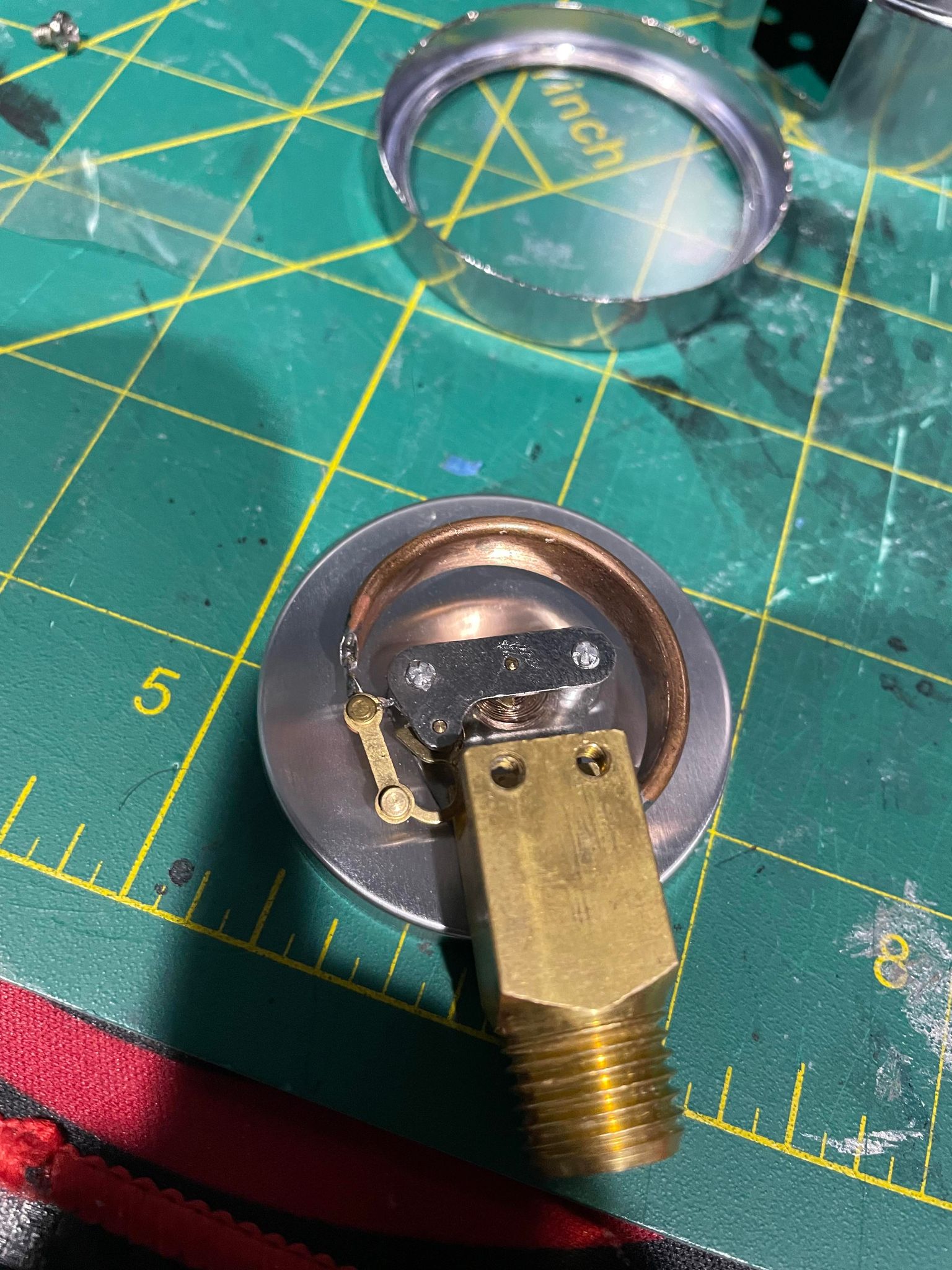

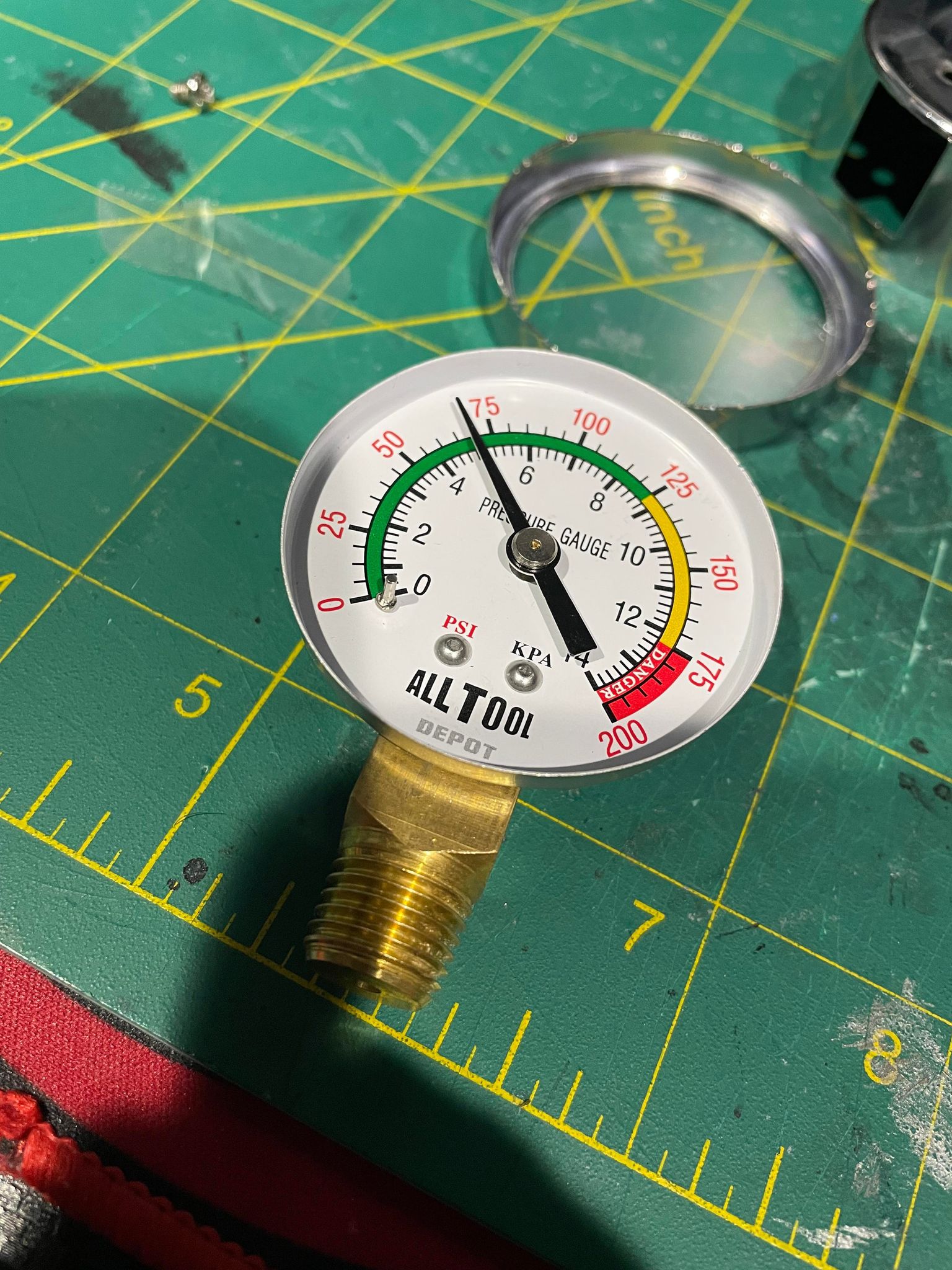

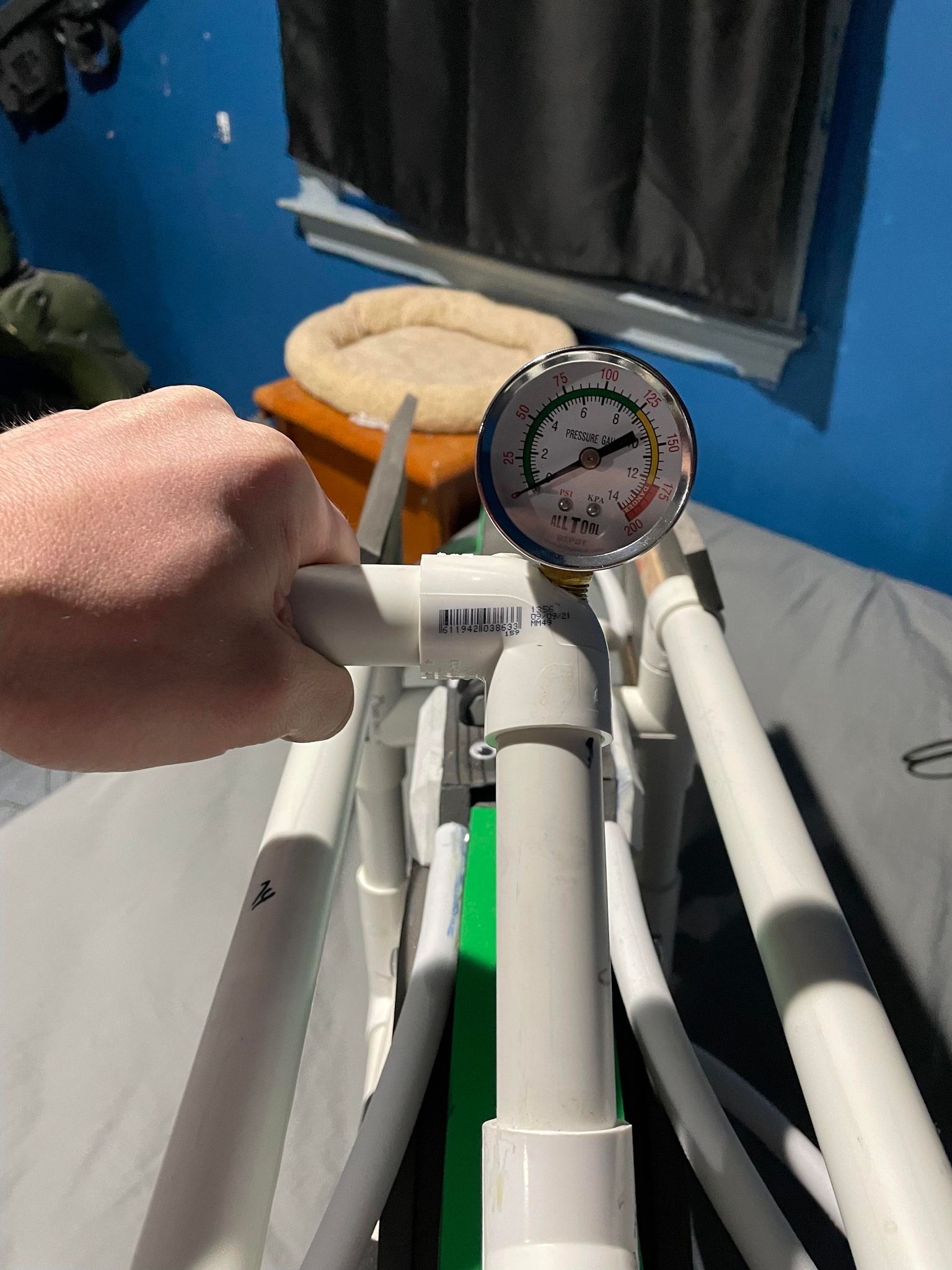

Opened the pressure gauge and toyed with it to make it look like something was there

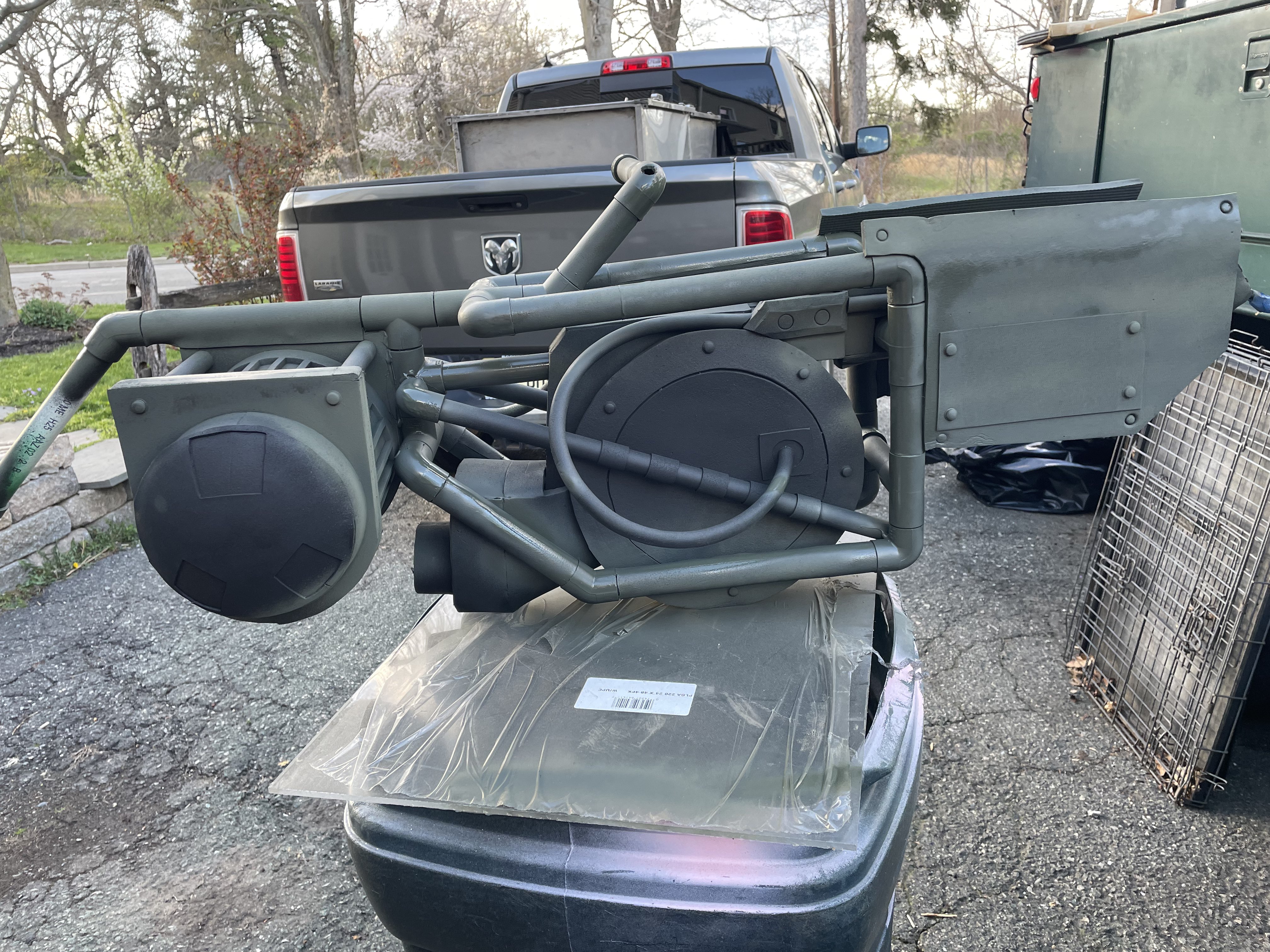

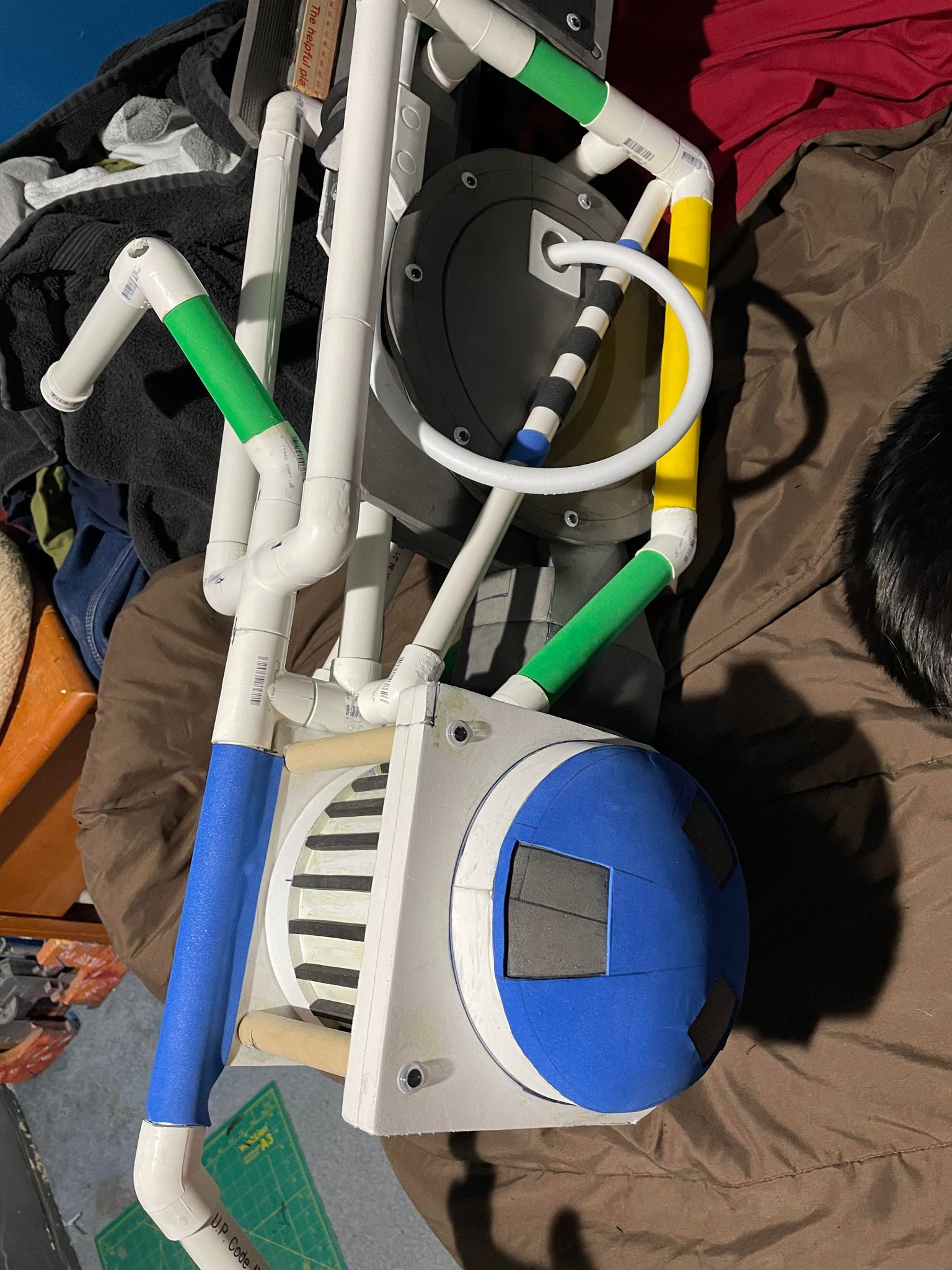

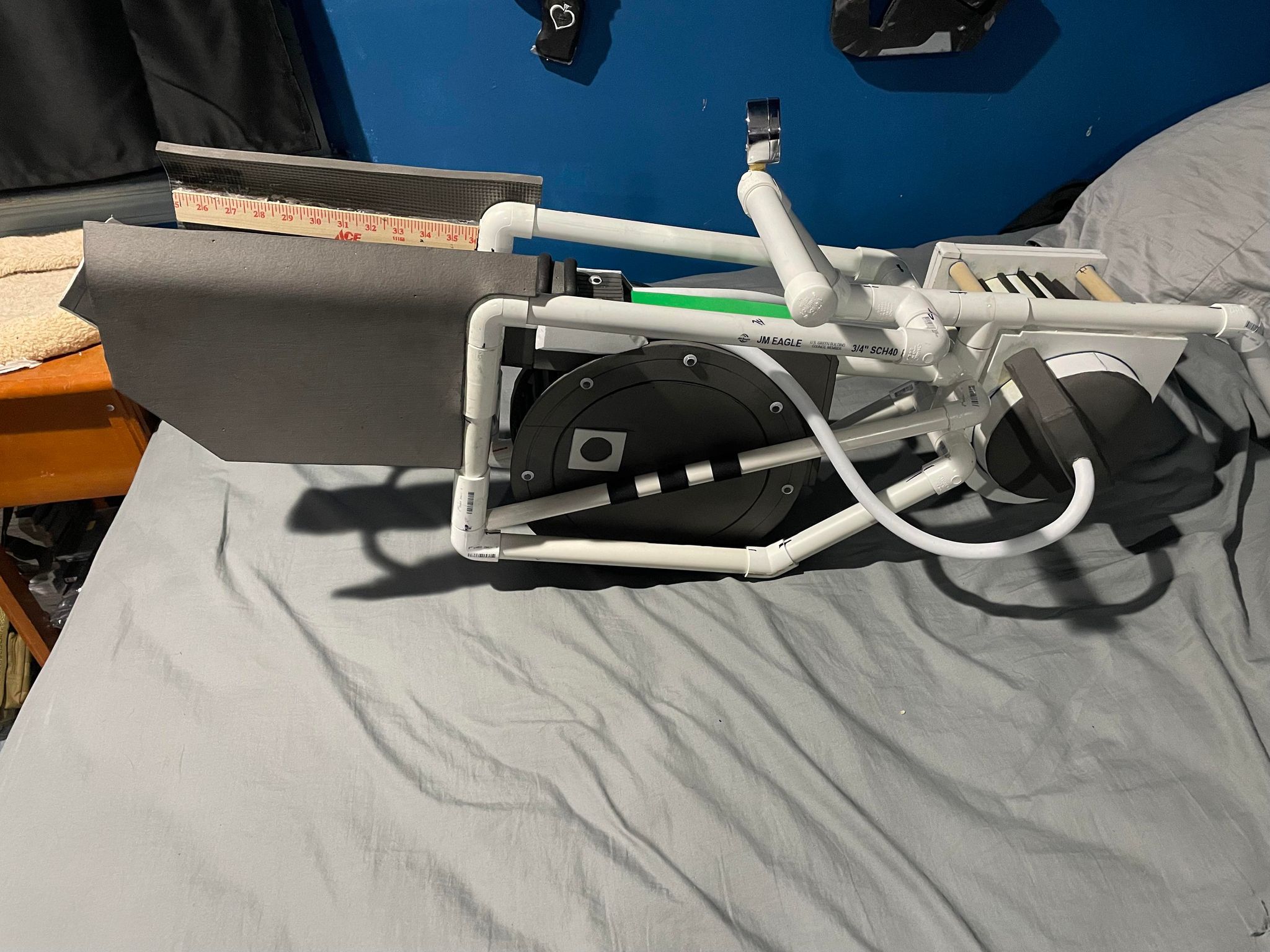

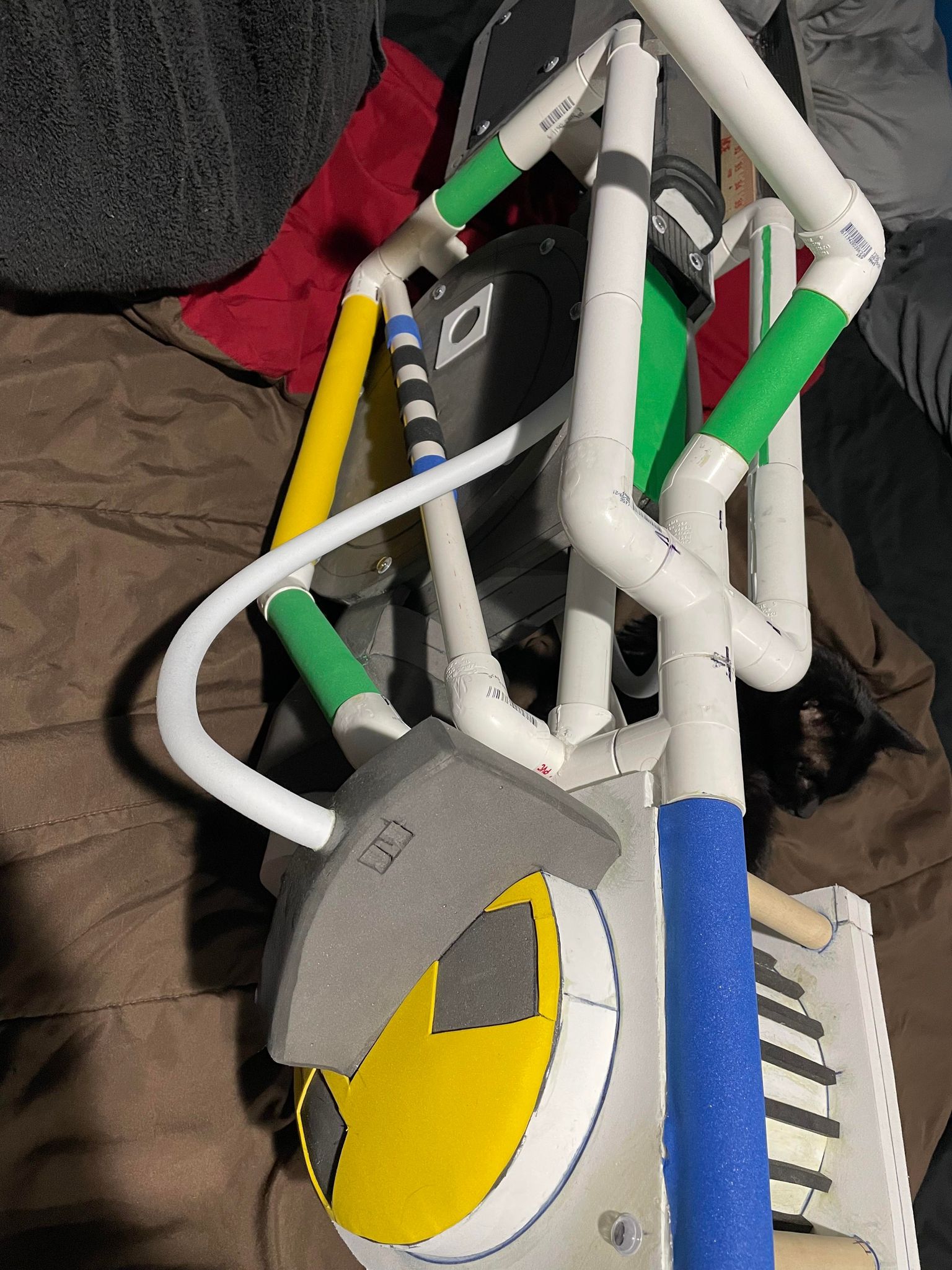

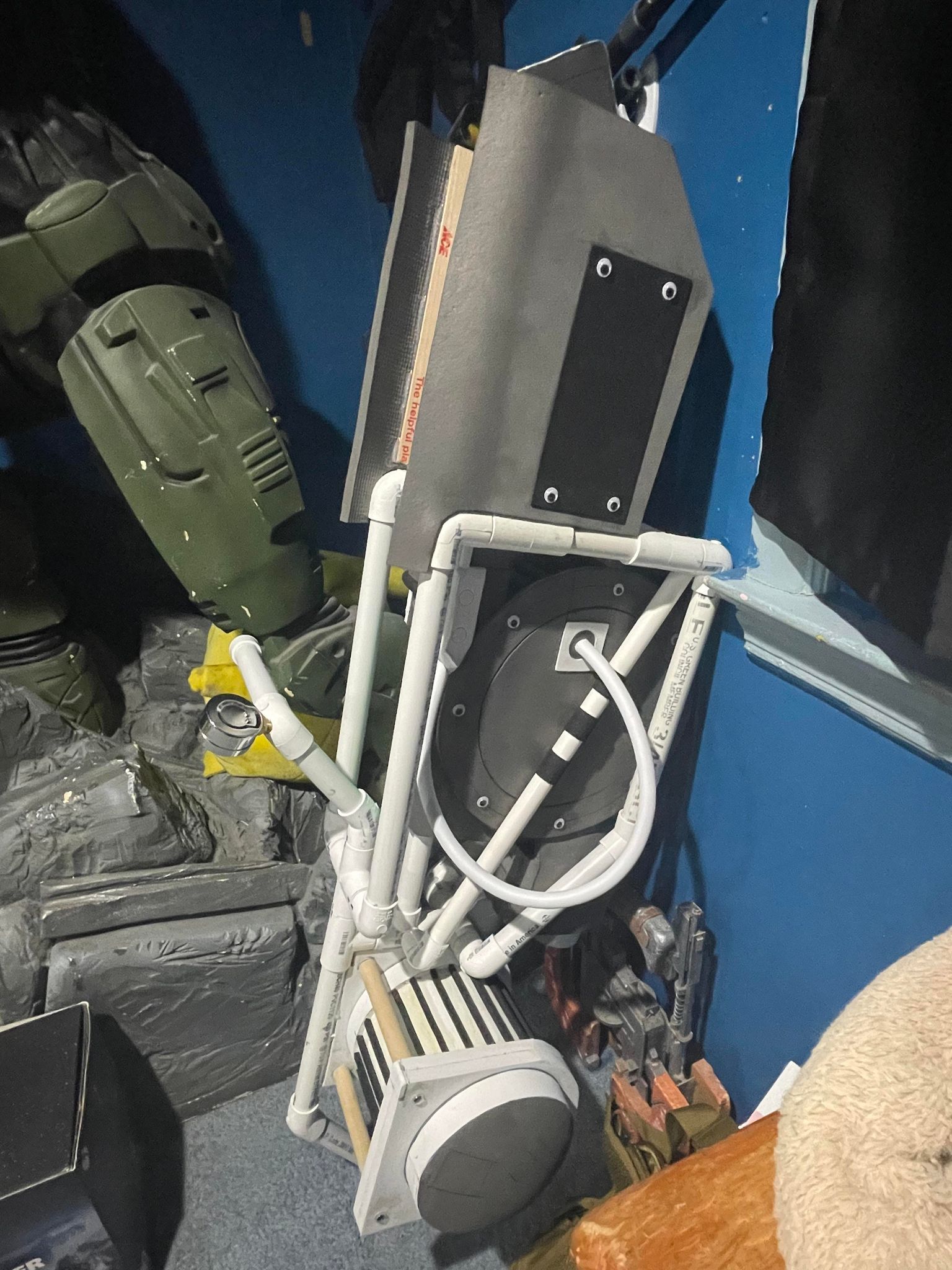

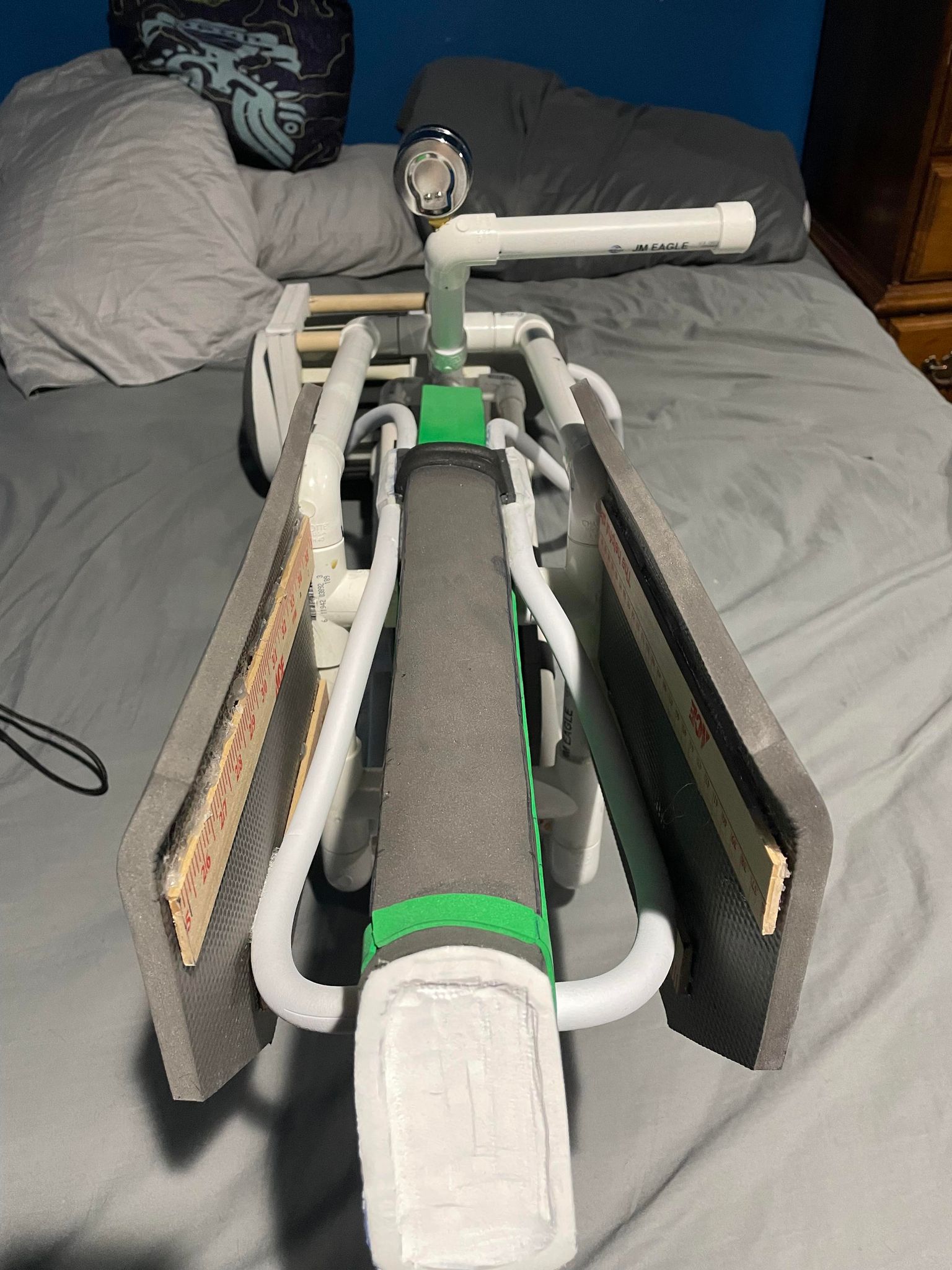

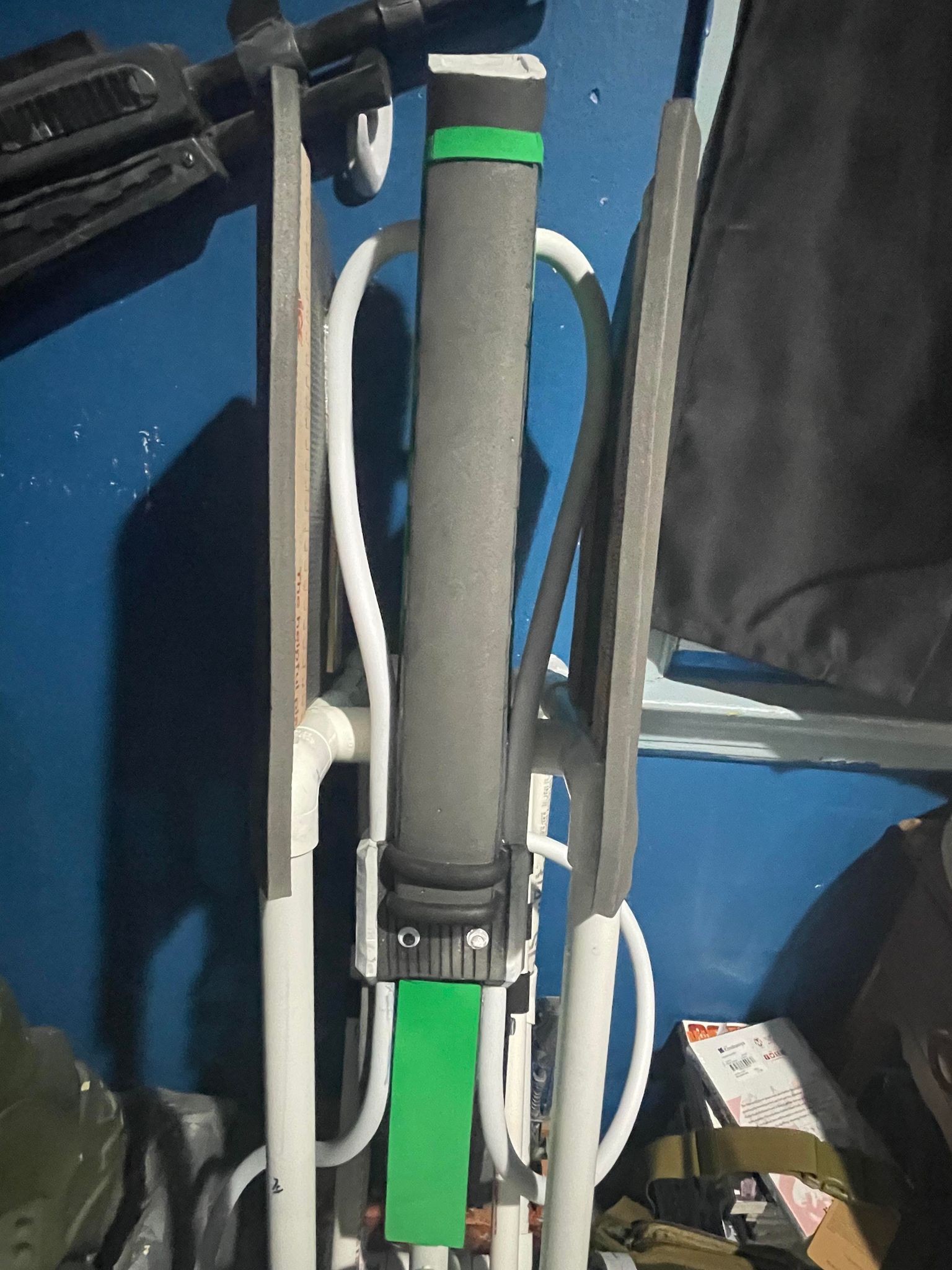

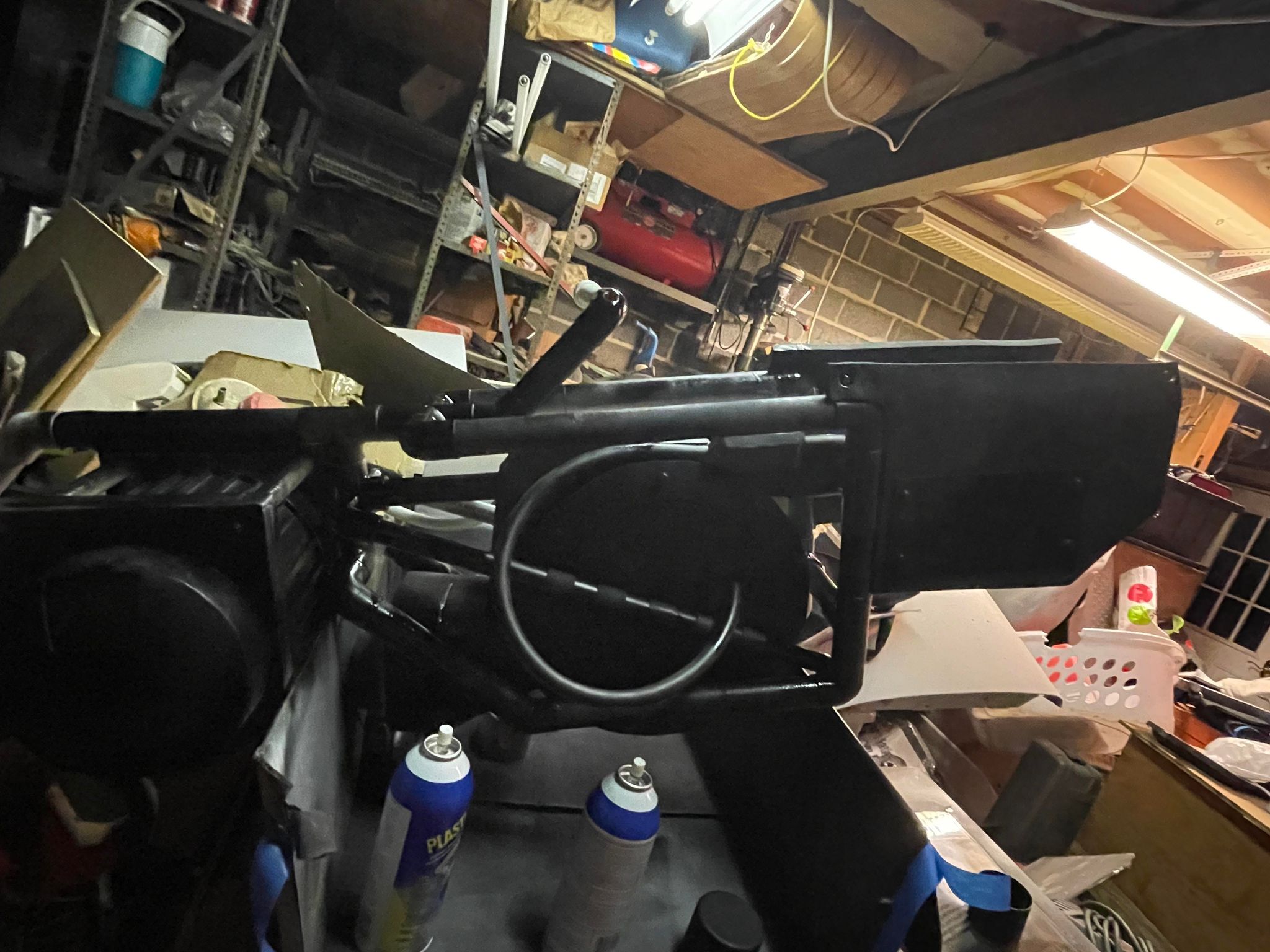

Finally added the heat shields to the flamethrower and some googly eyes for detail along with a pressure gauge. The pressure gauge can unscrew. I may also try to move the dial to make it have something.

View attachment 314820 View attachment 314819 View attachment 314821
This thing is gonna be perfect! Its the only H3 flamethrower build ive seen so far!
