Mech/Exoskeleton Build (Full-Size )

GMer56

Well-Known Member

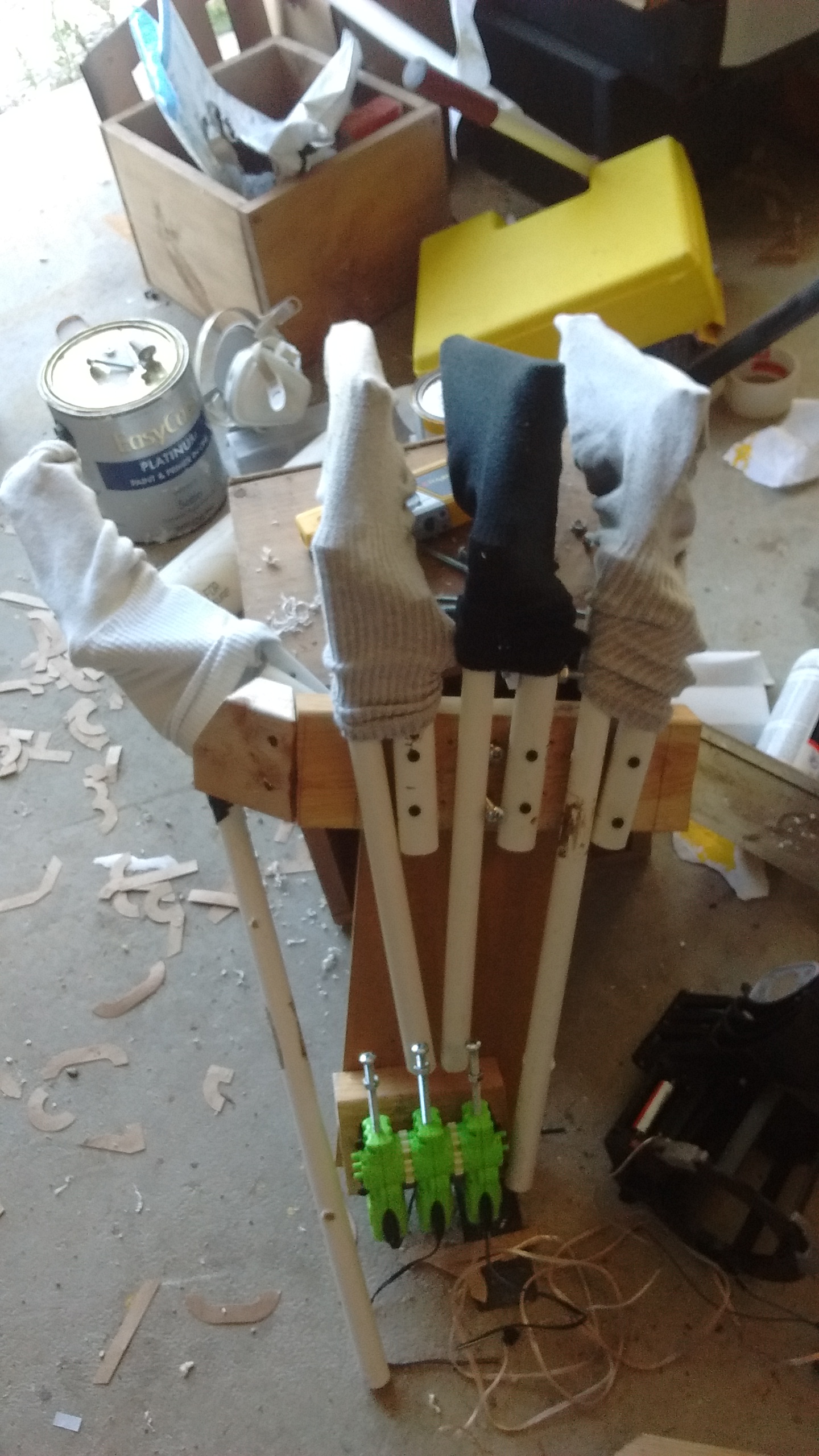

Hand is almost done: need some switches to control the motors and the screw drive housing.

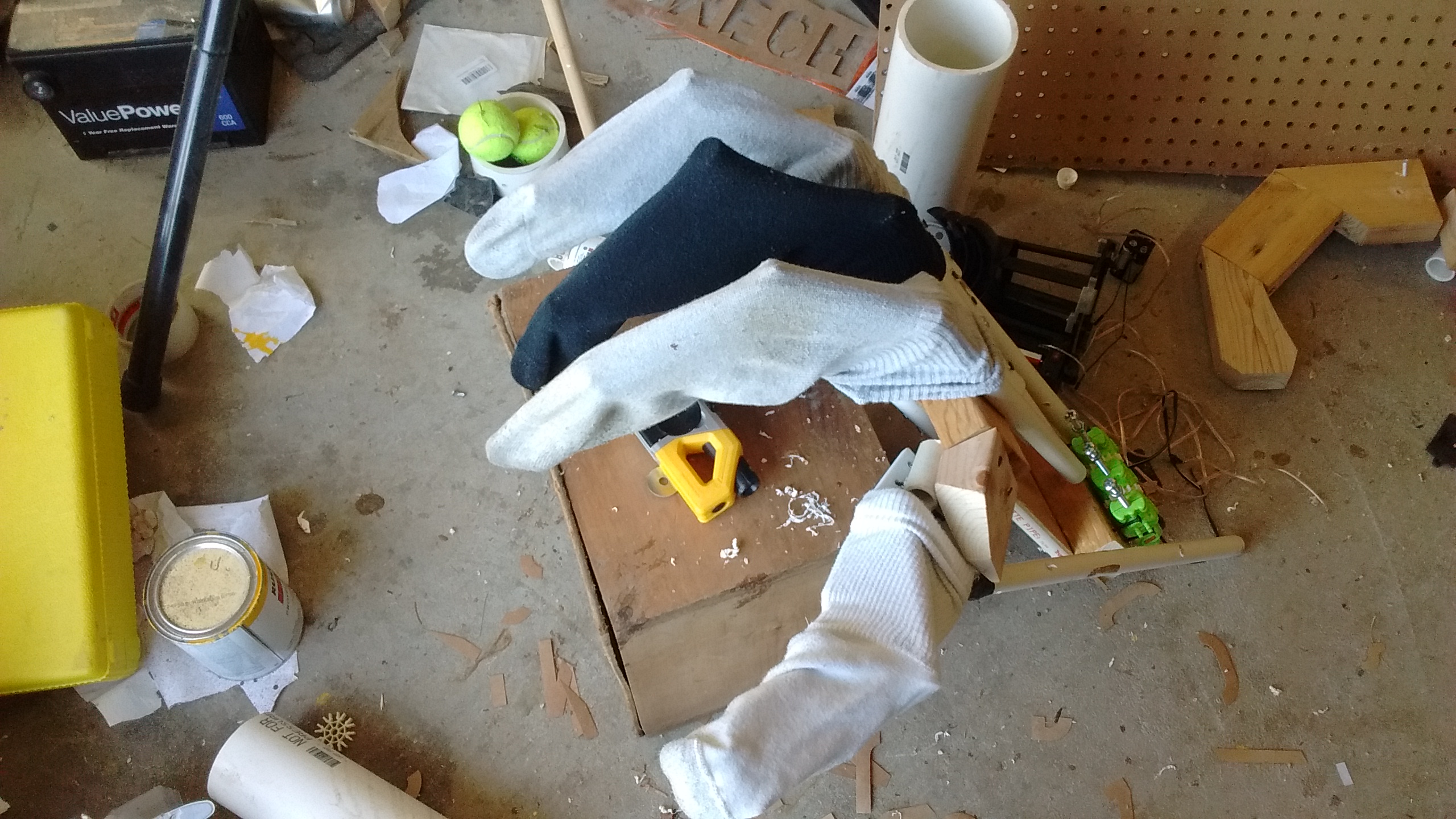

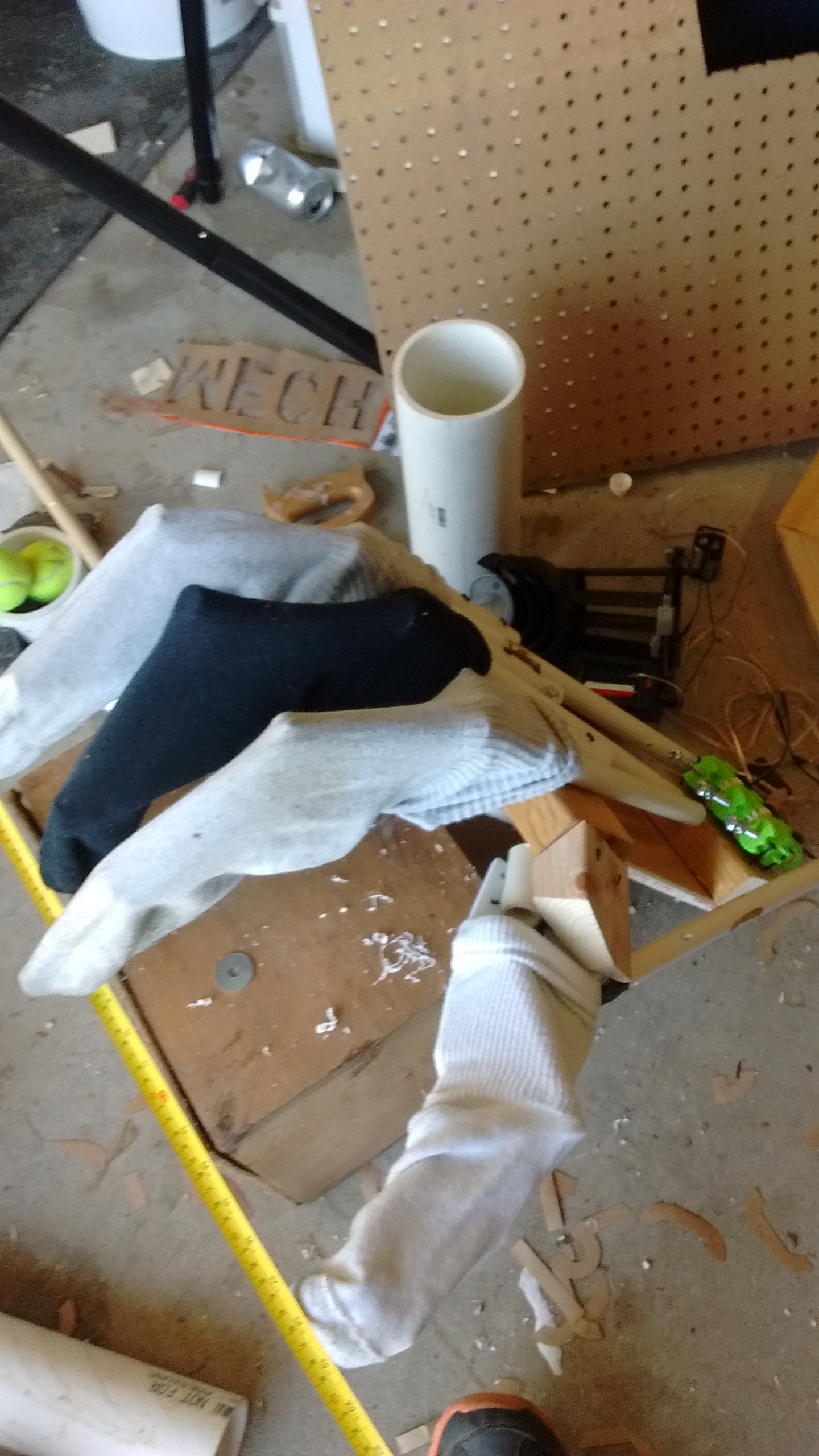

Used some old holey socks as dust covers XD

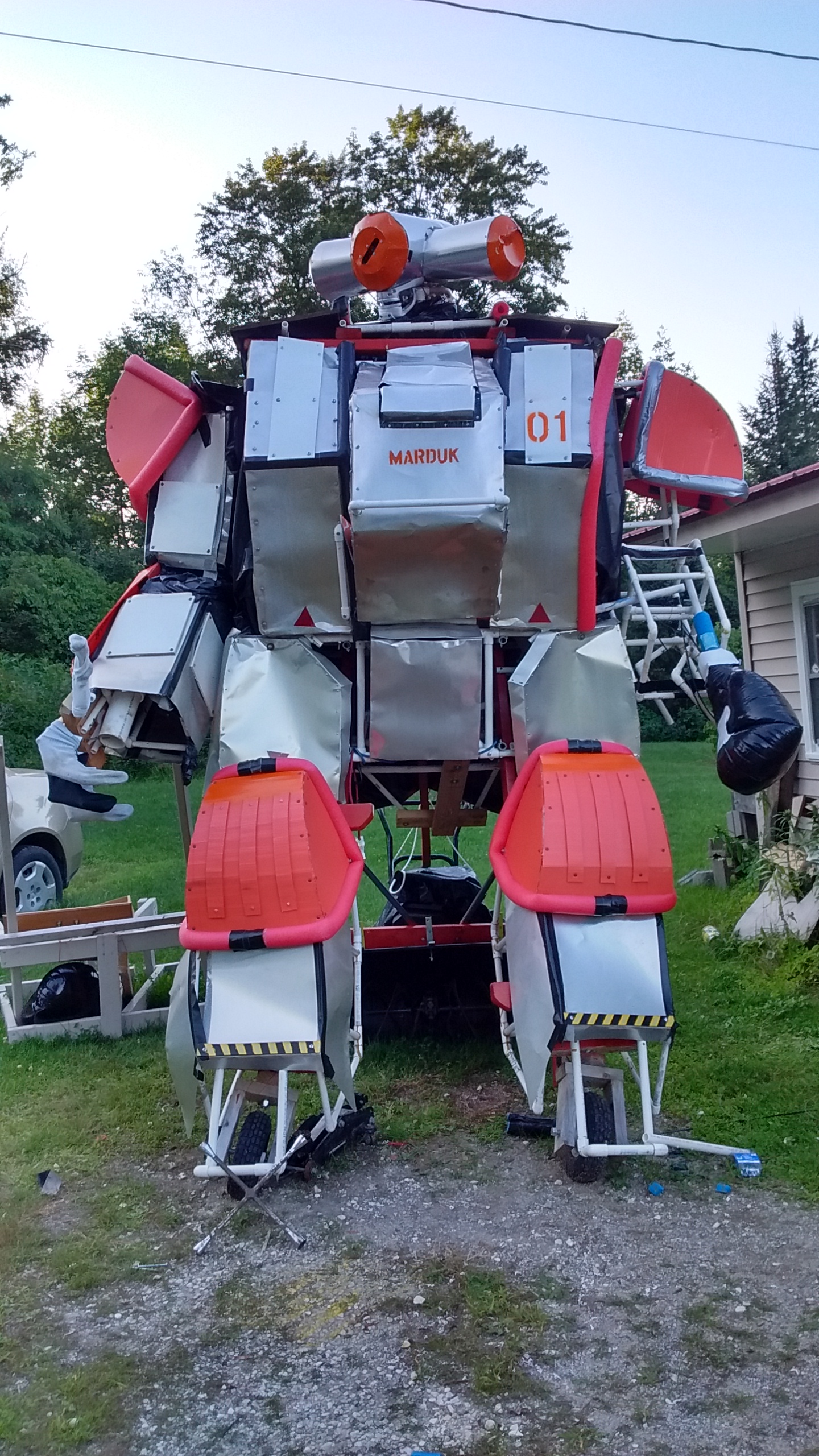

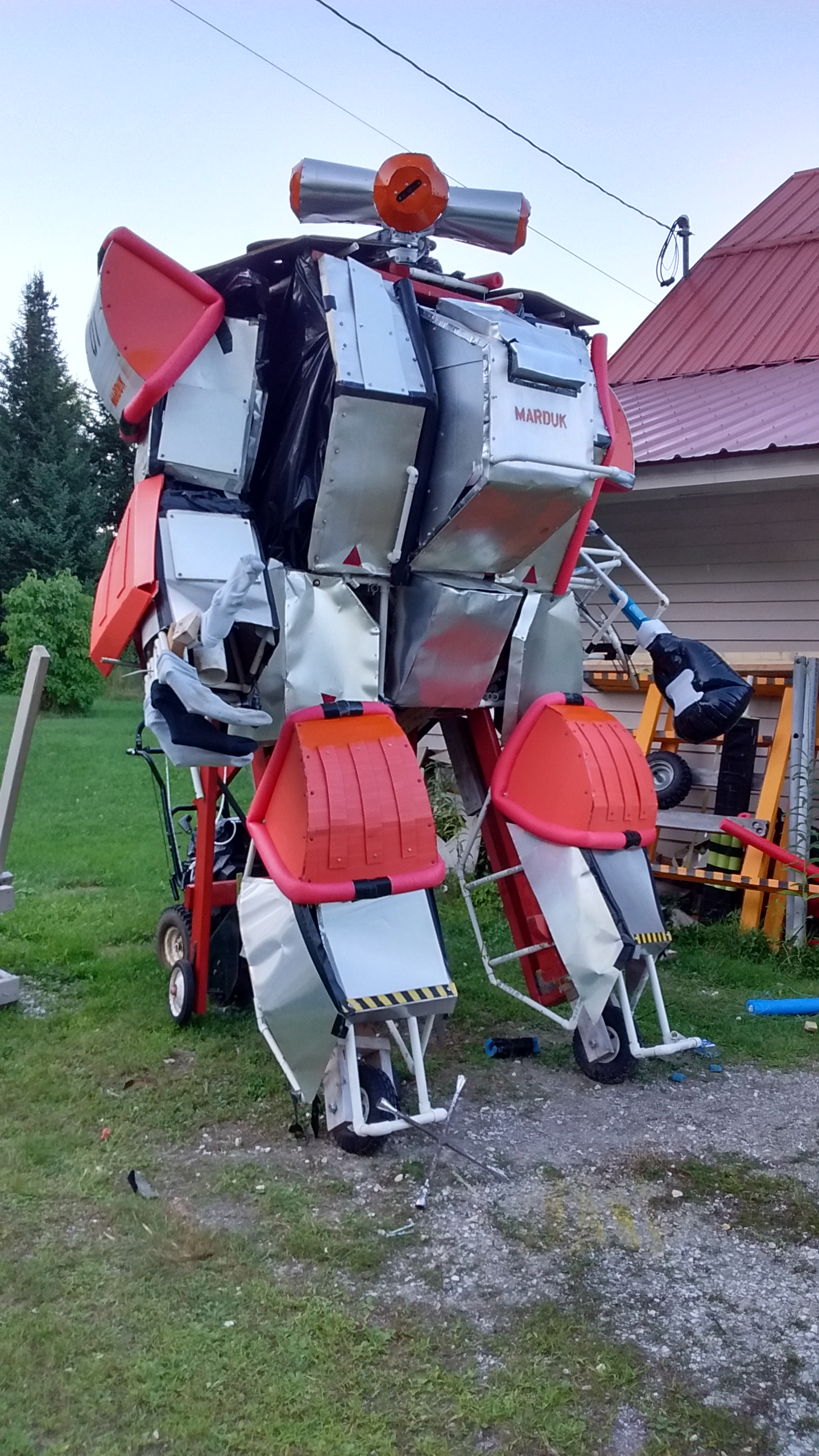

Fixed up the other arm (kinda) and put the hand on. Fancy

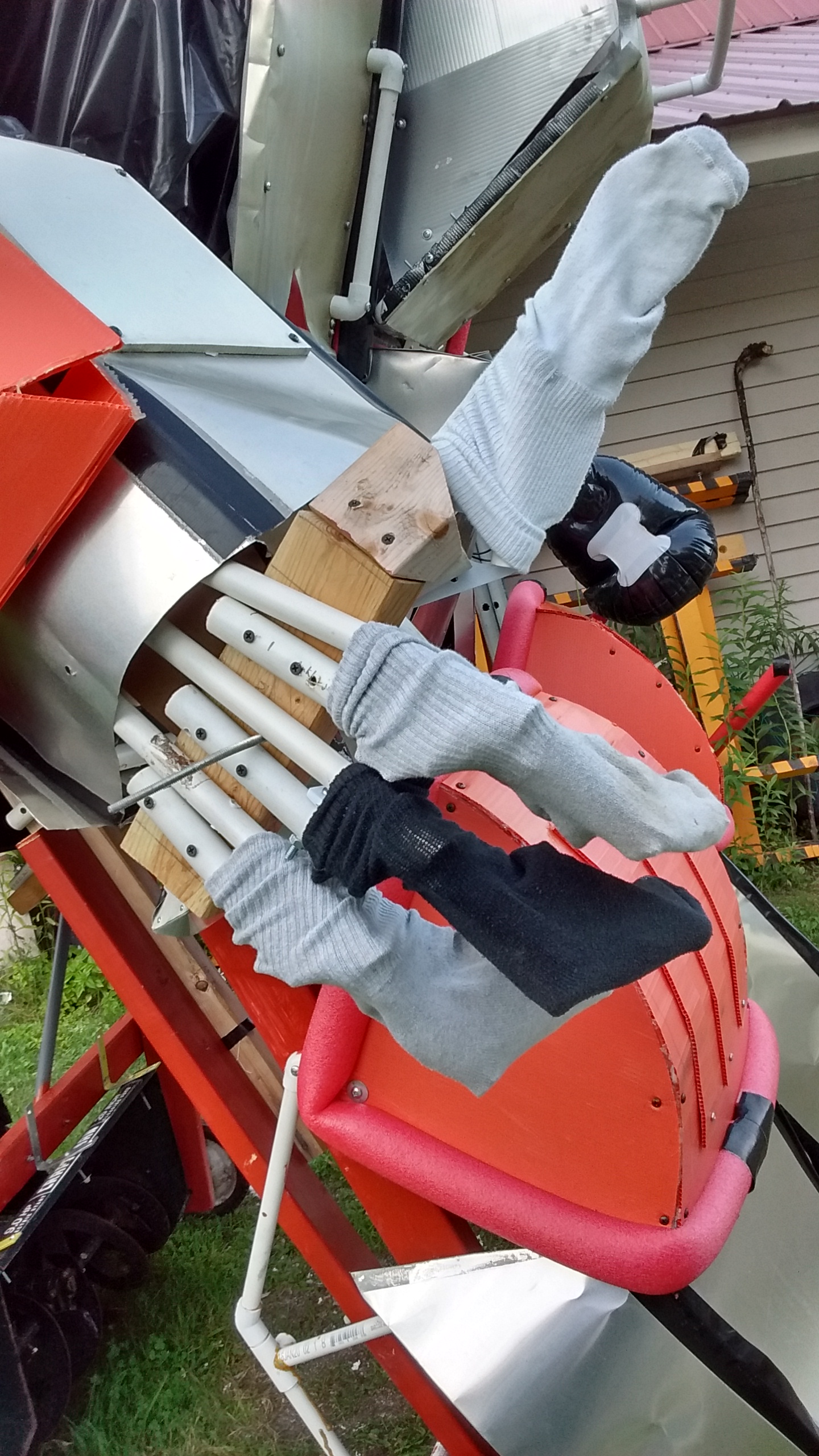

Need to adjust the hand mount: it's all jammed in between the frame and metal paneling giving Marduk a permanent thumbs up.


GMer56

Well-Known Member
Bit of work with the hand:

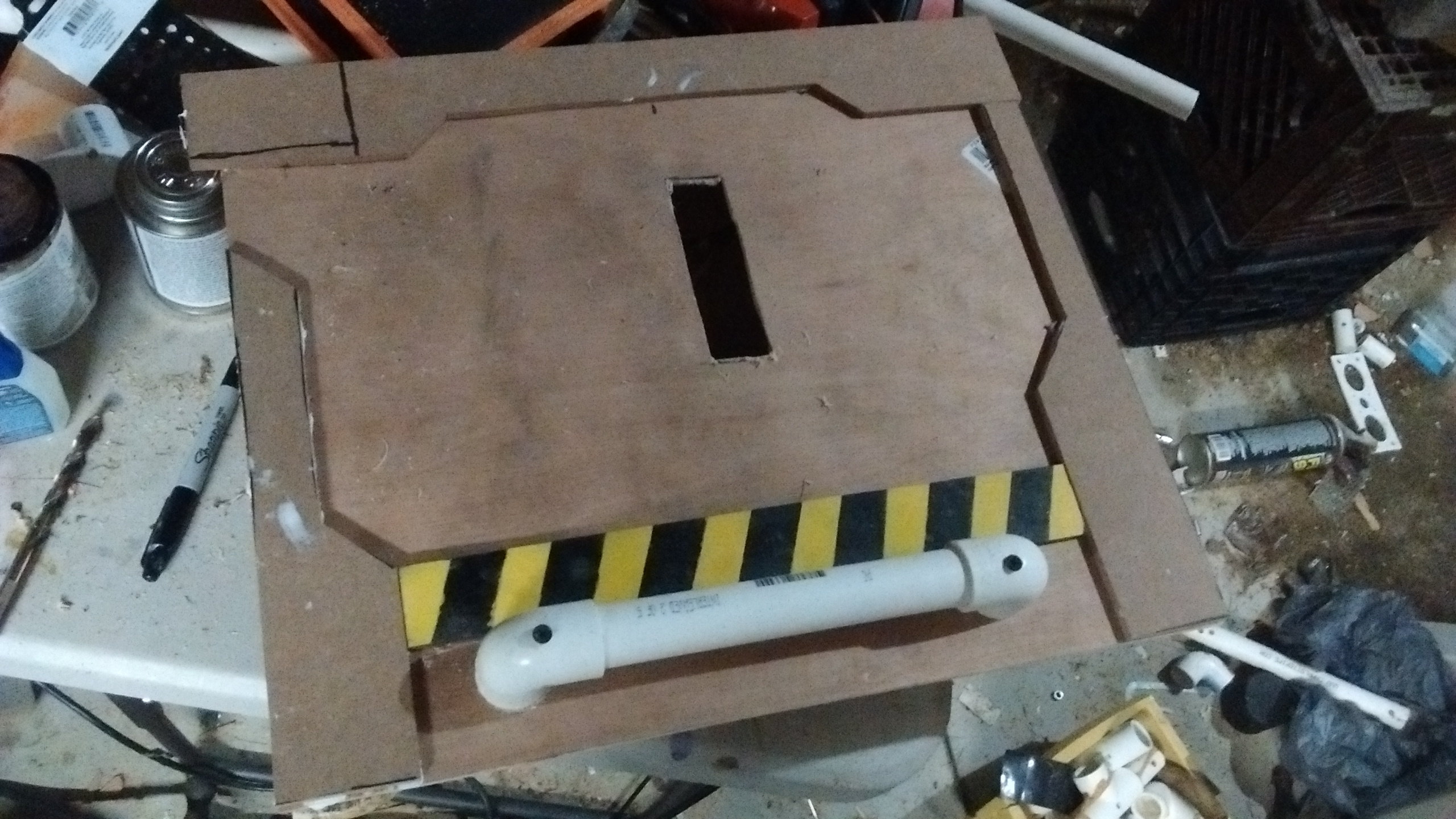

Steering system works more or less as expected. Did a little fiddling to make the cockpit easier to get into: like making a floor!
Hopefully full test drive tomorrow will be installing:

-right waldo arm
-neck rotation power pack (removed when not in use)
-head camera mount
-head camera (removed when not in use)
-optical system core (removed when not in use)
-power cores (removed when not in use)

to do:
rear view camera (USB)


GMer56

Well-Known Member
Well I hope it works out, I cant wait to see the finished product.
Tweak the steering, build some better fists, weather-proof the cockpit and do some aethetics and it will be finished. Then a kickstarter to fund a second one to fight and get a 2 volume how to book onto the market!
