Mech/Exoskeleton Build (Full-Size )

merc4now

Member
Awesome, I was wondering if anyone else was trying to build a mech, I was trying to get better reference pictures after halo war 2 with the mech suits. keeps us up to date.


GMer56

Well-Known Member
Bit more work today:

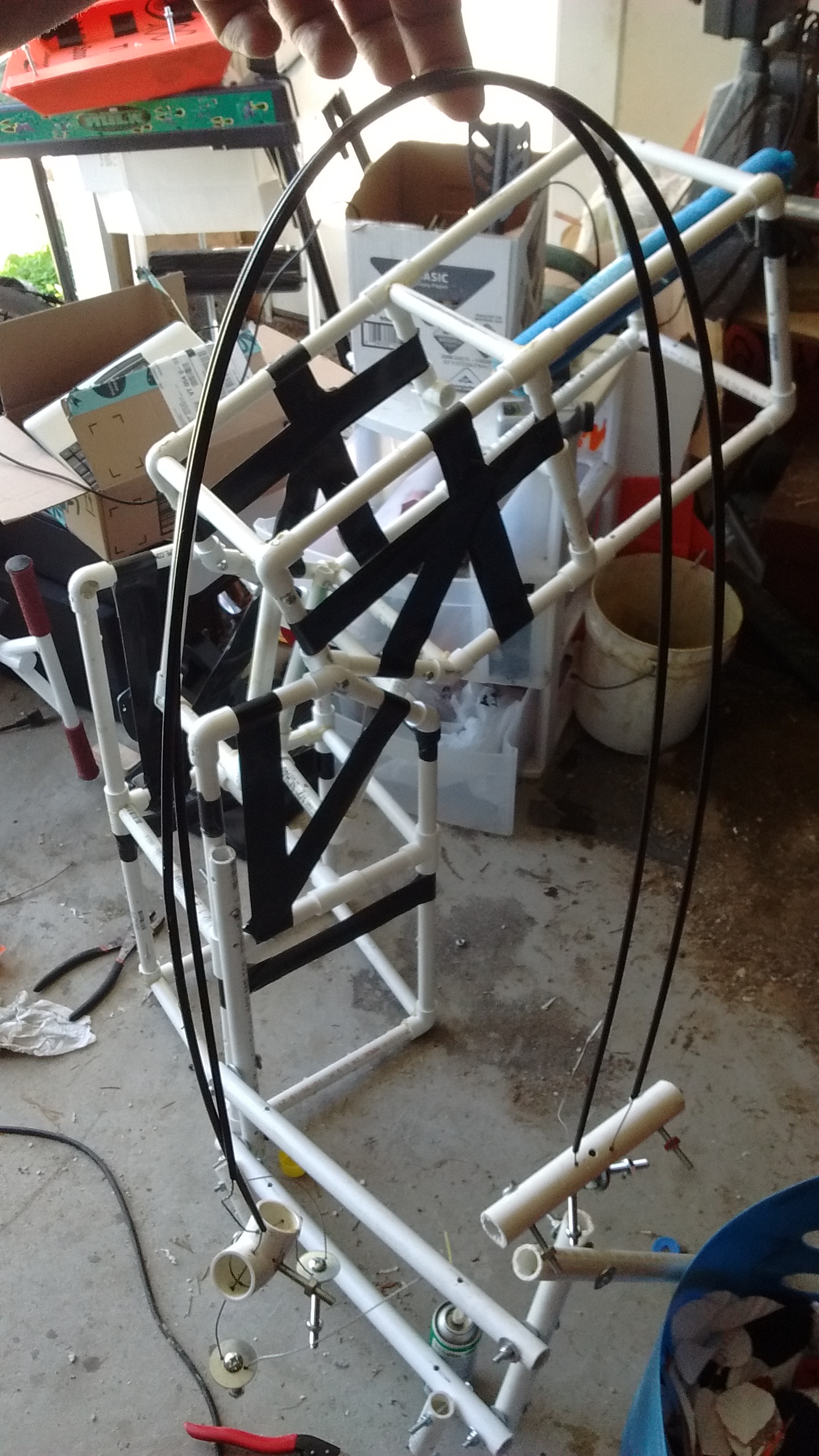

Bowden cables are now easily removable so they don't have to get exposed to the weather constantly:

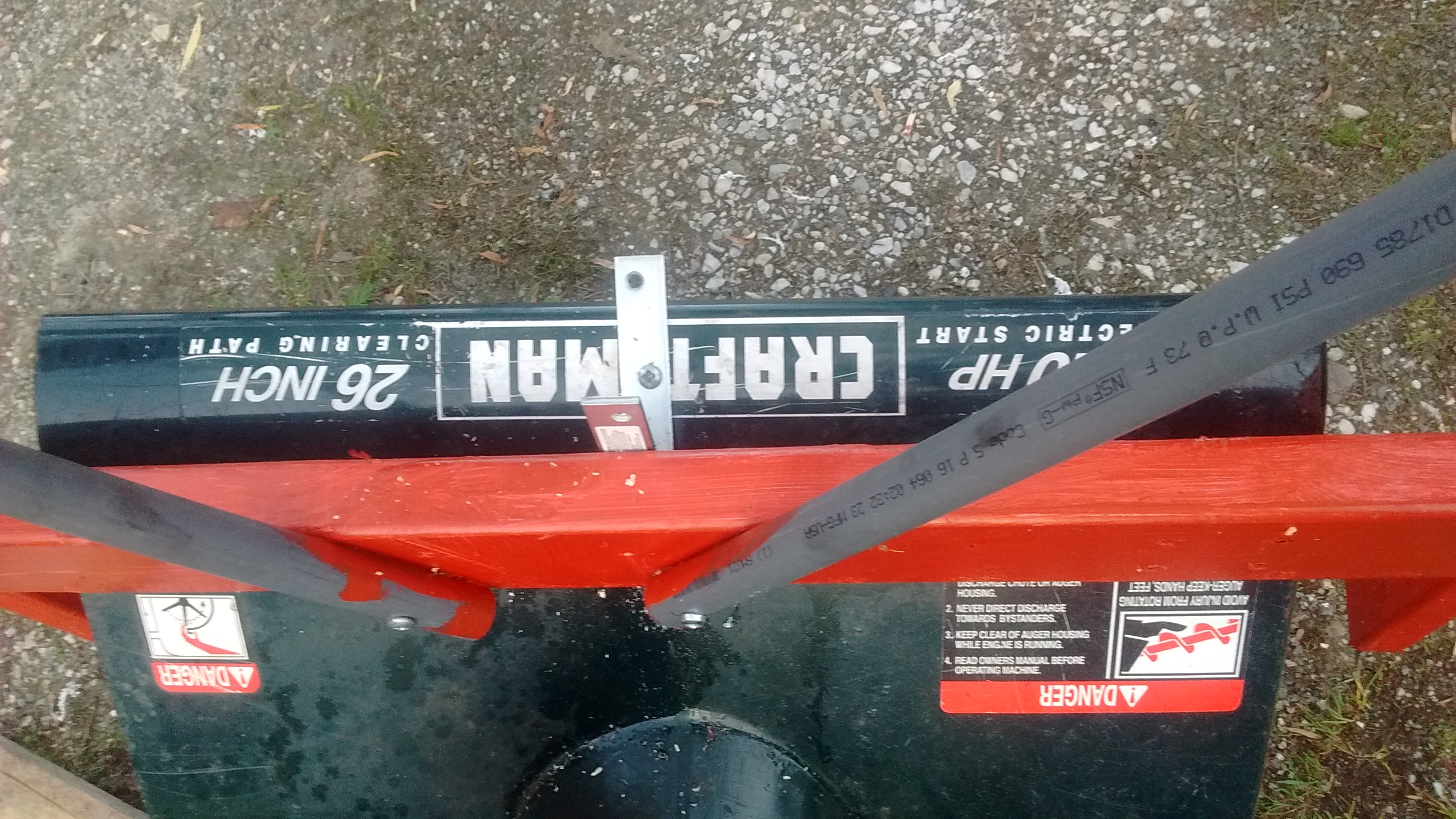

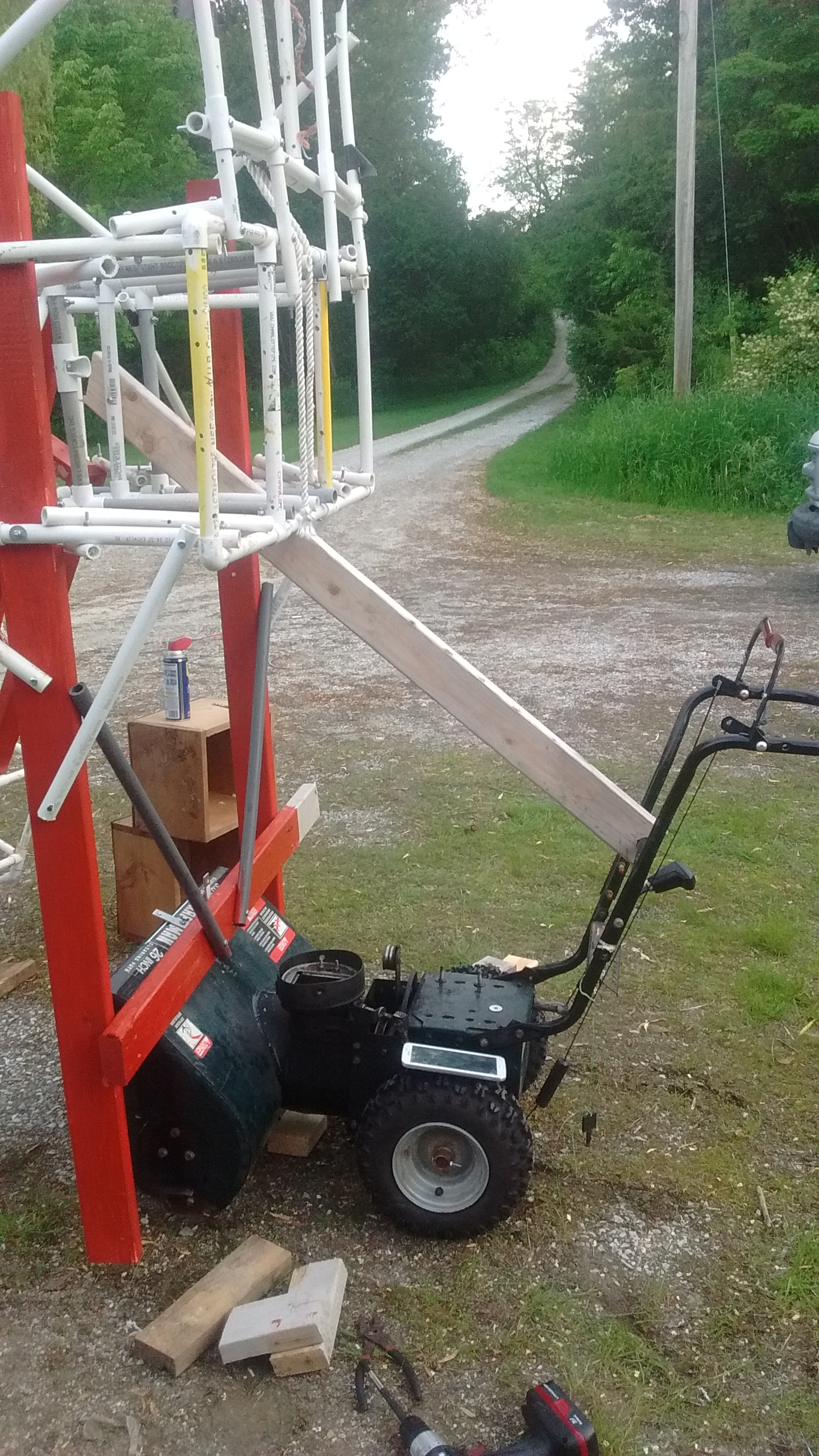

Found this for free on the side of the road on my way to work. The joys of driving a van lol

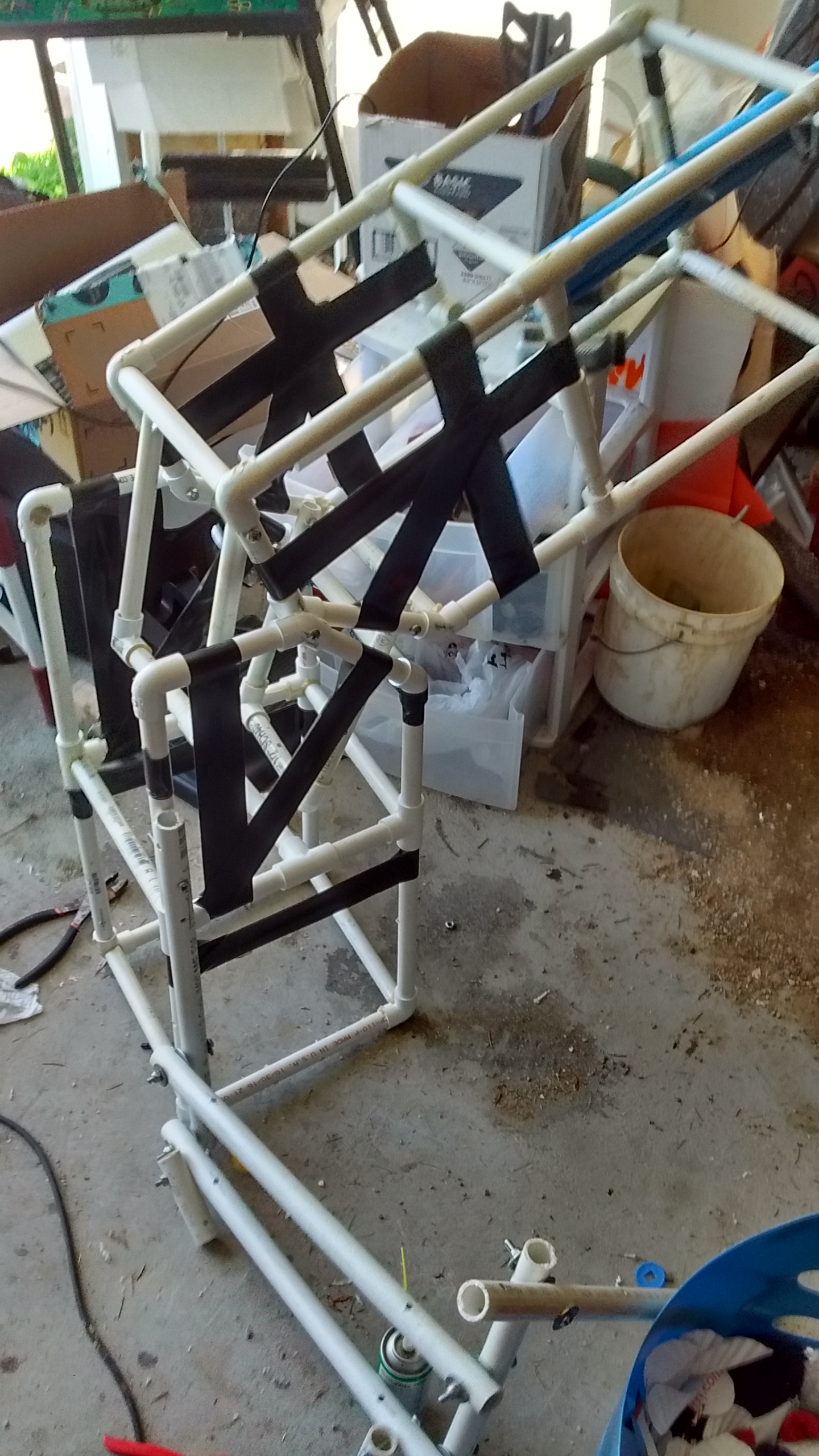

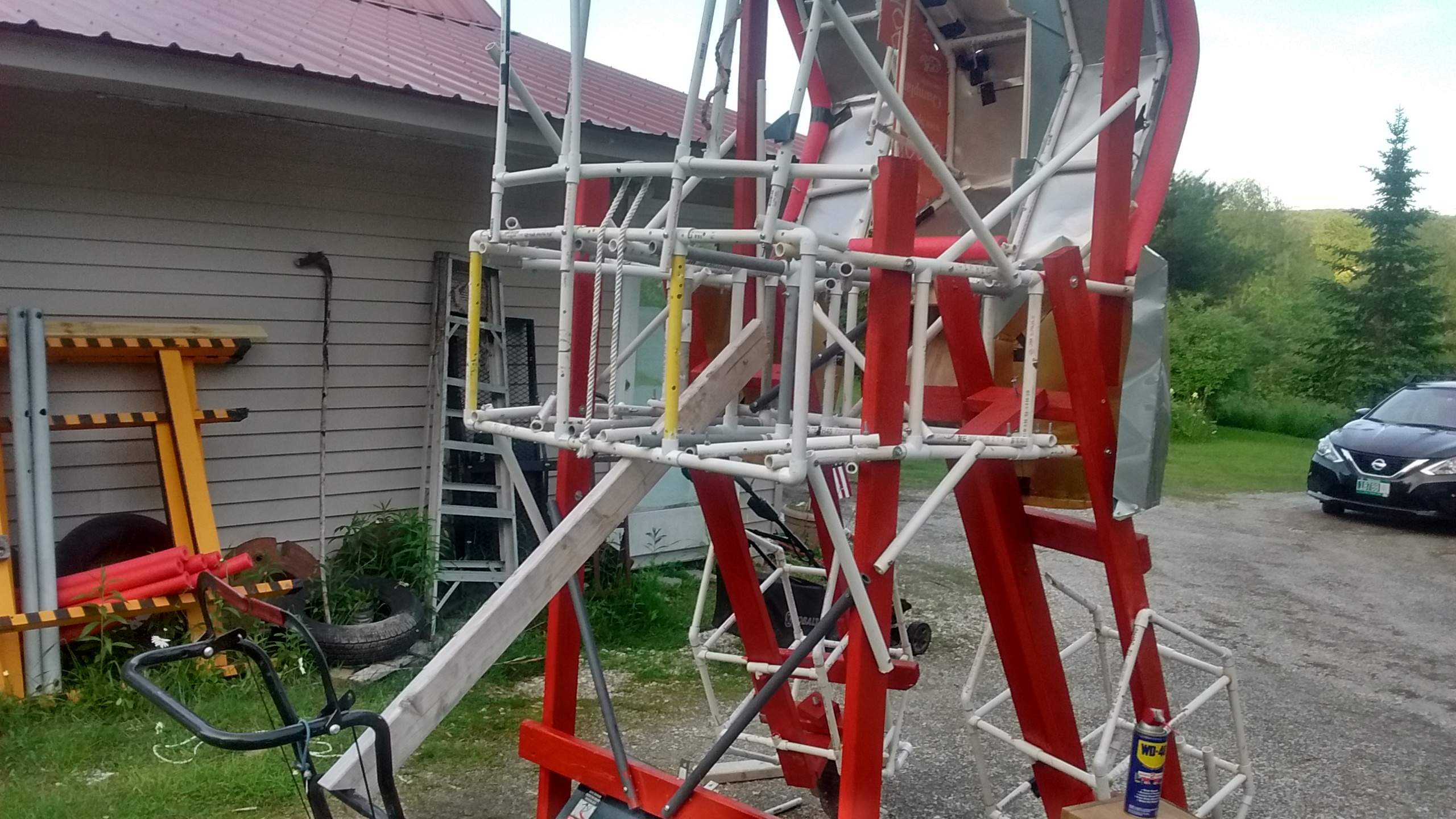

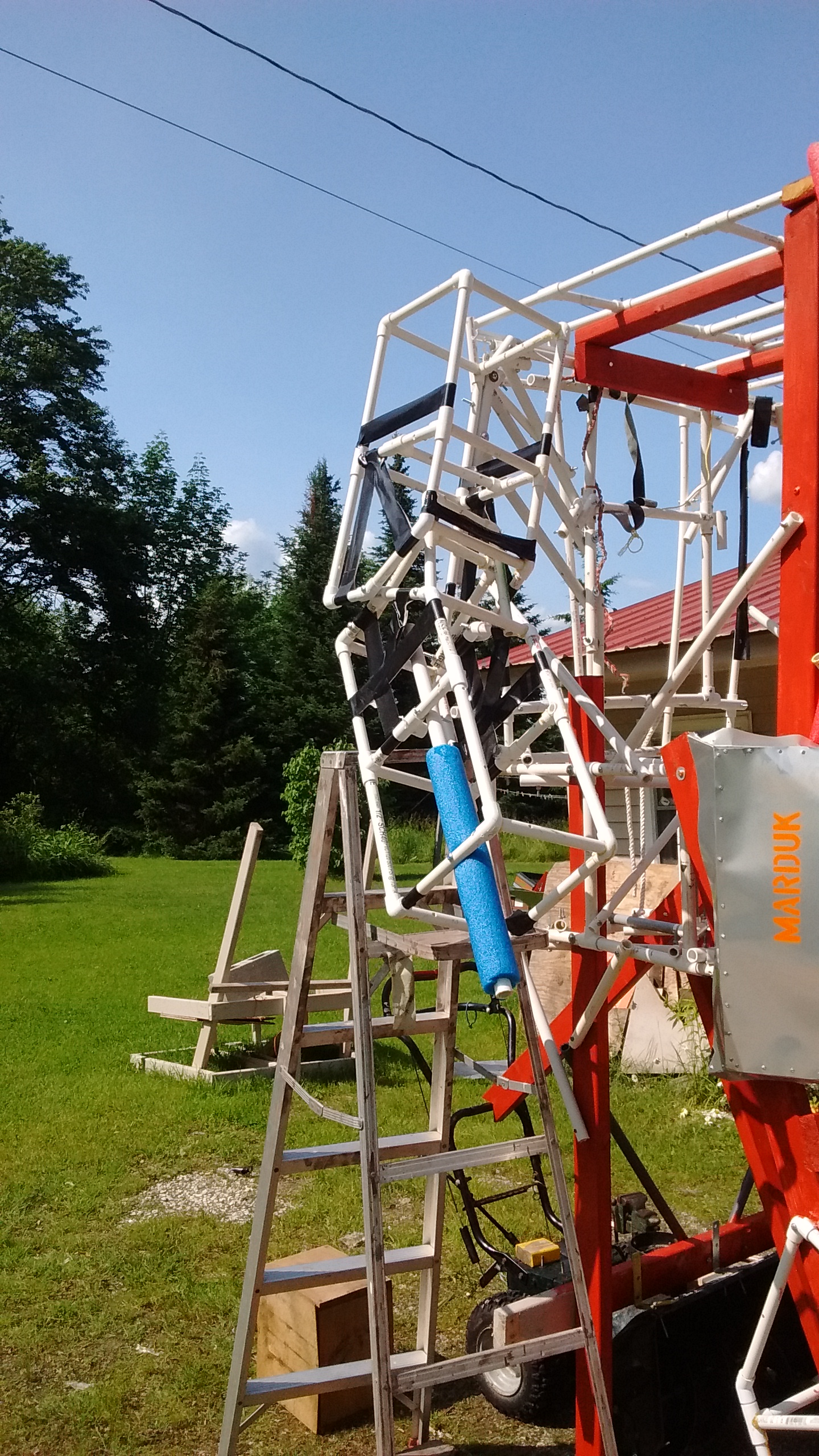

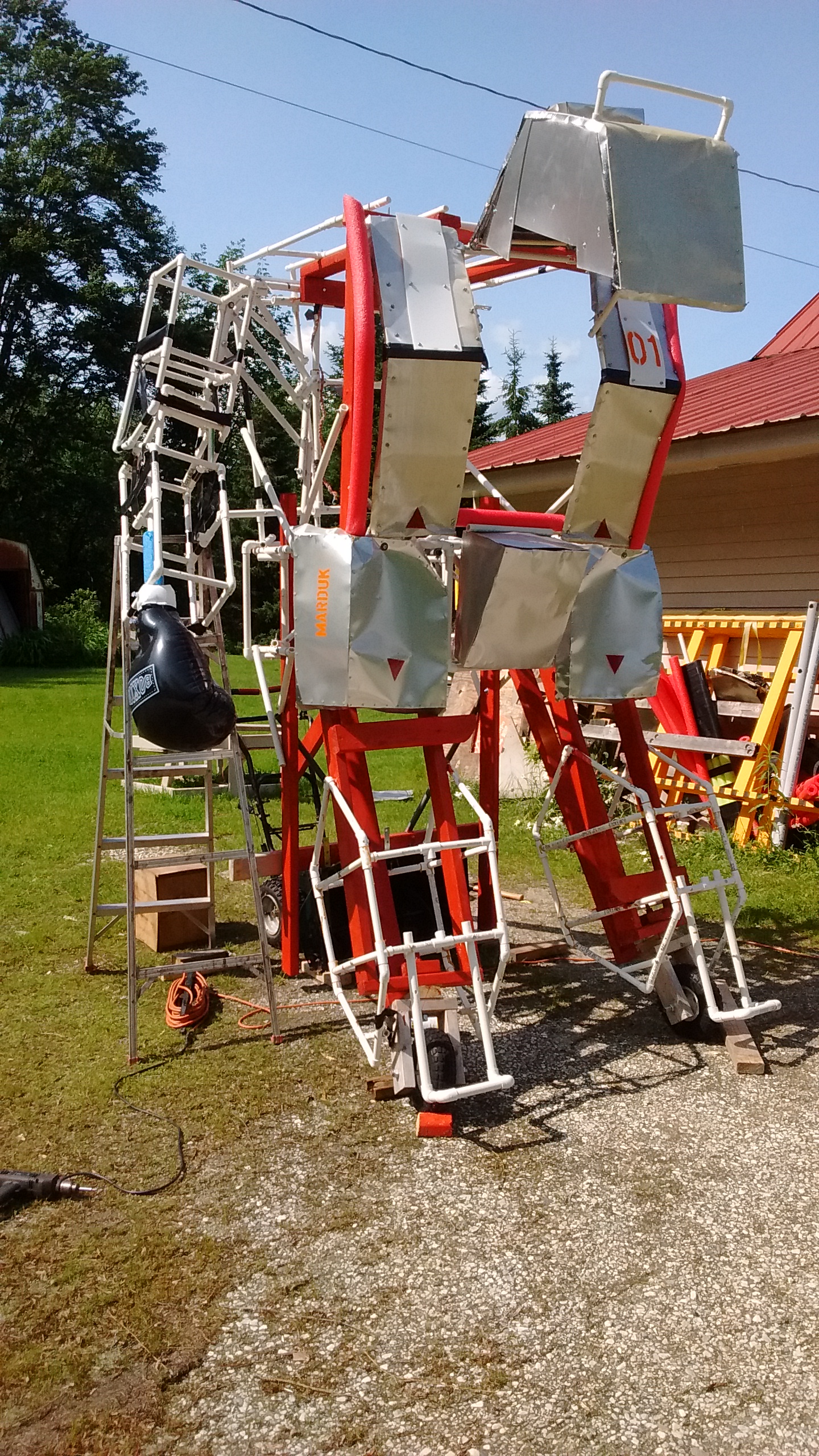

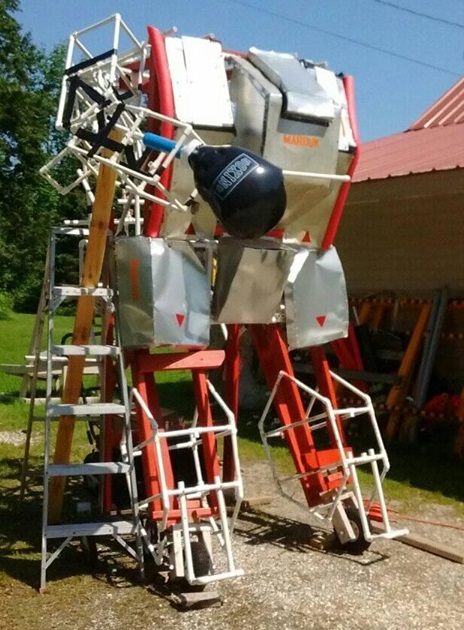

Arm (sans control cables) installed outside:

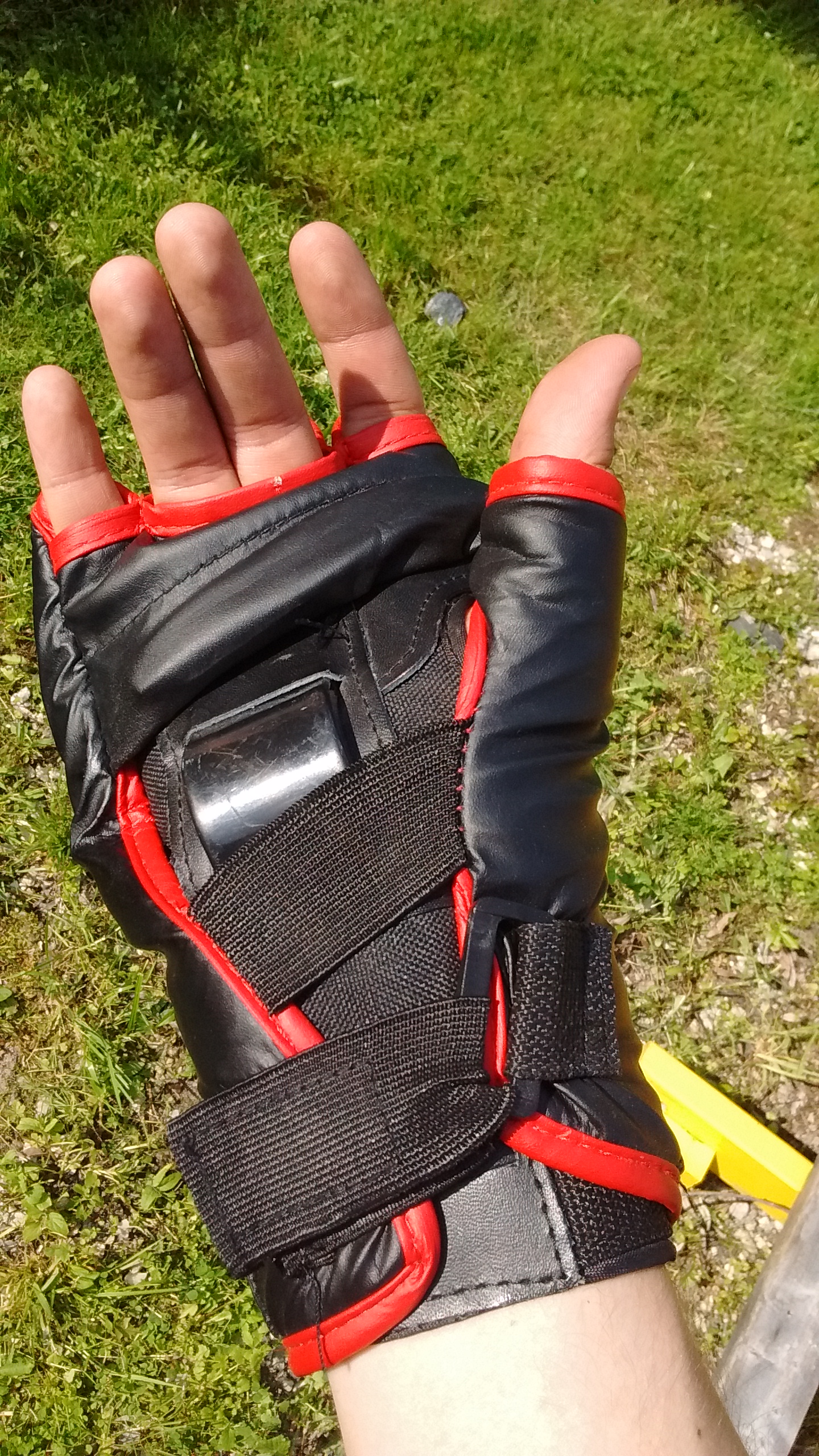

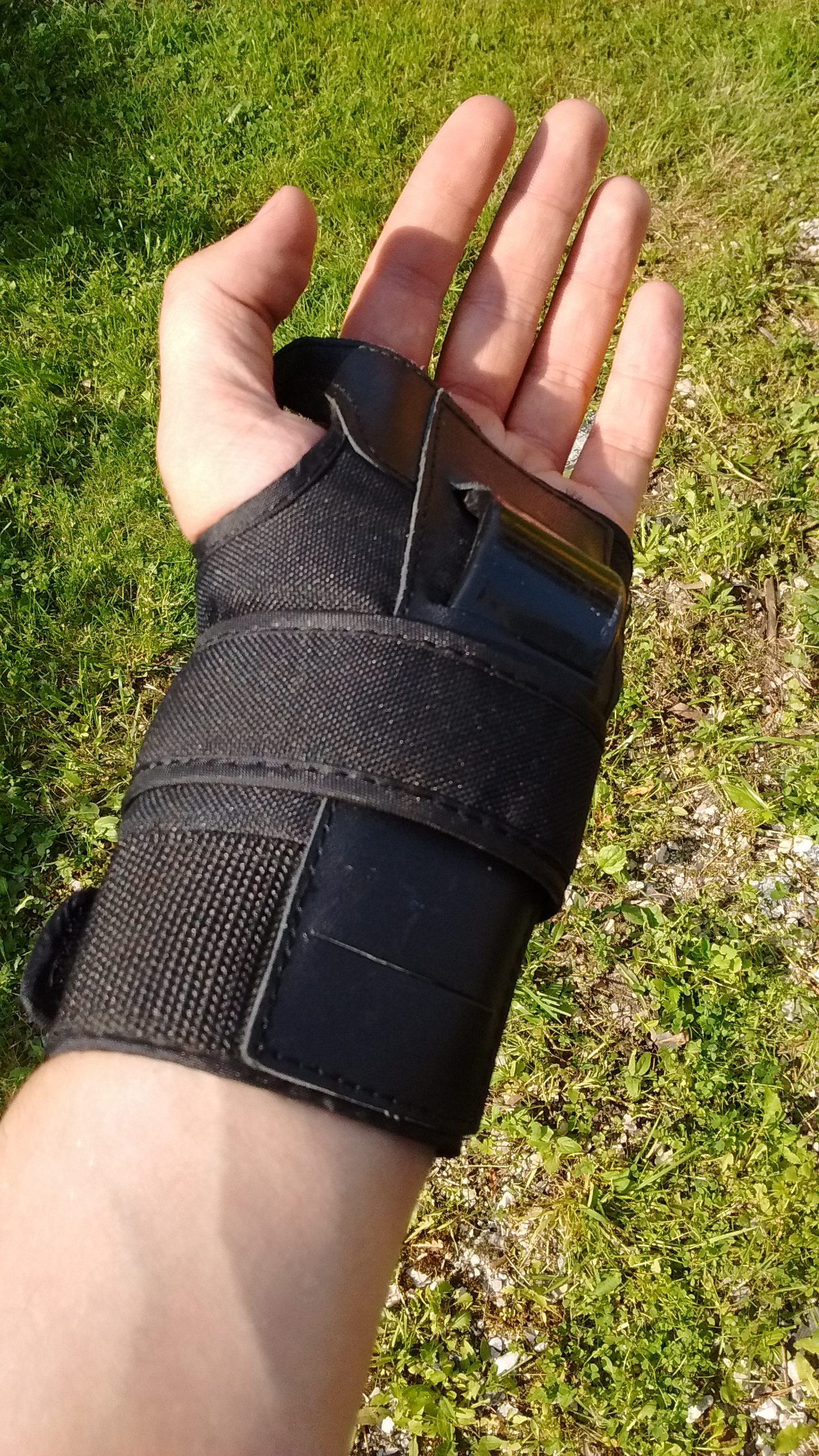

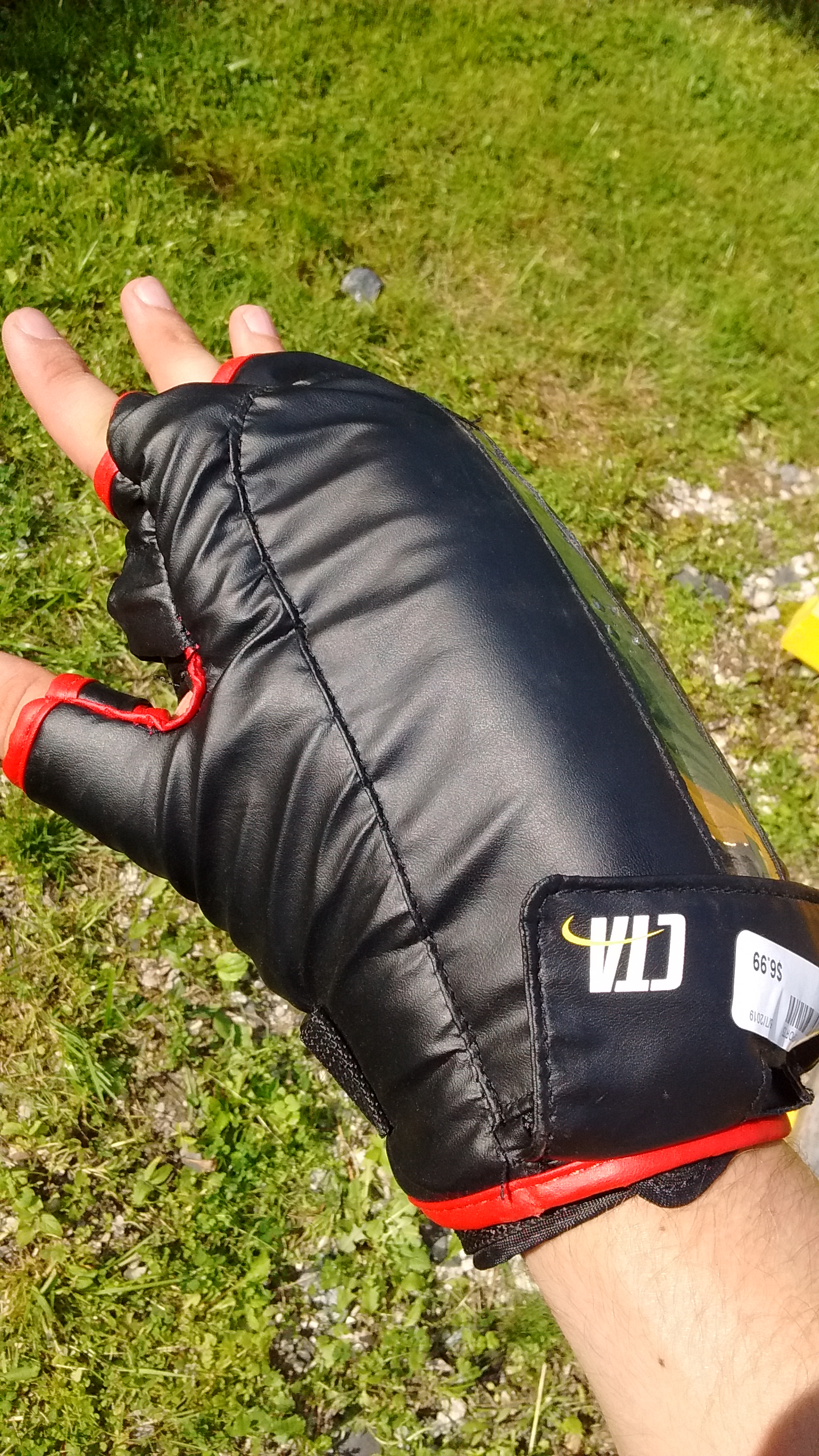

Found some great hand protective gear, coordinates well with the rest of my suit.

IMG_20190622_161102891.jpgIMG_20190622_161105444.jpgIMG_20190622_161111821.jpgIMG_20190622_161119351.jpg


GMer56

Well-Known Member
Free pinball machine?? Yes please!
Great find man
Looks like the reason they got rid of it was cuz the balls have a tendency to get stuck under the plunger. Have to get an ac adapter to make sure it still works but hey free!
Last year I got a $150 gas weed Wacker for free that just needed a $15 part. When I have luck I have good luck.


GMer56

Well-Known Member
Bit more updates:

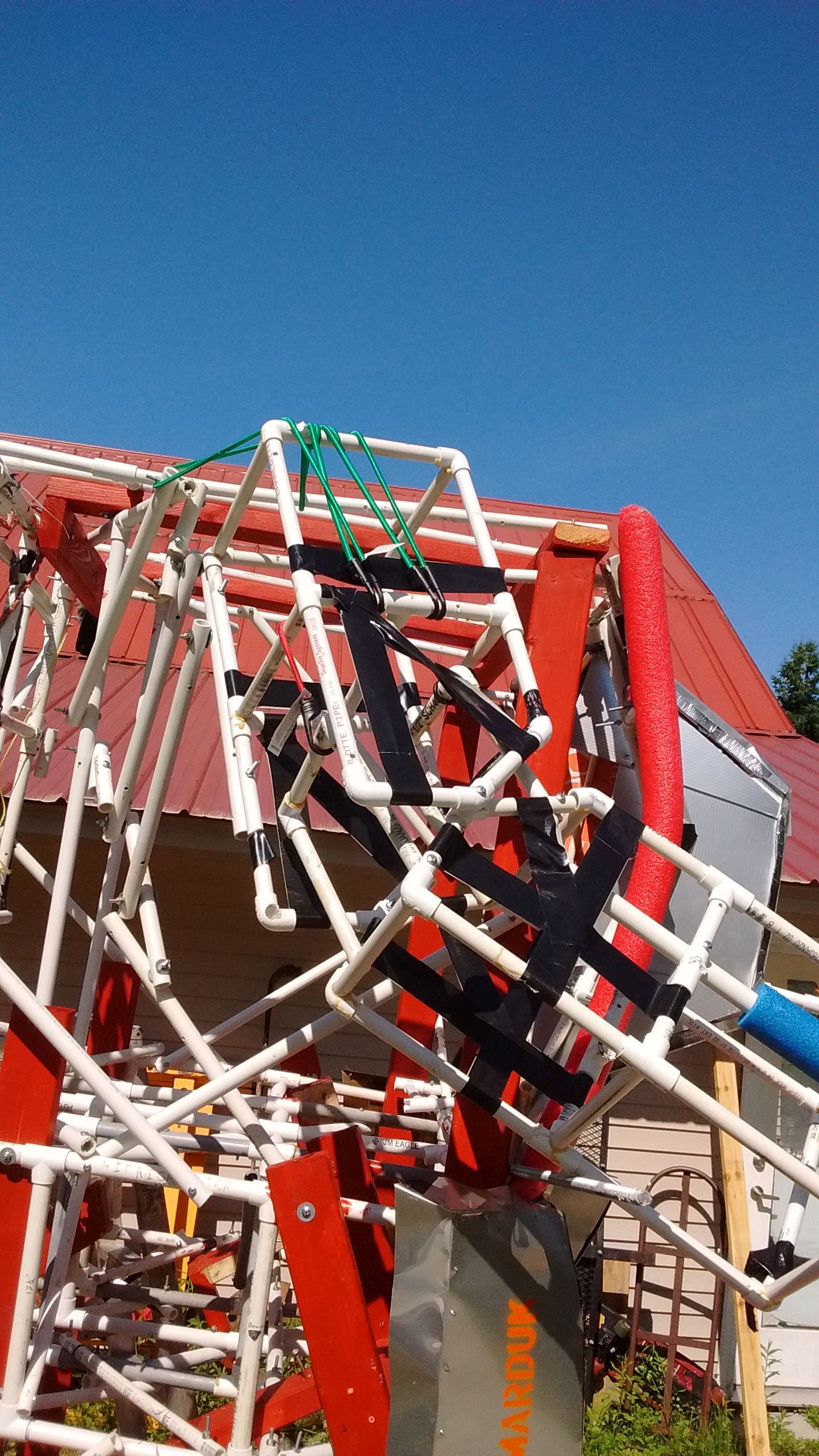

Rigged bungees so the arm easily lifts and can be given more assistance as necessary

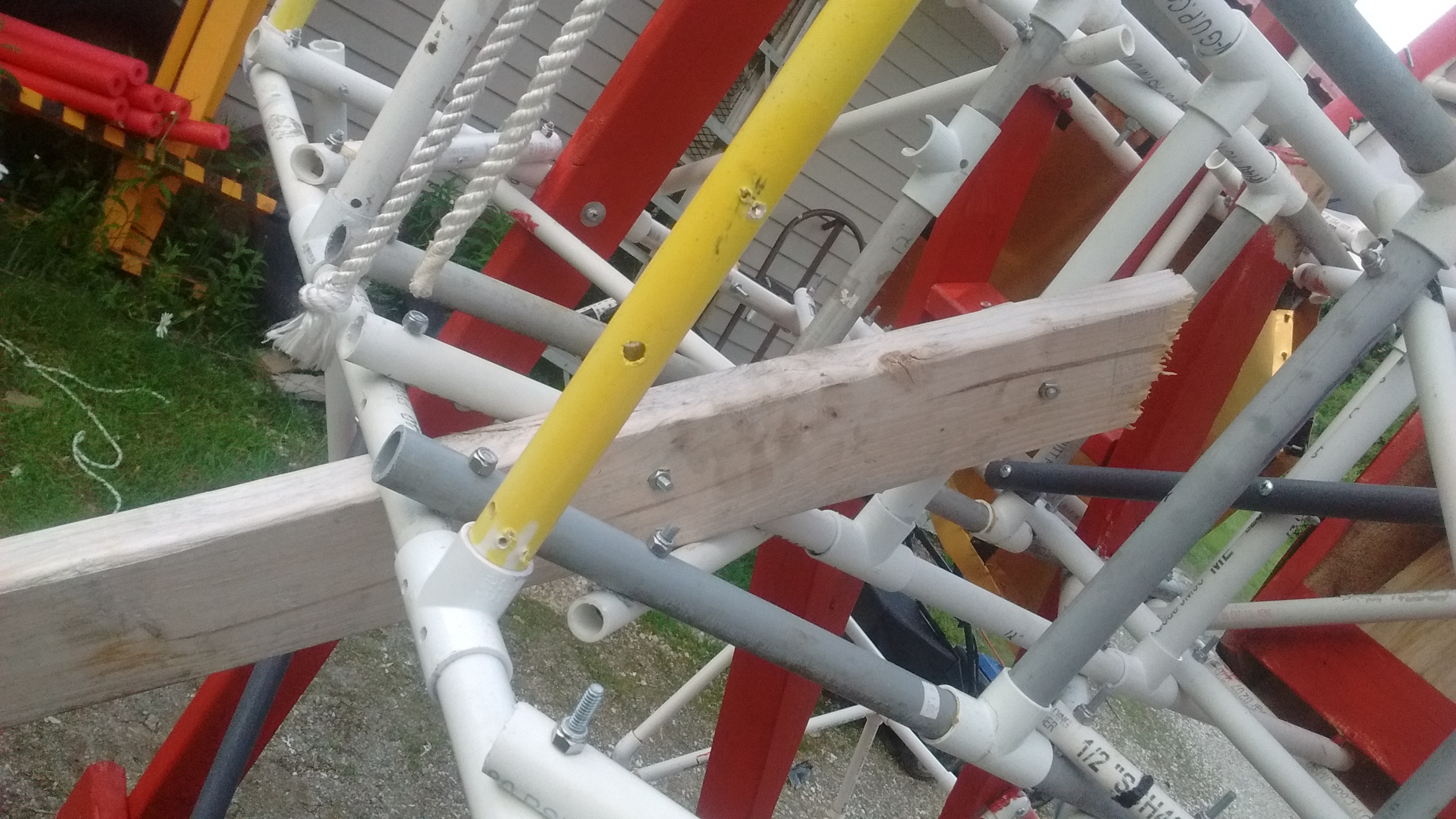

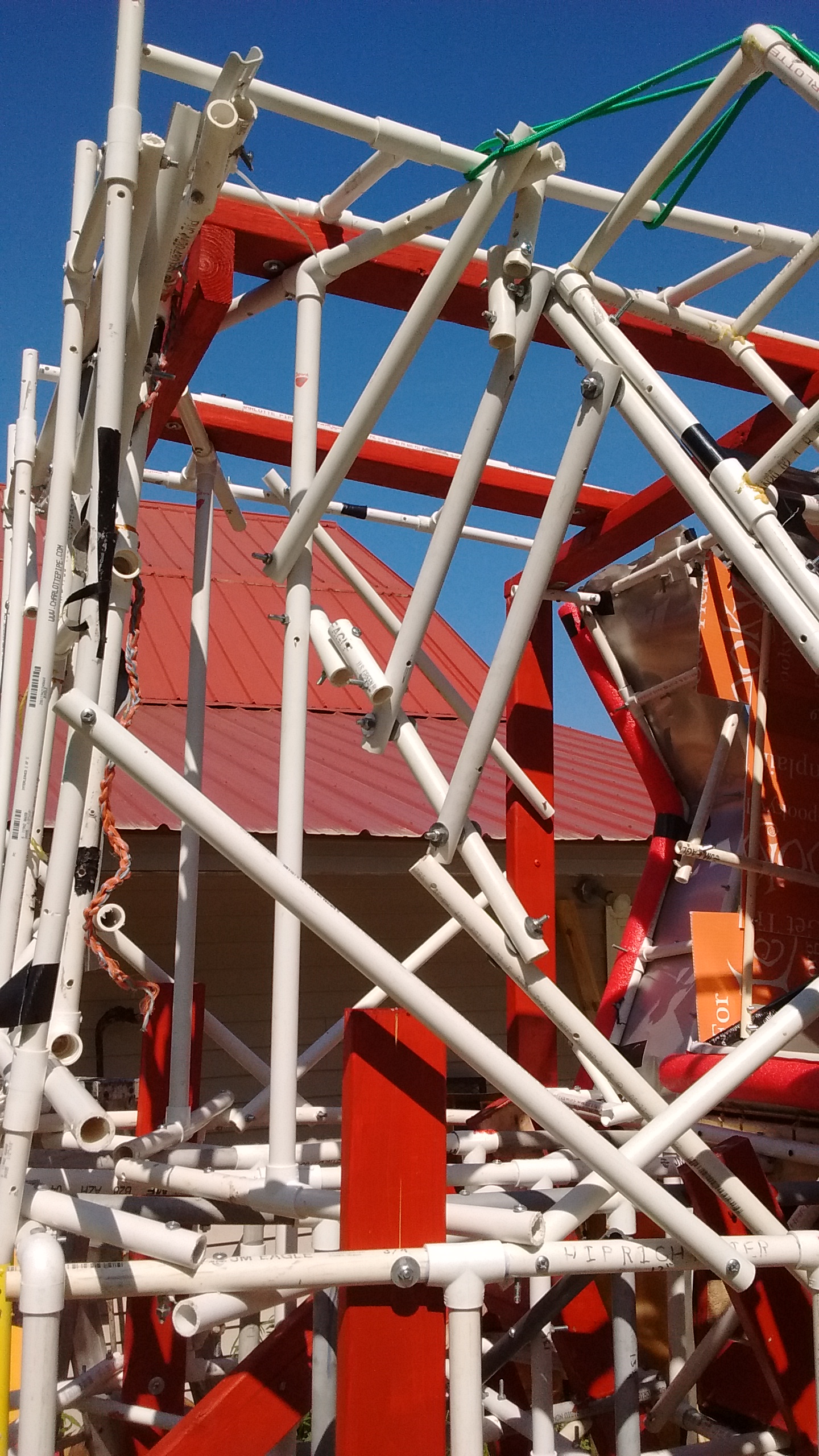

Arm is actually angled forward inside the torso so there's a bit more PVC inside D:

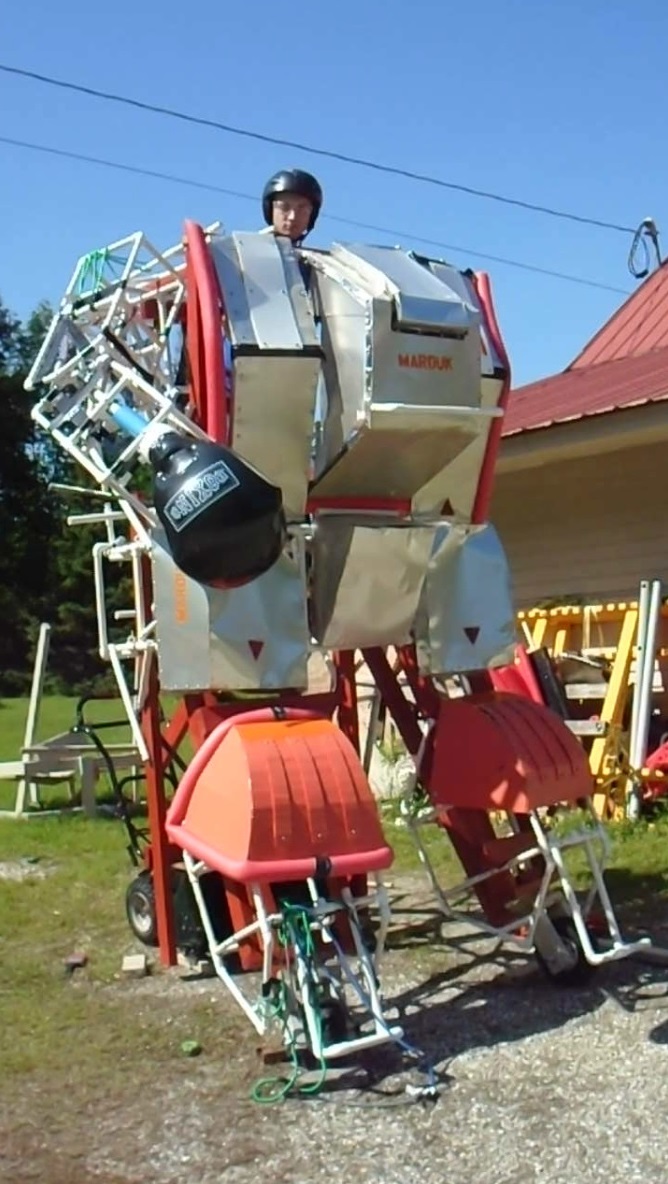

I got swole:

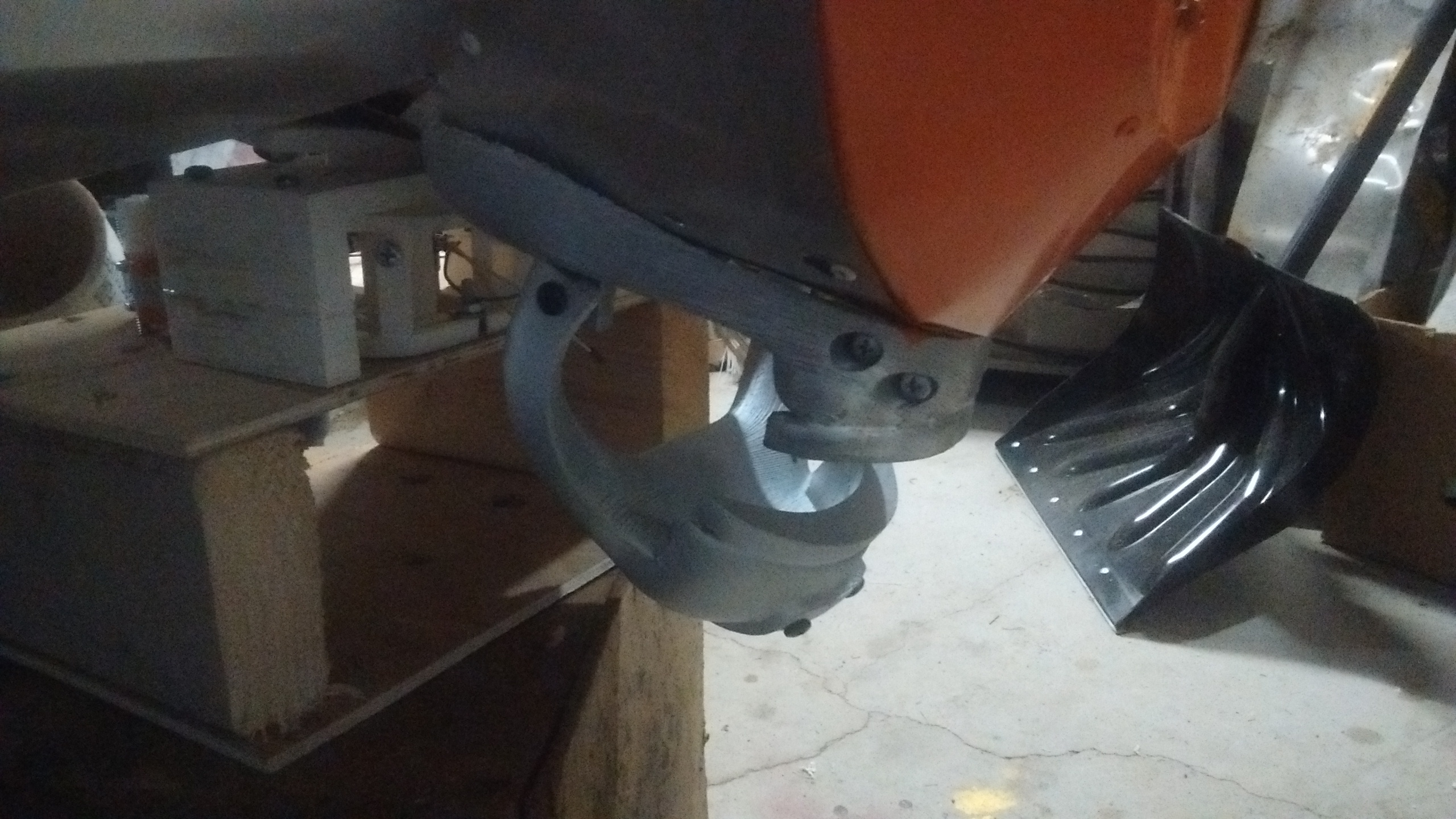

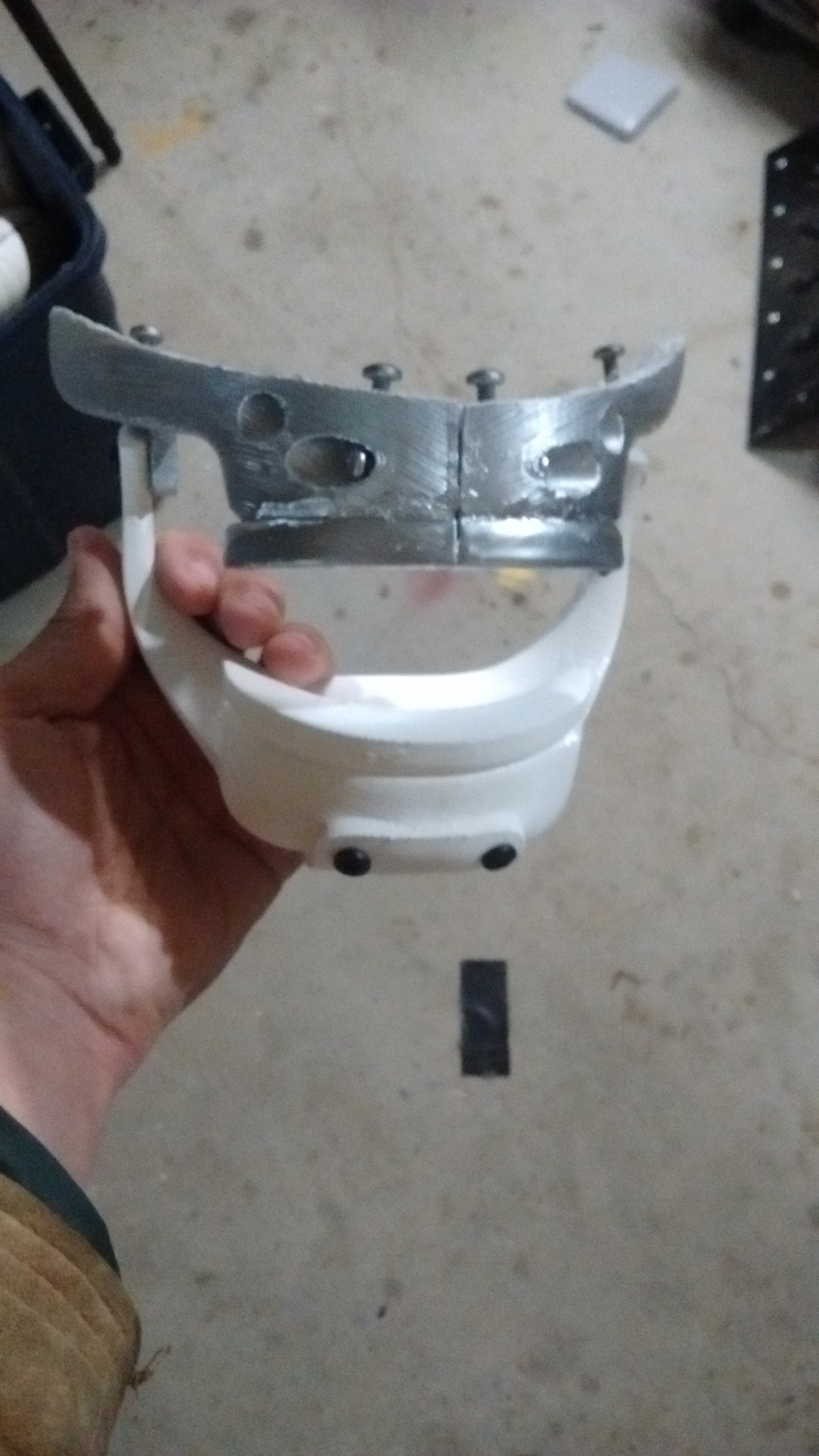

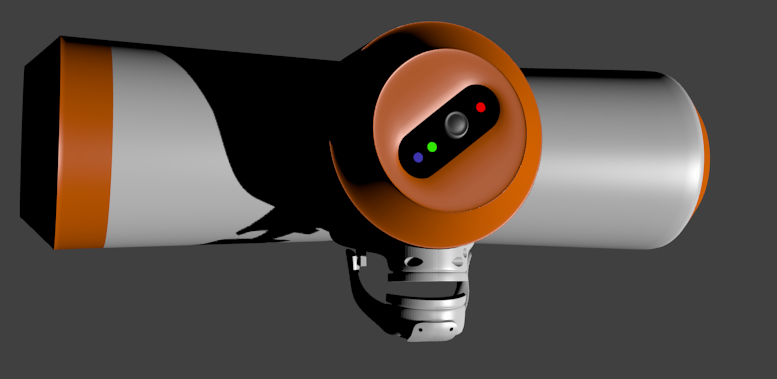

Working on an addon for the head (will take a while cuz a coworker is vyying for a 501st enlistment and comissioned me to 3d print a DC-15 rifle)
Terrifying...


I love it.

Last edited:

Sean Anwalt

RCO
405th Regiment Officer
a coworker is vyying for a 501st enlistment and comissioned me to 3d print a DC-15 rifle
Give them an MA-5 'by accident' instead, then challenge them all in an epic "405th vs 501st fight to the death"!!!

My money's on our Canadian regiment, followed closely by our mountain reg. (We've got the spirit and know-how, but Canada has the numbers.)

And as a side note, yeah, that jaw looks good. Was going to be funny, but then I noticed how you've built parts from cardboard, and at first glance I thought it was 3D printed, so good work!


RandomRanger

Well-Known Member
Give them an MA-5 'by accident' instead, then challenge them all in an epic "405th vs 501st fight to the death"!!!

My money's on our Canadian regiment, followed closely by our mountain reg. (We've got the spirit and know-how, but Canada has the numbers.)

And as a side note, yeah, that jaw looks good. Was going to be funny, but then I noticed how you've built parts from cardboard, and at first glance I thought it was 3D printed, so good work!
Holy cow, yeah I totally thought those were 3d printed until you said something.


GMer56

Well-Known Member
Give them an MA-5 'by accident' instead, then challenge them all in an epic "405th vs 501st fight to the death"!!!

My money's on our Canadian regiment, followed closely by our mountain reg. (We've got the spirit and know-how, but Canada has the numbers.)

And as a side note, yeah, that jaw looks good. Was going to be funny, but then I noticed how you've built parts from cardboard, and at first glance I thought it was 3D printed, so good work!

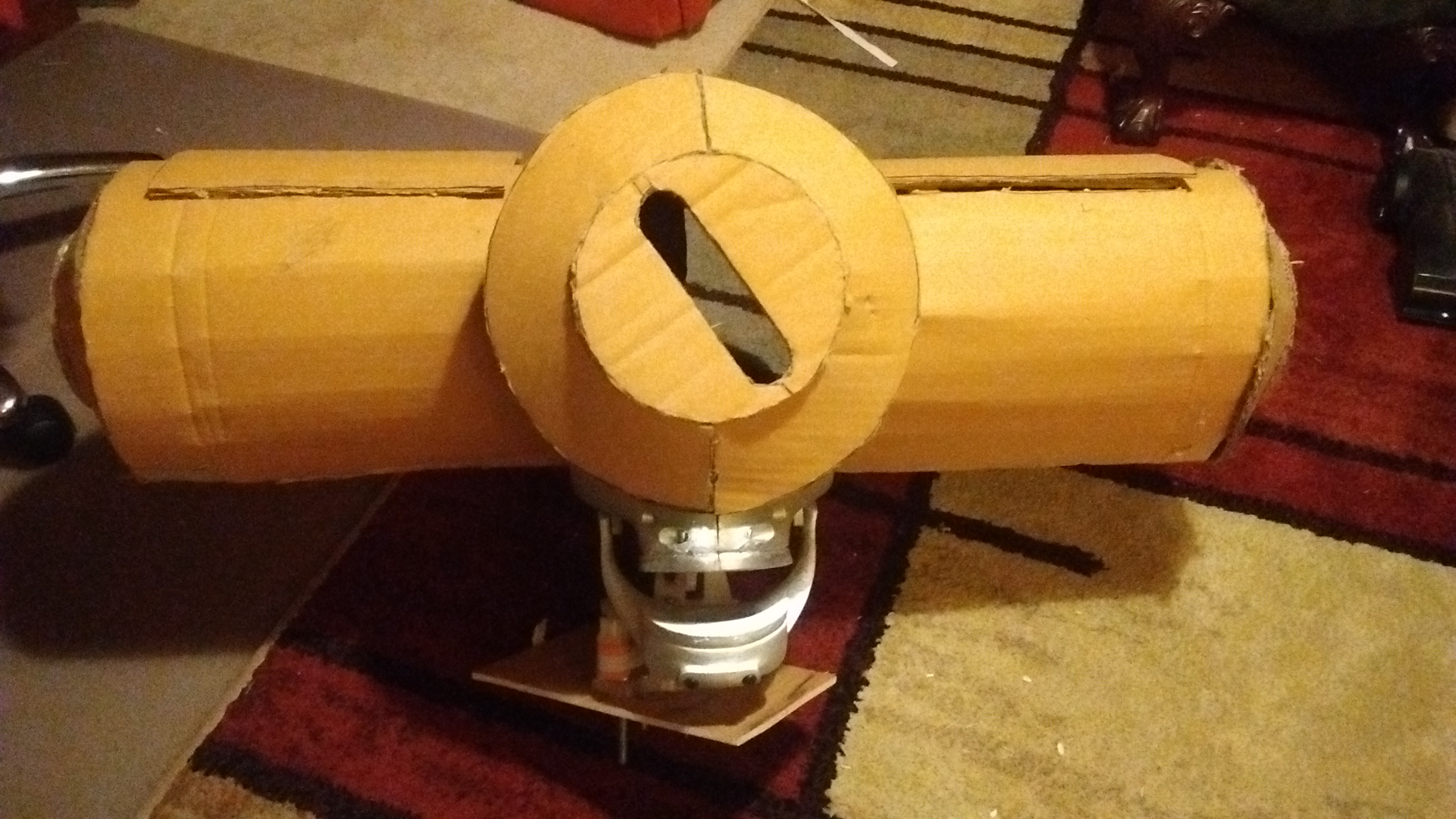

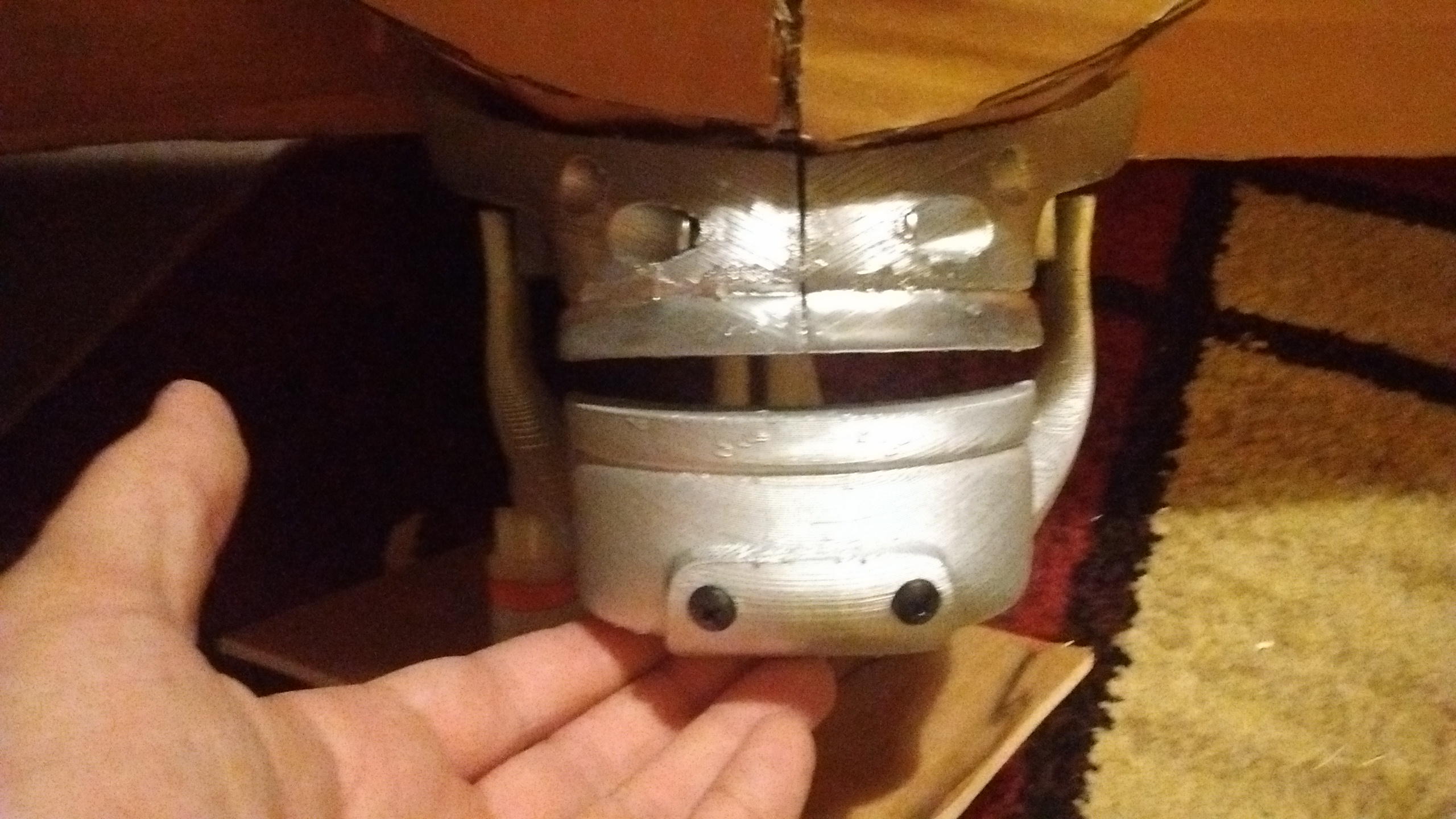

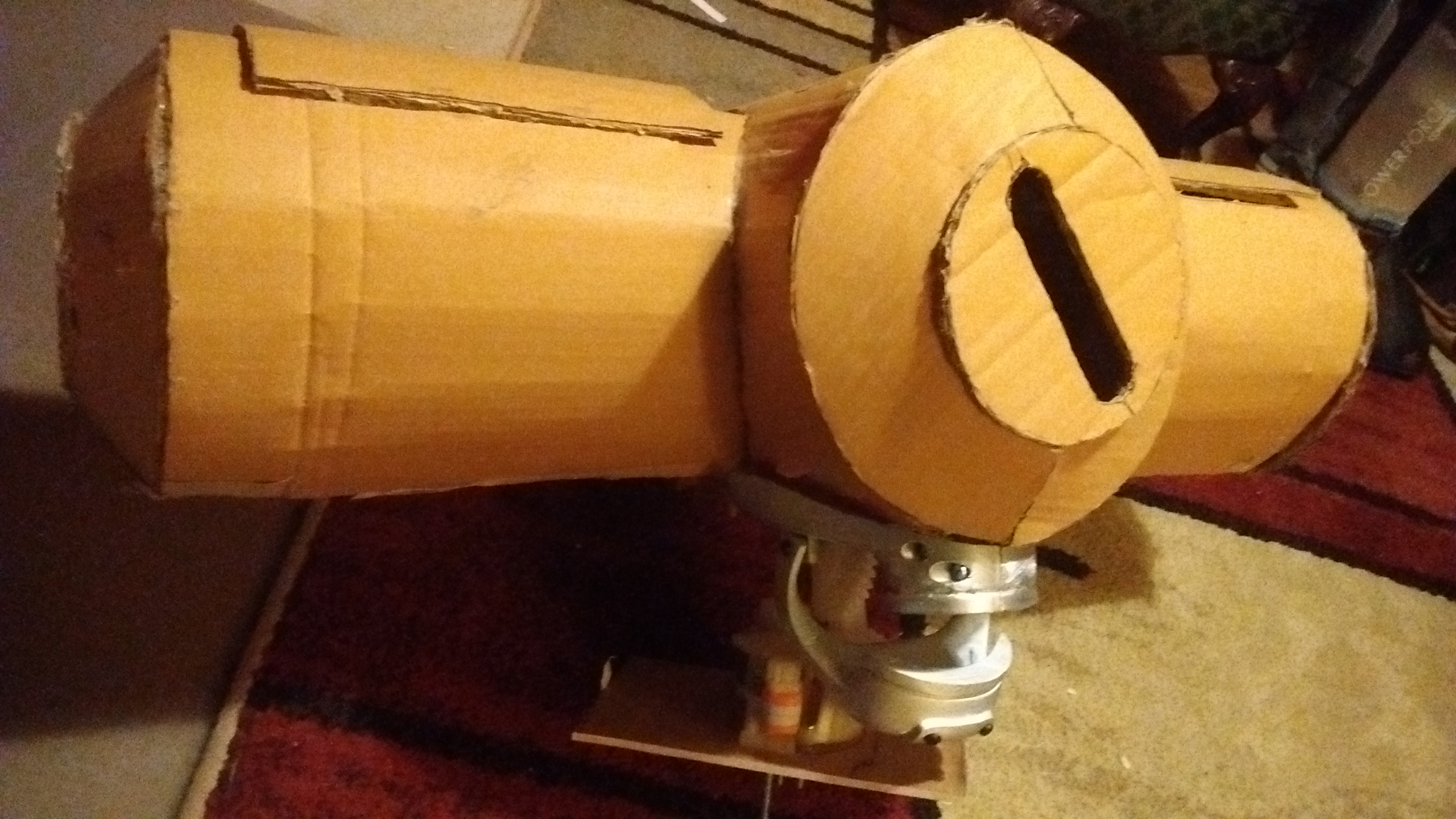

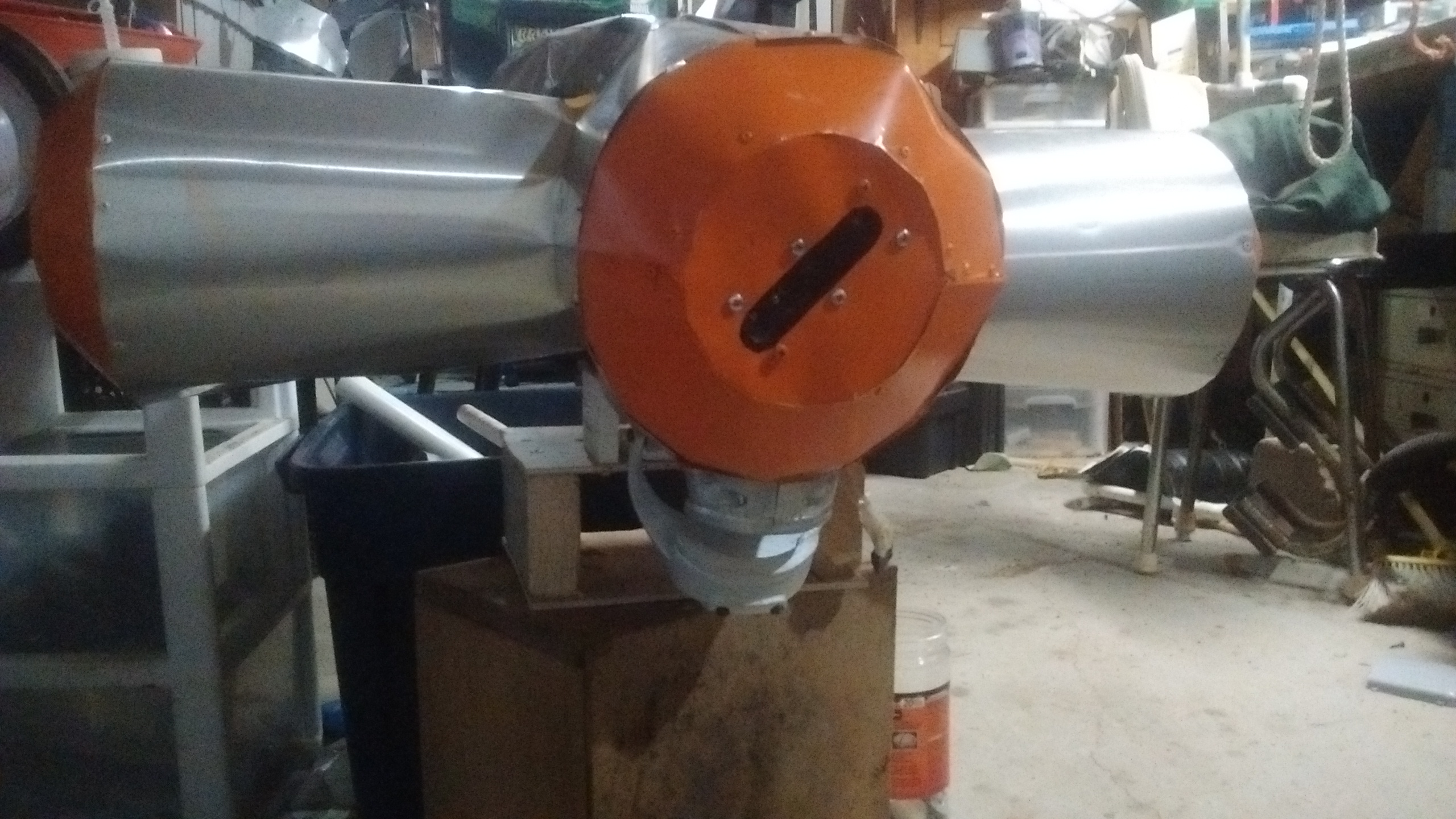

Yeah, that's the old prototype head for MARDUK. I'm having a bit of trouble removing some bits on the official metal head so I can attach that jaw.


xXDashIVXx

Well-Known Member
I'm having some serious flashbacks to titanfall looking at the head. Even though it isnt acurate, I cant get BT out of my head... BT :(
