Ive looked around but havnt had much luck finding anything. Do you have the link? Also, are there files for undersuit parts other than the abdomen? For example, the neck gasket, shoulder gasket area, groin undersuit area/upper thigh, etc?
Halo 3 - Mark 6 - Master Chief Armor Set - No Helmet by moesizzlac
There were no files I could find for anything besides the abdomen. I had to get creative for the rest of the parts. I ended up using a motorcycle under armor for the undersuit, and a portion of a silicone mask I bought on amazon for the neck seal.


Dan99

New Member
that paint job is awesome!!! Mind sharing your process?
Sure! I have a lot more photos/documentation of the build on my Instagram account @dr.propscosplay if you guys are interested in checking that out. I didn't use spray cans for any part of this build besides the final protective clear coat. I used an airbrush with a custom acrylic paint color mix that I made. You can add so much texture and fine detail with the airbrush. It takes a little bit of practice to do, but once you are steady and consistent, the results speak for themselves. For weathering, I hit the edges of the armor panels with a silver paint pen BEFORE I started to apply the green base coat. This way you can physically sand and hit the edges after its done to reveal the metallic coat underneath, It works very well if you practice and don't sand the edges too hard or else you will start seeing the filament. Choose a silver, grey, or black filament to print with just in case you scratch the panels, it won't look like plastic underneath.


Attachments

  • IMG_0101 (1).jpg

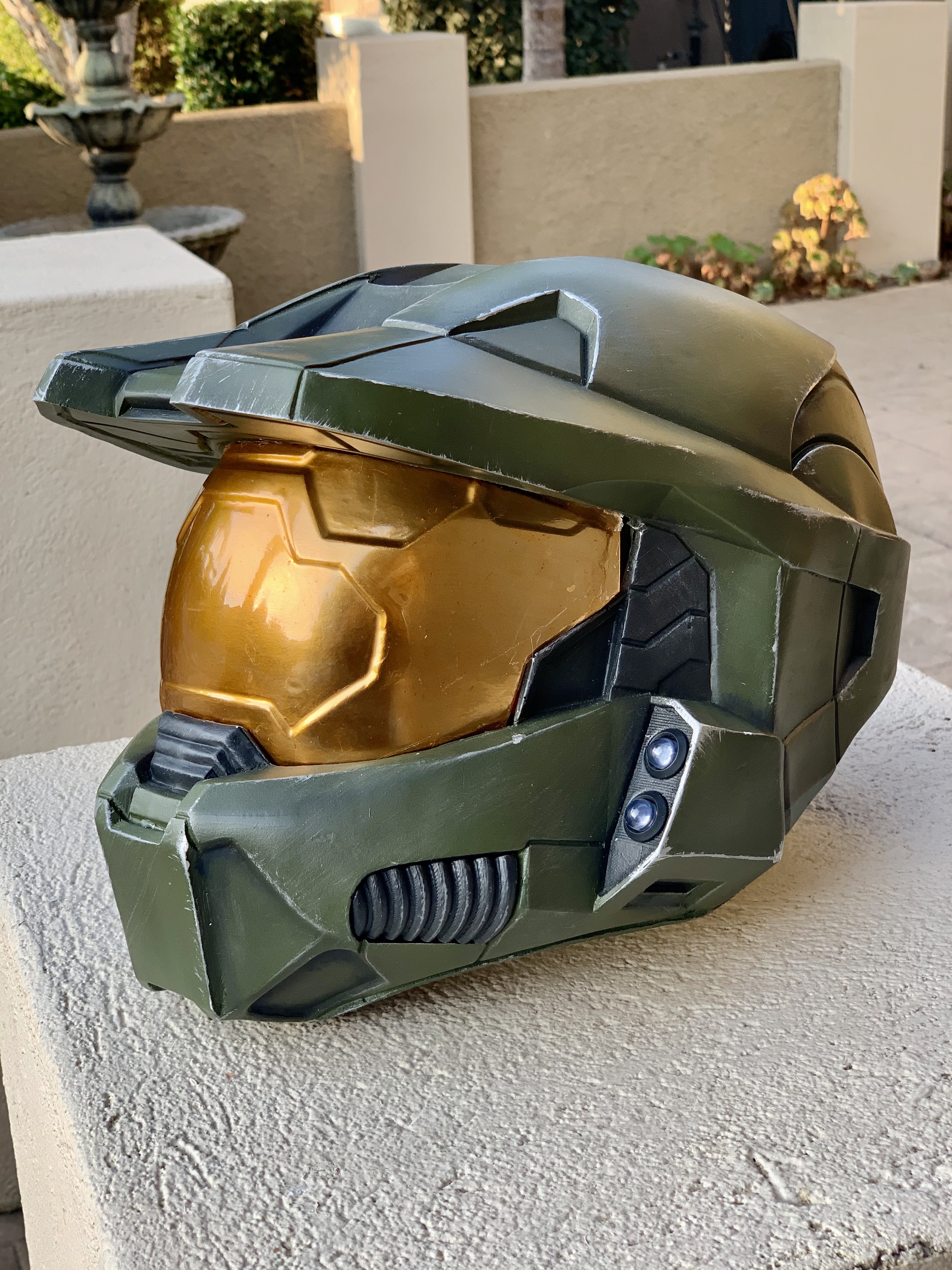

    IMG_0101 (1).jpg
    2 MB · Views: 42
  • 081880F3-65A2-49B7-A64D-AC8C6A2BED62 (1).jpg

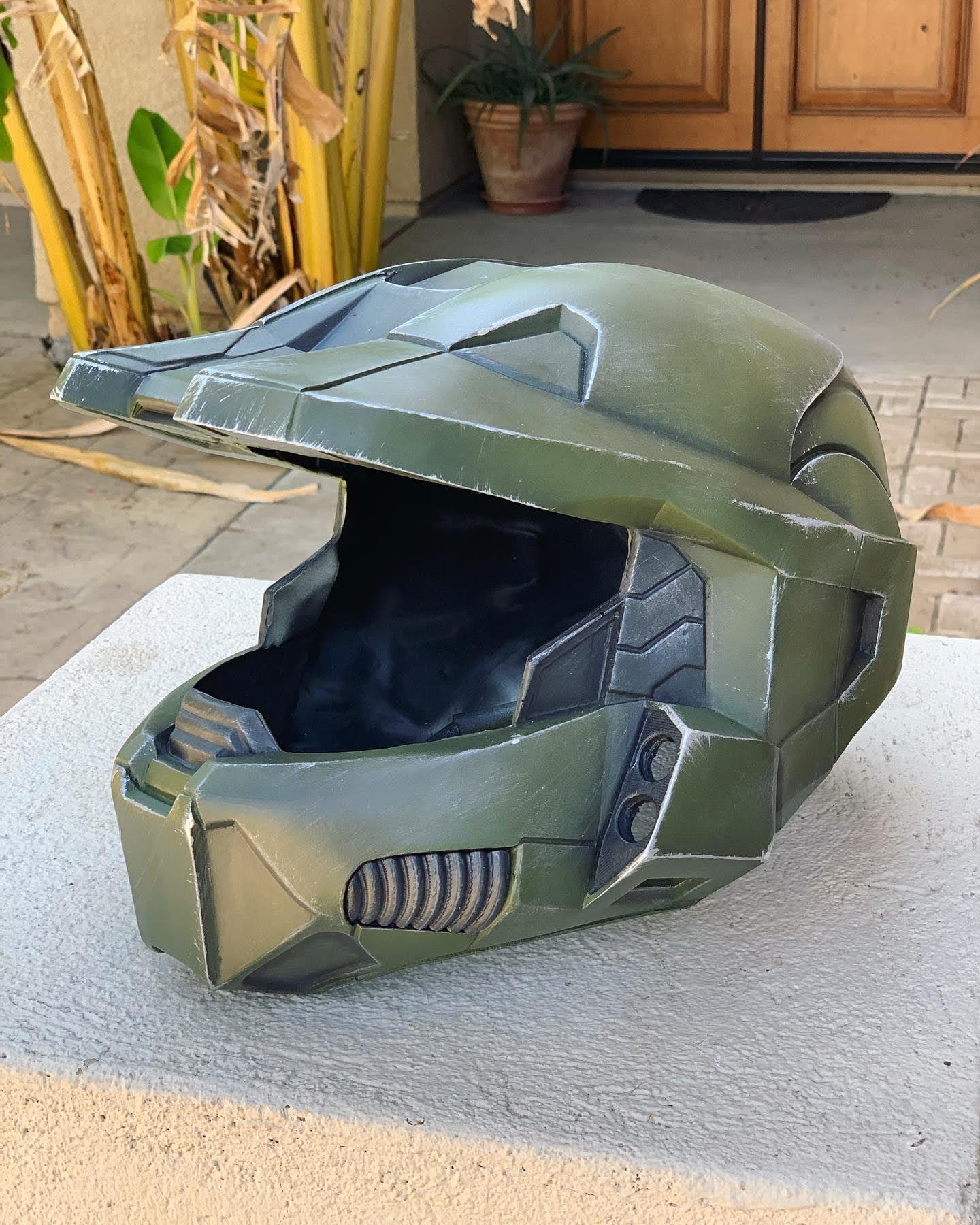

    081880F3-65A2-49B7-A64D-AC8C6A2BED62 (1).jpg
    292 KB · Views: 42

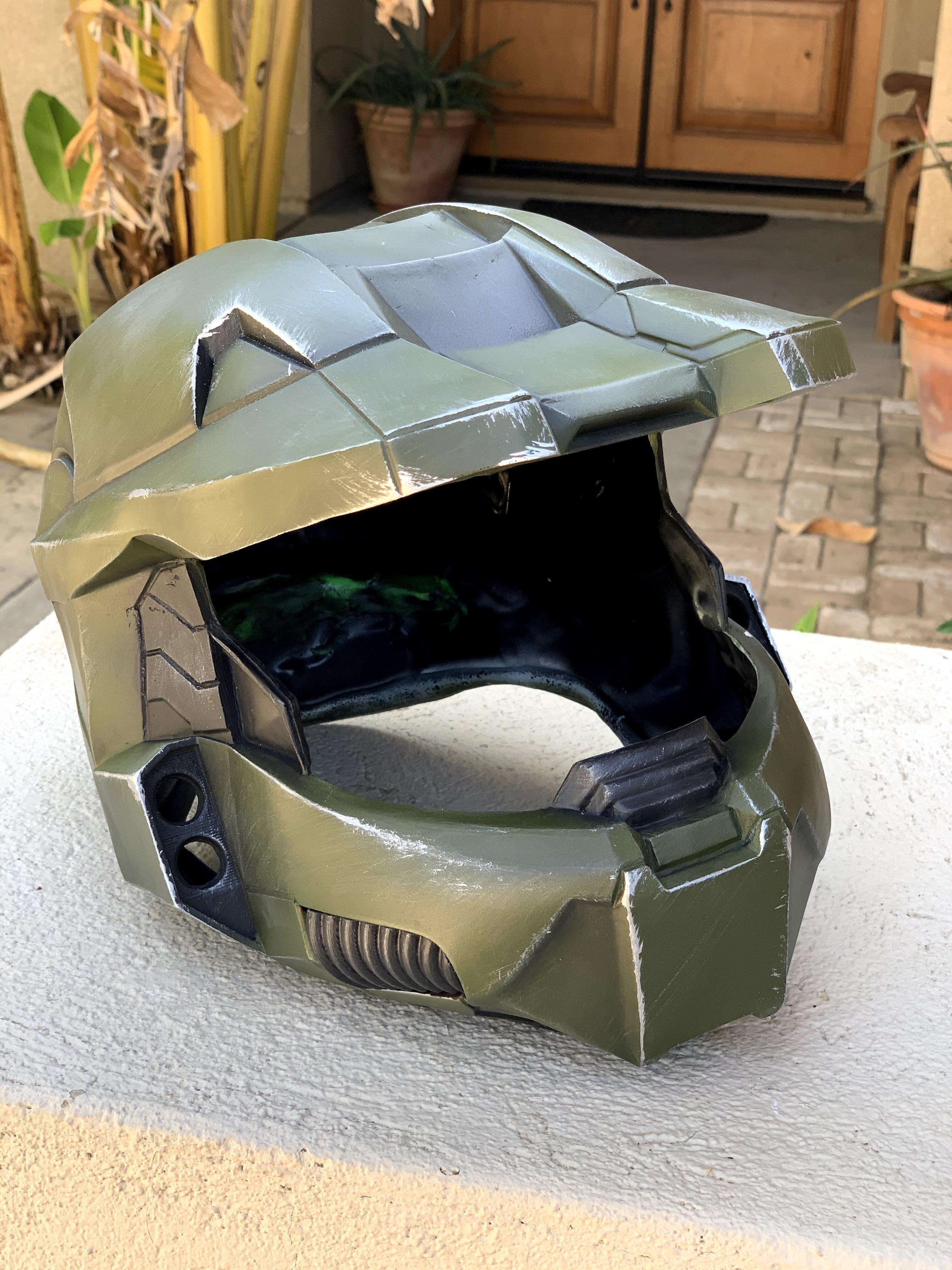

  • IMG_0431.jpg
    1.4 MB · Views: 35

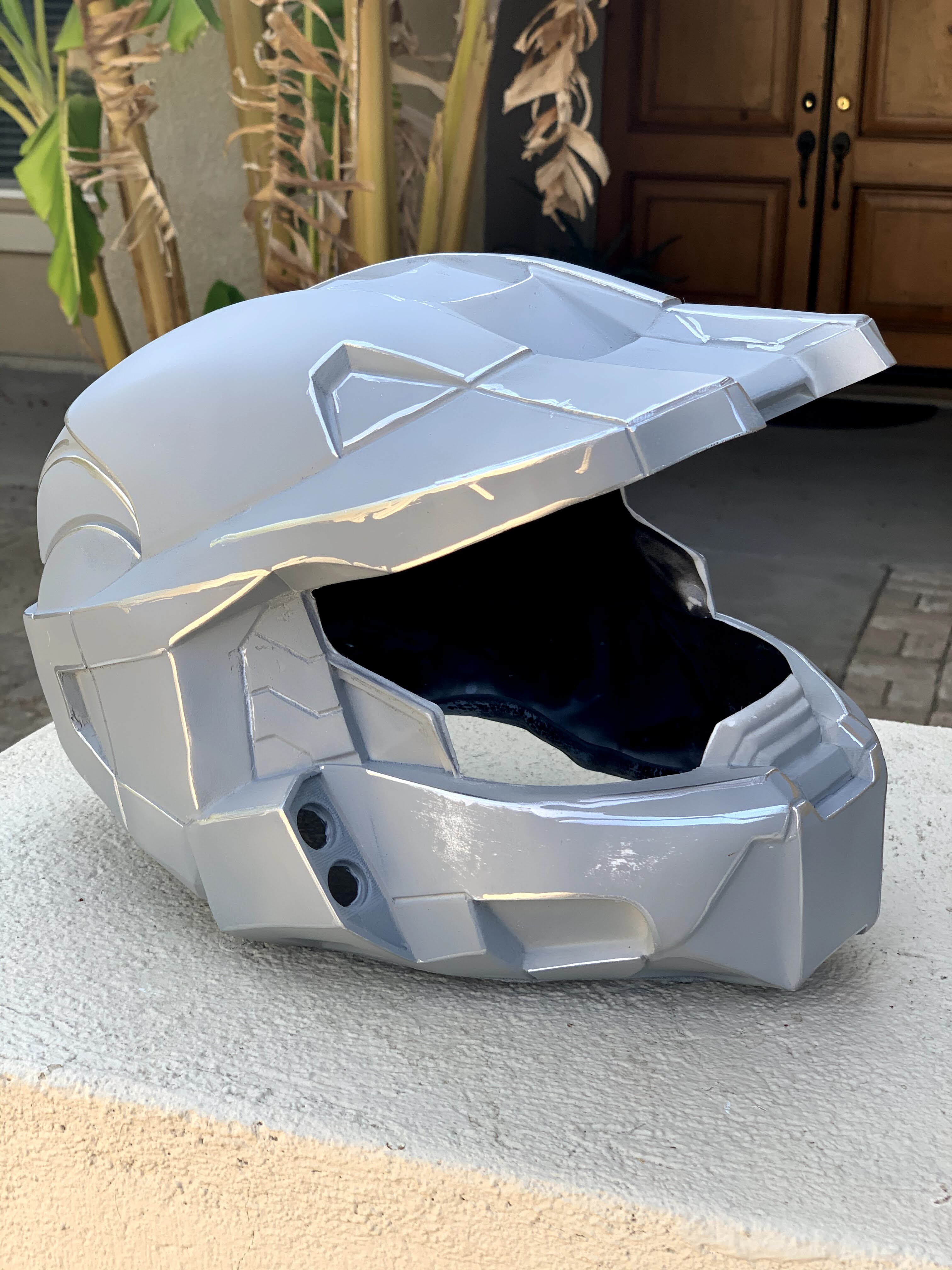

  • IMG_0412.jpg
    1 MB · Views: 32

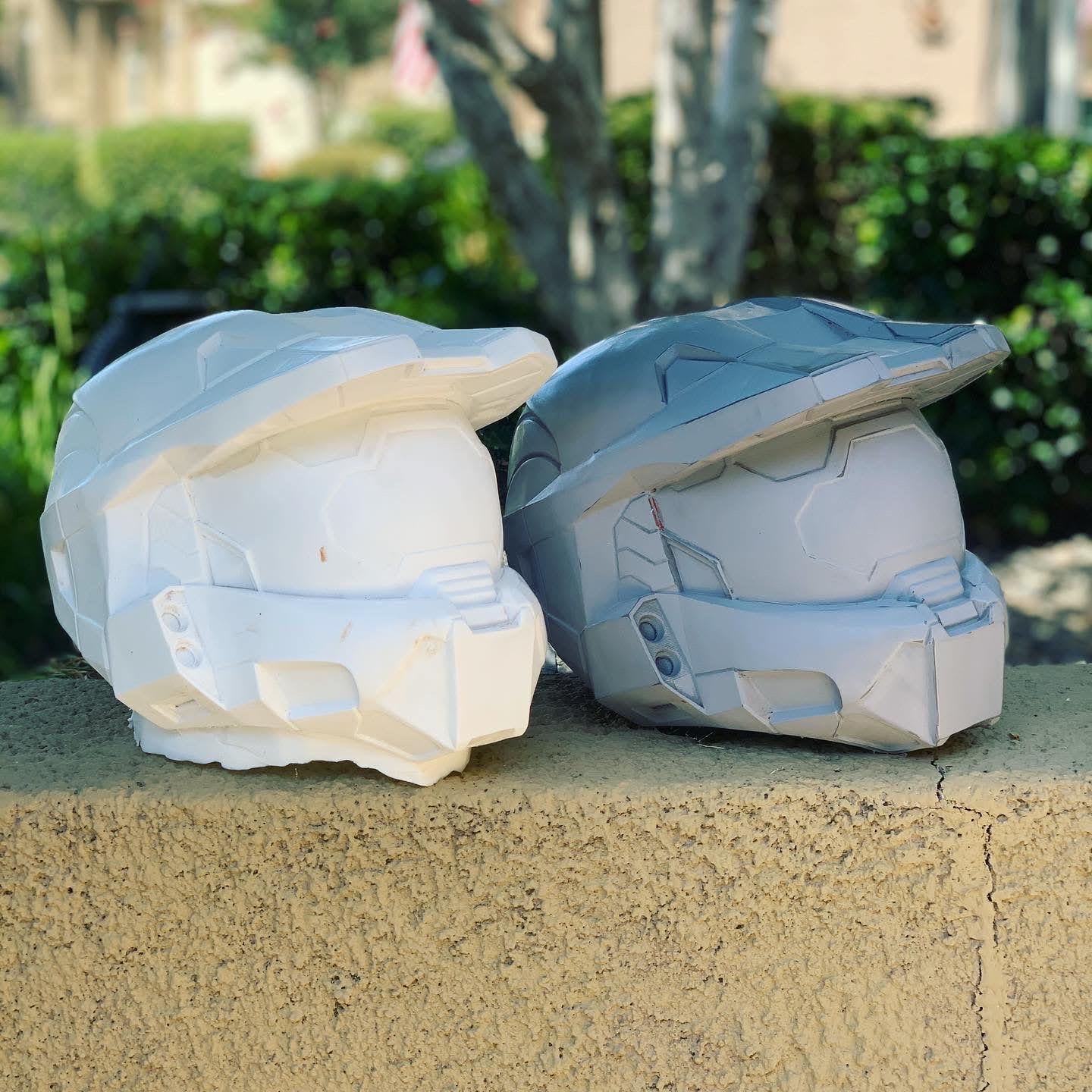

  • AC1061E2-78F6-4531-8B2A-F43532283F96.jpg
    229.9 KB · Views: 40

Bucky

New Member
Hey Dan, what kind of airbrush and compressor do you have? Looking for one that will be for my project as well..


Dan99

New Member
Hey Dan, what kind of airbrush and compressor do you have? Looking for one that will be for my project as well..
I purchased an Iwata airbrush and then any compressor with a small tank. The Iwata brush is great, its ability to dump a bunch of paint on as well as be very accurate is great.
