My Hayabusa Armor Progress

Belakor

Well-Known Member
Dark Rogue said:
@ Belakor : That's kinda the same thing with the EOD, or is it really orange?...
Can't say for sure with the EOD, still haven't sat down and finished the last two levels on legendary :unsure: but if it's anything like the other two small visored helmets I'd say it is the same :)

Last edited by a moderator:

howaado

Active Member

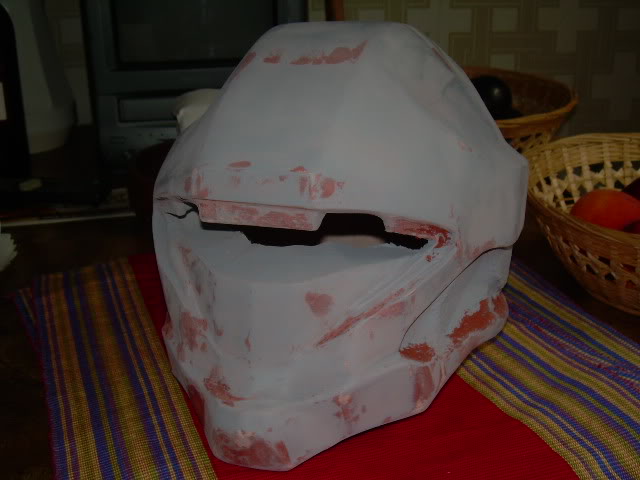

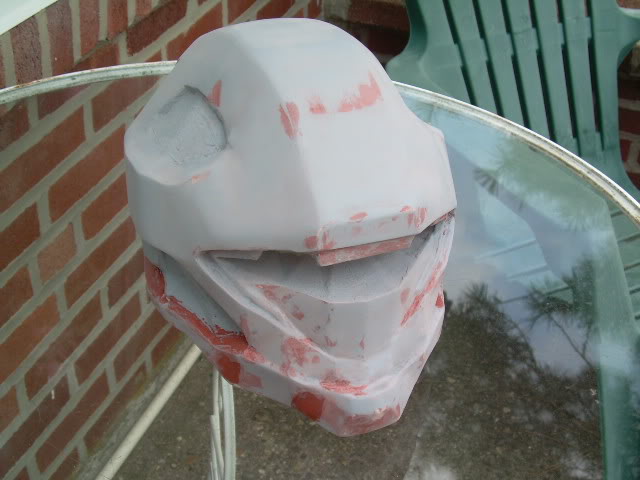

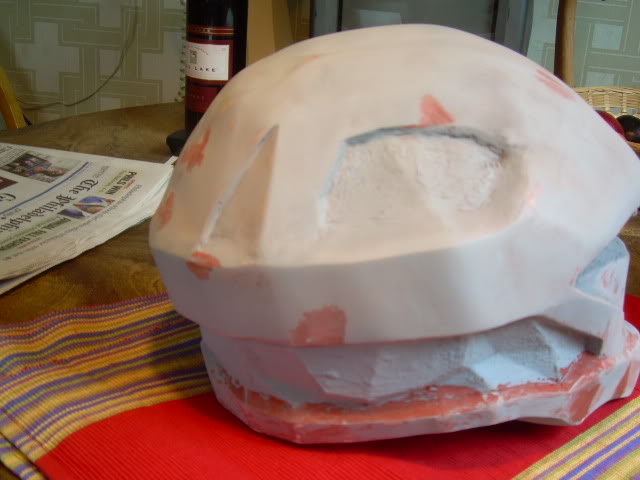

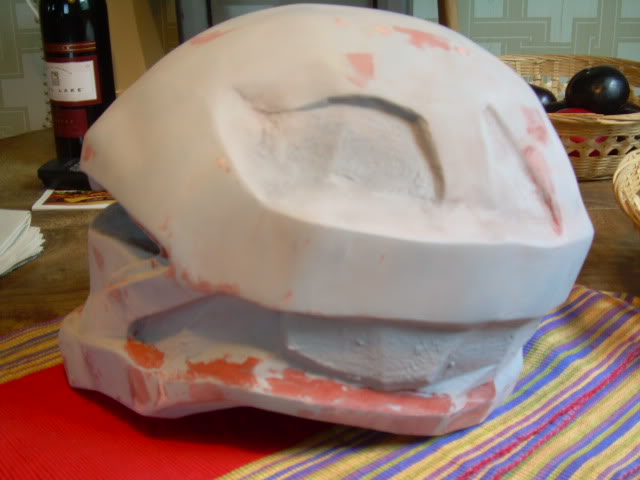

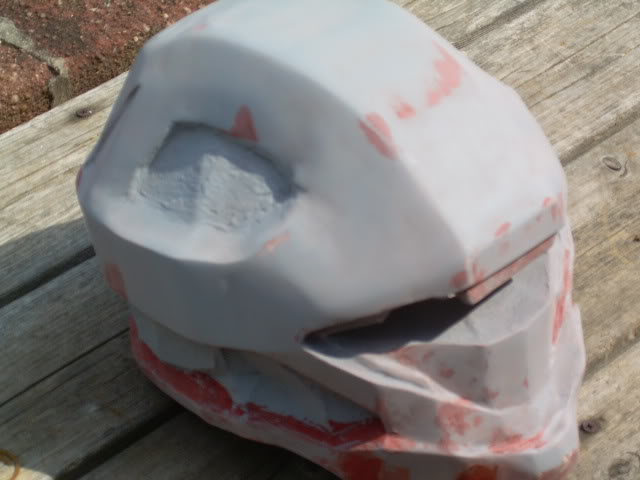

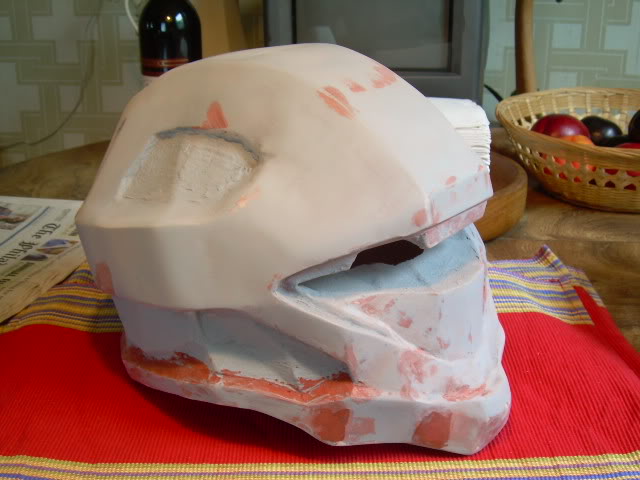

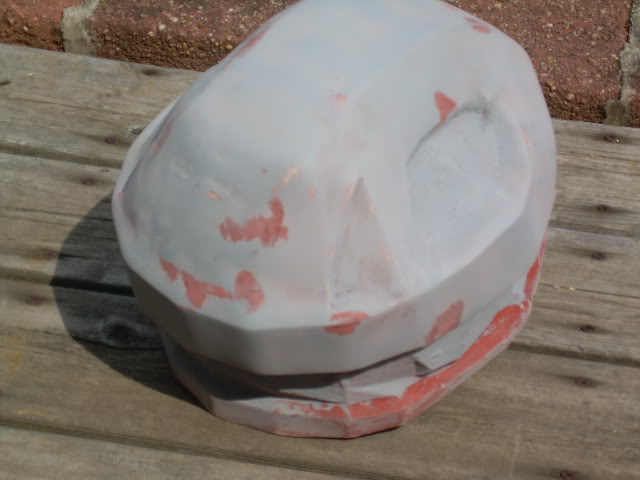

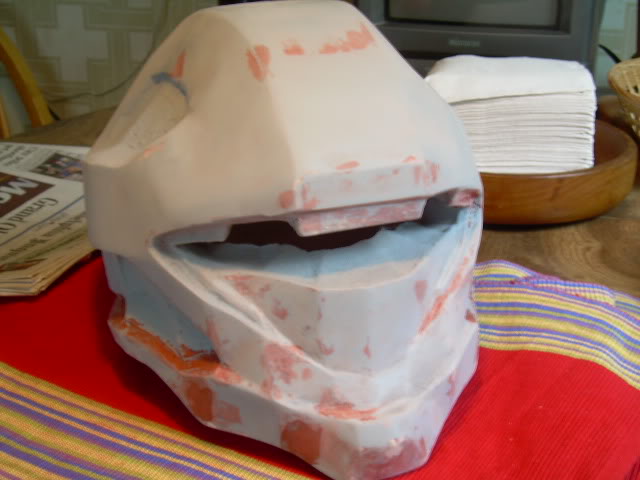

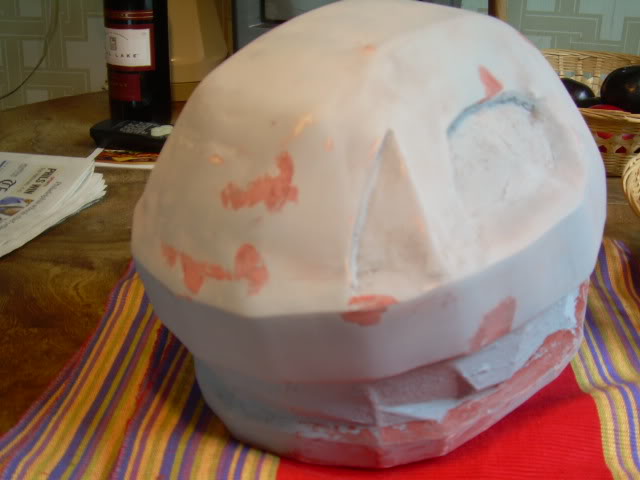

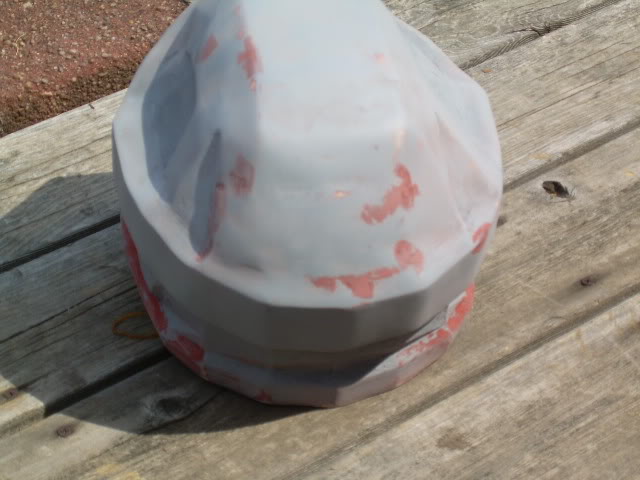

Now that summer has come to an end, I can begin work on my recon helm again. I sprayed on primer and continued sanding like crazy to smooth it some more, all that is left are the groves near the bottom, top, and to add the details and vents. (warning alot of photos)












howaado

Active Member

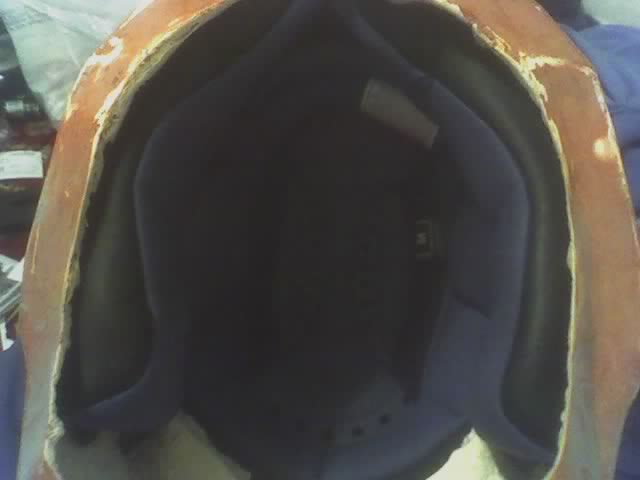

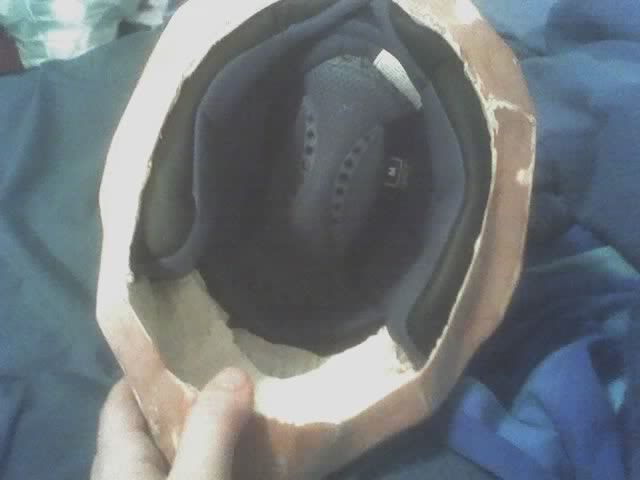

Ok i know its been a while for my helmet, but weather wasn't that permitting until now. I just received the padding for my helmet, scorpion sports exo-700 padding in standard gray color. and got some spot putty put on a bit more smoothing on the bottom, picked up some plastic signs for the vents on the side, and have been messing with some electronics, not for my helm but for a Solid-Eye prop. Sorry for the low resolution photos but don't have my camera atm.





Snug fit and very comfortable.


crackhead09

RCO
405th Regiment Officer
so how are you going to do the details and such? as well as your ventilation placement cuz im trying to figure if those are just black parts on the cheeks, lights or just nothing im not sure but your helmet is looking good and definitley comfy!


howaado

Active Member
crackhead09 said:
so how are you going to do the details and such? as well as your ventilation placement cuz im trying to figure if those are just black parts on the cheeks, lights or just nothing im not sure but your helmet is looking good and definitley comfy!


Details will be added using rotary tool, the vent on the side will be made from plastic sign after cutting out the resined parts, the placement will be as seen in the picture below, and comfort in it is amazing, just need to do some trimming on the inside where the visor is going to go.




Last edited by a moderator:

howaado

Active Member
If I remember correctly I used the default scale Belakor used which was 26cm.


mc halo3

Well-Known Member
looking good quadraxis A.R is the bomb it gave me back a part of my lungs i lost to normal casting resin *cough,cough*

mjolnir follower said:
looking good quadraxis A.R is the bomb it gave me back a part of my lungs i lost to normal casting resin *cough,cough*
your helmet is amazing. i just resined my recon helmet

Last edited by a moderator:

howaado

Active Member
Well for me it has been a long summer after working on a MGS4 snake costume, and just having no free time. Since that has changed and classes have started up for me I have 2 free days to work on my Hayabusa helmet. After picking up a rotary tool I was able to start adding the details to the helmet to make it as game accurate as possible. (Very pic heavy, click to enlarge)



These were taken back when I got it to show size of both helms. (Taken April 21st)







After visor and light slots were cut out, and smoothing and filling was done. (Taken May 21st)













And current status. Vents, and most detail has been engraved/cut and resin added to bottom and inside for strengthening thin areas. (Taken Sept 8th)






















Edit 9/9:

I was wondering if I should use the detailed spots near the visor and completely cut through and place a black mesh material behind it to allow more airflow through the front, also same with the same shaped detail on the back. For the vents on the side, that is where I will place the fans behind some more of that mesh material. The mesh material is like a window screen but vinyl instead of metal.


howaado

Active Member
From what I have shown last time with my Hayabusa helmet, I have learned that Painting can be quite frustrating, but that matters not. The helmet is almost complete, What I have done was sand off all the paint from a previous problem along with all of the crest detail, since most of it got damaged by the paint, primed it, put a base coat of gloss white down, then taped it off painted on the blue, and black acrylic paint after many trial and error for finding the exact mixture of white and blue to make the desired blue. I have the visor, I plan on using a hot glue stick while a hole half way through for making the light bars on the front, the padding will be interchangeable between my two helmets, and I still have to pick up the last bit of the electronics (batteries, holders, switch(s), and fans). For anyone who has a hayabusa from Ithica, any recommendations for the visor or template for cutting it?



Blue added, before black detail was added.

th_e467e55c.jpg th_49339afe.jpg



Black detail added, and plenty of touch ups.

th_19.jpg th_17.jpg




Now that this helmet is almost done, I will begin work on the Thorssoli torso I got from him, and the hayabusa permutation. I am planing on making it attachable by magnets.



th_f5252da3.jpg th_9d114583.jpg th_96f0cb9e.jpg th_d66a5714.jpg


howaado

Active Member
Queen said:
Woah! This is looking pretty good! How long did the detailing on the crown take you?


From when I sanded there was still some of the previous detail left on there so I just went over it with hot glue, other spots I had to guess. I felt bad that I had to sand it off cause of the damage, but I tried my best to get it back to how it was. I have a cheap glue gun so it made it a bit difficult, it took about 2 hrs of gluing and correcting.

Last edited by a moderator:
