1st Build ODST Helmet Halo Reach Foam Build

Atommicnerd

New Member

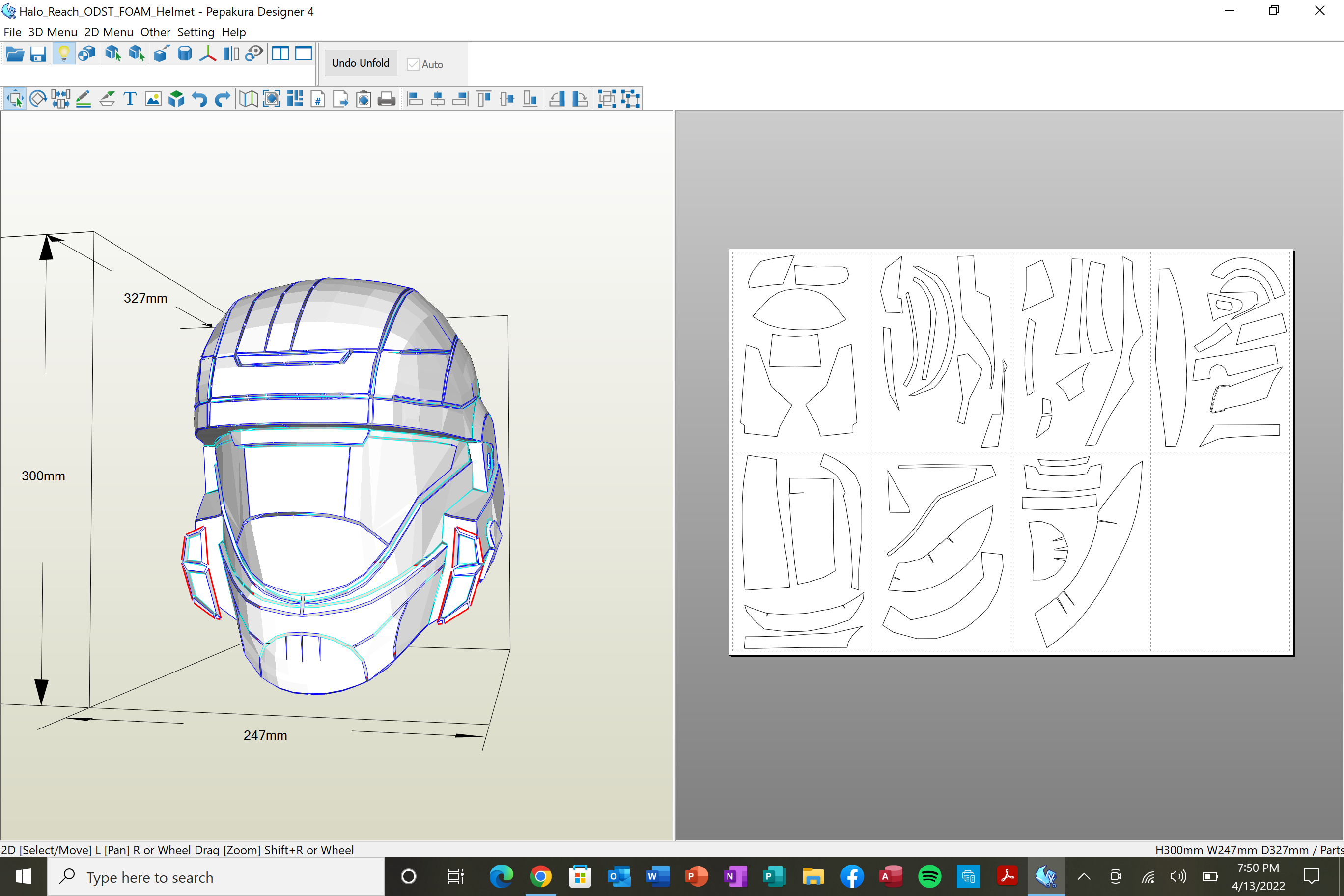

Hey everyone I need some help. I got the pepakura files from Heroes Workshop for an ODST helmet from Reach and attempted the build. However, I hit a roadblock during the process and did not like how the build turned out. I was wondering if there are any tips on approaching this build, especially with these files.


PlanetAlexander

RMO
405th Regiment Officer
Are you able to show us where you got up to, and what troubles you were having? It's OK to have roadblocks, it just means there's a hurdle to jump and when you do, you learn something cool!


PlanetAlexander

RMO
405th Regiment Officer

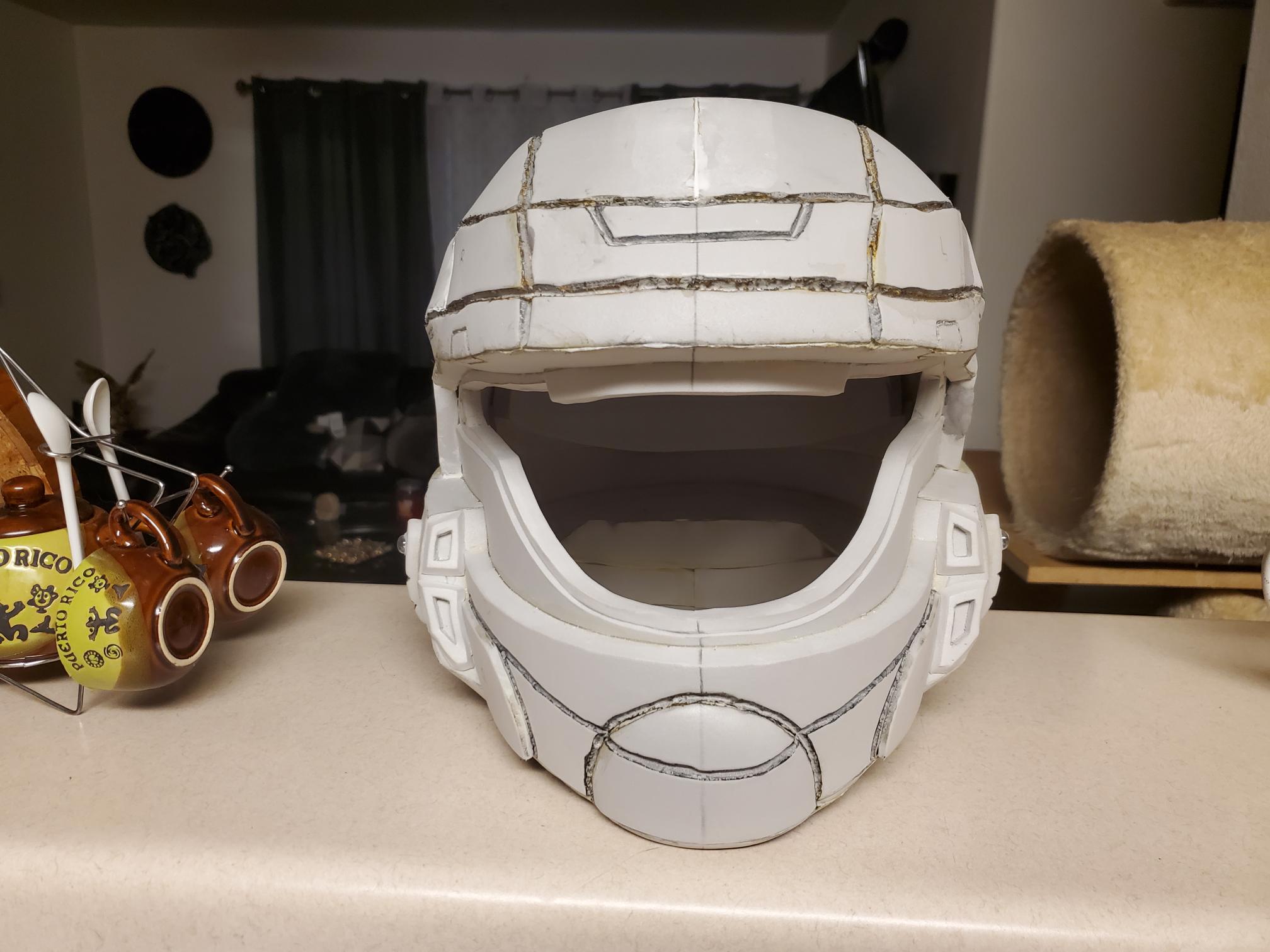

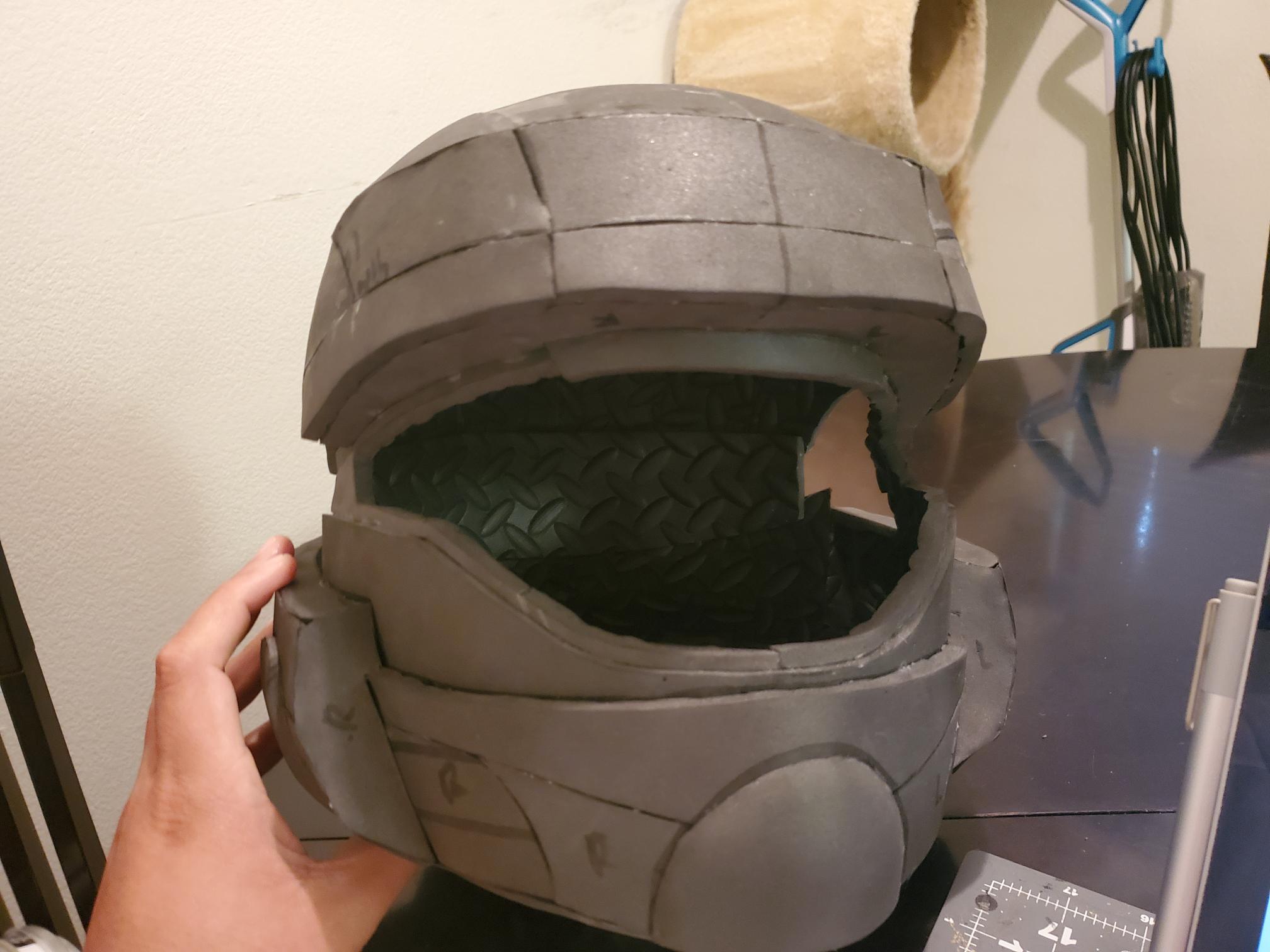

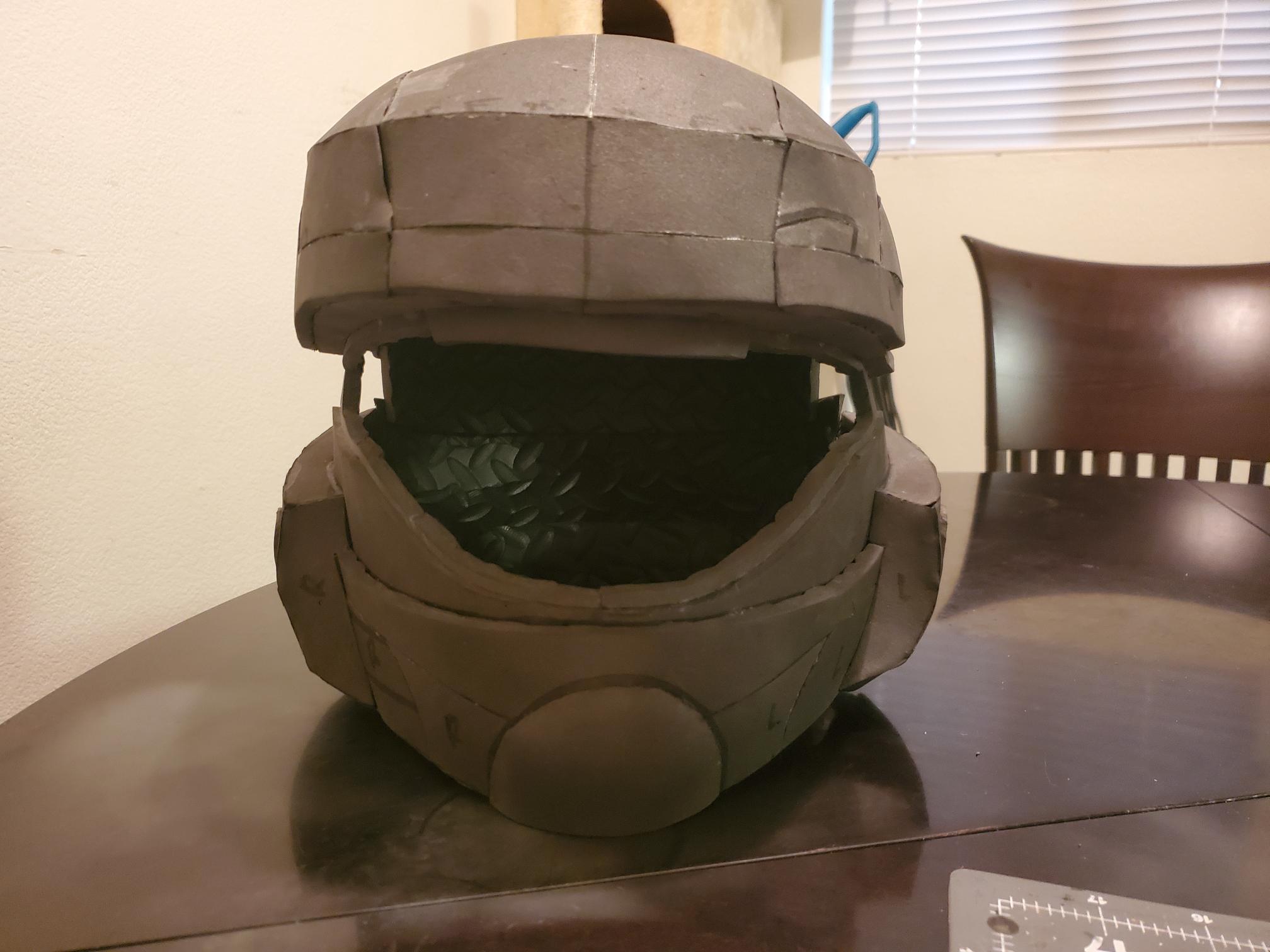

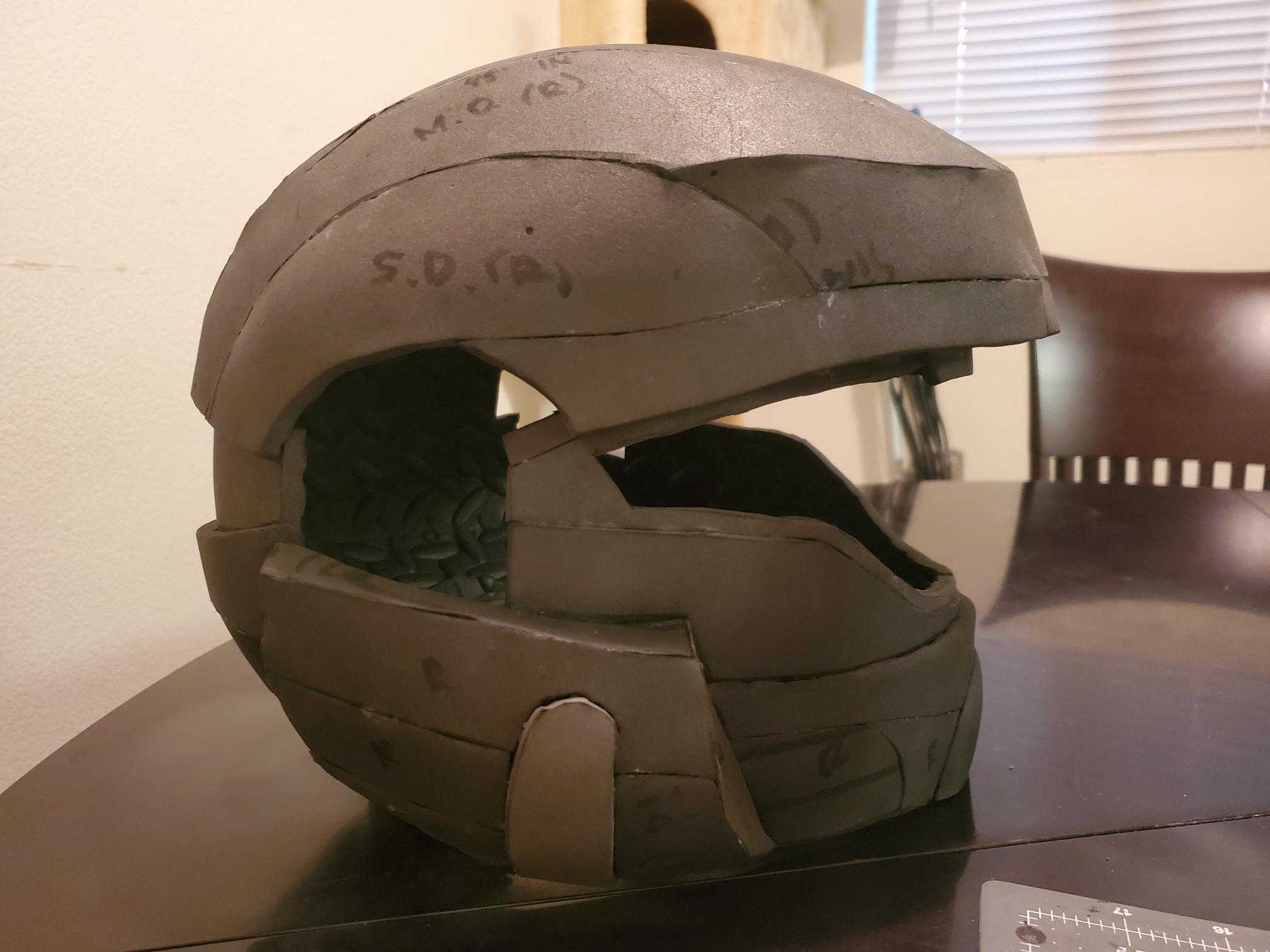

That's actually a really good start! You've especially followed the shape of the patterns well. I'll give you a few of my thoughts:

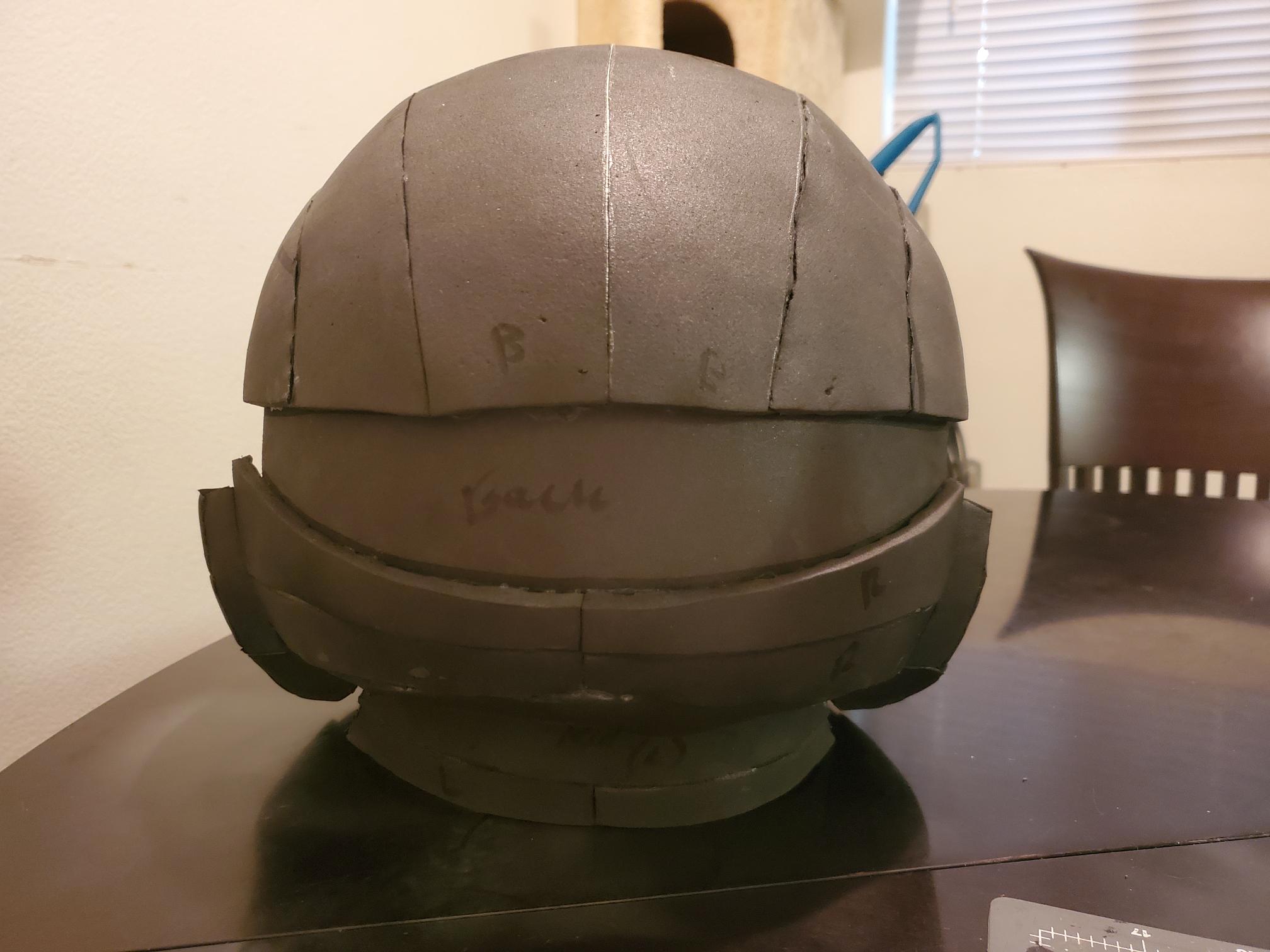

1. In relation to the warping in the first picture, that's generally an easy fix. At the very least, you can take a heat gun to it, warm it up and them manipulate it to try and hold the proper shape. If it needs more "encouragement", you can glue in an armature wire that will fix it to the right shape.
2. Foam floor mats are good for most of the build, but unfortunately when using it to stack on layers, gaps show up between parts because of the textured surface. If you have a belt sander, or a band saw, you can take that off easily enough. If you were willing to dish out a little bit more on foam, you can get cosplay foam that won't have that texture. Otherwise, you can fill those gaps with something like Kwik Seal or similar (a kind of caulking silicone that you can smooth out with water).
3. For the most part your bevels look great, but I think they're a bit too sharp at the top though. That's a very easy mistake anyone can make though, and if you wanted to reuse this helmet, you could cut most of the way through the back of the seam, bend it to shape and fill it up with hot glue.
4. For the grooves on the helmet, there's a couple of things you can do. Firstly, if the grooves fall on a seam, you can lightly round the edges of the pieces that lie on that seam so when they join together, they form that groove. Secondly, you could use ye old "knife, score and heatgun" or "soldering iron/woodburner" method.


Atommicnerd

New Member

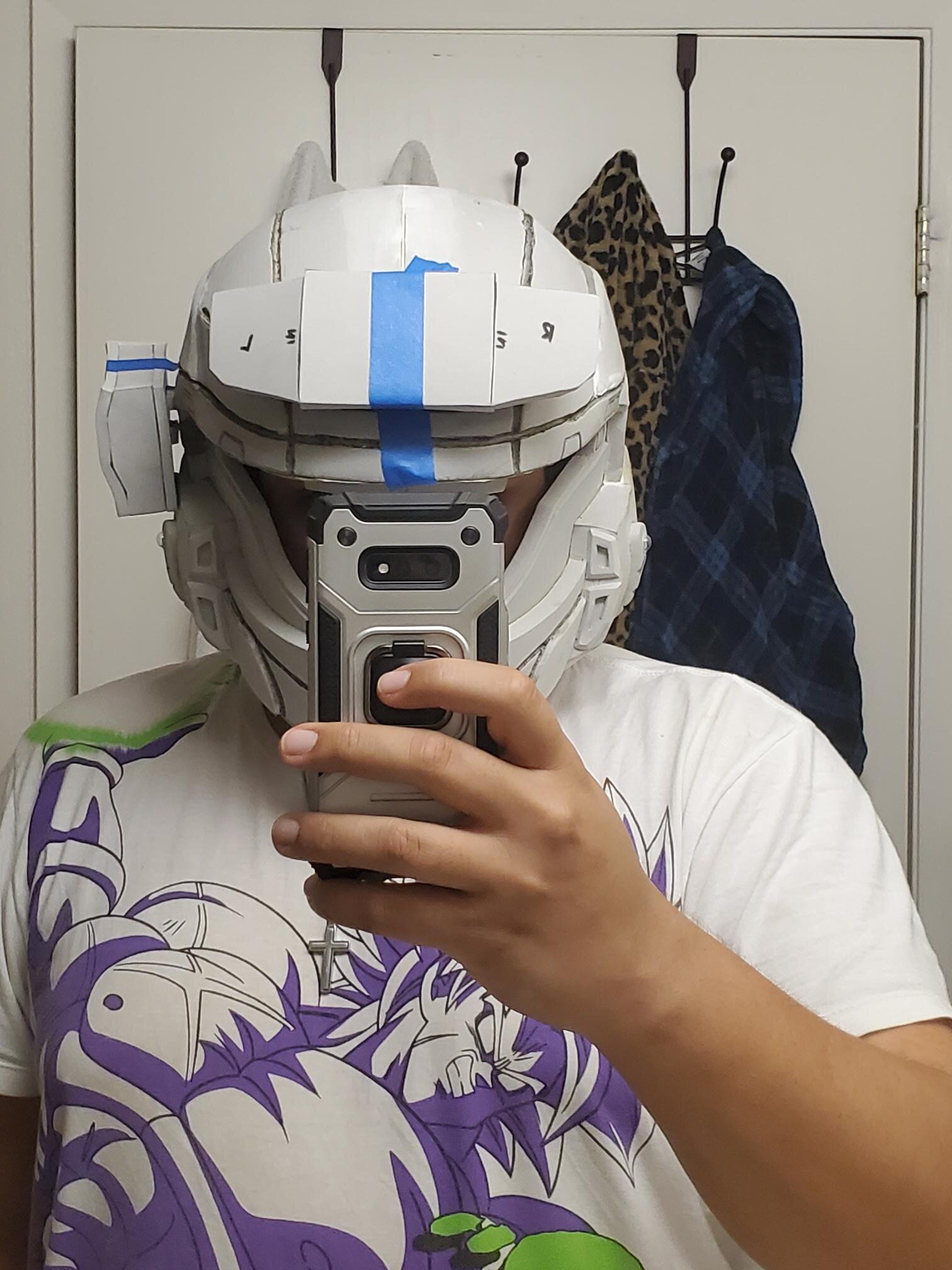

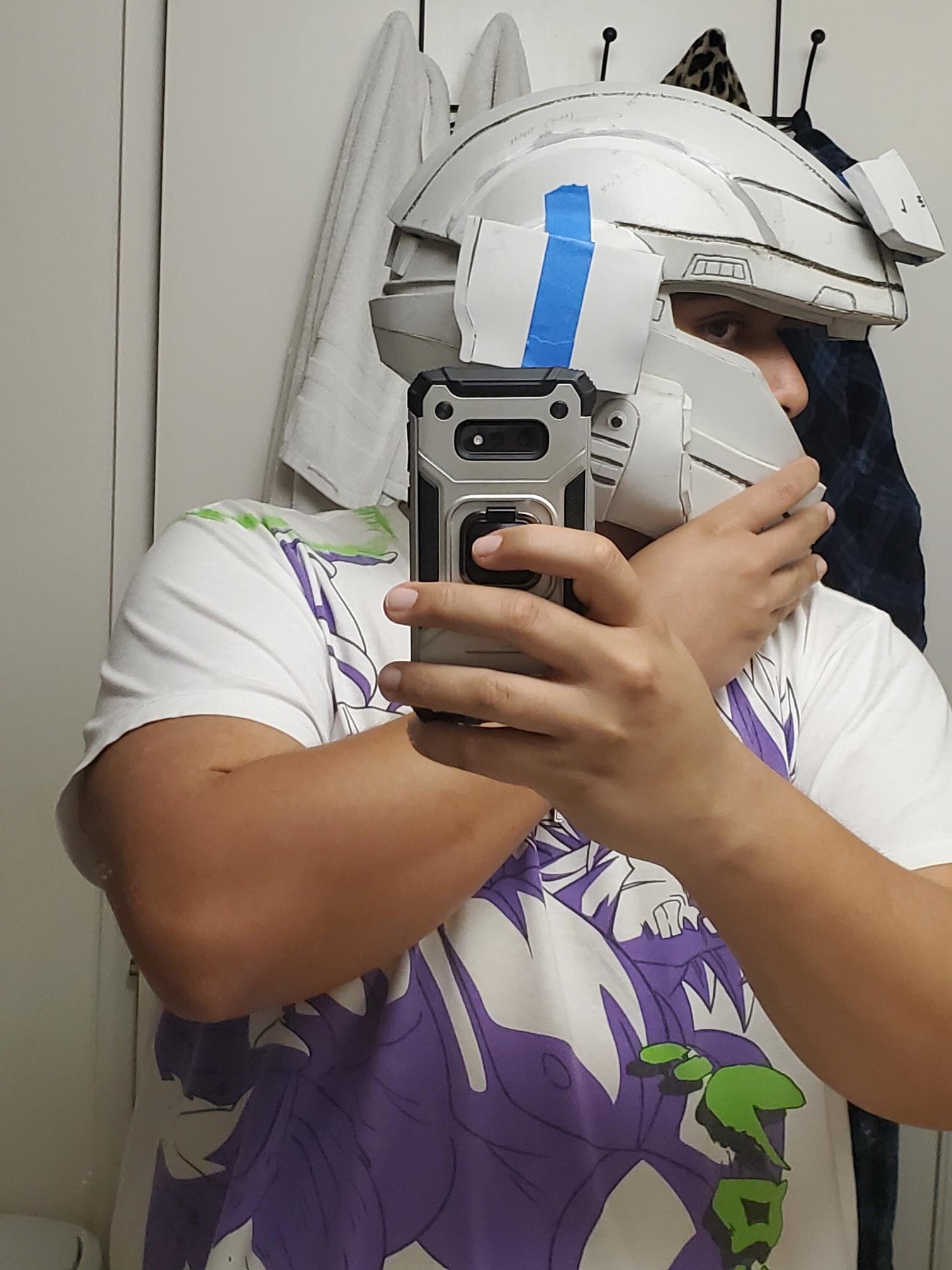

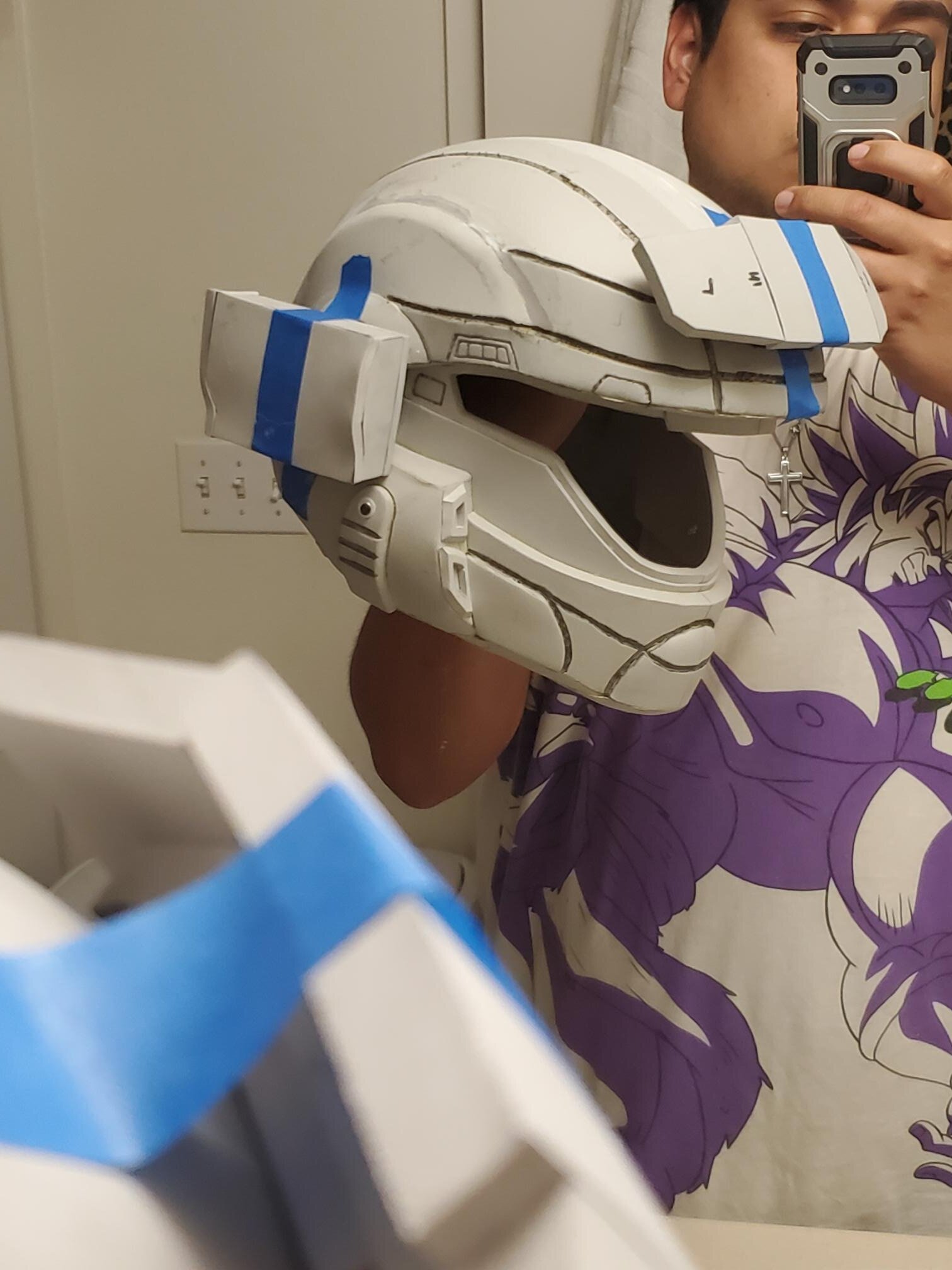

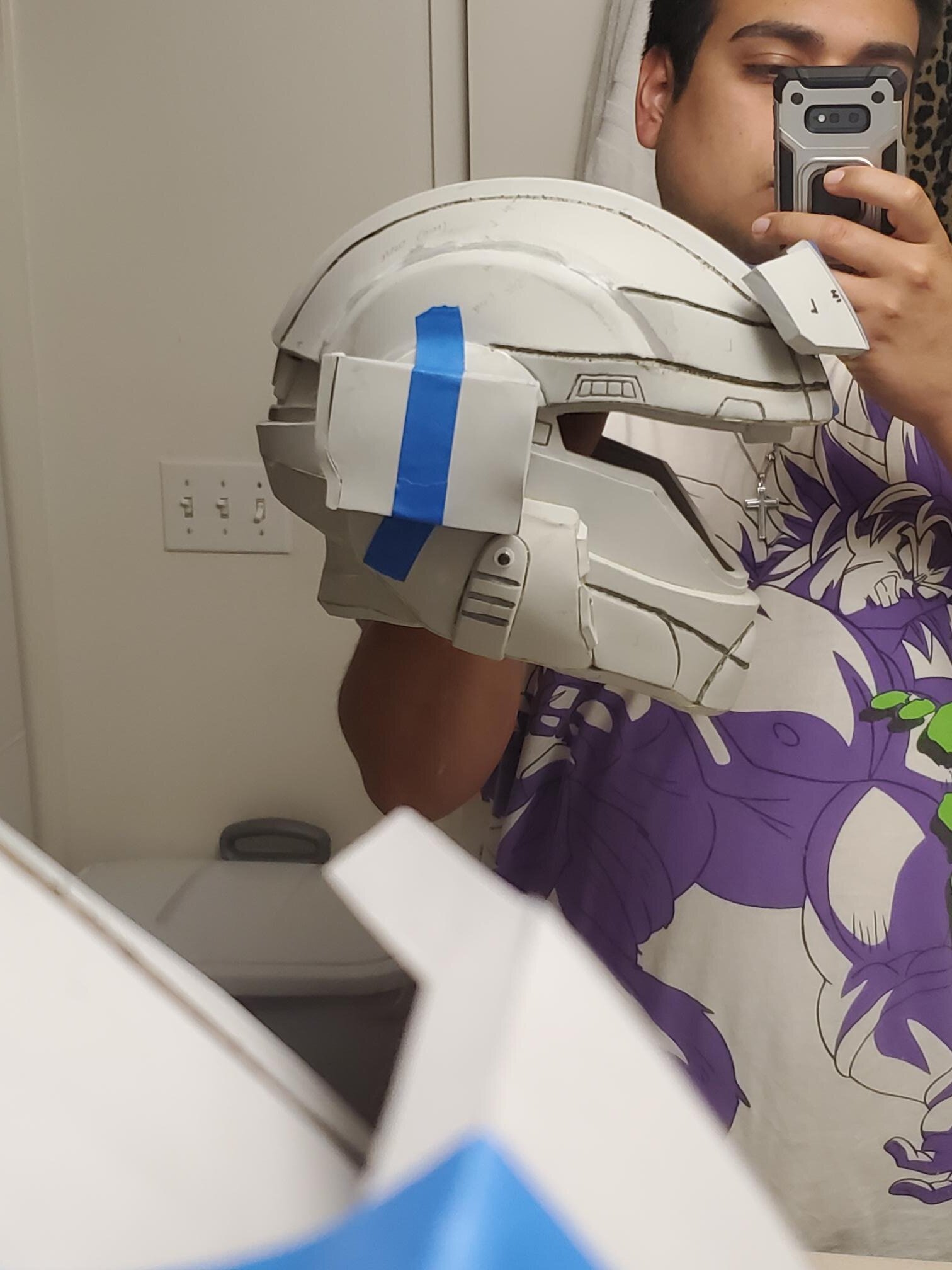

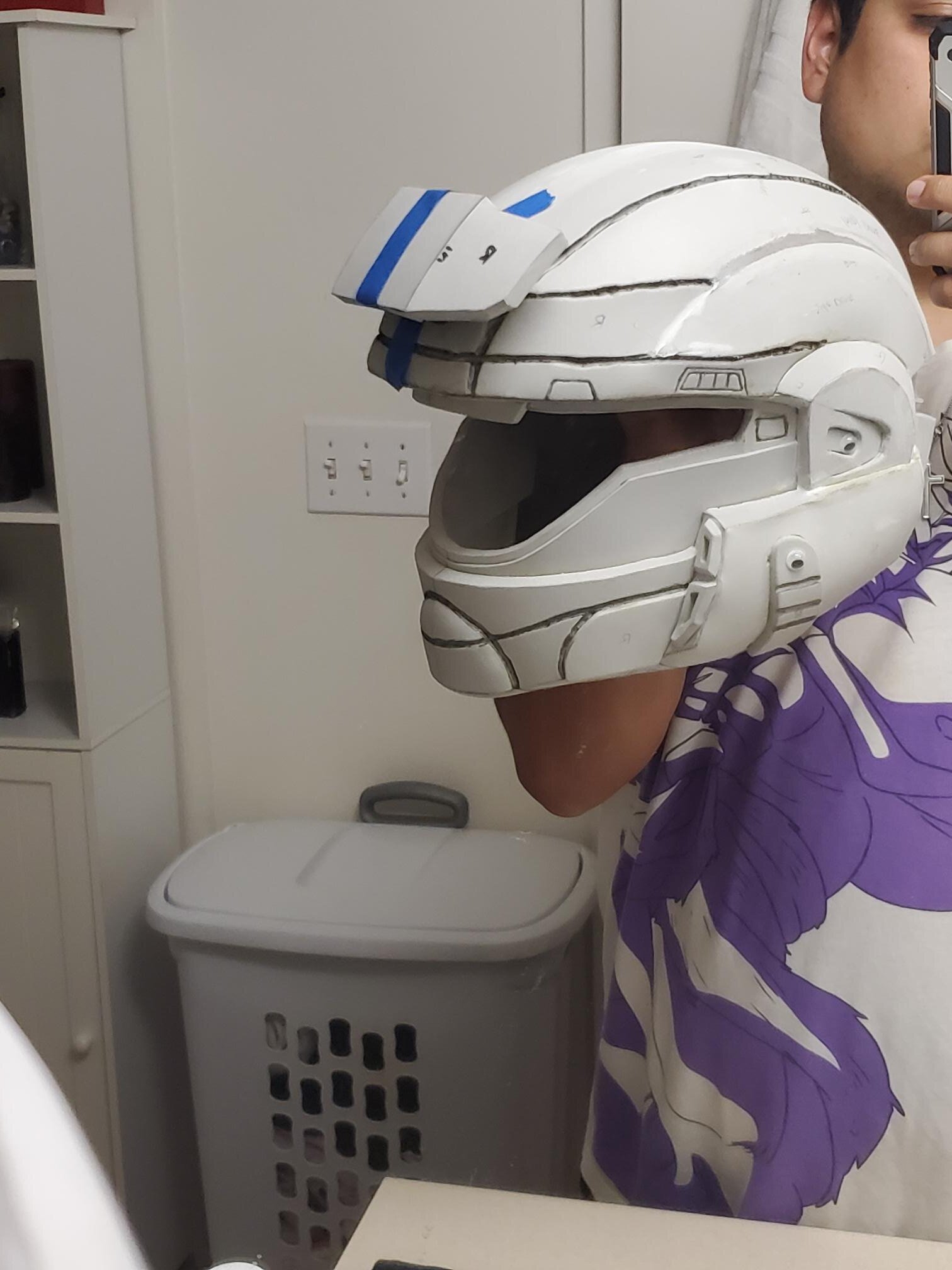

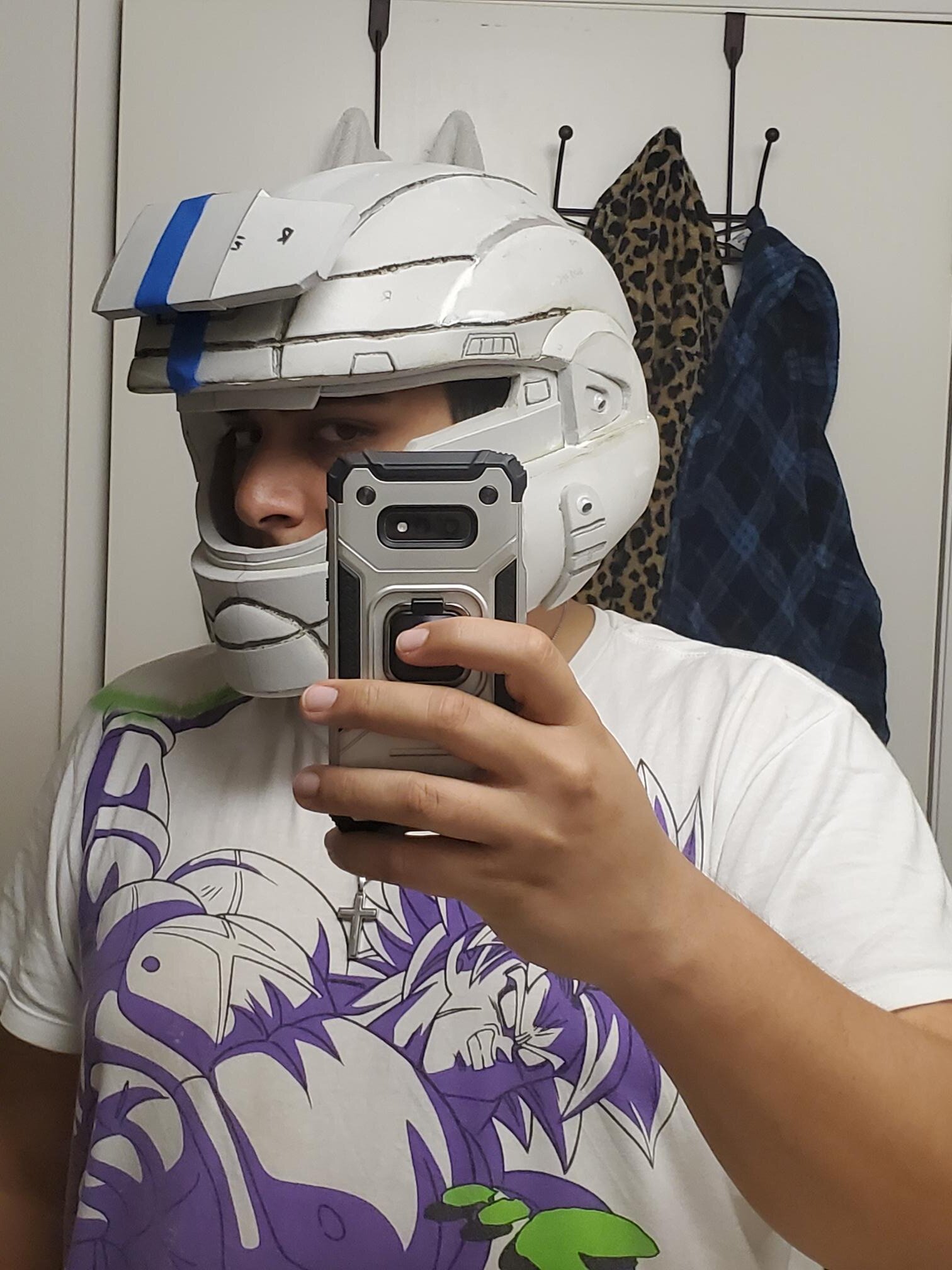

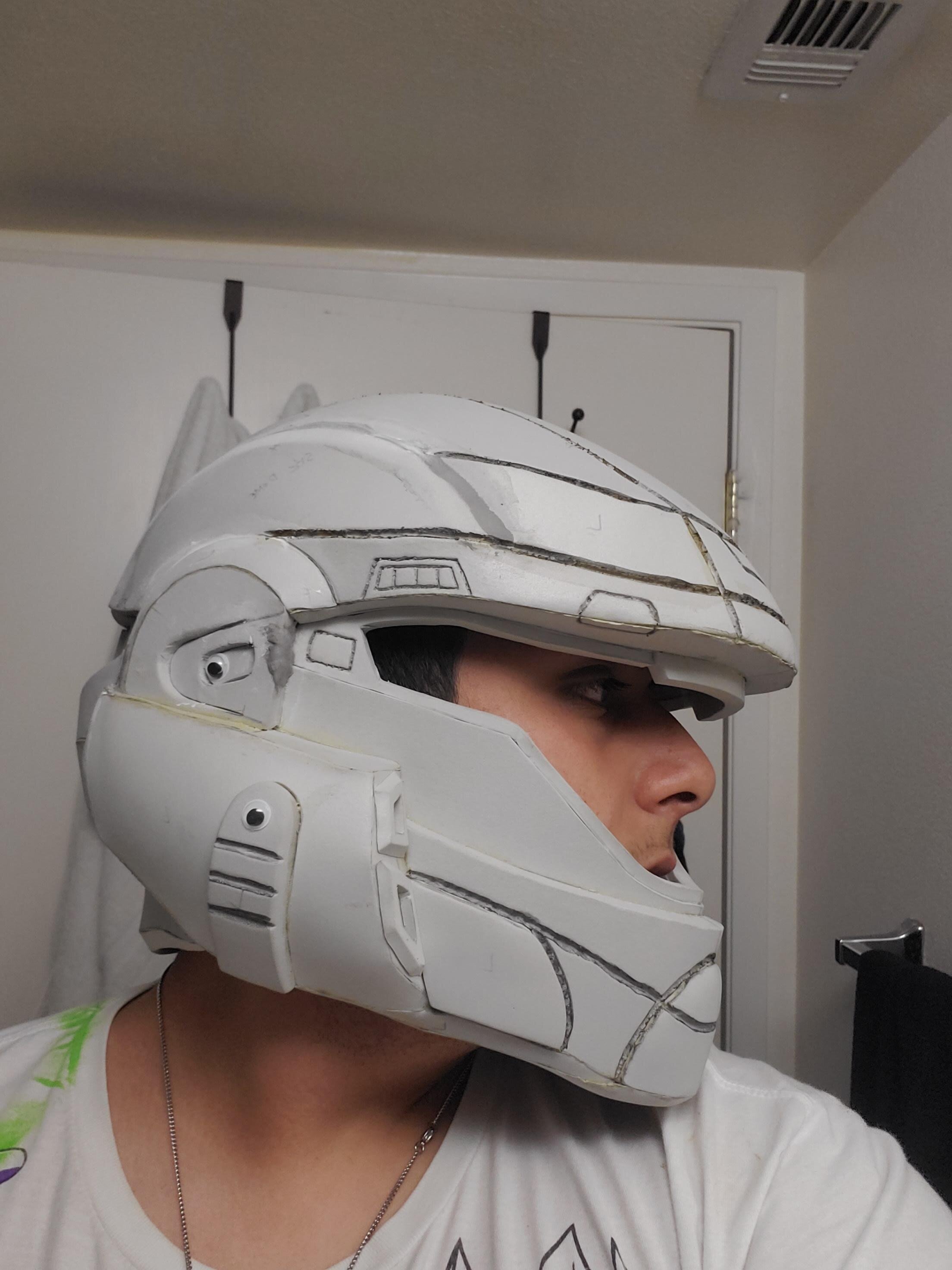

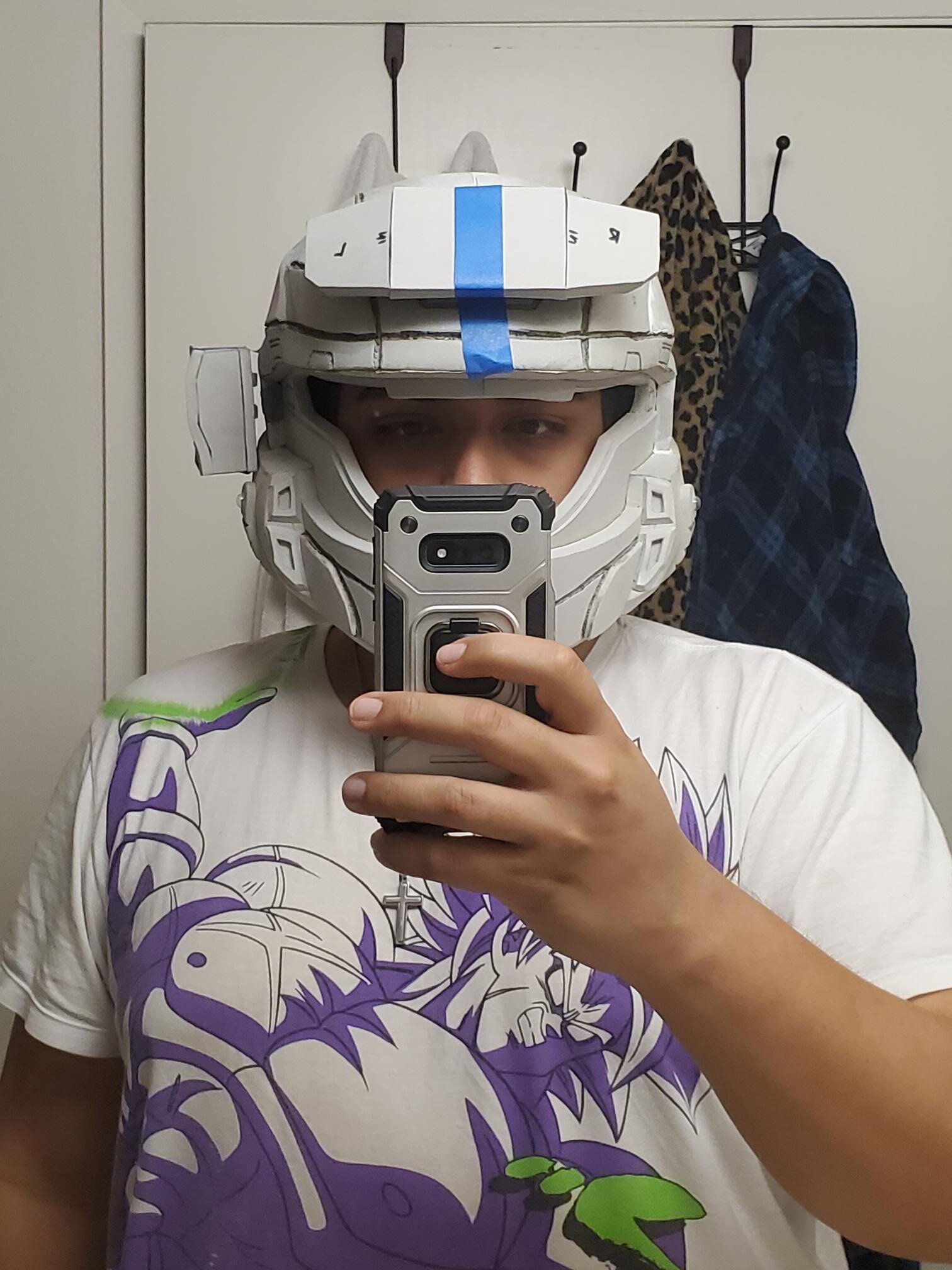

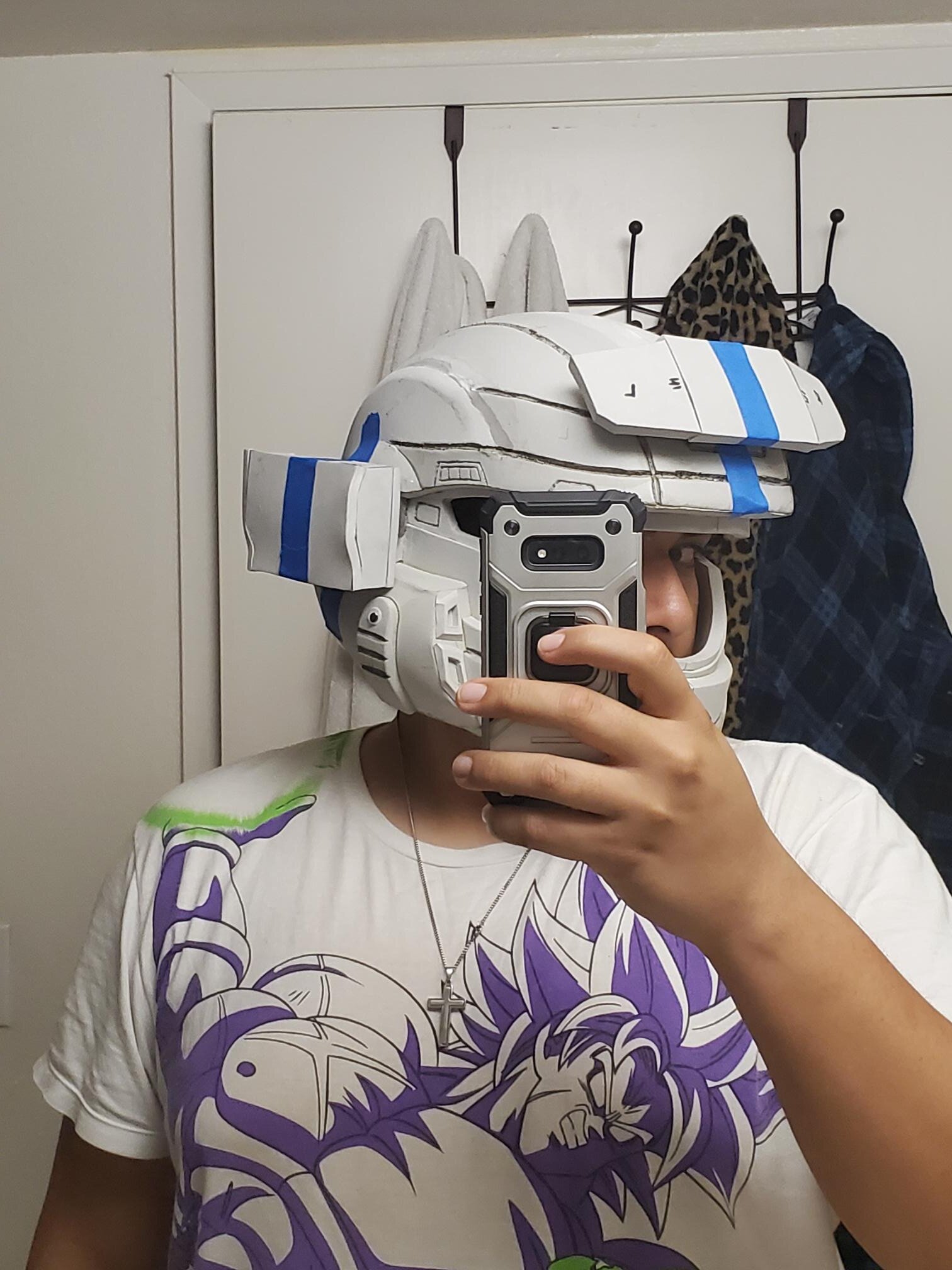

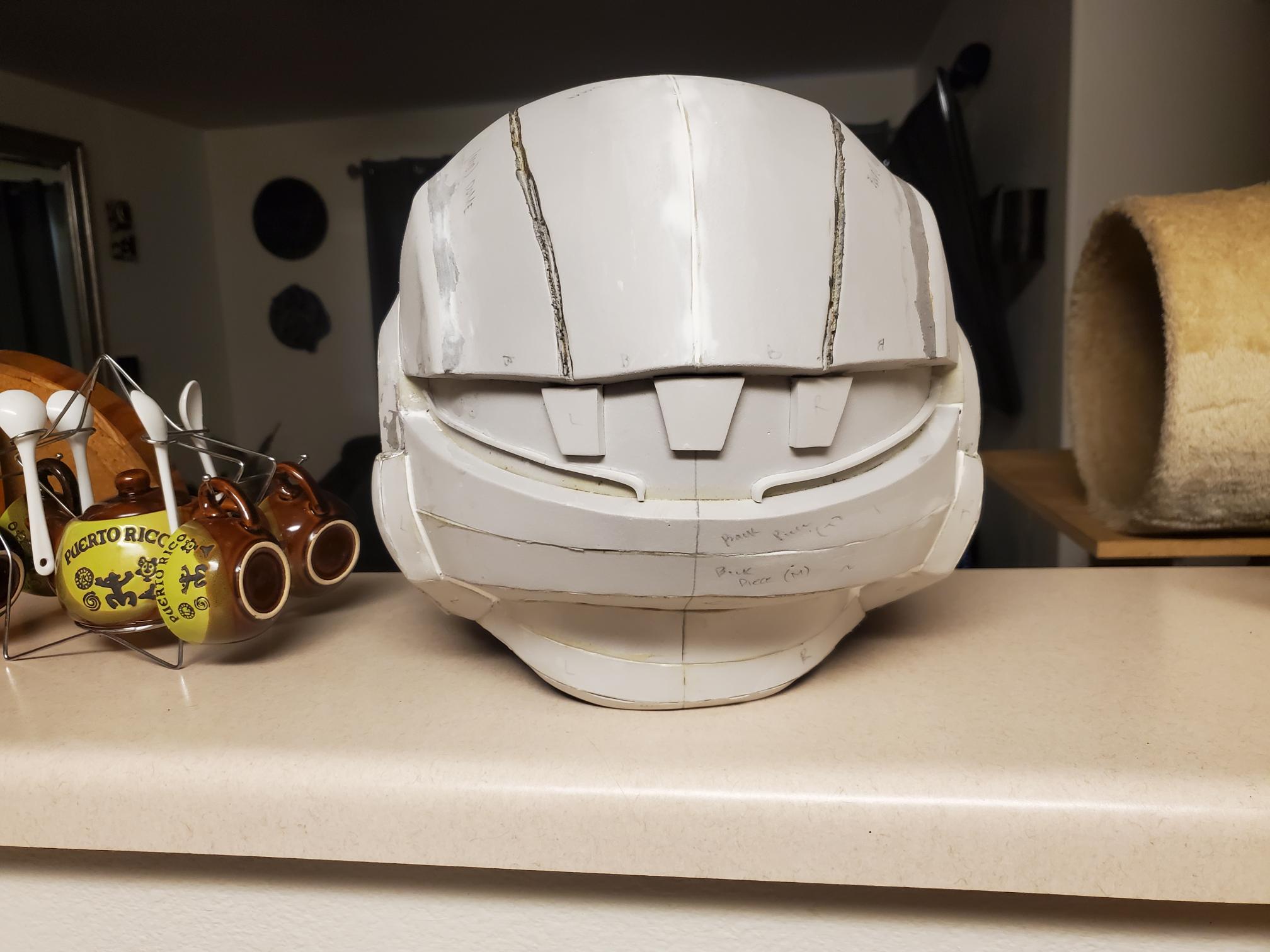

With the helmet complete, I want to make these attachments for them. My main concern is that the scale is correct for the helmet. I did the prototype and taped it to see if the scaling is correct. Let me know what you guys think if I need to scale up or down either one or both.


Attachments

  • 20220424_073630.jpg
    185.4 KB · Views: 17
  • 20220424_073625.jpg
    205.9 KB · Views: 16
  • 20220424_073621.jpg
    193.3 KB · Views: 13
  • 20220424_073613.jpg
    210.6 KB · Views: 16
  • 20220424_073526.jpg
    262.9 KB · Views: 13
  • 20220424_073517.jpg
    289 KB · Views: 15
  • 20220424_073512.jpg
    280.6 KB · Views: 13
  • 20220424_073509.jpg
    277.2 KB · Views: 14
  • 20220424_073501.jpg
    281.6 KB · Views: 8

Atommicnerd

New Member

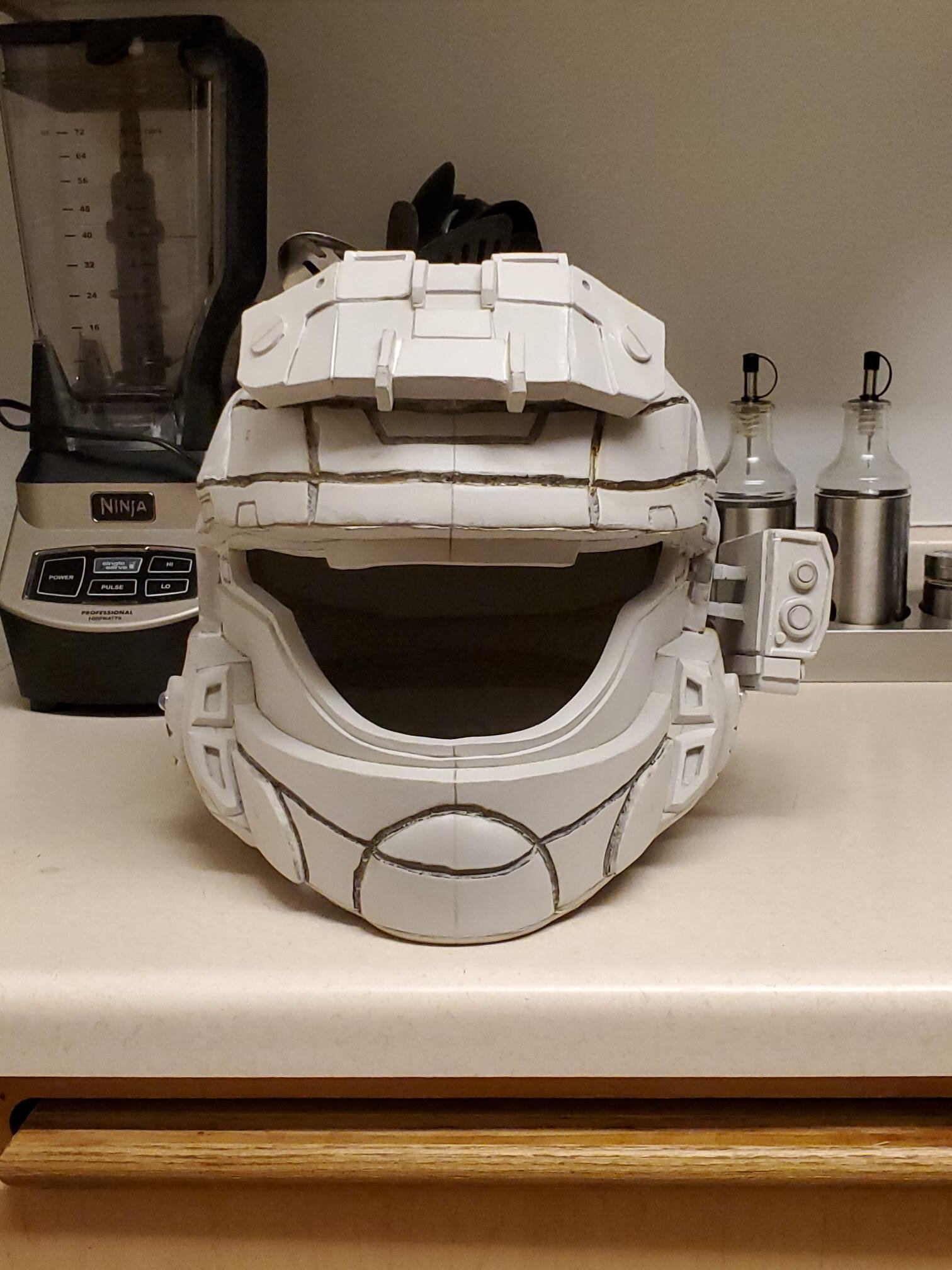

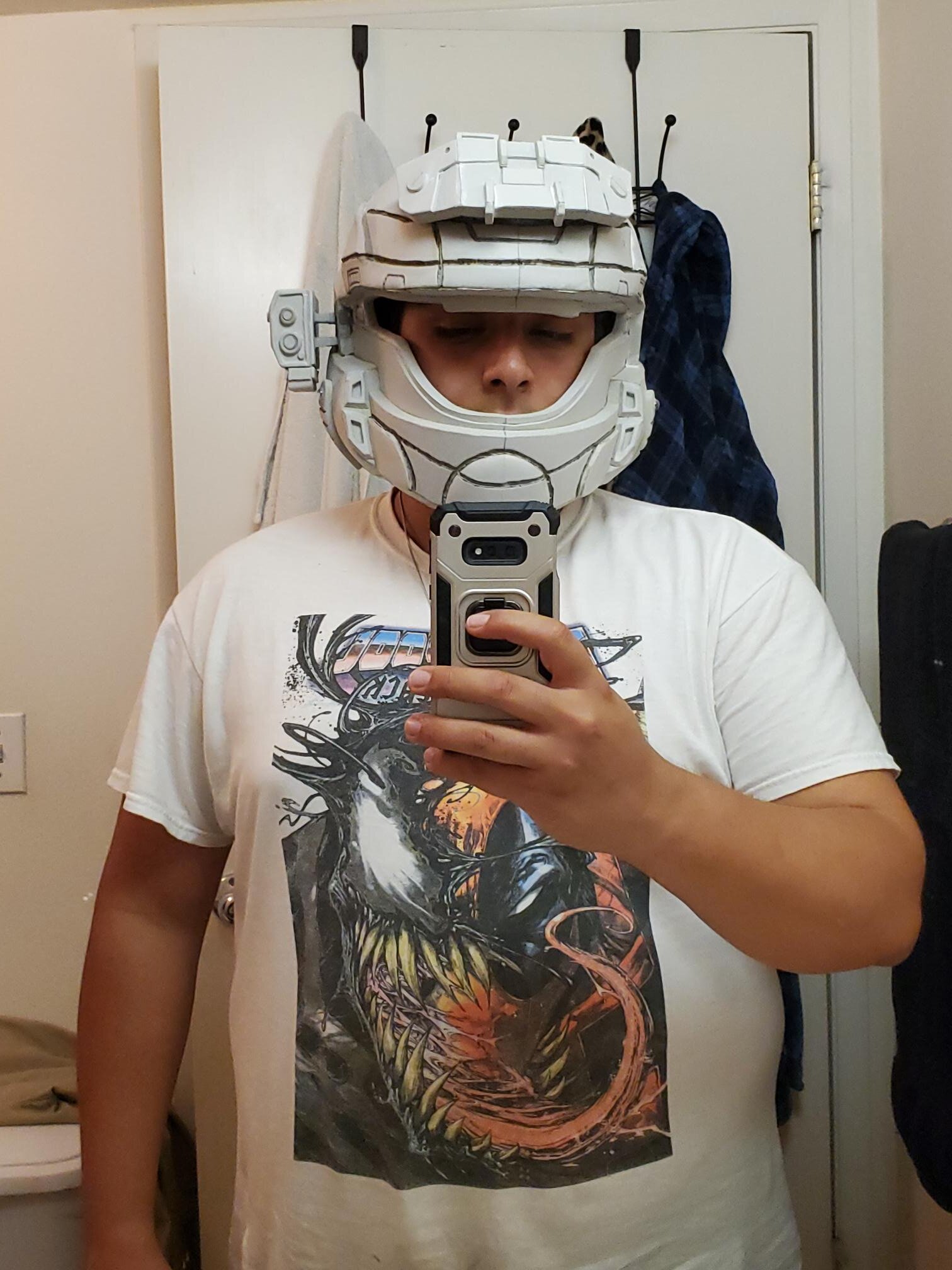

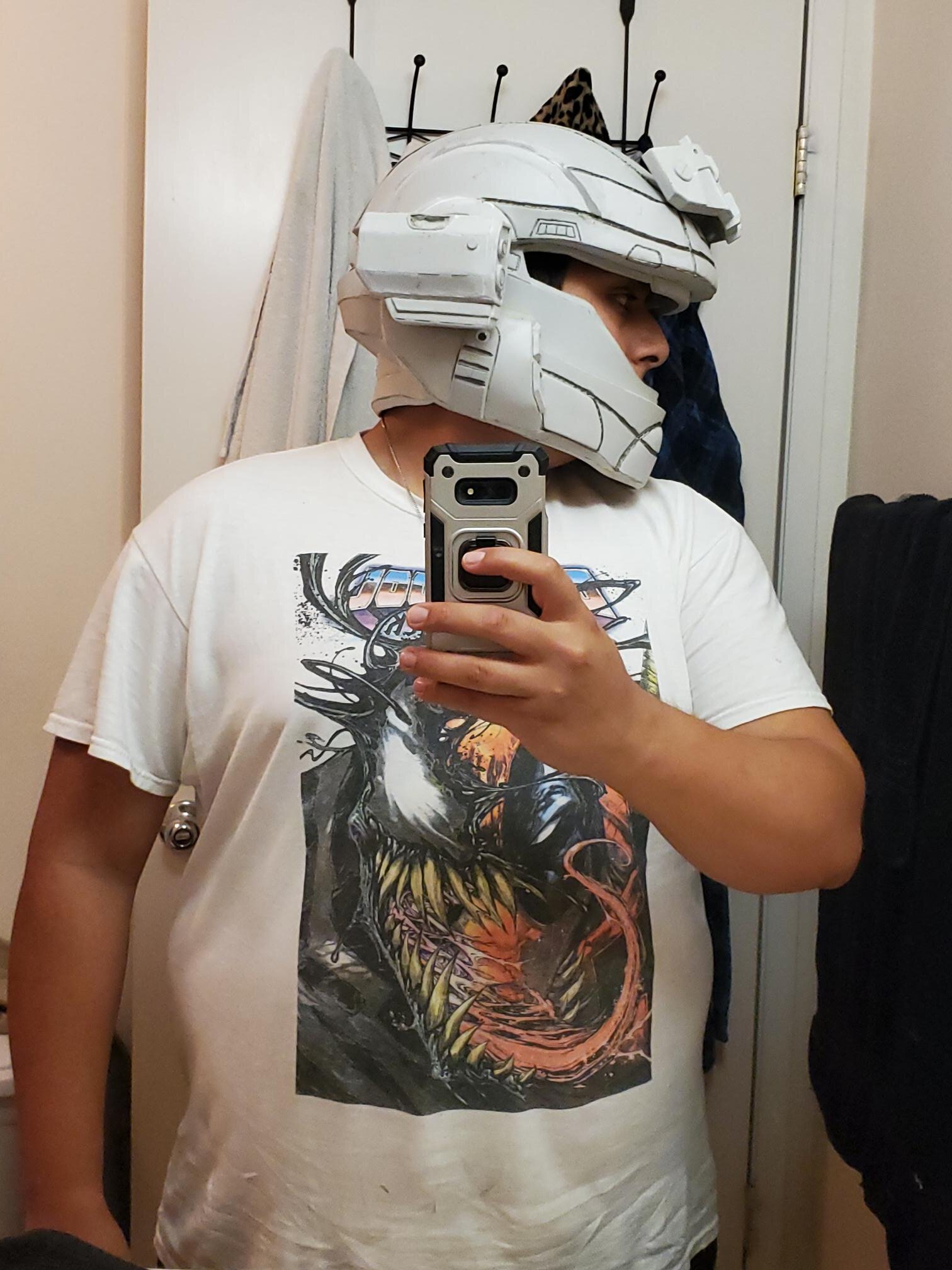

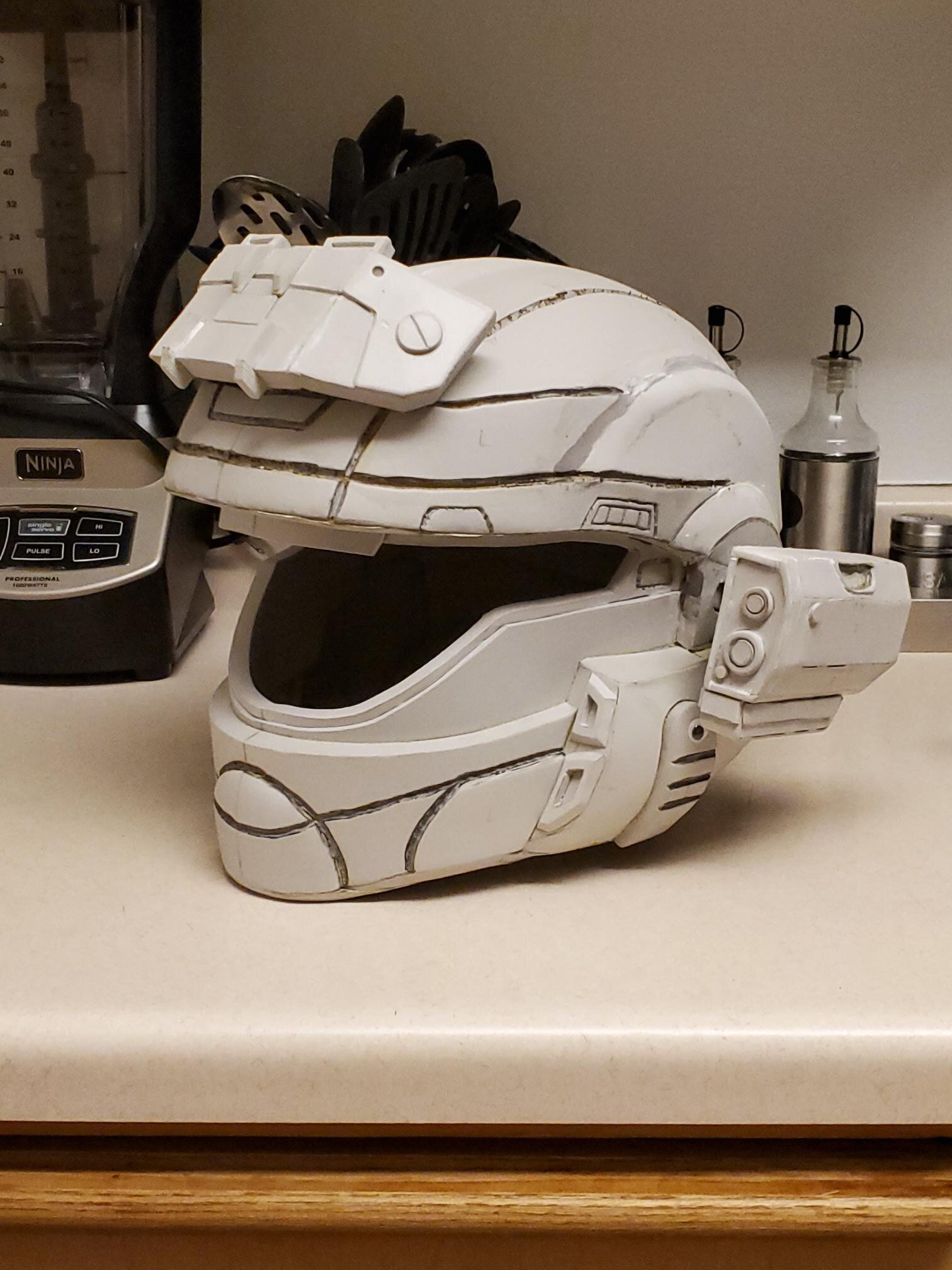

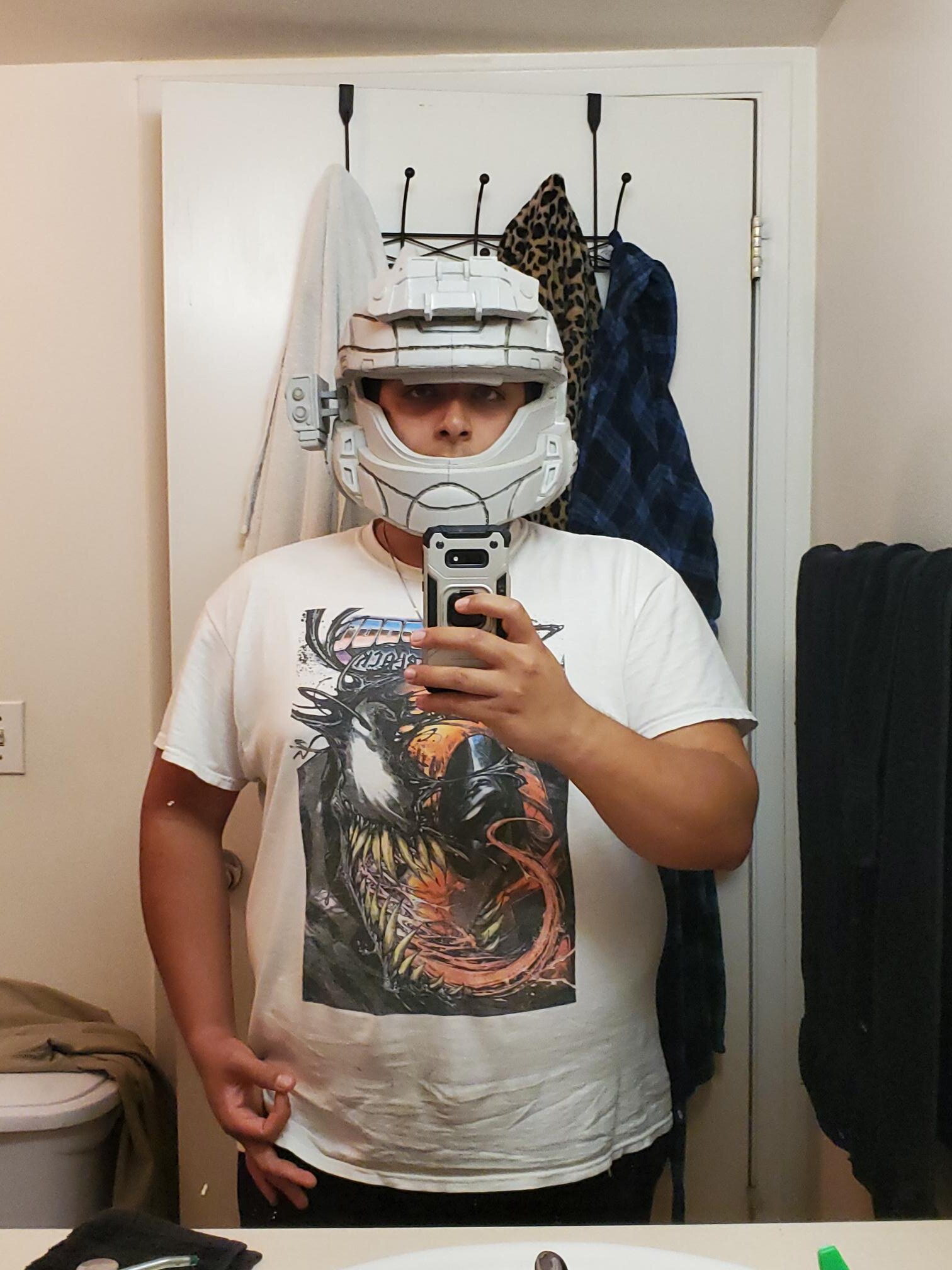

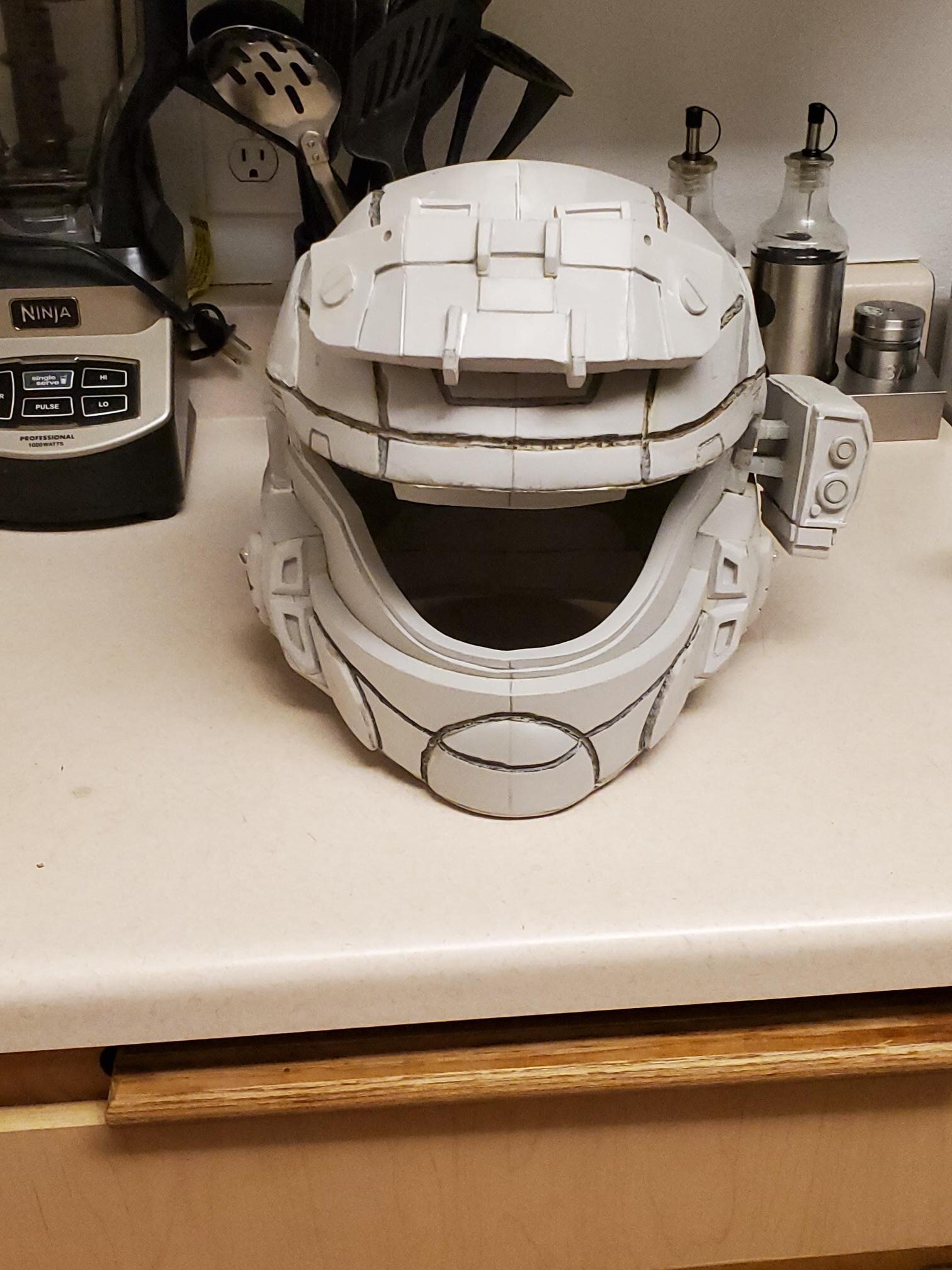

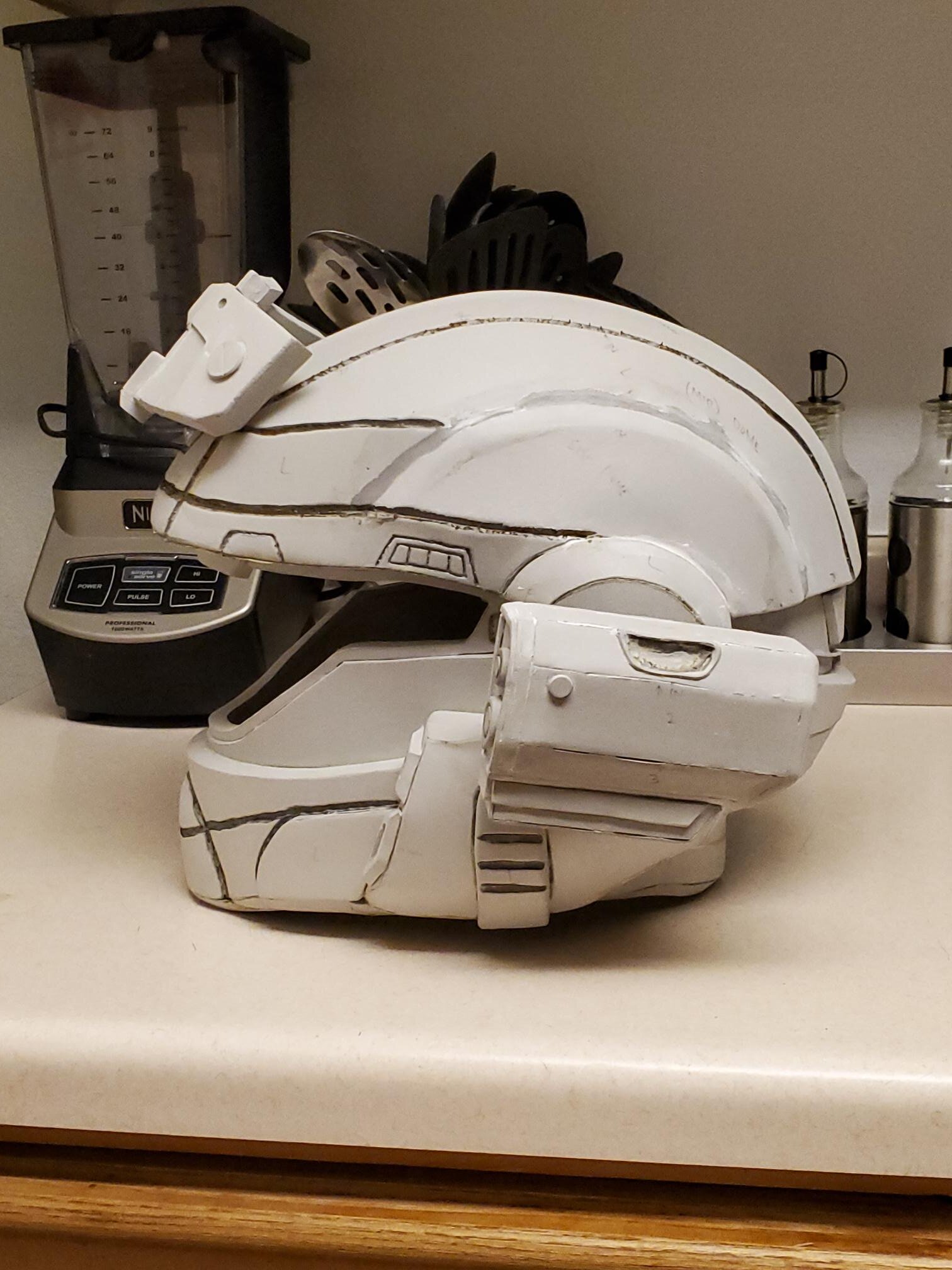

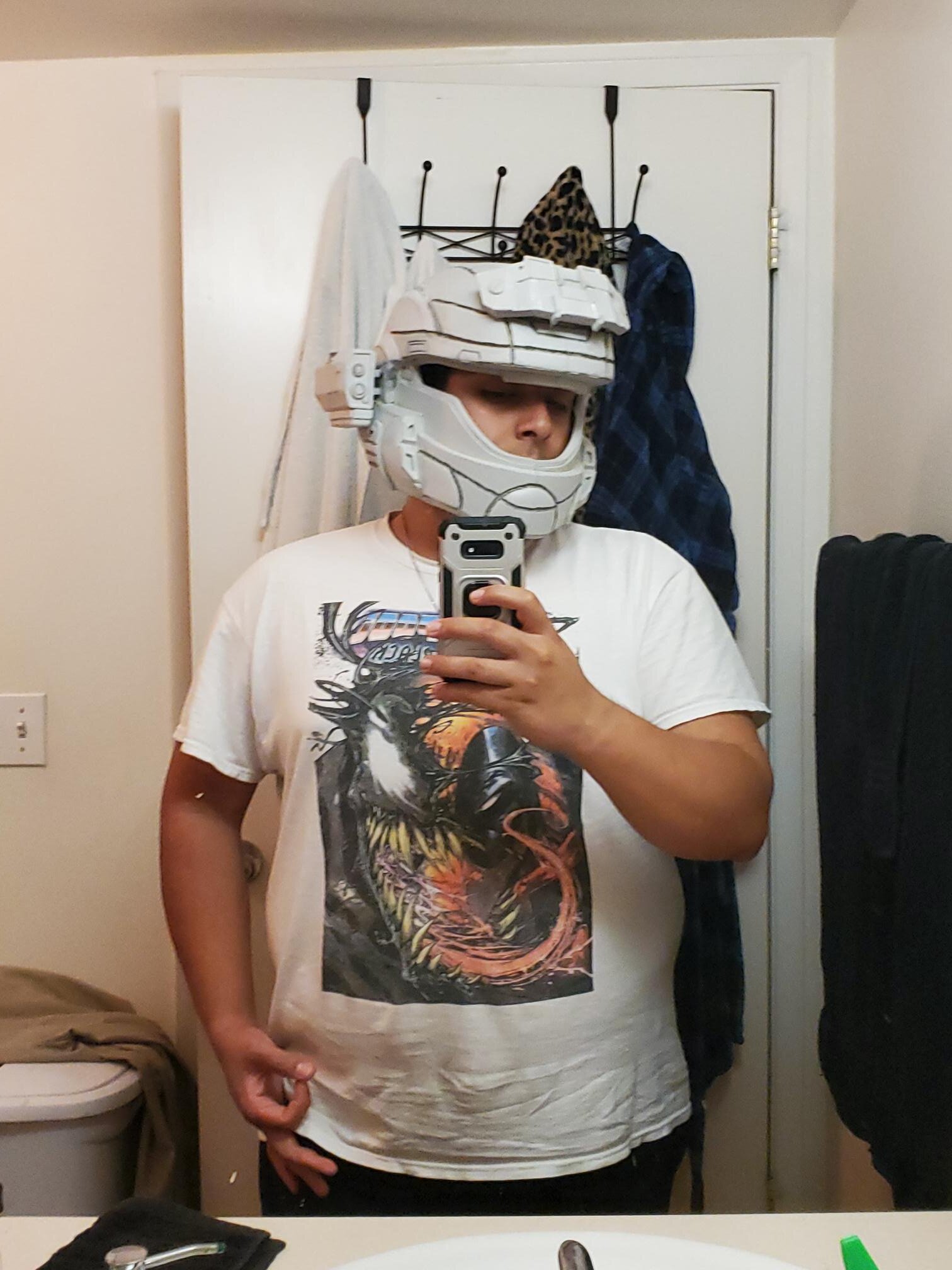

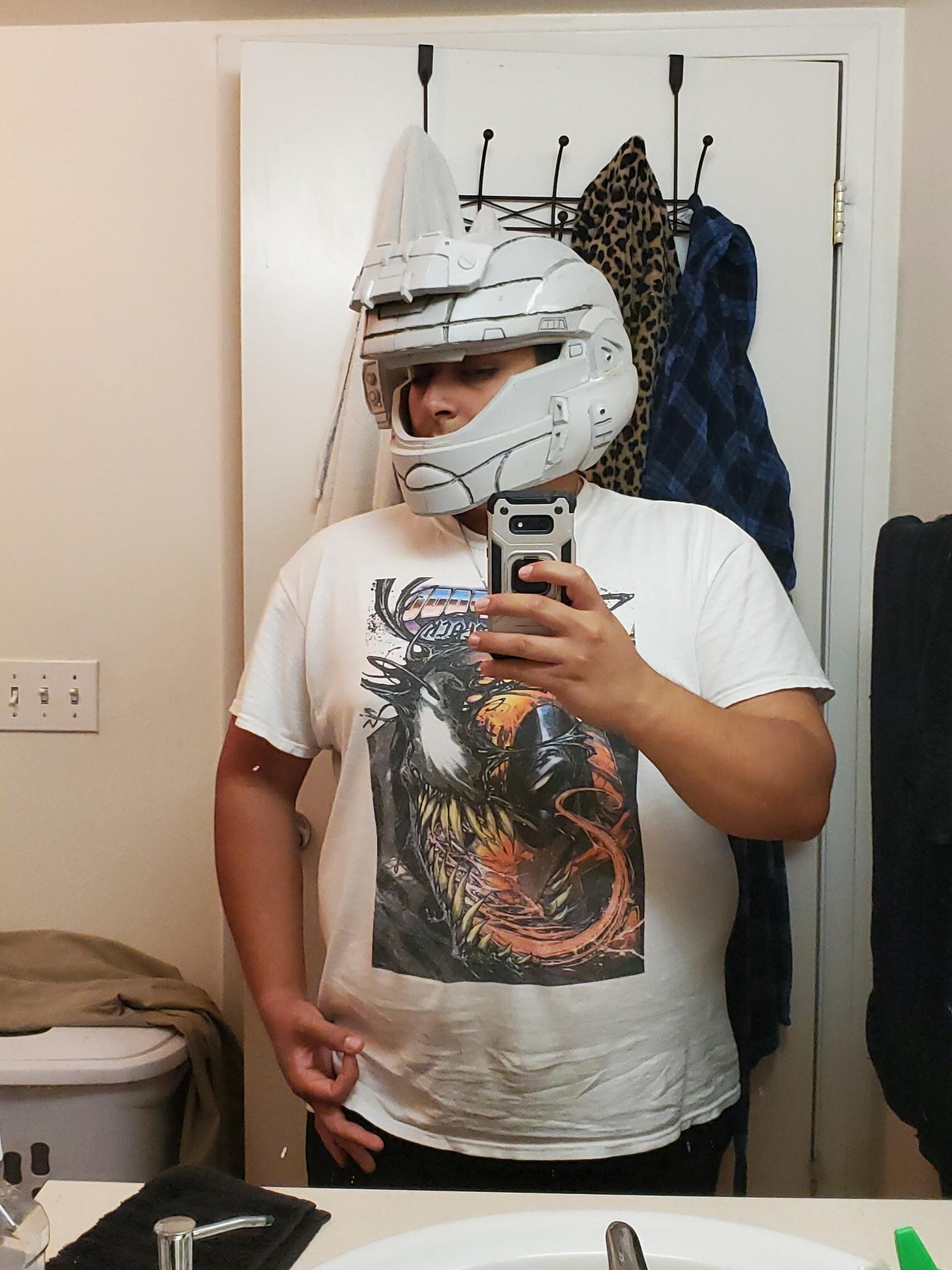

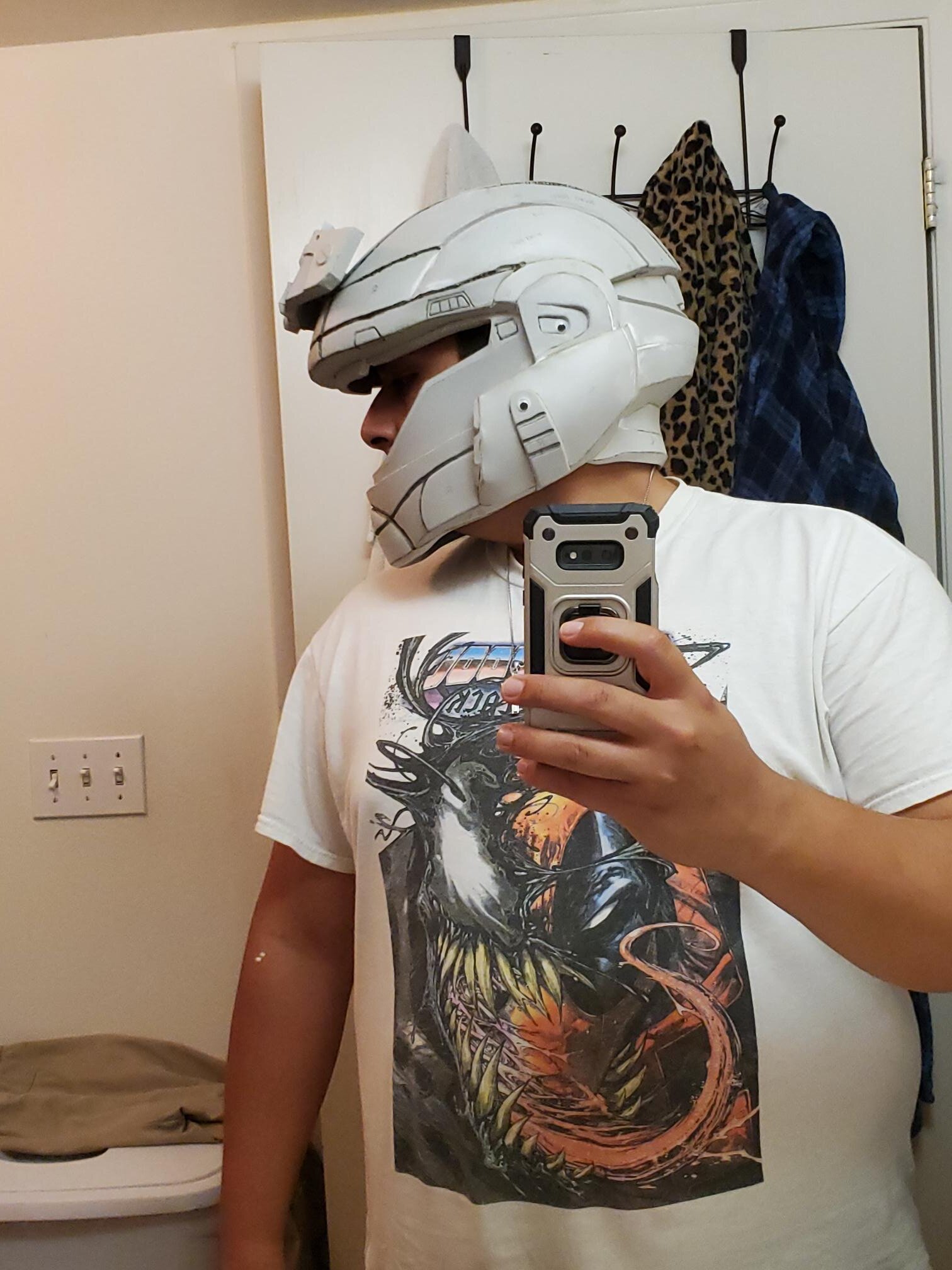

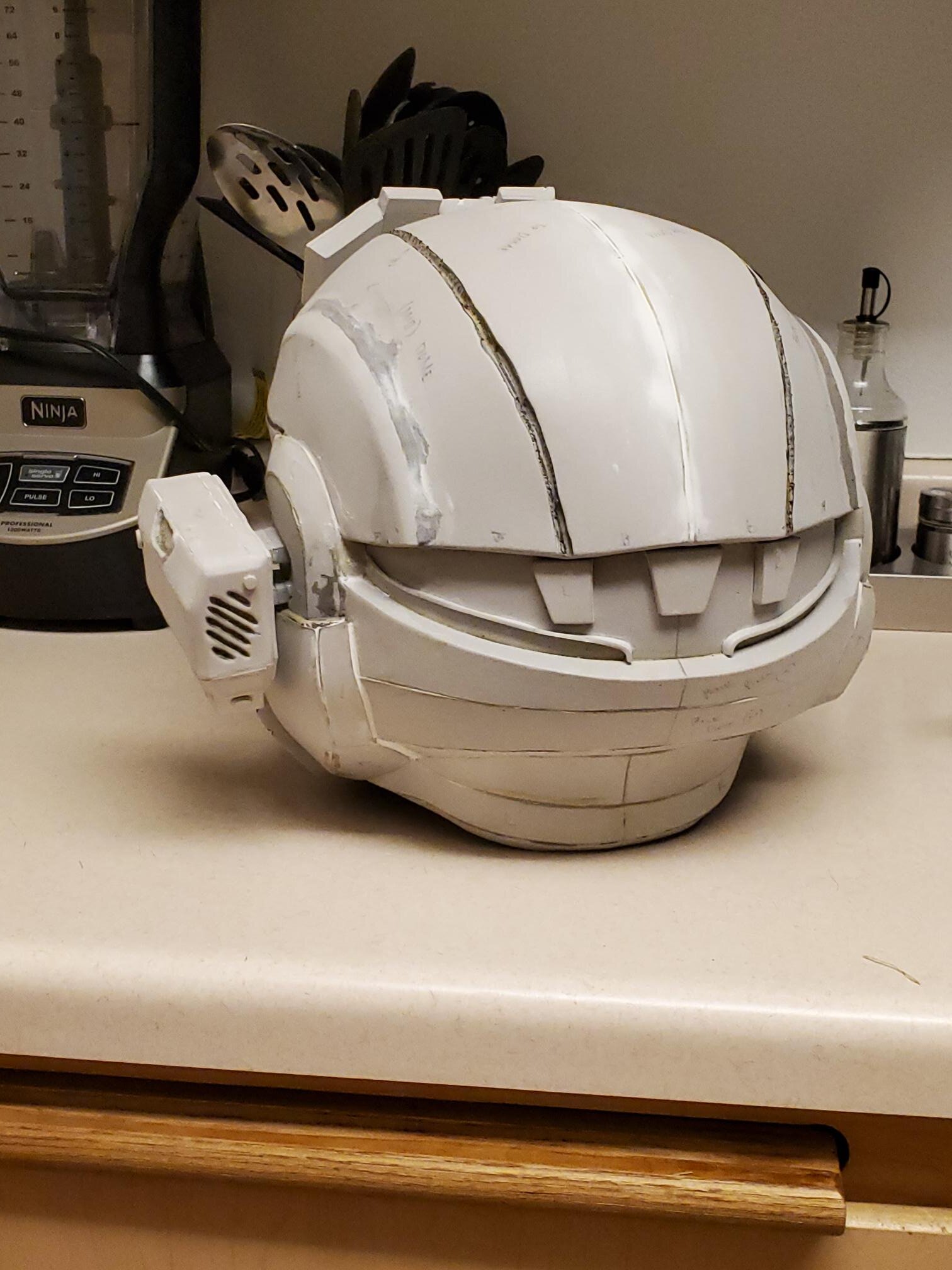

Hey everyone! These are the completed attachments for my ODST helmet. The foam fabrication is finally complete and the next step will be the sealing and painting stage.


Attachments

  • 20220502_200210.jpg
    297 KB · Views: 8
  • 20220502_200207.jpg
    264.9 KB · Views: 7
  • 20220502_200204.jpg
    285.6 KB · Views: 6
  • 20220502_200117.jpg
    292.8 KB · Views: 9
  • 20220502_200112.jpg
    288.5 KB · Views: 7
  • 20220502_200108.jpg
    292.2 KB · Views: 9

Atommicnerd

New Member
Question: Who's your go seller on Esty for ODST visors?

I'm in search of a visor for my ODST Reach helmet. Thing is, I don't know who the go-to for selling them is. Any recommendations?
