H3 Chief Armor - Build Progress
- Thread starter master_colt_117
- Start date
- Status
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
Omg my phone just blew up with 405th notifications!!! Hahaha
Better than than a virus.
Sean Anwalt
Sr Member
- Member DIN
- S530
Com'on man were trying to hit 20 pages deep on this thread by the time my build is done!!
Keep holding us in suspense with this paint job and you're likely to exceed 20 pages...
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
master_colt_117
Well-Known Member
Haha I still have to cut in all the light diffusers and finish a few more foam details. Then I have to prep all the surfaces a little more with sanding and contouring some edges with quikseal and some seam touchup. Then I have to rubber coat and then can I paint!! So much left to doooooo!!
master_colt_117
Well-Known Member
Nooooooooooo!!!! Hahaha
master_colt_117
Well-Known Member

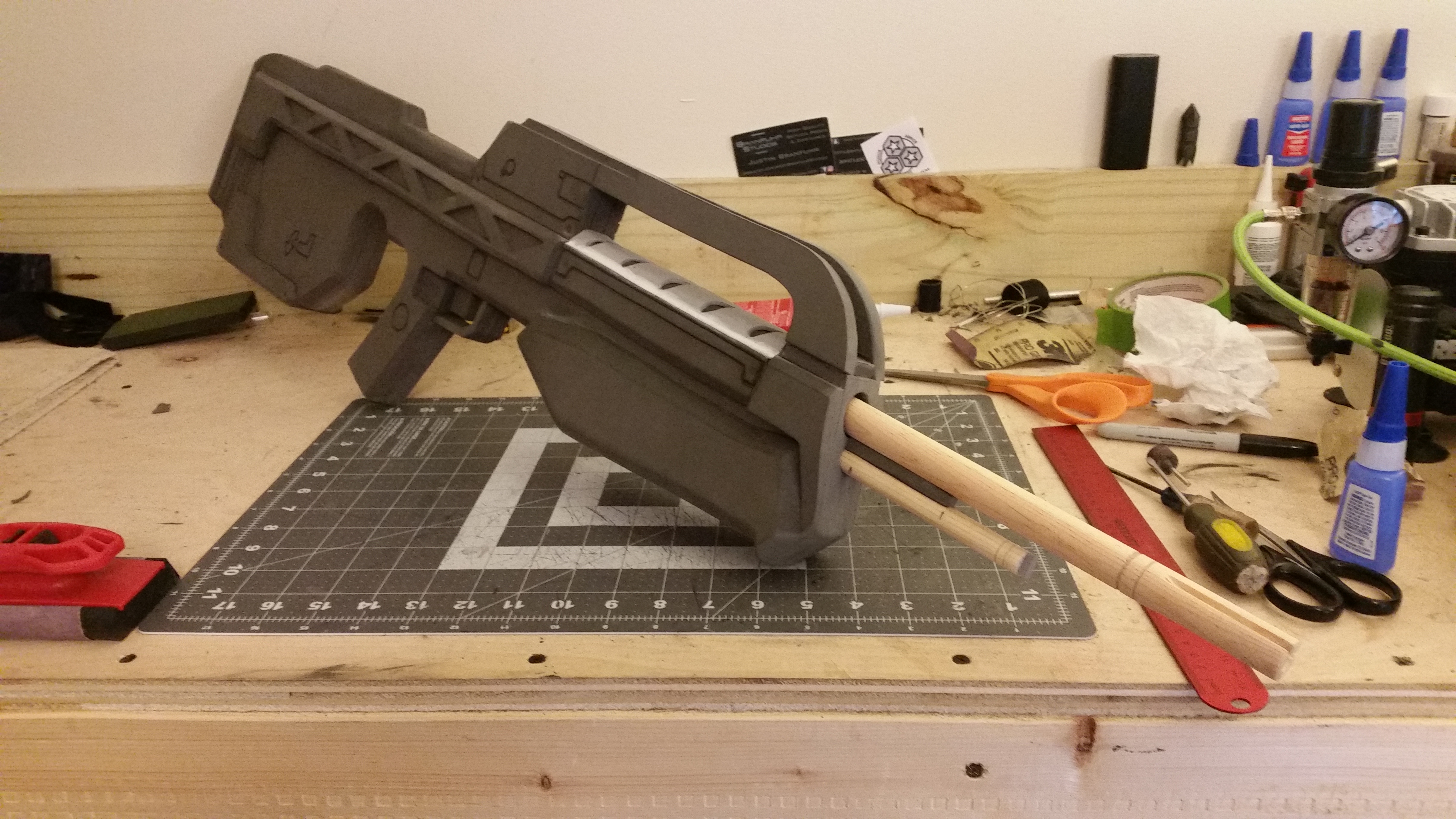

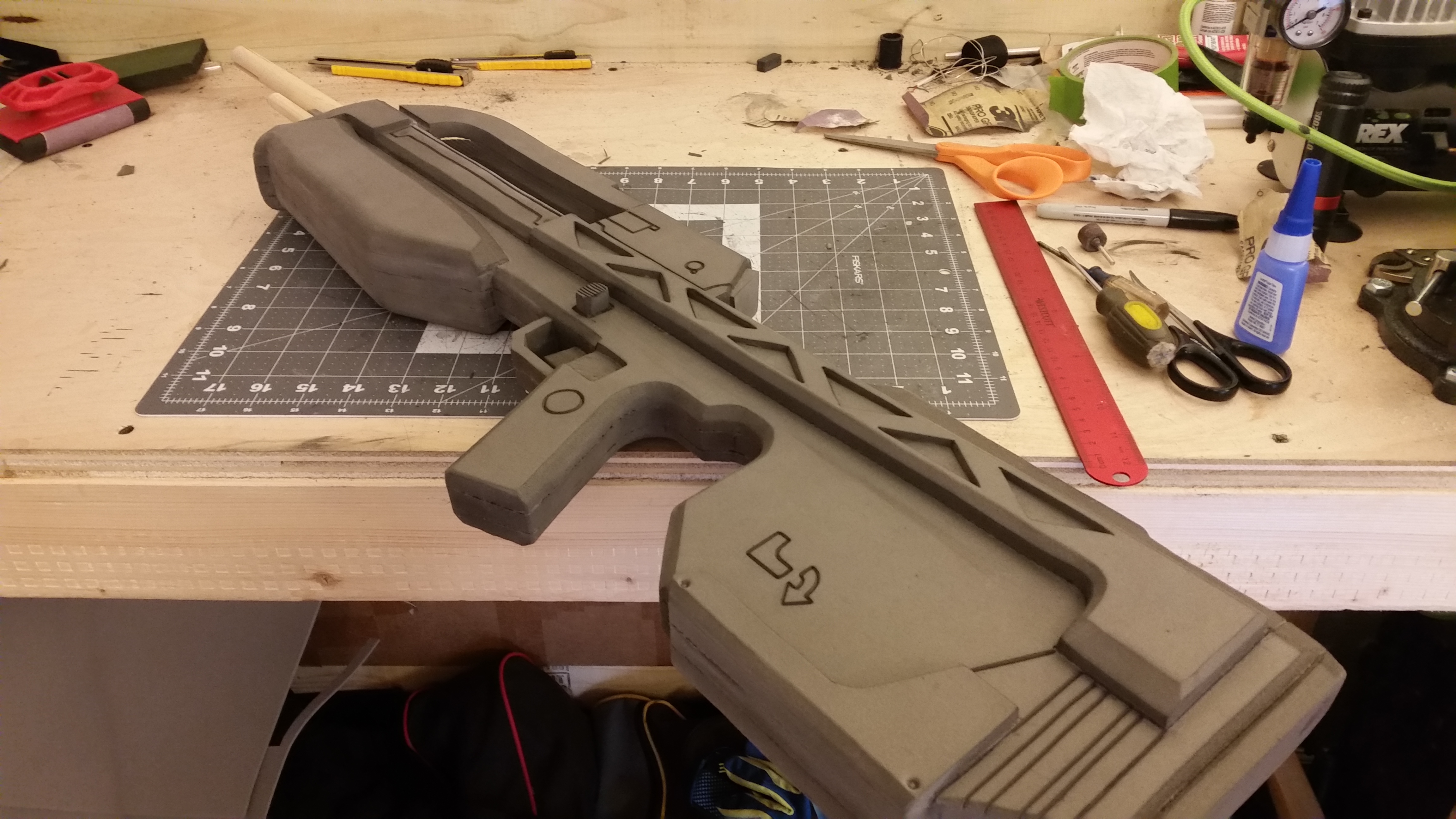

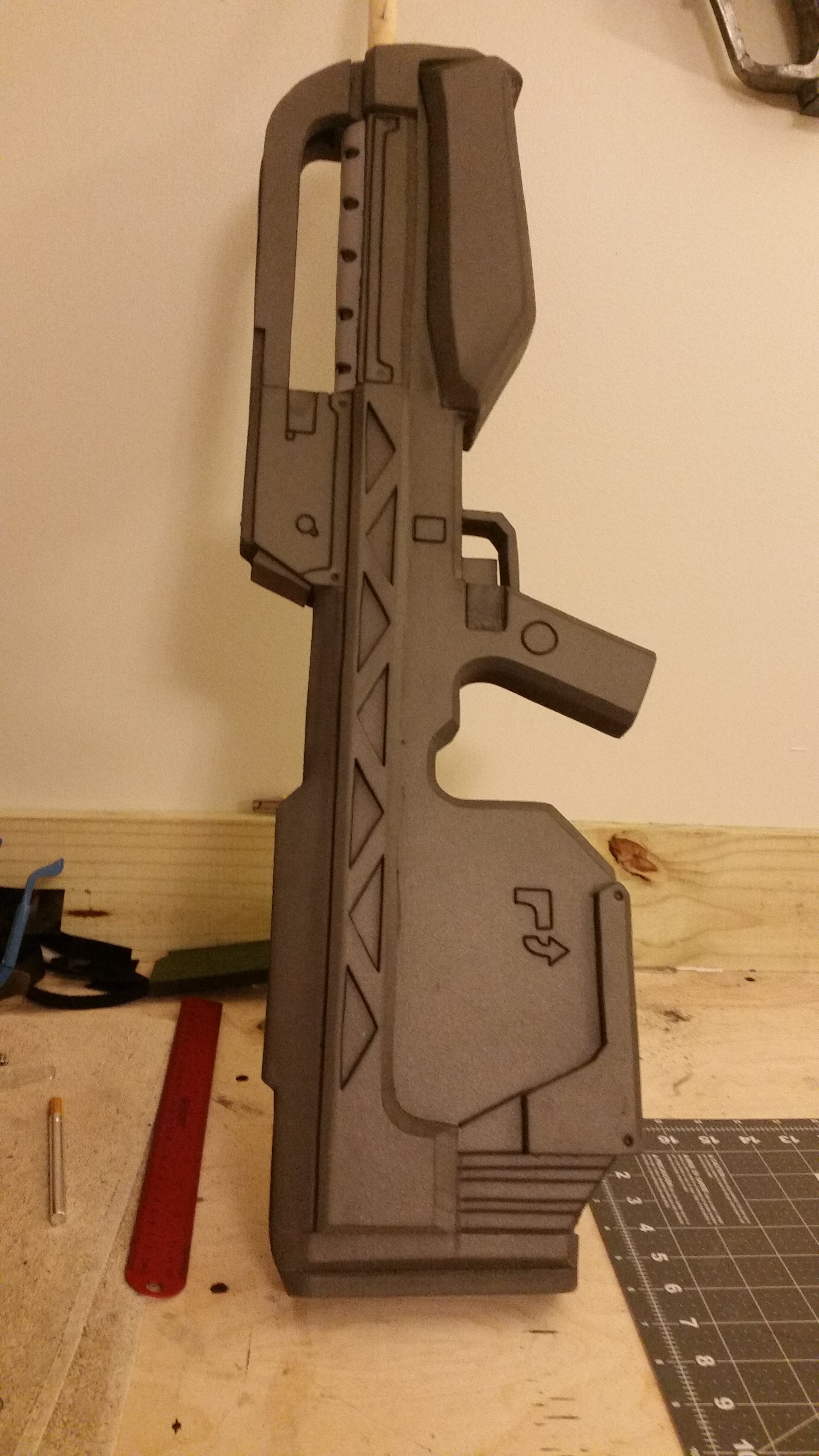

Well someone got a wild hair this weekend... lol just have to finish the barrel, gas tube, and charging handle. Hoping to have it rubber coated by tomorrow
xXDashIVXx
Sr Member
The hand detail is so clean! What's your secret!
master_colt_117
Well-Known Member
Haha thanks man! I swear by #11 exacto knives for all cuts! My dremel and sanding block got used more than anything on this build!
xXDashIVXx
Sr Member
I can never get a good line with the dremel or wood burner
How thick is the handle of the br? 2 or 3 sheets worth? It looks like 2 but I think I want to go three on my DMR but I think the rest of it will look too thick...
master_colt_117
Well-Known Member
The whole frame is 3 sheets thick and the forend and other raised areas are up to 5 sheets but sometimes cut in half for different layers.I can never get a good line with the dremel or wood burner
How thick is the handle of the br? 2 or 3 sheets worth? It looks like 2 but I think I want to go three on my DMR but I think the rest of it will look too thick...
As for the dremel, definitely need the right grid sanding wheel and a smooth hand. I use around 300 grit give or take and it works well. I love my dremel, literally use ithe for everything! I clean seams with it before gluing too and make glue bond really strong. I did a TON of sanding block work by hand on this thing too. Honestly I treated this like a carpentry build almost and it came out super clean. Very little seam filling will need to be done. Barely can see the foam layers now actually. Lol I used DFT YouTube template for a guideline but I took the build quite a bit further than he does in his tutorial. My barrel also goes the full inside length of the rifle so it's really ridged and strong. The barrel is like a .850 inch diameter wood dowel similar to an actual AR15 barrel diameter.
Last edited:
master_colt_117
Well-Known Member

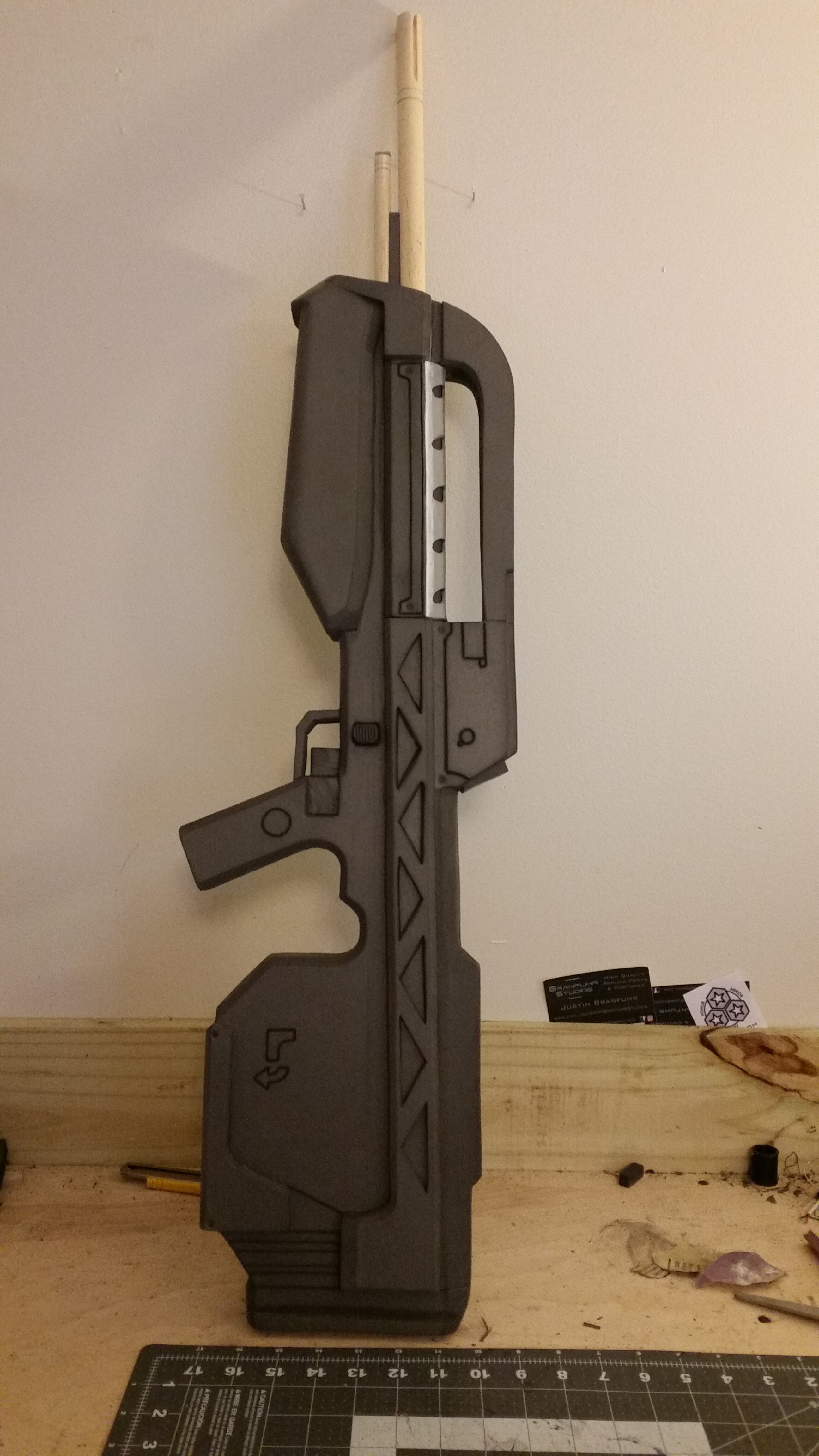

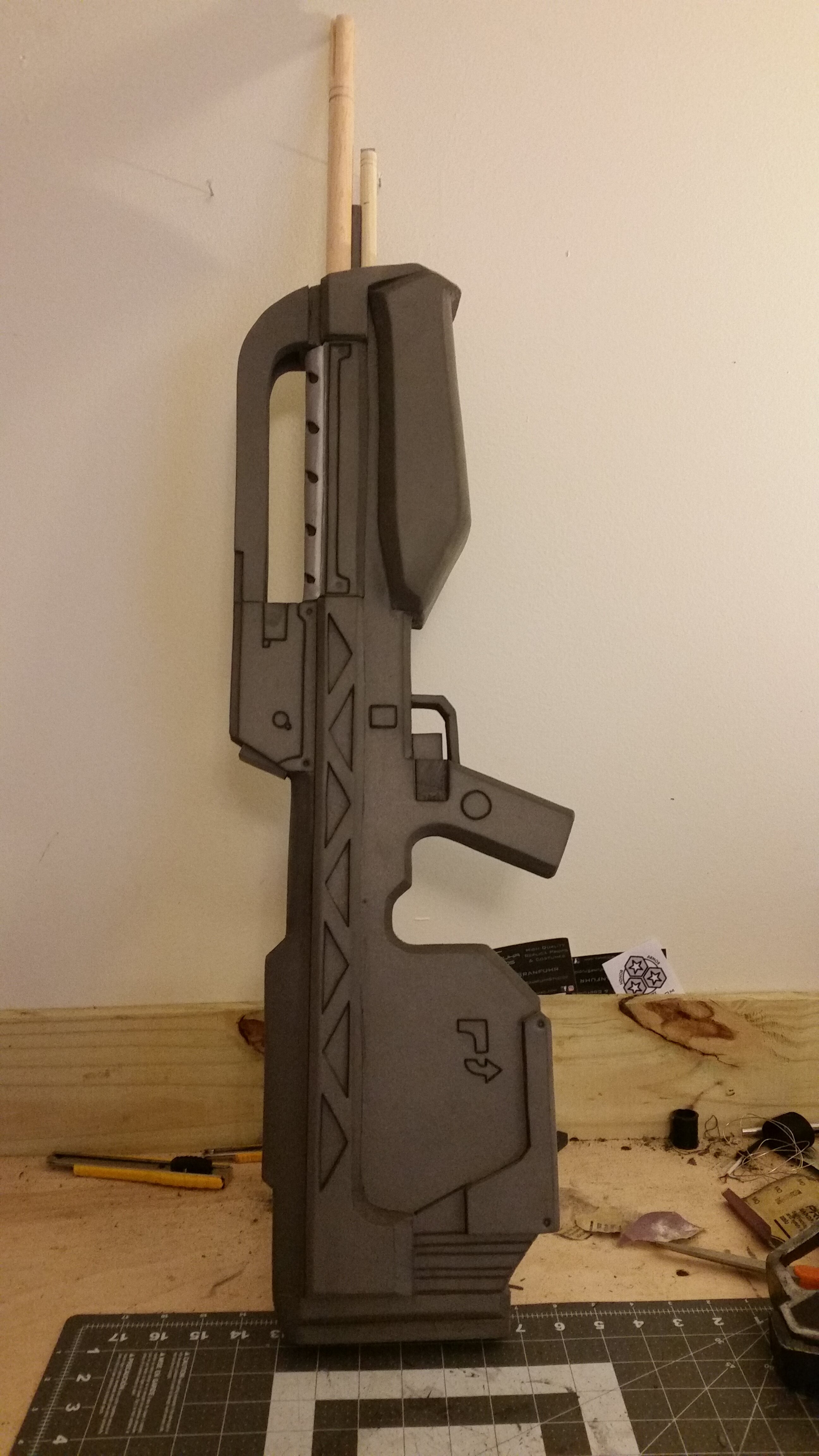

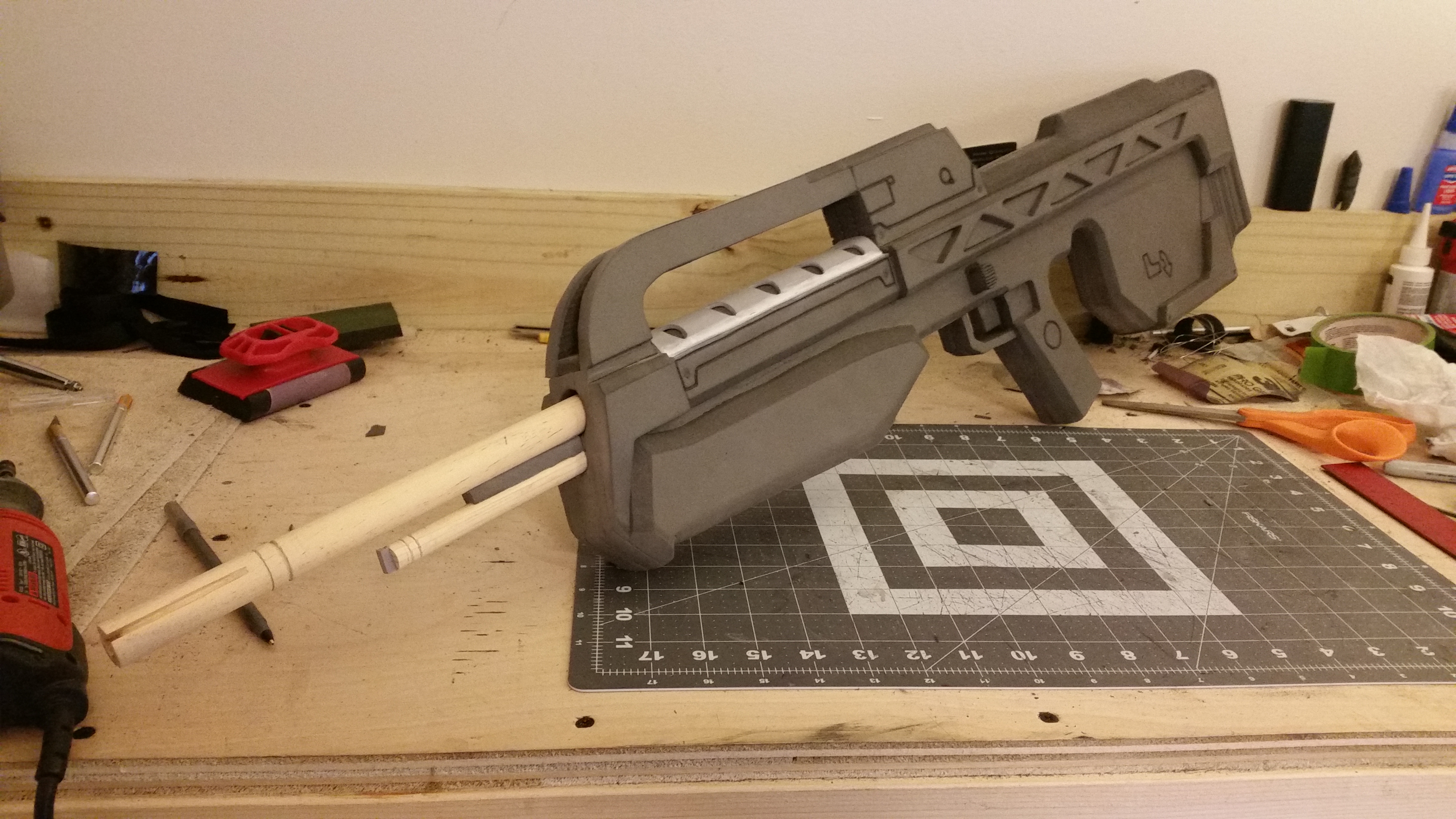

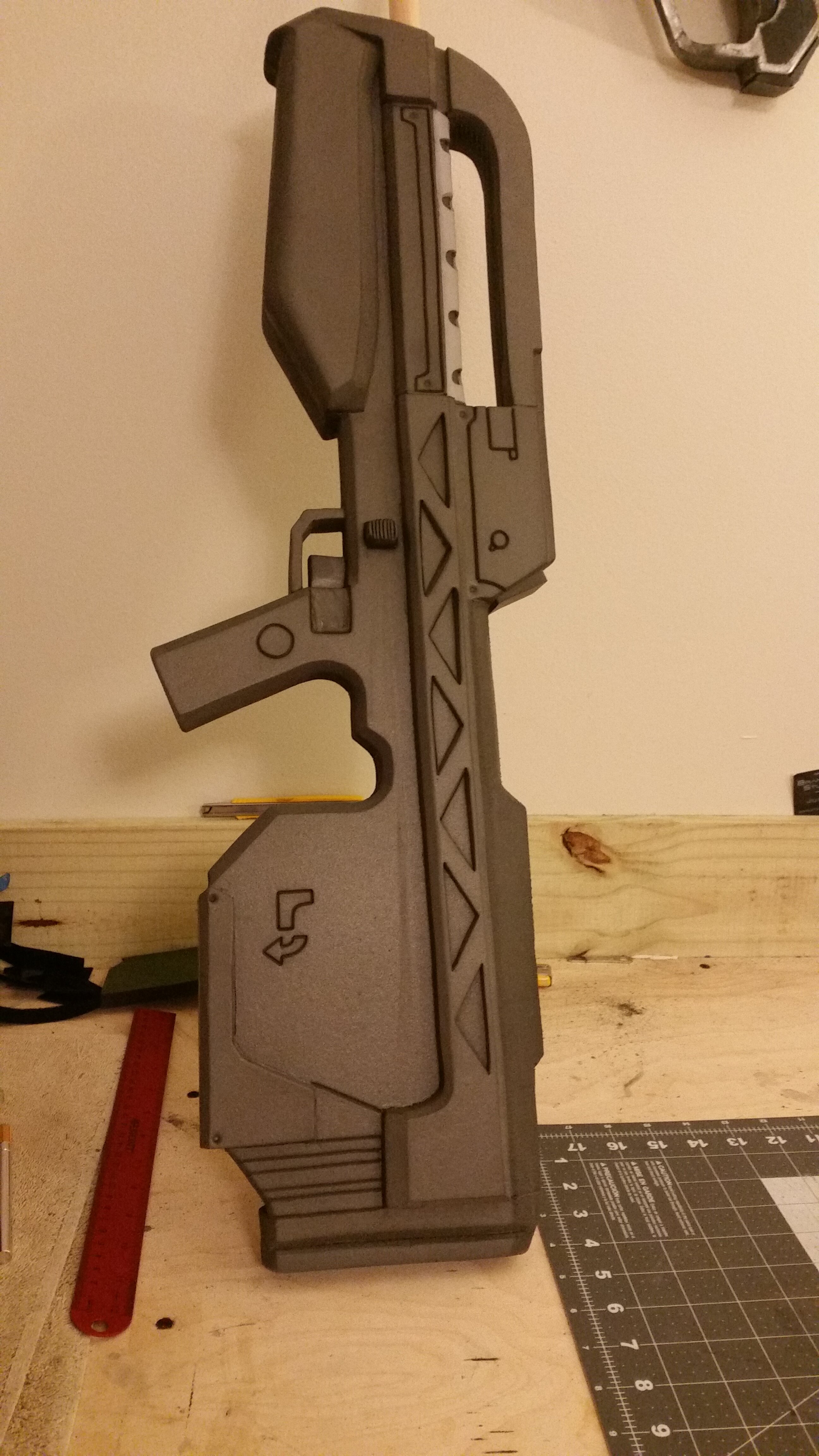

Pretty much done other than scope and charging handle. Got the barrel/gas tube finished and getting ready to seal seams now. Almost ready for paint!
master_colt_117
Well-Known Member
Hahaha thanks man! Turbo I think is going to be printing up a set of dual m7's I think for the Philly outpost. Need to get back to work on the suit tomorrow so I can get there!
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
Dude.....just be glad it was me and not Fangs.........
Also, great job ExCeLLuR8. It's coming along AMAZEBALLS!!!! Did you put a spine in the BR? I don't recall if you did or not?
Dire
Sr Member
When you put it that way...Fangs sounds unforgiving
master_colt_117
Well-Known Member

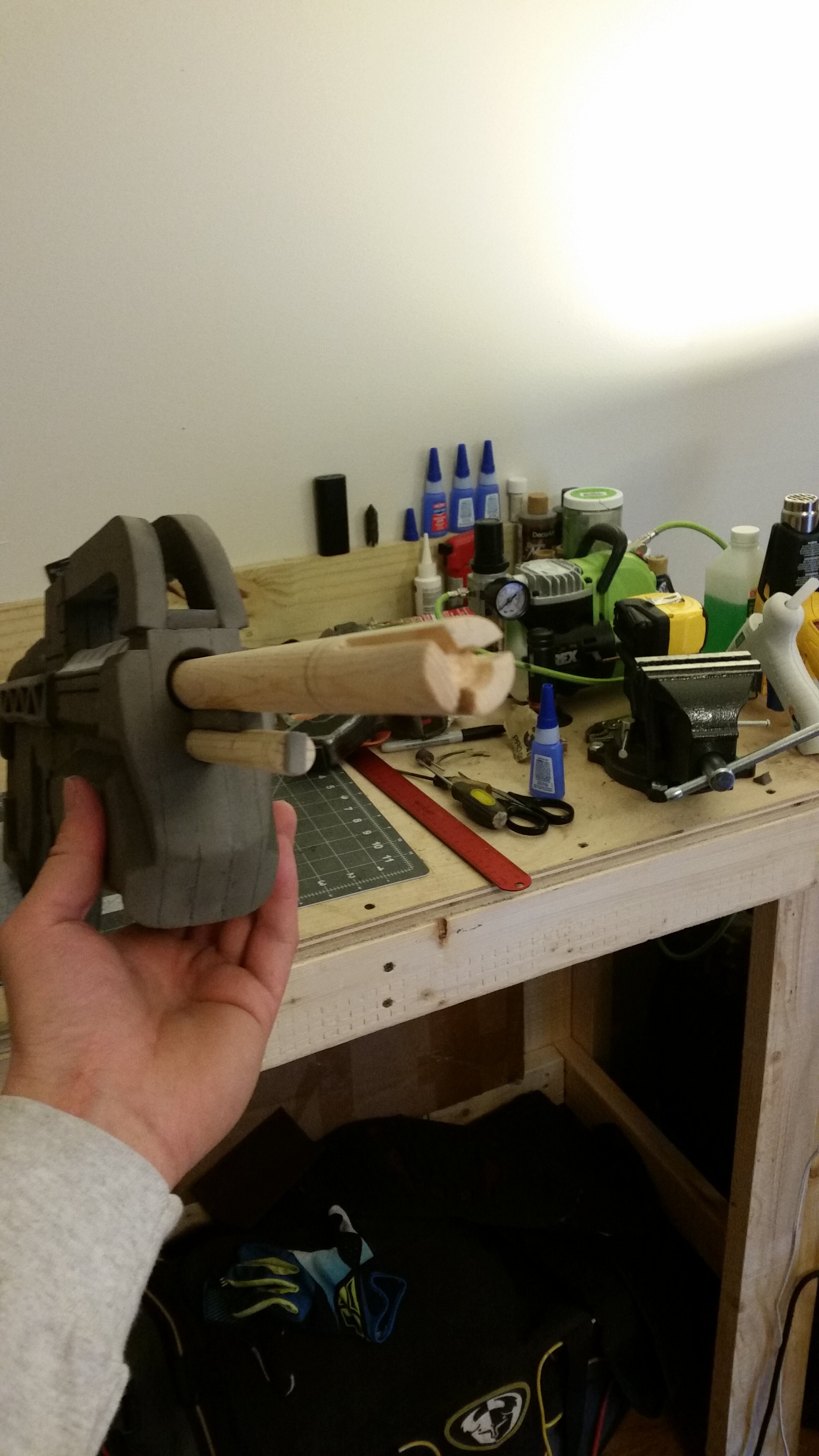

Yeah so the .750" wooden dowel goes the full inside length of the rifle inside so its very rigid and strong feeling. The dowel is held in with really strong friction so I'm not even going to glue it incase I have to change it one day. Also .750 is the diameter of real ar15 barrels so it looks good. Can't wait to paint it!
Dirtdives2424
Division Scheduler and Keeper of Con Lists
- Member DIN
- S2424
........go ahead........test those waters.......
.......I'll be sitting by the edge sipping a Mai-Tai, taking a tan.......don't mind me......
Sean Anwalt
Sr Member
- Member DIN
- S530
Dire
Sr Member
Heheh (nervous laugh) I will pass.........go ahead........test those waters.......
