1st Build Halo infinite mark 7 progress

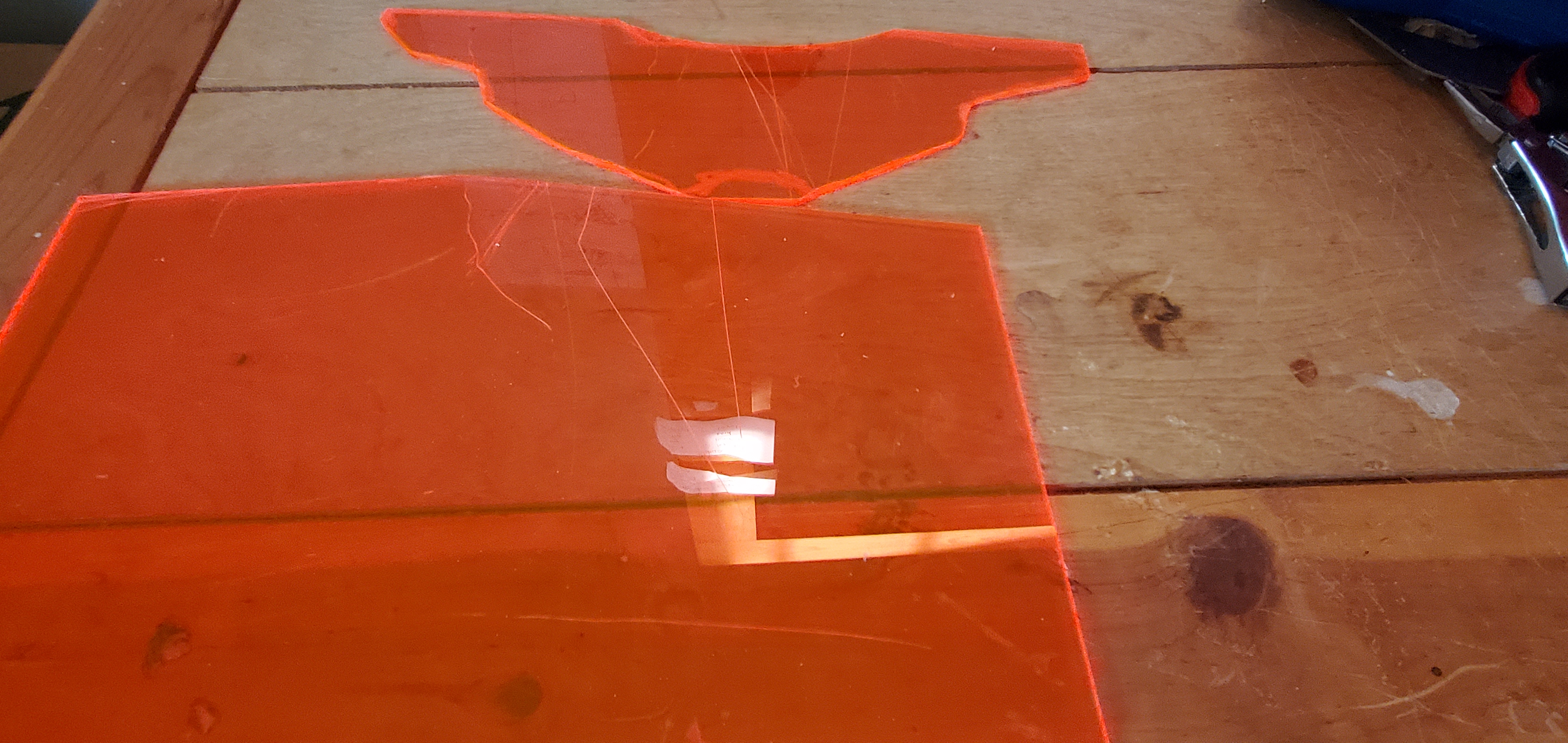

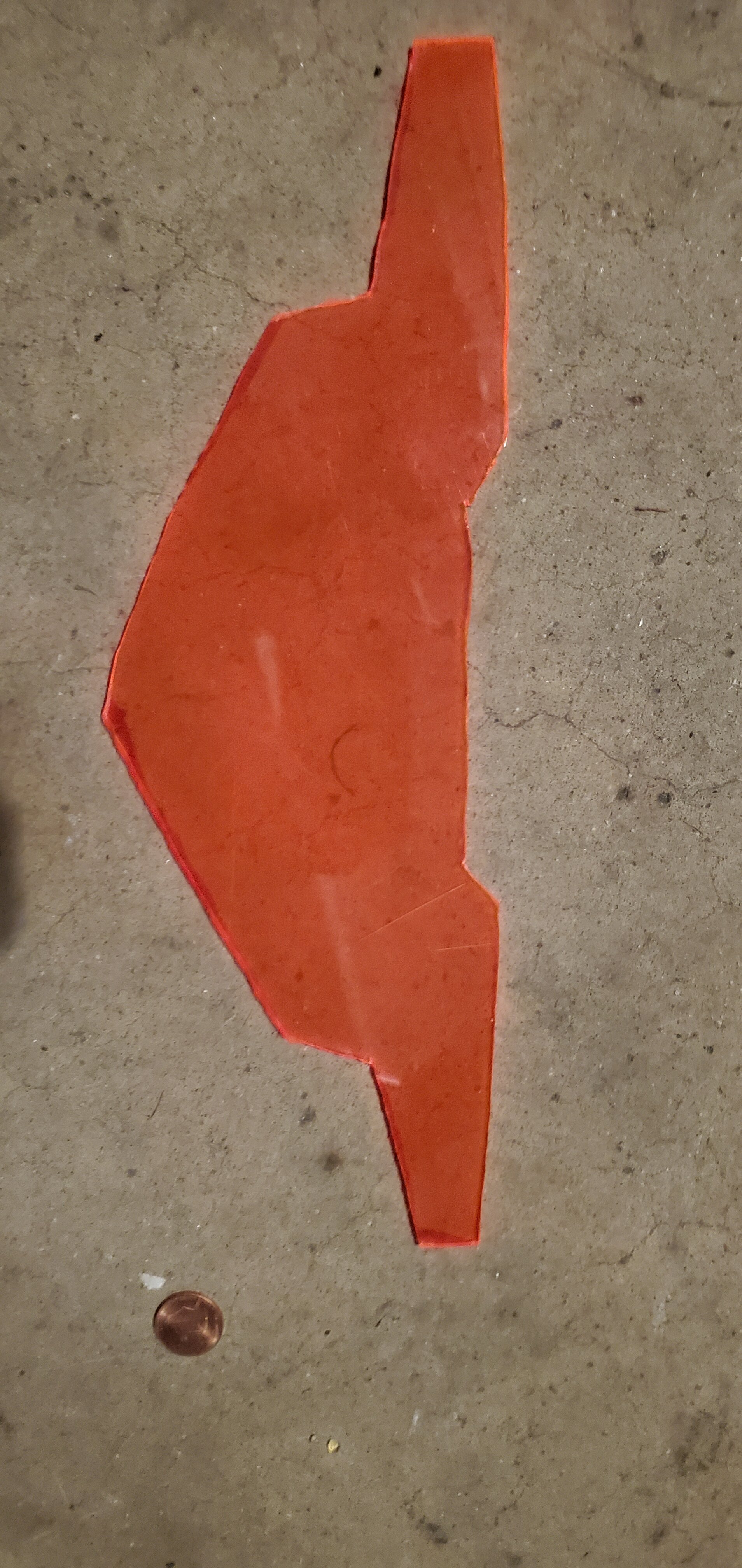

Today the visor for the helmet got cut out.
I used a plexiglass cutter for this one. It's mostly accurate to the template traced even after the edges were sanded. Unfortunately, it did not cut all the way through. It kept cracking close to the traced area when snapping the entire shape out. There's still some plastic left for a re do on the visor. Might have to get a saw for the next one.


Attachments

  • 20211105_170009.jpg
    2.5 MB · Views: 46

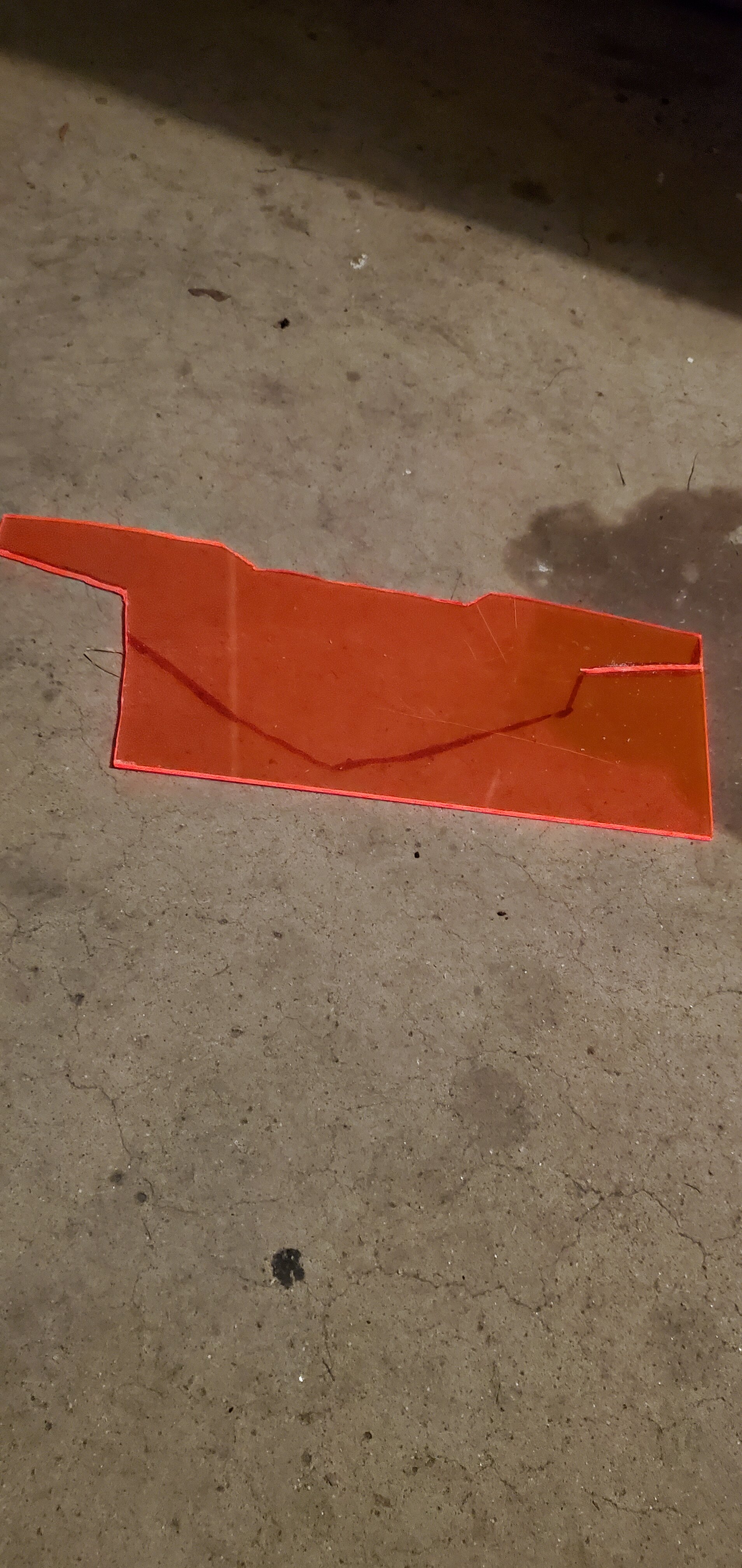

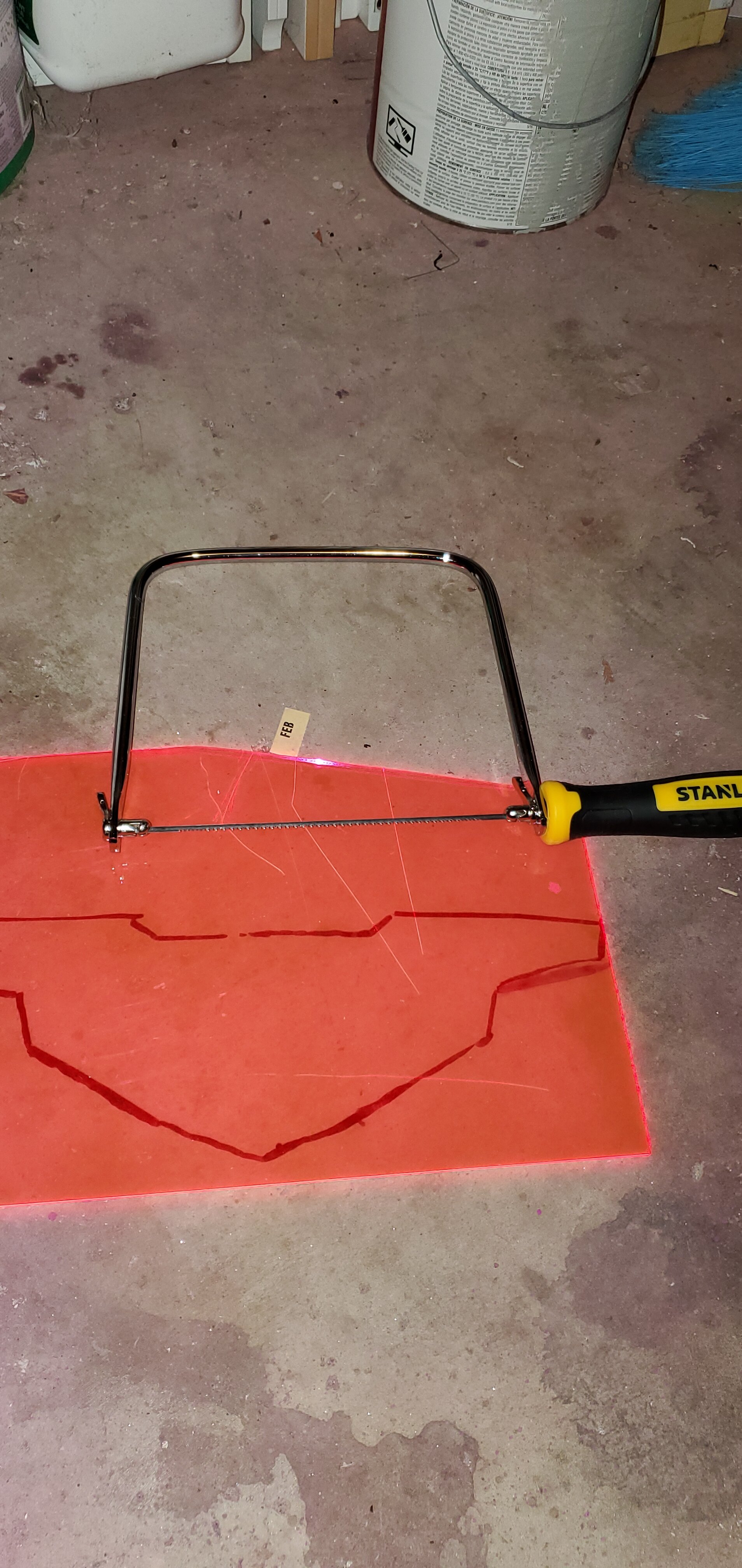

Update on the new visor. Got a wood saw for cutting the orange acrylic out. A new traced visor was done to the correct length.
This time a test was done to see if the saw actually cut through. It works! I don't have experience with cutting acrylic that much but it should be easier now


Attachments

  • 20211107_154139.jpg
    1,004 KB · Views: 48

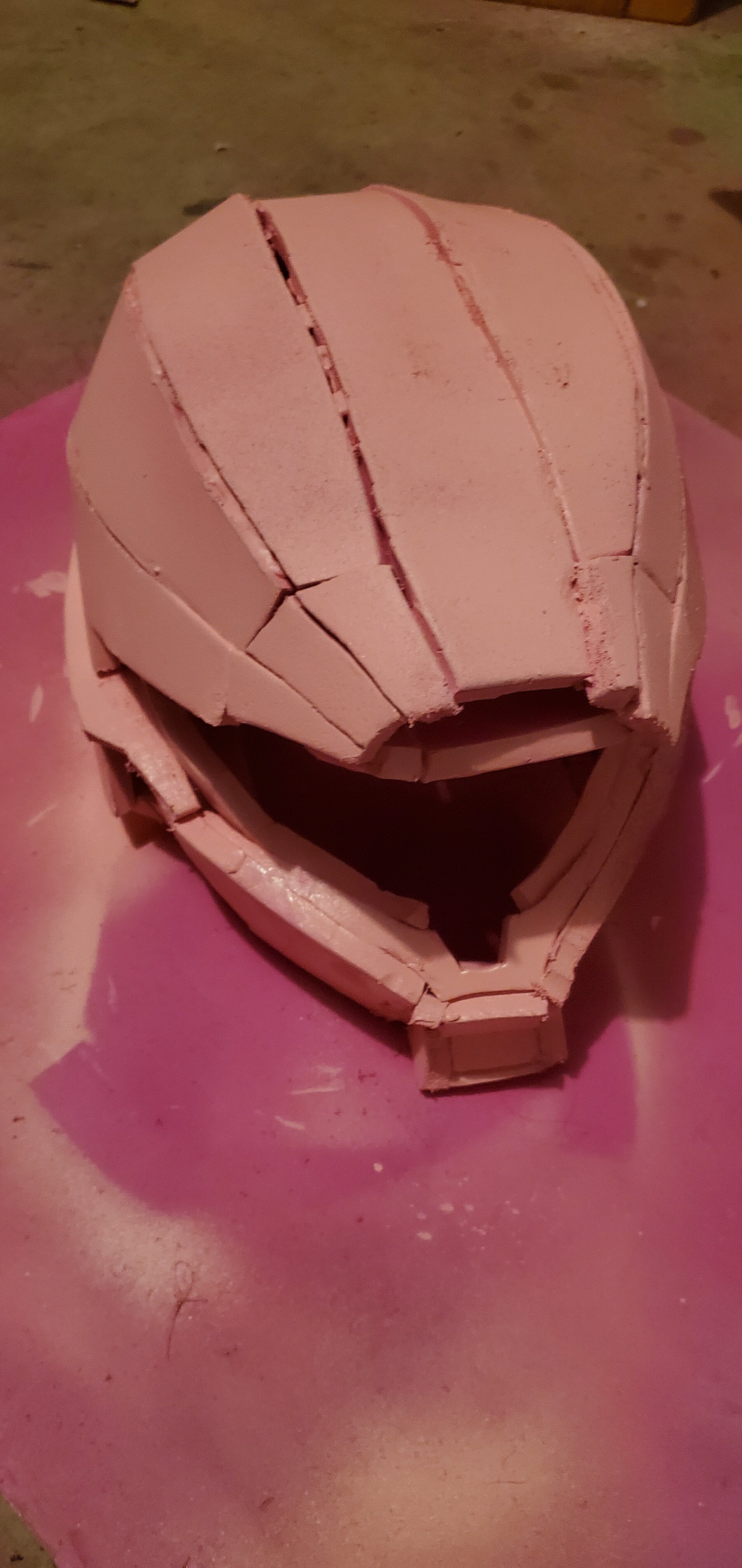

Today some more heat forming was done. This is the closest the visor can fit in. It does align right on the top half but there are gaps on the side and bottom. I plan to use the foam clay to fill in the lines. A side piece did break off while heat forming but it can still be glued back on. Hopefully by tomorrow the helmet can be finished and I can move on to doing unfinished parts of the armor


Attachments

  • 16365033924199016210020167533463.jpg
    1.2 MB · Views: 42

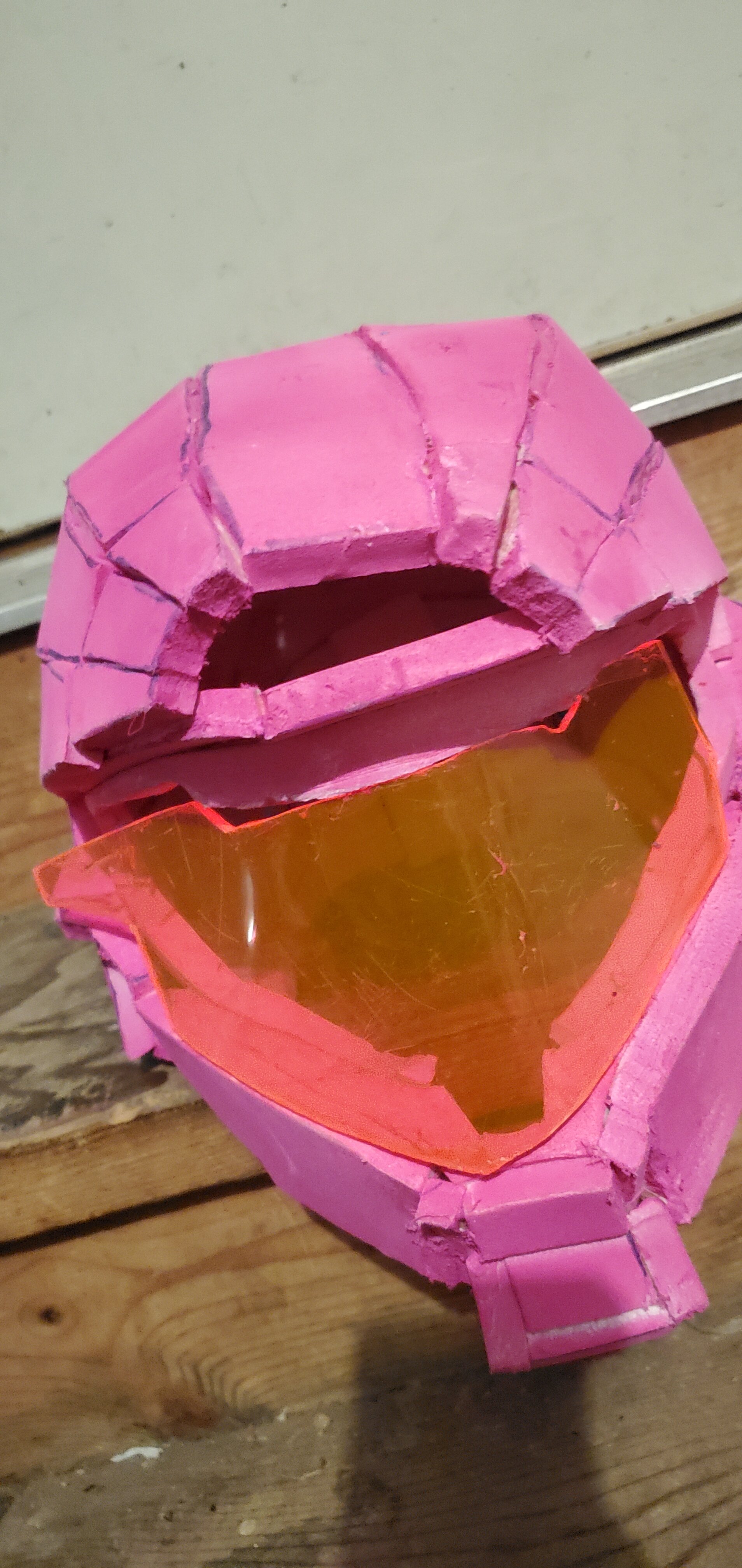

Heat forming the visor again. I took a look at the shape of the visor and I now know what to do. It needed to be slightly curved in the middle and then the sides are the parts that need to be heated and bent much more. After this is adding the film and the foam clay to finish up


Attachments

  • 16365844899158836576865569329621.jpg
    926.9 KB · Views: 43

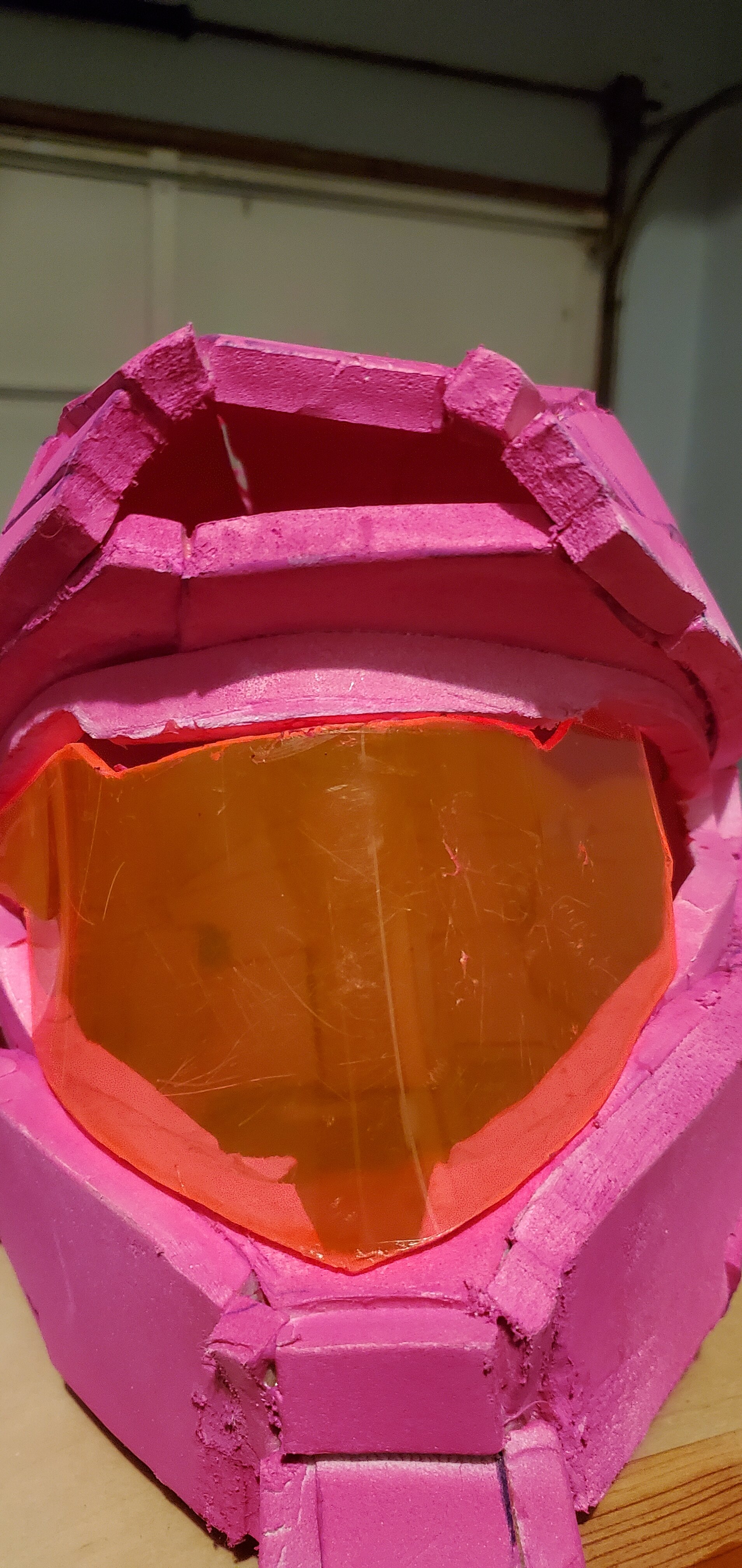

Now the visor is done heat forming and can fit now. Before putting the film on the plastic, I think re painting the helmet the correct shade of pink should be priority before completion.


Attachments

  • 16365882956461134931107283963617.jpg
    1.2 MB · Views: 40

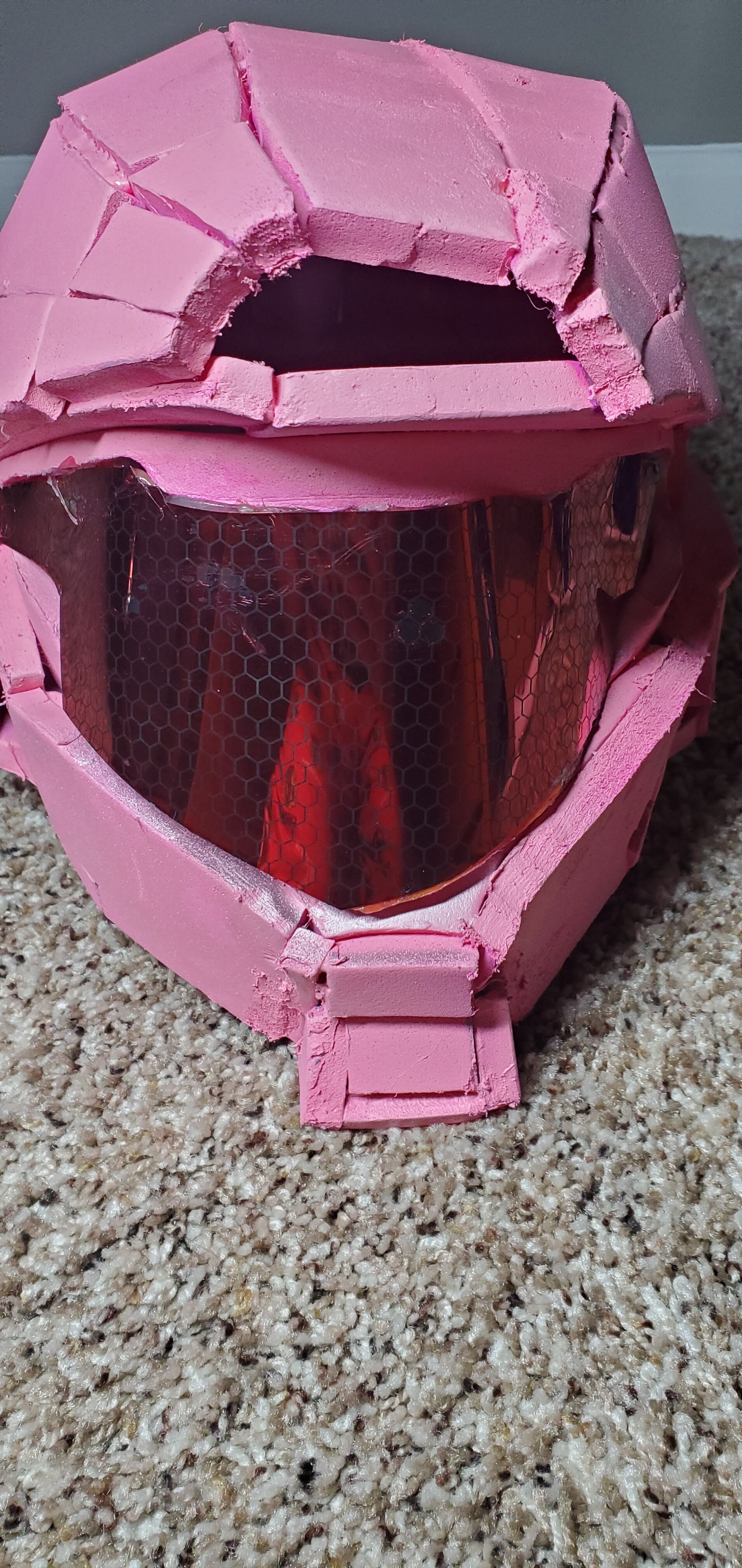

Helmet and visor are done gluing! Visibility is poor because the glue on the edges leaked onto the middle. I guess the gaps will be filled with foam clay. Tomorrow the Bicep pieces are going to be trimmed to the correct length and width then painted.


Attachments

  • 20211112_205905.jpg
    1.4 MB · Views: 44

Arcturis

New Member
Helmet and visor are done gluing! Visibility is poor because the glue on the edges leaked onto the middle. I guess the gaps will be filled with foam clay. Tomorrow the Bicep pieces are going to be trimmed to the correct length and width then painted.
Where did you get the files for this build?
