What tools/method/voodoo magic do you use to sand the bondo down so smooth.
Jedi Stumpy's New Mkvi Helmet New Update 12/3/09 Molding Done! Casts Have Been Pulled!
- Thread starter JediStumpy
- Start date
- Status
JediStumpy
Well-Known Member
fluffybunny117 said:
Sanding: My hands, mainly my 1st 3 fingers, a 3x3 piece on sand paper folded in half. 100 Grit to start, 220 to finish...and Time and sore fingers.
No magic here. Just keep sanding till you get it smooth.
Also if you didn't know this main thing is to layer! Light layer of Bondo, Sand, Repeat! That is the main Technique! (or the Magic if you want to call it that)
smilie120 said:Amazing work as always Stumpy!
Thank you!
Last edited by a moderator:
Your bondo skills are incredible! This makes me want to redo my helmet! :lol
One question about the foamies... when peeling it back off does some of it stick to the helmet (little pieces stay on there)? I know I use the same super glue brand you use, so I know it may stick to it. Do you just sand them off if so?
Awesome work as always Jedi!
This makes me want to redo my helmet! :lol One question about the foamies... when peeling it back off does some of it stick to the helmet (little pieces stay on there)? I know I use the same super glue brand you use, so I know it may stick to it. Do you just sand them off if so?
Awesome work as always Jedi!
JediStumpy
Well-Known Member
pooper said:Your bondo skills are incredible!
One question about the foamies... when peeling it back off does some of it stick to the helmet (little pieces stay on there)? I know I use the same super glue brand you use, so I know it may stick to it. Do you just sand them off if so?
Awesome work as always Jedi!
Thanks Pooper! I think you're helmet Is great. Your helmet it what is inspiring me!
To answer your question: I use Loctite Super glue of the foams where I laid the detail pieces down. (Foamies with the pep files/pieces on top)
Bondoing Foamies I mask off the area with tape, and I use double sided tape to apply the Foamies. If you use glue I use Elmer's School glue. And since I masked off the area with tape the foams come right up. The Foamies did dry to the tape but pealed off the tape and the tape keeps your area clean.

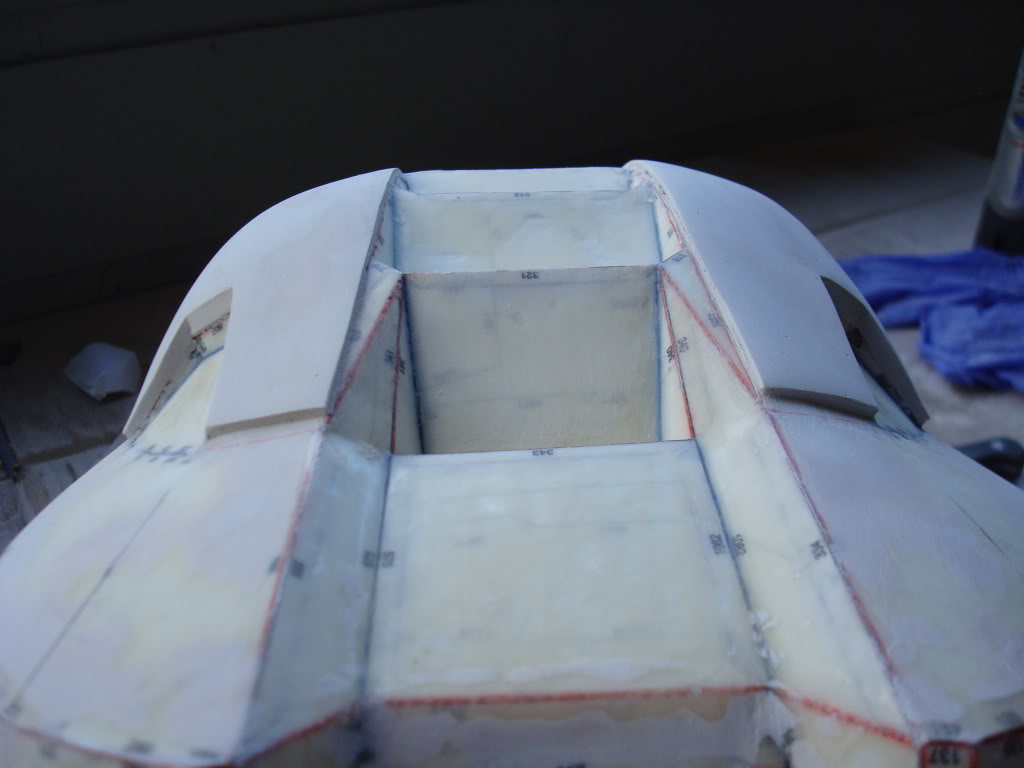

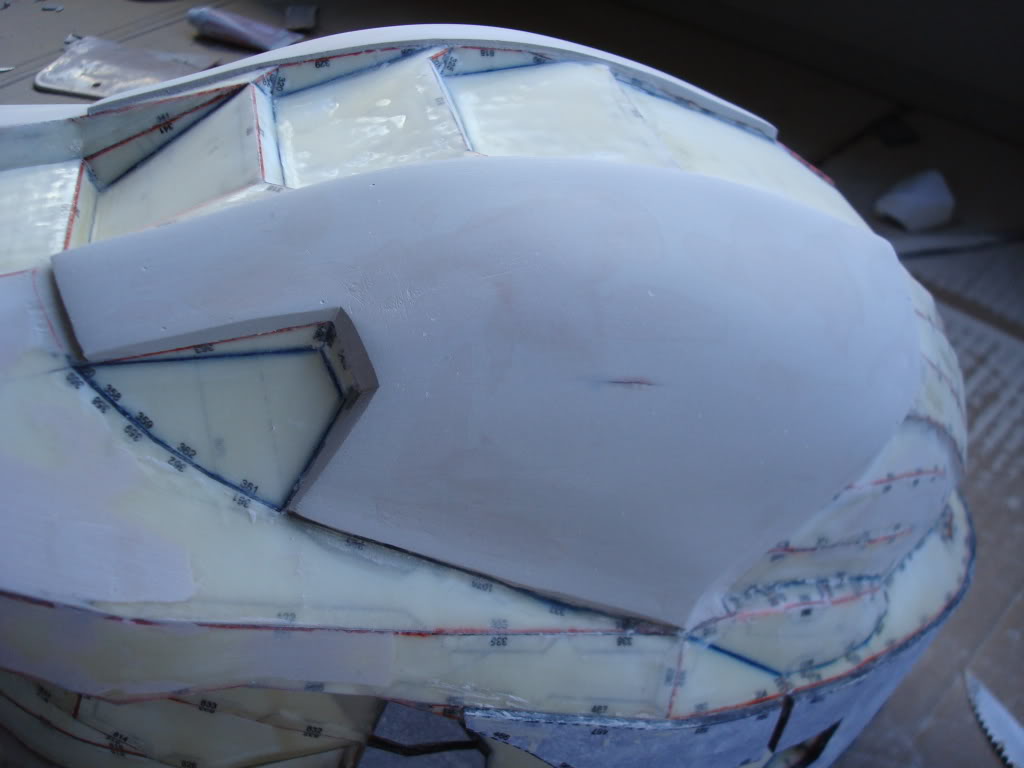

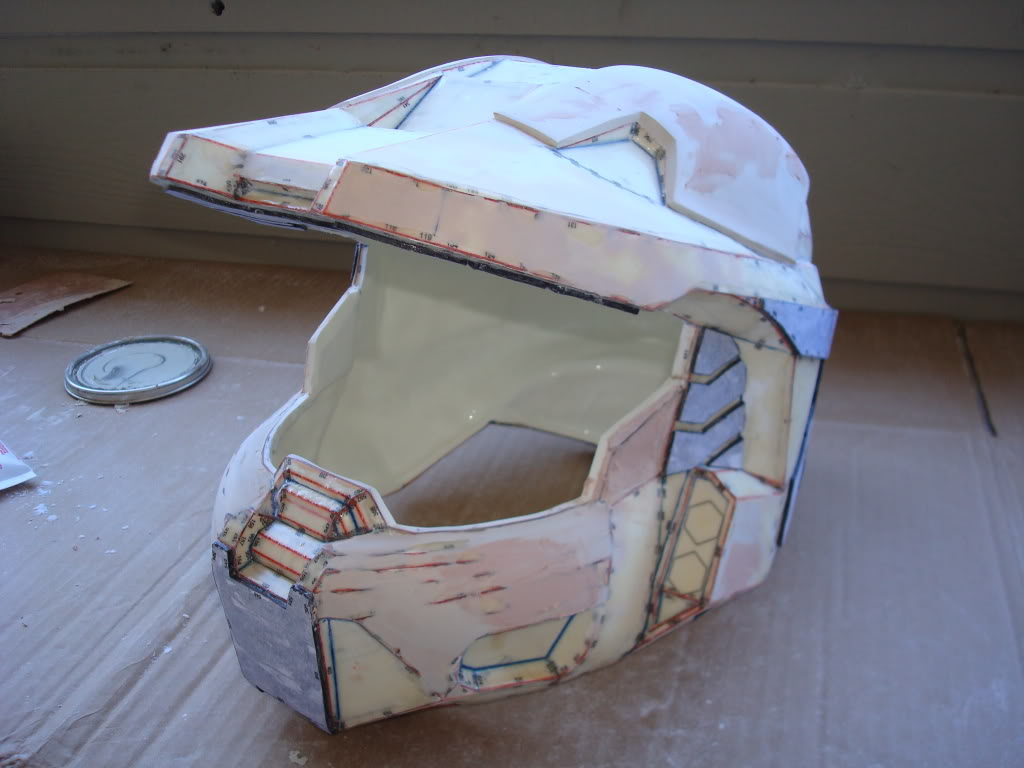

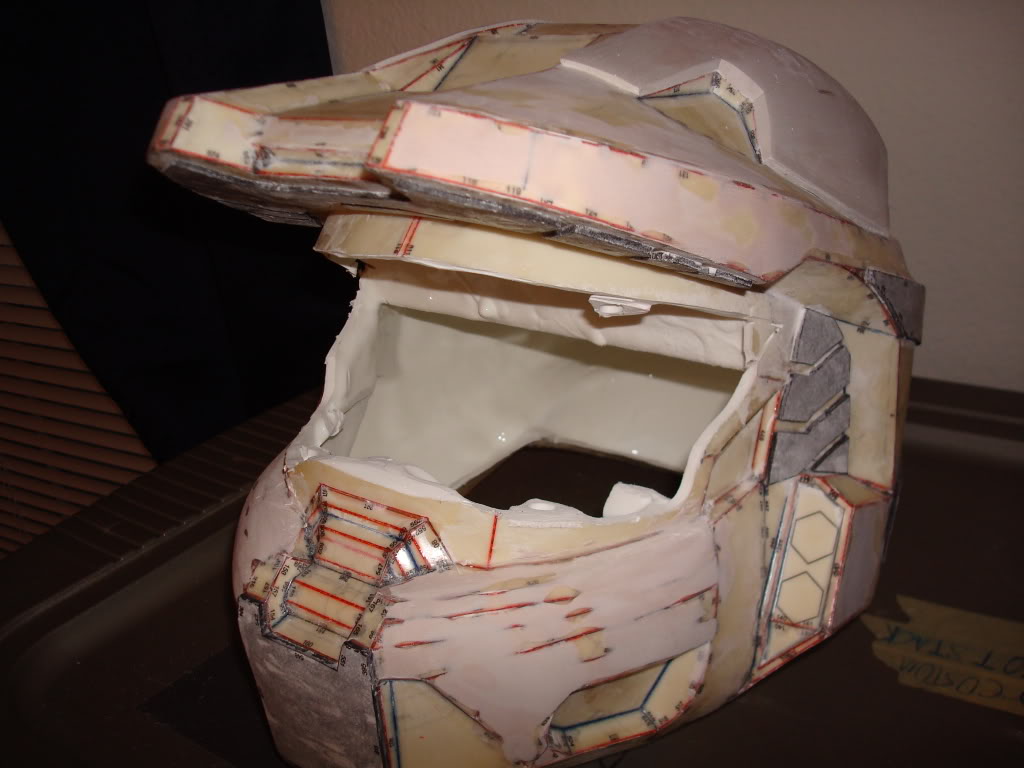

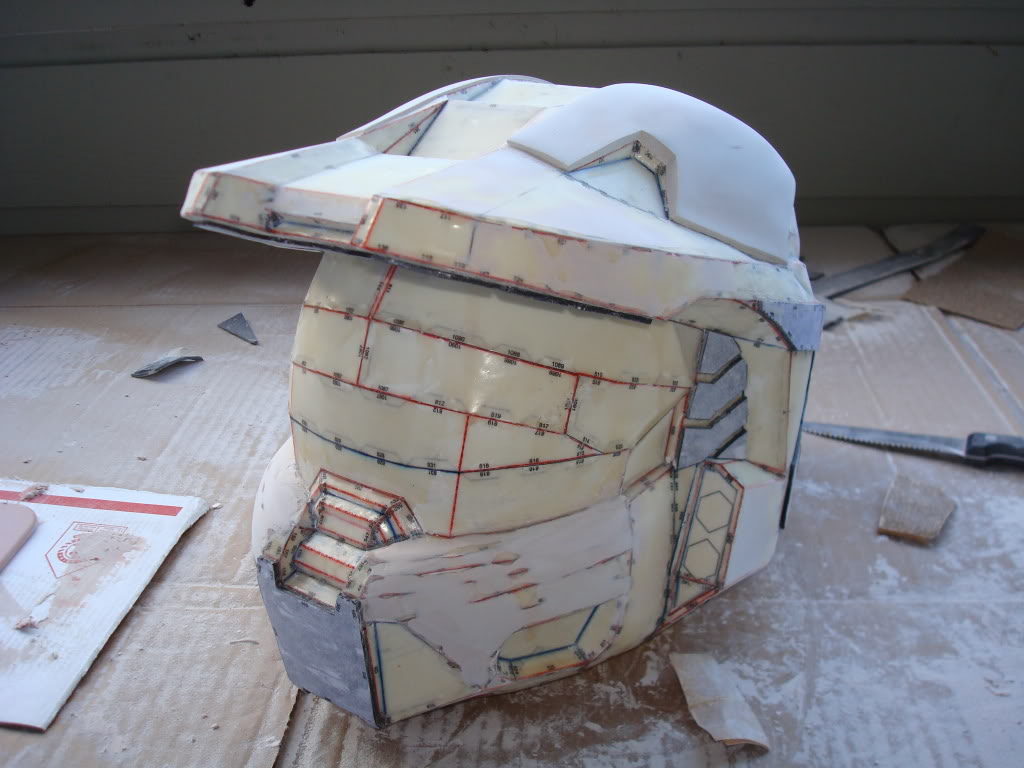

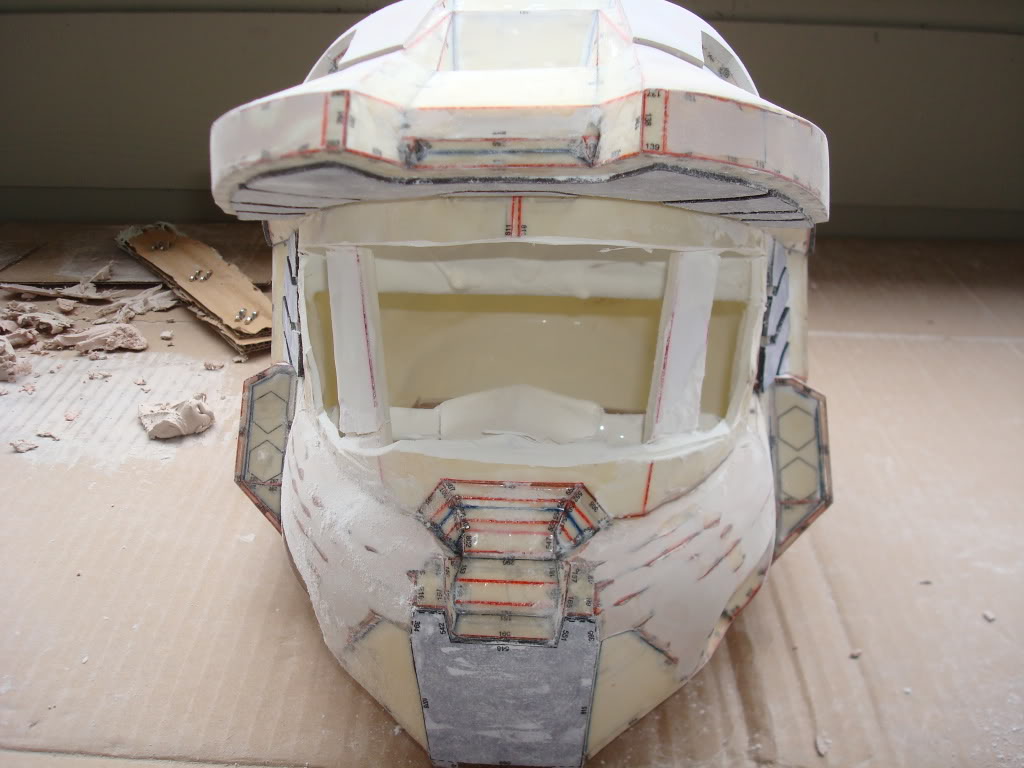

OK Update: a little progress. It got cold here but with be warming back up soon so just a lit bondo work, most work was sanding and cutting.

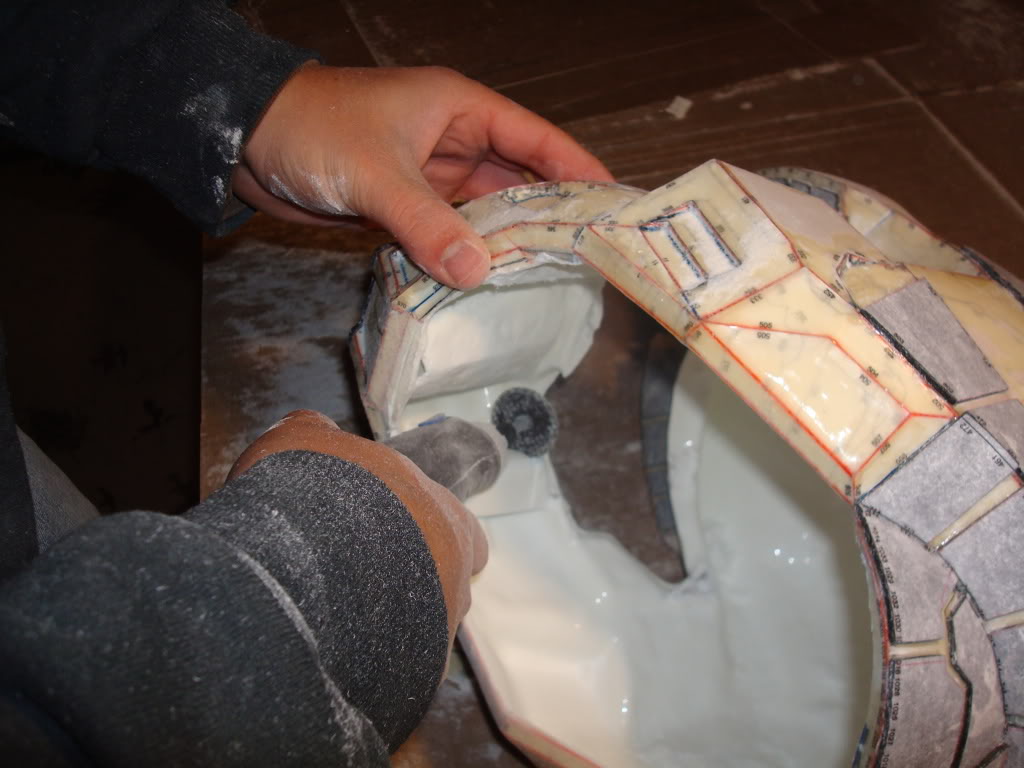

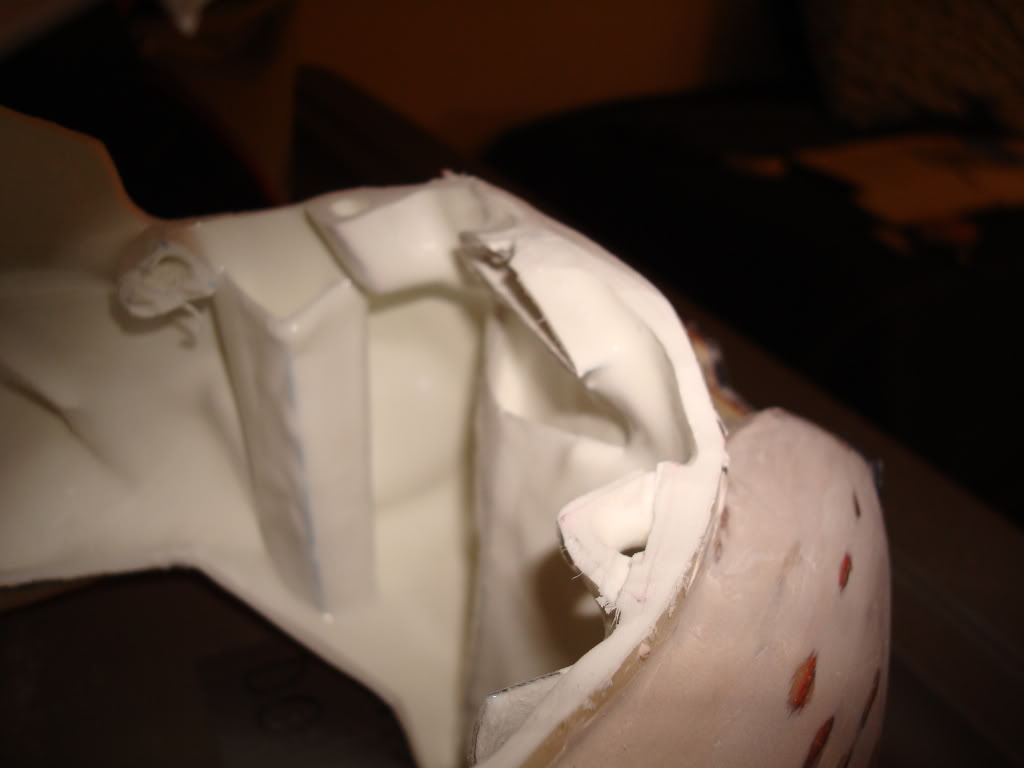

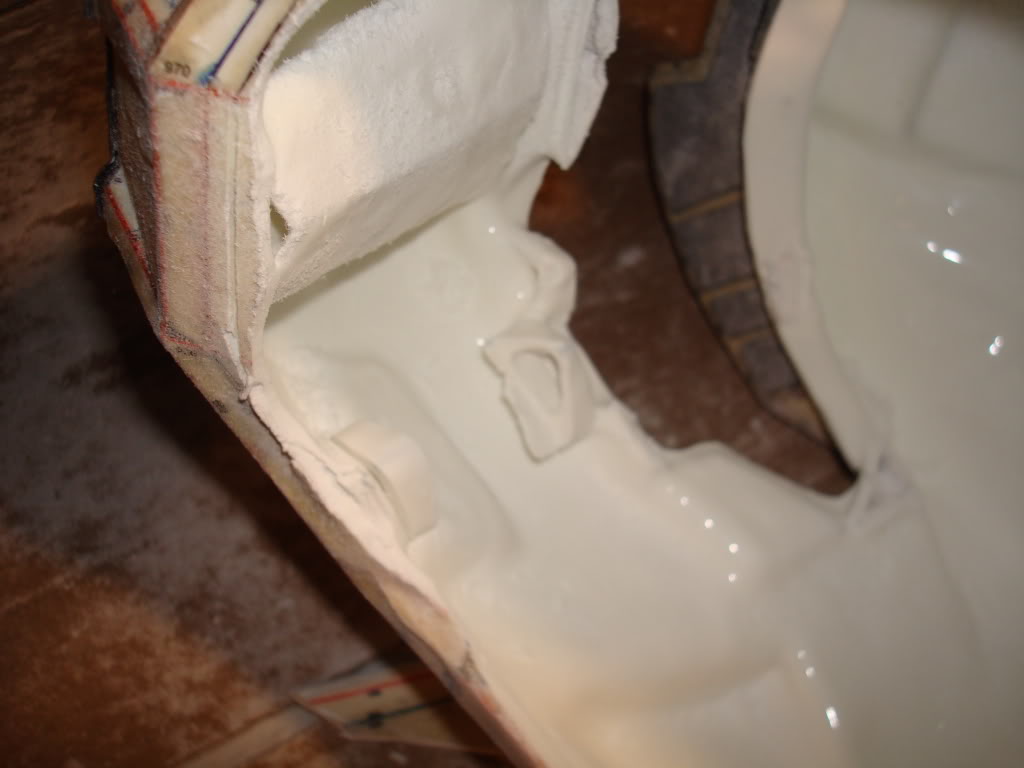

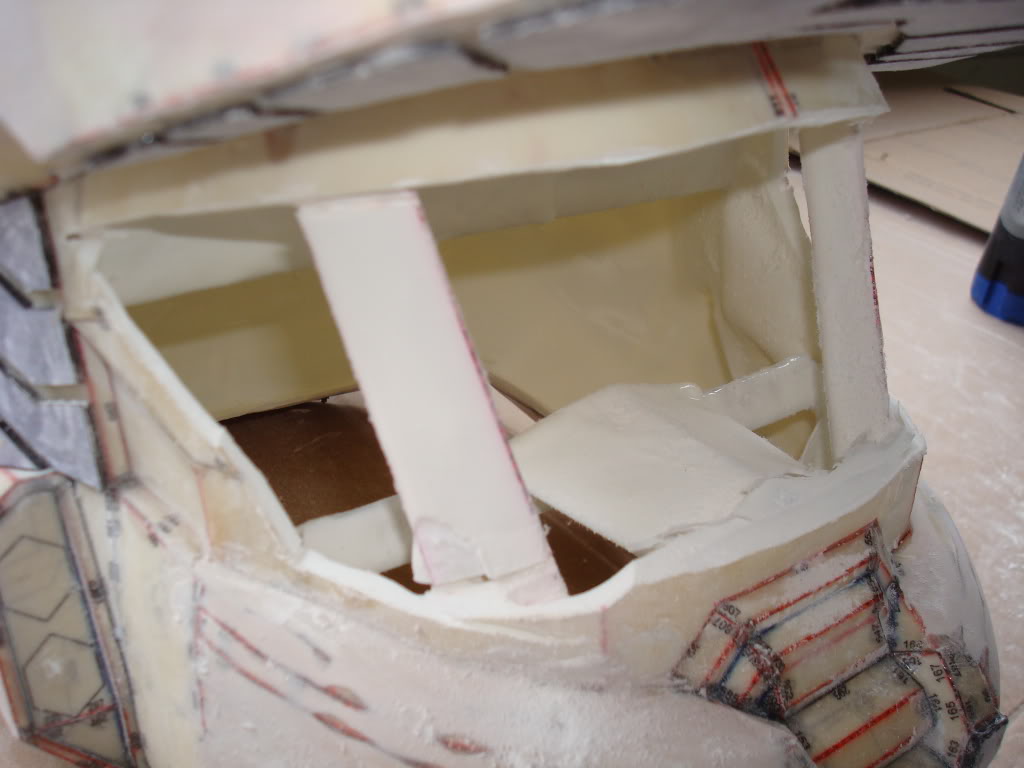

The plastic I use (SmoothCast 300) made it a little difficult to get out the supports for the pep but it just takes time. Other than that everything looks good still and the plastic is performing great!
Pics are worth a thousand words:
Last edited by a moderator:
Macattack64
Well-Known Member
JediStumpy said:
Woo Purdue! lol
I ike how uniform the top looks when you see it on the side view. Awesome job.
Last edited by a moderator:
JediStumpy
Well-Known Member

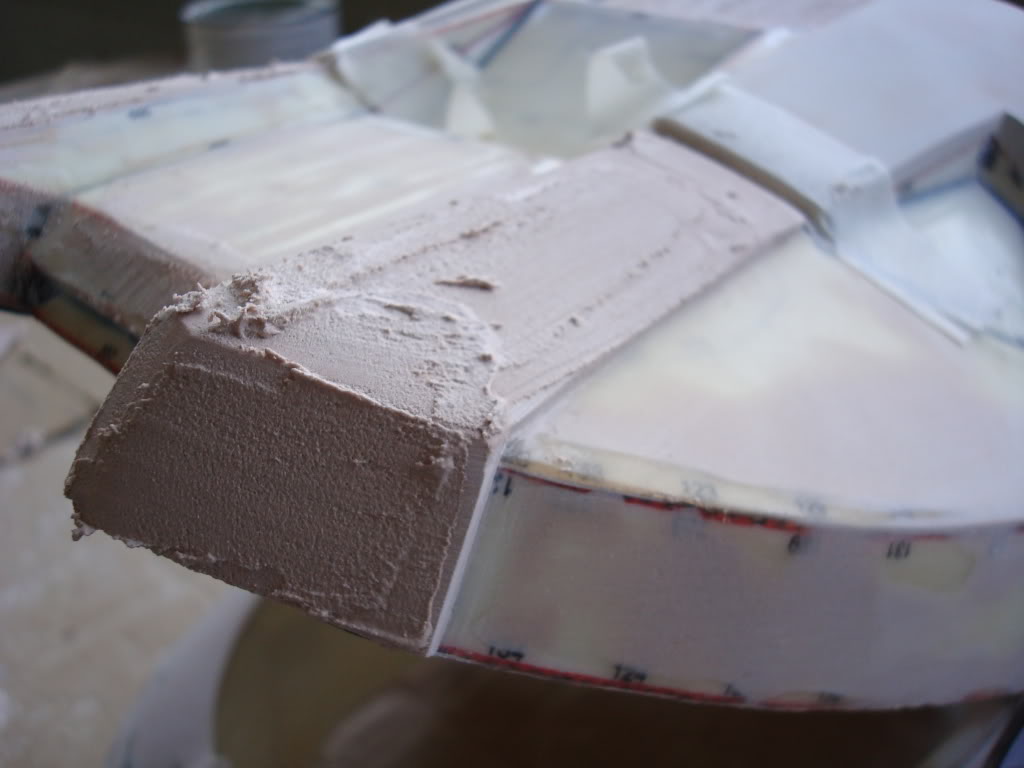

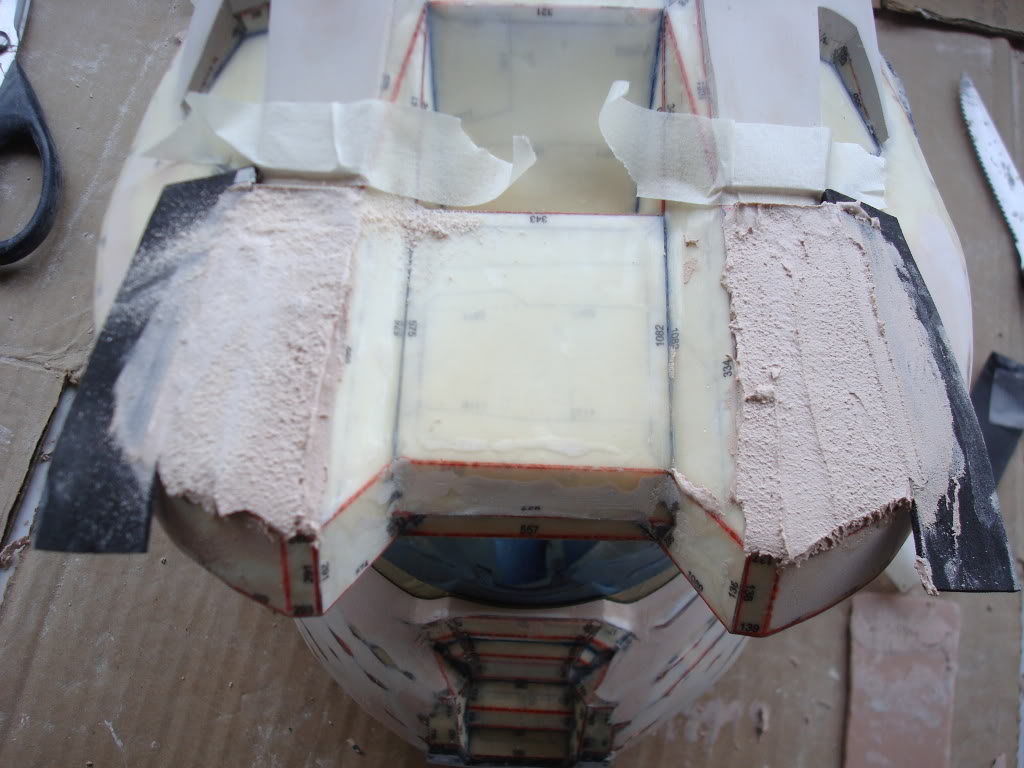

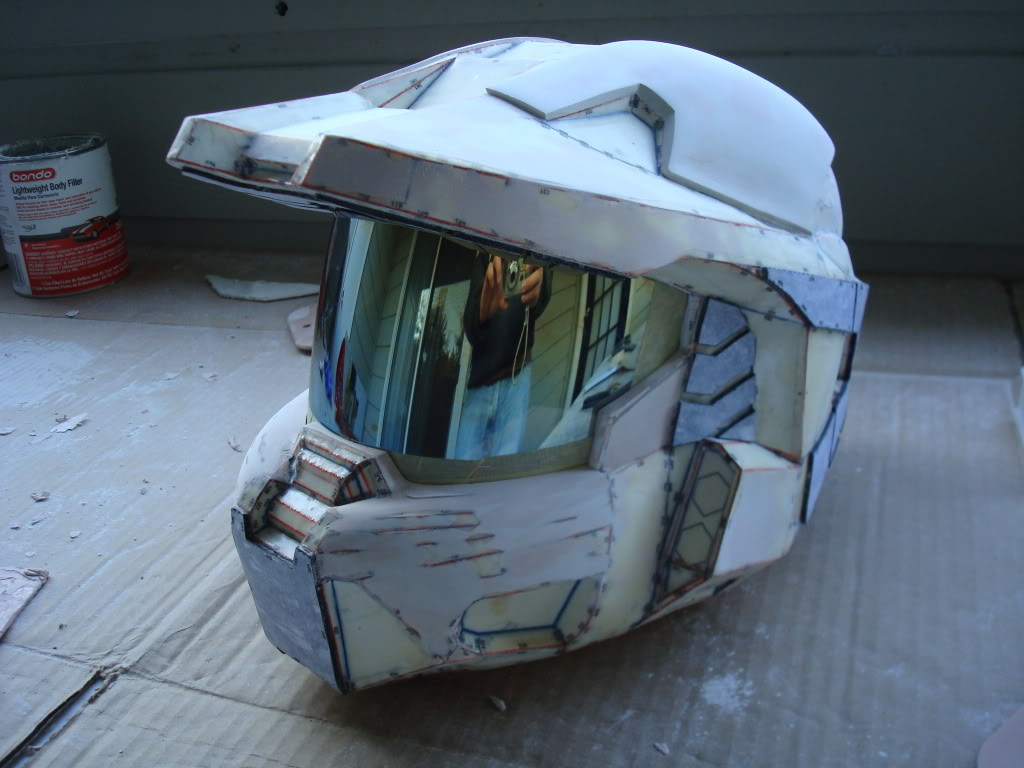

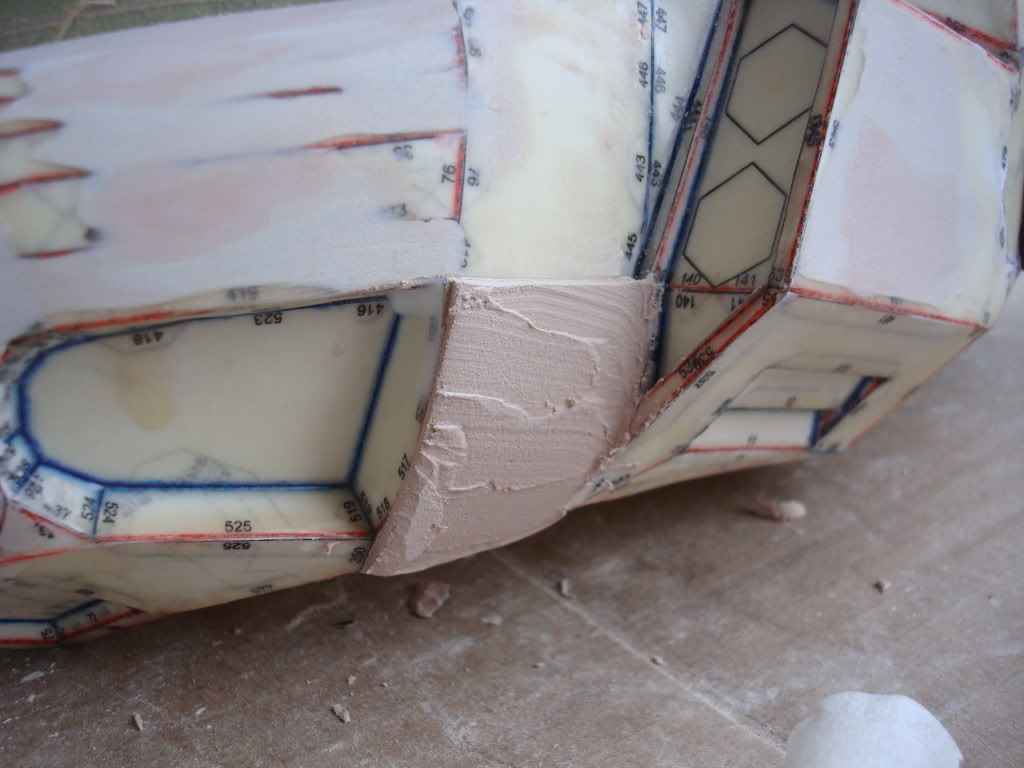

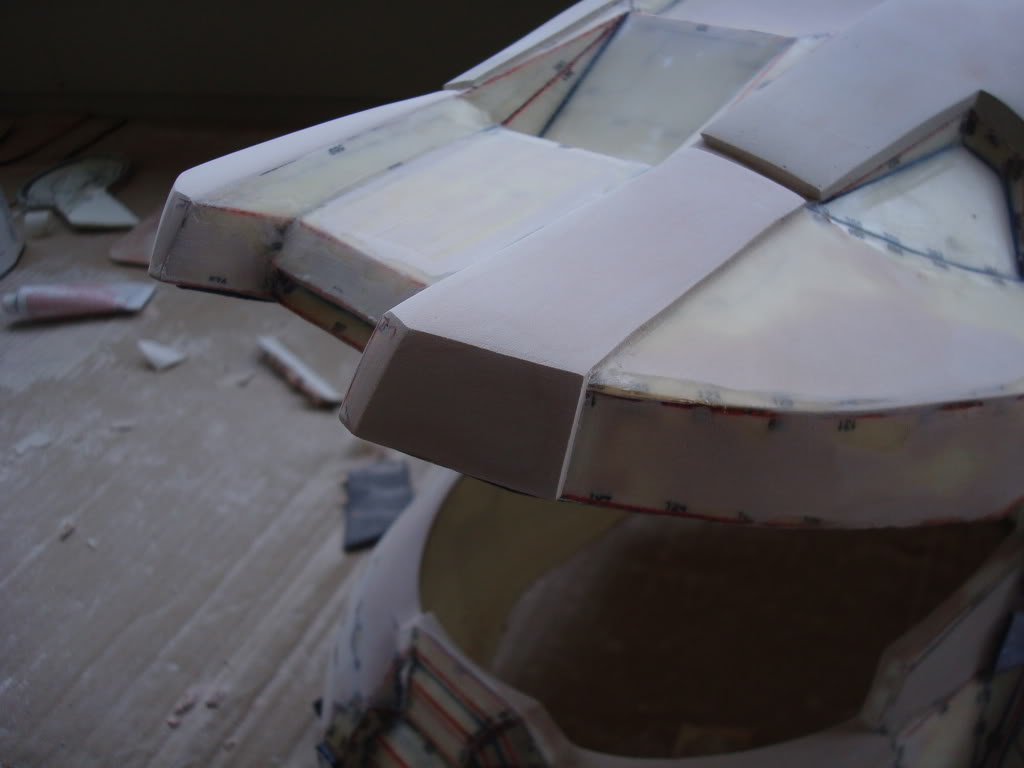

Well had a day off so I did some more work, Finished getting the visor area cleaned out. Did more bondo work and a lot and sanding.

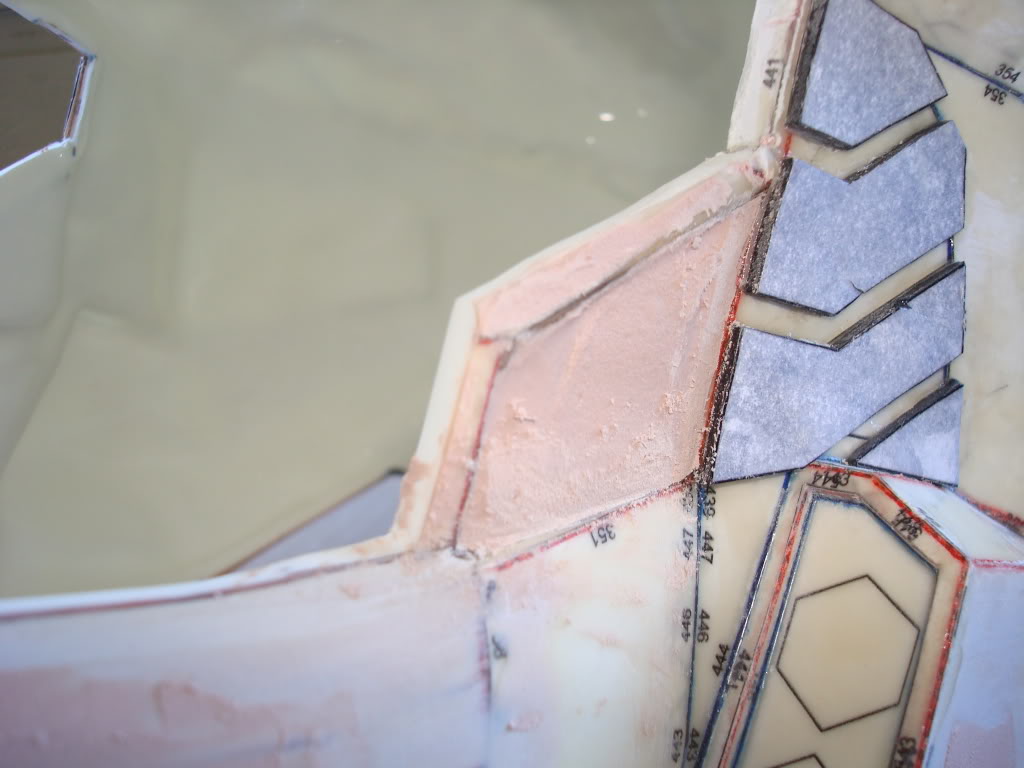

I really focus today on the front to get that done. I also had to fill in the visor side "dents" to get the visor flush but it all worked out great. Used at technique that I thought I would also post up.

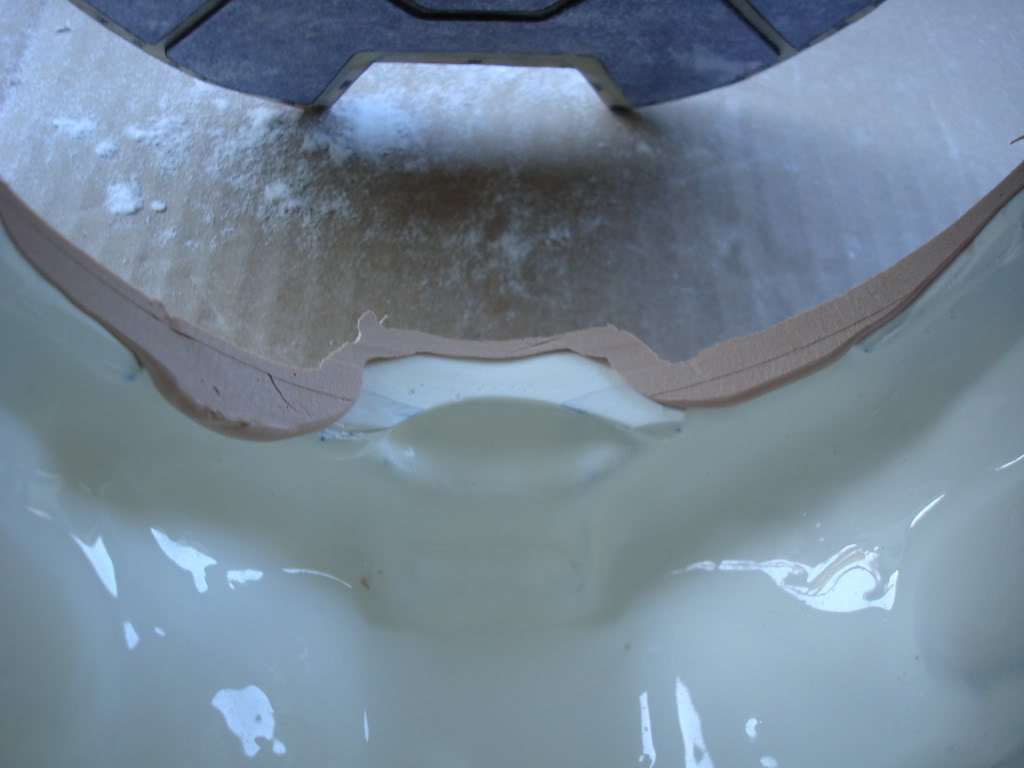

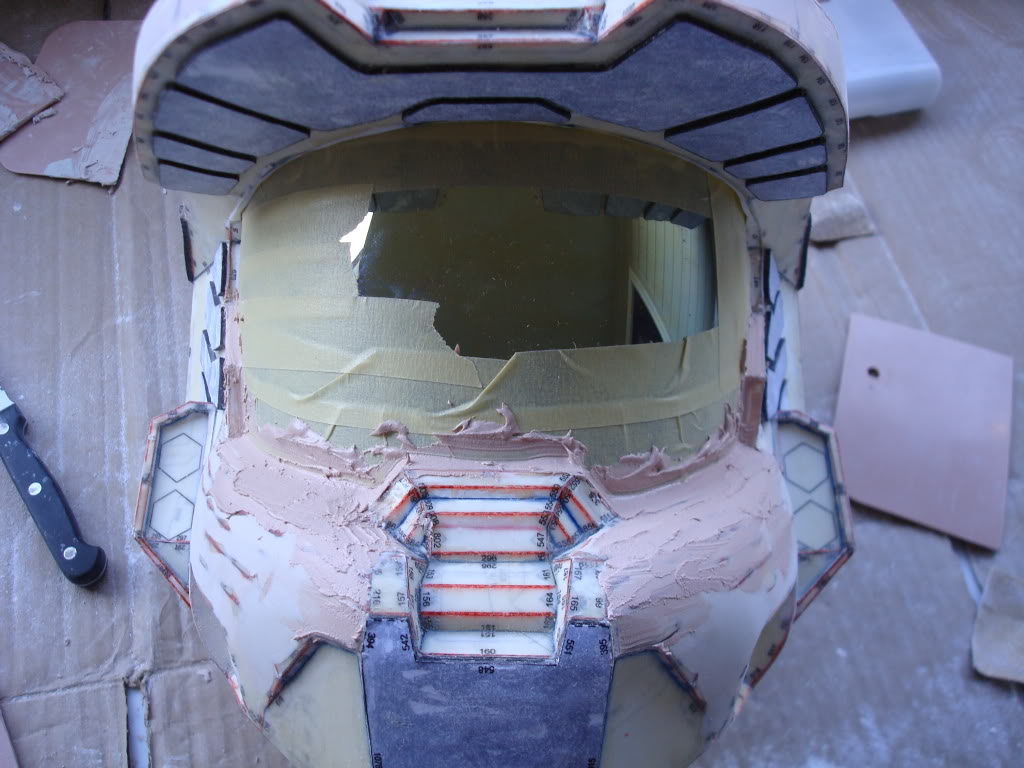

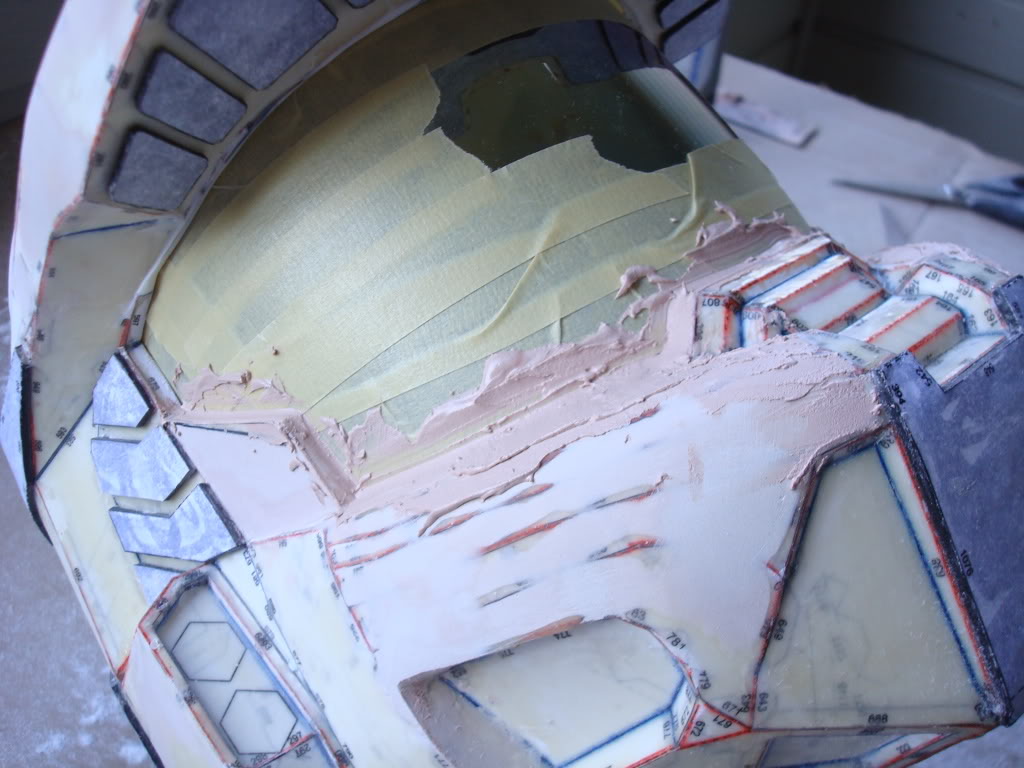

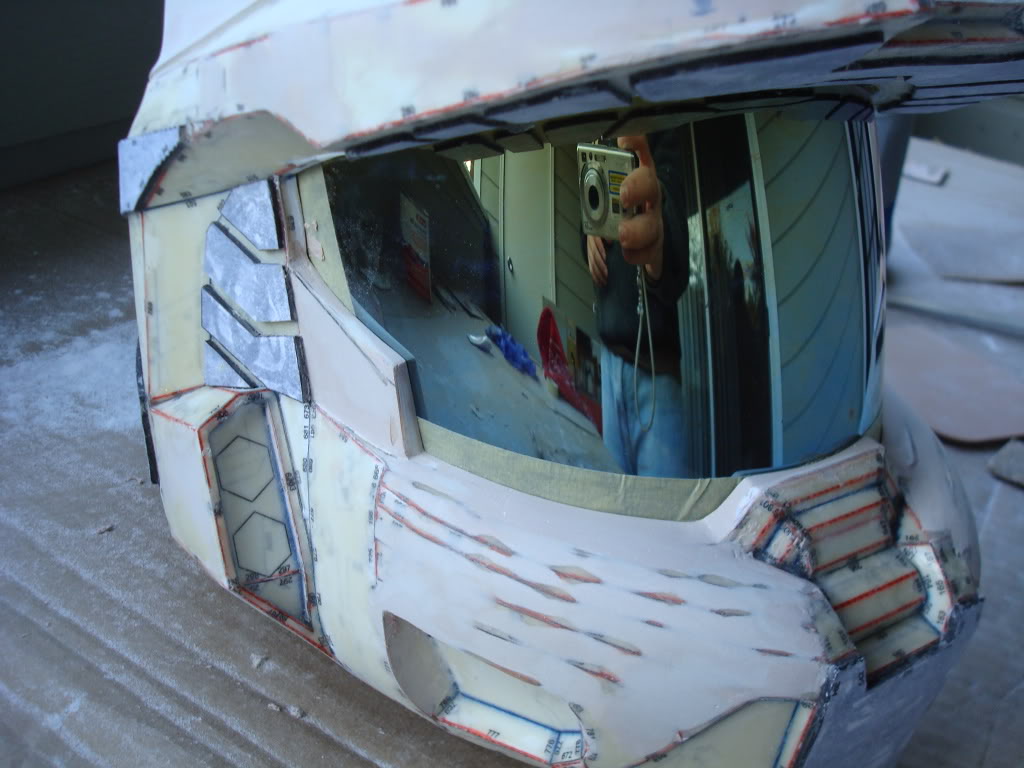

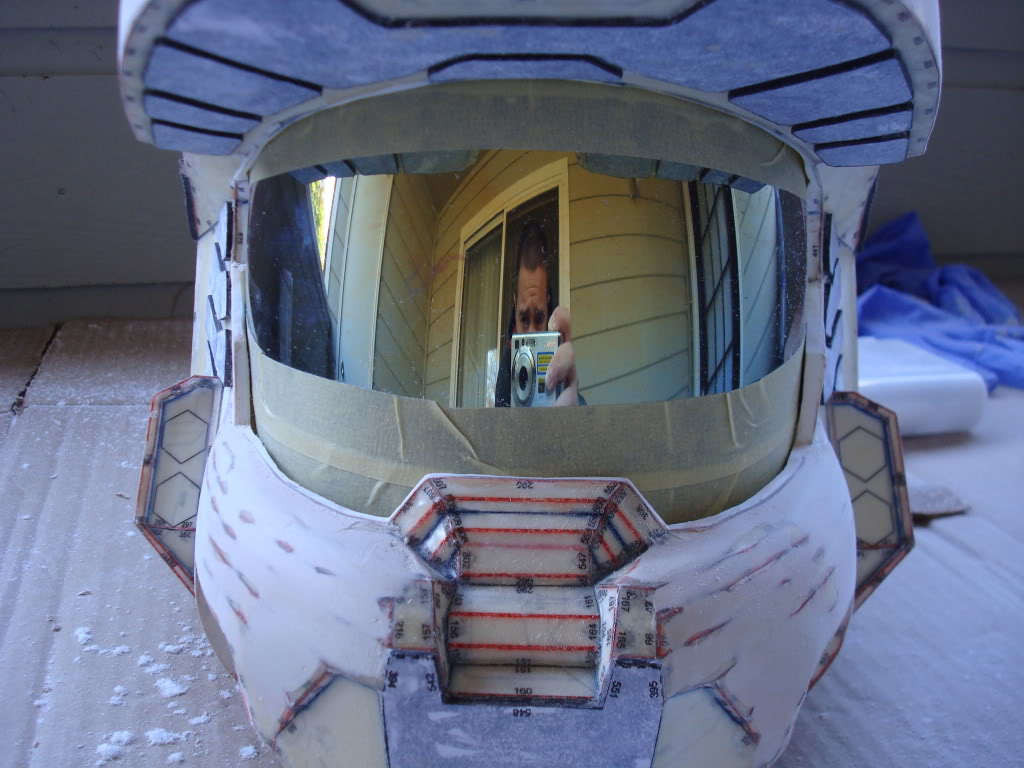

When putting in a visor you want to to be flush all the way around the edge. Well after sanding and looking over my helm I got it in a good spot but there was still a gap on the bottom rim. So I use the old visor I had and put tape on it to mask it, set it in place (it stayed by itself luckily)

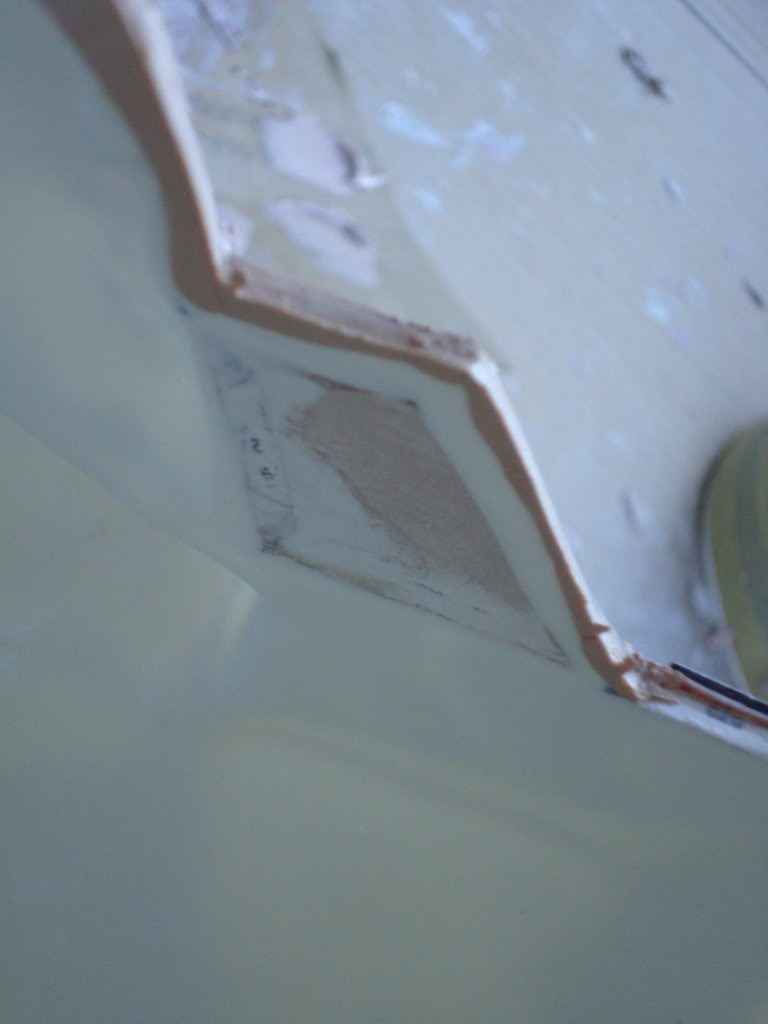

Then I use Bondo to fill in the gap, waited until it was a "hard-soft", like using the Foamies, and peeled it away leaving a perfectly fitted visor area! The tape is what really helps. I think bondo doesn't stick it to very well when it is still in a "wet" stage.
Pics:
I really focus today on the front to get that done. I also had to fill in the visor side "dents" to get the visor flush but it all worked out great. Used at technique that I thought I would also post up.
When putting in a visor you want to to be flush all the way around the edge. Well after sanding and looking over my helm I got it in a good spot but there was still a gap on the bottom rim. So I use the old visor I had and put tape on it to mask it, set it in place (it stayed by itself luckily)
Then I use Bondo to fill in the gap, waited until it was a "hard-soft", like using the Foamies, and peeled it away leaving a perfectly fitted visor area! The tape is what really helps. I think bondo doesn't stick it to very well when it is still in a "wet" stage.
Pics:
flipboy439
Jr Member
this bondo work amazes me... please, tell us your secrets! haha. how is it so amazing? my bondo work sucks so bad, and idk if its my method or what! haha
Macattack64
Well-Known Member
If I didn't already paint my helmet and everything, I would have done that. I'm gonna have to figure out what I'm gonna do when I get new visors.
That looks awesome.
Are you going to do a double visor?
That looks awesome.
Are you going to do a double visor?
JediStumpy
Well-Known Member
Macattack64 said:
Yep! Need to buy them first but getting that worked out soon with some help(Pooper).
I might have to pull out my double visor from my "old" helmet to do some testing and use it for H-ween but right now a lot of my materials are in Indiana and I really don't want to go buy more. Boooo!
But yes, a helmet this nice deserves a Double Visor.
pooper said:Sweet Jeezus JS! That's looking fantastic! Oh man, I can't wait to see it painted.
I'll let you know the HJC visor model number I use tomorrow. Looking great!
No rush, just PM'ed you back.
Topic Comment:
I hope I get get some paint on this soon, or at least a primer just to so see how everything is working out. Thursday I will be going at it again all day (day off work + Sunny 78 weather = Fun time!)
I alsoo working on a way to attach the visor as well. Thinking Chicago Screw. Don't worry every I do will be documented for everyone's References and enjoyment!
Last edited by a moderator:
JediStumpy
Well-Known Member
Sorry for double post..I know...but it's an update.

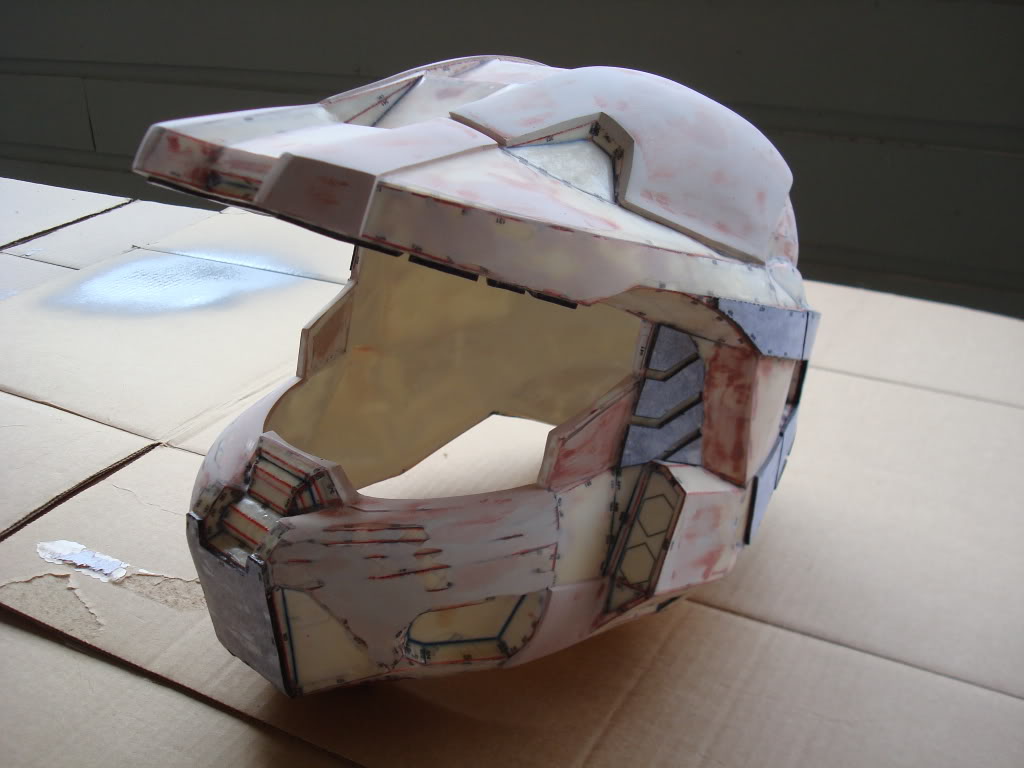

So got to work on the helm again all day. Finished all the major details with bondo. Lots and of sanding and little bondo touch ups today as well.

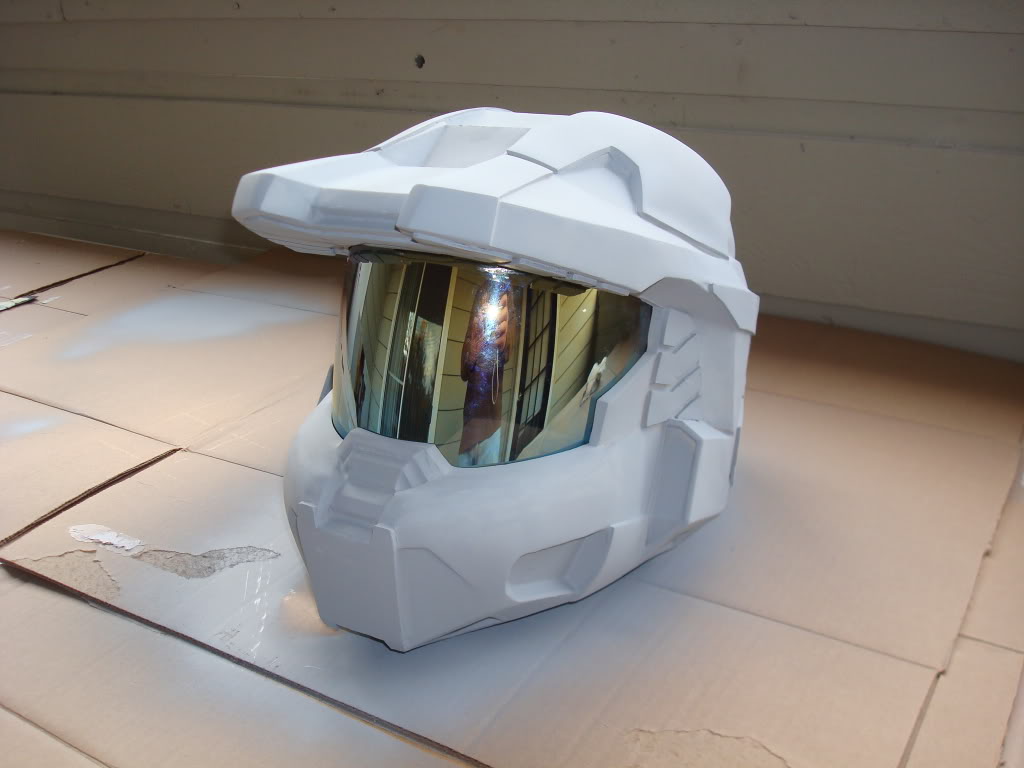

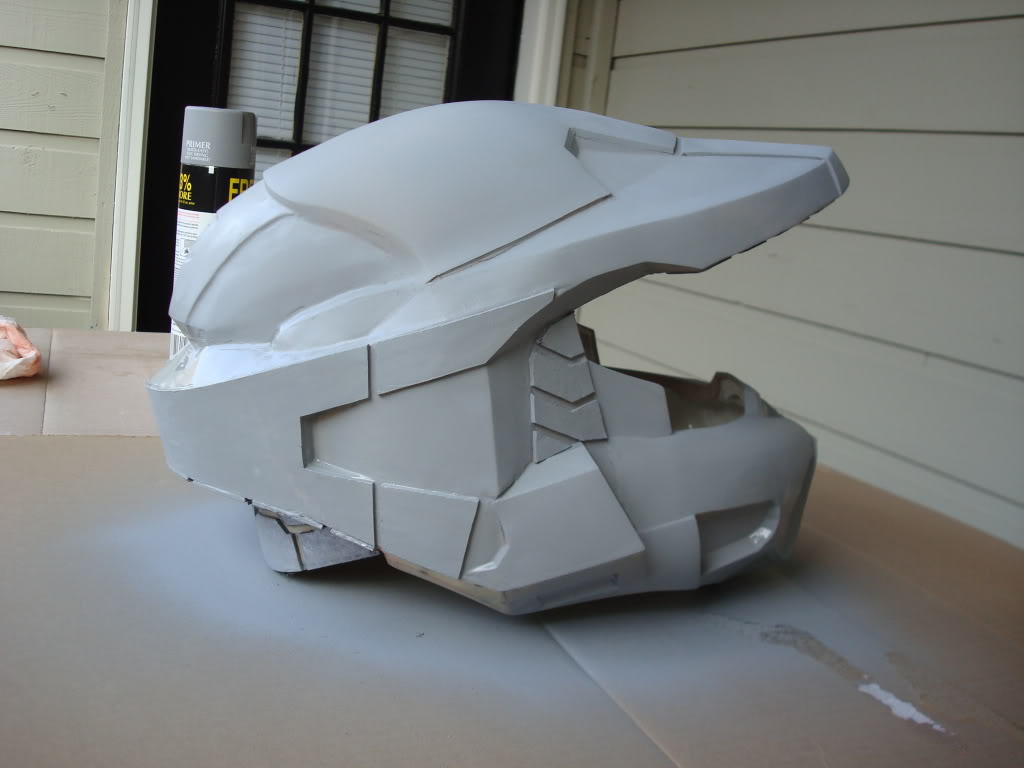

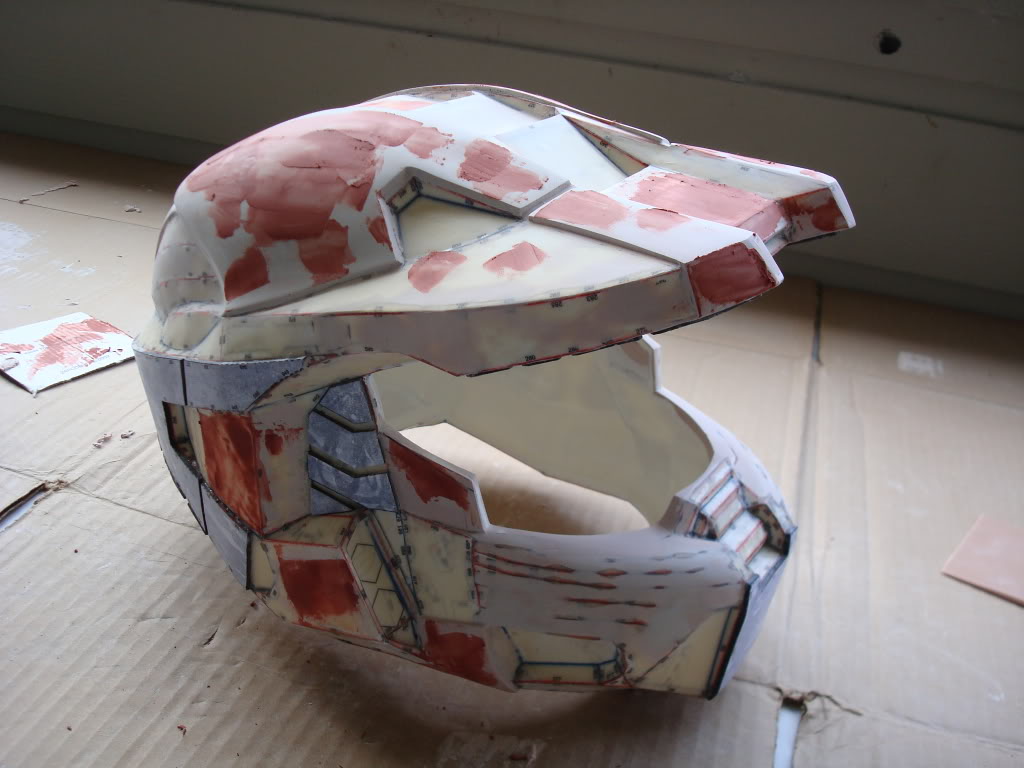

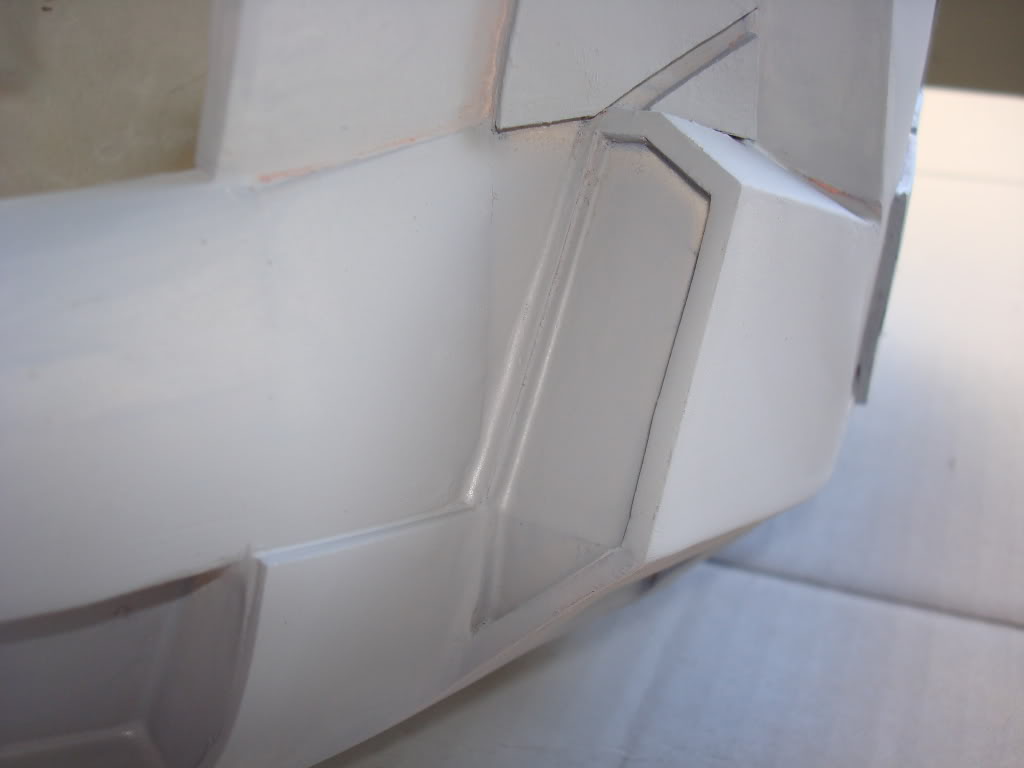

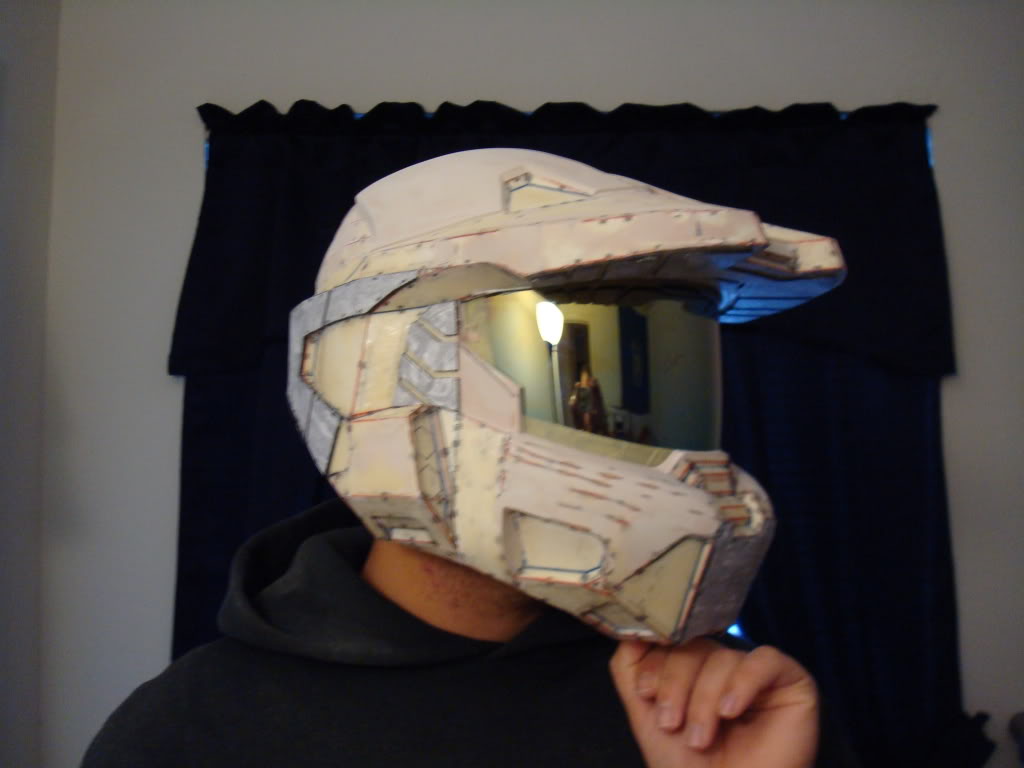

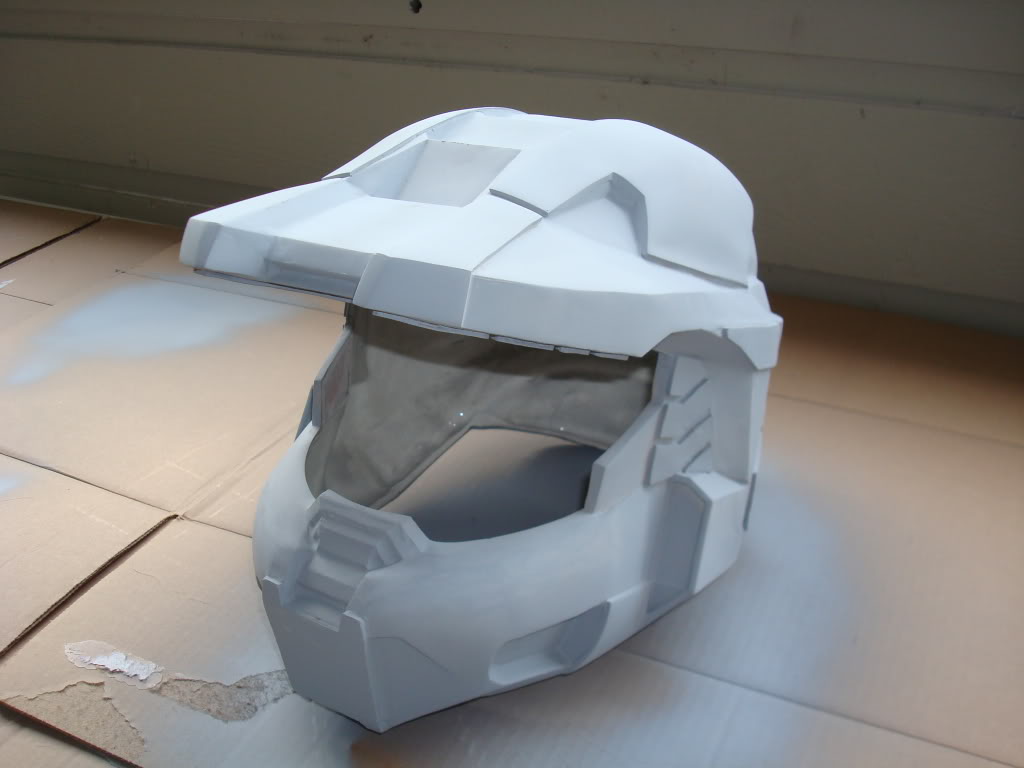

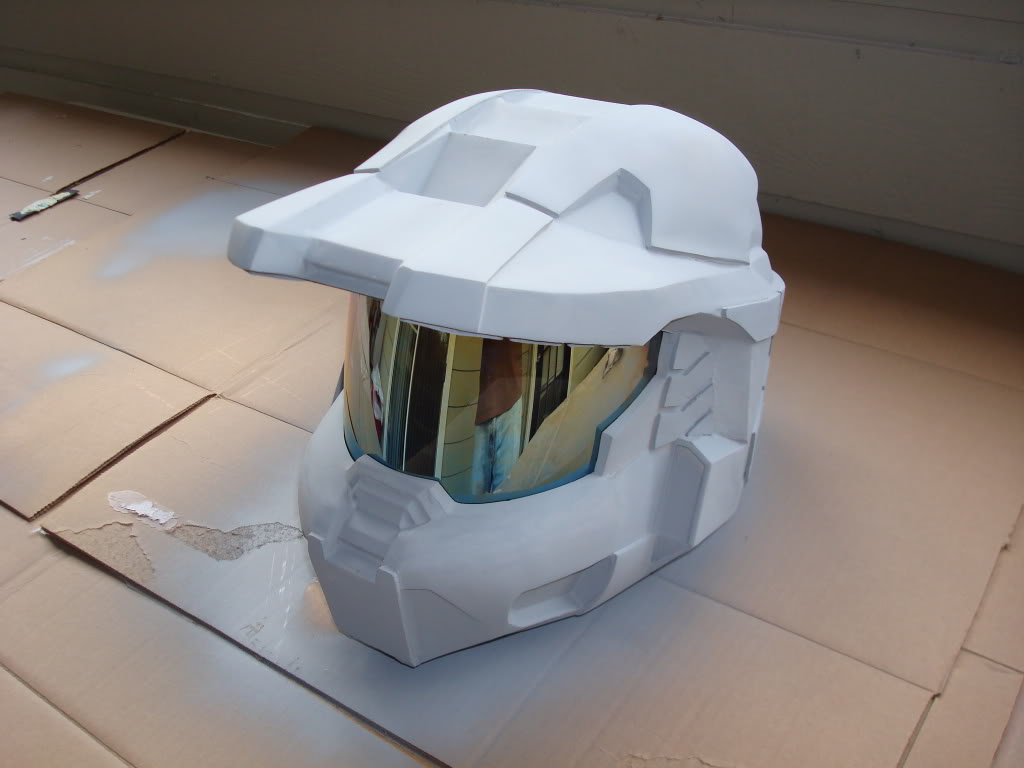

Got to the point where I got some spot putty on it and give it its first layer of primer to show me how it is looking and to help find spots to improve. Found several so it looks like more bondo and sanding work ahead for me. Mostly just little things but it's in the little things that make a Helmet a Elite Helmet and not just another Helmet.
Pics:
So got to work on the helm again all day. Finished all the major details with bondo. Lots and of sanding and little bondo touch ups today as well.
Got to the point where I got some spot putty on it and give it its first layer of primer to show me how it is looking and to help find spots to improve. Found several so it looks like more bondo and sanding work ahead for me. Mostly just little things but it's in the little things that make a Helmet a Elite Helmet and not just another Helmet.
Pics:
