M6H Magnum from HALO 4

Discussion in 'Halo Props' started by Timuche, Jan 30, 2015.

  1. Timuche

    Timuche Member

    Hi guys,

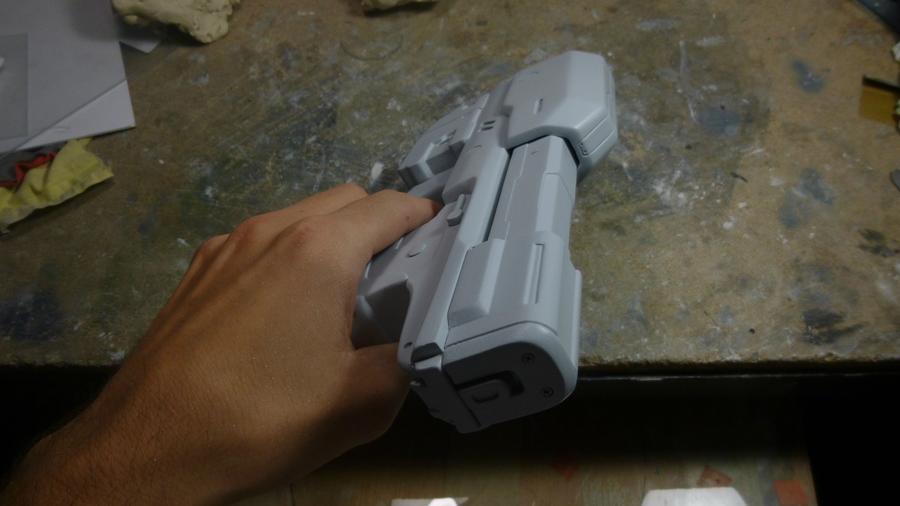

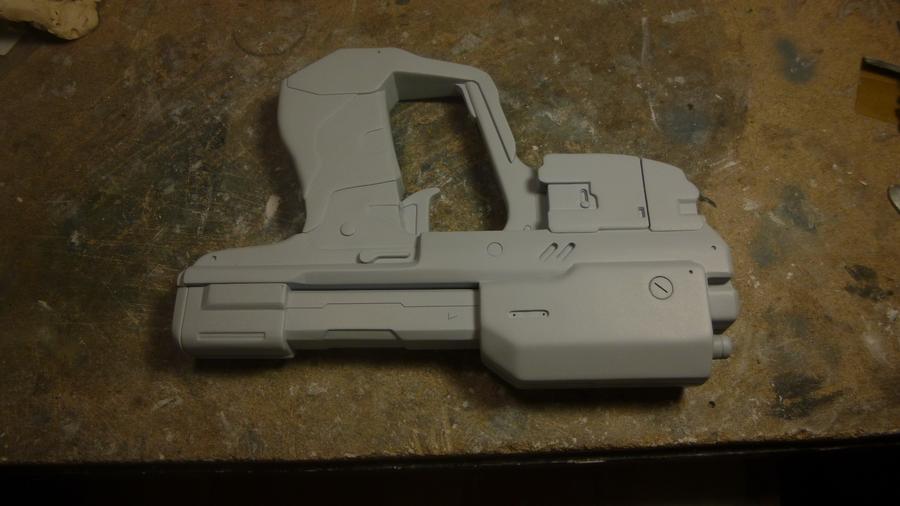

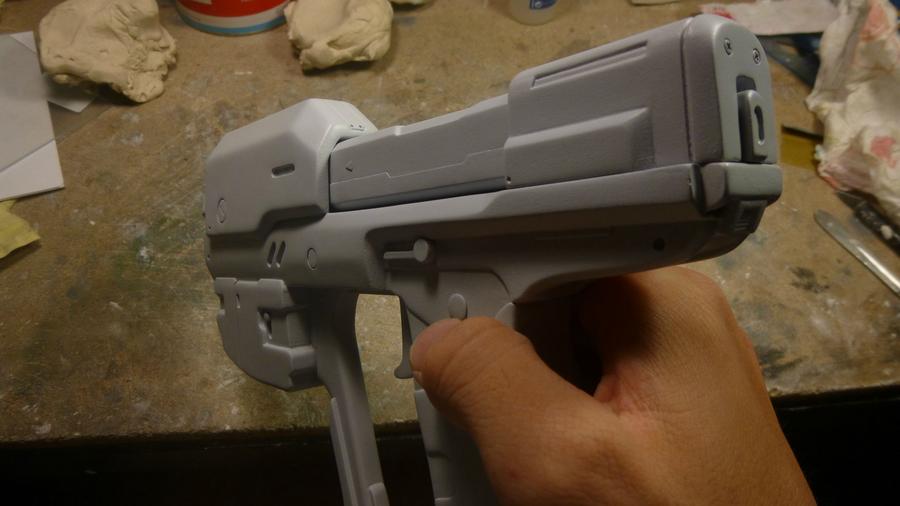

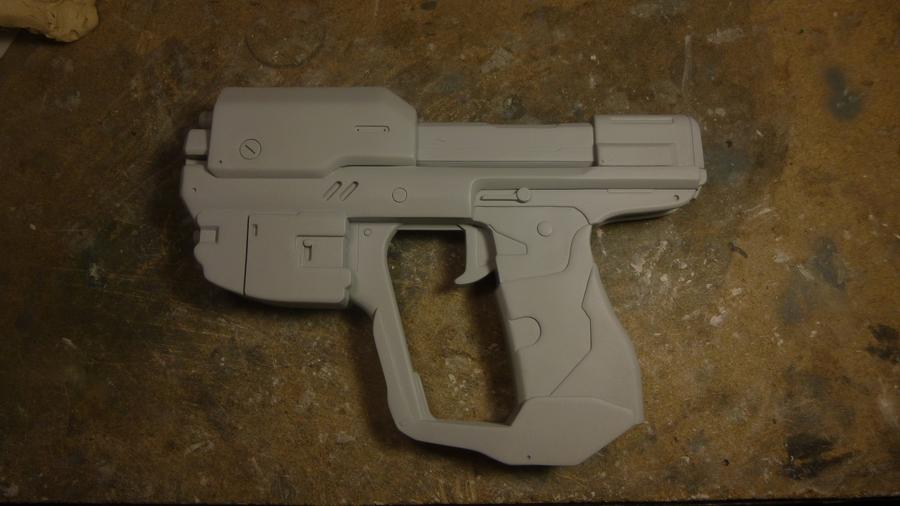

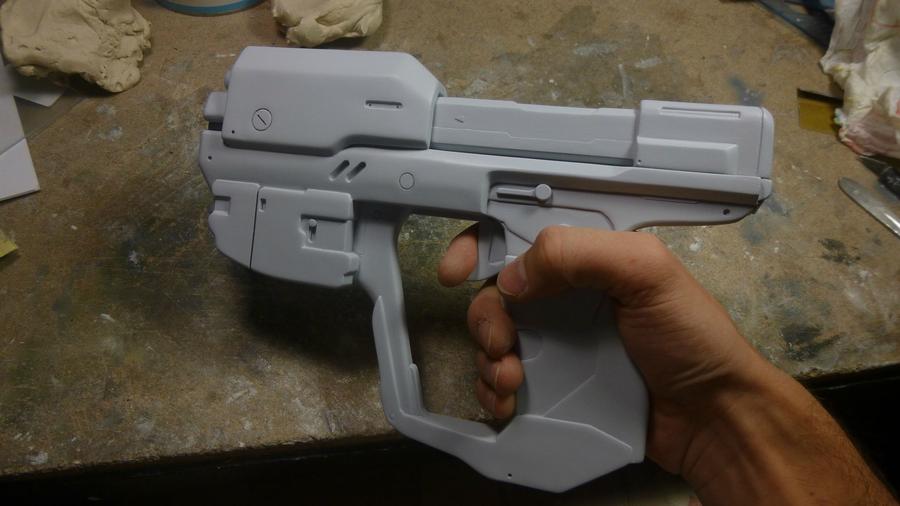

    I just show you my first replica weapon of Halo : the M6H MAGNUM seen in Halo 4.

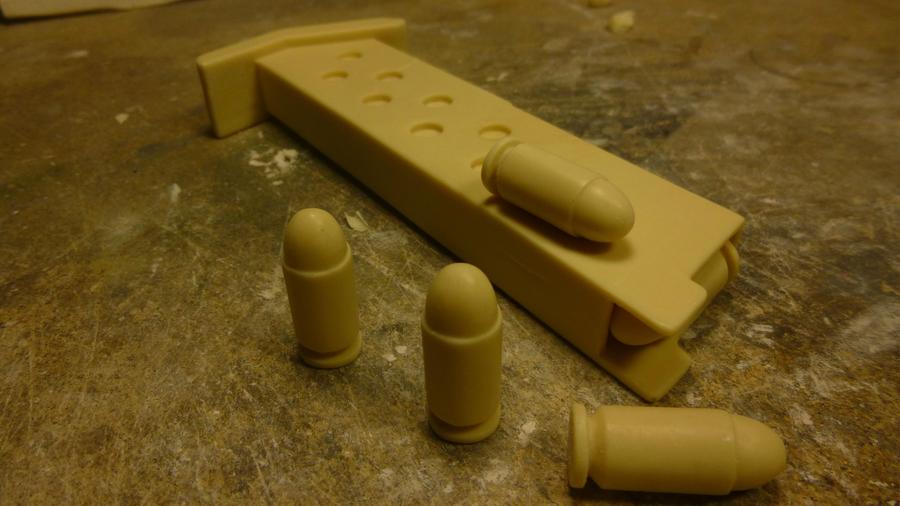

    It was a friend who asked me if I could make him the gun and I say, "Why not !". So, in parallel with the Halo ODST's diorama I make this replica. I put a little more than a month to get there. Some parts are 3D printing and the rest are handmade. During manufacture I had the idea to do removable magazine, I figured it might be nice ! It took me a while but I got there.

    Then I tried to mold it. I am used to the two-part molds but for that replica I need a mold in three parts. Unfortunately I failed my mold and I wasted a lot of silicone because of it... So sad !
    Since I am afraid to fail my new molding. So I look for tutorials, videos, tips to get there (thank to JUSTINIAN, who gave me his own).

    I will soon try again molding. I hope it will work !

    In the meantime, I leave you some photos : please give me your opinion, make criticisms etc. This is my first replica, a second is in process so your comments can help me to improve my work !

    Thank you ! ;)

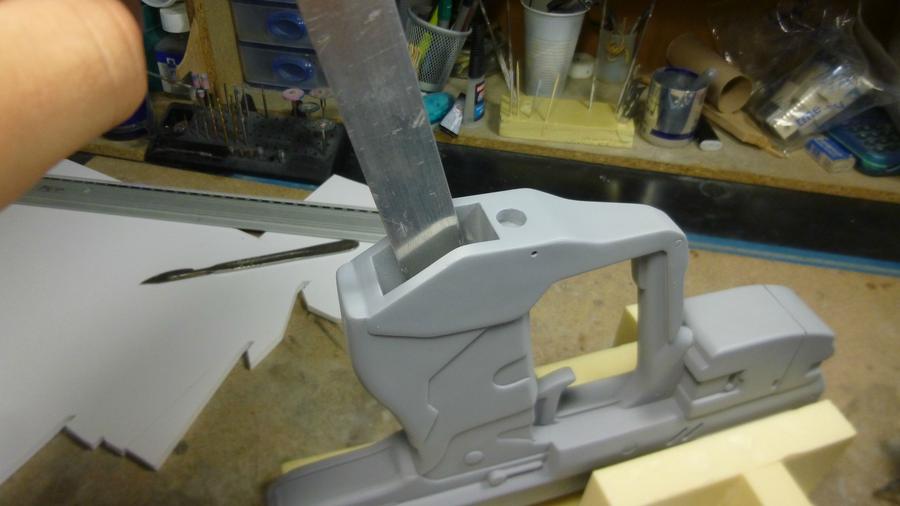

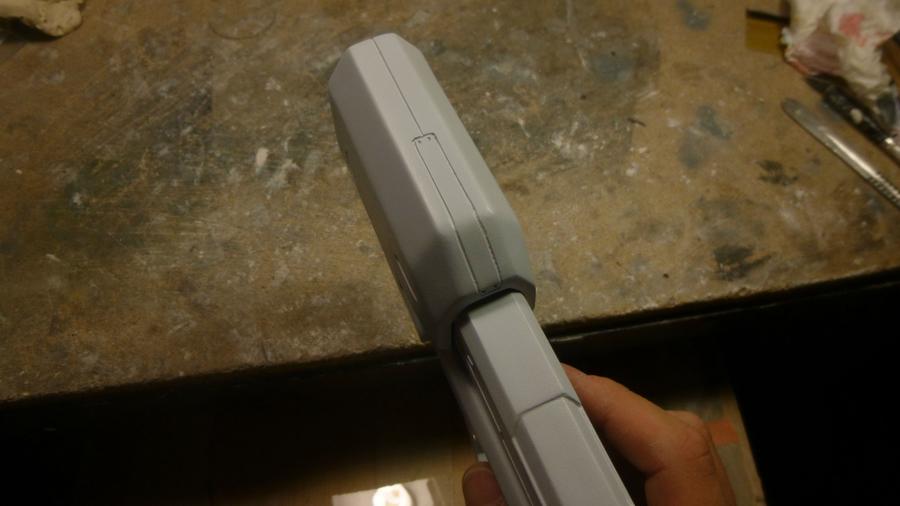

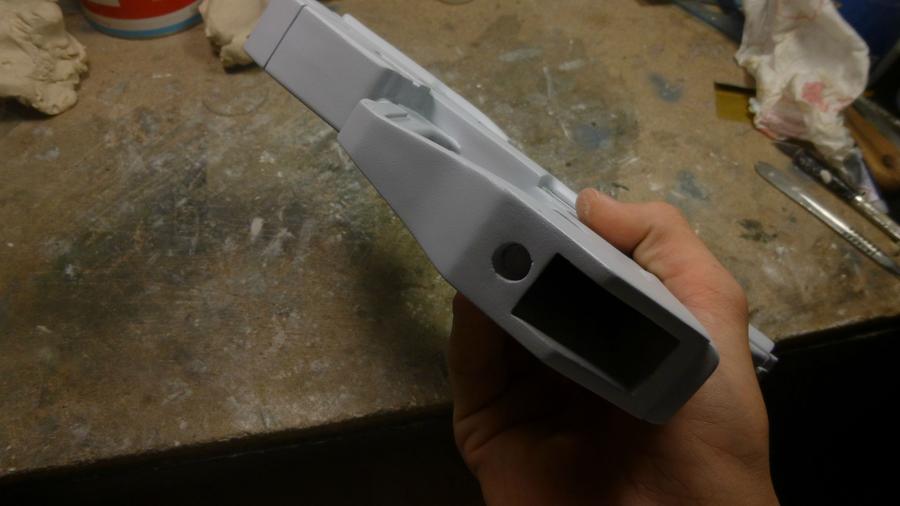

    The little hole is to place a magnet that will keep the magazine in place.



    Attached Files:

    gustavoikef likes this.
  2. Master Builder

    Master Builder

    Great job! Better than most!

    Looks like a decent piece to mold. Does the slide move?

  3. JUSTINIAN 117

    JUSTINIAN 117

    Very nice job. That is one super clean pistol.

  4. Timuche

    Timuche Member

    Thank you !

    No, nothing move... Maybe my second build will be more functional


    Thanks a lot ! :)

  5. smick6

    smick6 Member

    Wow man that looks incredible. Great job.
    Would never guess its your first try, looks pro.

  6. kaisier

    kaisier New Member

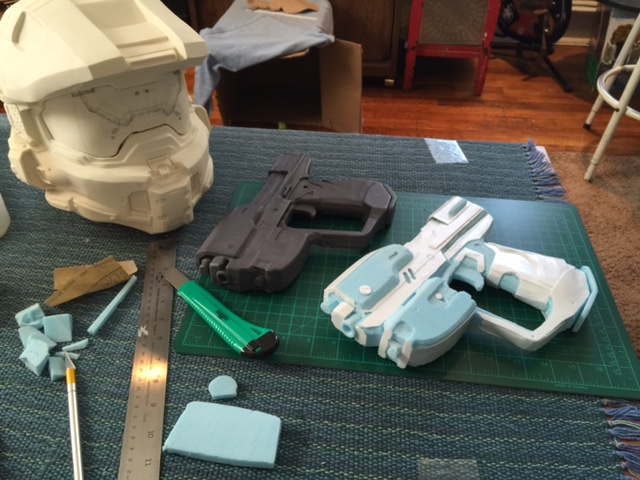

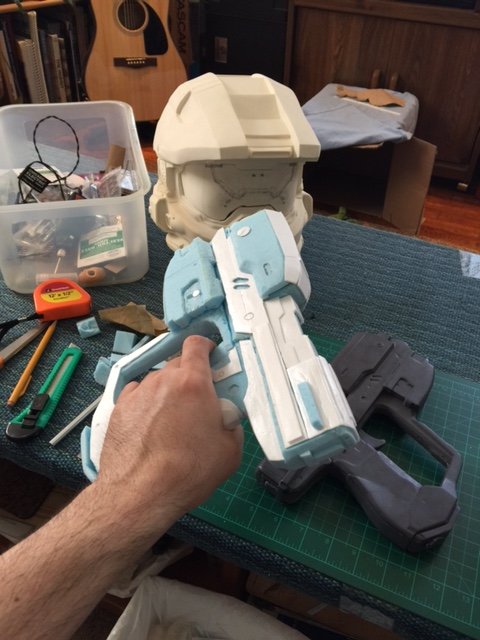

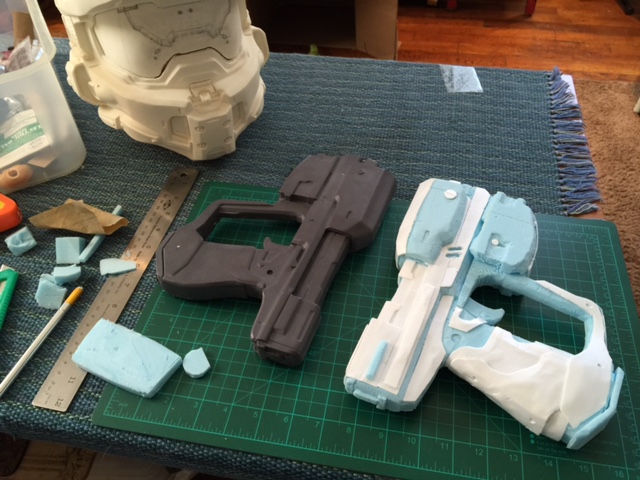

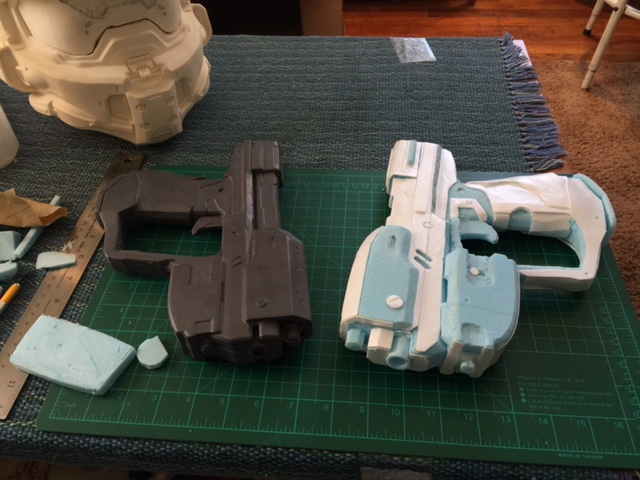

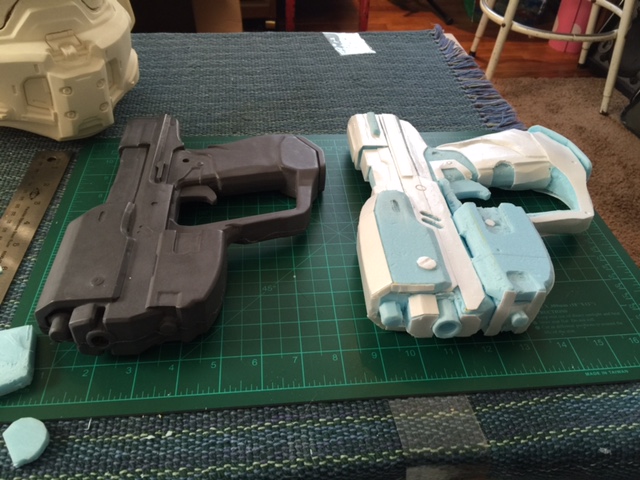

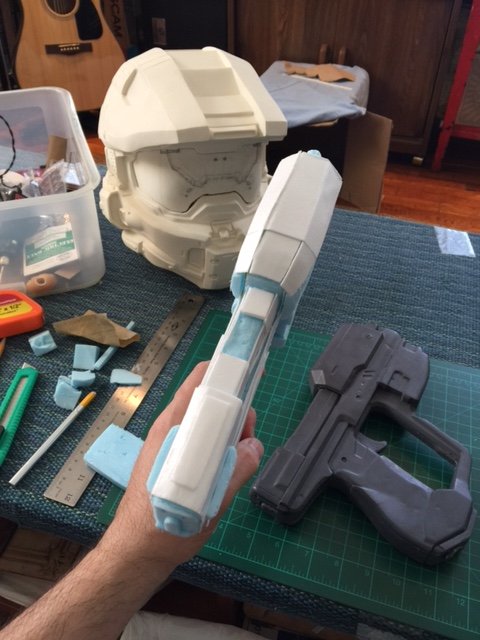

    Hi all, that is completely AWESOME! Timuche. Here is my first attempt at a M6H: IMG_0358.JPG IMG_0359.JPG IMG_0354.JPG IMG_0355.JPG IMG_0356.JPG IMG_0357.JPG IMG_0360.JPG

    gustavoikef likes this.
  7. Kusak3

    Kusak3

    very very nice.

  8. MorganWolfblood

    MorganWolfblood

    That is one amazing prop! Very clean and one of the best I've seen myself. I hope you've had some luck molding it. I sure would love getting my hands on a raw kit of this. Keep it up, man!

  9. Timuche

    Timuche Member

    Thanks man !
    I hope you will like my second build !! ;)


    It will be molded before the end of this month ! If you still want a raw cast at this moment, contact me by PM :)





    A little update :) !
    Before all things, the Magnum will soon be molded and my second project comes to an end. But first, I needed a stand to present and / or put the replica.

    So I started to make it ! ;)
    I was inspired a lot by the stand of the two small replicas of the BR55 and the Covenant Carbine (this on : http: //ecx.images-amazon.com/images/I/31zlQWVG8FL._SX300_.jpg)
    I really sanded but despite that, I'm proud of myself. I'll let you look at the different stages of the making process with the photos just below.
    (Small detail, it is 25cm in length)

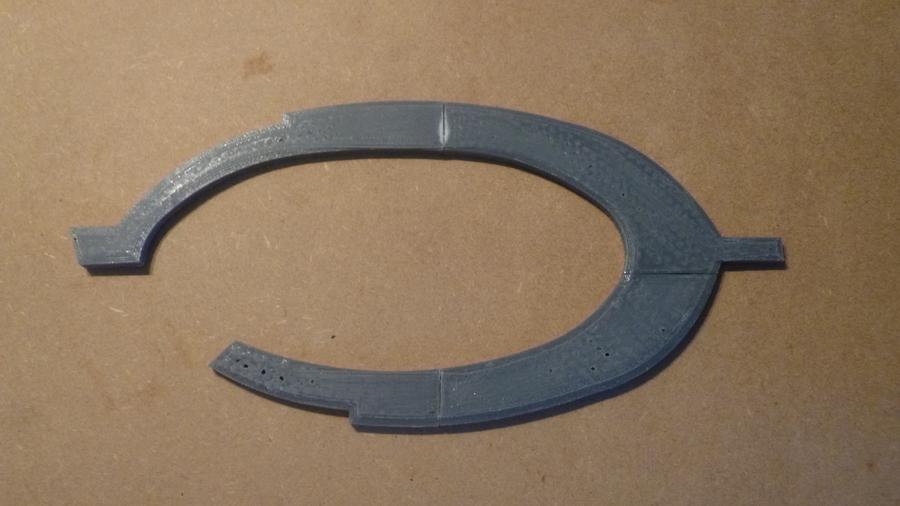

    The 3D print

    With a little bit of work

    It's smooth

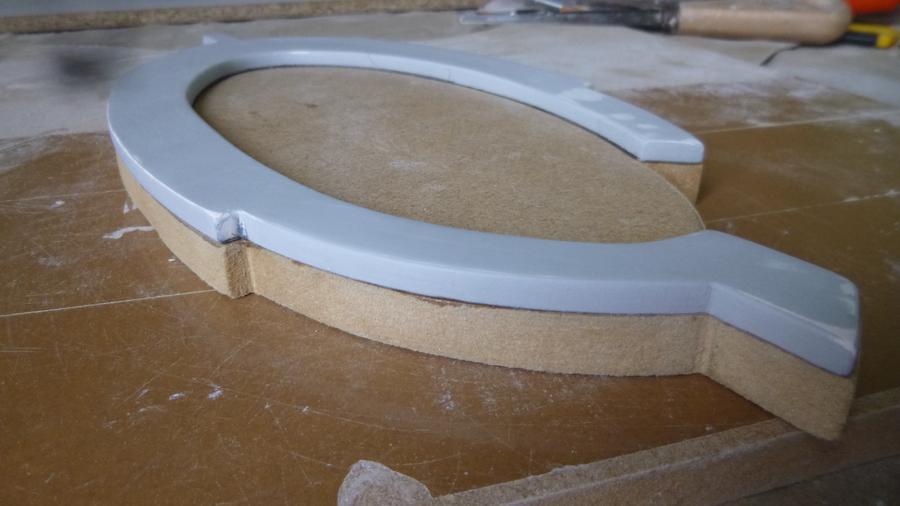

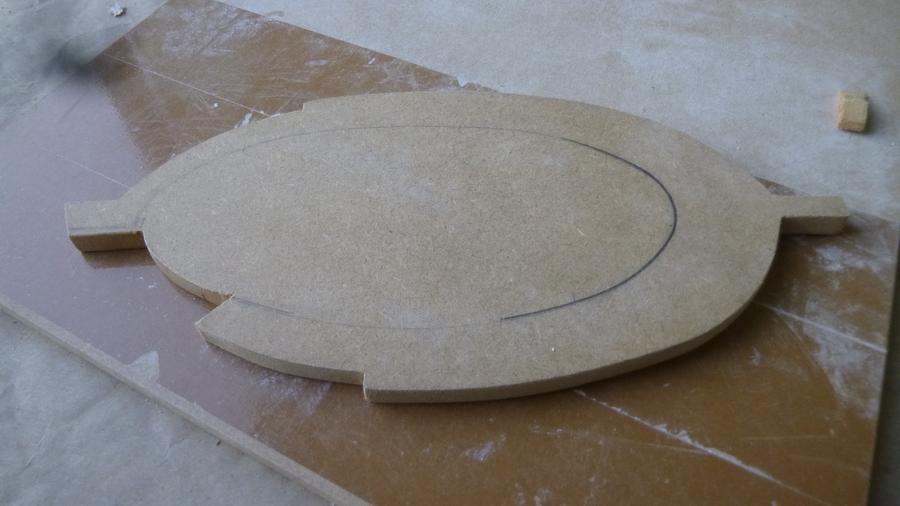

    The main part is made of MDF

    Stick together

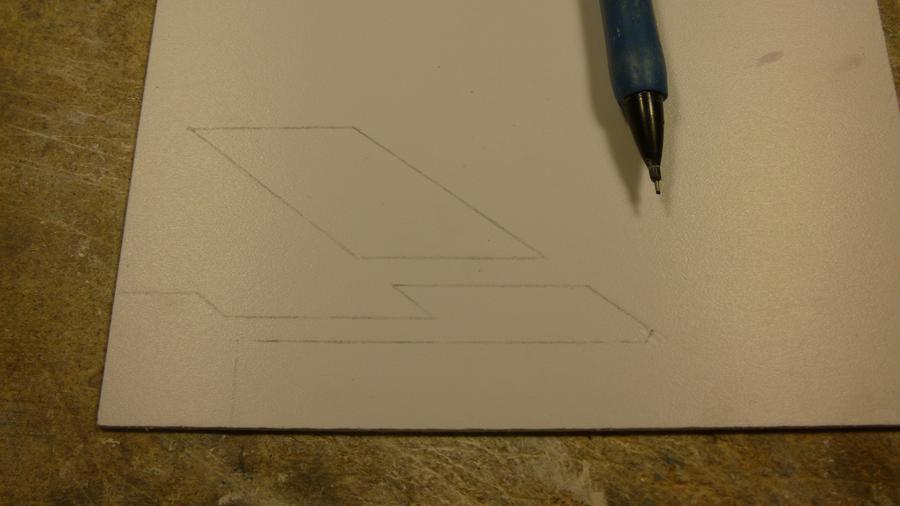

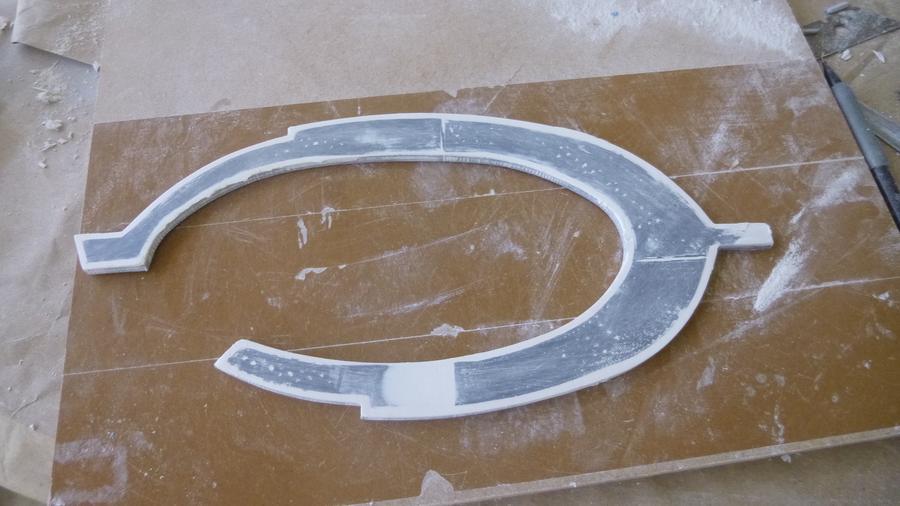

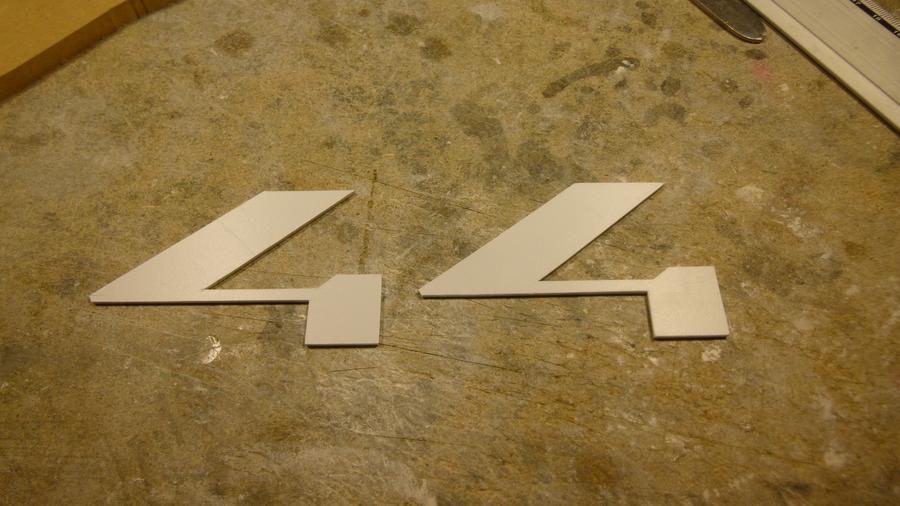

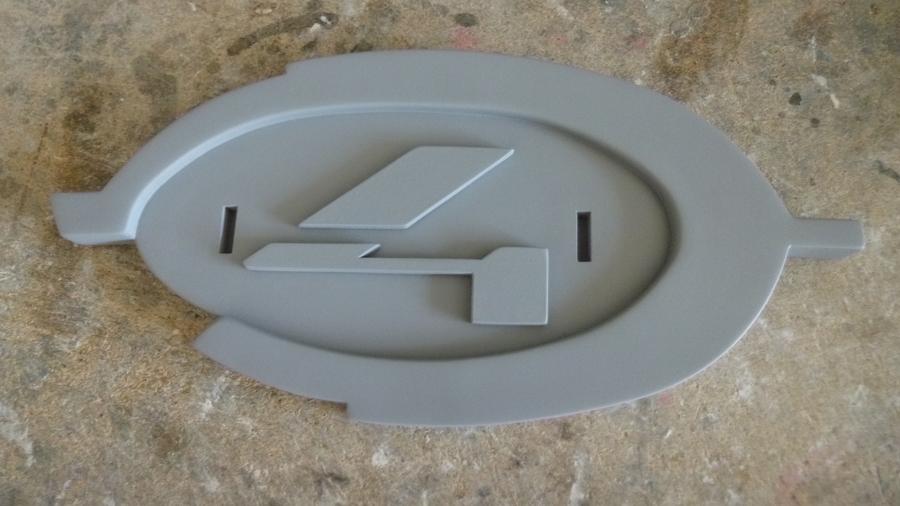

    The outline of the "4" on 2mm plastic card

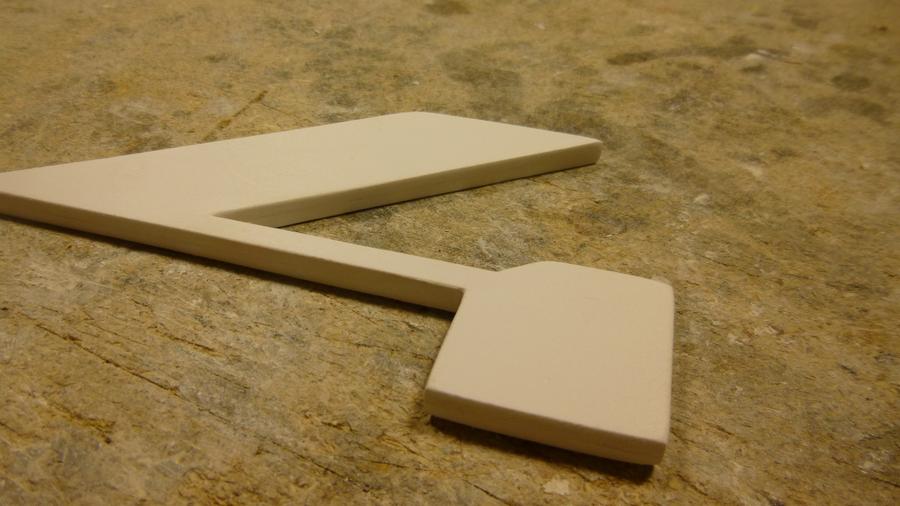

    Two copies because I needed a thickness of 4mm

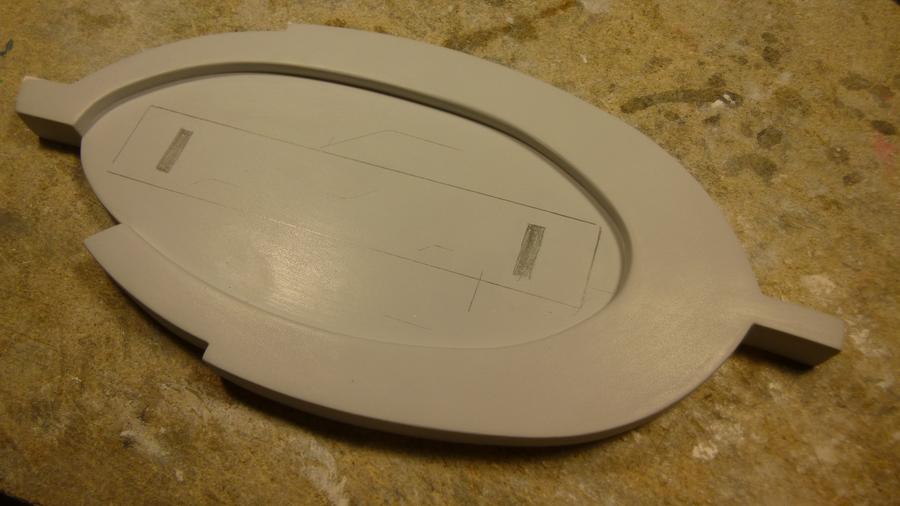

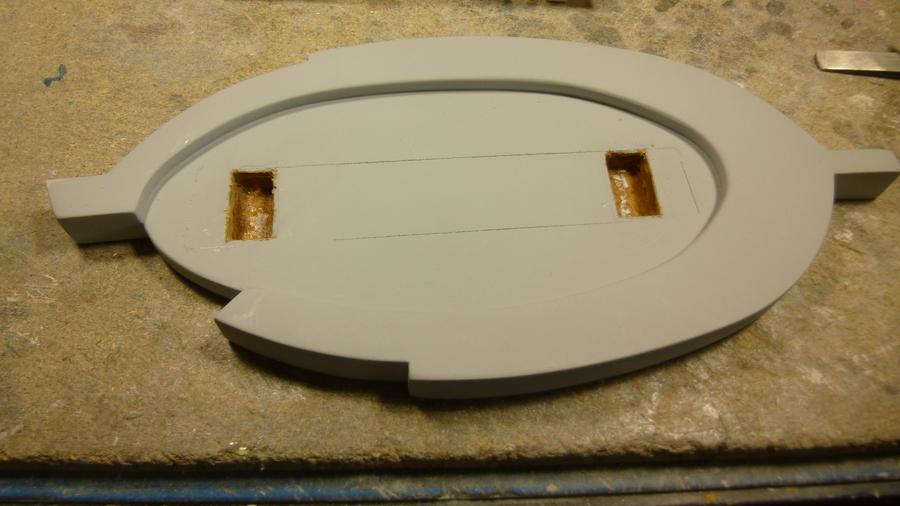

    The location of the future notches

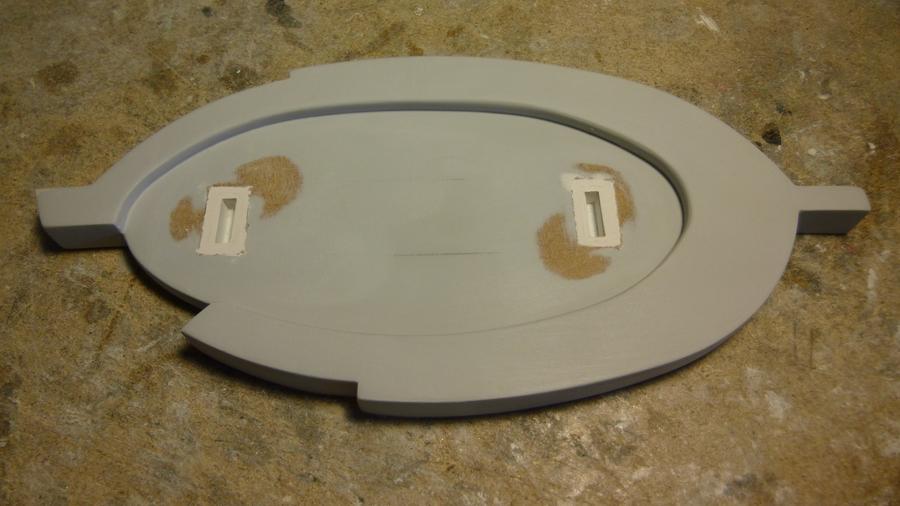

    We dig a little !

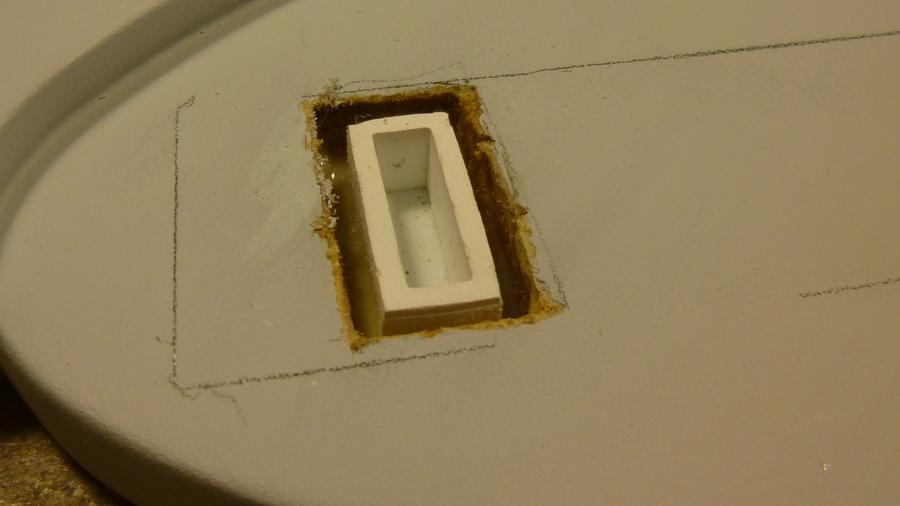

    The notch is made of plastic card

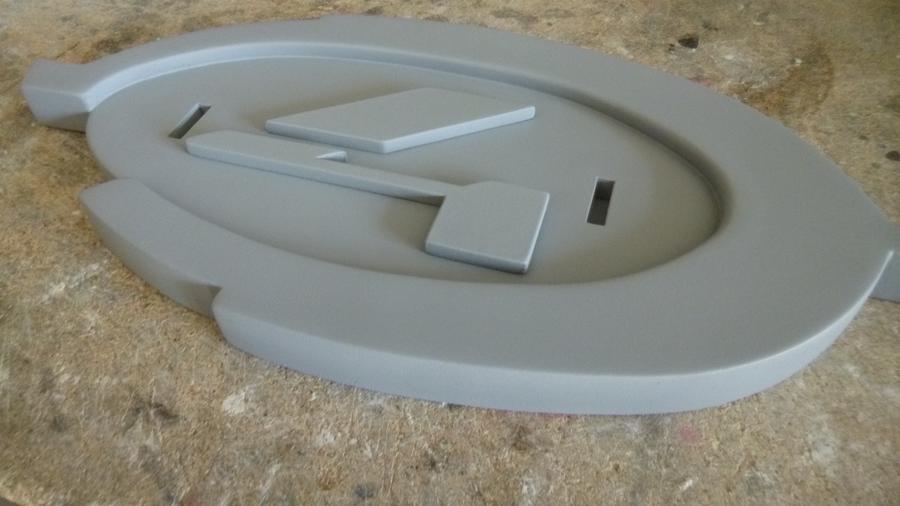

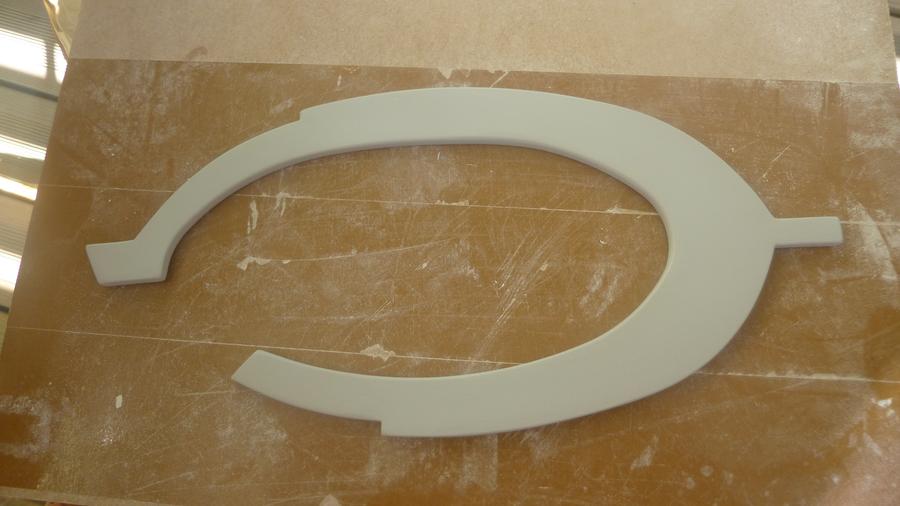

    It remains only to paint it

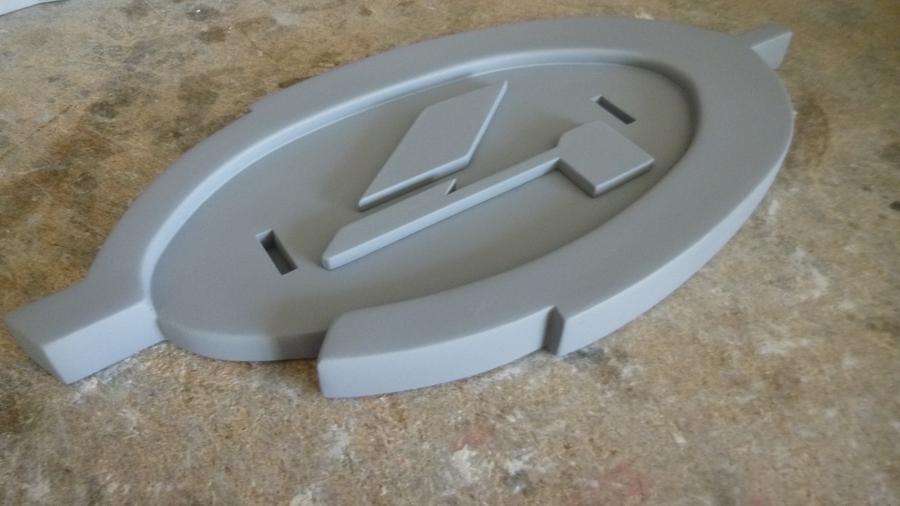

    And here's the end result !!




    The weapons will be based on plexi support, I will do them with laser cutting.
    Tell me what you think about it ;)


    Attached Files:

  10. Meatwad

    Meatwad Jr Member

    Your magnum build is by far one of the very best of the best i have ever seen. So smooth and so much detail! I want a pull from your mold line crazy. I hard core look forward to now updates from you.

  11. Reclaimer16

    Reclaimer16 New Member

    Can I buy one finished?

  12. Timuche

    Timuche Member

    Thank you man :)
    PM send to you !

    Yes :)
    PM send to you too !

  13. Bigbearwayne

    Bigbearwayne

    I too am interested in getting one.

  14. FallenAngel

    FallenAngel New Member

    I would LOVE one of these! if you could contact me, would definitely consider buying

  15. Timuche

    Timuche Member

    Small update : Molding, the second attempt began.

    It took me some time because I needed the money to silicone. And meanwhile, I have read and watched many tutorials to learn how to make matrix mold.
    For Magnum is a three-piece mold. Normally if everything goes well, this molding should succeed !



    Soon guys, soon :D



    Tonight or tomorrow morning I'll post pictures of my second project which is also finished and will also go to the molding !!

    Bigbearwayne likes this.
  16. Reclaimer16

    Reclaimer16 New Member

    Can't wait to see what turns out!!

  17. FallenAngel

    FallenAngel New Member

    How much do you think that this will cost?

  18. Timuche

    Timuche Member

    The molding is finished ! And the mold looks perfect !

    I messed up the first mold by wanting do it quickly. This time, I took the time to do it right. I took the opportunity to try for the first time a matrix mold. I learned to do it by watching (many times) the video of Punished Props and his District 9 rifle.

    I'll try my mold just after posted the following photo.

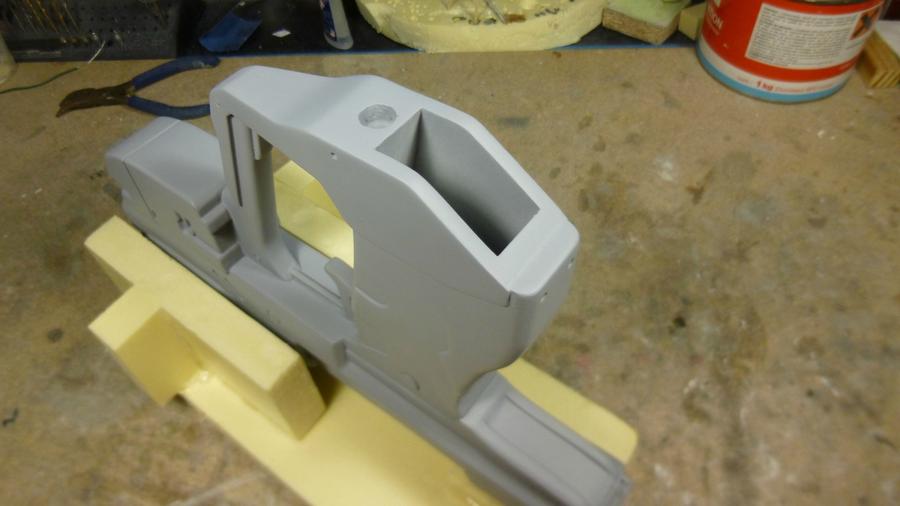

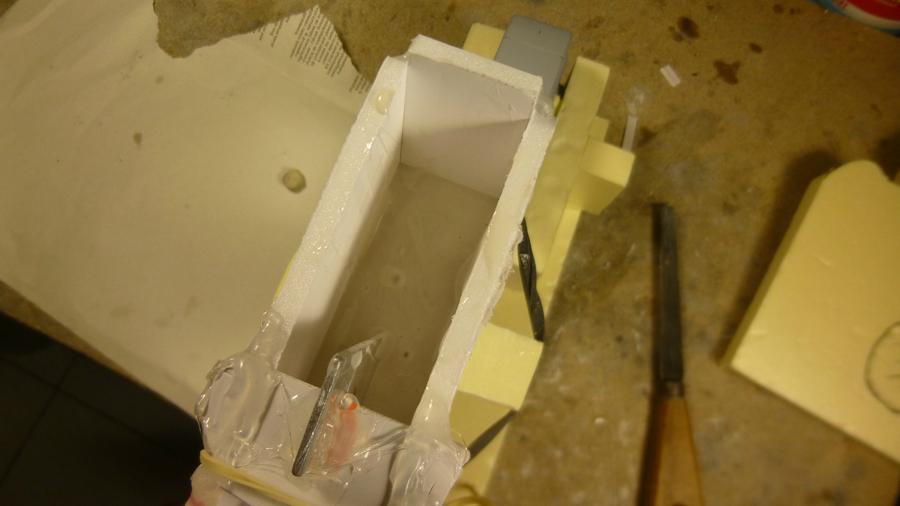

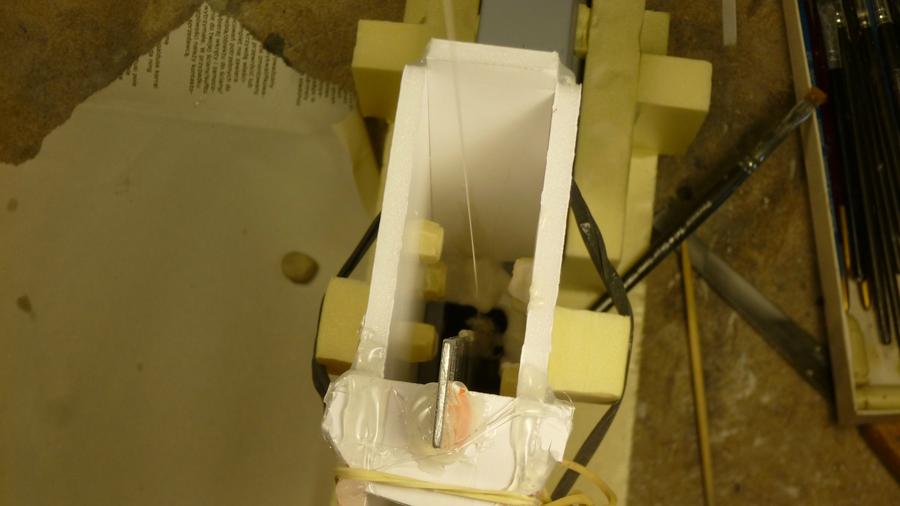

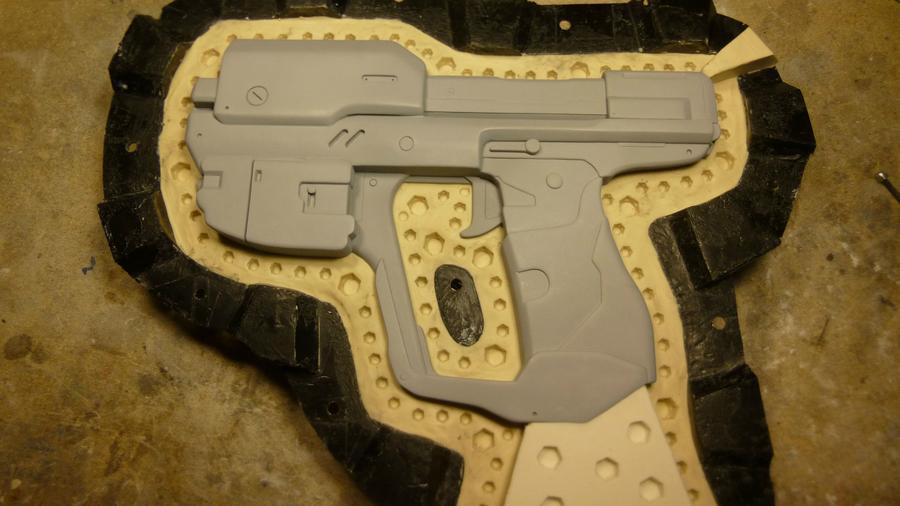

    To start I cast the hole in the handle (for the magazine).

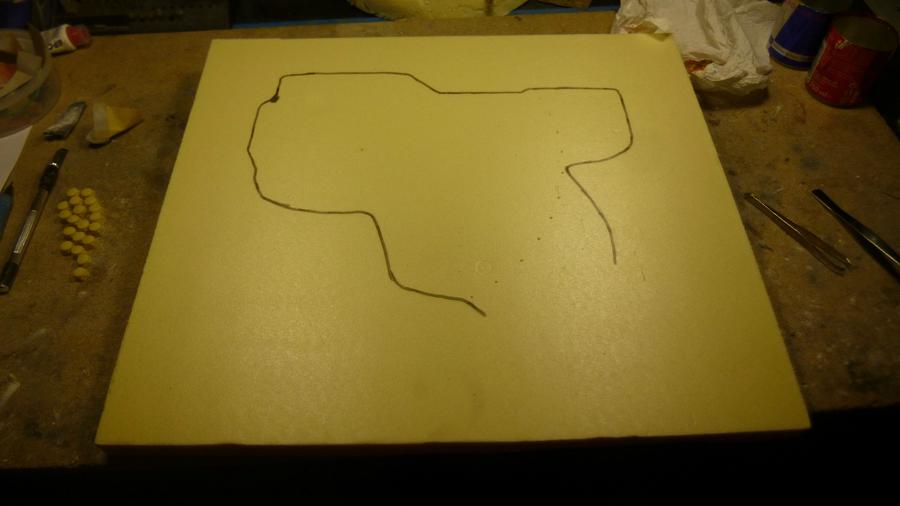

    I used extruded polystyrene, not MDF because it is cheaper.

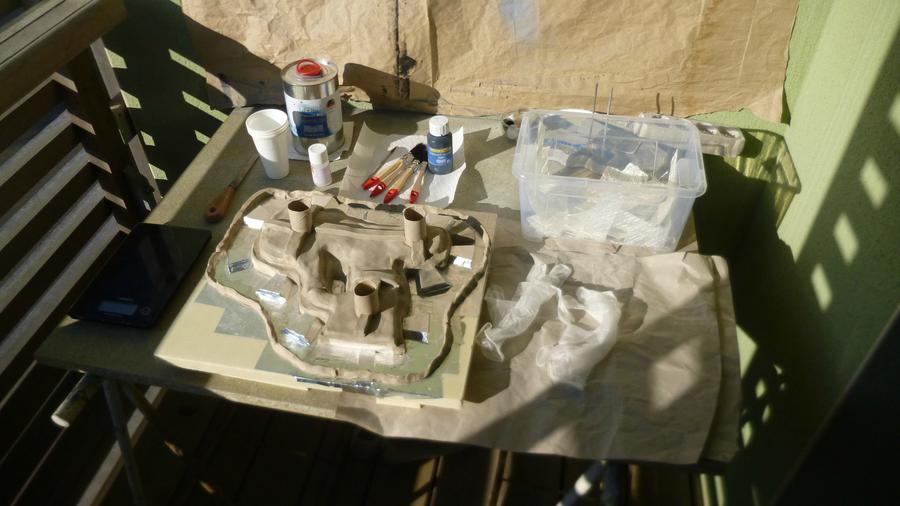

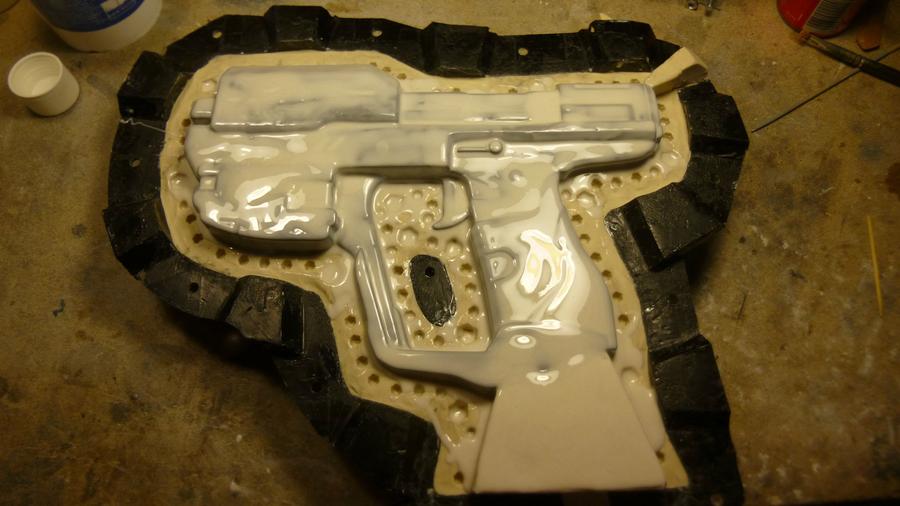

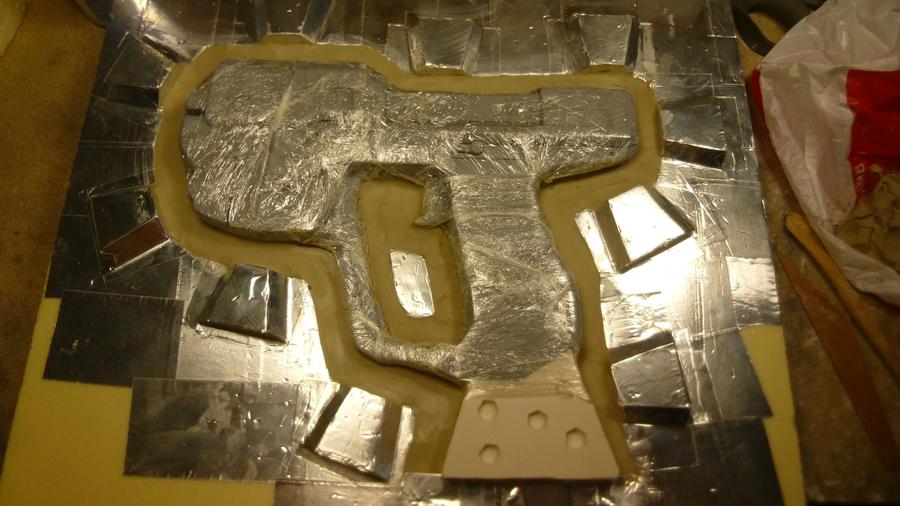

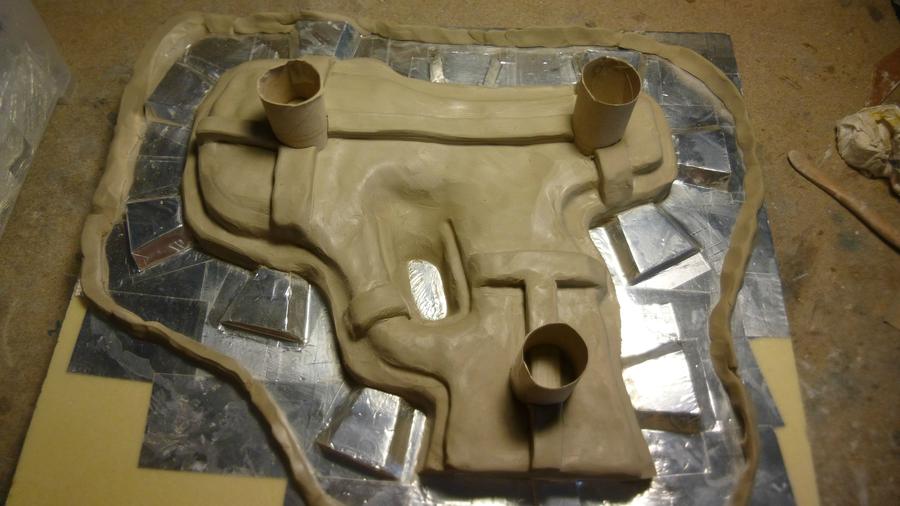

    I put some clay.

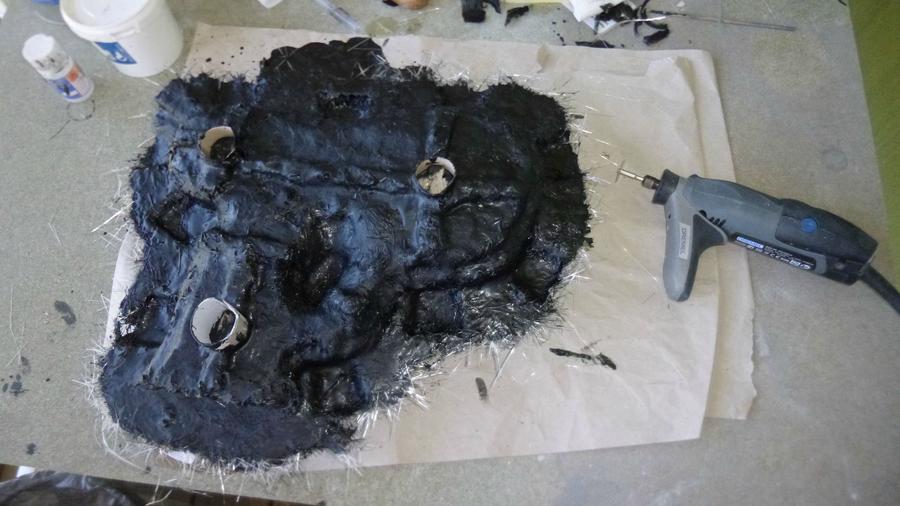

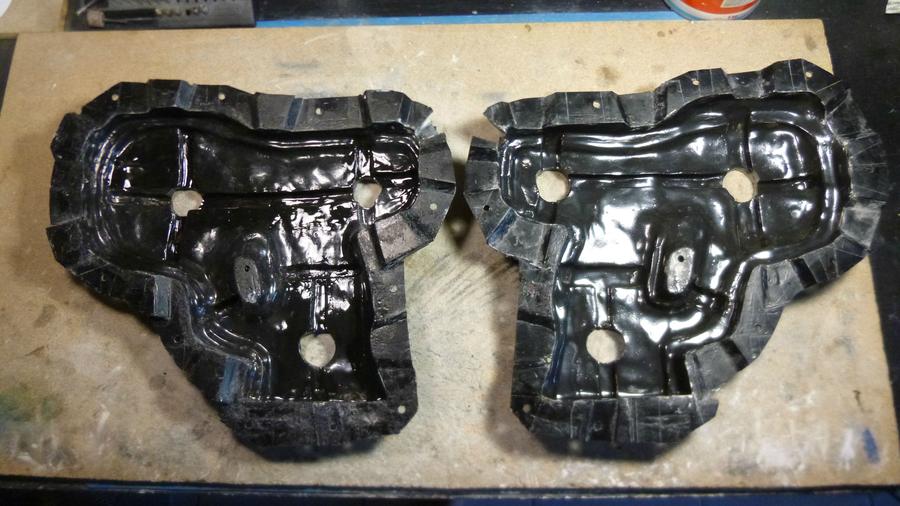

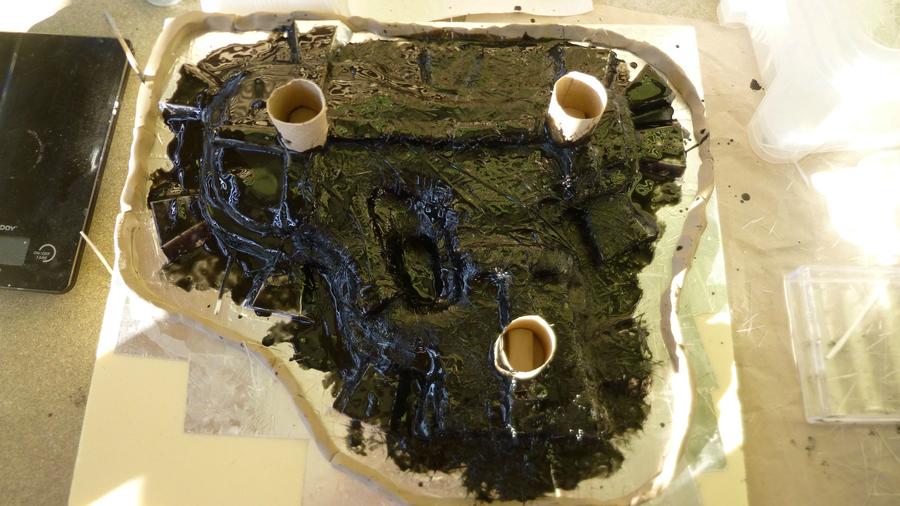

    Let's go for resin and fiberglass.

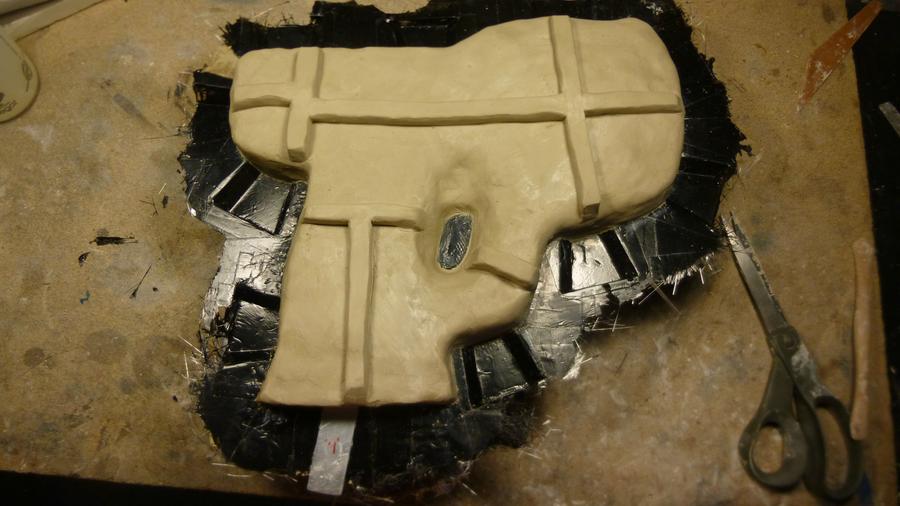

    The other side.



    After a little cleanning !


    Silicone's time !

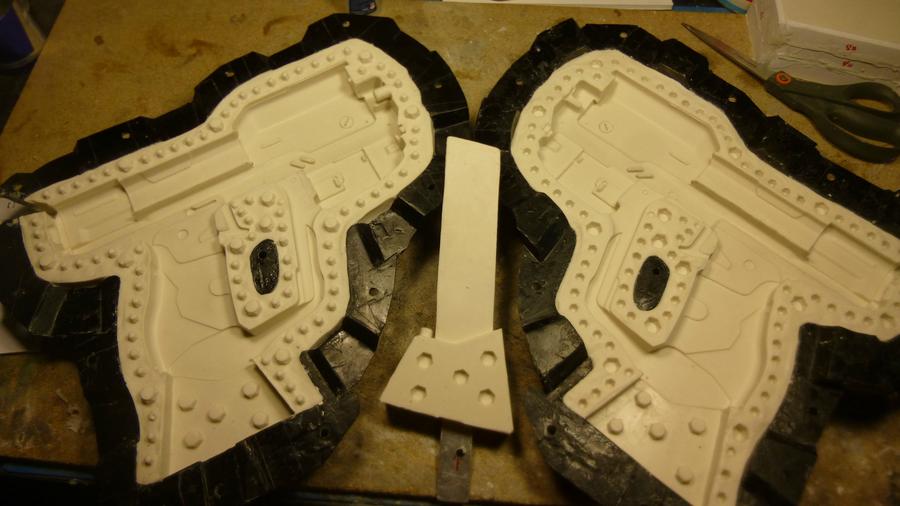

    And Talaaaaaaaaaaaa, the molding is done !!


    Attached Files:

  19. Evolver79

    Evolver79

    This looks really good! Excellent detail work.

  20. Meatwad

    Meatwad Jr Member

    Your mold does look perfect. It's gorgeous.

  21. Bigbearwayne

    Bigbearwayne

    It's so pretty.



    Attached Files:

  22. Reclaimer16

    Reclaimer16 New Member

    Yeahhh!!! Congratulations, it looks amazing!!

  23. Timuche

    Timuche Member

    Thank you to all of you ! ;)

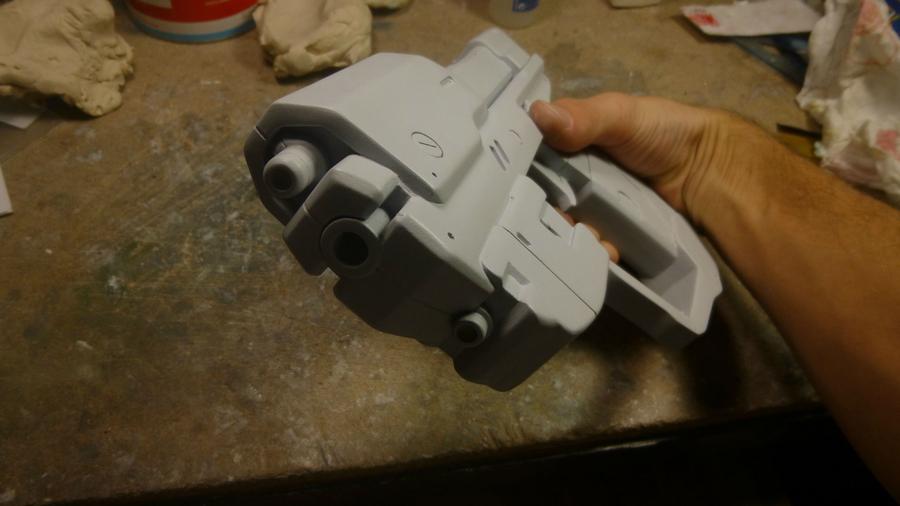

    The mold works ! No air bubbles and the magazine fit perfectly into it.


    Attached Files:

  24. Meatwad

    Meatwad Jr Member

    That looks awesome man. Very nice job!

  25. TheJrACE

    TheJrACE New Member

    Geezus, this came along beautifully. Awesome work! Put me down for one!!! haha.
