Foam ODST: Version 1 was okay. Now for Version 2

PaiganBoi

Sr Member

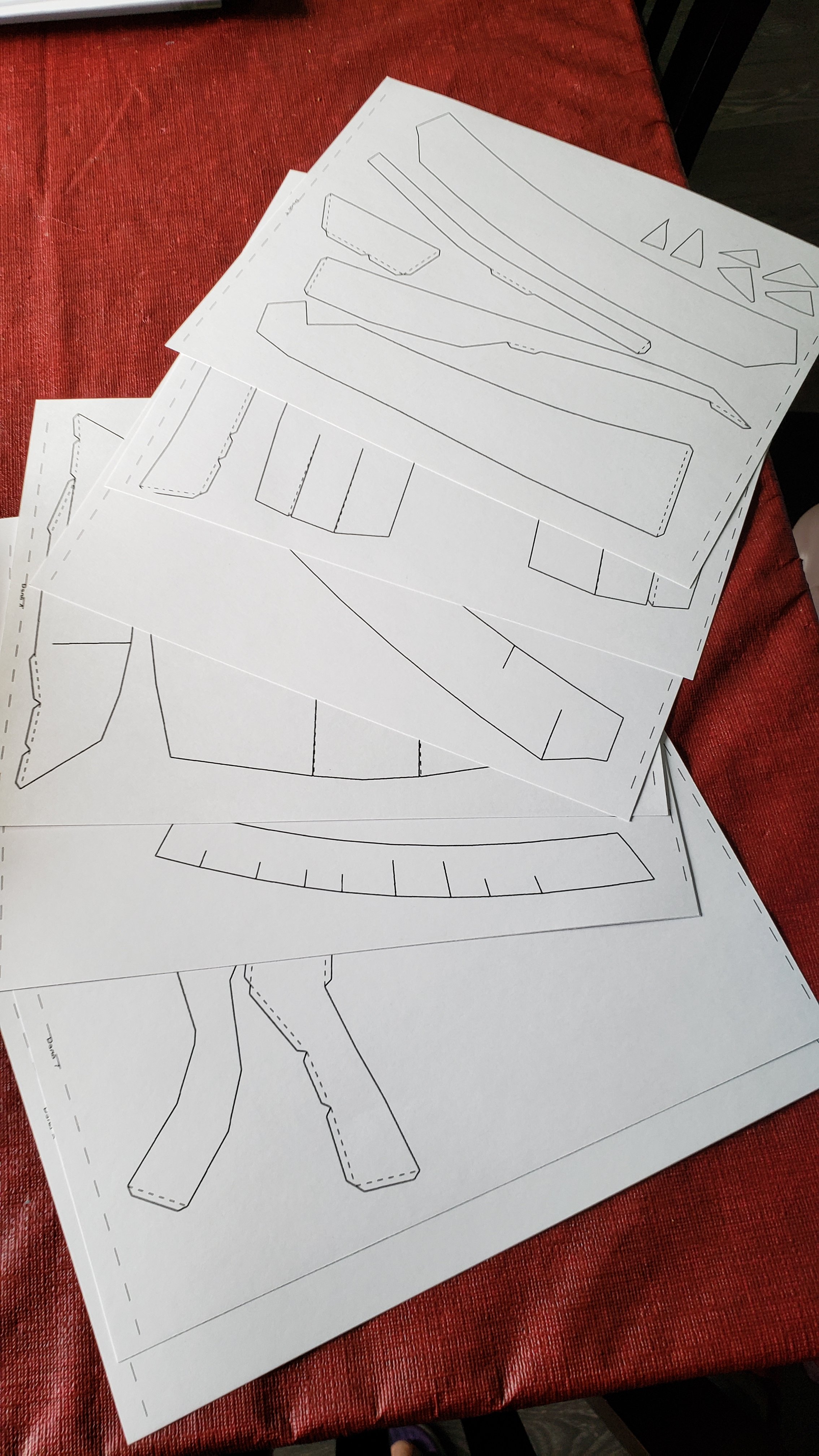

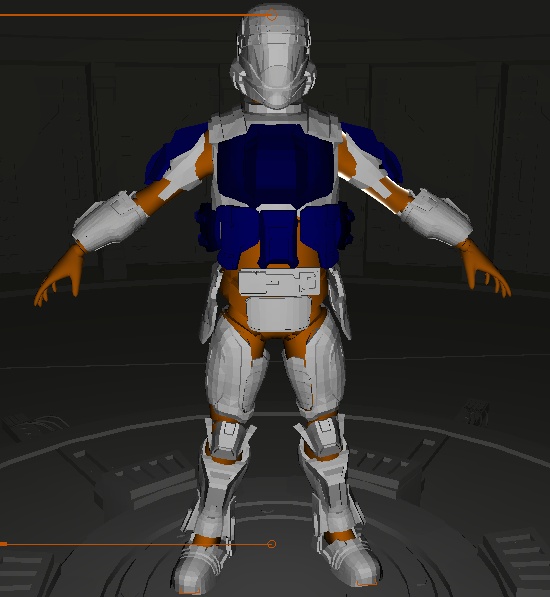

Foam file tweeking in Armorsmith. I still have some more fine tuning to do before I start printing the templates. I need to figure out how to use the non uniform scaling tool thingy.
The shins/knees were already redone last year. Everything else has been rescaled.
Too bad there isn't a file for the hand plates on the gloves. Will have to freehand that one like I did the first time.


PaiganBoi

Sr Member

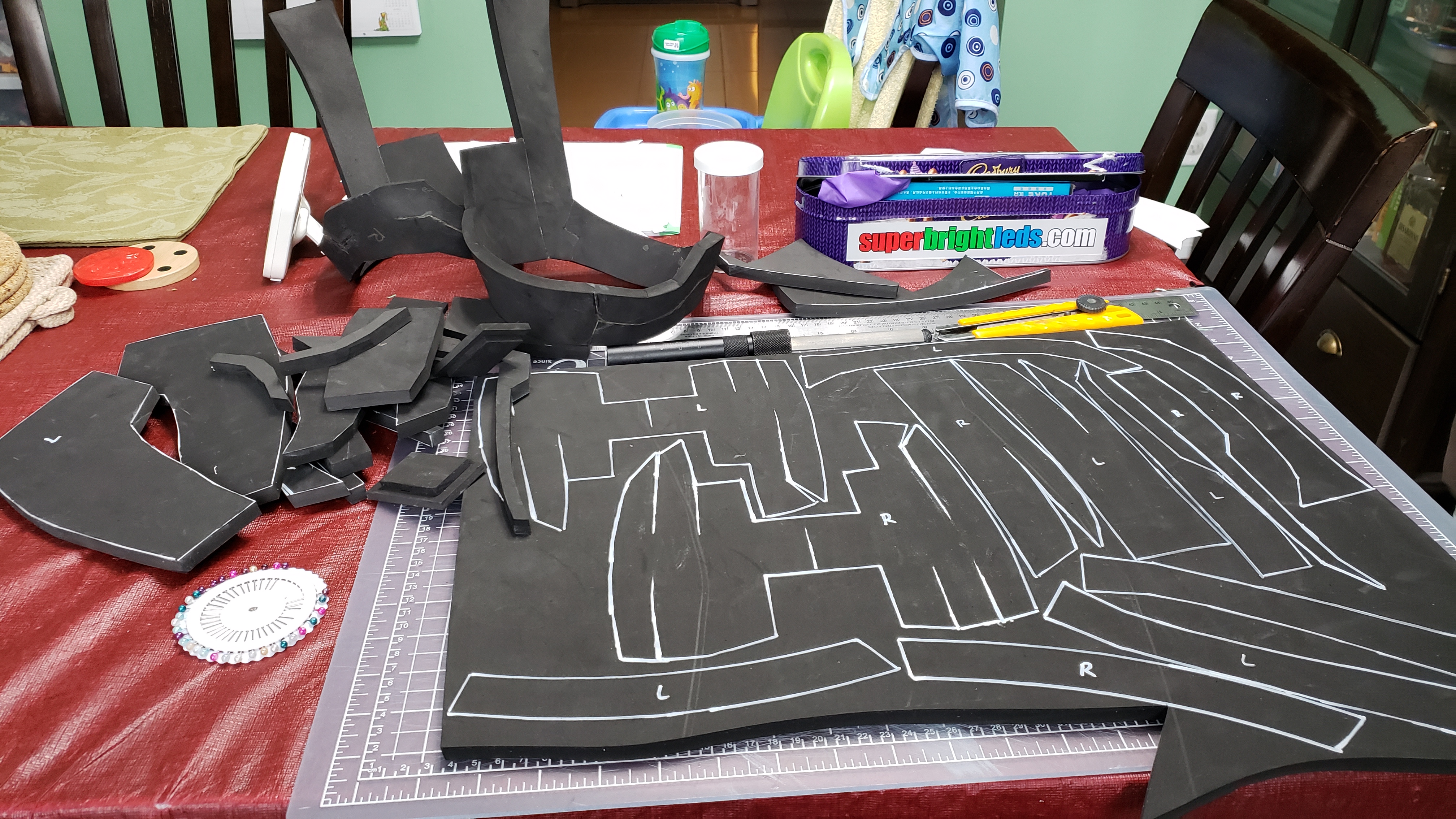

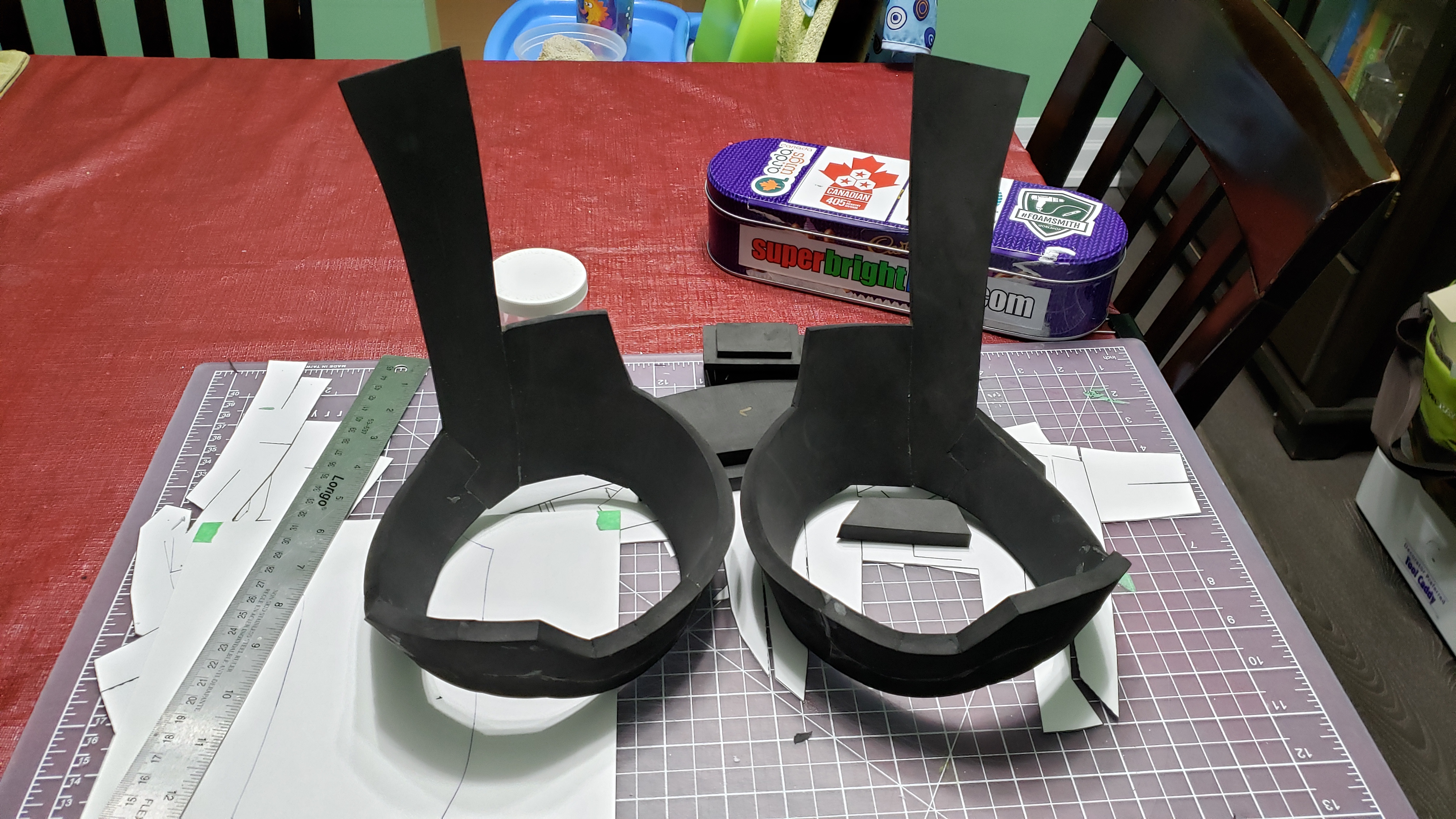

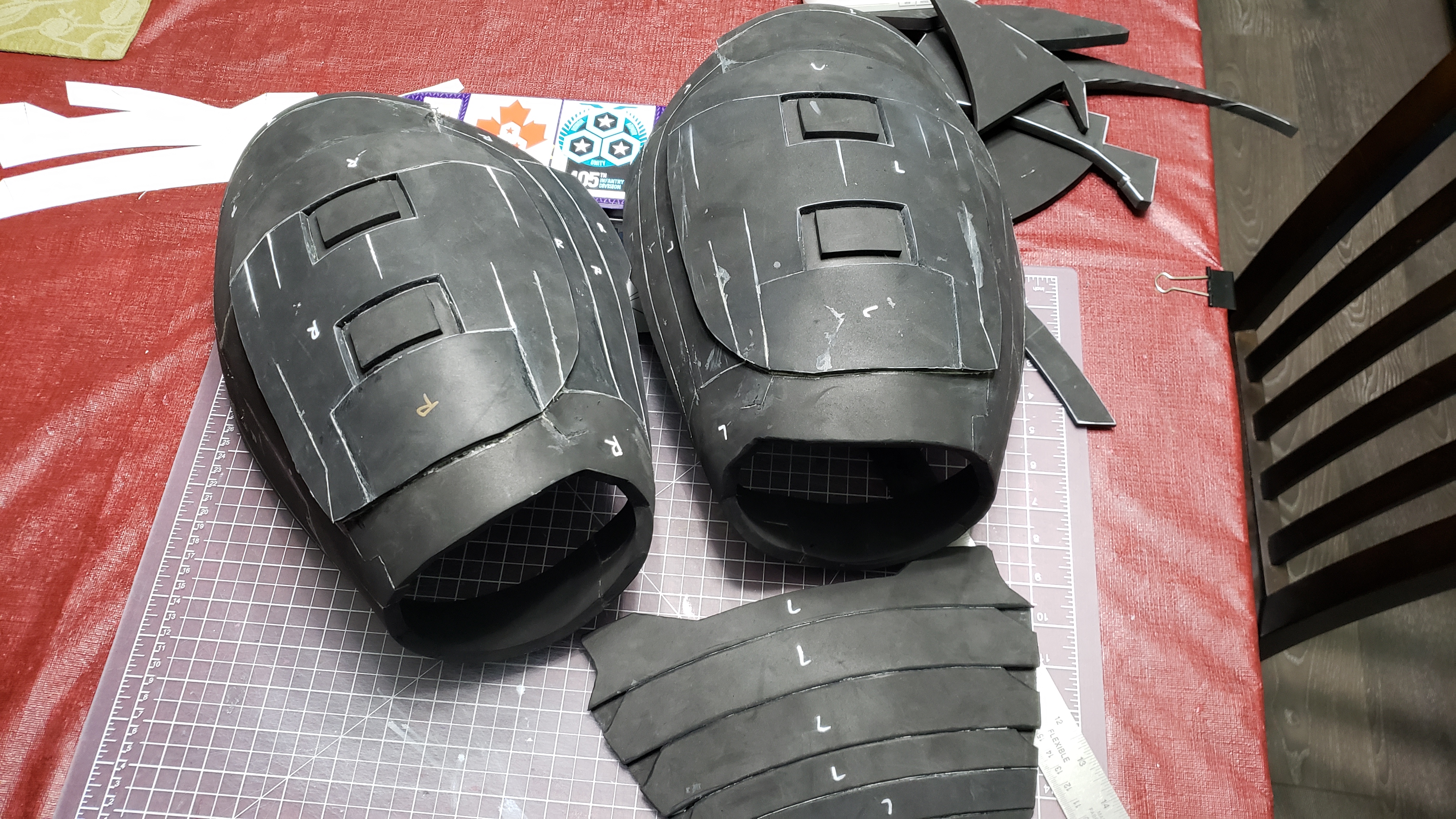

Late night post. Both thighs are done!


Two annoying thing popped up though....

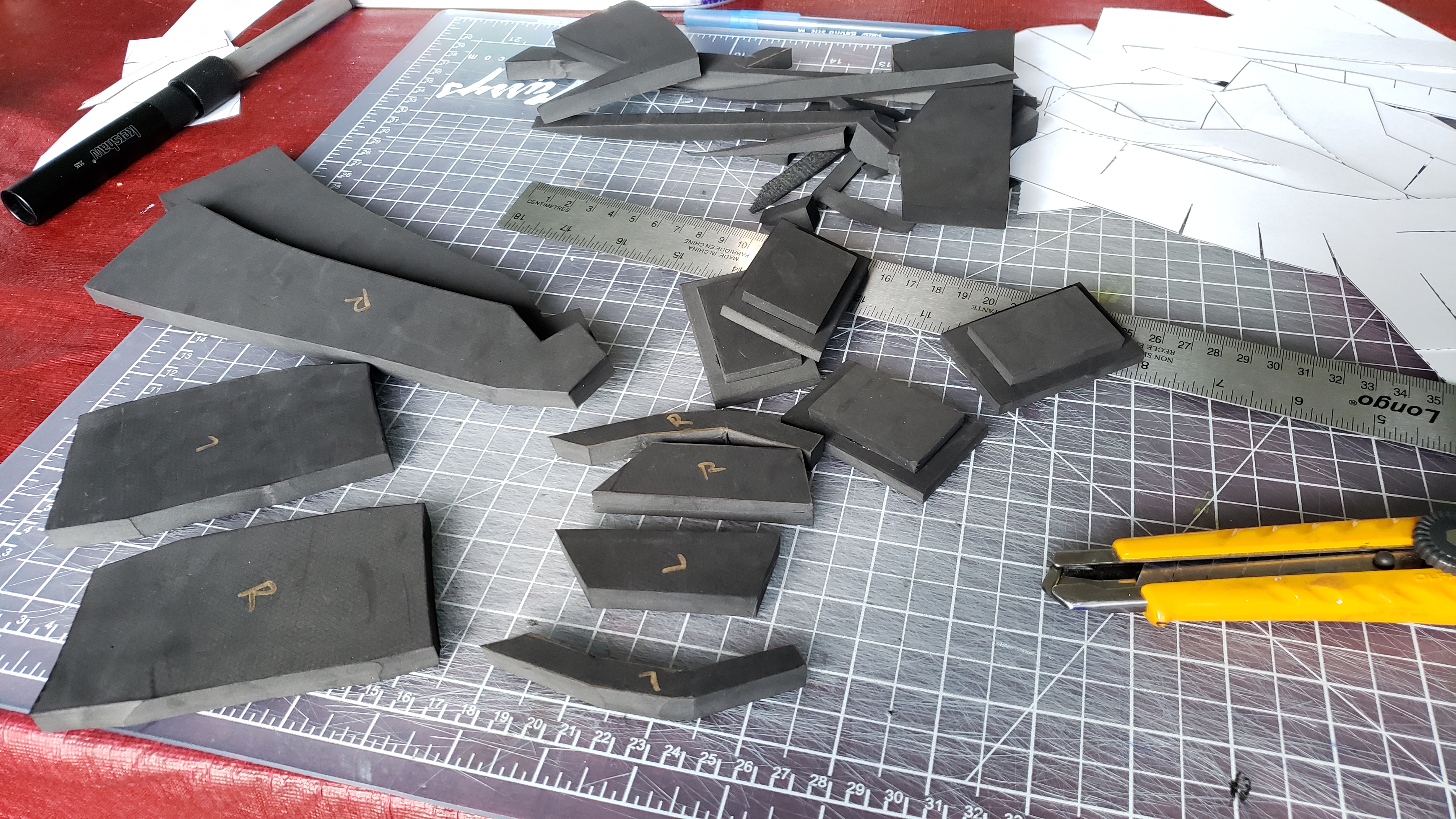

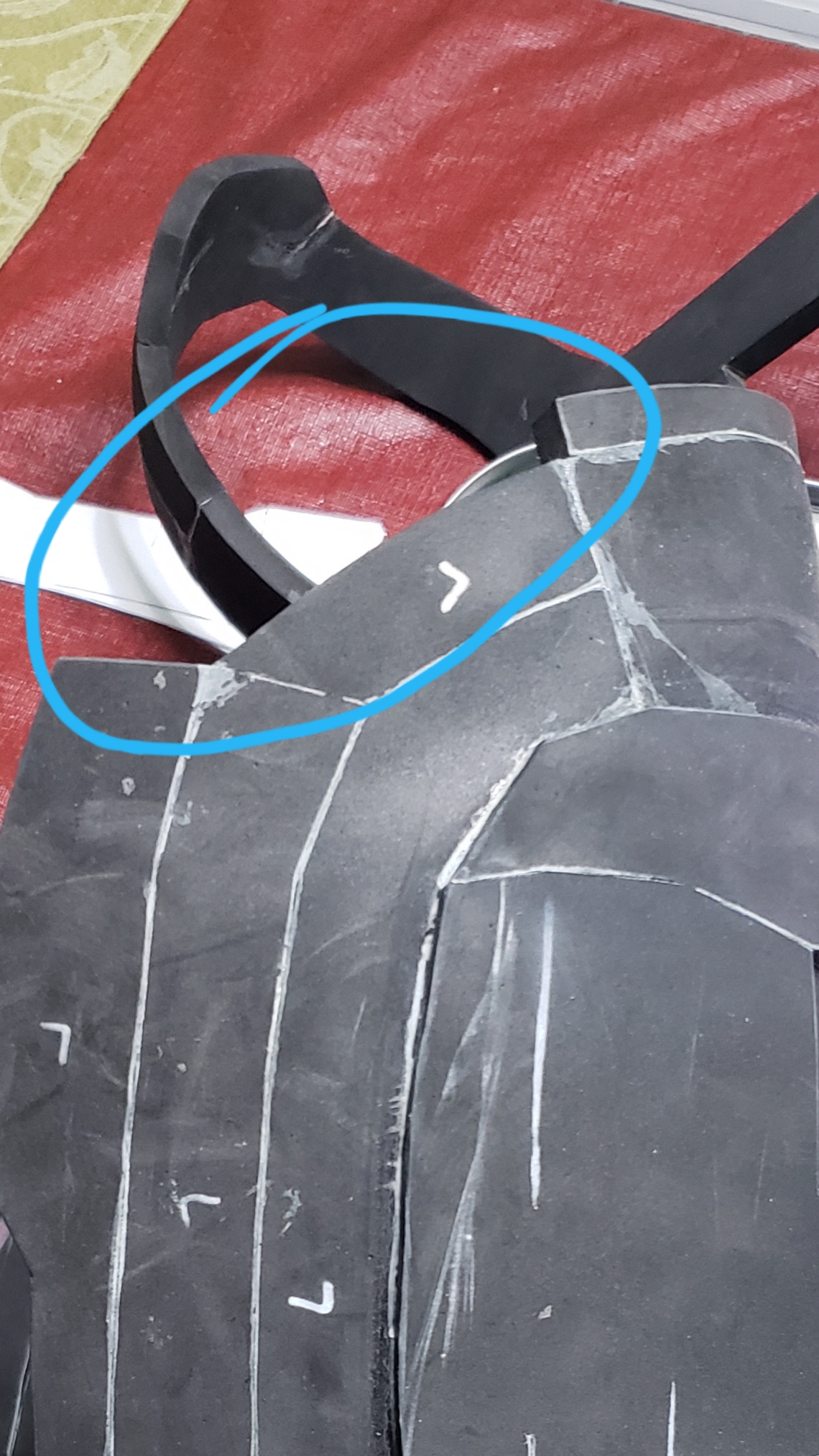

There is a bloody piece missing on both of them!! At first I thought I had missed a piece when I was cutting the templates. It turns out that the missing piece is actually missing from the foam converted file. No biggie to fix this.

The second problem is whats really annoying me.

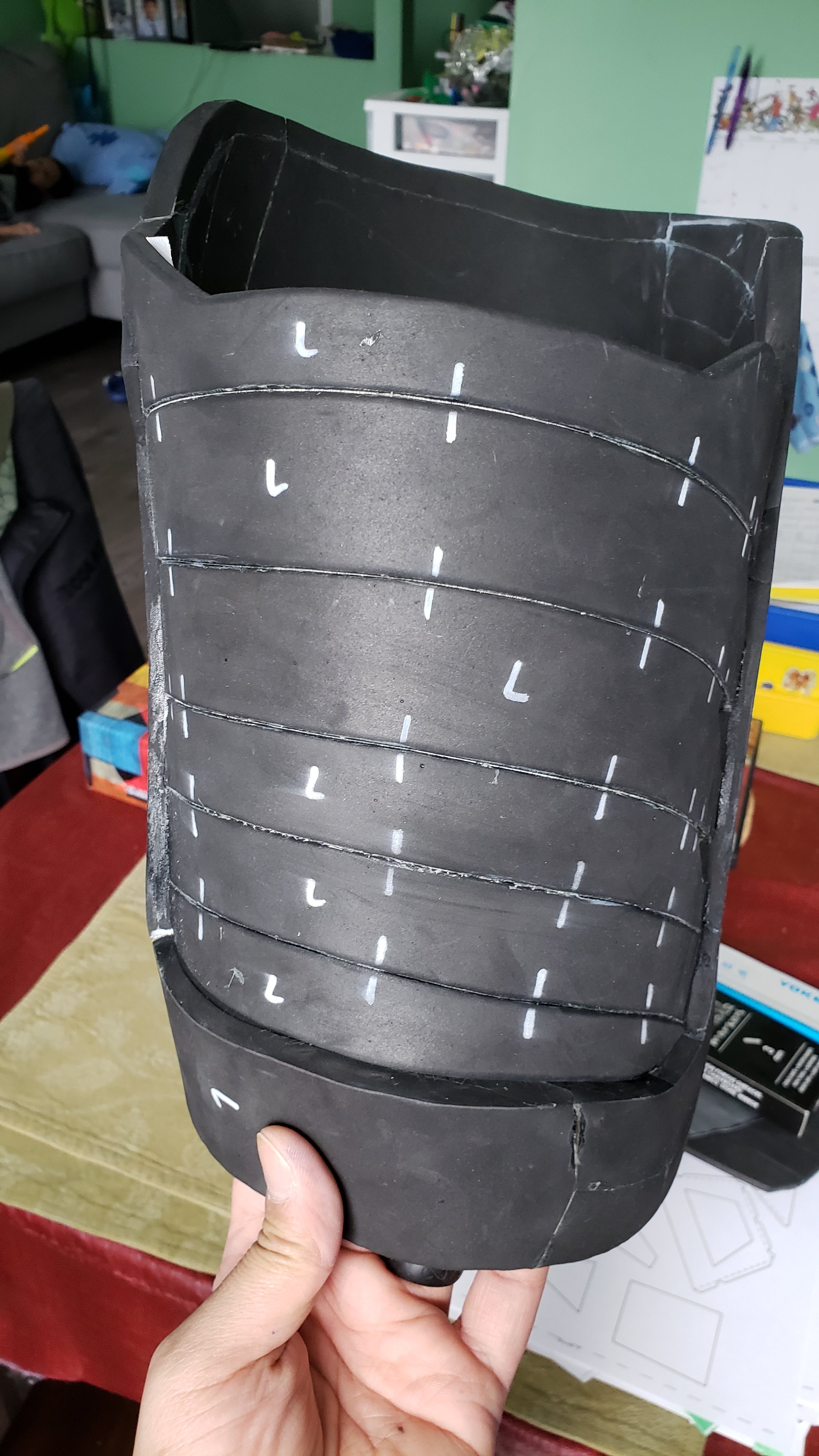

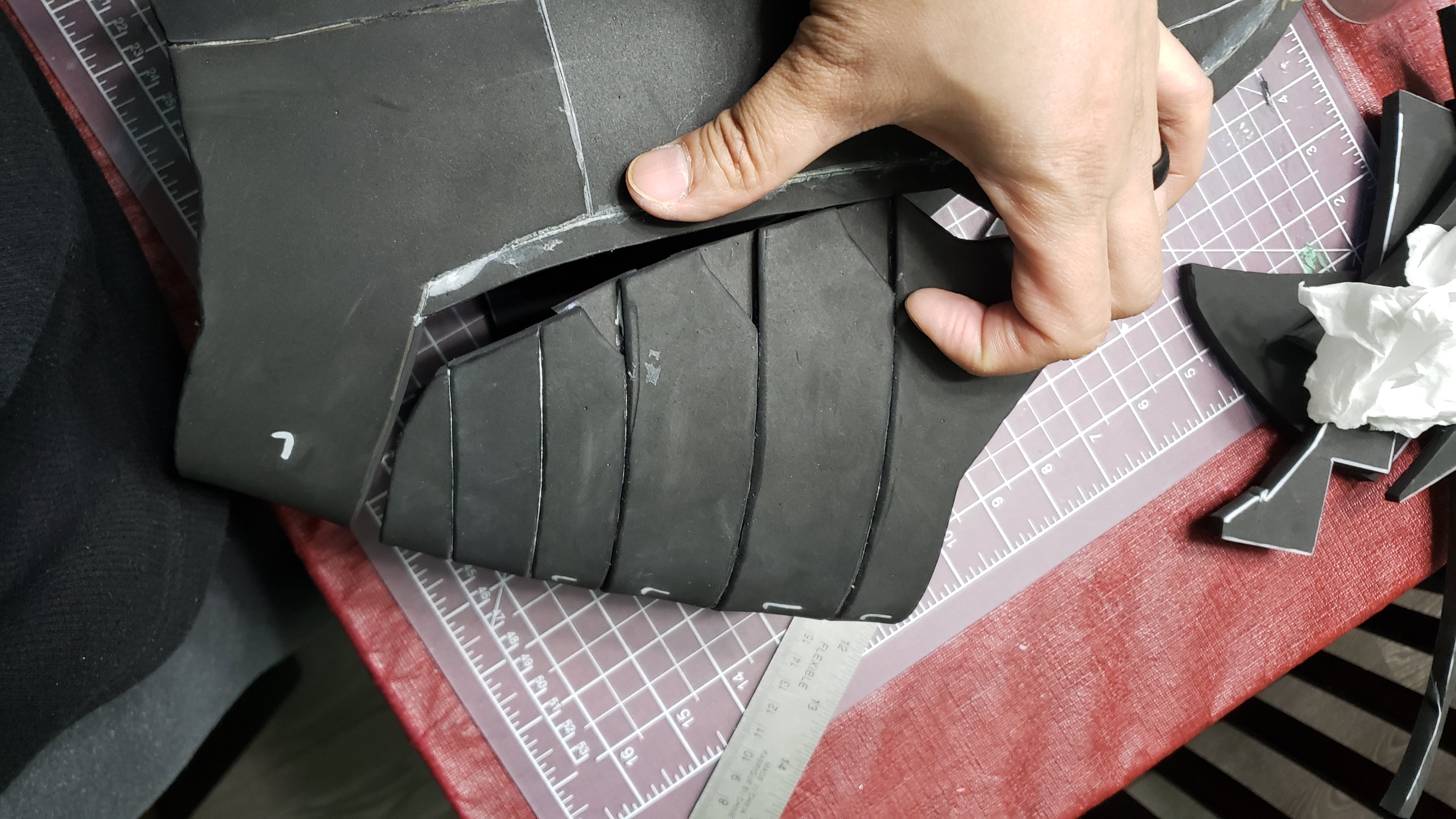

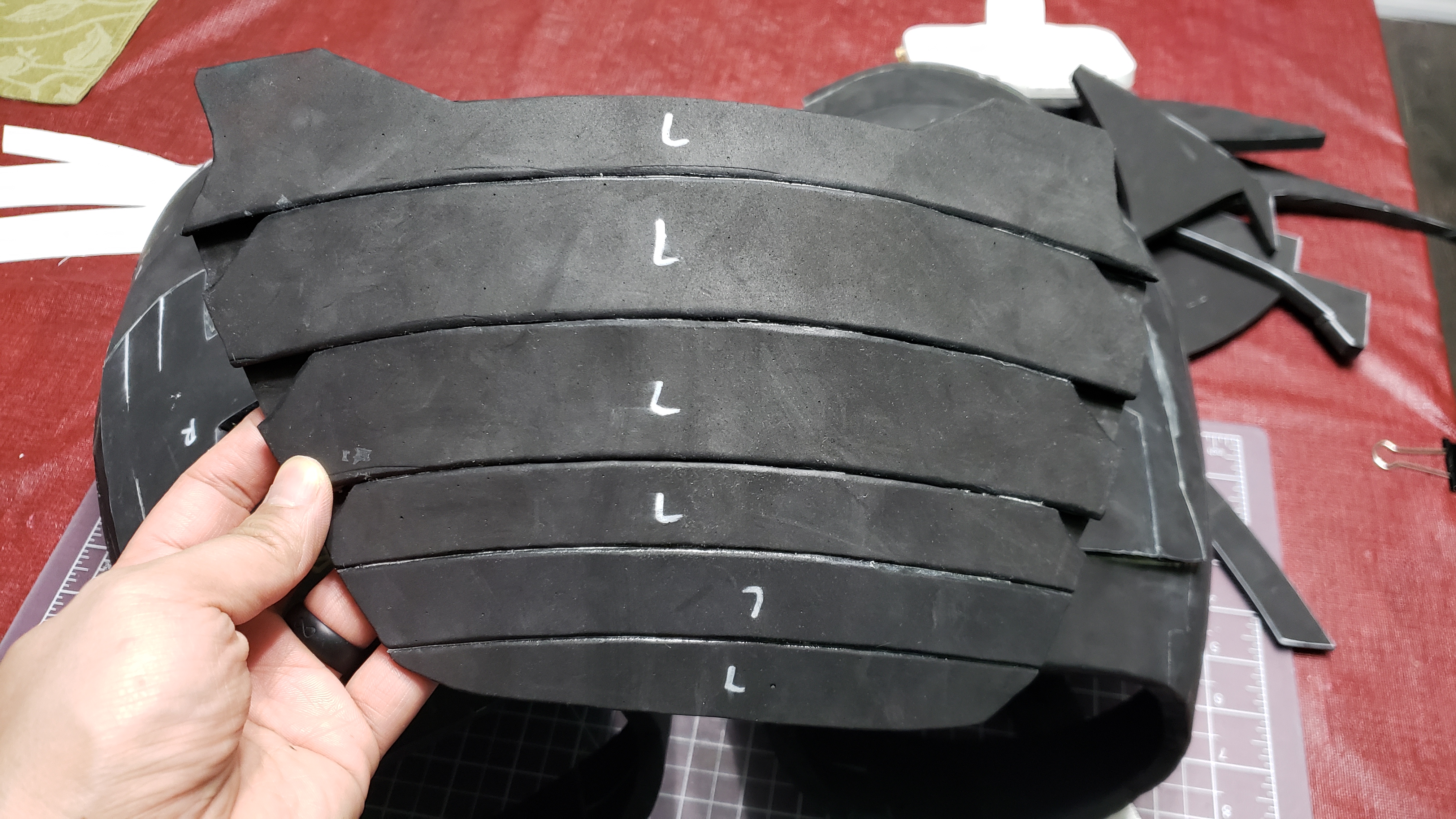

Here's the inner thigh part for the left leg. I made it all nice and what not....

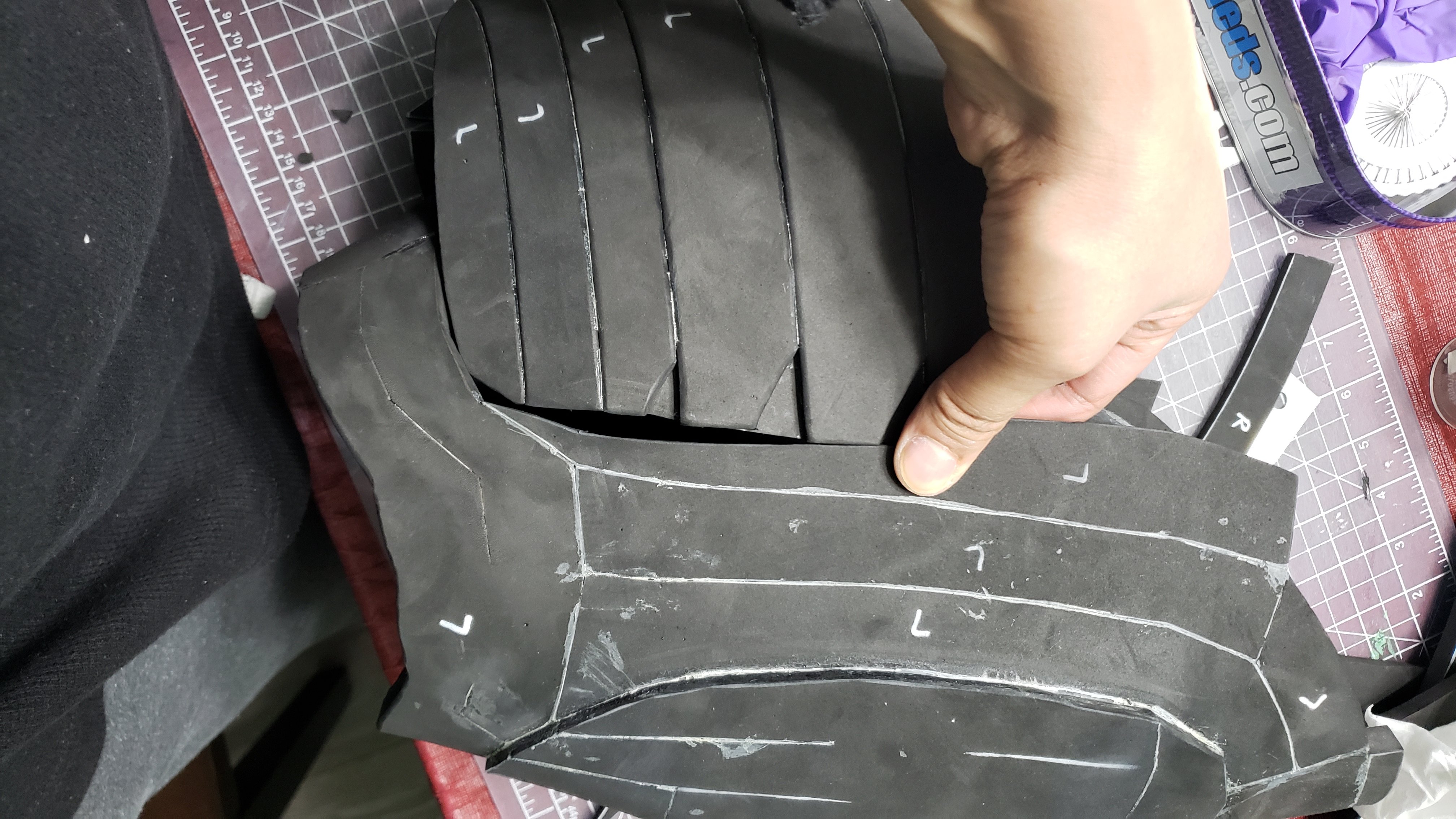

Guess what? It doesn't even fit!! The shape of the inner thigh is completely off!!


Ugh!
I'm will have to make one up myself.


he4thbar

Well-Known Member
Late night post. Both thighs are done! View attachment 287468

Two annoying thing popped up though....

View attachment 287466
There is a bloody piece missing on both of them!! At first I thought I had missed a piece when I was cutting the templates. It turns out that the missing piece is actually missing from the foam converted file. No biggie to fix this.

The second problem is whats really annoying me.
View attachment 287467
Here's the inner thigh part for the left leg. I made it all nice and what not....
Guess what? It doesn't even fit!! The shape of the inner thigh is completely off!!
View attachment 287469
View attachment 287470
Ugh!
I'm will have to make one up myself.
I remember having to rig it to fit. Was not fun


PaiganBoi

Sr Member

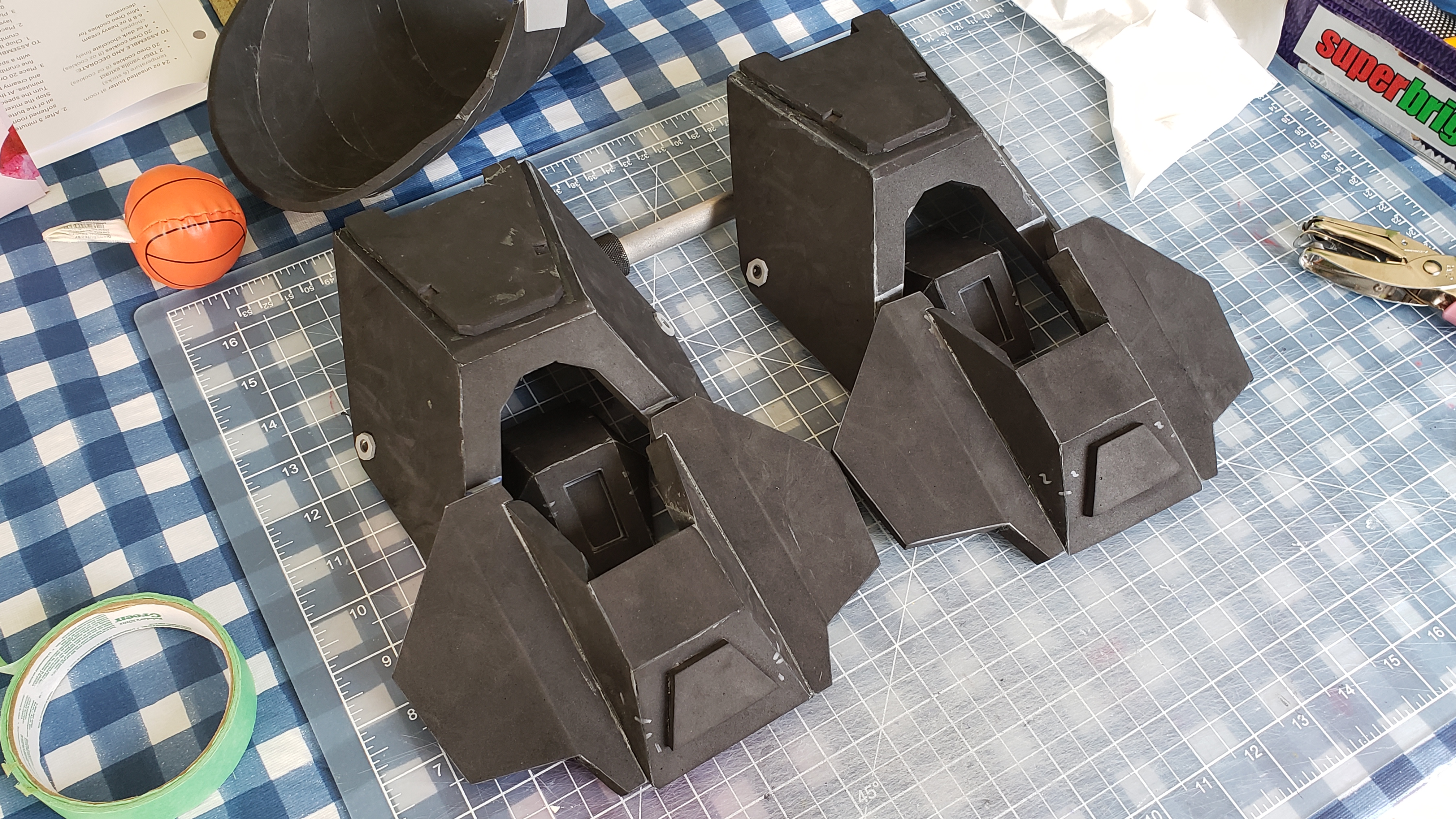

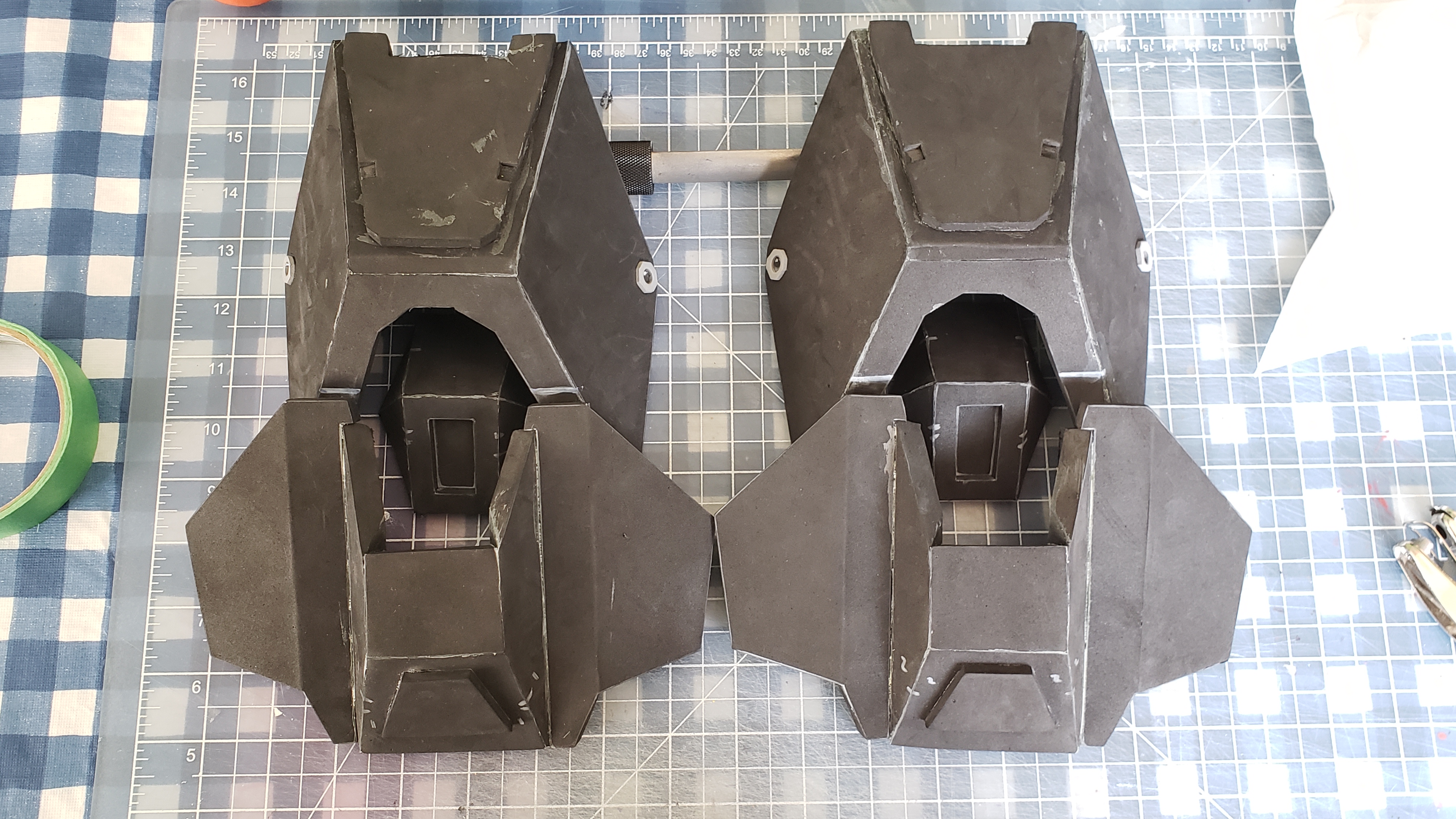

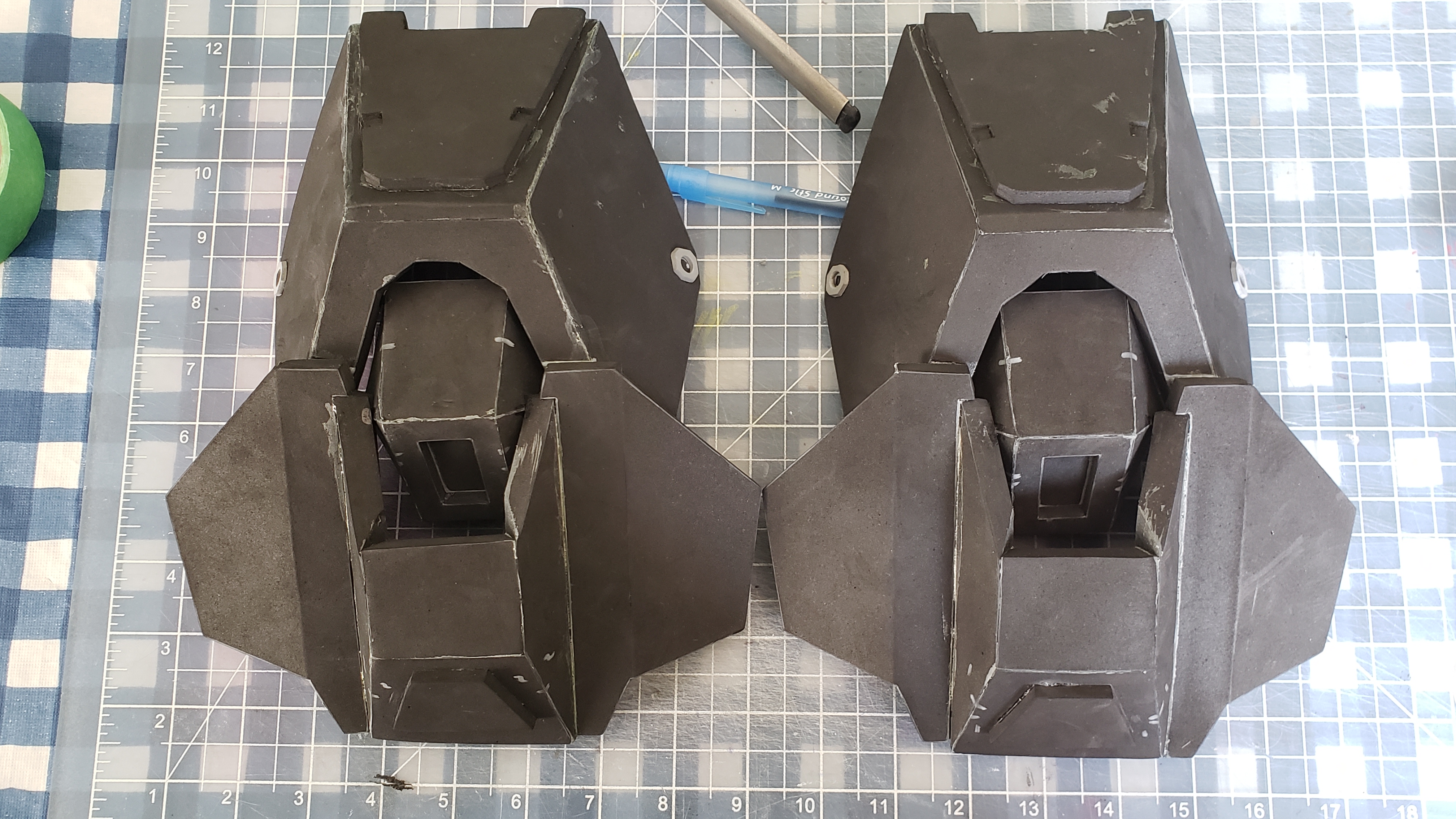

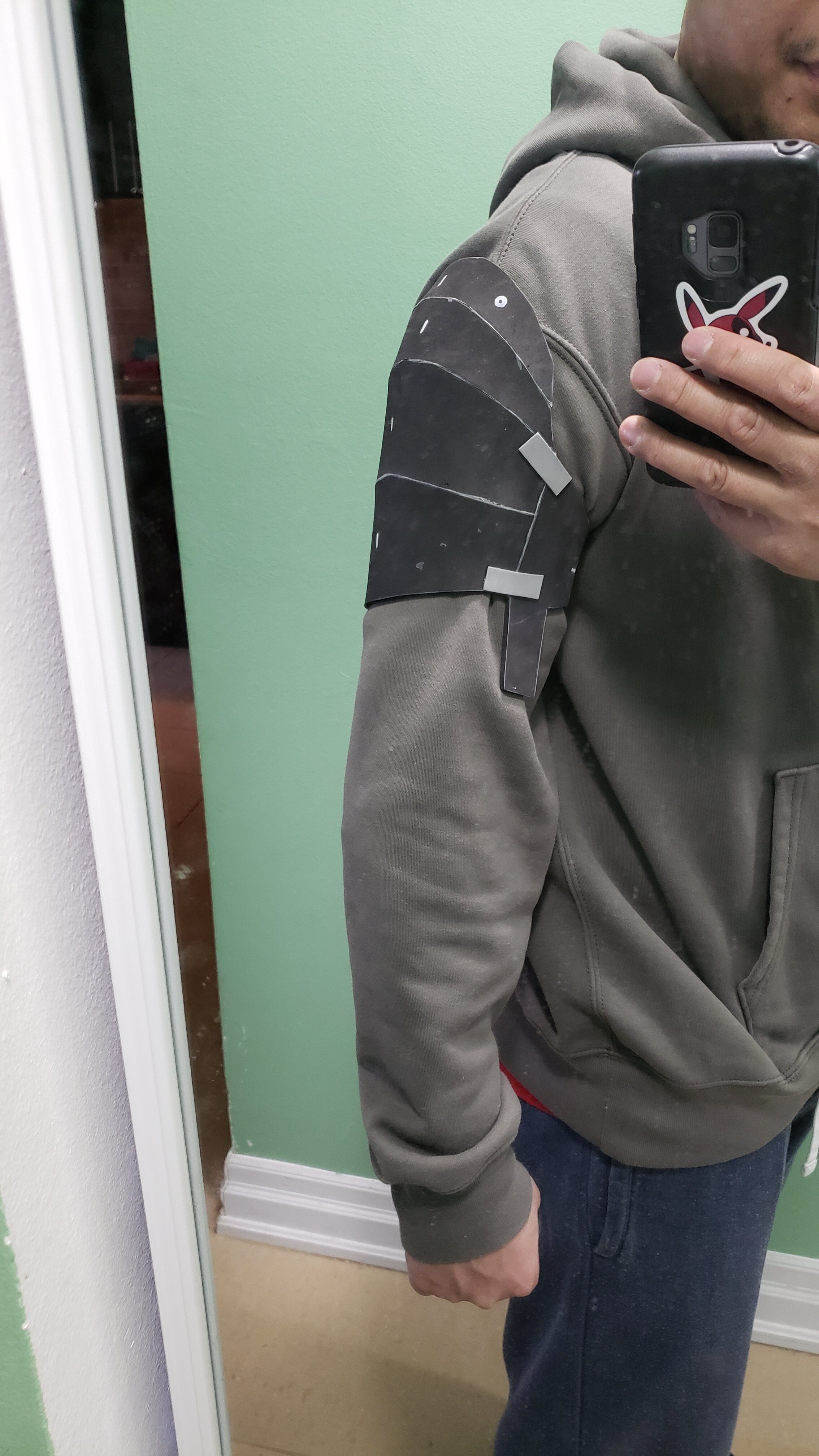

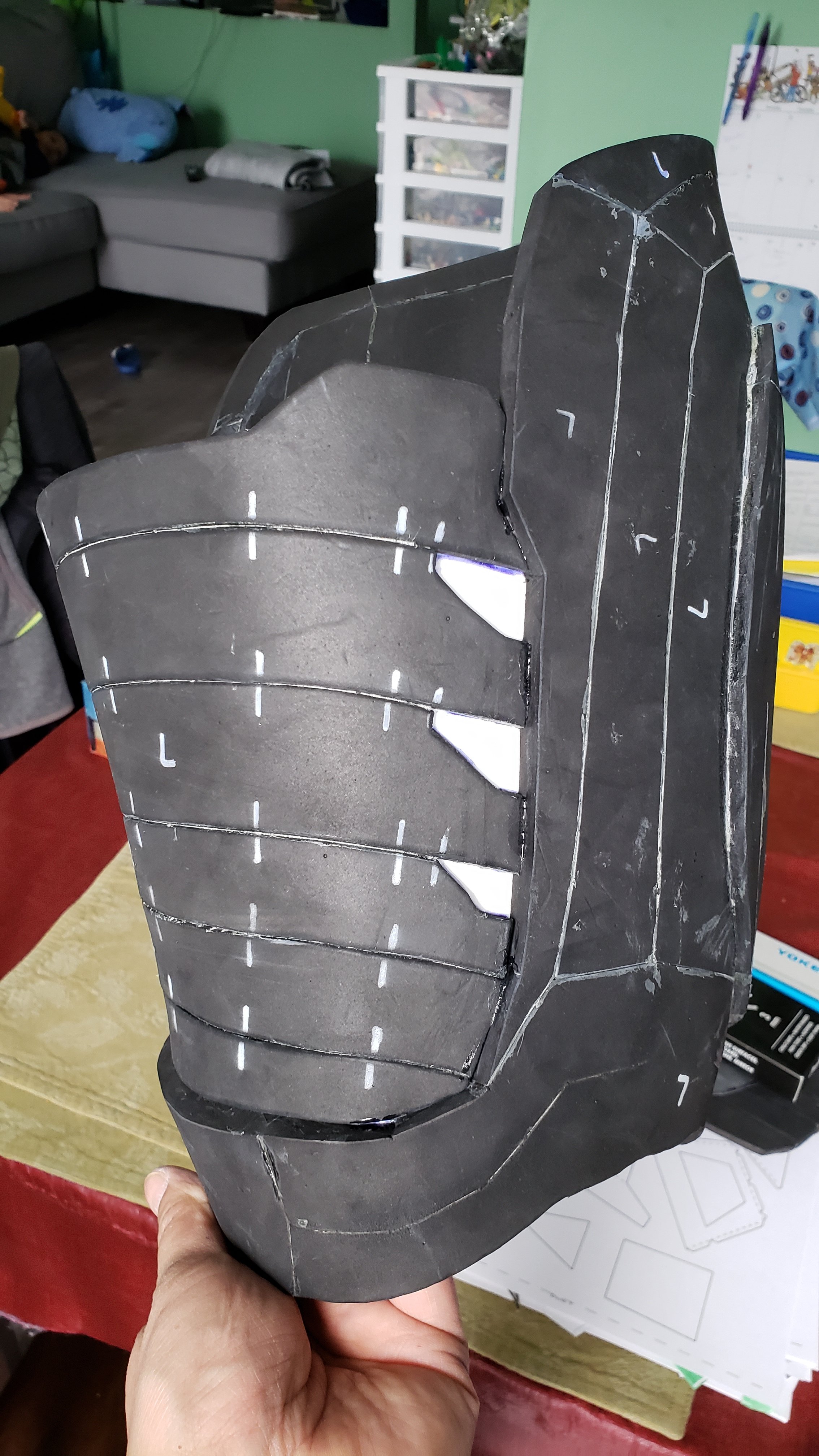

Those shoulders look very nice! Anything you have been doing to get them to look that clean with the cuts, angles, and glue?

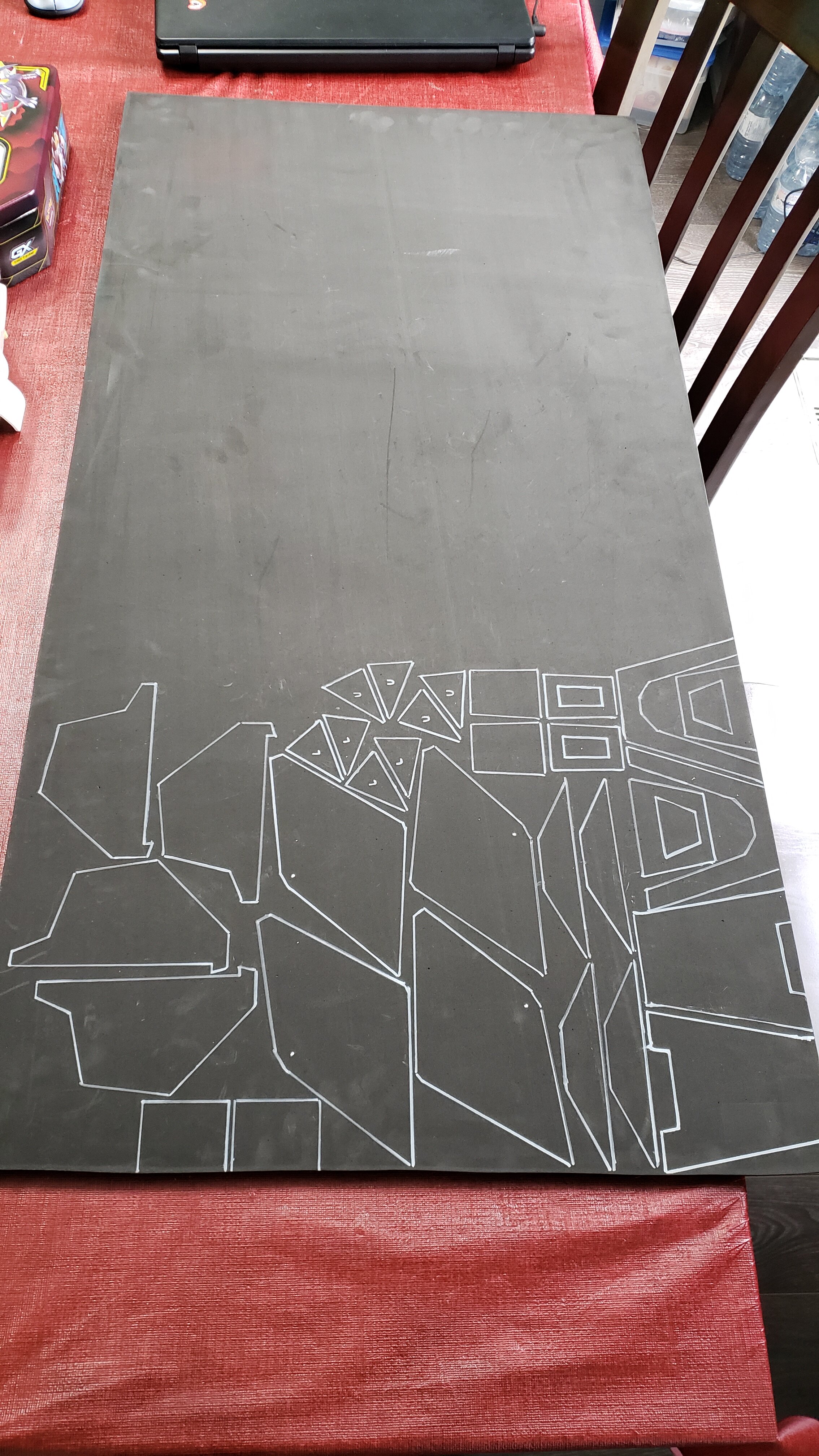

Biggest thing is using a higher quality foam. I splurged and bought some HD foam.
Foam and a sharp knife makes doe some really clean bevels.

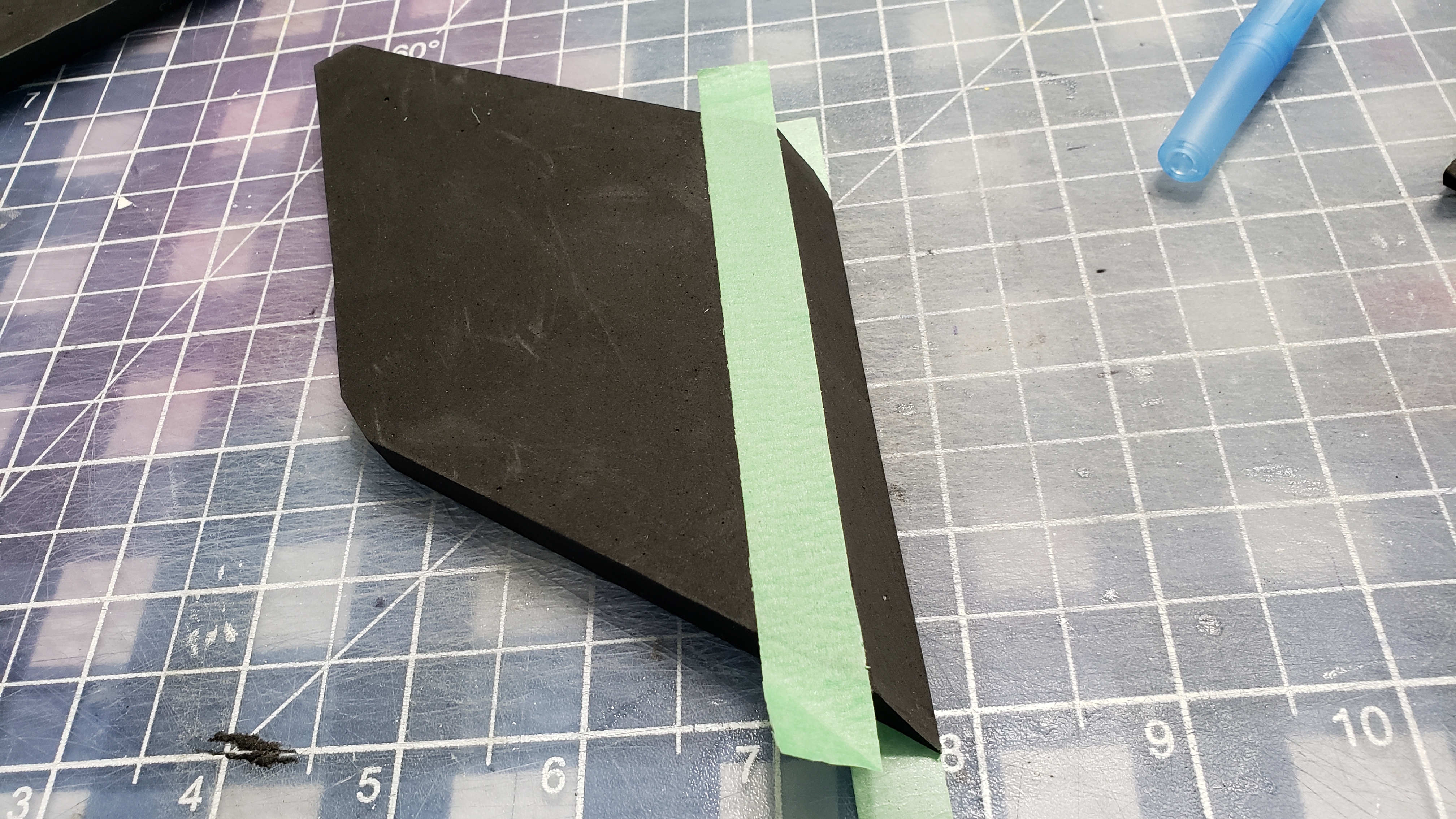

Also when doing bevels I put some painters tape as a guide to keep me straight. Then some clean up with a rotary tool.


PaiganBoi

Sr Member
Alright... Dilemmas... For those you who have been following this thread, I want to ask your opinion. As you know my rebuild started last year with the shins. Those were made of reliable puzzle mat foam from Walmart. Now the recent armour parts that were completed were made with HD Foam by Lumin's Workshop bought from Arda Wigs Canada.
The question I am asking is.... Should I build the shins/greaves again? This time with the HD foam to match the rest of the rebuild.


xXDashIVXx

Sr Member
Alright... Dilemmas... For those you who have been following this thread, I want to ask your opinion. As you know my rebuild started last year with the shins. Those were made of reliable puzzle mat foam from Walmart. Now the recent armour parts that were completed were made with HD Foam by Lumin's Workshop bought from Arda Wigs Canada.
The question I am asking is.... Should I build the shins/greaves again? This time with the HD foam to match the rest of the rebuild.
What would be causing you from holding back and pondering over it? If you have doubts, go for it, but if you are happy with what you already have, keep them. It doesnt hurt to make more though


TurboCharizard

Division PR, RMO and BCO
Division Staff
405th Regiment Officer
Community Staff
Alright... Dilemmas... For those you who have been following this thread, I want to ask your opinion. As you know my rebuild started last year with the shins. Those were made of reliable puzzle mat foam from Walmart. Now the recent armour parts that were completed were made with HD Foam by Lumin's Workshop bought from Arda Wigs Canada.
The question I am asking is.... Should I build the shins/greaves again? This time with the HD foam to match the rest of the rebuild.
It'll probably be more dent and ding resistant made with HD Foam but then again, it's the shins. Cheap foam getting beat up? BATTLE DAMAGE


CMYKey

Jr Member
Great work on the shoulders. I'm struggling a bit with my own... any tips for getting the right angles? I've been trying to interpret the edge angles that Armorsmith gives you but it doesn't really make sense to me.


PaiganBoi

Sr Member
Great work on the shoulders. I'm struggling a bit with my own... any tips for getting the right angles? I've been trying to interpret the edge angles that Armorsmith gives you but it doesn't really make sense to me.
To tell the truth I just guessed. I knew the angles were between 45 and 90 degrees. So when cutting my bevels one part had a bevel of 45 (roughly 1/4 inch) and then other side I would measure 1/8 inch and it works out.
