DaveyBoy said:
Maybe this is something that's been talked about earlier in this thread and I missed it?:



I just finished pepakuring (is that a verb?) Dubean33's War Machine Back file dated 3/20/10. And it seems that there's a piece in the left shoulder area that's missing? Its counterpart on the right side is triangle-shaped and numbered 12, 13, and 366. These pieces basically join the almost-horizontal top-of-the-shoulder parts with the more-vertical back parts.



I think I can make this piece by taking that right side, printing it again, and just using it on the other side.



But I thought I'd double-check here to make sure that this is a flaw with that file and not, for some reason, intentional? Perhaps it was updated in a later file and I missed it?



here is the link for revised back.... it has been revised and no intention of whatsoever, enjoy...

war machine back revised ...

Last edited by a moderator:
le-yo-ra said:
here is the link for revised back.... it has been revised and no intention of whatsoever, enjoy...

war machine back revised ...





Thanks very much, sir!



I was just trying to say "hey, other than building my own Robocop, I'm a newb at this!". No disrespect to anybody implied!

Last edited by a moderator:

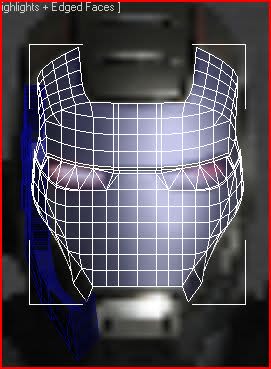

Ok. Not alot of progress on the helmet, but it's getting there. I would have it most of the way finished, but I was looking over the faceplate and it just bothered me for some reason. I've spent the last couple of hours aligning and smoothing the mesh. I think it's much better now. I'm going to take a break for a few minutes and then get on with the rest of the helmet. Get it here if you want a closer look. http://www.4shared.com/file/NB0IXVt4/faceplate.html




JUICE said:
Ok. Not alot of progress on the helmet, but it's getting there. I would have it most of the way finished, but I was looking over the faceplate and it just bothered me for some reason. I've spent the last couple of hours aligning and smoothing the mesh. I think it's much better now. I'm going to take a break for a few minutes and then get on with the rest of the helmet. Get it here if you want a closer look. http://www.4shared.com/file/NB0IXVt4/faceplate.html






Nice job dude can't wait for the finished product. Keep it up

Last edited by a moderator:
To my fellow 405th members, this is for Iron Man servo controlled face plate. I want share you the technology that arrogant MasterLe won't share. Thanks to ZABANA! NOW!!! LET THE ARMY OF MACHINES RISE MUAHAHAHAHAH! Hey Juice, Thanks!











Parts List

two futaba s148 servos

1 x 555 timer IC

1 x BC547 transistor

1 x 10k Ohm potentiometer (mod with 50k)

2 x 10k Ohm resistors

2 x 100nF condensators

1 x 220k Ohm resistor

1 x 15k Ohm resistor (mod with another 15k resistor in parallel)



You can feed the circuit with 6v maximum.

yeah the eyes could be made a little smaller. A tiny smidge

I see it too but I could be wrong



the rest of the shape looks awesome though

Iron Mang said:
something like this:






The angle and size of the faceplate itself are off on that overlay. That's part of the problem. If they're too big, it's only by a little bit.

Last edited by a moderator:
if u add the actual colored parts of the eyes...the little parallelogram shaped screens, u may not notice the wide-eyed'ed'ness. I make up words.

starkmark4 said:
if u add the actual colored parts of the eyes...the little parallelogram shaped screens, u may not notice the wide-eyed'ed'ness. I make up words.



making them a smidge smaller could still work but you make a good point



side note

I hope JUICE isn't reading this thinking



"bah screw ya'll" lol

Last edited by a moderator:
Zorens said:
To my fellow 405th members, this is for Iron Man servo controlled face plate. I want share you the technology that arrogant MasterLe won't share. Thanks to ZABANA! NOW!!! LET THE ARMY OF MACHINES RISE MUAHAHAHAHAH! Hey Juice, Thanks!











Parts List

two futaba s148 servos

1 x 555 timer IC

1 x BC547 transistor

1 x 10k Ohm potentiometer (mod with 50k)

2 x 10k Ohm resistors

2 x 100nF condensators

1 x 220k Ohm resistor

1 x 15k Ohm resistor (mod with another 15k resistor in parallel)



You can feed the circuit with 6v maximum.





Thanks for the info!!

Last edited by a moderator:
Zorens said:
To my fellow 405th members, this is for Iron Man servo controlled face plate. I want share you the technology that arrogant MasterLe won't share. Thanks to ZABANA! NOW!!! LET THE ARMY OF MACHINES RISE MUAHAHAHAHAH! Hey Juice, Thanks!











Parts List

two futaba s148 servos

1 x 555 timer IC

1 x BC547 transistor

1 x 10k Ohm potentiometer (mod with 50k)

2 x 10k Ohm resistors

2 x 100nF condensators

1 x 220k Ohm resistor

1 x 15k Ohm resistor (mod with another 15k resistor in parallel)



You can feed the circuit with 6v maximum.





Geez, I really need to take a crash course in small electronics... or find a book that will bring me up to speed. I took an electronics class years ago in college, but there wasn't much focus on practicality / building stuff. I just scratch my head whenever anybody shows me one of those diagrams. And of course, I'd like to put in lots of special effects like a microphone, multiple speakers, lights, etc., just like everybody else.

Last edited by a moderator:
Great work juice! Even though I've got a helmet, I'll probably try this one out! I would have to agree the eyes are a tad bit too big.. and ya got a weird bump...



I'd just bring the line that parallels the eyes straight down.



Once again great work!



For anyone that's interested.. I'm working on a hinge system as well. here is the start of it. Faceplate hinges.



Cheers,



-Jay

JUICE said:
Nope, they just look that way.


Its all good. I can fix it with bondo.



JAM Designs said:
Great work juice! Even though I've got a helmet, I'll probably try this one out! I would have to agree the eyes are a tad bit too big.. and ya got a weird bump...



I'd just bring the line that parallels the eyes straight down.



Once again great work!



For anyone that's interested.. I'm working on a hinge system as well. here is the start of it. Faceplate hinges.



Cheers,



-Jay

Thanks

Last edited by a moderator:

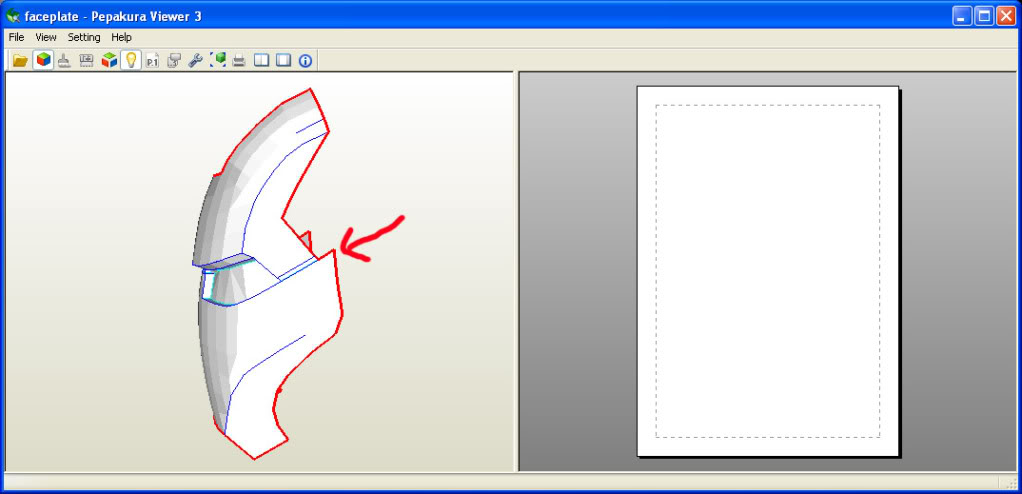

I like criticism, to an extent. :D It helps keep me in check. I narrowed the eyes by about 1/8" - 3/16". If I go any more than that it looks wierd so I'm going to leave it at that. I removed the tri that was sticking up at the cheek. It wasn't there to start with but the ref image I was looking at, at the time, looked like that. I looked over my other images and just deleted the tri. I'm about halfway through with the rest of the helmet as of now.
