Warthog Hull Dimensioning Program

bevbor

Well-Known Member
Hey 405thers,

There is enormous number of warthog plans and blueprints seekers on the site.

To satisfy increasing discontent, I made this thingy :)



This is eDrawings .EXE viewer (sorry mac-users) with interactive 1:1 model of warthog hull inside.

You can rotate, zoom ,and MEASURE length of any edge, angles between edges and distances between any entities.

File is only 4.7 MB !

Download it THERE

.ZIP password: masterchief



How it works:

(Press on pictures to enlarge)

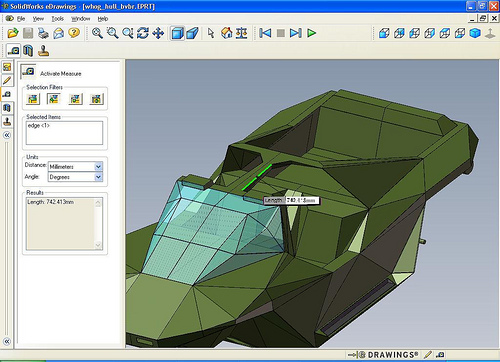

1. Open program:






2. Press Measure button






3. Press Activate Measure, then select edge filter






4. Select some edge on the hull and see it's length in window on the left






5. When you select two edges, you can see angle between thwm in the left window






Enjoy :)


bevbor

Well-Known Member
I see no one have find something unusual for warthog on the hood cause I don't see replies about it :)

Well, who replies first, will get a kukie :)


bevbor

Well-Known Member
Queen said:
Where's the little wedge thingy that goes up a little on the windshield?


Gaaah! Look at yourself, huh! If you're managed to build a warthog,

I think it isn't a problem at all to make that tiny thingy youreself! :)

Last edited by a moderator:

Dan

Jr Member
Did you make that model? If not where did it come from? I guess I'm trying to say is it accurate? :)


Achille

Member
bevbor said:
I see no one have find something unusual for warthog on the hood cause I don't see replies about it :)

Well, who replies first, will get a kukie :)


Hah, a little 405th love. Nice touch. I wish I had a use for this file, but building a Warthog is a little out of my reach right now, both skill-wise and financially-wise. Maybe someday though... A boy can dream... :p

Last edited by a moderator:

kupokitty

Well-Known Member
bevbor said:
Gaaah! Look at yourself, huh! If you're managed to build a warthog,

I think it isn't a problem at all to make that tiny thingy youreself! :)
But...but...I'm too lazy. :p



I think it'd be awesome to make an RC car with this model. The one that's being mass produced SUCKS.

Last edited by a moderator:
