Doom 2016 Praetor suit

Onslovo

New Member
I started an EVA foam Praetor Suit build a little while ago, with the goal of having something to do during the great quarantine of 2020. I've been dicking around with it for a while and feel like I finally have something to contribute to this site. So far I have the helmet done-ish, the arms mocked up pretty well, and the cuirass details about 70% of the way done with. Soon I'm going to have to figure out the codpiece/belt and how to keep it from sagging, I fear I may have to embrace suspenders as my primary option.

Here's a pic from early in the build process. My phone bricked a week ago, so most of the old pictures were lost.

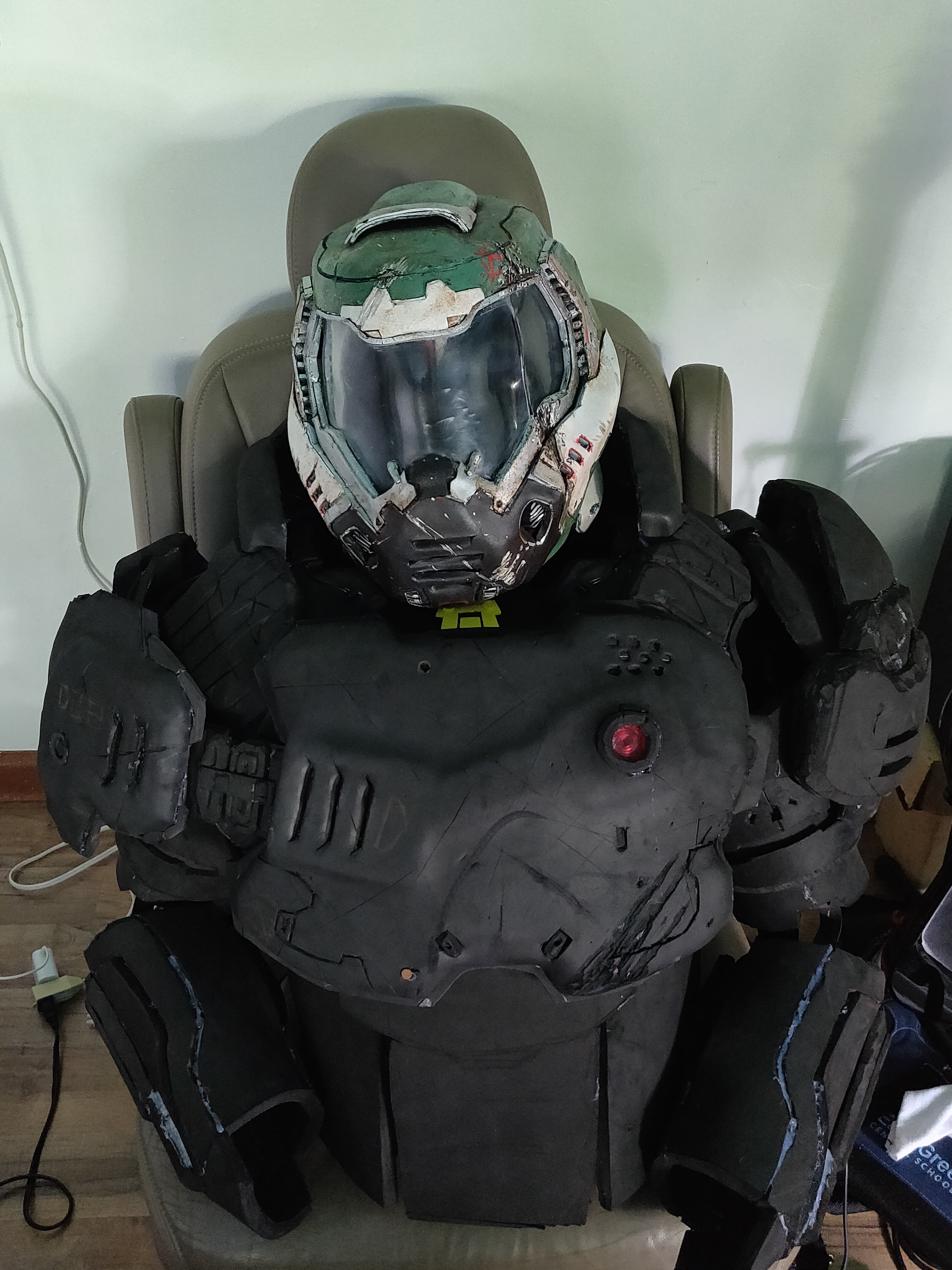

Here's the suit as of a few days ago:

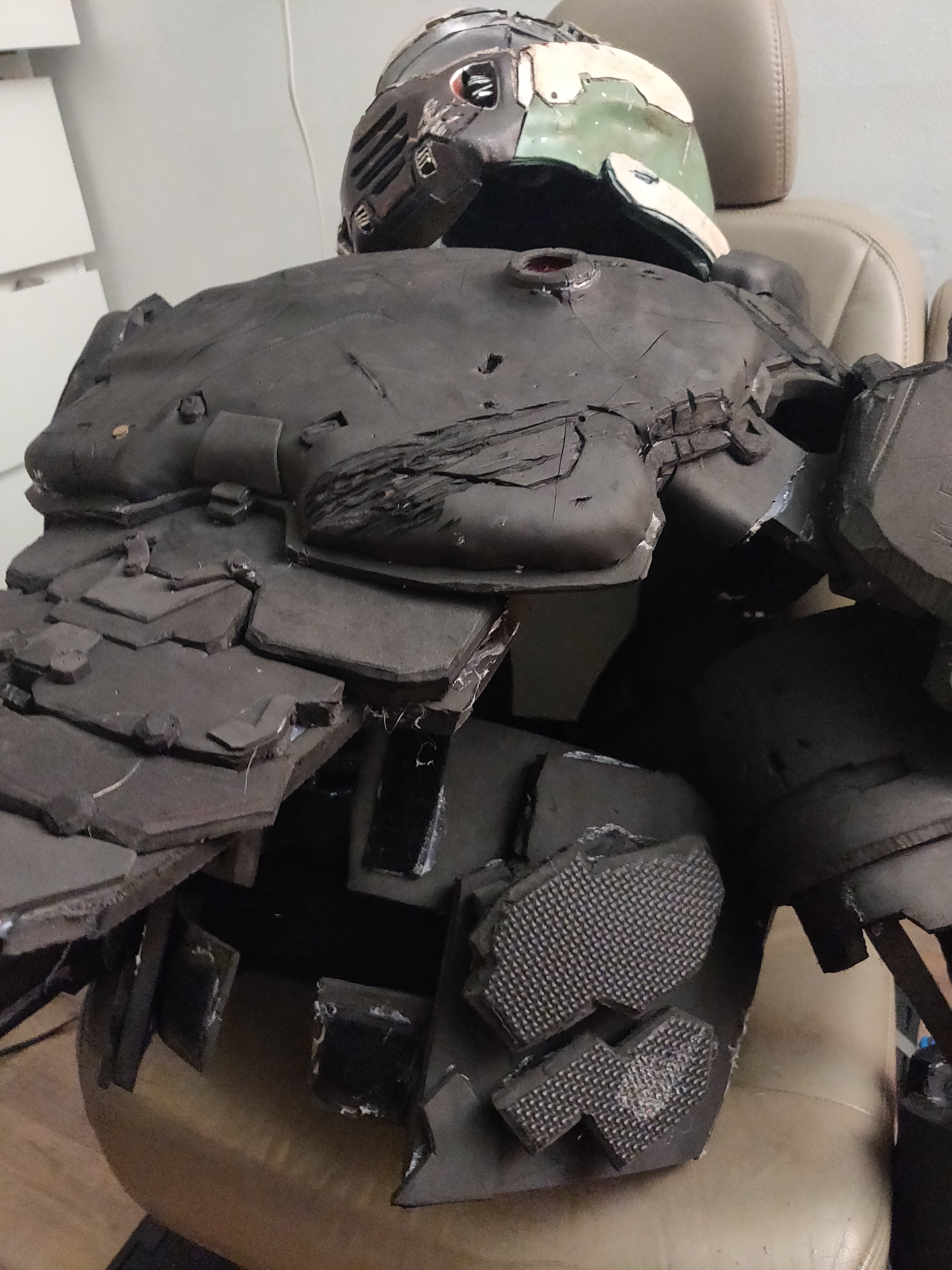

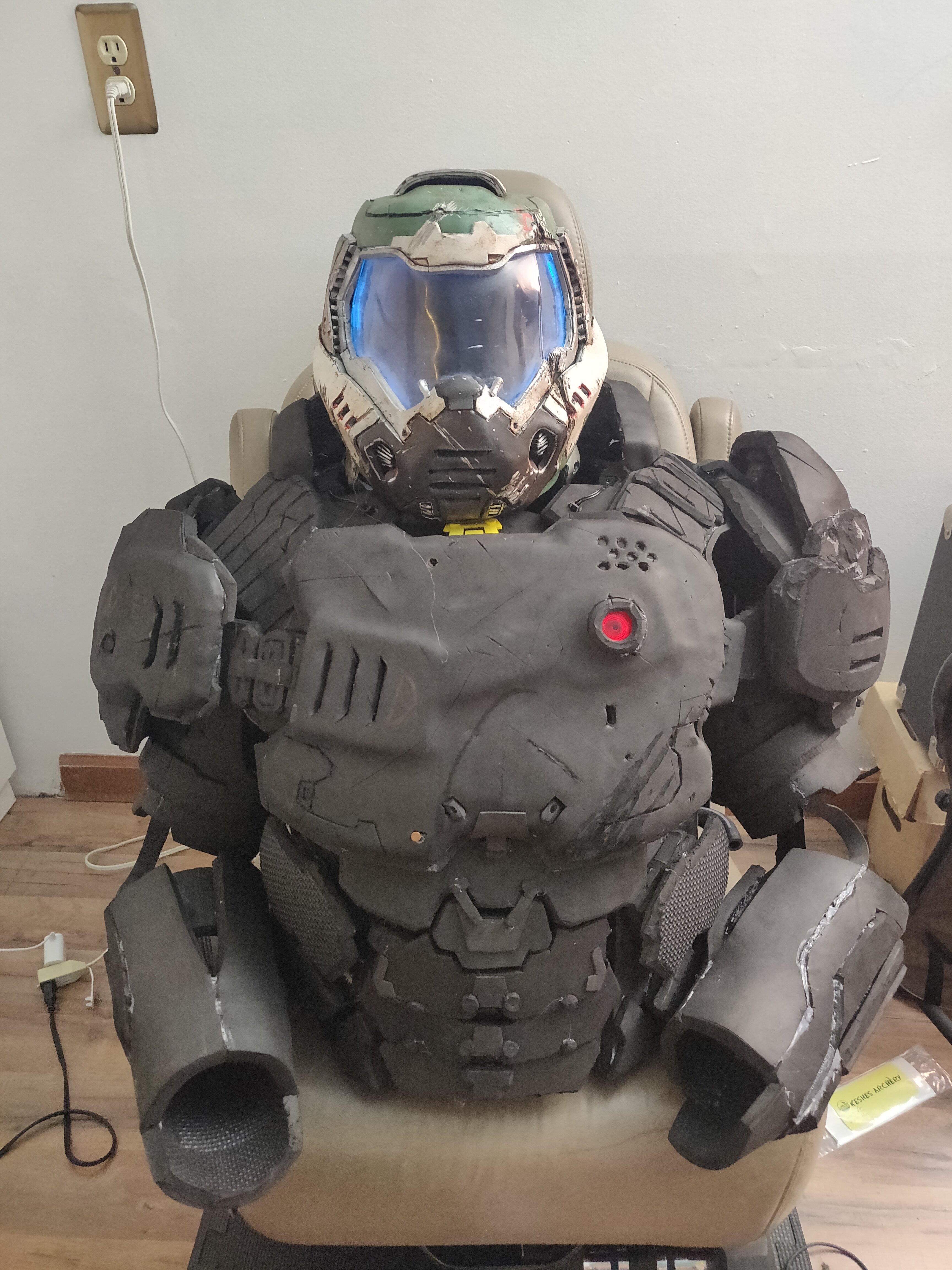

And here's the midsection fleshed out a bit. I'm happy with the disassembly system I've worked out, you rip the front ab section upwards and the whole thing sort of folds out. It feels about as badass as taking off 15lb of floor mats off can be.
IMG_20200710_232948.jpg IMG_20200711_000152.jpg

Here's the helmet, painted up with EL wire to light up the acrylic visor:
It's EVA, not printed because I'm too lazy to sand. This was the only piece I didn't do freehand. The template was on Mellowmind Cosplay's Etsy, but it seems to have disappeared. I don't know why they stopped selling it, it was a really good template. I can provide the files to anyone who wants them, assuming Mellowmind is contacted and doesn't care.

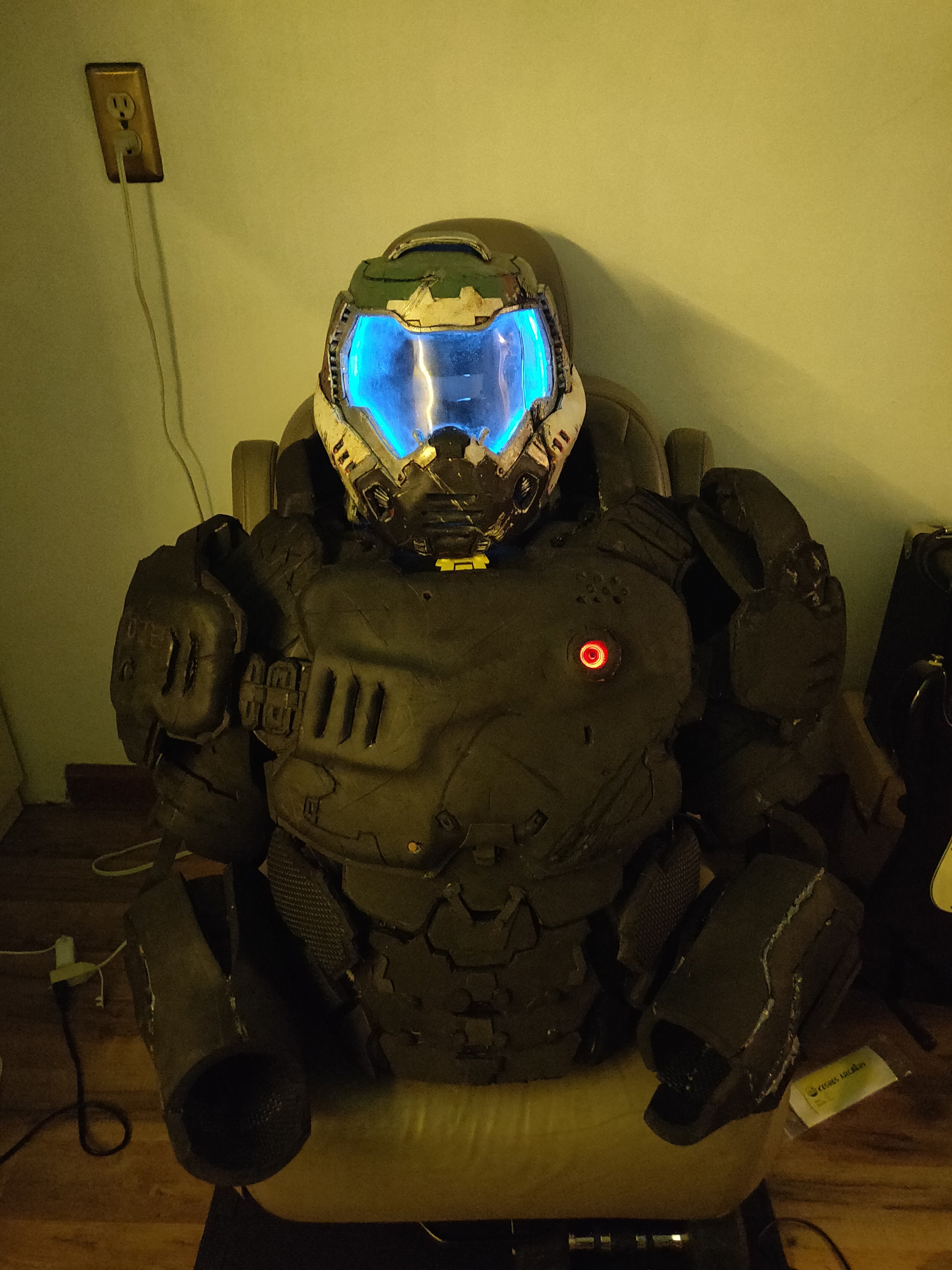

And the full suit lit up.

Last edited:

Onslovo

New Member
I'll update with more as I complete bits. Up next should be finishing and painting the cuirass, and then getting the belt done. I'll probably need to get the belt mocked up just to know what to do with the cuirass, but I've got a bunch of stuff to do before I have to worry about that. I have the upper body shape done pretty much perfect, or as perfect as I care to get it anyway, so my main issue from this point forward is to get the legs looking right. Thankfully, Doomguy seems to have pretty normal proportions under the armor (unlike spartans) so I shouldn't have to cheese it.

Last edited:
  • Like
Reactions: ike

OTSDerpy

Member
OUTSTANDING!! And that ab piece being Velcro to the sides, GENIUS!! I was looking at your photos and immediately thought that helmet was what I thought it was. I was also bummed to see that she did not have it in her store as well.


Onslovo

New Member

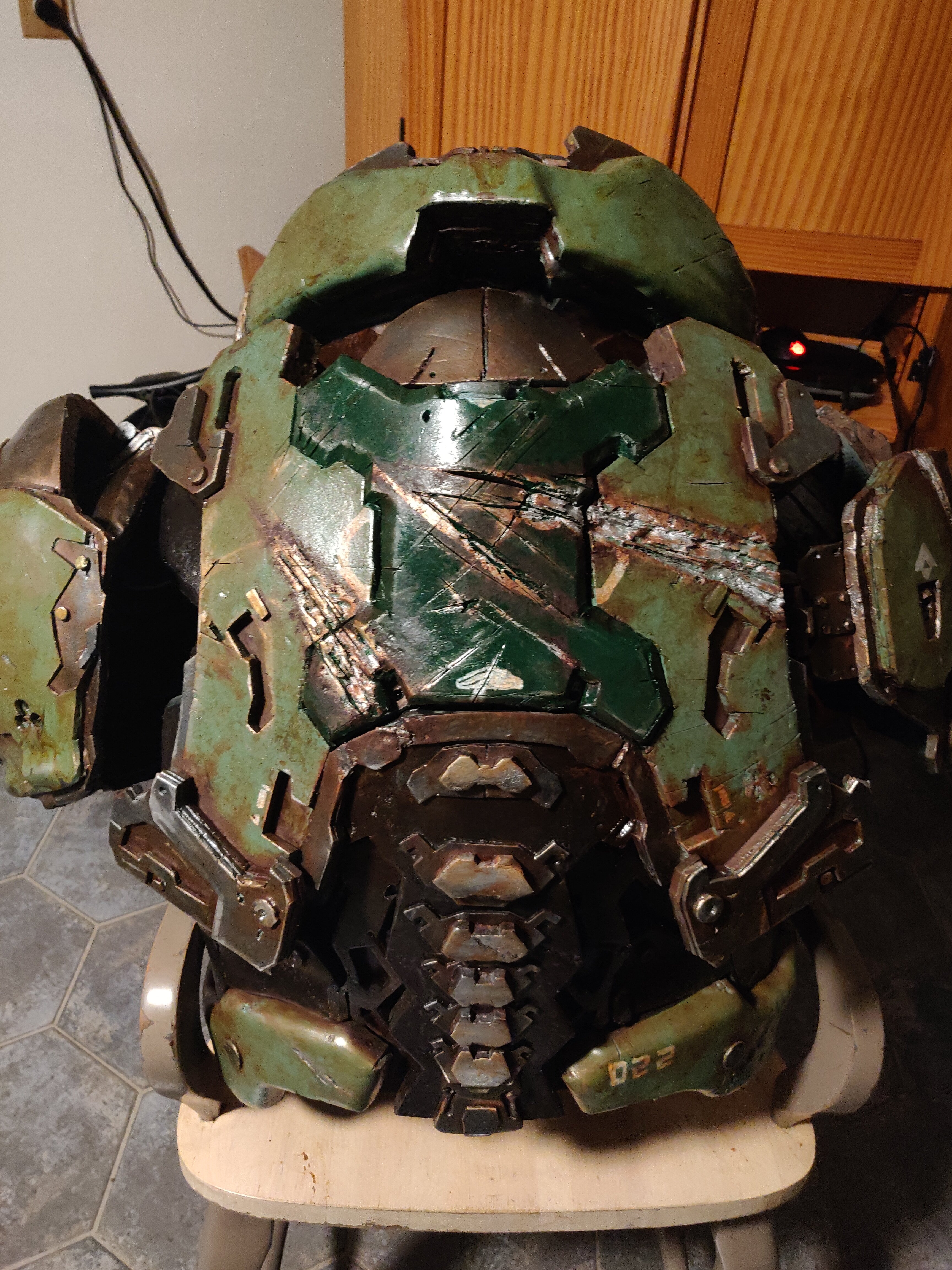

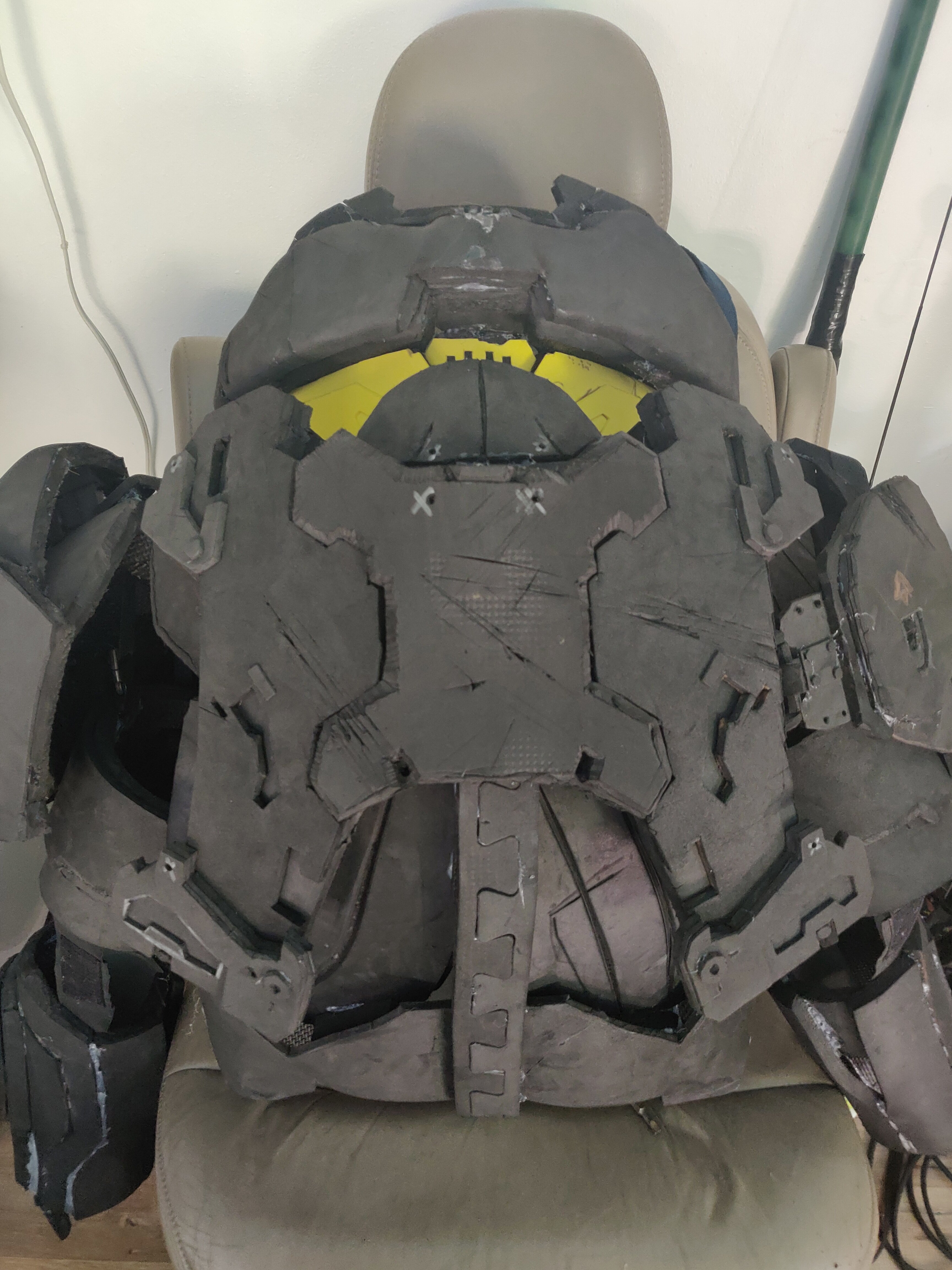

Worked a bit on various trim pieces and interior padding for comfort, along with the back of the suit. I think at this point all the cuirass needs is detailing on the sides and lower back, and then I get to paint it up (which will hopefully hide some of the goofs I've made). Picture is of the backplate detailing so far.


Onslovo

New Member
Hey-o, since the last update I've got a ton of small things done that I wasn't entirely happy with. It's a long list, but most of it has to do with annoying asymmetry. Since I never use full templates, most of my eyeballing has to be corrected later on. The stuff I did:

-Fixed helmet lopsidedness as best I could. It's still there, but It's not really noticeable unless you look closely. I've found that battle damage is a great way to hide it; adding in a bit of intentional asymmetry makes the sloppy stuff less obvious.

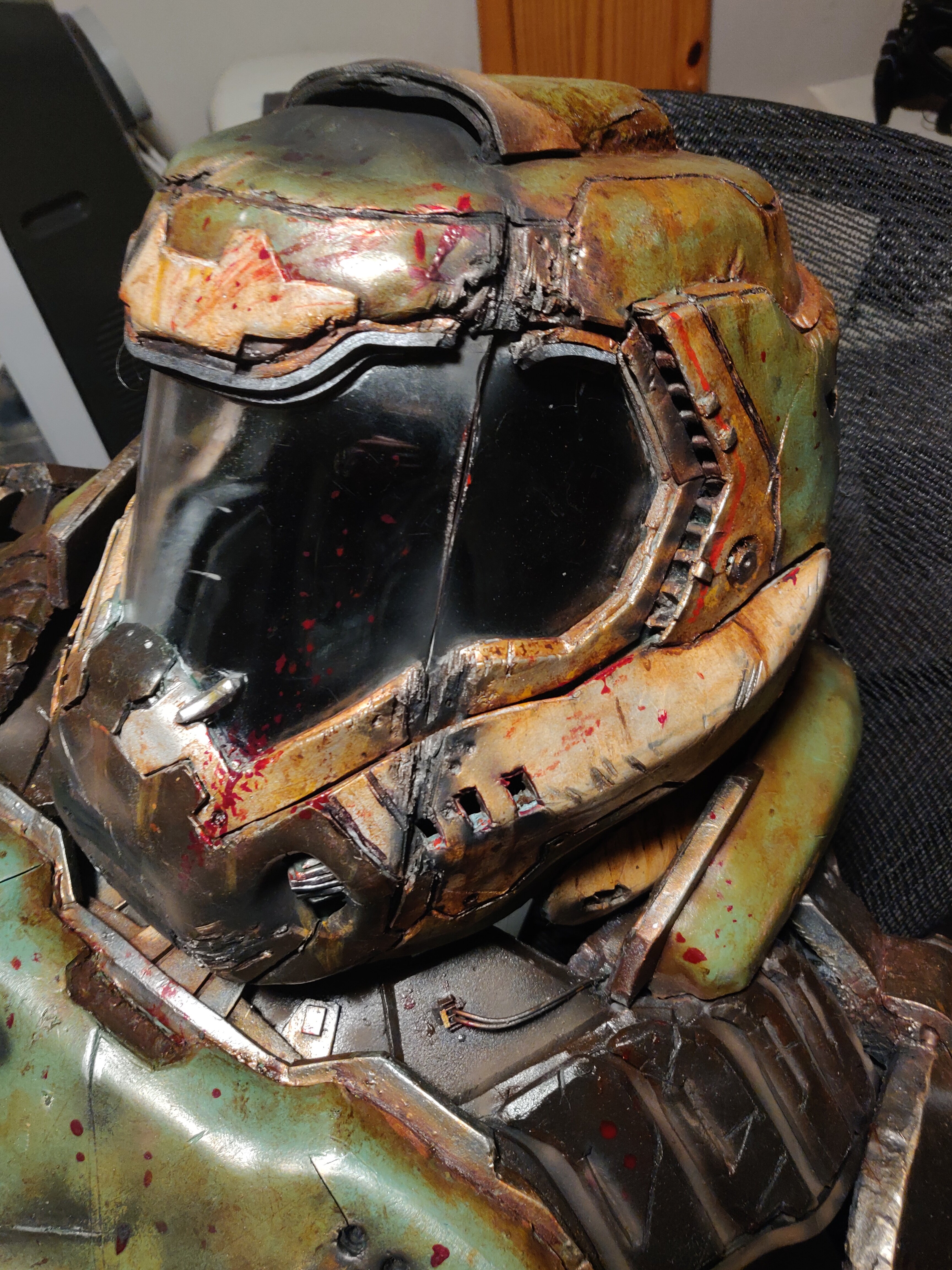

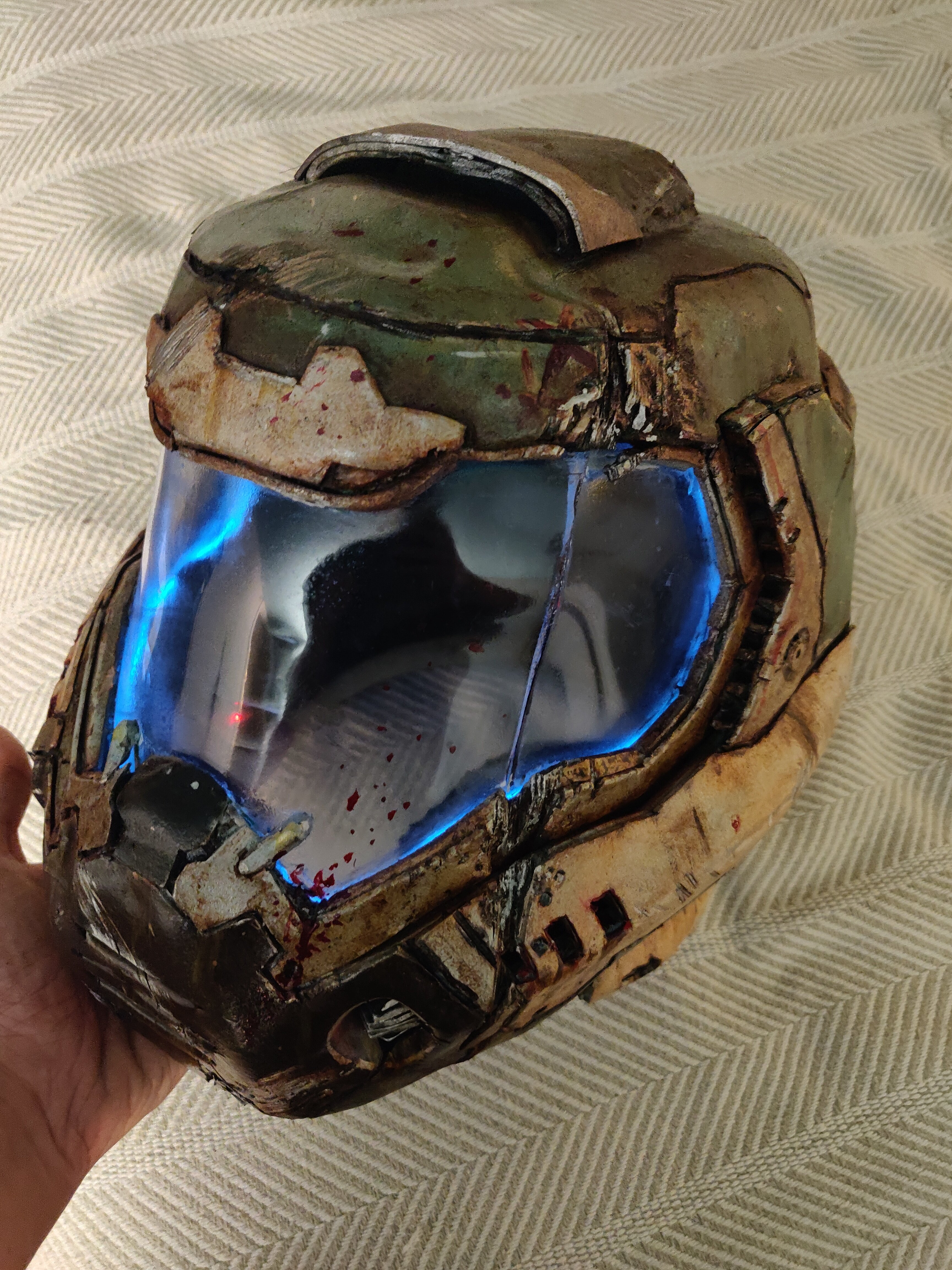

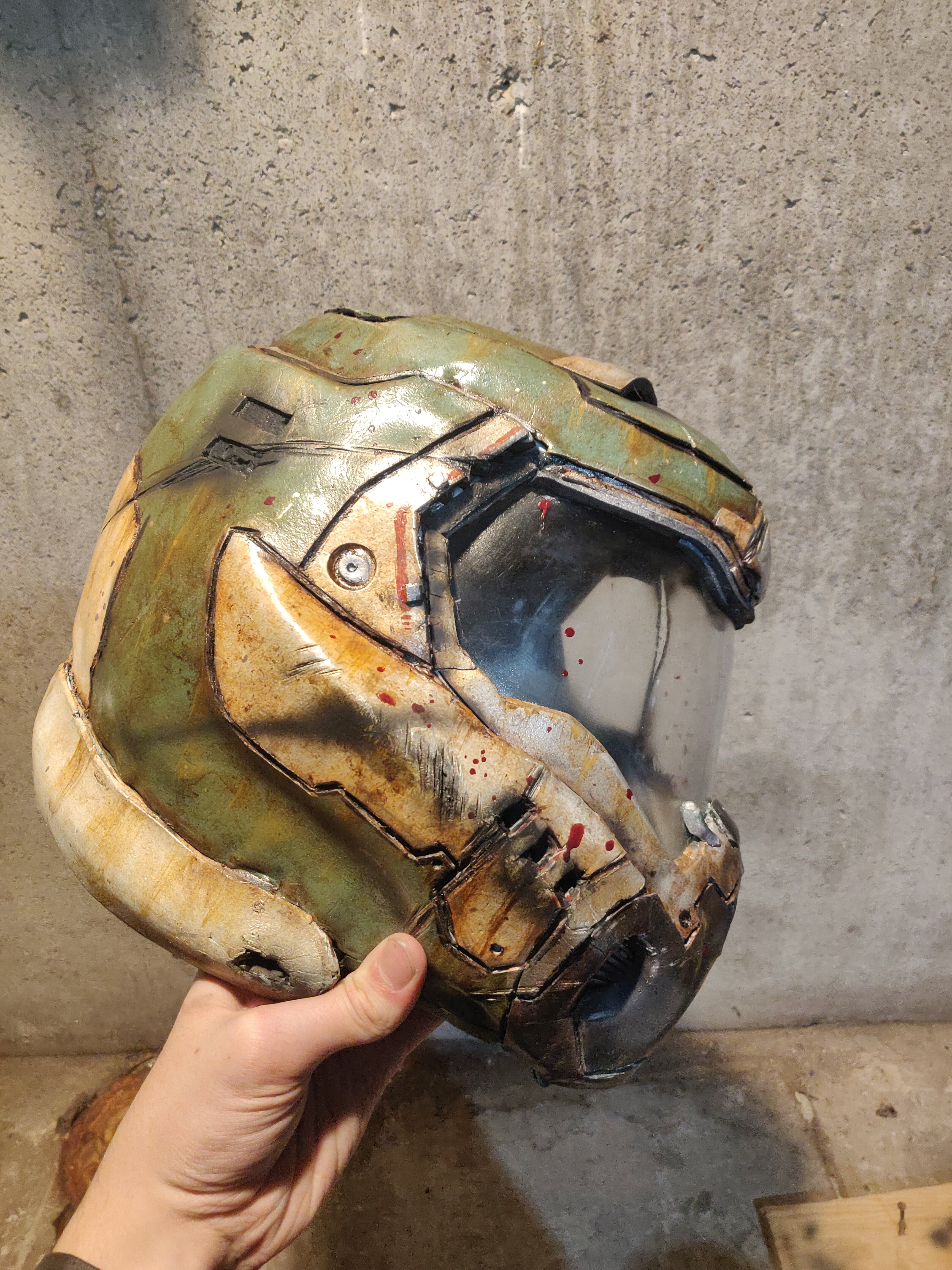

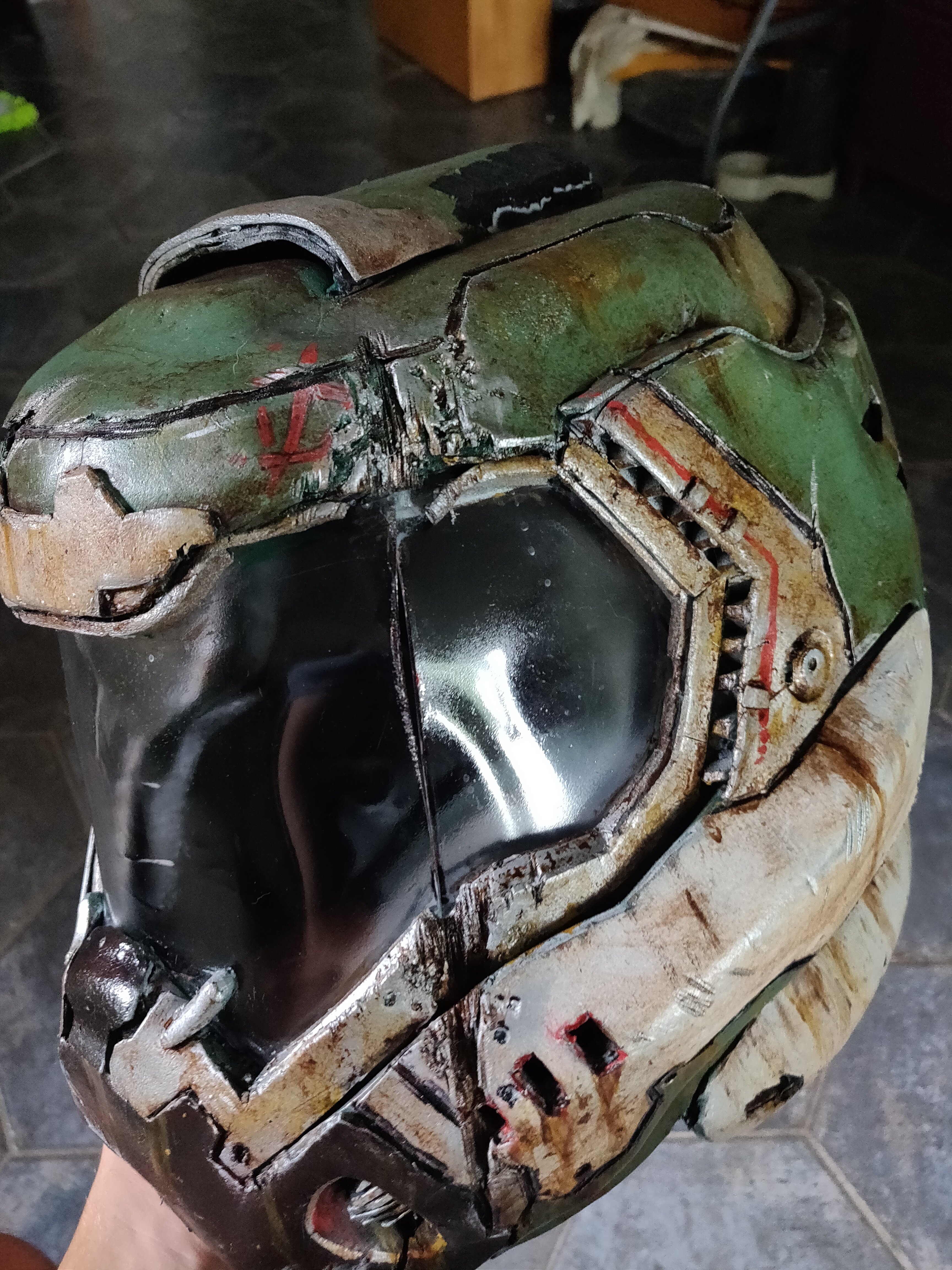

-Finished painting helmet (mostly, ignore the spot on the top air intake). I decided to go with a really old, rusty finish to try and sell the "sat in hell for eons" look. This was all done with tons of washes of acrylic, mostly yellow ochre and burnt umber in different mixes and layers. I find that slopping a ton on mixed with plenty of water and dabbing it off with a paper towel is the best way to get an evenly grimy finish. I got some silver leaf rub n buff for the scuffs and dents, it really is fantastic. Applied it with a paper towel in extremely small quantities.

-Finally managed to get a nice finish on the helmet visor. I used really old, ratty acrylic and couldn't get it to a nice polish with any method I found. Headlight polish, sandpaper, and clearcoat used in tandem did nothing. After a few hours I finally found a post online that said to hit it with a heatgun, and it worked perfectly. Apparently it melts the surface scratches. This has had the convenient side effect of making my EL wire really light up the plastic. It's not as bright as I'd like, but in the dark it looks really fantastic.

-Redid the abdomen to try and slim down the waist and fix asymmetry. It definitely helped, but I'm never going to be able to get that in game slim thicc look, and there is an embarrassing difference between the two armpit regions. Can't see both sides at once though, so I'm not particularly worried. It looks fatter in the pictures than it really is, mostly because of the weight of the rest of the suit flattening it. I suspect my phone's lens' fisheye lens doesn't help either.

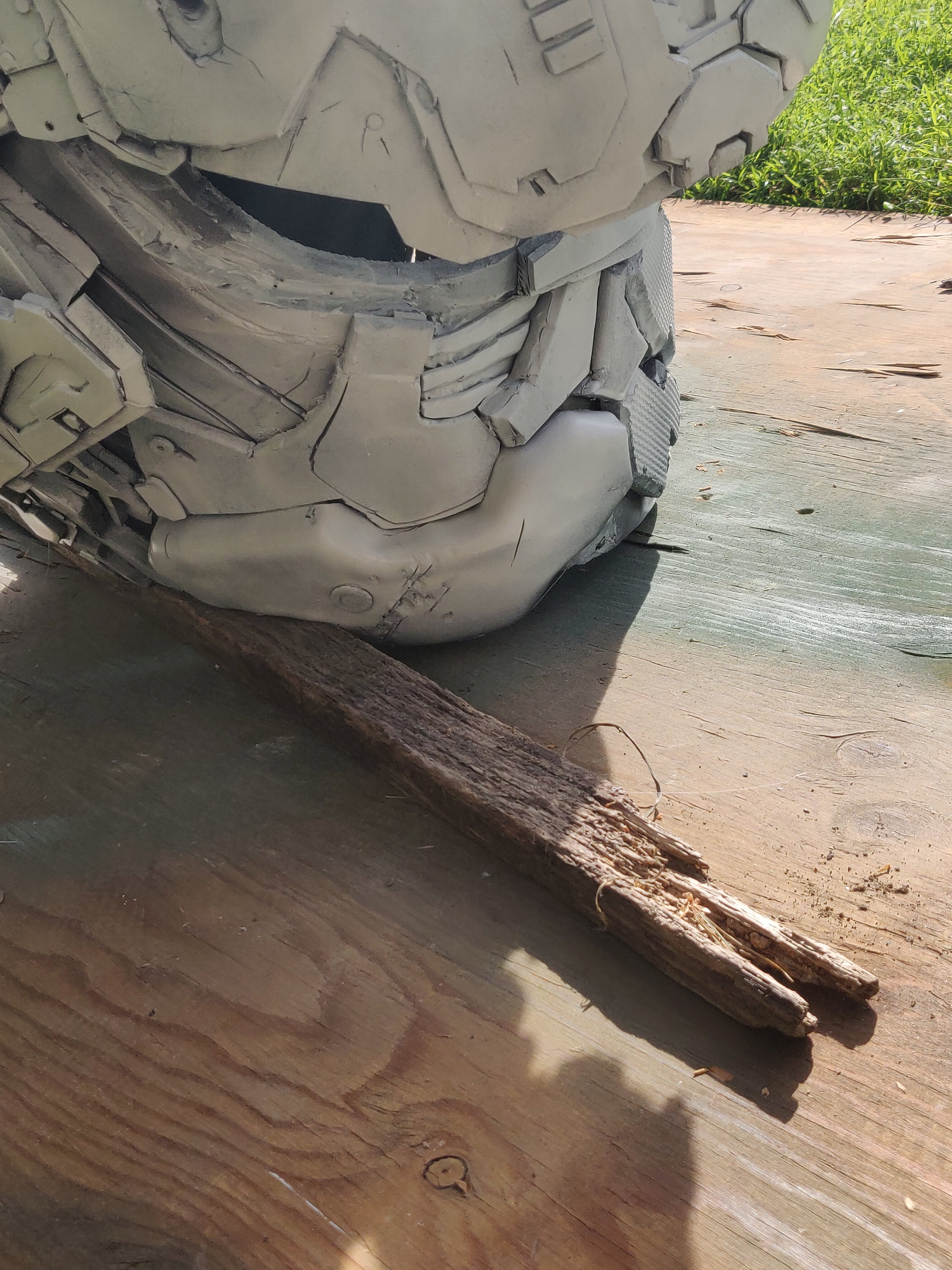

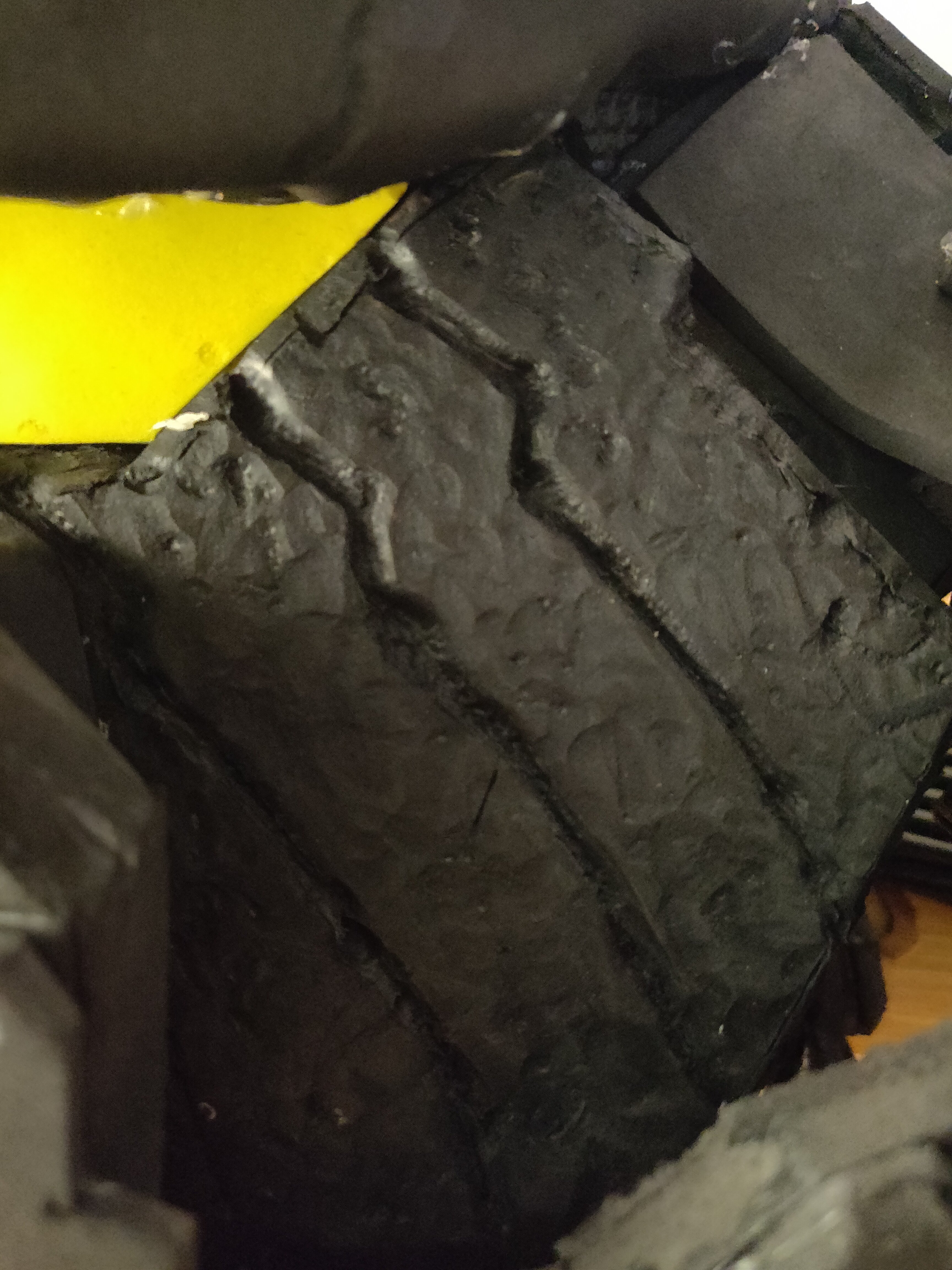

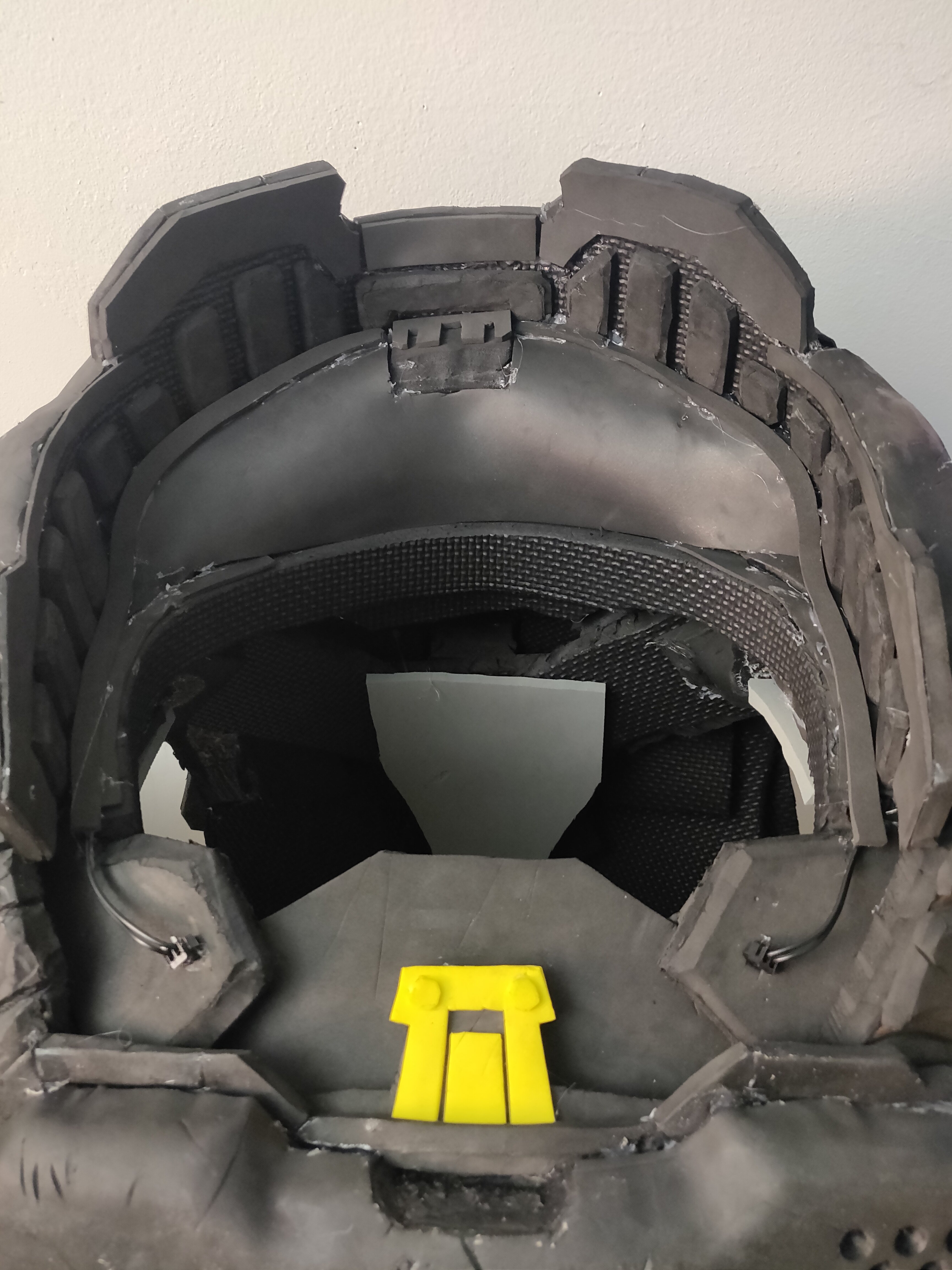

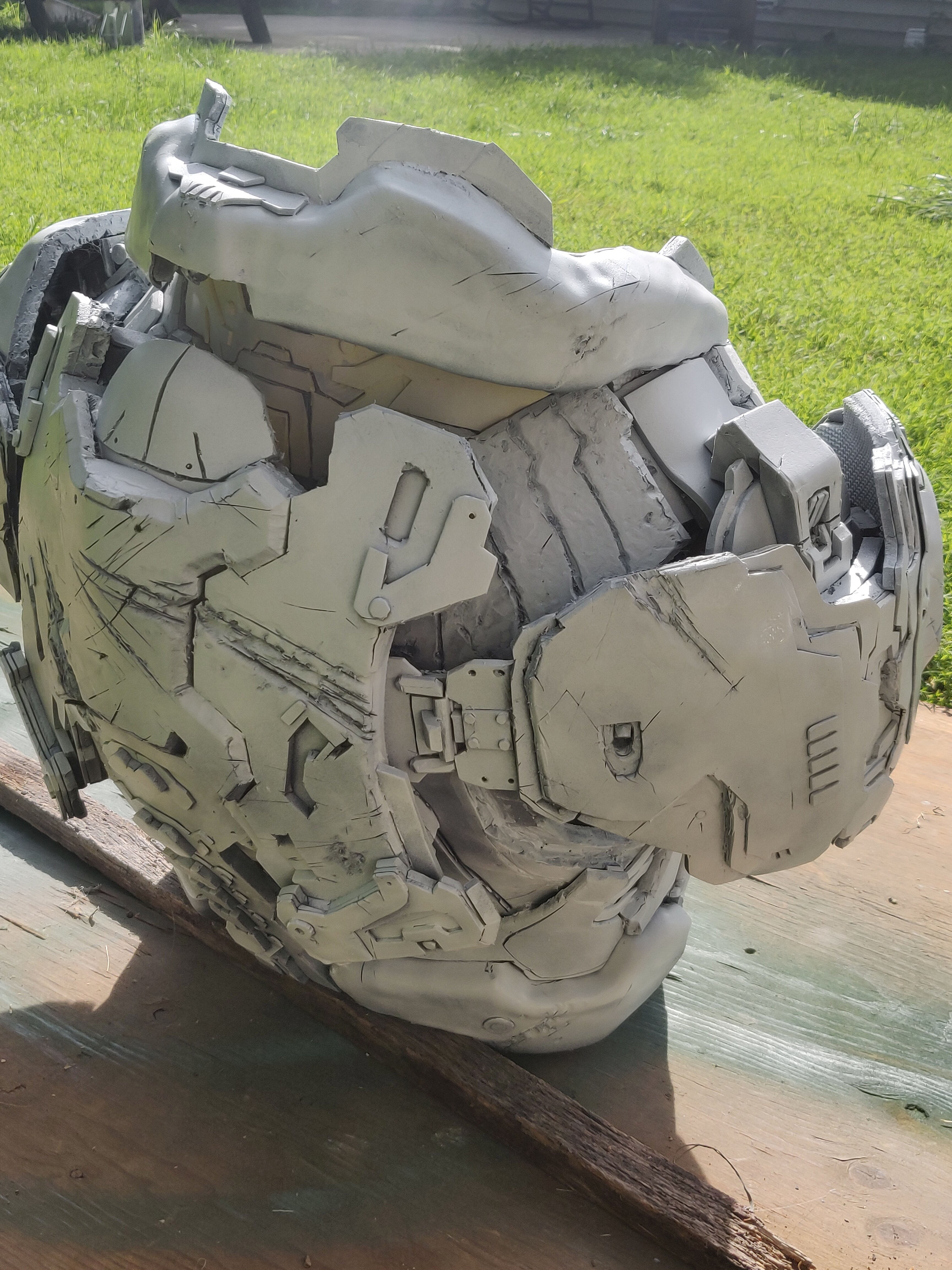

-Tons of little details in the sides, neck, and back. I tried adding texture to the leather areas by lightly scribbling with a rounded grinding stone dremel bit, and I like how it came out. It makes it look a bit more interesting, hopefully acrylic washes will really bring out the effect.
IMG_20200831_154936.jpg IMG_20200831_154940.jpg IMG_20200818_015447.jpg IMG_20200818_015557.jpg

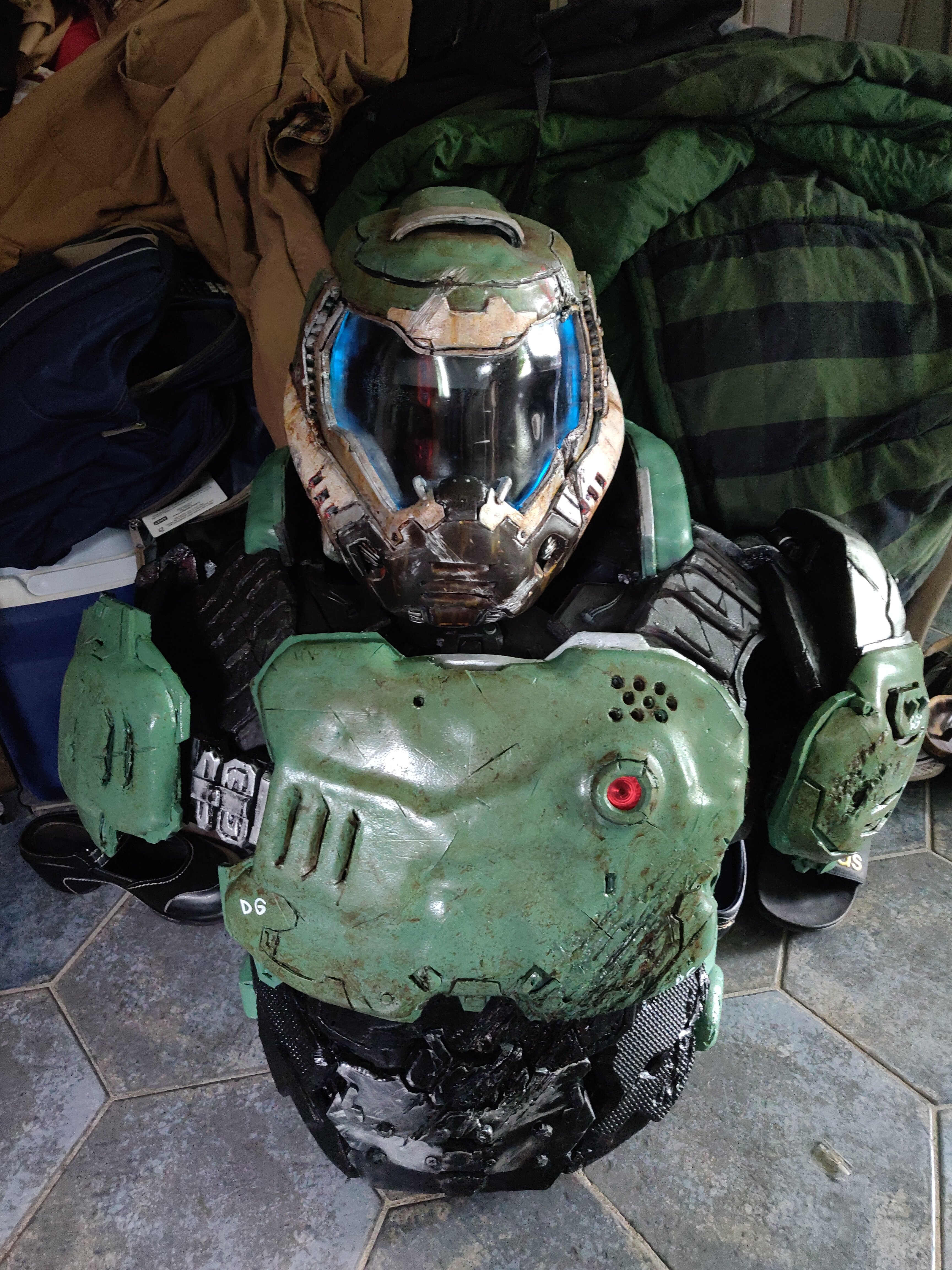

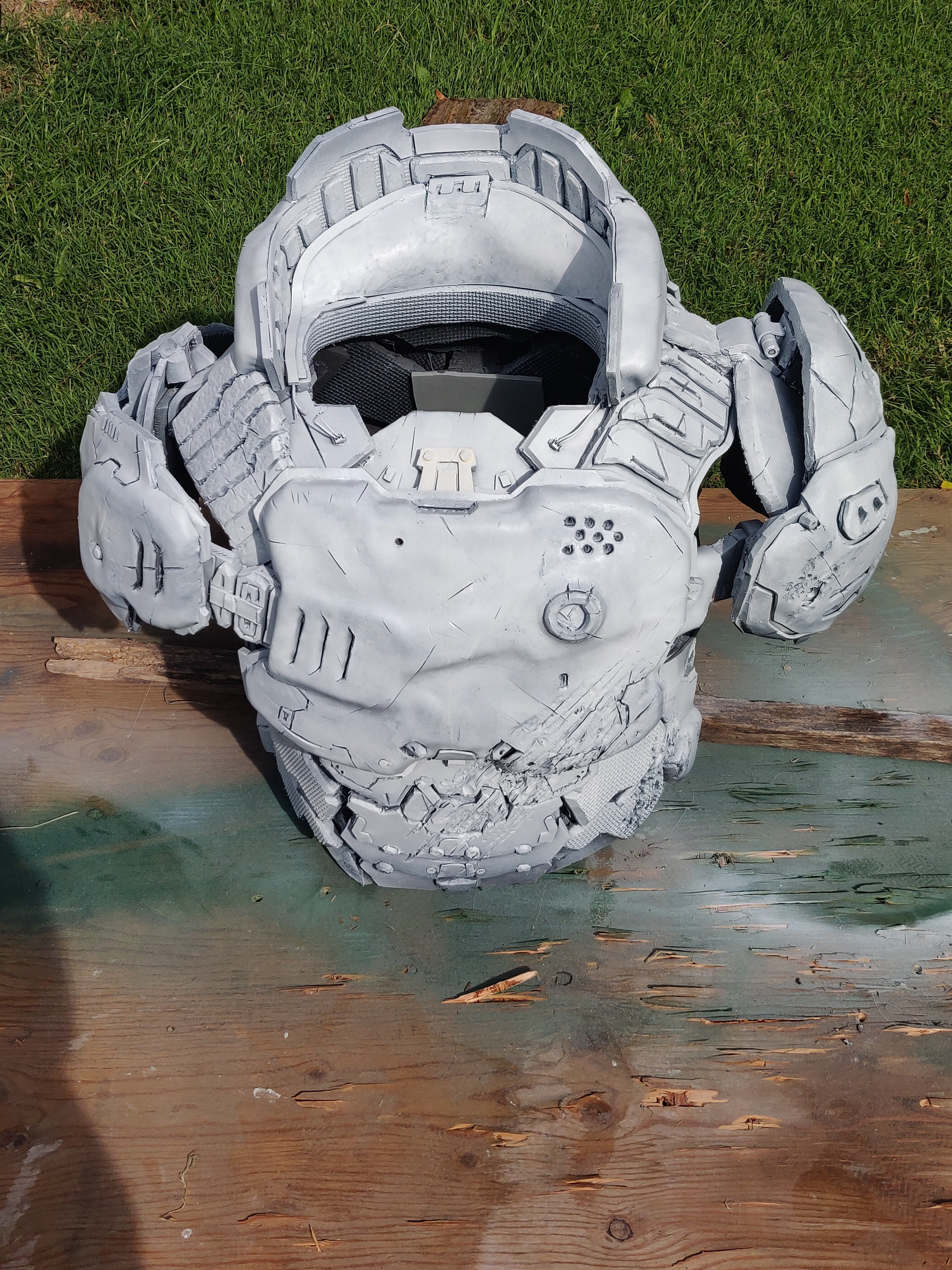

-Got priming and painting of the cuirass 90% done, started with heat treating the foam, then plastidip, then paint. I forgot about the forest green details on the armor plates, so that will be my task for today. Metal details will be next, I have some gunmetal acrylic arriving in a couple of days. I couldn't restrain myself from doing a quick umber wash and rub 'n buff. Ignore the garbage in the second pic.
IMG_20200831_154923.jpg IMG_20200902_134109.jpg

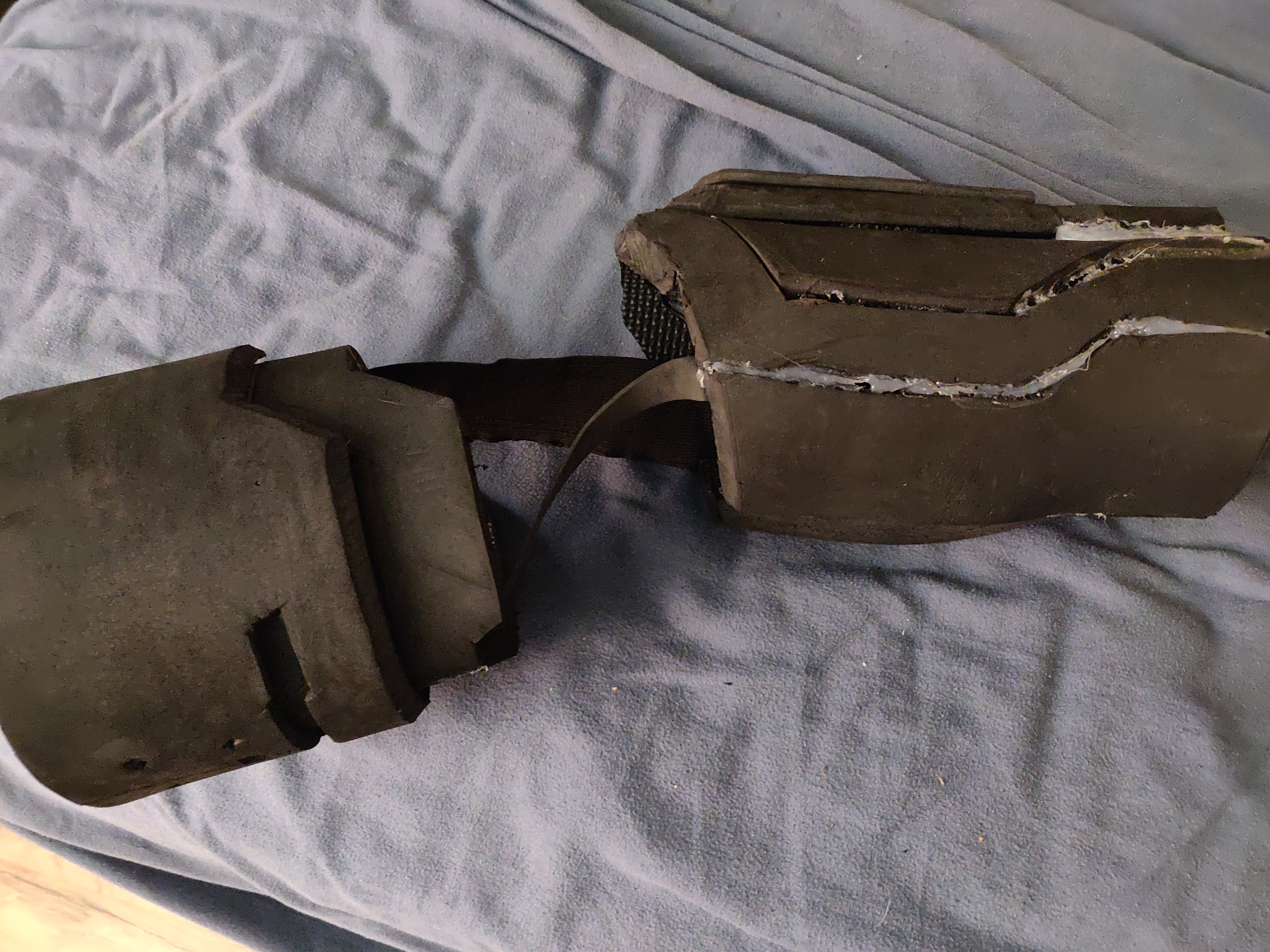

-I made these arms a while ago, but I don't think I've posted them. No detail yet, but they serve as a nice stand in. They connect via a buckle in the shoulders of the cuirass. I hate seeing upper arm and leg plates ride too low on otherwise gorgeous costumes, so getting that right will be a big focus for me.

That's all, not as much progress as I would have liked, but I've been working on my car on the side. I'm pretty confident that i'm over the hump of the project (fingers crossed). Next will be the hips, then legs, then detailing. I'm not looking forward to the boots, because the original ankle design doesn't really have flexibility in mind. I'm sure I'll figure it out, but it'll be a pain.

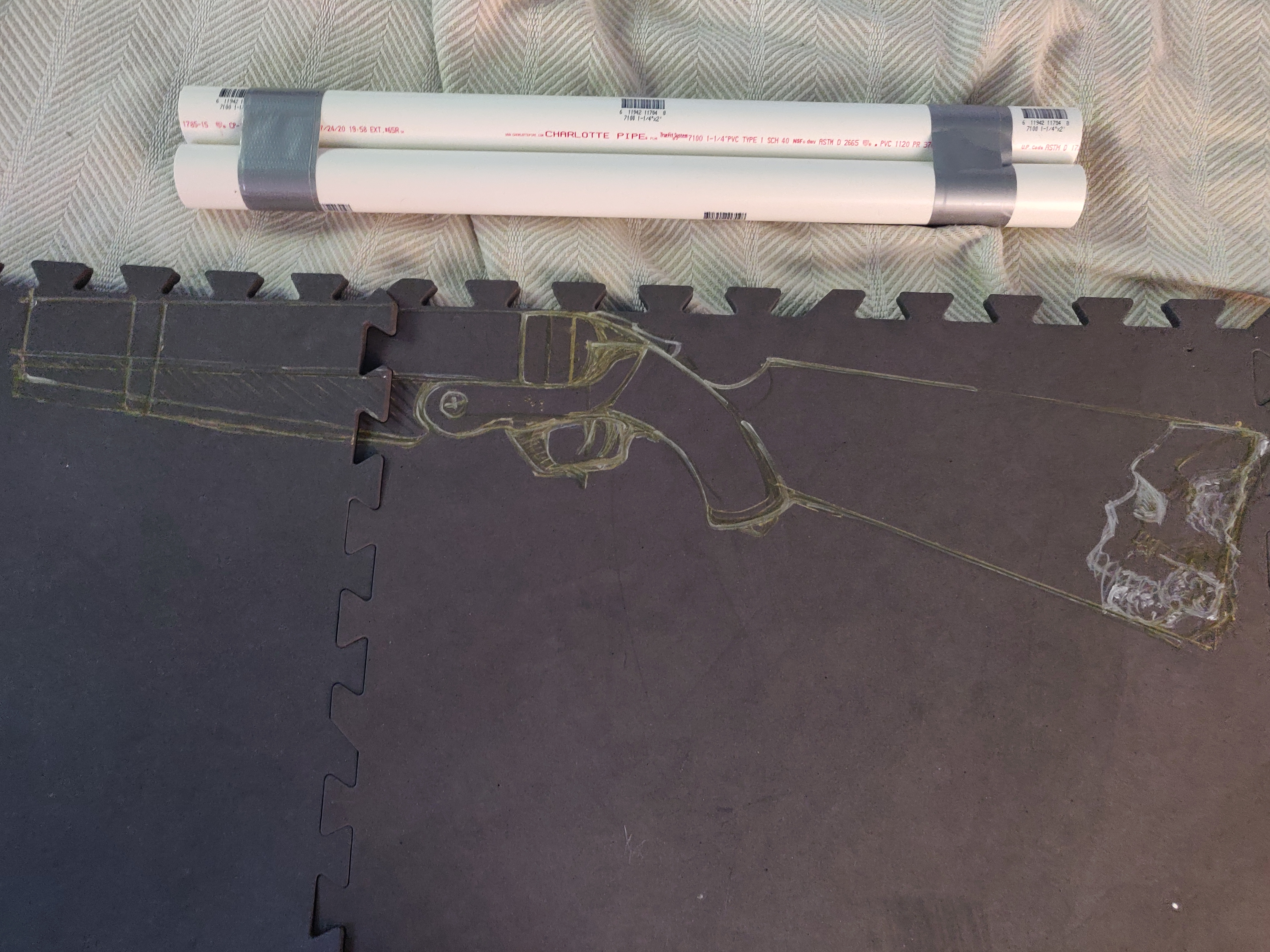

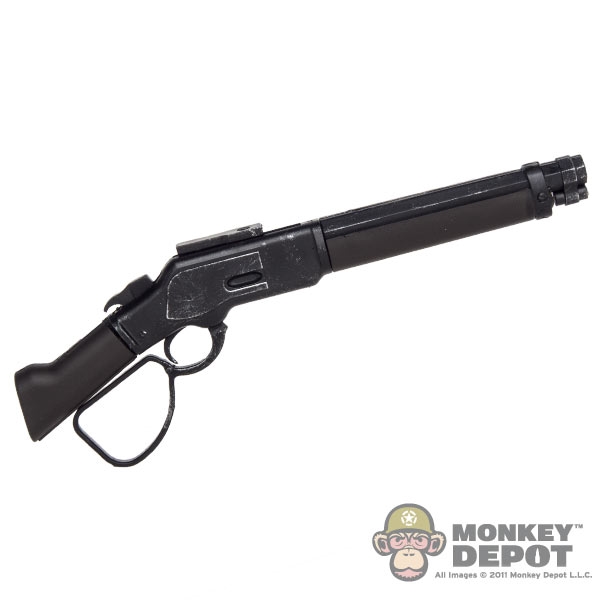

As for weaponry, I know it's sacrilegious, but I'm honestly not in love enough with the DOOM arsenal to replicate an in game model. I always thought Doomguy was missing a big bore lever action rifle, so I might try and design one for him. The super shotgun is cool, of course, but I think lever actions have that same old school charm + huge boom factor and are quite a bit less played out. It'd be fun to try and get the action to work realistically, the T2 spin-reload is definitely in the spirit of DOOM and I'd love to be able to pull it off. I like general shape of the Winchester below, but I think I'd keep the stock on. A matching low-slung leather hip holster would fit the look well, I'm taking quite a bit of artistic license on this build anyway so why not go for it.

Thanks for reading, sorry for the long post.


TecnicoNinja

New Member
Hey-o, since the last update I've got a ton of small things done that I wasn't entirely happy with. It's a long list, but most of it has to do with annoying asymmetry. Since I never use full templates, most of my eyeballing has to be corrected later on. The stuff I did:

-Fixed helmet lopsidedness as best I could. It's still there, but It's not really noticeable unless you look closely. I've found that battle damage is a great way to hide it; adding in a bit of intentional asymmetry makes the sloppy stuff less obvious.

-Finished painting helmet (mostly, ignore the spot on the top air intake). I decided to go with a really old, rusty finish to try and sell the "sat in hell for eons" look. This was all done with tons of washes of acrylic, mostly yellow ochre and burnt umber in different mixes and layers. I find that slopping a ton on mixed with plenty of water and dabbing it off with a paper towel is the best way to get an evenly grimy finish. I got some silver leaf rub n buff for the scuffs and dents, it really is fantastic. Applied it with a paper towel in extremely small quantities.
View attachment 295625

-Finally managed to get a nice finish on the helmet visor. I used really old, ratty acrylic and couldn't get it to a nice polish with any method I found. Headlight polish, sandpaper, and clearcoat used in tandem did nothing. After a few hours I finally found a post online that said to hit it with a heatgun, and it worked perfectly. Apparently it melts the surface scratches. This has had the convenient side effect of making my EL wire really light up the plastic. It's not as bright as I'd like, but in the dark it looks really fantastic.

-Redid the abdomen to try and slim down the waist and fix asymmetry. It definitely helped, but I'm never going to be able to get that in game slim thicc look, and there is an embarrassing difference between the two armpit regions. Can't see both sides at once though, so I'm not particularly worried. It looks fatter in the pictures than it really is, mostly because of the weight of the rest of the suit flattening it. I suspect my phone's lens' fisheye lens doesn't help either.

-Tons of little details in the sides, neck, and back. I tried adding texture to the leather areas by lightly scribbling with a rounded grinding stone dremel bit, and I like how it came out. It makes it look a bit more interesting, hopefully acrylic washes will really bring out the effect.
View attachment 295616 View attachment 295617 View attachment 295620 View attachment 295621
-Got priming and painting of the cuirass 90% done, started with heat treating the foam, then plastidip, then paint. I forgot about the forest green details on the armor plates, so that will be my task for today. Metal details will be next, I have some gunmetal acrylic arriving in a couple of days. I couldn't restrain myself from doing a quick umber wash and rub 'n buff. Ignore the garbage in the second pic.
View attachment 295618 View attachment 295619

-I made these arms a while ago, but I don't think I've posted them. No detail yet, but they serve as a nice stand in. They connect via a buckle in the shoulders of the cuirass. I hate seeing upper arm and leg plates ride too low on otherwise gorgeous costumes, so getting that right will be a big focus for me.
View attachment 295622

That's all, not as much progress as I would have liked, but I've been working on my car on the side. I'm pretty confident that i'm over the hump of the project (fingers crossed). Next will be the hips, then legs, then detailing. I'm not looking forward to the boots, because the original ankle design doesn't really have flexibility in mind. I'm sure I'll figure it out, but it'll be a pain.

As for weaponry, I know it's sacrilegious, but I'm honestly not in love enough with the DOOM arsenal to replicate an in game model. I always thought Doomguy was missing a big bore lever action rifle, so I might try and design one for him. The super shotgun is cool, of course, but I think lever actions have that same old school charm + huge boom factor and are quite a bit less played out. It'd be fun to try and get the action to work realistically, the T2 spin-reload is definitely in the spirit of DOOM and I'd love to be able to pull it off. I like general shape of the Winchester below, but I think I'd keep the stock on. A matching low-slung leather hip holster would fit the look well, I'm taking quite a bit of artistic license on this build anyway so why not go for it.
View attachment 295626

Thanks for reading, sorry for the long post.
That's all looking pretty good, I am new to the forum and I am just looking around and found your build, can't wait to see it finished! Nice job!


Onslovo

New Member

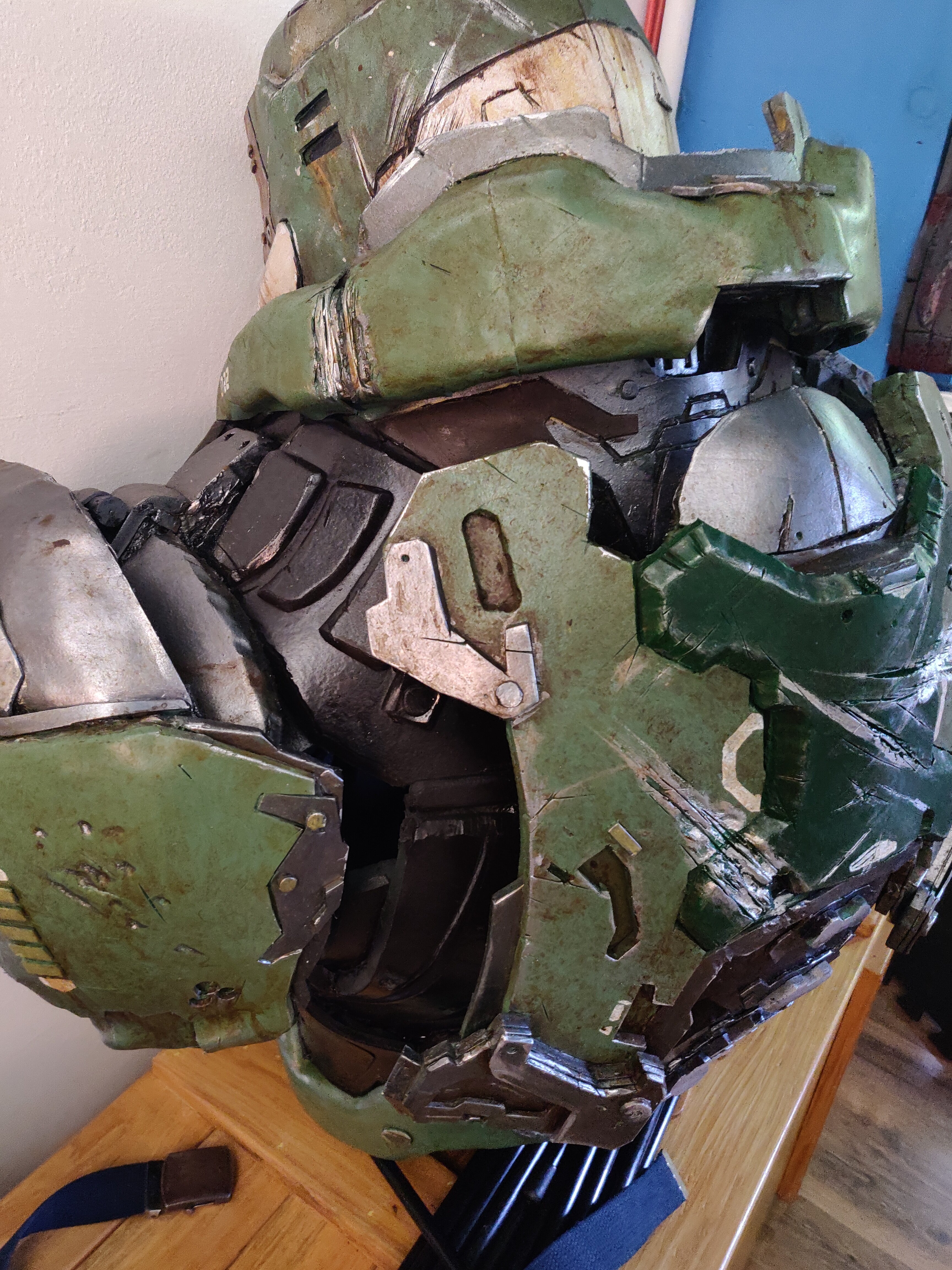

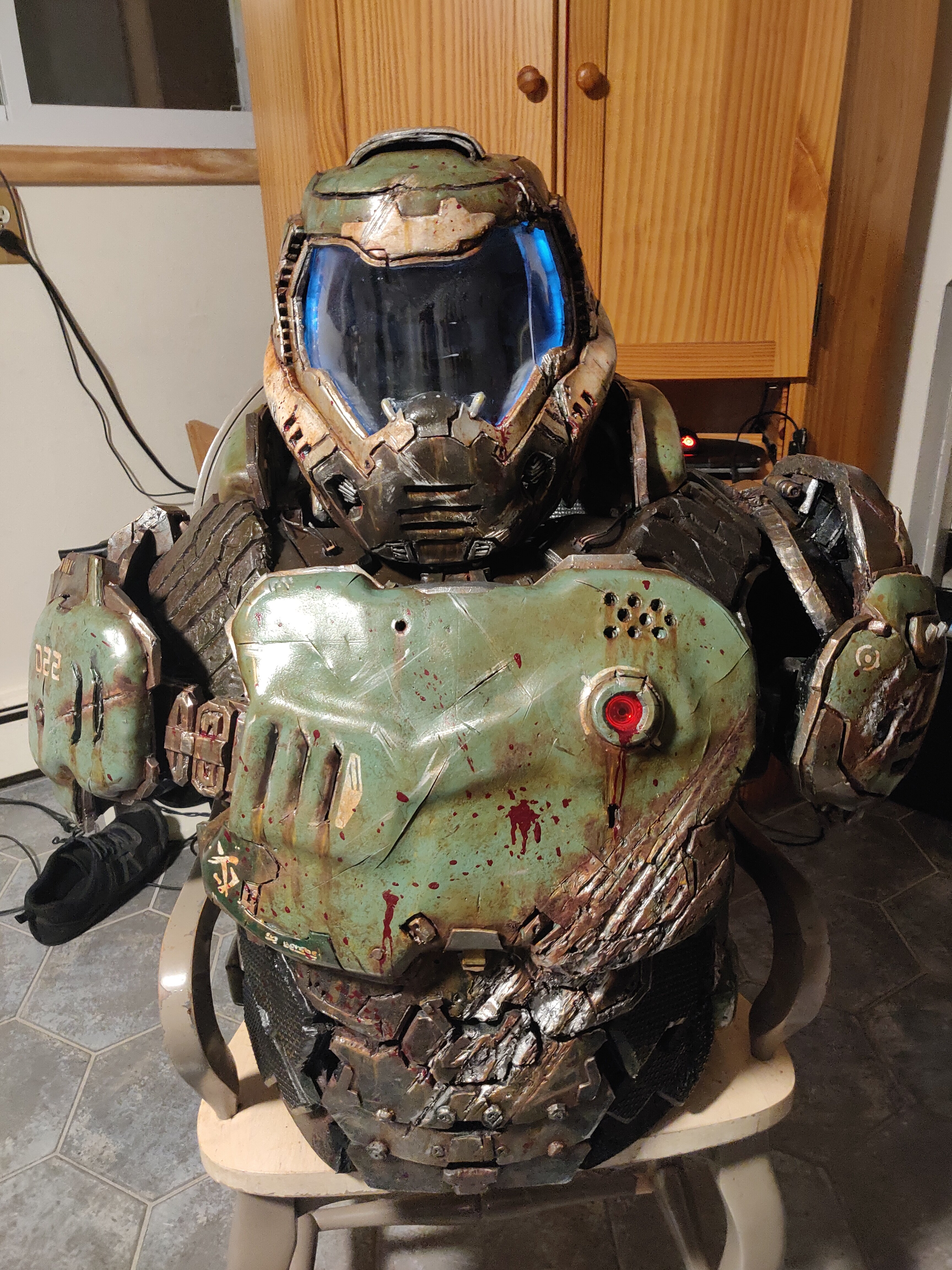

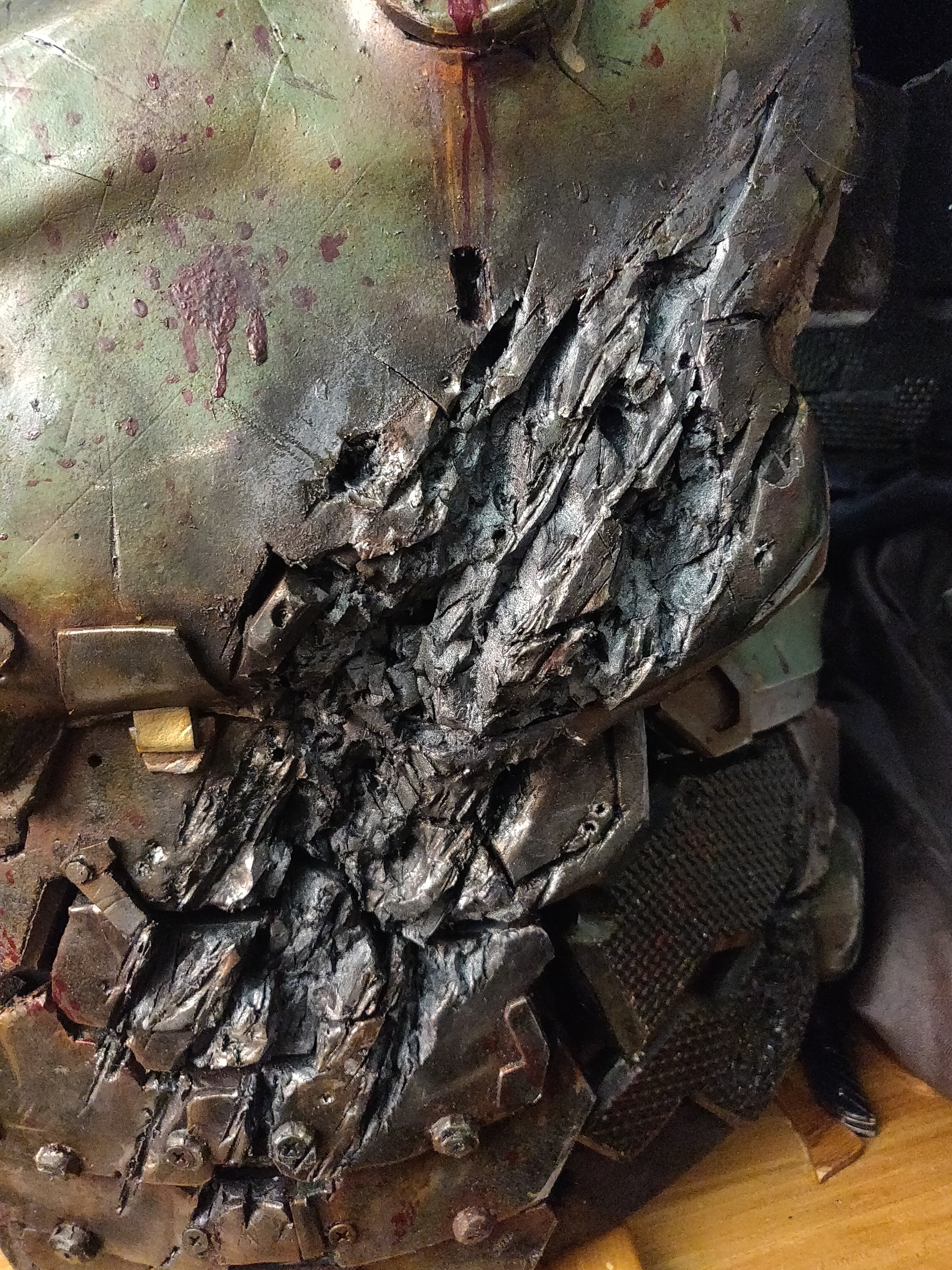

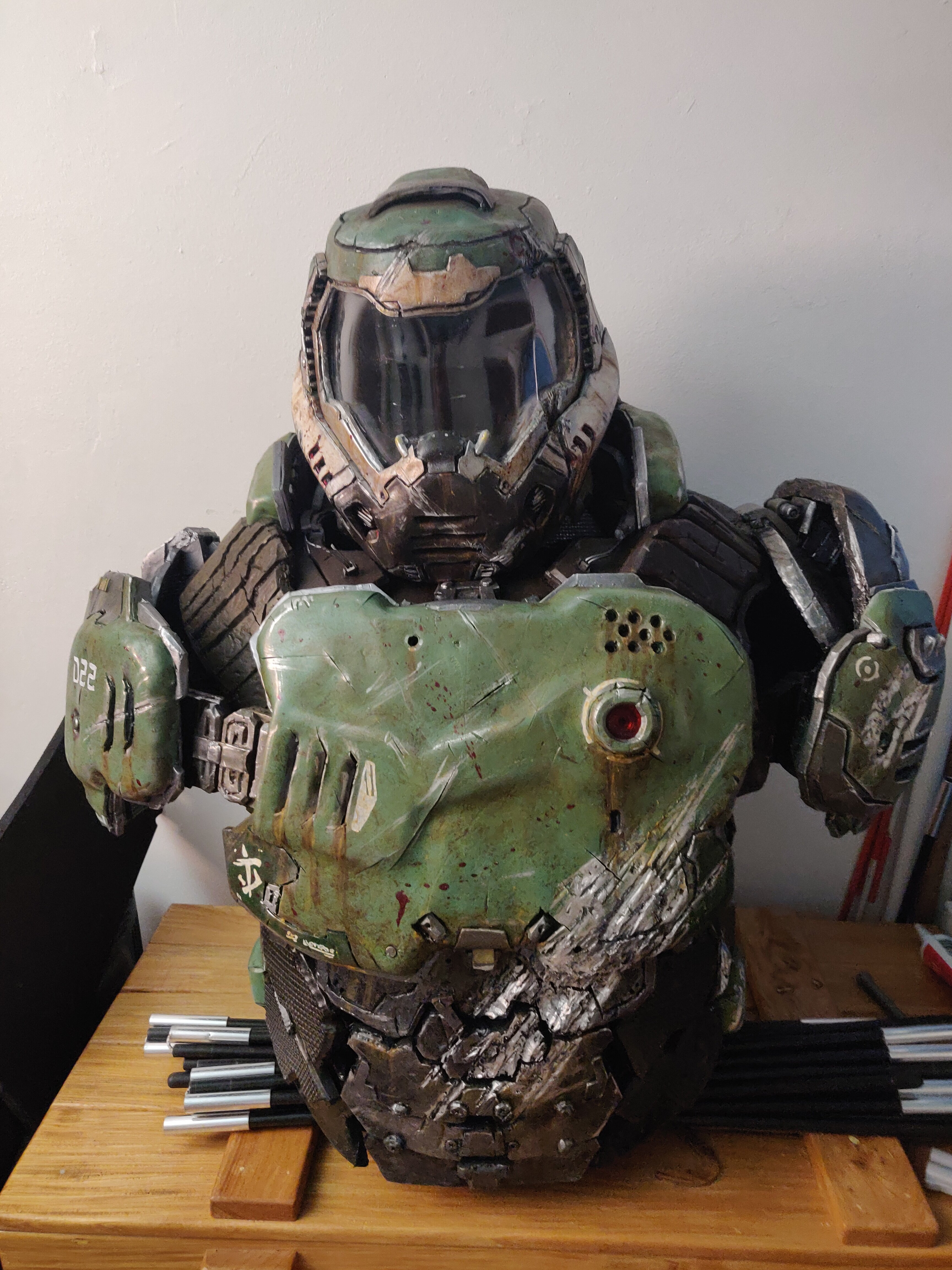

I've done a bunch of weathering and detailing; it's gone pretty well so far. next up will be clearcoat and then I'll try a oil paint wash or two to dull everything down. I found some "redrock pearl" Honda touch-up paint lying around, and luckily it makes a pretty impressive substitute for dried blood. It'll get you ripped without good ventilation though.
IMG_20200913_215713.jpg IMG_20200916_113944.jpg
