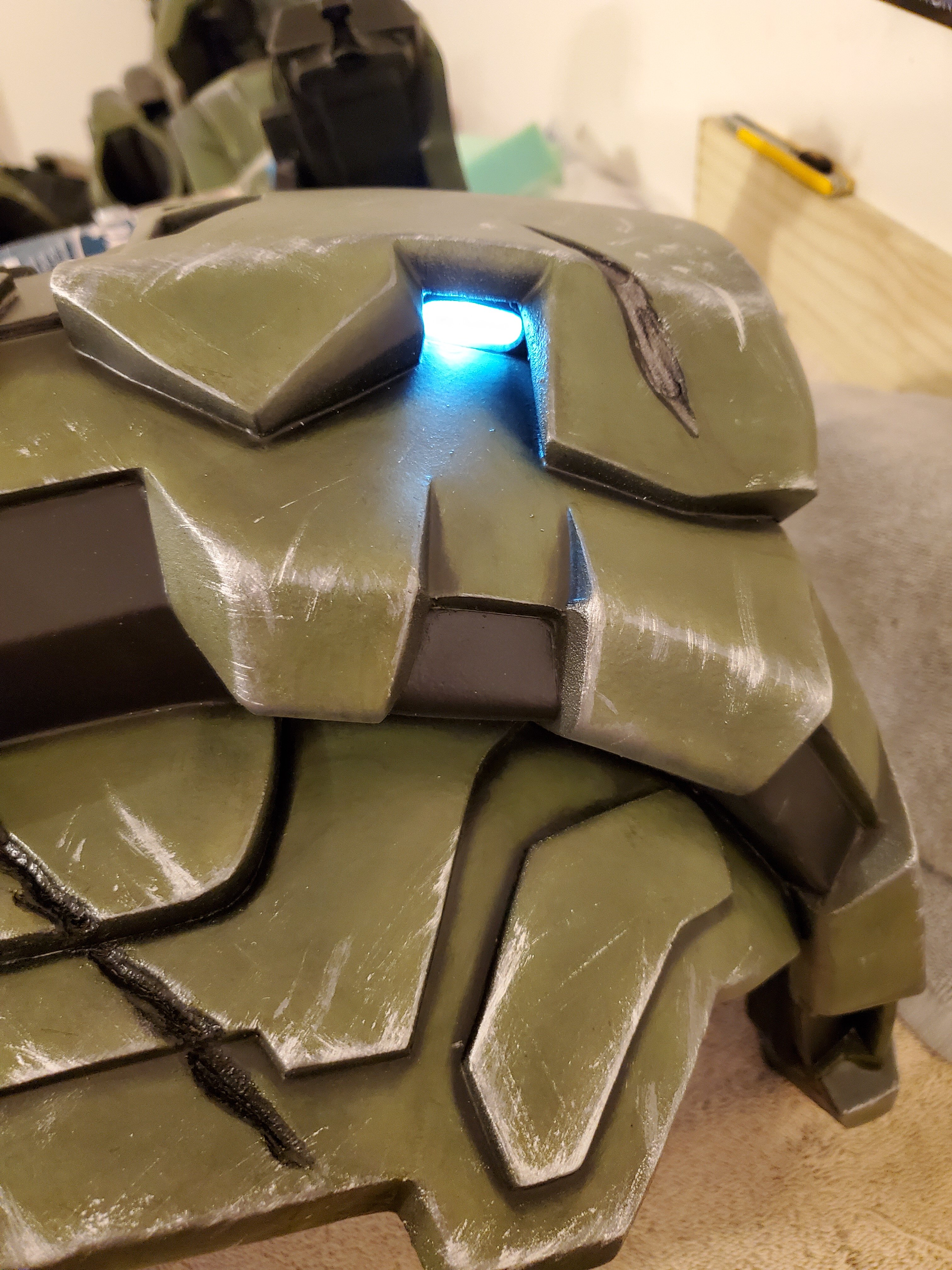

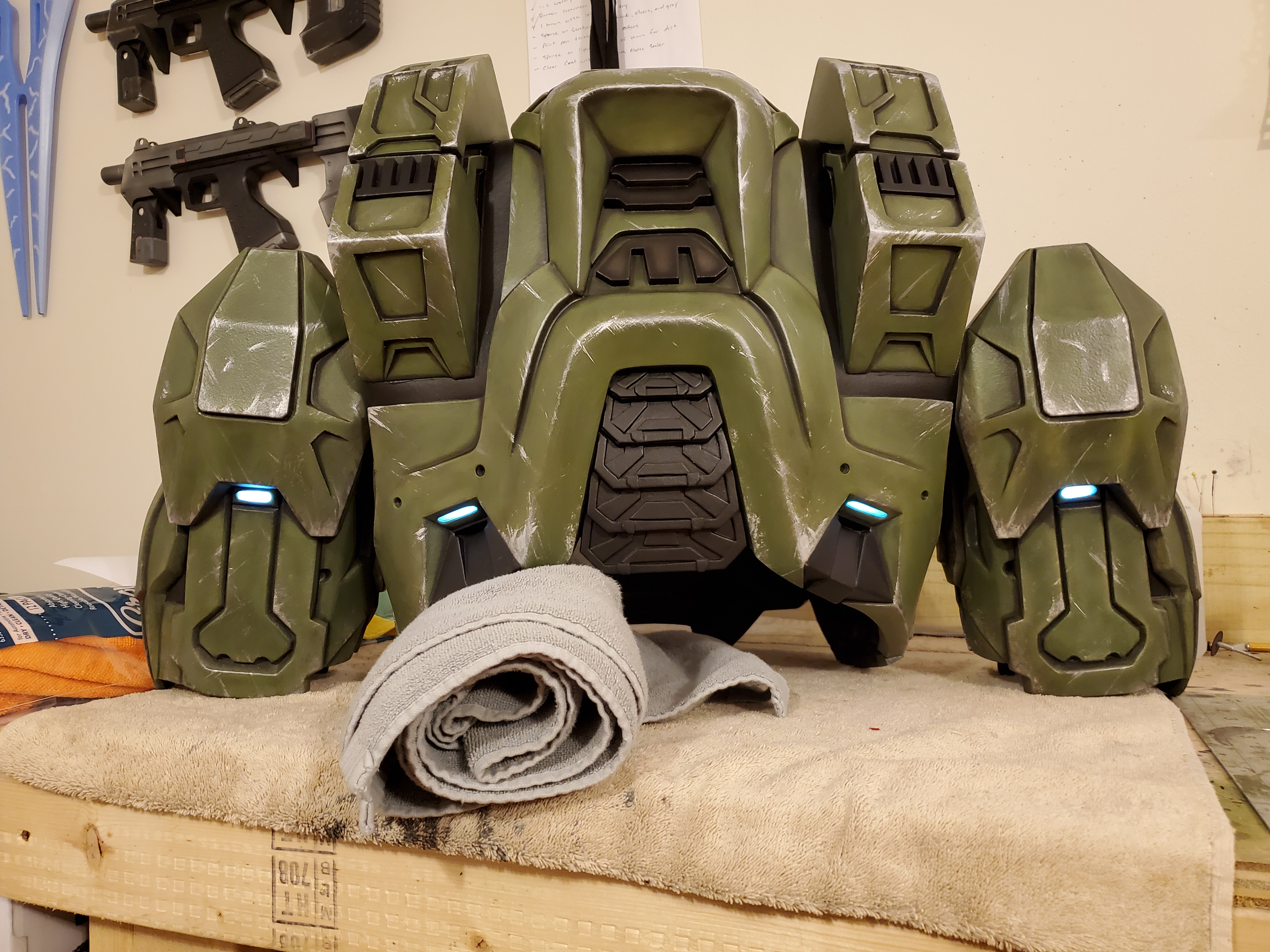

Ok guys, the moment I've been waiting for.. lights and wiring are finished which makes this torso done!! Alot of thought went into the wiring to keep it clean and also power all the lights on the upper body from the same source at once. I'm really happy with how the glow of the shield emitters (lights) turned out, very game accurate especially the way they cast light compared to how they look in the game.
ExCeLLuR8 - Did you make the lights and the connectors yourself? (I really like how they look and I'd love to know more about them)


ExCeLLuR8

Well-Known Member
ExCeLLuR8 - Did you make the lights and the connectors yourself? (I really like how they look and I'd love to know more about them)

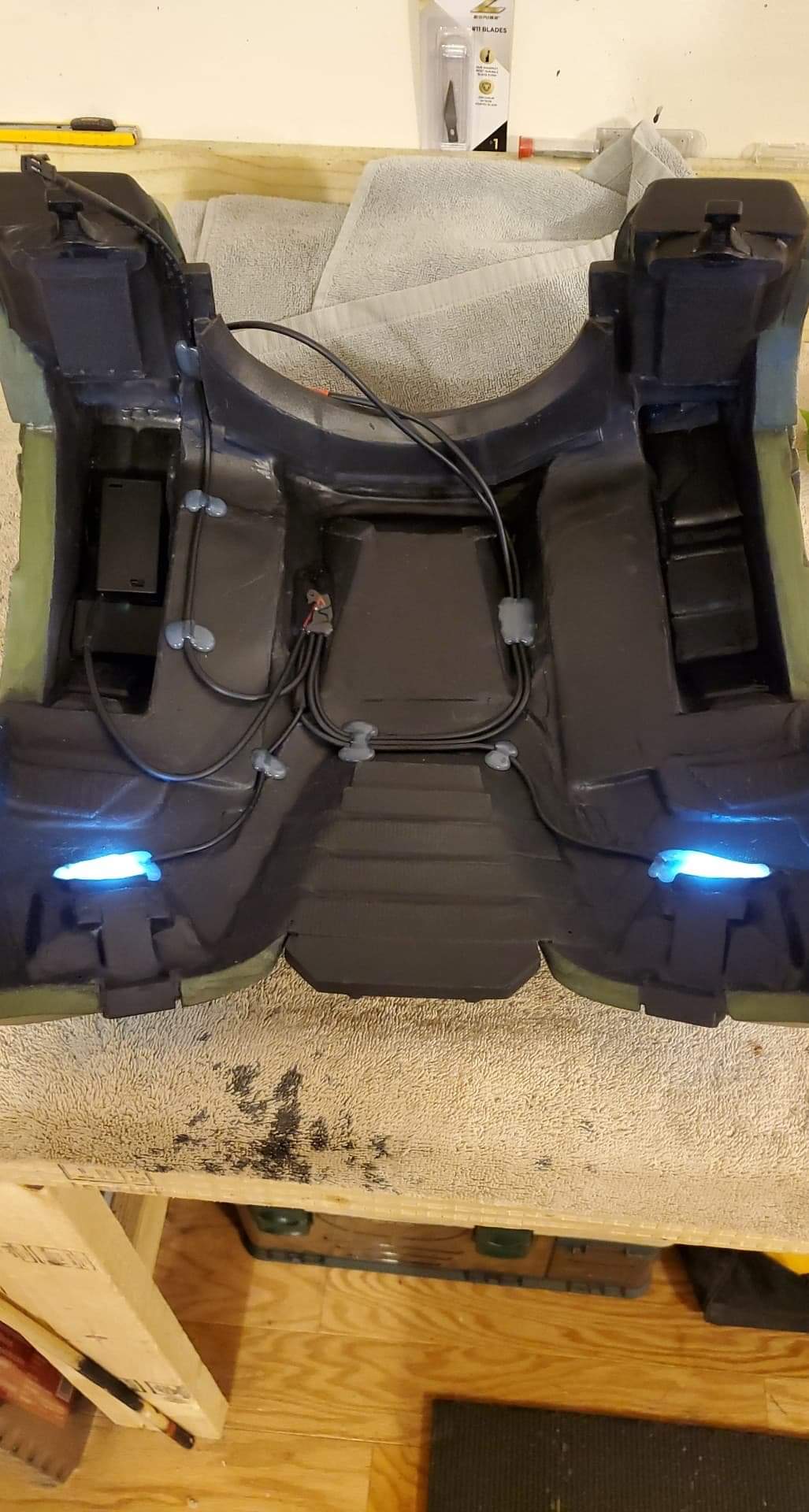

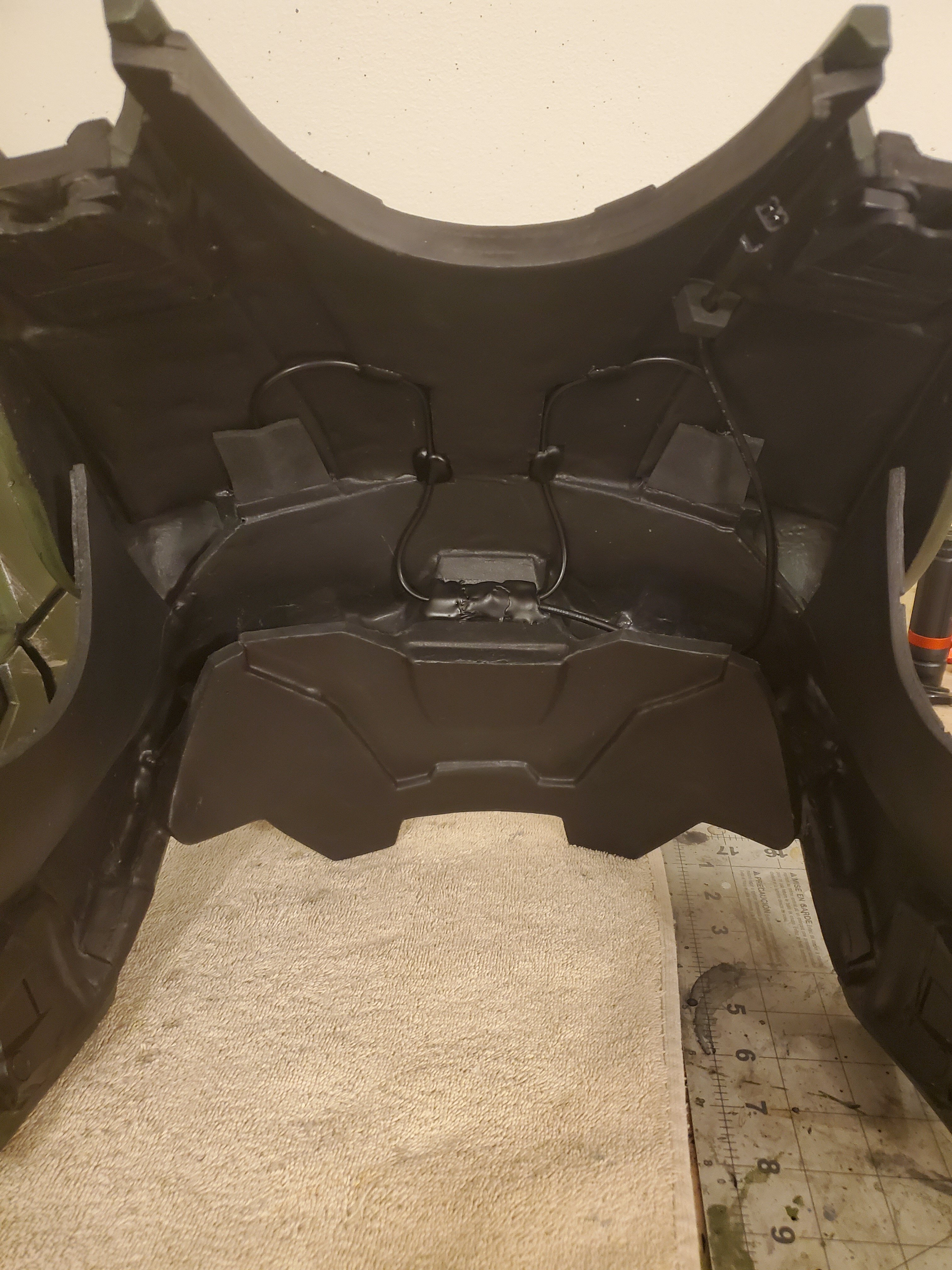

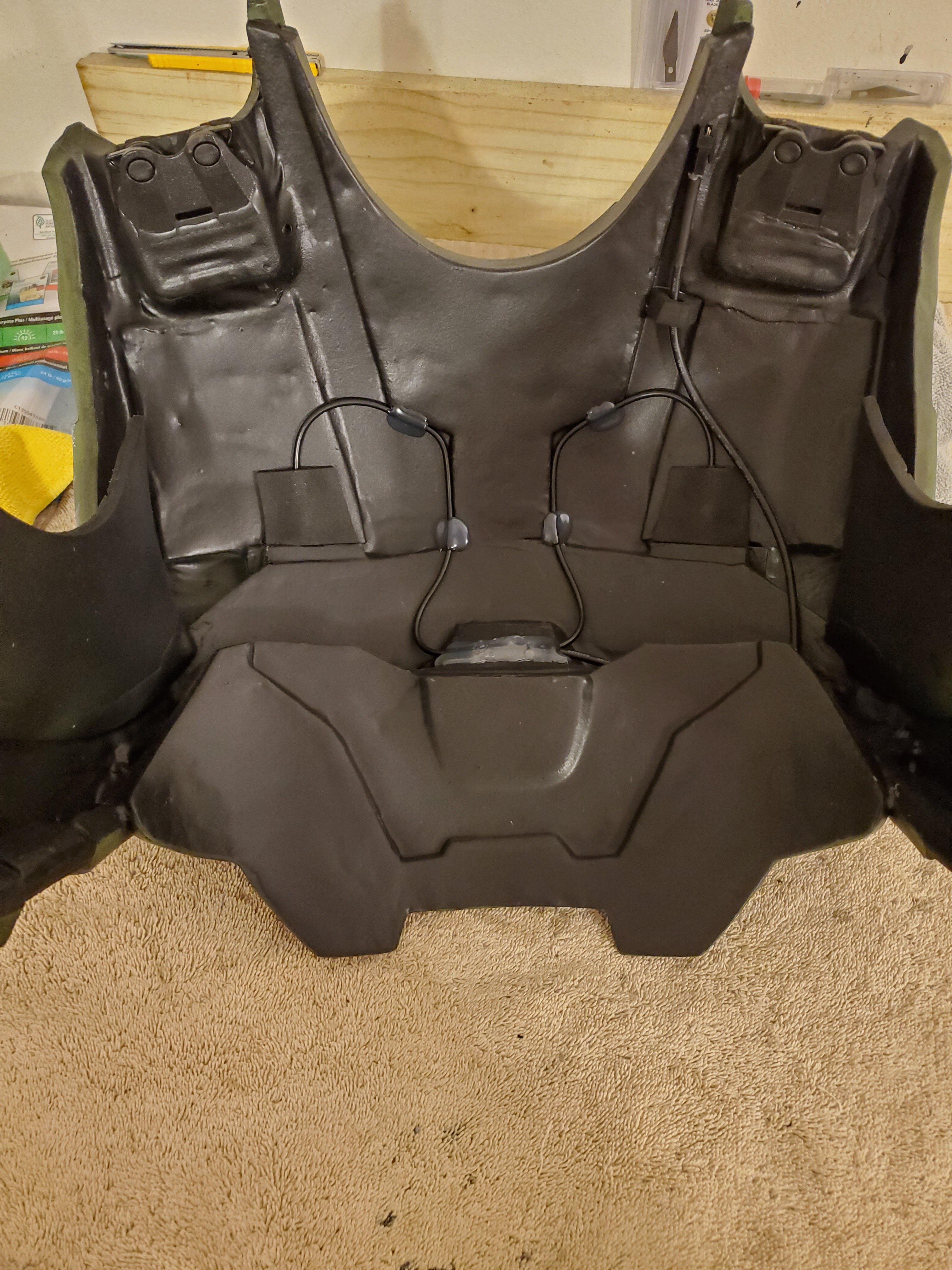

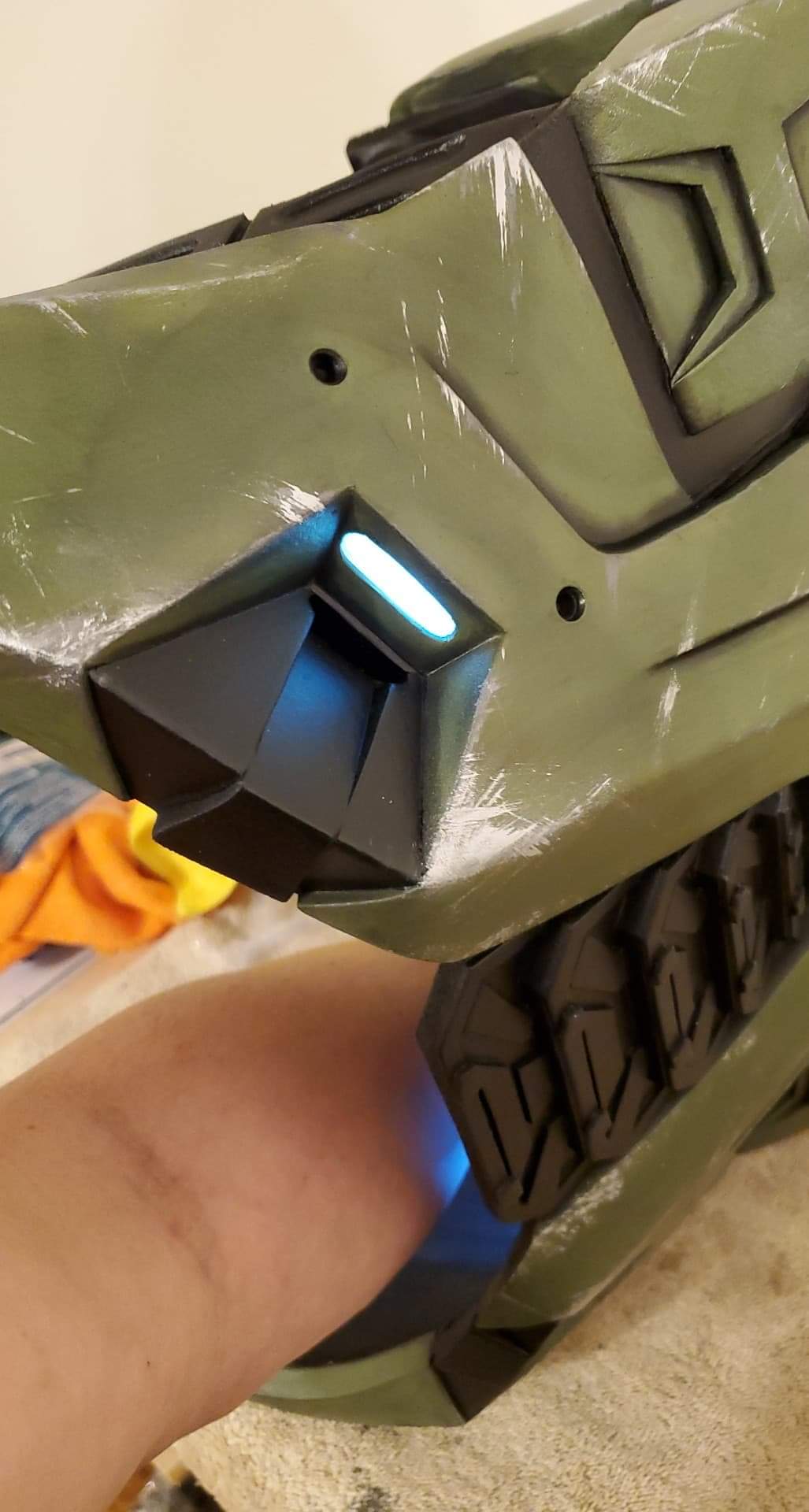

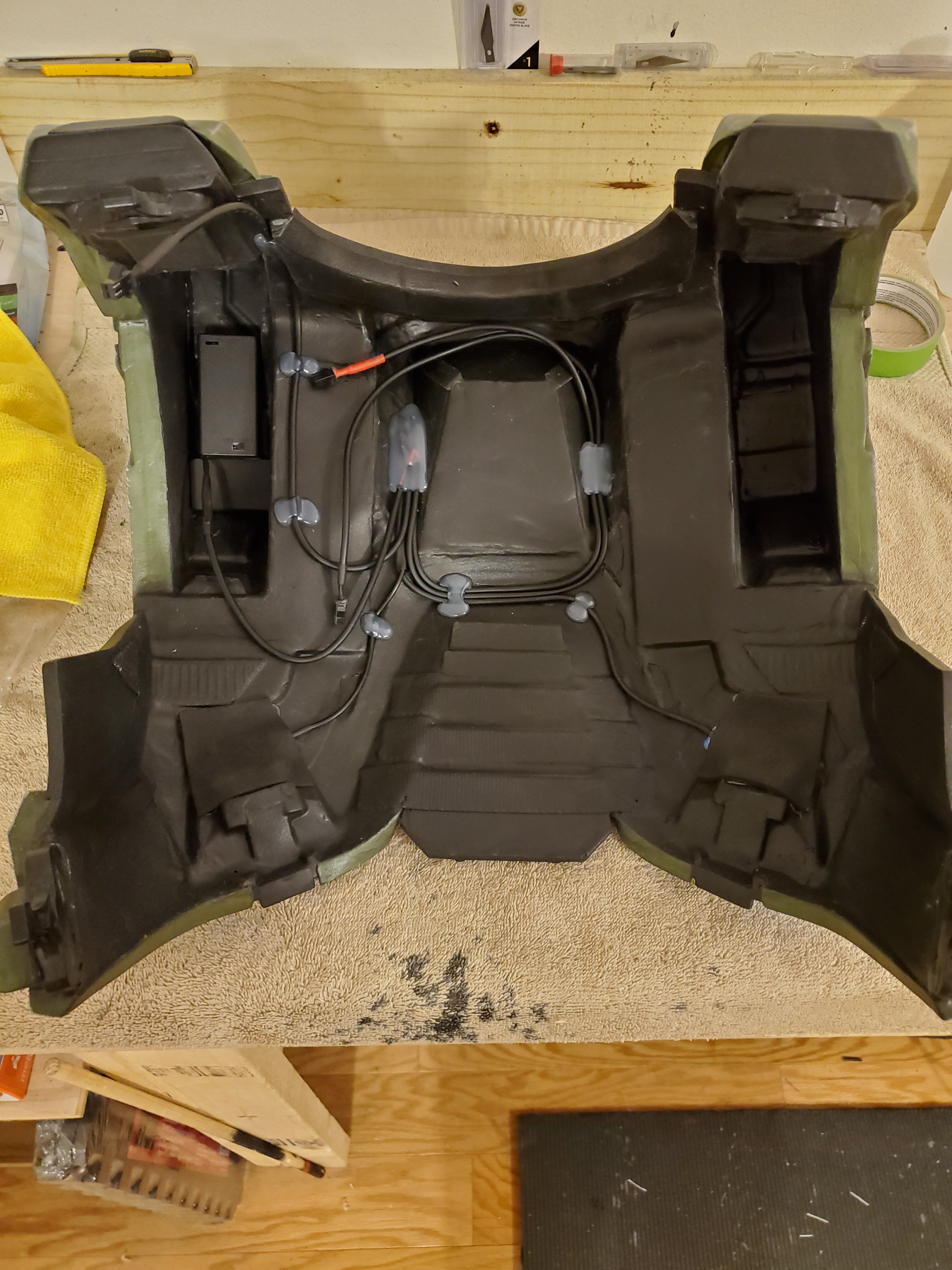

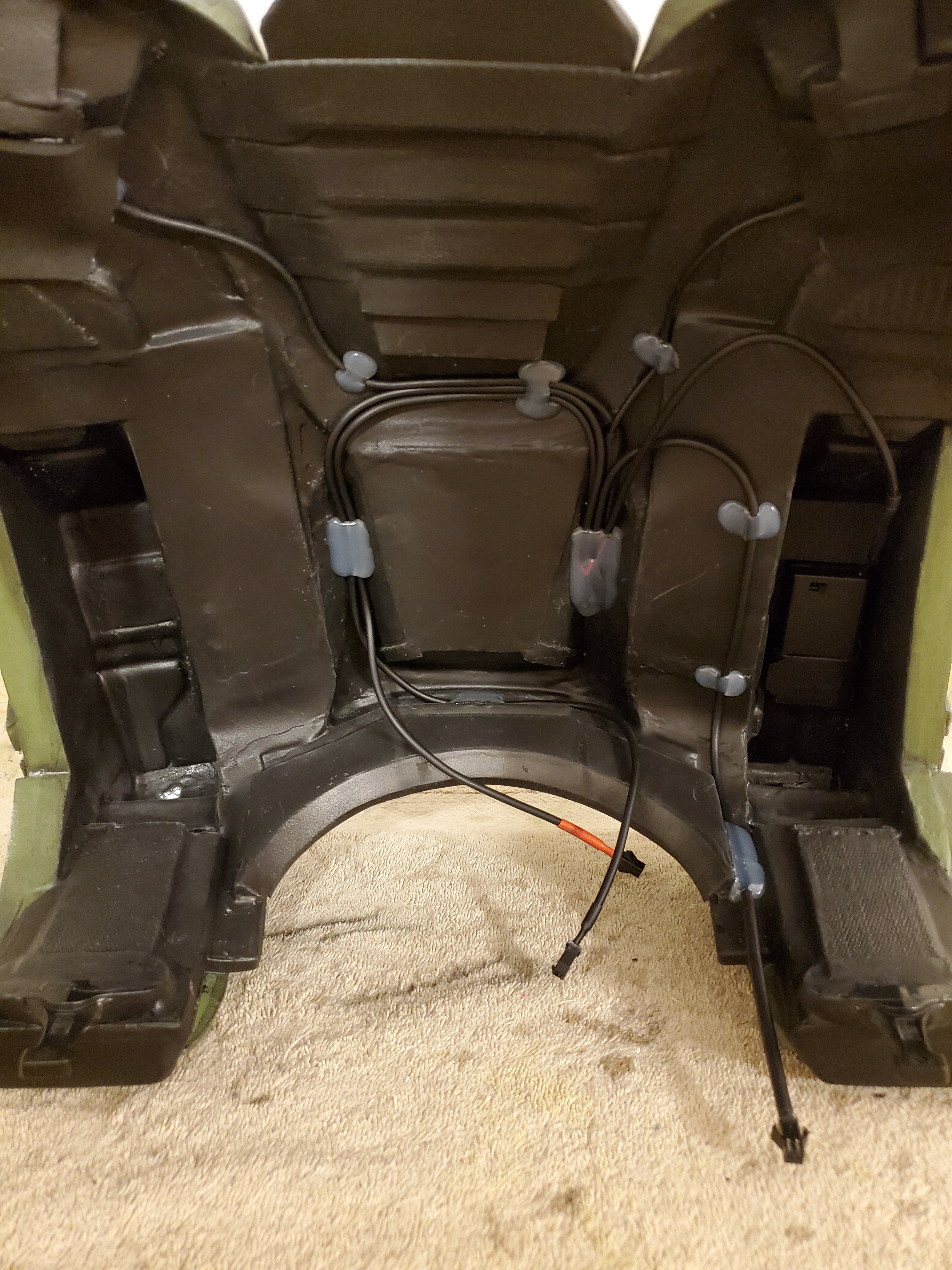

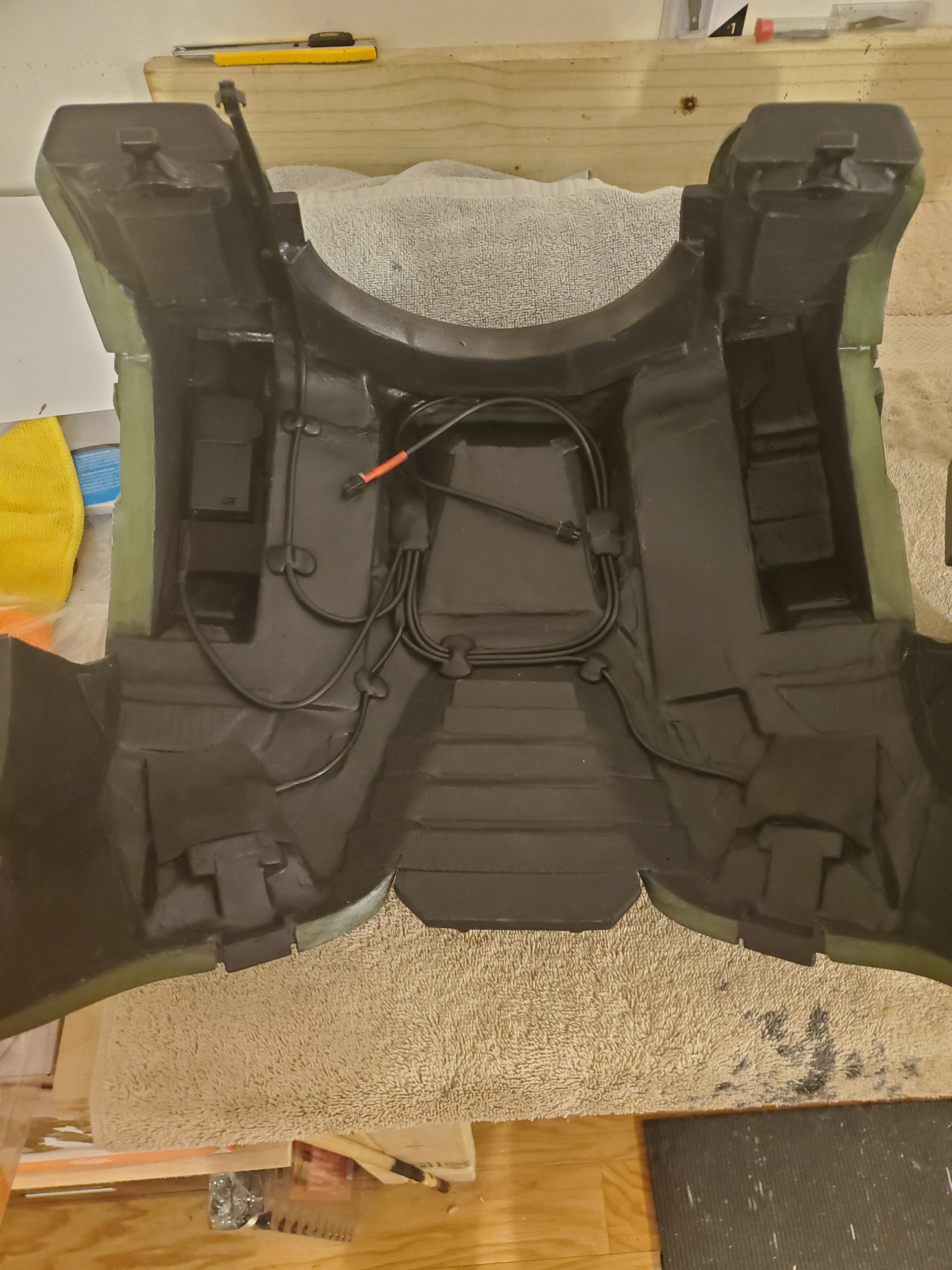

Yes I custom make it all..the leds are just 3mm white leds. I use phone charging cables and cut them down to length I need and solder to the leds. The connectors are jst 2 pin connectors you can get off Amazon. For the light diffusion itself, I use acrylic sheets and cut down to shape, I rough the inside with 100 grit samd paper then tint the lense on the inside blue with my airbrush. From there I hot glue the lense in place which is also part of the light diffusion. Then I hot glue the led in a position where it lights up the whole lense. Then I hot glue a eva foam cover with metal reflective tape inside to help it shine and also keep light from shining inside the suit. To pretty up the wires I hot glue them down with anchor spots then airbrush the glue spots to make them blend in to the interior of the suit. Here are some pics of the process.
received_2908239255961130.jpeg 20200426_230317.jpg 20200428_200042.jpg received_275379746826101.jpeg 20200428_185755.jpg 20200428_193127.jpg 20200430_173047.jpg 20200430_173034.jpg 20200426_223351.jpg 20200426_131806.jpg 20200428_200914.jpg


RandomRanger

Armory Assistant
Community Staff
Yes I custom make it all..the leds are just 3mm white leds. I use phone charging cables and cut them down to length I need and solder to the leds. The connectors are jst 2 pin connectors you can get off Amazon. For the light diffusion itself, I use acrylic sheets and cut down to shape, I rough the inside with 100 grit samd paper then tint the lense on the inside blue with my airbrush. From there I hot glue the lense in place which is also part of the light diffusion. Then I hot glue the led in a position where it lights up the whole lense. Then I hot glue a eva foam cover with metal reflective tape inside to help it shine and also keep light from shining inside the suit. To pretty up the wires I hot glue them down with anchor spots then airbrush the glue spots to make them blend in to the interior of the suit. Here are some pics of the process.
