I am very excited to finally unveil a project I have been working on with Hyperballistik - the Halo 4 Hayabusa Build!

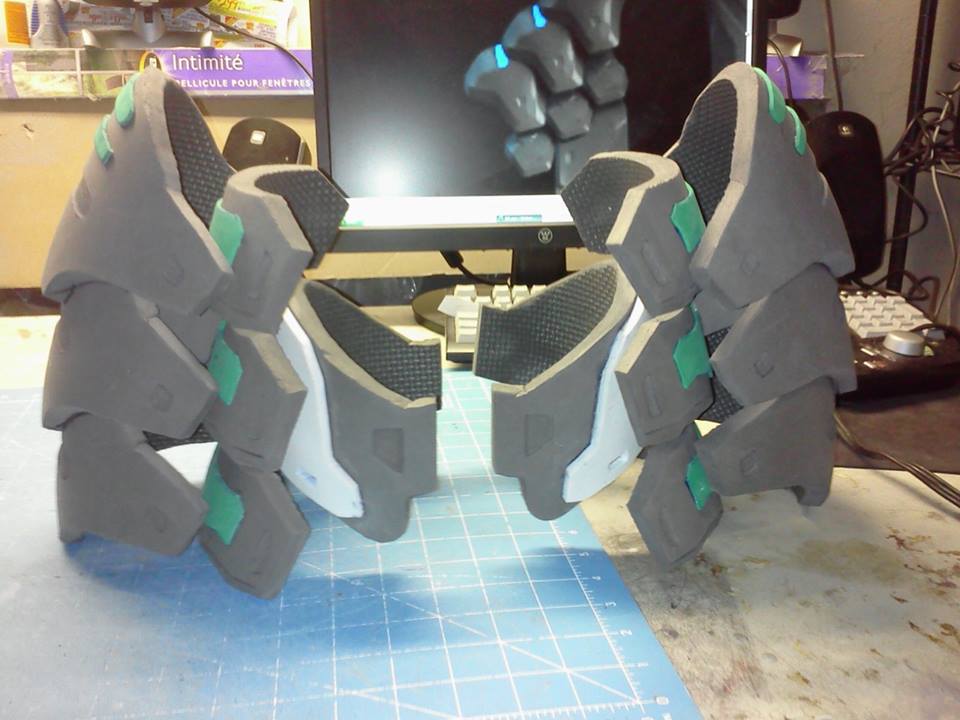

It started back in September with my modeling thread of the Halo 4 Hayabusa Armor in the CAD section. From there, Hyper and I teamed up to create the first ever Halo 4 Hayabusa suits. Both Hyper and I will be posting our progress within this thread. Hyper is also documenting his progress through his Facebook page. The files being used for this build will be available in my other thread in the 3D Modeling section (link in my signature).

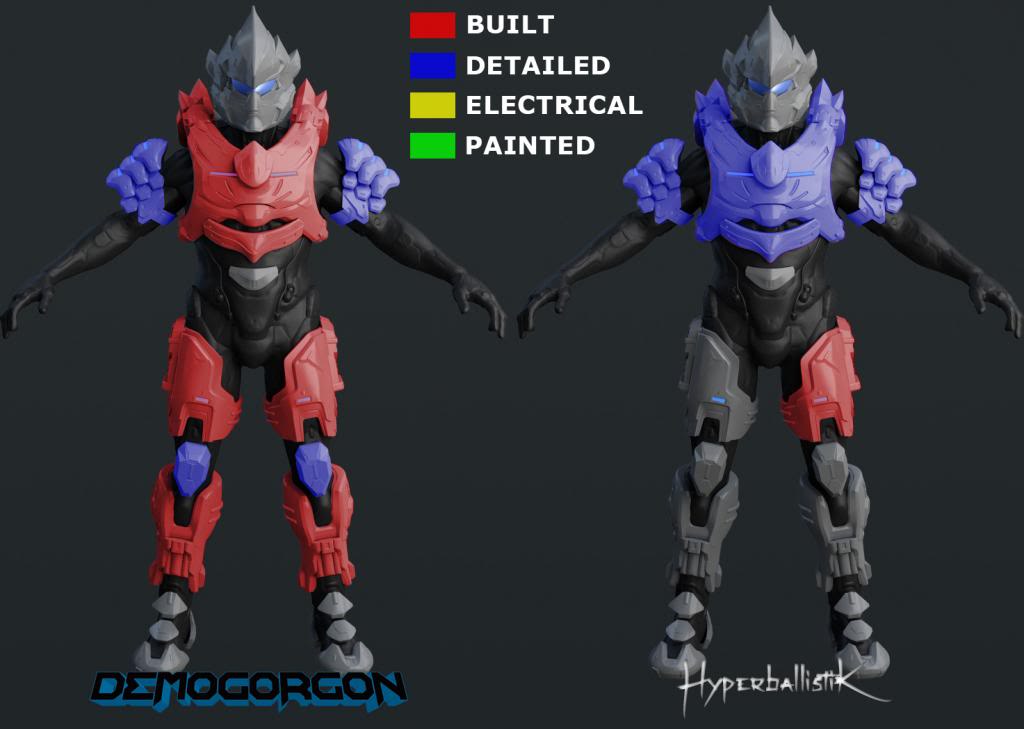

Alright so first up, here is a diagram to show where we stand with our builds, this diagram will be updated to show the most up-to-date progress:

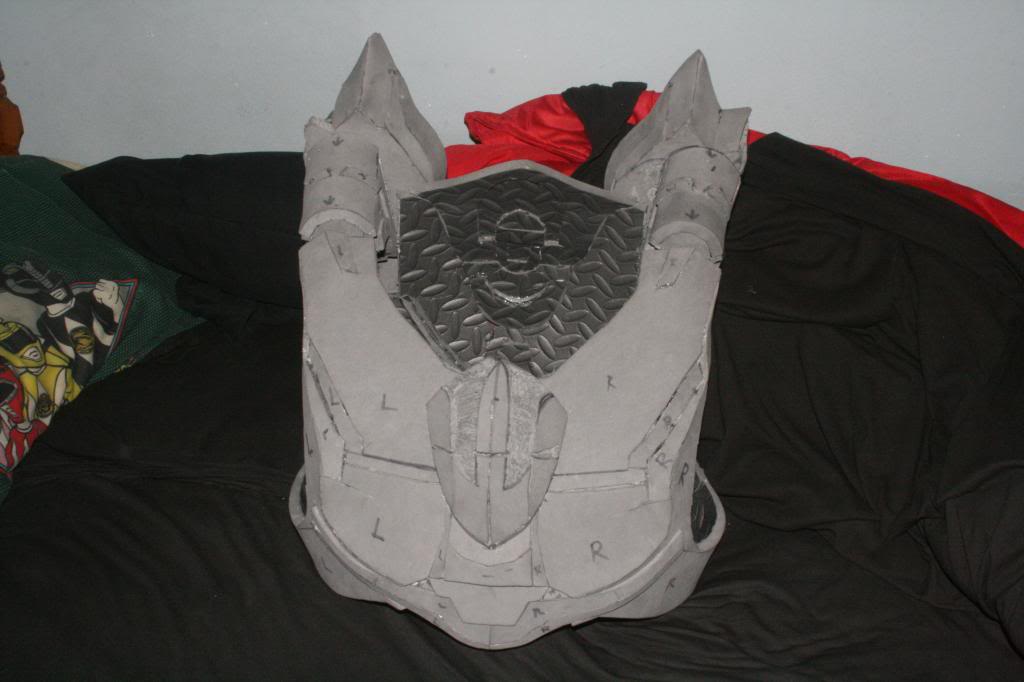

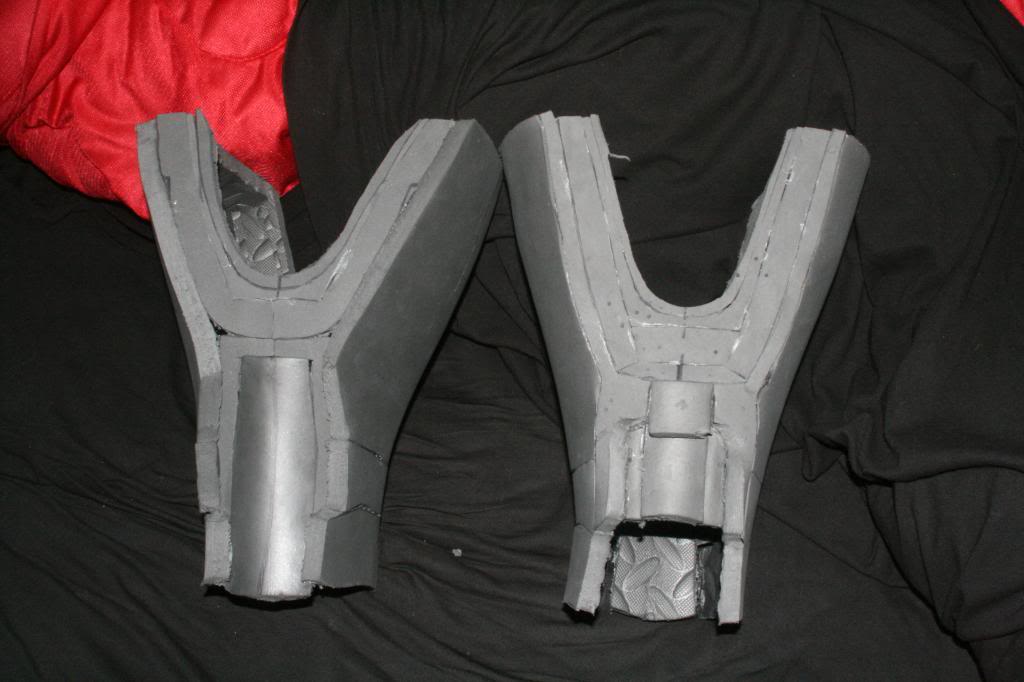

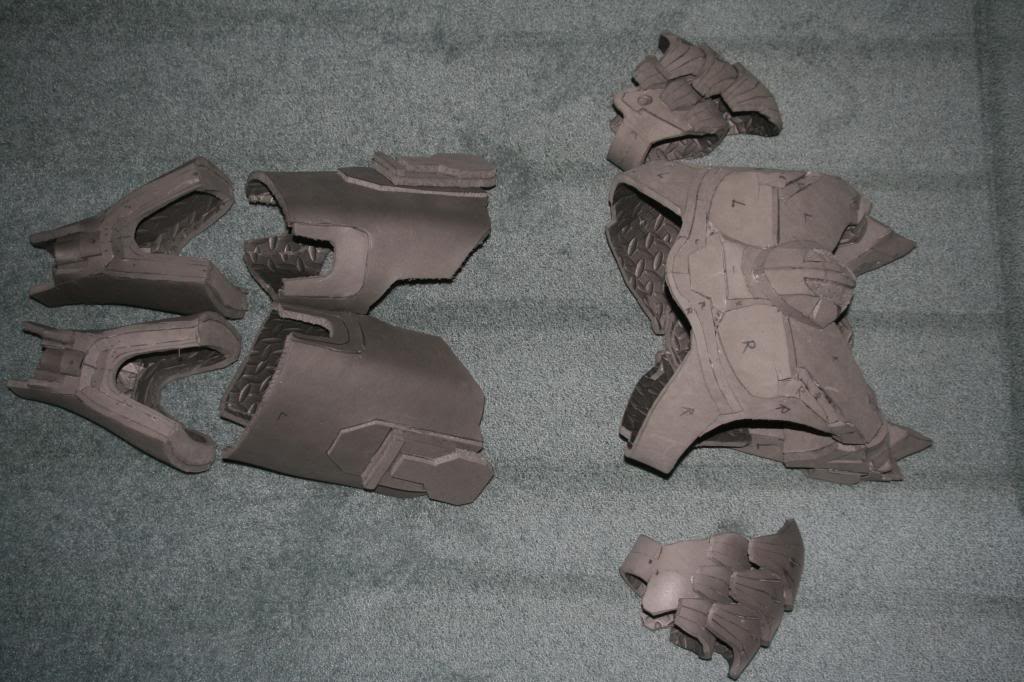

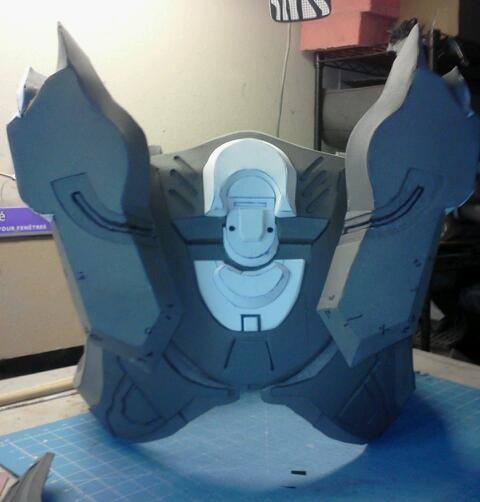

And here are some pictures of our suits as they are right now:


























So that about brings us up to date on the progress. I am currently in the process of going back and cleaning up all the pieces and adding the detail. I like to build all my parts out and then go back and clean things up. Hyper is detailing as he goes.

This is also my first time building with foam, and Hyper has been a huge help in this transition to foam.

The helmet is being printed on a 3D printer. We will have some pictures of the helmet up sometime next week or the week after.

This wraps up the introduction to our build. Thanks for stopping by and checking it out!


Attachments

Zaff

Well-Known Member
Only one thing missing: what forearms will you be using for the build? Planning on something custom tailored to fit the rest, or using something from what's already in the game?

Epic... maybe 343 will see this and get some since in their head
Think the Hayabusa was only possible in Halo 3 because of a deal Bungie made for the usage privilege. 343 would have to garner a similar deal before we'll ever have a chance of seeing the 'busa again. But like you said, that would require 343 to have some sense, and not meaning to hijack the thread with a rant, but 343 has yet to show any sense thus far.

Ok, that's my rant. Back to the 'busa.


Demogorgon

Well-Known Member
Epic... maybe 343 will see this and get some since in their head
Bravo!

Sent from my HTCONE using Tapatalk
Thanks guys!

Only one thing missing: what forearms will you be using for the build? Planning on something custom tailored to fit the rest, or using something from what's already in the game?



Think the Hayabusa was only possible in Halo 3 because of a deal Bungie made for the usage privilege. 343 would have to garner a similar deal before we'll ever have a chance of seeing the 'busa again. But like you said, that would require 343 to have some sense, and not meaning to hijack the thread with a rant, but 343 has yet to show any sense thus far.

Ok, that's my rant. Back to the 'busa.
The Hayabusa came into Halo 3 because of a contract Bungie had with Ninja Gaiden. If you look at Ninja Gaiden 2, you will notice the Hayabusa helmet is a near replica of the face mask used in that game. (also a great source to use for that detailing on the top of the H3 hayabusa helmet)

As for the forearms, We will be using the Halo 4 Mk VI forearms and hand plates modeled by one of the Stony Props members. I'm not sure when those files will be available for the public though.


Zaff

Well-Known Member
Should look pretty boss with the Mark VI. Can't wait to see more progress.


imamorron

New Member
holy cow man this looks great can't wait to see how it turns out! just curious are there any other parts of the halo 4 MK VI armor?


Xav kitsune

Member
Where might I find a medium to high def version of the helmet? (looking to make a foam version for moi)


Demogorgon

Well-Known Member
holy cow man this looks great can't wait to see how it turns out! just curious are there any other parts of the halo 4 MK VI armor?
Thanks. I believe the Mk VI armor is a complete set (helmet, torso, shoulders, forearms, hands, thighs, shins, and boots). As of right now, I am not sure if any of these have been modeled and unfolded aside from the forearms and hand plates that we are using.

Where might I find a medium to high def version of the helmet? (looking to make a foam version for moi)
Right now there are only 2 models of this helmet, one modeled by myself and one which Impact Props is using (I believe modeled by JTM). I have a really low def file and a high def file of mine and Impact's I think is a smooth version. The only version publicly available is my low def version which really is only good for test fitting. The file can be found HERE if you want to try and make the best of it. My high def version will be released in the near future once our helmet has been printed and we make sure it fits properly and no further adjustments need to be made to the file.


Demogorgon

Well-Known Member
Update Time

I've been slowly but surely adding in details and cleaning up my pieces. The lighter blue foam you see is the thin 2mm foam sheets. I use these for detailing and to smooth out areas.

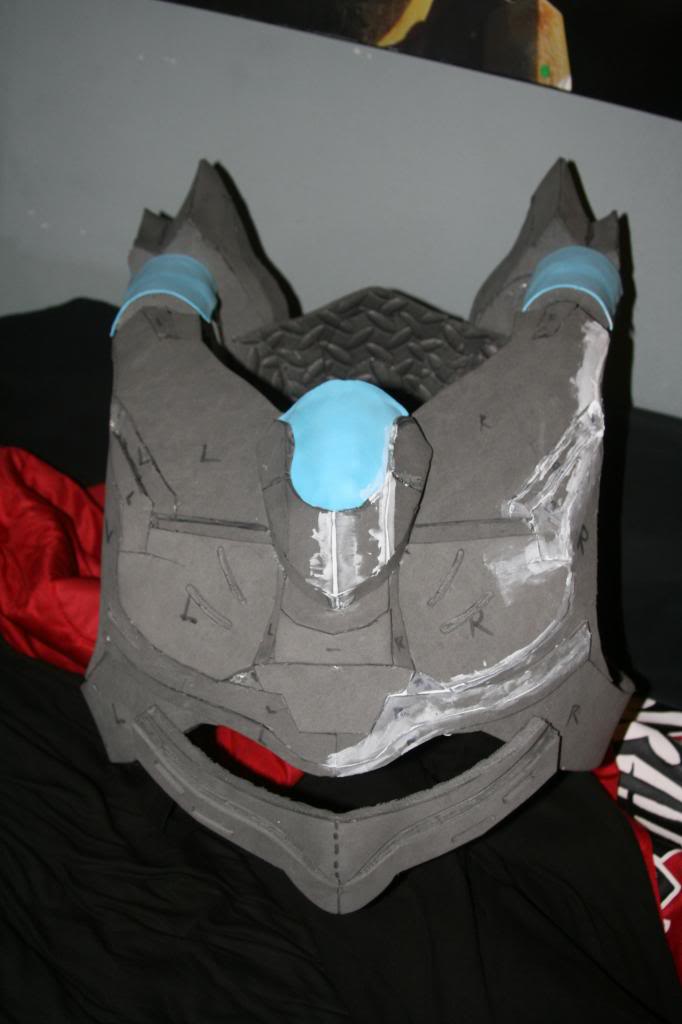

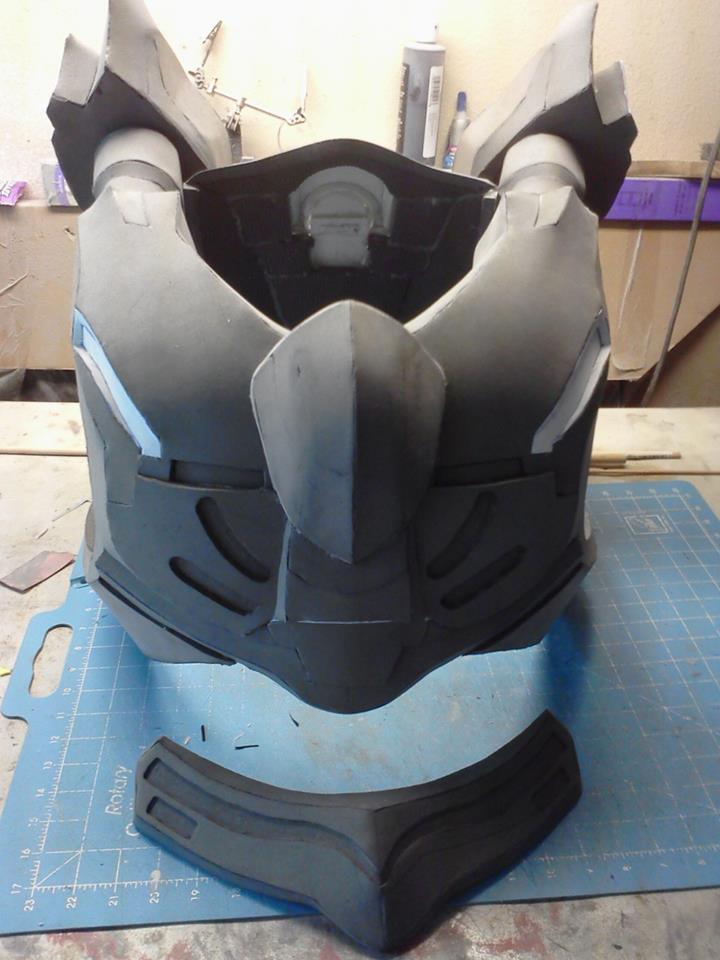

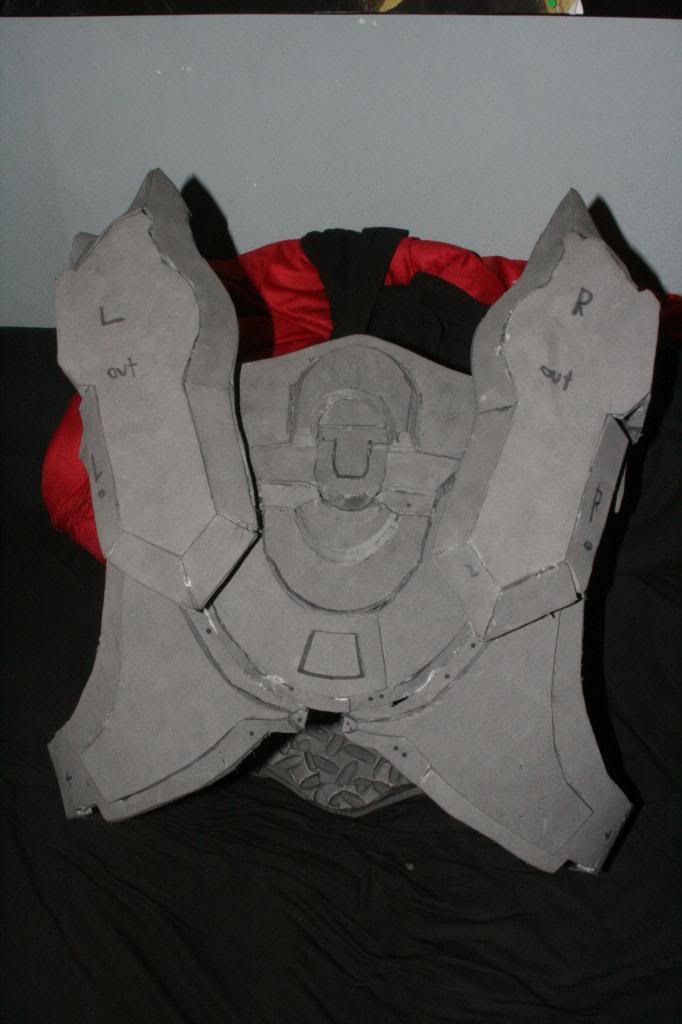

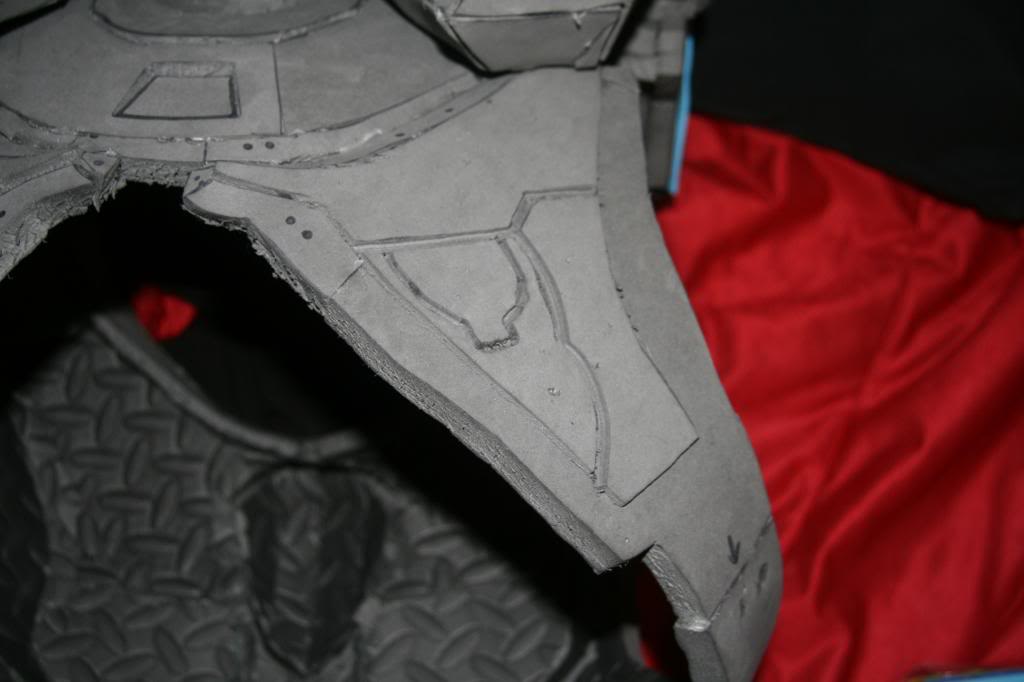

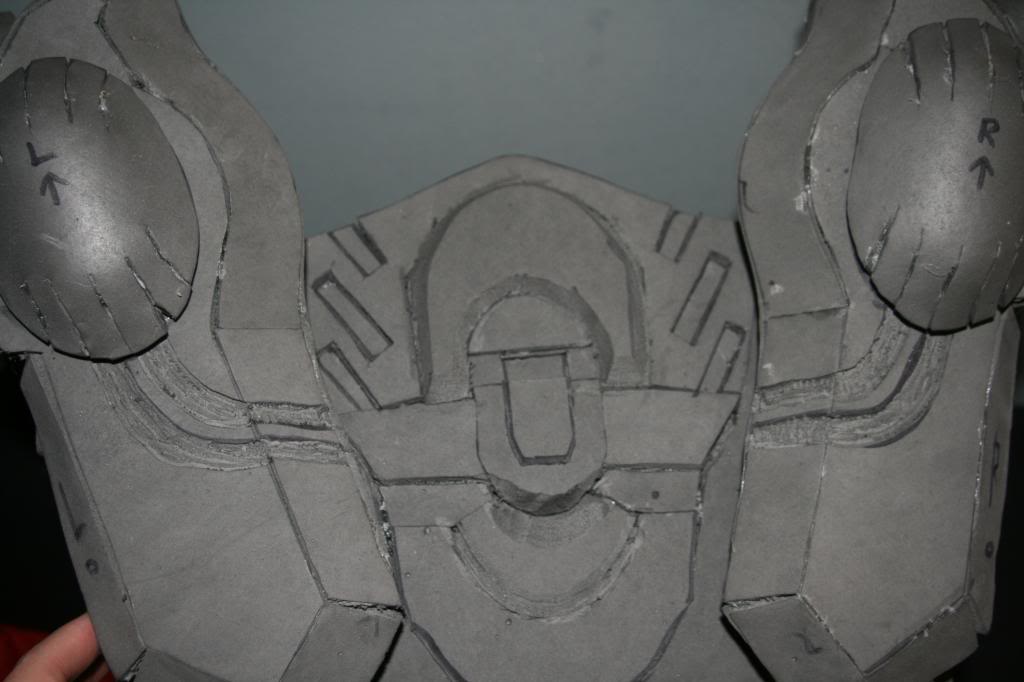

First up the torso, I've added in almost all the detail i wanted, still a little left to do, and started smoothing and cleaning up the front half:

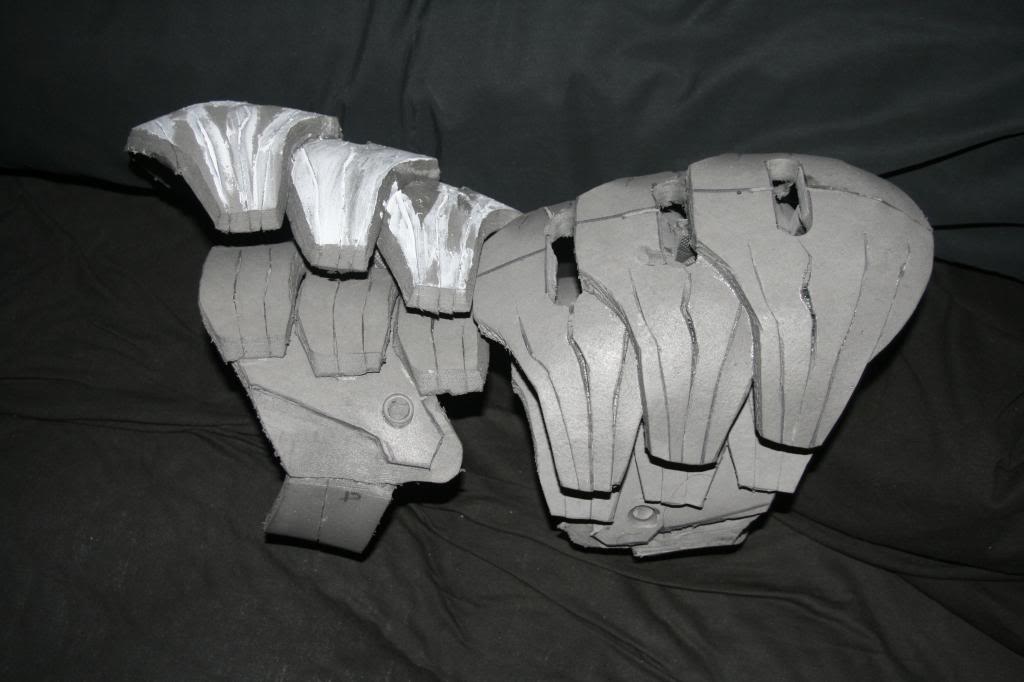

Next up, the shoulders. I've cut out the slots for the LED's on the hovering parts and will be adding the little recessed areas to the top-most hovering part tomorrow. These were the first parts I did with foam so they were my learning pieces. You can see fissures in the hovering parts that are being filled in very nicely with the caulking. Hyper then showed me his method (which he used on his shoulders by using a single piece and molding it with the heat gun) to create a much cleaner outcome.

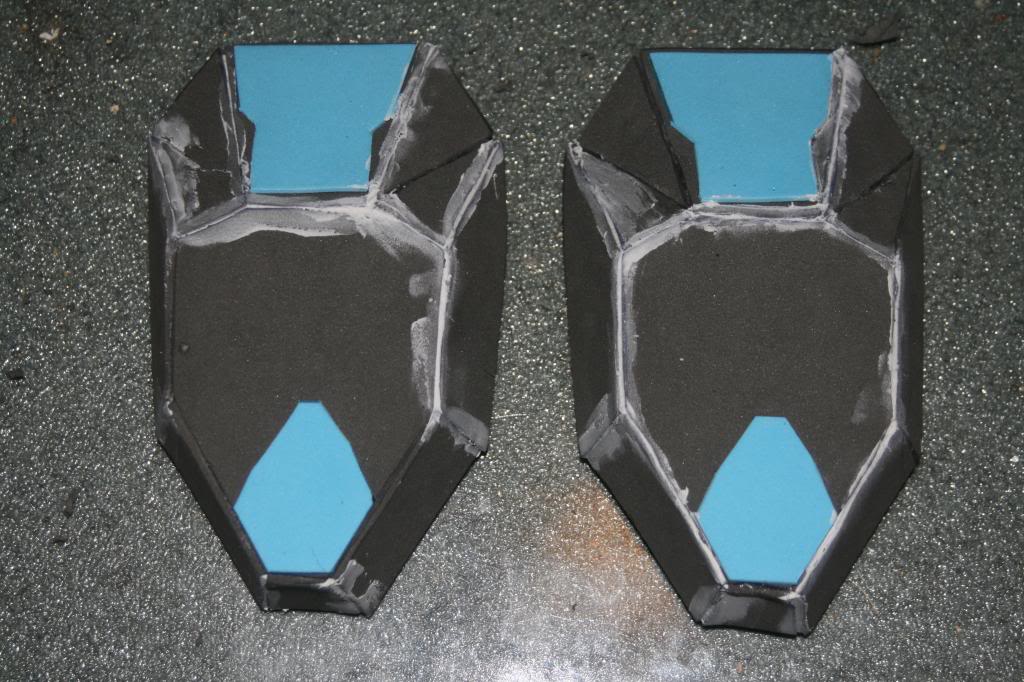

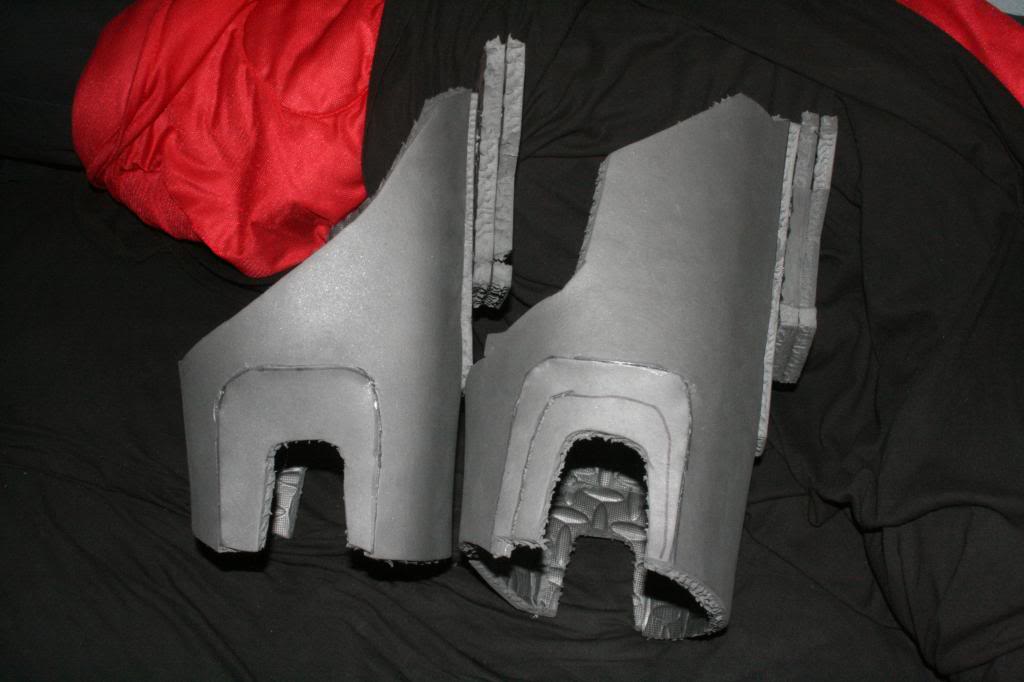

And lastly we have the knee parts. They were pretty easy to make and came out fairly clean.
