This is Great! Nice Job!
Harder, Better, Faster, Stronger
- Thread starter DerKraken
- Start date
- Status
animemannn
Active Member
wow....this is lokking really good! I might make one....mabey...
Drakku said:After this, are you considering making Thomas' helmet?Or do you not even want to think about that at the moment.. haha.
Eventually, yes. I have a commission on the books for later this year for Thomas' helmet. I'm also going to be re-making Guy again, this time smaller for us guys that aren't quite as grand in stature as my client (think I mentioned this, but the dude is like 6'4)
Altair651 said:
Not sure what you mean with this question... The helmet will have full illumination eventually, but I'm still waiting on some parts to come in.
Caltown_ODST said:
Never touched a turntable in my life... would be awesome if I could, but alas...
Not much on the update side of things, I'm sorry to say. All of the components for the boards came in and are installed. Currently I'm waiting on a few PETG pulls for some more visors as well as the mounting "bracket" that the light PCBs will mount to. Its hard to explain without pics, but unfortunately I don't have any right now since everything is in the mail.
I sent off 8 resin discs to the platers for them to test which one will work best for the next round of chroming. 2 in plain resin, 2 in primer, 2 in gloss black and 2 in matte. I've wised up this time and decided NOT to send them the nice, shiny, wetsanded helmets until we know the best way to coat them. Really holding my breath here and hoping they can get everything I need done correctly. I have to have this done and finished by the 25th at the LATEST for a 31st delivery. Down to brass tacks.
Much thanks to Jimbo for writing my code for me. Looking forward to setting up the lights and flipping the switch.
Last edited by a moderator:
Been a while. I've been working on this nearly non-stop, though my efforts on making my deadline seem to be for naught. More on that later.
ELECTRONICS:

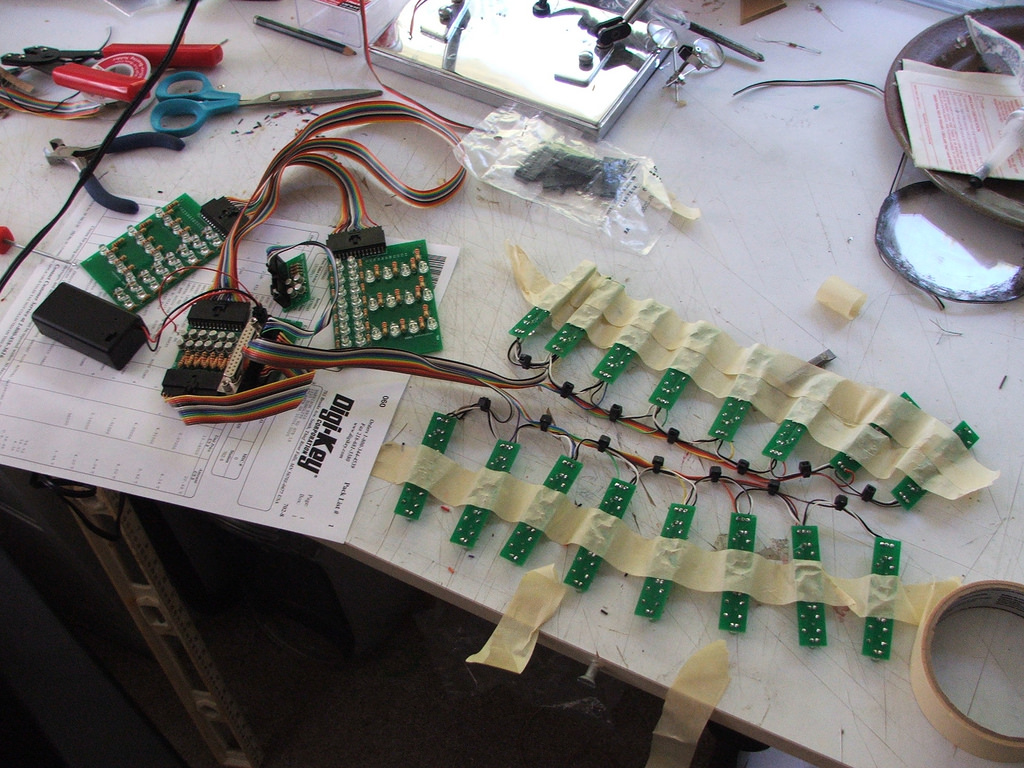

All ribbon cables are built and tested. Everything is working as intended, thankfully!

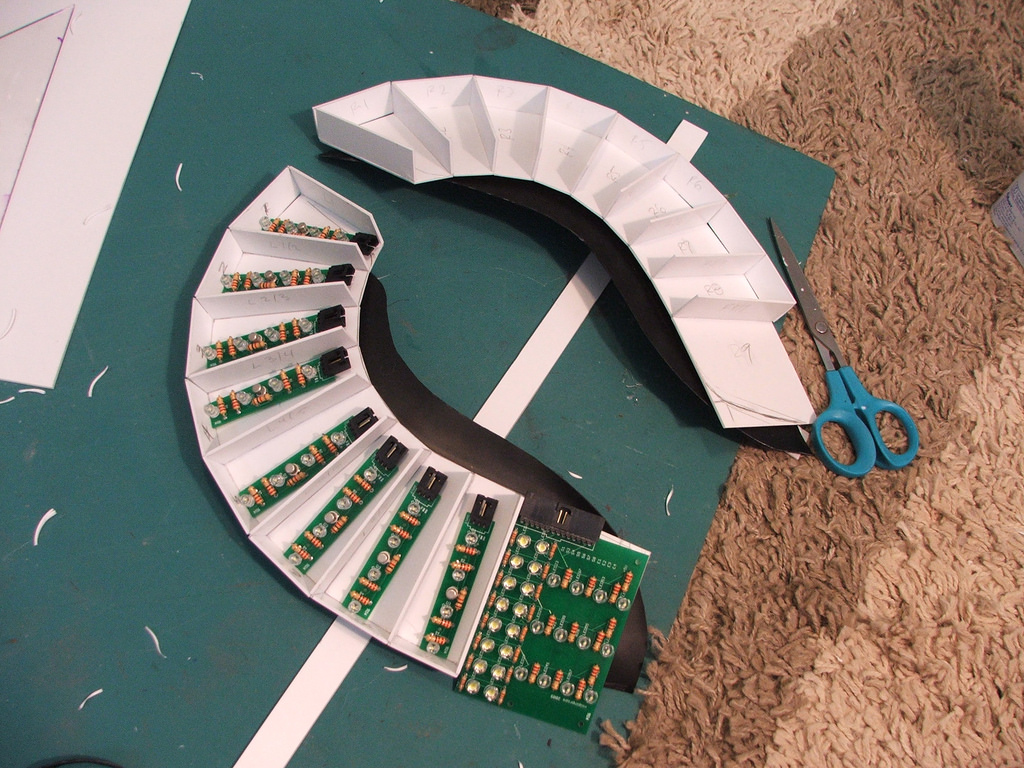

Housings for the LED colorbars are built. These have since been painted flat black on the outside and reflective silver on the inside

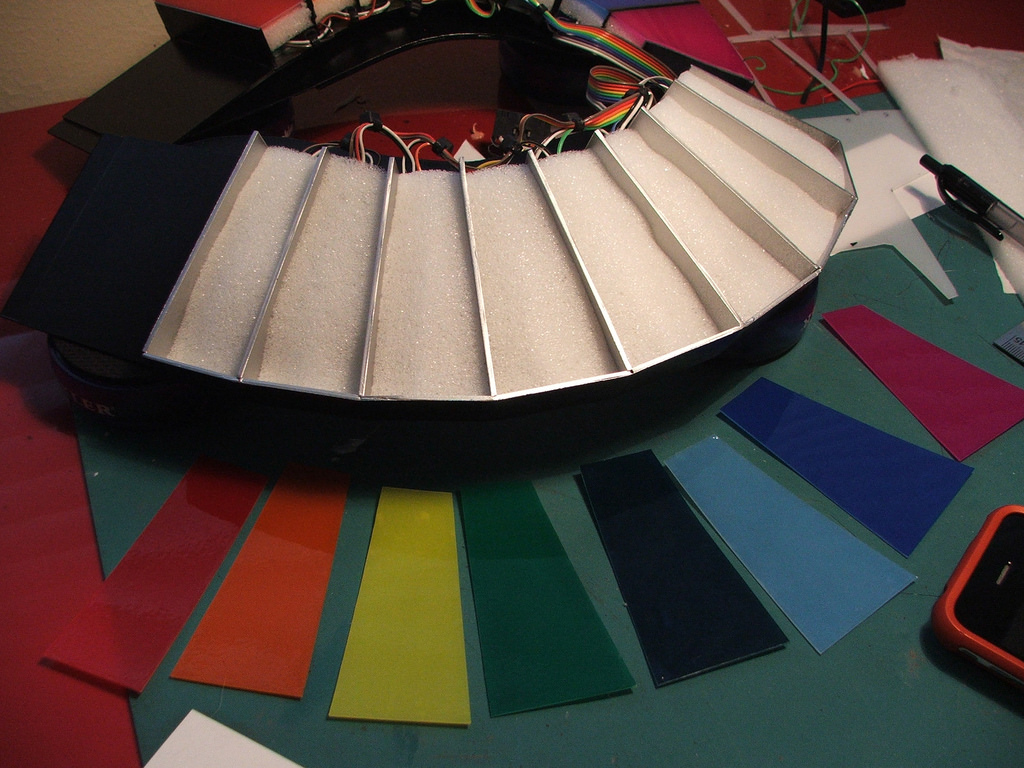

I used white foam (ganked this trick from Lightsaber replicas) to diffuse the LEDs and reduce the hot-spots in the bars. They're still noticeable, but diffused as much as possible without sacrificing too much brightness

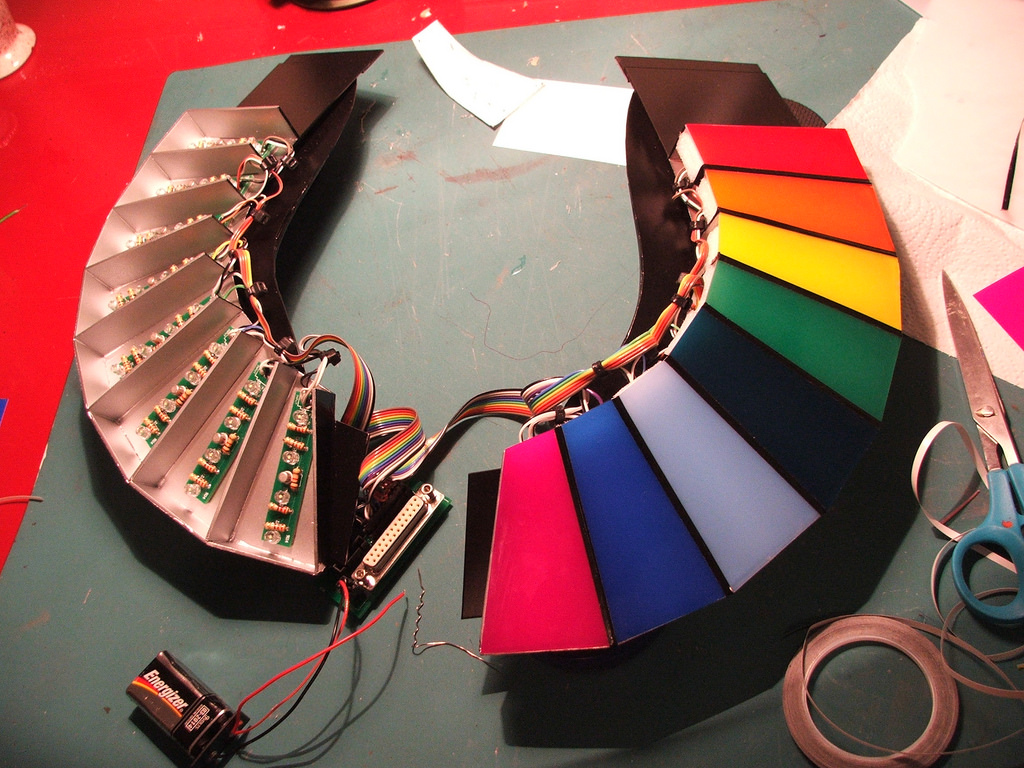

One band finished. Both are done and ready, I just don't have a shot yet.
Blueprint for the control box. I've decided to go with AA batteries instead of the 9Vs, mostly due to size issues. The total mAh is actually in favor of the AA's though. There needs to be a few things added to this still, but this was mostly just to make sure all the components would fit. Not shown: Arduino board and microphone/line input board. These are small though, so fitment should be no problem. Its about the size of a thick wallet.
CHROME:
F_CK. I've pulled EIGHT helmets so far, and to date I have ZERO with good chrome. Long story short, I won't be able to make the deadline of the 31st because I don't have a good base to put this thing into. Something happened with the latest batch which looks like it melted the helmet. Really getting tired of making so many of these and getting nothing out of it.

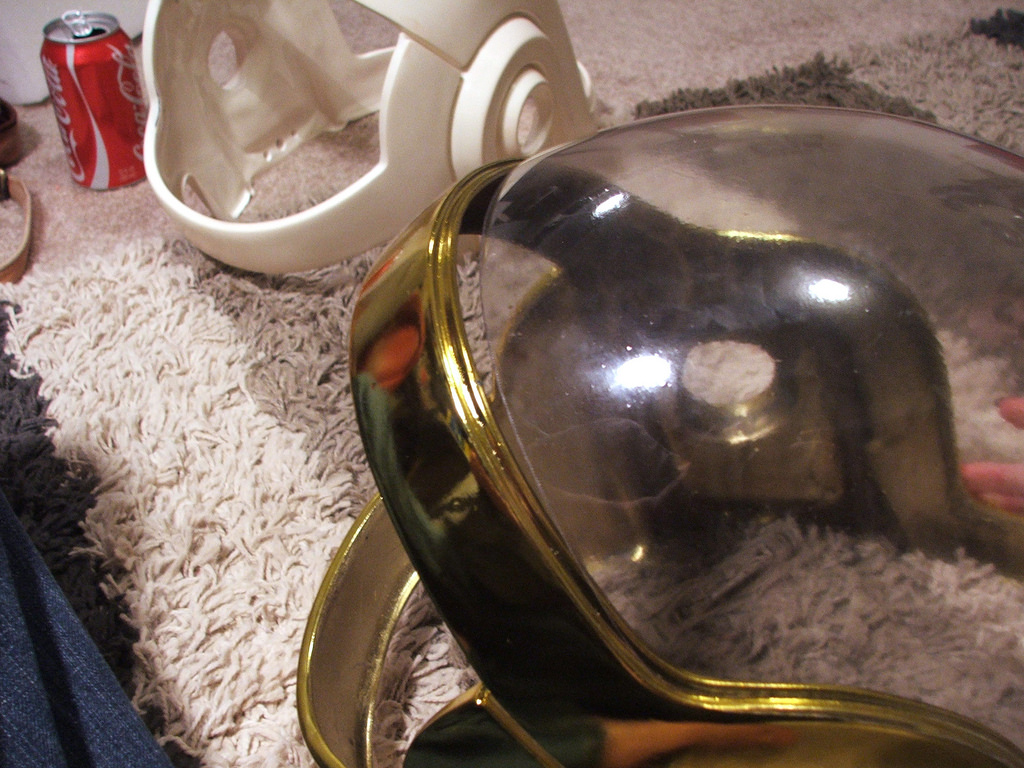

Distortion. The base is .5" wider
And the top bar is kinked and pulled away as well
To say I'm getting frustrated would be an understatement.
On the plus side of things, major thanks to Jimbo for cranking out some fantastic code work. Here's his contribution in action:
[media]http://www.youtube.com/watch?v=wsb2LjBo8p8[/media]
ELECTRONICS:
All ribbon cables are built and tested. Everything is working as intended, thankfully!
Housings for the LED colorbars are built. These have since been painted flat black on the outside and reflective silver on the inside
I used white foam (ganked this trick from Lightsaber replicas) to diffuse the LEDs and reduce the hot-spots in the bars. They're still noticeable, but diffused as much as possible without sacrificing too much brightness
One band finished. Both are done and ready, I just don't have a shot yet.
Blueprint for the control box. I've decided to go with AA batteries instead of the 9Vs, mostly due to size issues. The total mAh is actually in favor of the AA's though. There needs to be a few things added to this still, but this was mostly just to make sure all the components would fit. Not shown: Arduino board and microphone/line input board. These are small though, so fitment should be no problem. Its about the size of a thick wallet.
CHROME:
F_CK. I've pulled EIGHT helmets so far, and to date I have ZERO with good chrome. Long story short, I won't be able to make the deadline of the 31st because I don't have a good base to put this thing into. Something happened with the latest batch which looks like it melted the helmet. Really getting tired of making so many of these and getting nothing out of it.
Distortion. The base is .5" wider
And the top bar is kinked and pulled away as well
To say I'm getting frustrated would be an understatement.
On the plus side of things, major thanks to Jimbo for cranking out some fantastic code work. Here's his contribution in action:
[media]http://www.youtube.com/watch?v=wsb2LjBo8p8[/media]
animemannn
Active Member
this is going to be epic when its done.
cant wait to see the finnal product!
cant wait to see the finnal product!Spartan 051
Well-Known Member
hmm never would have though of using white foam though i think hot glue does a better job with diffusing the led. I see alot of modelers using a thin $#!T of plexi an a thin layer of hotglue to diffuse there leds
rockthewarrior
Member
Seizure warning! nah j/k. Great job on it. It looks intense.
halodude164
Jr Member
ho;y crap!!!! that's amazing!!! and i understand that board you made too!! i want to take it to my class and show my teacher! i want one now!!!
ZackyPanic
Jr Member
This is ridiculous, I absolutely love the "light show", kudos and I hope one of the casts finally turns out for you.
psylent777
New Member
Wow! Just like everyone else, I'm amazed at the work that you've been doing! That's really too bad about the distortions due to the pulls.
For the programming of the LEDs, did you end up programming that sequence in arduino? if not, what code was used to drive that?
Good luck with the project, it's an inspiration to all of us Daft Punk fans in the 405 community
For the programming of the LEDs, did you end up programming that sequence in arduino? if not, what code was used to drive that?
Good luck with the project, it's an inspiration to all of us Daft Punk fans in the 405 community
animemannn
Active Member
99% sure that its arduino.
Shaymin Sky
Well-Known Member
:eek
ARMYofONE2469
Member
E.V.A. Helmet Anyone....Anybody.... Ah, Whatever... Nice Helmet!
ImaGonnaGetYou
Well-Known Member
The lights look great. Good luck with the pulls, hoping a perfect pull comes out soon.
