everything looks awesome, looking forward to seeing this all be put into a case!
Ironman Mark V Foldable Foam Suit
- Thread starter captaincaliflour
- Start date
- Status
Spartan_127
Well-Known Member
Everything is looking good. Glad to see the earlier set back with stuff coming apart didn't keep you from completing this. Keep up the good work.
captaincaliflour
Active Member
My gf works the late shift at Taco bell, so I have to stay up to wait for her (it's fine though, my schedule's been all jacked this semester anyways, I don't have class till noon at the earliest). Anyways, to pass the time I've been burning the midnight oil, and blew through the entire cod arrangement. Unfortunately, while the plates do move if I had secured them to my thighs they would have torn apart when I went to crouch, and I seek to maintain as much mobility as I can while wearing this thing since it covers so much of me and will inherently restrict mobility.

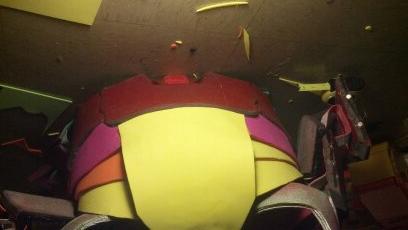

Anyways I've finished the ass:

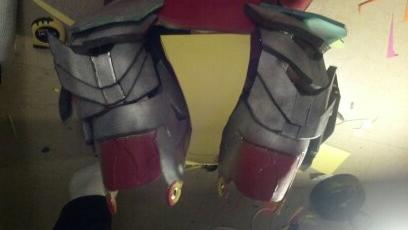

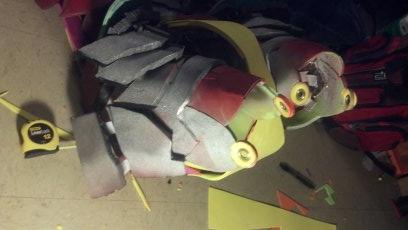

And here's the front, with the legs arbitrarily folded into it

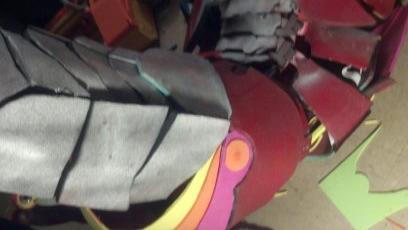

It's worth noting that this is how they naturally fold just from gravity and disassembly, so I can probably get a bit more compression with some precision part placement. Here's how they lay currently though
And how the whole arrangement looks outstretched:

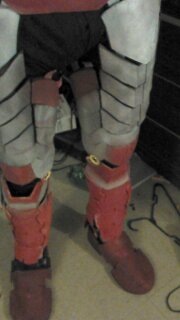

It mostly fits, just some slight cutting and filling to do around the G string so that it doesn't get in the way of my legs as I move, and my natural movement won't tear it apart (can't have that) Also I did a test fit to ensure the knees came to the proper height on me before work began, rather than waste time later rerigging everything:
So hopefully I'll soon have the shins done (lot of magnet work to redo on them) and then I can fill in the missing plates, complete the rigging, and add soles to the feet so I don't get stabbed by rocks as I walk.
Anyways I've finished the ass:
And here's the front, with the legs arbitrarily folded into it
It's worth noting that this is how they naturally fold just from gravity and disassembly, so I can probably get a bit more compression with some precision part placement. Here's how they lay currently though
And how the whole arrangement looks outstretched:
It mostly fits, just some slight cutting and filling to do around the G string so that it doesn't get in the way of my legs as I move, and my natural movement won't tear it apart (can't have that) Also I did a test fit to ensure the knees came to the proper height on me before work began, rather than waste time later rerigging everything:
So hopefully I'll soon have the shins done (lot of magnet work to redo on them) and then I can fill in the missing plates, complete the rigging, and add soles to the feet so I don't get stabbed by rocks as I walk.
captaincaliflour
Active Member
So, I had a bit of a brainwave the other day and decided that, rather than continuing onto the shins, while it was on my mind I'd make some proper hands.
I've been more than a little irritated with my previous attempts:

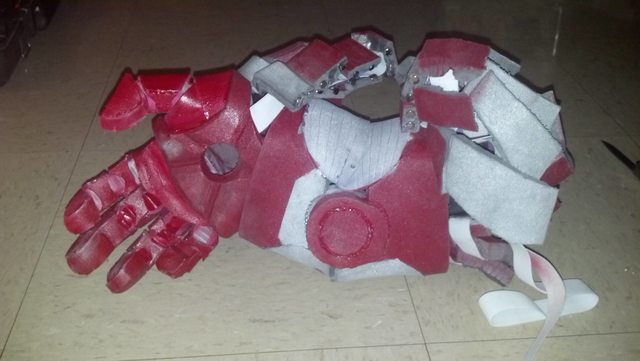

The original palm

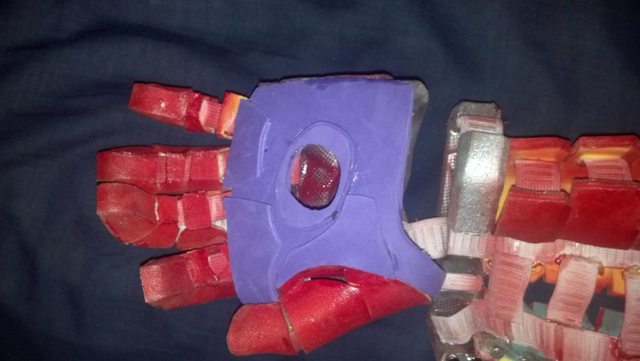

My second attempt to fix it up closer to me reference:
So finally I said "**** it" and decided to redo the palm from the ground up, instead of just creating another palm to attach over my hand piece.

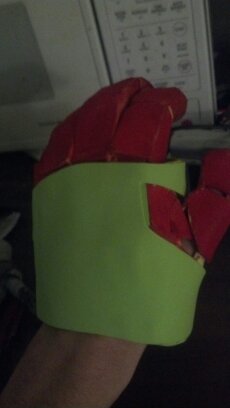

Also I rerigged the palm too, so that as you can see:

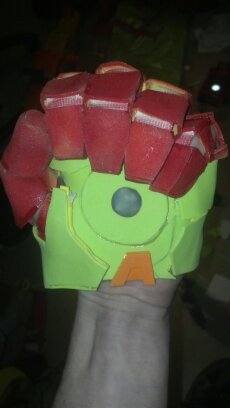

from closed
to open
The plates move

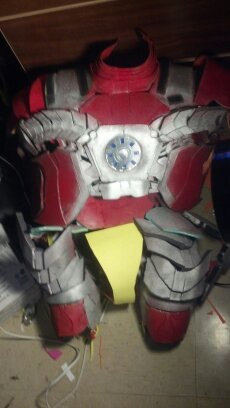

so now I need to remake the right hand, then I'll be ready to fix up the shins and I should be all done with the suit itself. As it is the suit folds up pretty nicely, and inside the suitcase to carry it in it should work perfectly.

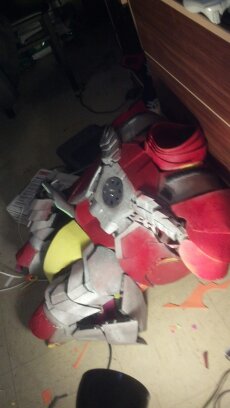

And it's worth noting that that's the whole suit. Arms to thighs, and the helmet in the chest, folded up into that. Not exactly as small as tony stark but then again mine is constrained by physics and reality. damn reality.
I've been more than a little irritated with my previous attempts:
The original palm
My second attempt to fix it up closer to me reference:
So finally I said "**** it" and decided to redo the palm from the ground up, instead of just creating another palm to attach over my hand piece.
Also I rerigged the palm too, so that as you can see:

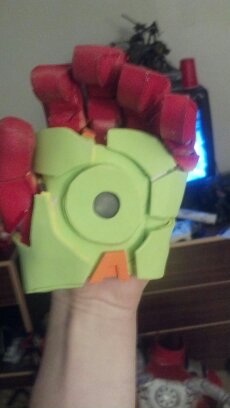

from closed

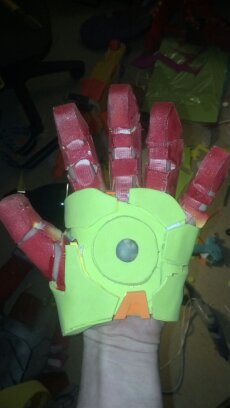

to open
The plates move
so now I need to remake the right hand, then I'll be ready to fix up the shins and I should be all done with the suit itself. As it is the suit folds up pretty nicely, and inside the suitcase to carry it in it should work perfectly.
And it's worth noting that that's the whole suit. Arms to thighs, and the helmet in the chest, folded up into that. Not exactly as small as tony stark but then again mine is constrained by physics and reality. damn reality.
captaincaliflour
Active Member
So at last, my suit is wearable. And after so long, I couldn't wait to try it on, despite it not being painted...

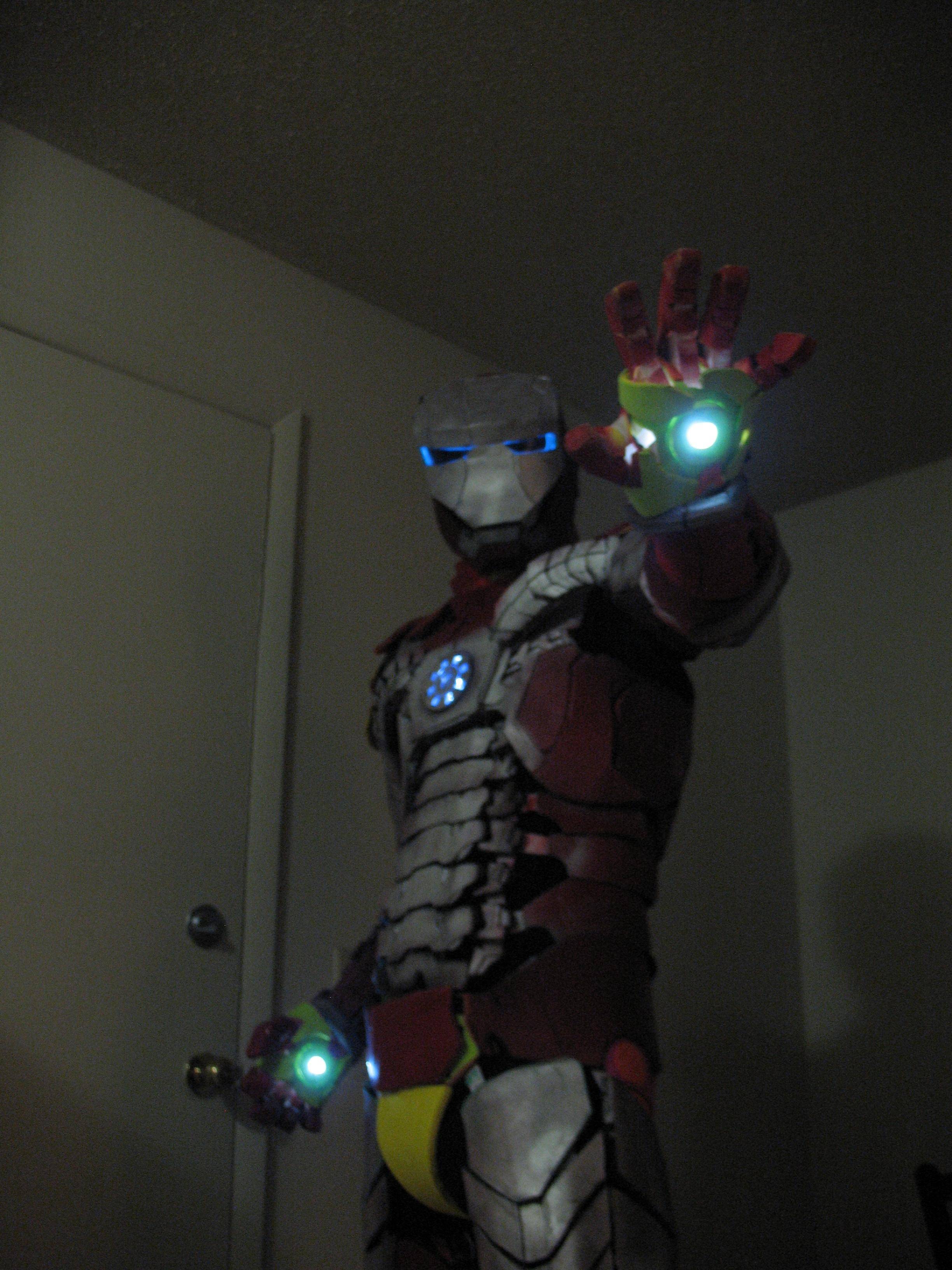

Classic Stark

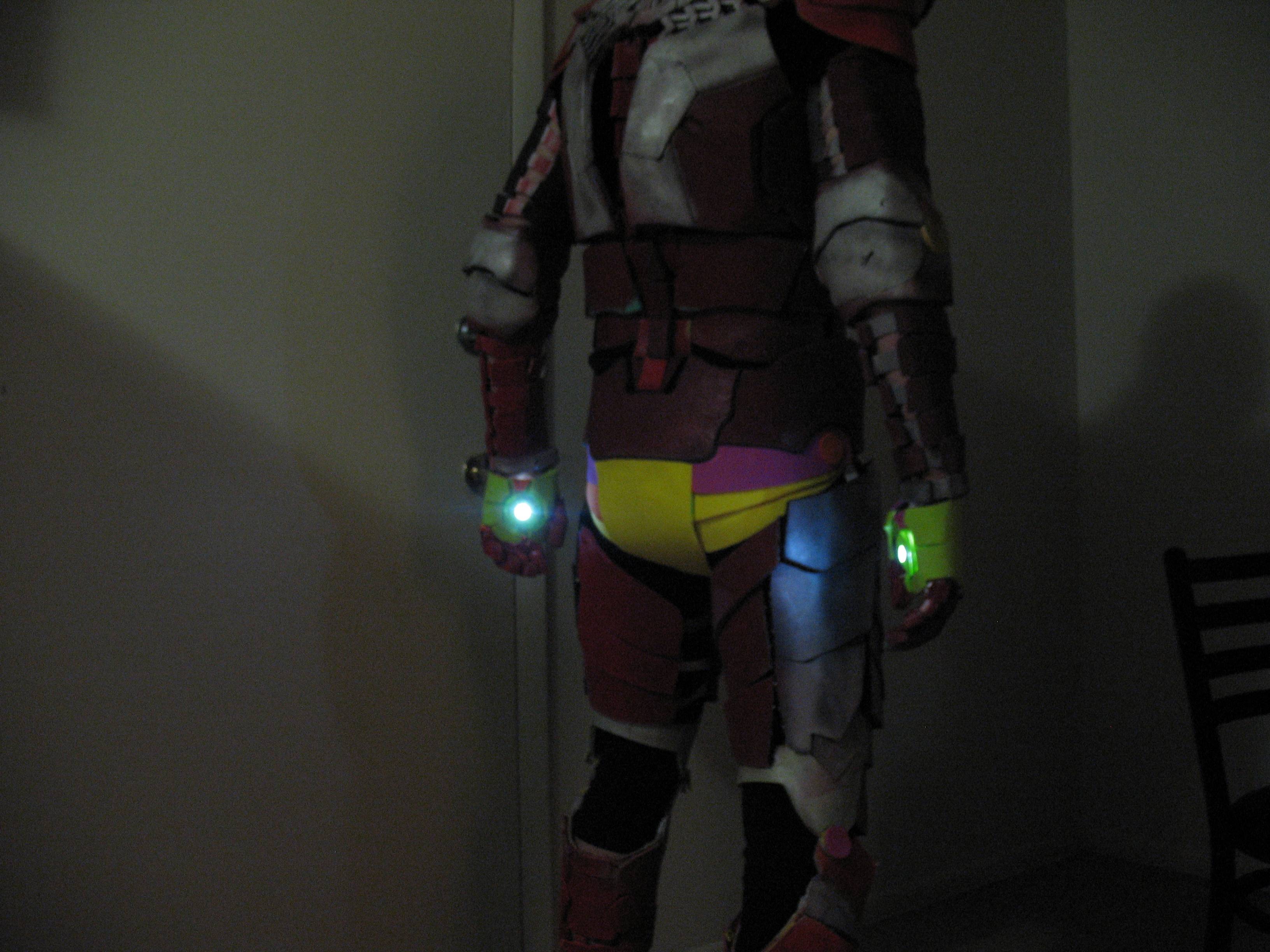

My now Assed Chaps...very colorful, so maybe I've only made it look a bit more like I belonged in magic mike...

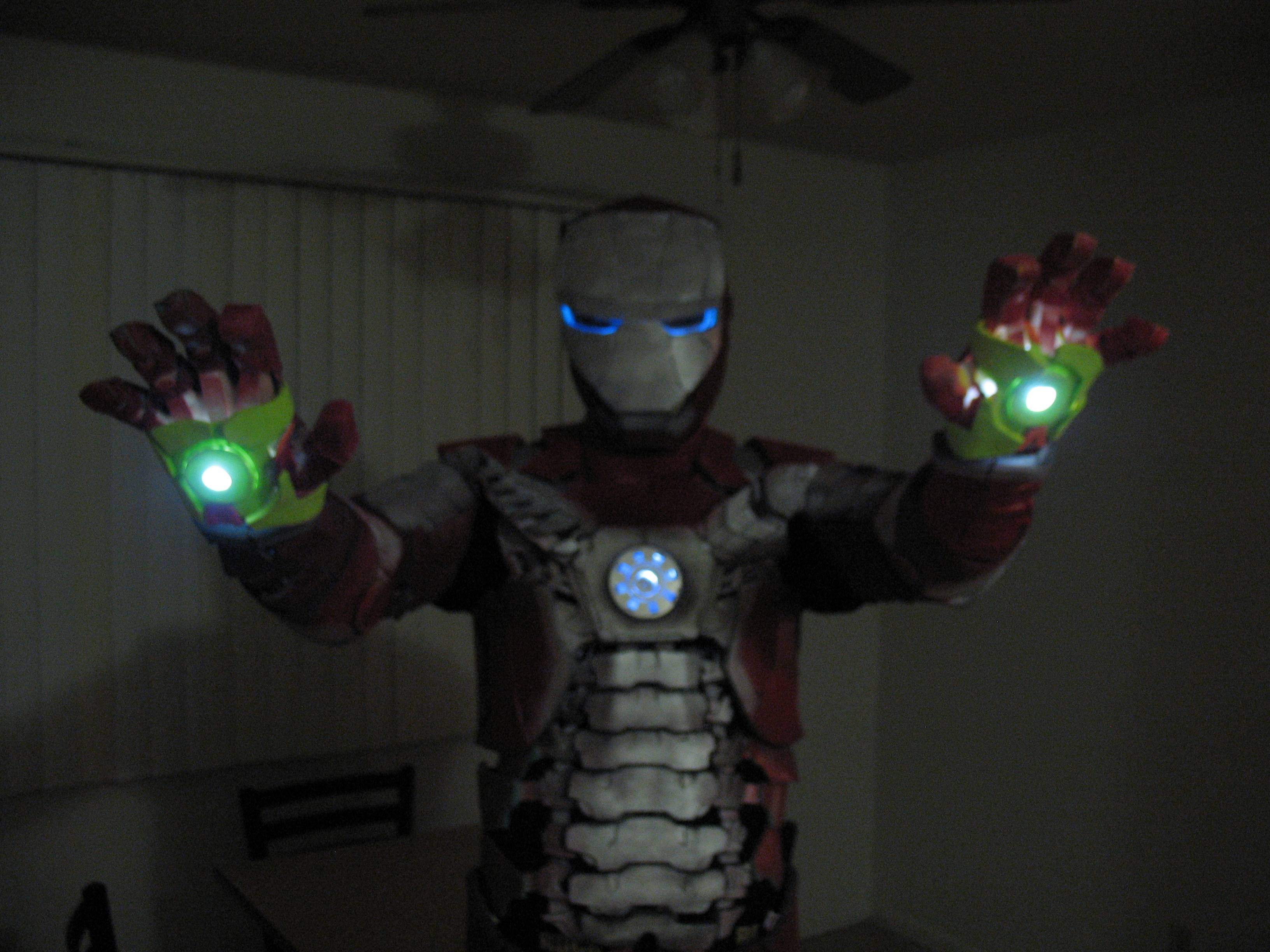

And of course, what would ironman armor be if it didn't...

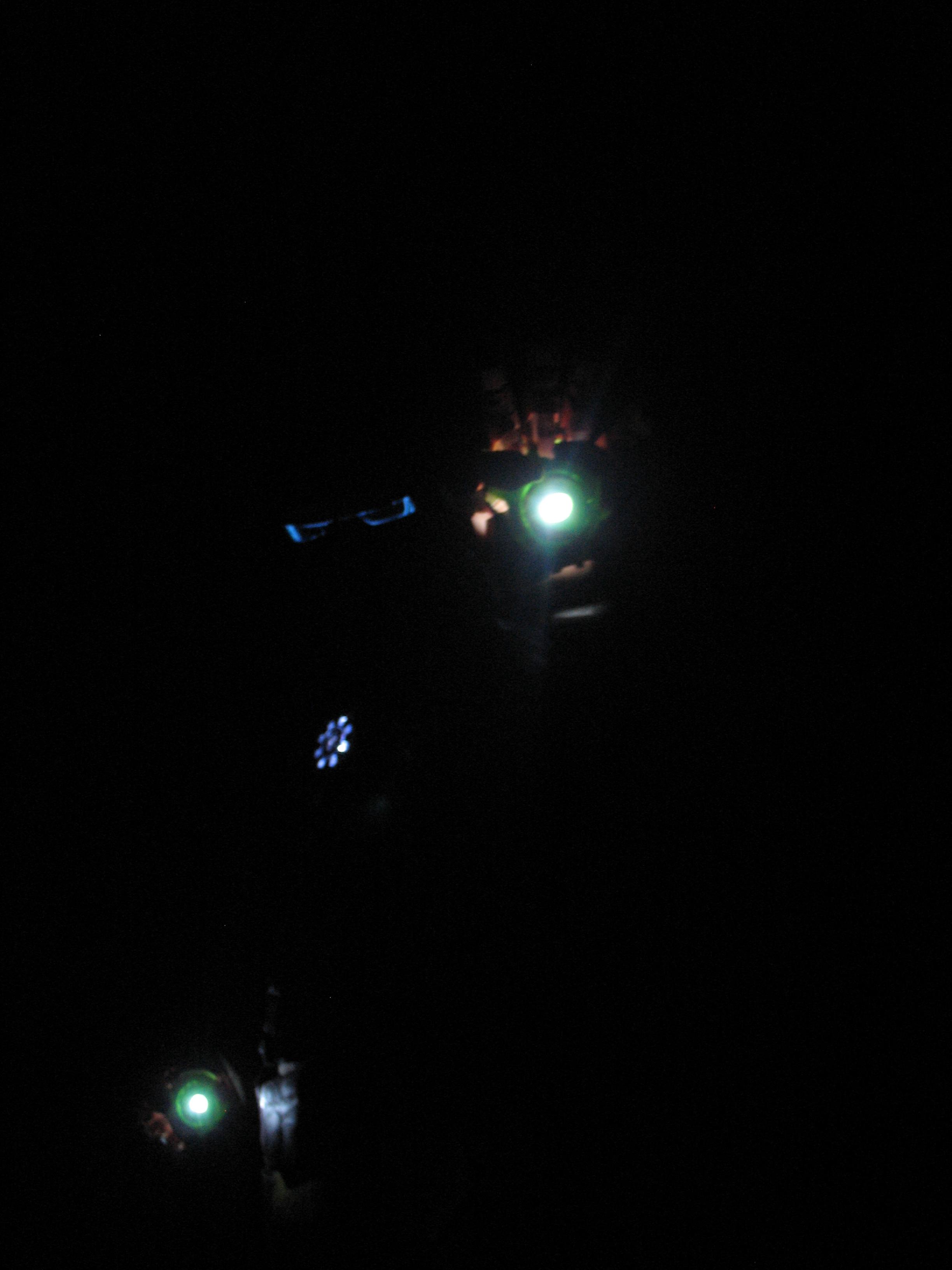

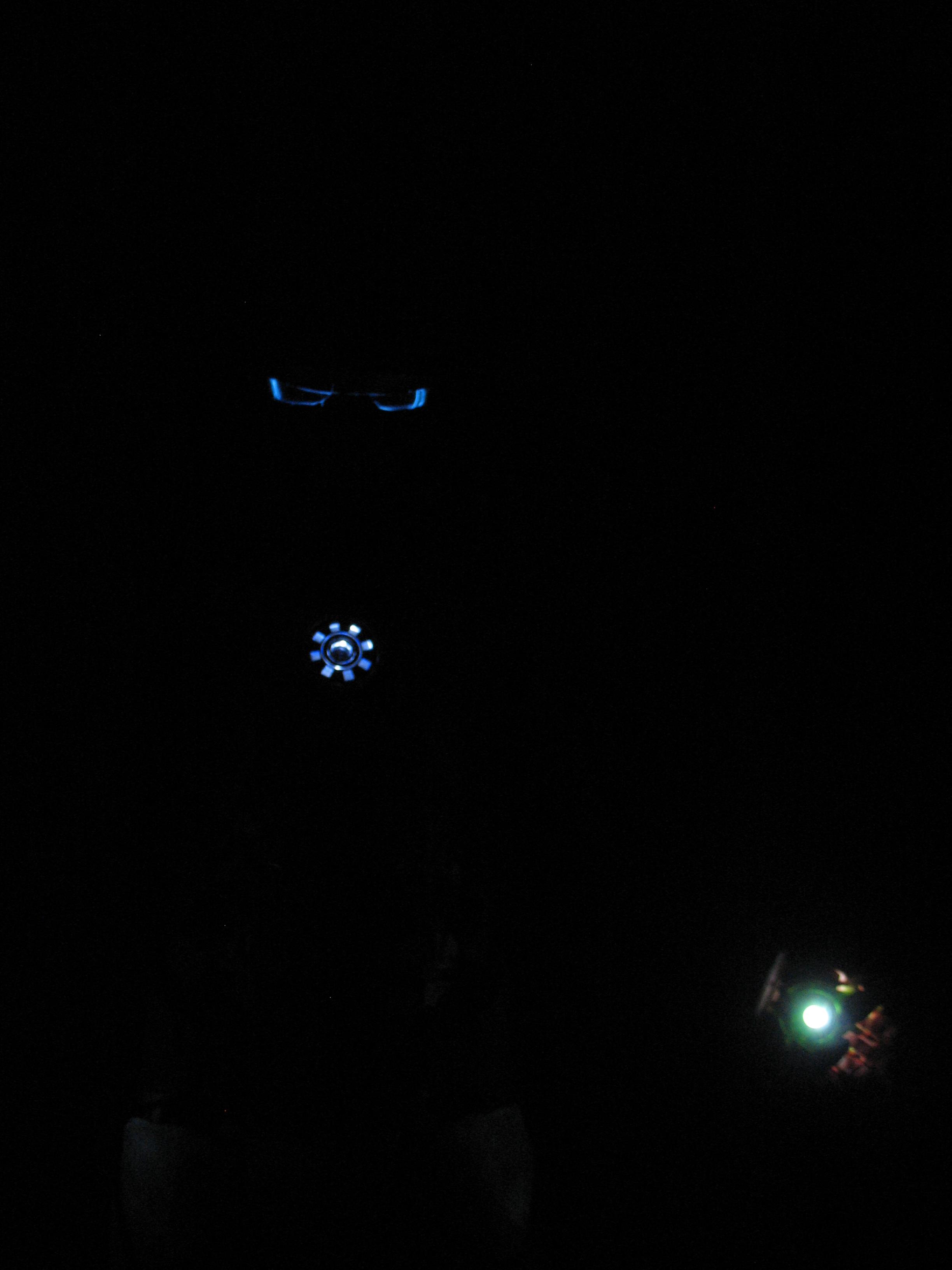

Glow
Classic Stark
My now Assed Chaps...very colorful, so maybe I've only made it look a bit more like I belonged in magic mike...
And of course, what would ironman armor be if it didn't...
Glow
Annanymous
Well-Known Member
dude this is awesome. Even with it not fully painted it is way cool. The arc reactor and helmet lights look epic in the dark!
Spartan_127
Well-Known Member
Looks good. :cool
Now slap some paint on that bad boy so we can see how this master piece looks.
Keep up the awesome work.
Now slap some paint on that bad boy so we can see how this master piece looks.
Keep up the awesome work.
captaincaliflour
Active Member
I have to say, it's incredible motivation to see how many people appreciate this log Thanks so much for all the kind words.
I'm going low tech with the palms, using bike handlebar lights that are contact activated. It means I'll have to transmute to activate them, but it also keeps the hands simple (considering how complex they are already, it's quite a network of elastic tendons in there)
Also, I feel a bit silly but I forgot to alter the faceplate brow, so I'm gonna do that before painting. As far as painting goes, I've gotta wait and see if I can get some spare cash for the spray paint since I'm basically broke right now. Mercifully I still have my wood glue, so I should be able to seal it with some hardwork and dedication, and that'll give it a far nicer paint finish than what it has now.
Thanks so much for all the kind words.I'm going low tech with the palms, using bike handlebar lights that are contact activated. It means I'll have to transmute to activate them, but it also keeps the hands simple (considering how complex they are already, it's quite a network of elastic tendons in there)
Also, I feel a bit silly but I forgot to alter the faceplate brow, so I'm gonna do that before painting. As far as painting goes, I've gotta wait and see if I can get some spare cash for the spray paint since I'm basically broke right now. Mercifully I still have my wood glue, so I should be able to seal it with some hardwork and dedication, and that'll give it a far nicer paint finish than what it has now.
captaincaliflour
Active Member
Apologies for the necro I realize it's been 5 months but I feel that y'all deserve to see the culmination of all this:

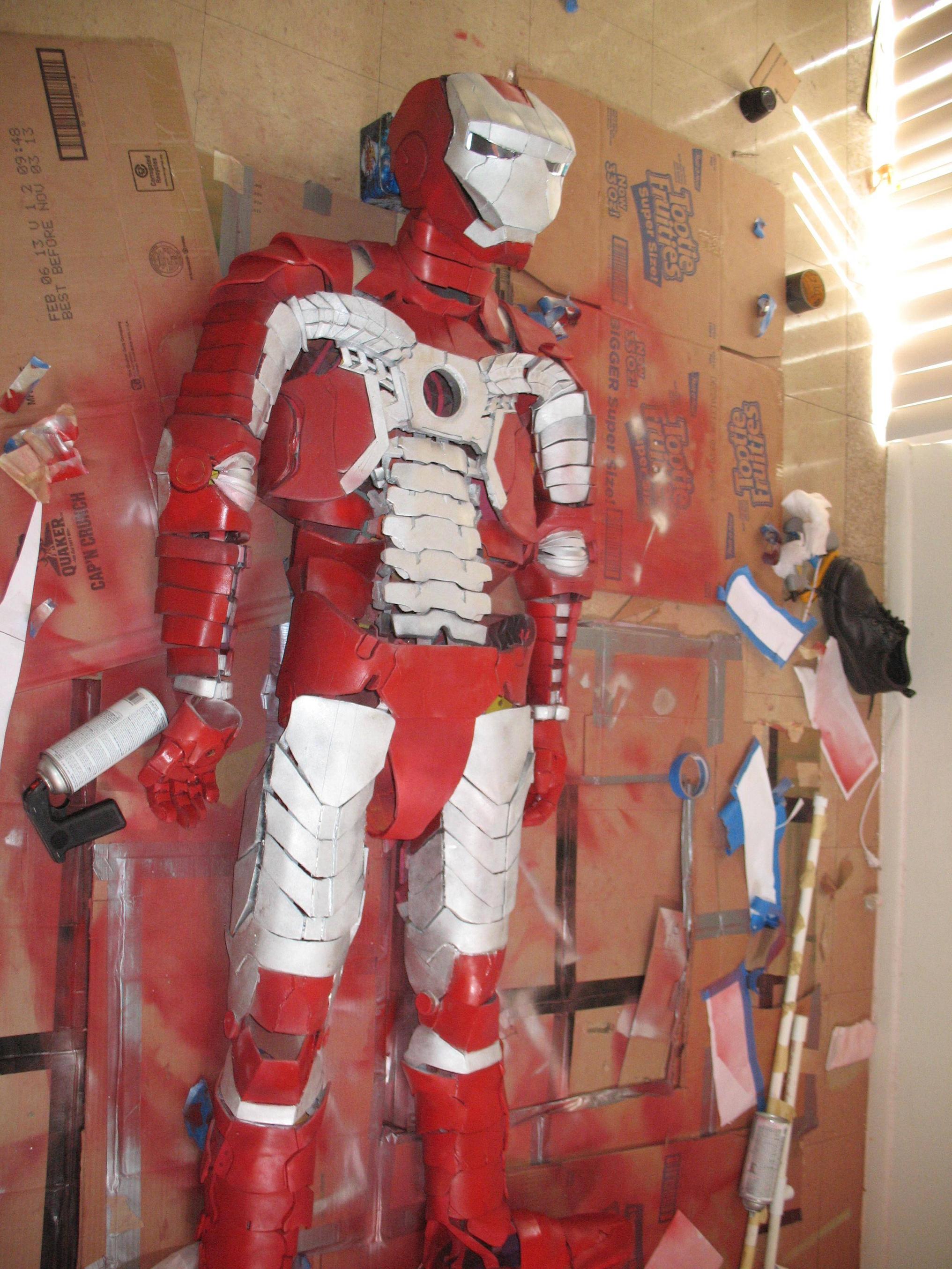

Fully painted laid out:
And hey look, it unfolds:
http://img20.imageshack.us/img20/4913/res1931460deeecc73881f5.gif
And at comicon, where I totally made a fool of myself when I ran into Roxyroo xD
Fully painted laid out:
And hey look, it unfolds:
http://img20.imageshack.us/img20/4913/res1931460deeecc73881f5.gif
And at comicon, where I totally made a fool of myself when I ran into Roxyroo xD
