ACDCrockr209
Well-Known Member
Looks awesome, dude!
Props Sliced MA5C w/ some slight mods and of course Pic Heavy!
- Thread starter Xarmymustang
- Start date
- Status
Xarmymustang
Member
Thanks man I am very glad you like it. Trying to do something different for a change with modding it cuz all the others i have seen are just way too blocky so hopefully this one will turn out game accurate
Cereal Killl3r
Well-Known Member
Coming along great man!
Trigger looks nice and solid too!
It's going to look solid when done. Keep it going.
Dave.
Trigger looks nice and solid too!
It's going to look solid when done. Keep it going.
Dave.
Xarmymustang
Member
Thanks Dave always a pleasure
Im going to try and get the rounding of the edges and sanding done and mix up some bondo to get the details carved in and such so i hope not to disappoint Xarmymustang
Member
UPDATE!!! I know it's been awhile since i last appeared here but i have been totally swamped with work on overtime and what free time i did have i have been working on my 34 ford coupe trying to get it ready to be made street legal. But alas i have done a few things with the rifle such as sanding and hand carving, sanding, bondo, sanding, and did i forget to mention sanding? LOL. But any way pictures speak louder than words on this site so here they are.

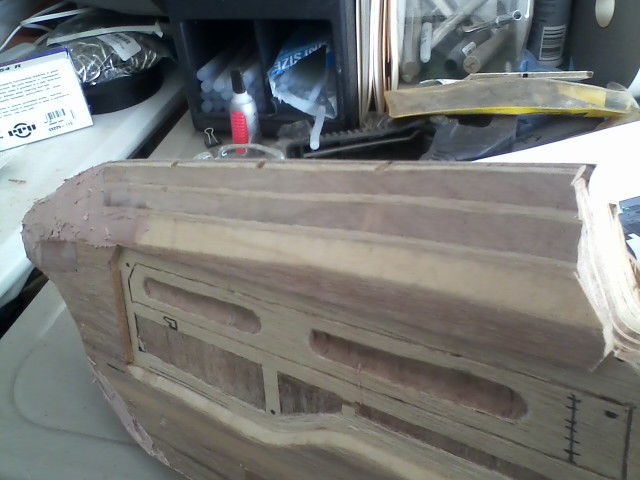

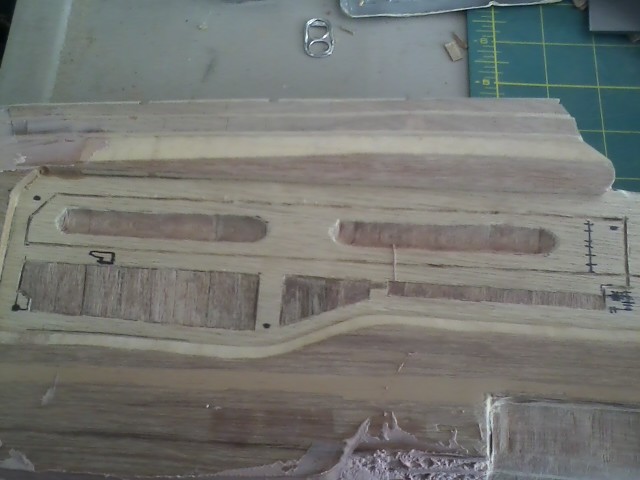

The start of the carving with hammer and chisel and needle files and of course my rotary tool

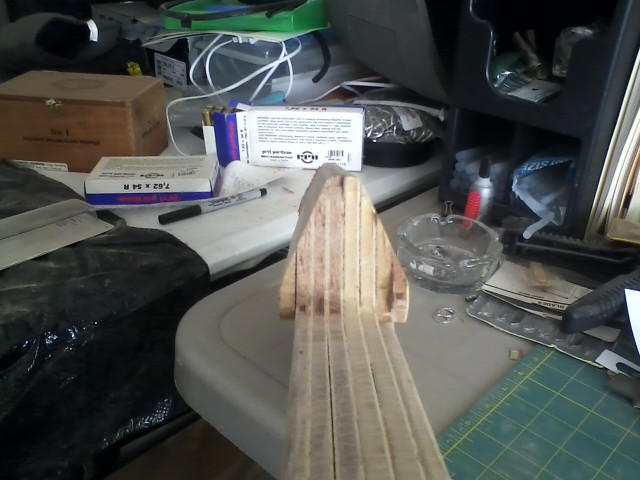

Shaping the top section of the rifle

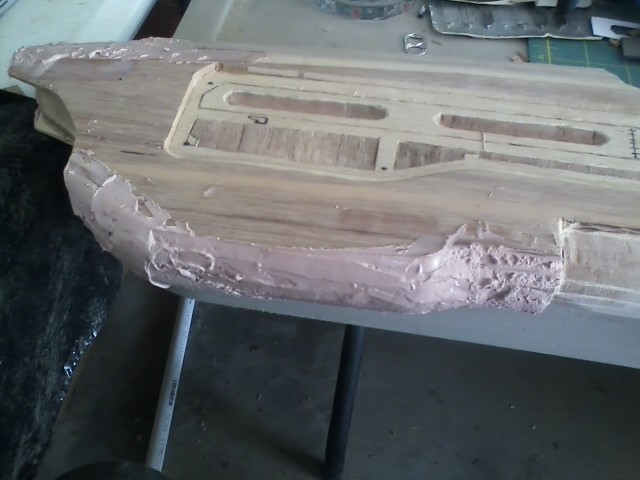

My first go working with bondo and boy did i learn some things like how quickly it sets up. My first mixed batch which was about a tennisball size amount went to waste as it hardened mostly before i could use half of it
But after alot of trial and error and of course heavy sanding to shape it
Still got to do the rear section to bondo and also need to get some wood filler putty for some of the areas i carved and accidently gouged with the chisel due to lousy wood but so far things are turning out perfect and i couldnt ask for better for a first attempt at a weapon.
As always i hope you enjoyed and comments are always welcome
Happy building 405th!! :cool
The start of the carving with hammer and chisel and needle files and of course my rotary tool
Shaping the top section of the rifle
My first go working with bondo and boy did i learn some things like how quickly it sets up. My first mixed batch which was about a tennisball size amount went to waste as it hardened mostly before i could use half of it
But after alot of trial and error and of course heavy sanding to shape it
Still got to do the rear section to bondo and also need to get some wood filler putty for some of the areas i carved and accidently gouged with the chisel due to lousy wood but so far things are turning out perfect and i couldnt ask for better for a first attempt at a weapon.
As always i hope you enjoyed and comments are always welcome
Happy building 405th!! :cool
ACDCrockr209
Well-Known Member
Whoa! Your rifle is coming along very nicely, Dude!
Keep at it!
Keep at it!
Xarmymustang
Member
TheCorporal101
New Member
this is looking really awesome. About how thick is the material you're working with? I wanted to do a sliced DMR build with foam, but I'm not quite sure if it's too thick to layer like that or not.
Xarmymustang
Member
I have made some more bondo and carving progress but have been swamped with work but hopefully soon i will get some pics up in a couple of days
i used 1/4in thick plywood which i should have got a better material like a dense fiber board, as the plywood splinters and comes apart easily but i also removed 4 layers of the gun also to make the width more believable or it would be an inch to inch and a half wider. Just got to pay attention to what the original modeler of the file recommends and go from there to suit your desire
Xarmymustang
Member
Update time! these past 2 weeks have been crazy with either trying to work on my 34 ford, 10hr days at work and my rifle project but i did make a lil bit of progress with the details/time consuming parts of the gun like rivets and carving and lighting for the display but pictures speak louder than words so here they are

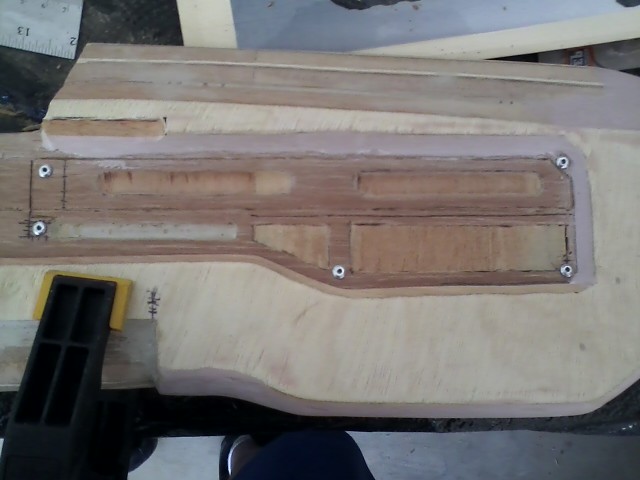

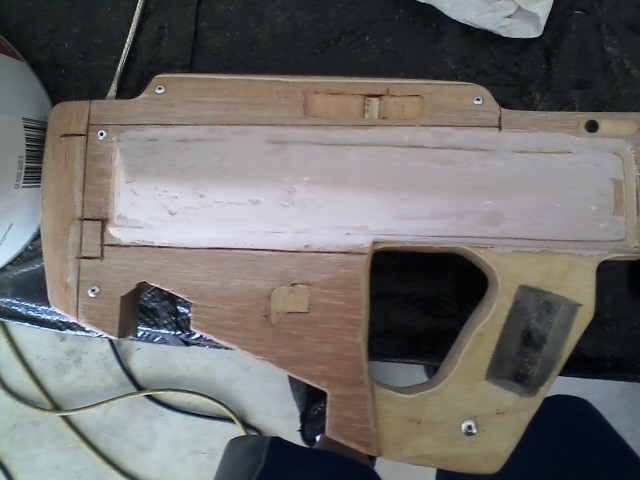

Some notching and some of the rivets i put into the rifle

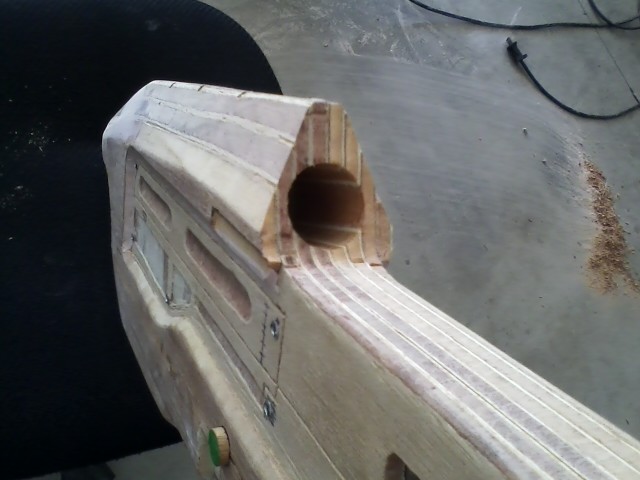

Drilling out the hole for the display and electronic stuffs with a 1 inch spade bit

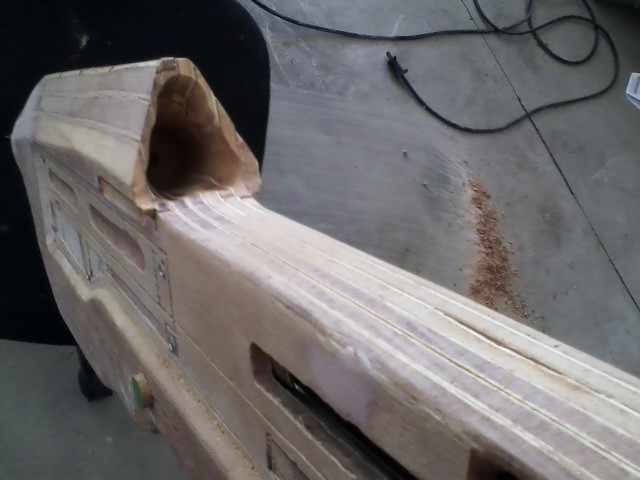

And widening that hole so that the whole display will get light from the LED

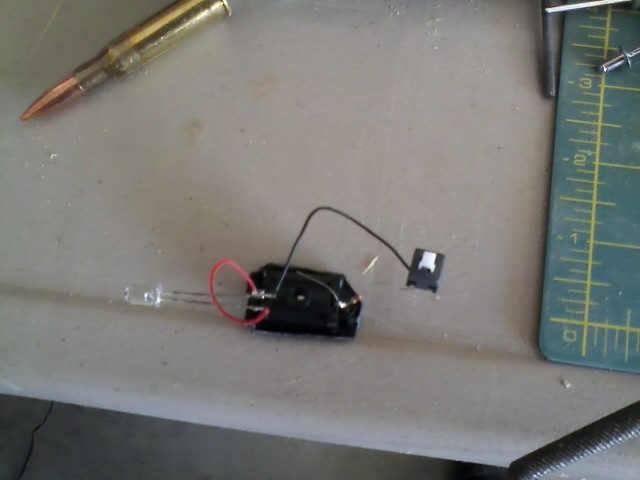

The light itself that i robbed from a crappy flashlight

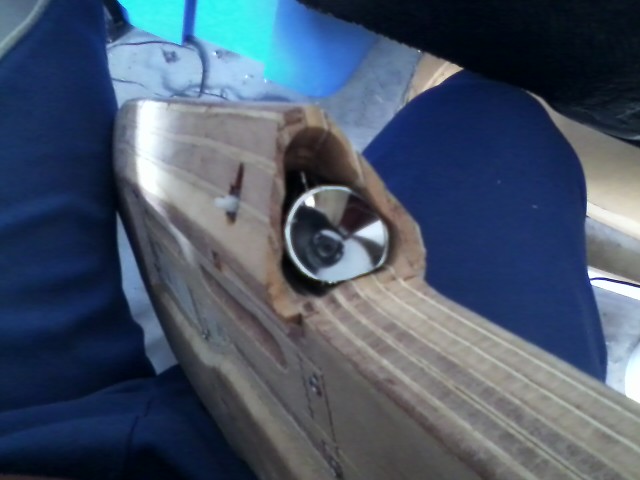

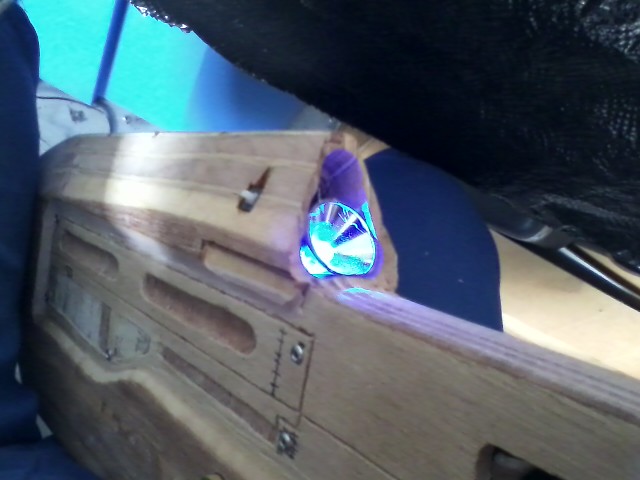

And installed into the the hollowed part of the rifle

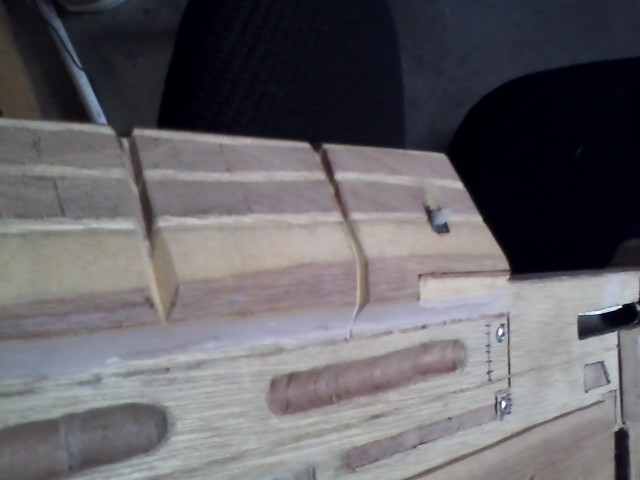

Also started carving the vertical lines along the sight area by hand with a file. also wasnt too happy with where i had to put the on/off button for the LED for the display but was limited to where i could put it as i dont have any additional wire or soldering experience to be able to put it where i want but thankfully it is pretty small and wont be too bad
As always i hope you all enjoy and are welcome to praise, criticize or give advise
Happy armoring 405th!!! :cool
Some notching and some of the rivets i put into the rifle
Drilling out the hole for the display and electronic stuffs with a 1 inch spade bit
And widening that hole so that the whole display will get light from the LED
The light itself that i robbed from a crappy flashlight
And installed into the the hollowed part of the rifle
Also started carving the vertical lines along the sight area by hand with a file. also wasnt too happy with where i had to put the on/off button for the LED for the display but was limited to where i could put it as i dont have any additional wire or soldering experience to be able to put it where i want but thankfully it is pretty small and wont be too bad
As always i hope you all enjoy and are welcome to praise, criticize or give advise
Happy armoring 405th!!! :cool
MikyVengeance
Well-Known Member
woah, looks awesome! and it has a ton of functions! Very cool
Xarmymustang
Member
woah, looks awesome! and it has a ton of functions! Very cool
Thanks, Trying to do my best with what few tools i have in my building arsenal lol. But i am very happy you both like so far
Xarmymustang
Member
Finished!!!
Been doing some work on my MA5C and its not up to my perfection quality as i will in the future use MDF board instead of 1/4in plywood
as it splinters and chips to easily but it was still a fun build, note to self also to be more careful with LED's so they dont break and then
you can use them when you dont have a solder gun or soldering experience so for the display on the gun is a printed piece of paper with
a clear plastic sheet over the top glued to it But alas the rest of the moving/working pieces are still there.
Using some of my foam scraps for the foregrips of the rifle turned out awesome and really comfortable too

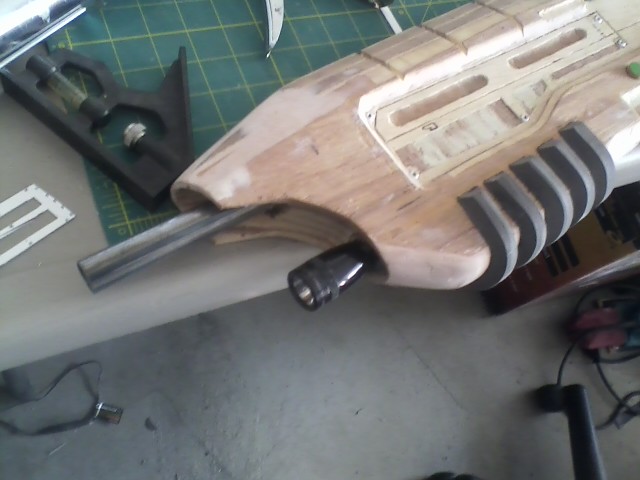

Barrel and flashlight mounted in the rifle using copious amounts of hot glue to hold them in and they are solid
Two coats of primer as the base

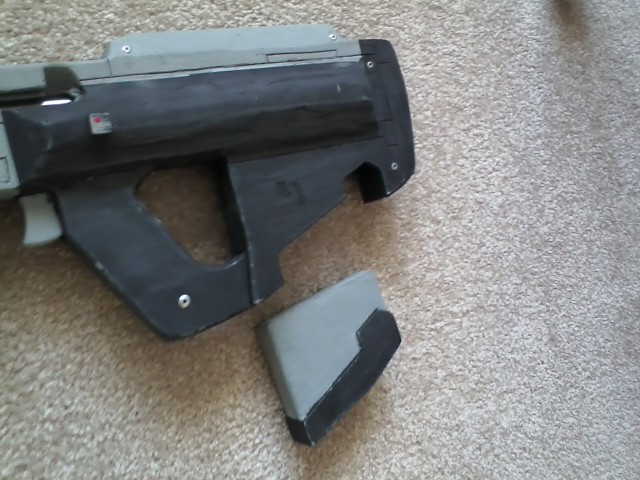

And then a layer of charcoal grey on the bottom parts of the weapon
Then ground off the paint on the rivets and put in some on the top part of the sight of the rifle and some
other small parts of detail paint as well as the bolt of the reciever installed with springs for strong cycling action....

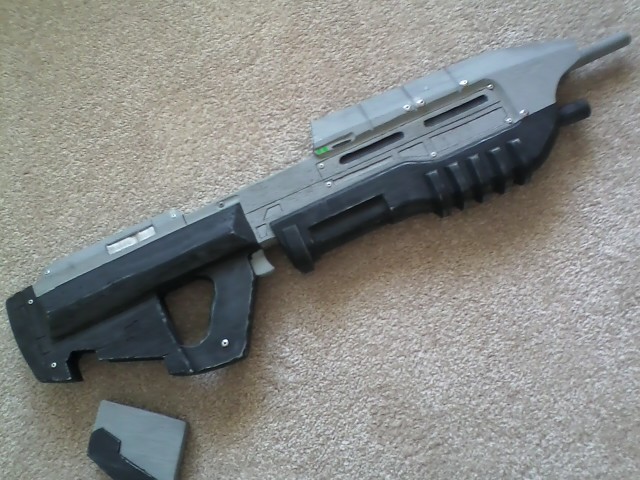

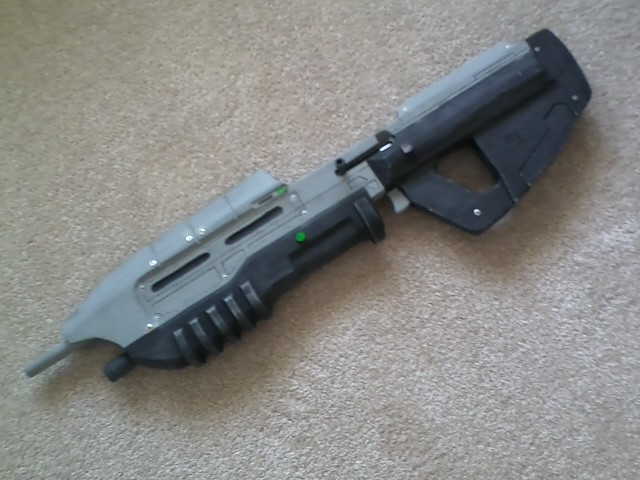

And you get a finished product

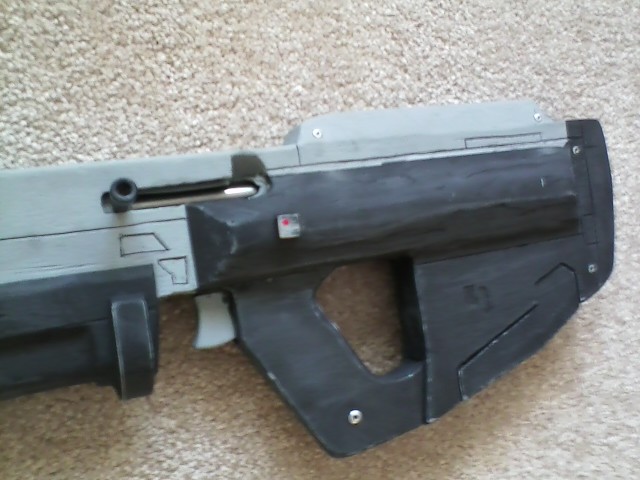

Bolt open and locked
And the final shot
I apologize to all for this taking too long to finish. also i had some better materials and tools to make it look better
but as for it going with my GySgt Buck ODST armor it will do just dandy along with the M6 SOCOM i have also.
Thank you all for your support during this build and for my next sliced build i hope to use this as an experiance to
apply toward my next project...like a possible BR55 Halo 3 version
As always happy armoring 405th!!!
Been doing some work on my MA5C and its not up to my perfection quality as i will in the future use MDF board instead of 1/4in plywood
as it splinters and chips to easily but it was still a fun build, note to self also to be more careful with LED's so they dont break and then
you can use them when you dont have a solder gun or soldering experience so for the display on the gun is a printed piece of paper with
a clear plastic sheet over the top glued to it
But alas the rest of the moving/working pieces are still there.Using some of my foam scraps for the foregrips of the rifle turned out awesome and really comfortable too
Barrel and flashlight mounted in the rifle using copious amounts of hot glue to hold them in and they are solid
Two coats of primer as the base
And then a layer of charcoal grey on the bottom parts of the weapon
Then ground off the paint on the rivets and put in some on the top part of the sight of the rifle and some
other small parts of detail paint as well as the bolt of the reciever installed with springs for strong cycling action....
And you get a finished product
Bolt open and locked
And the final shot
I apologize to all for this taking too long to finish. also i had some better materials and tools to make it look better
but as for it going with my GySgt Buck ODST armor it will do just dandy along with the M6 SOCOM i have also.
Thank you all for your support during this build and for my next sliced build i hope to use this as an experiance to
apply toward my next project...like a possible BR55 Halo 3 version
As always happy armoring 405th!!!
Xarmymustang
Member
Wow that was a fast reply lol!
It definetely was a learning experience and for the next project i def know some changes i will be making when it comes to modifying the file
down to the electronics i want to use and such.
I did find a really nice sliced BR55 file made my Bevbor i am planning to use next time and also cost is going to be no problem this time either so i can get it done right and looking right also
But that will be a thread for another day lol
But again thank you for your kind words my friend
Xarmymustang
Member
No problem has been good watching your progress.
P.s. I can answer fast cause for any subscripted threads my iPad instantly "bing bongs" me with updates
Very nice! I should look into that for my phone lol
Xarmymustang
Member

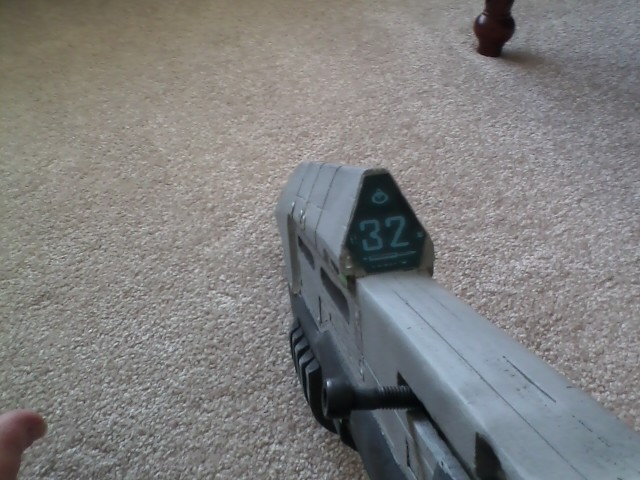

Sorry for the double post but i found a few more pics on my phone of me actually holding the weapon and one looking down the sight again
The rifle is only bout 13mm short of the actual size according to the wiki and weighs bout a half pound less than the 8.3 that the wiki also specifies
so all in all i came really close.
Enjoy and all comments are welcome from praise to constructive criticism
As always happy building 405th :cool
The rifle is only bout 13mm short of the actual size according to the wiki and weighs bout a half pound less than the 8.3 that the wiki also specifies
so all in all i came really close.
Enjoy and all comments are welcome from praise to constructive criticism
As always happy building 405th :cool
