Sniper rifle barrel help please!@!@@!@

[117islegend]

can someone please tell me how to cut this?

go to the link
http://s901.photobucket.com/albums/ac213/117IsLegend/?action=view&current=BARRELhelp.png



[Sean Anwalt]

Well, I would, but I can't see your picture.



[CampGroundHost]

you need to post pics so we can see whats going on and give you our input



[117islegend]

sorry, i cant figure out how to add pics... ill just have to improvise... thanks though



[CampGroundHost]

when you hit the reply to thread button there is a little button across the top that
what i think is a little tree... i think you have to have it posted on photobucket or
something like that before though

correct me if im wrong on that last part please



[117islegend]

crap, i dont know anything about photobutcket ar stuff like that. is there no way to just upload it from my computer?



[CampGroundHost]

im not really sure might want to search it, i havent had to do any uploading yet



[117islegend]

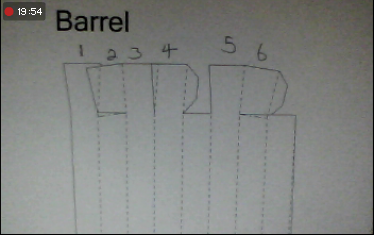

http://s901.photobucket.com/albums/ac213/117IsLegend/?action=view&current=BARRELhelp.png

THERE IT IS! PLZZZ HELP ME!@!@



[CampGroundHost]

is this across several pages or is the barrel broken up



[Carpathia]

From what I can tell, that is an error in the unfold process. The way this is layed out, your cut lines overlap parts of the model that are not supposed to be cut. I would suggest, if you have the ability to do so, going back into pep designer, and splitting the vertical lines between 2 and 3, between 3 and 4 and between 5 and 6, BELOW the offending parts. If you don't have the ability, well, cut on the solid lines and there will be some gaps to fill in, but it's not a total loss.



[117islegend]

i have the pep folder open as i build the sniper. i just am not shure how to do what you just told me to



[SLane972]

PVC pipe for the barrel, run it through the body for structure and glue the muzzle break to the end....less finish work
