It starts for real !


Small summary of the third part : a footbridge over the road to reach the other end of the diorama. This footbridge is the length of the part so 81cm. As for the road, it goes under the footbridge and there will be a pedestrian crossing.

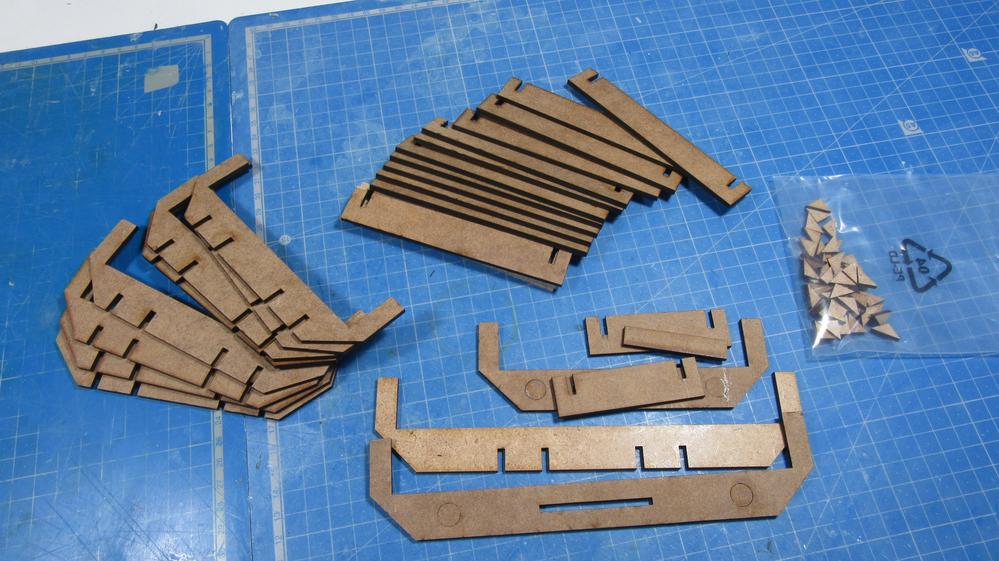

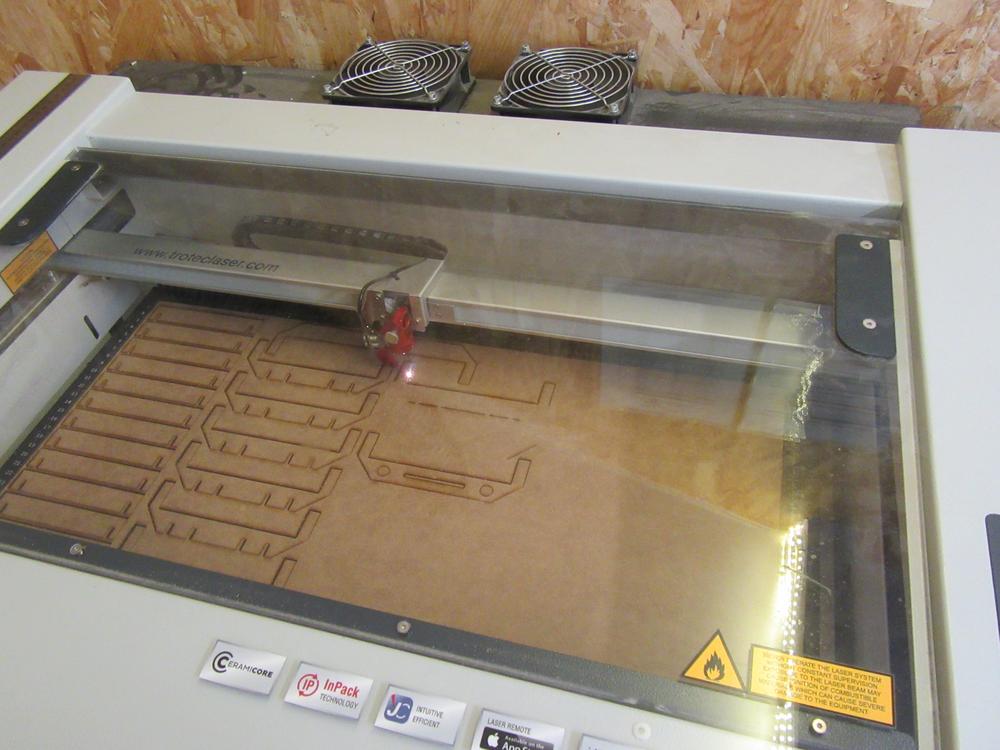

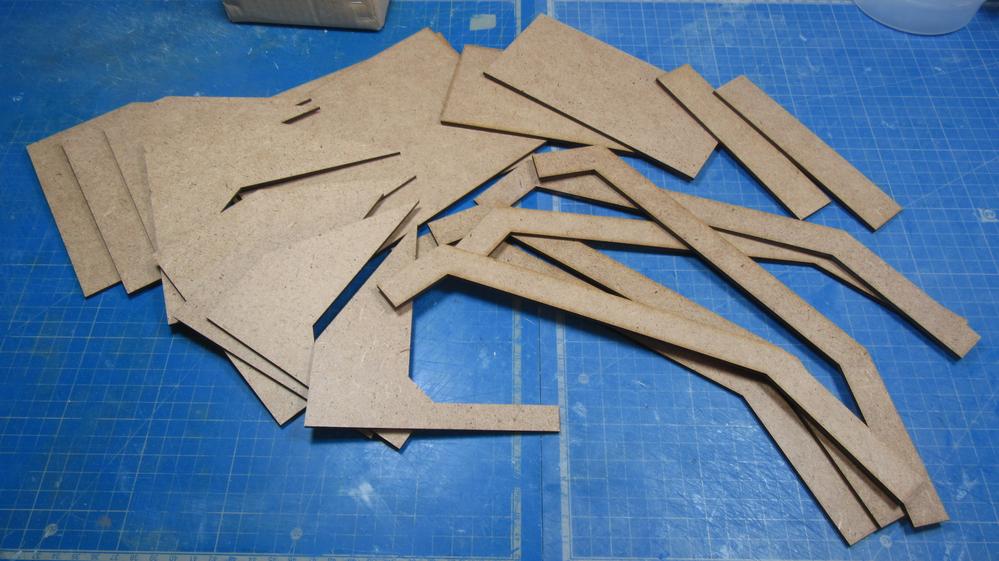

I start by making the footbridge : I draw the internal structure on AutoCAD and novelty : I cut it with a laser cutter. It's fast and super accurate.

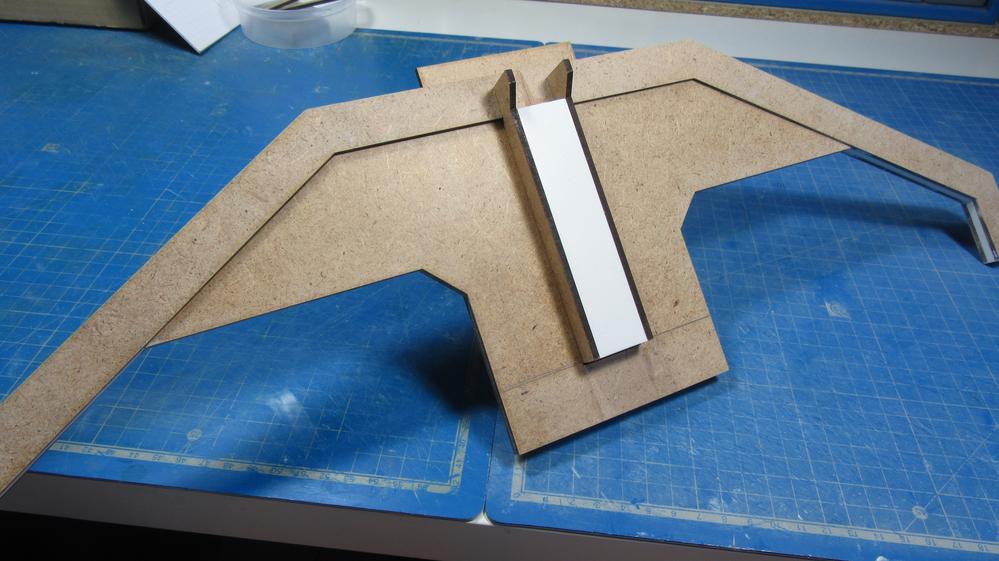

Assembling and gluing.

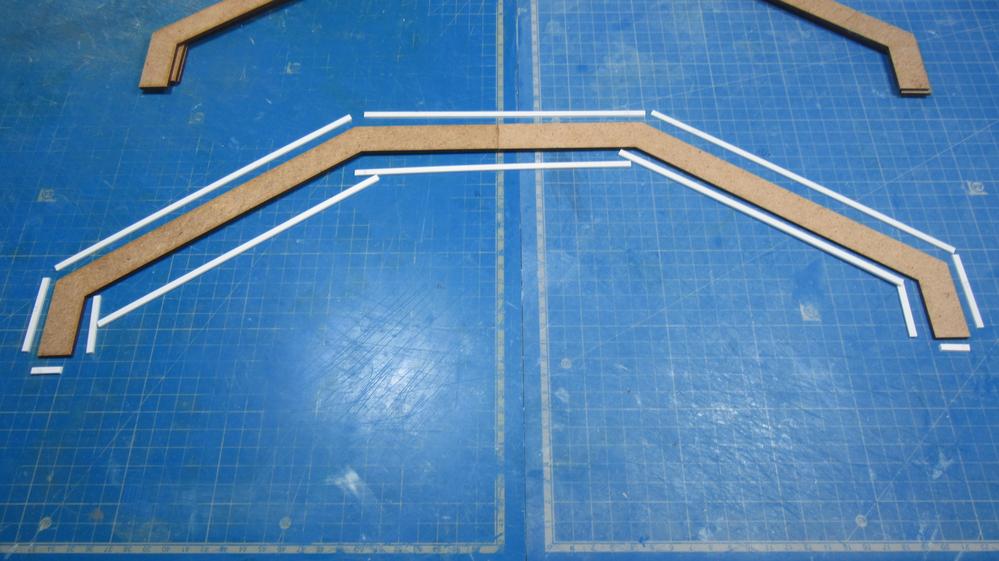

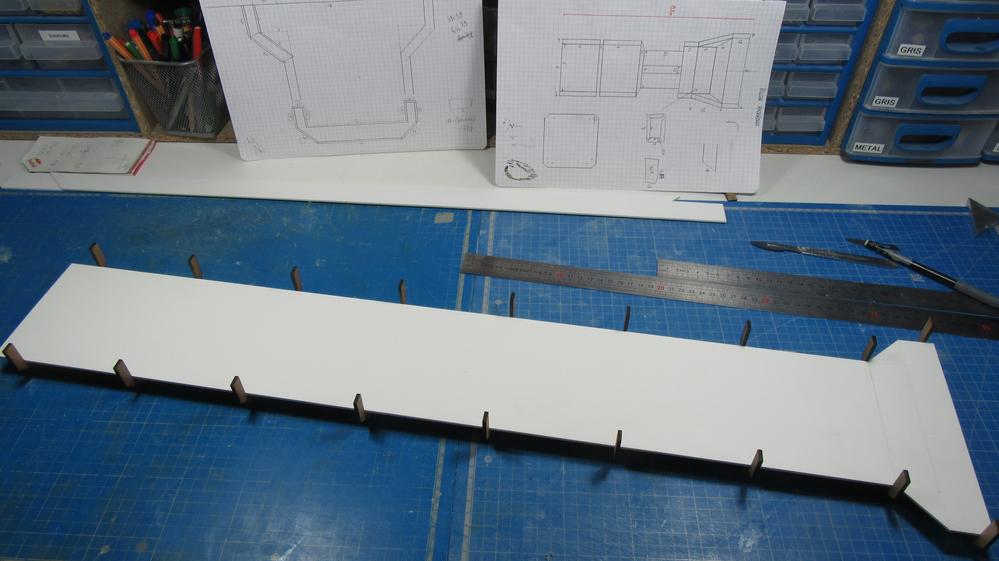

And I begin to cut (by hand) the expanded PVC that will be used to cover the structure.




Attachments

  • iY2e5wV.jpg
    80.1 KB · Views: 66

foxleader

Sr Member
Mind if I use your bridge design lol I need a bridge and well yours is easier to build then trying to build a full bridge with a lot legs like In odst.


Timuche

Active Member
I never cared much for diaramahs... until now. Awesome. Wish I had room for one.
Start by making small one, no need to make a huge one at the beginning ;)

Idk how I haven't seen this yet, and was never terribly interested in diaramahs, but I am super hyped for this one. Can't wait to see it!
Thanks :)

Mind if I use your bridge design lol I need a bridge and well yours is easier to build then trying to build a full bridge with a lot legs like In odst.
No worries, I can give you my files (.dxf or .dwg) if you want :)

I've been following this on Instagram and I absolutely love it so far! Can't wait to see more pictures
Thank you :) the photos are coming !



Little absence these last days, but justified absence :) Indeed, I had a stroke of madness and I fallen for a new tool...

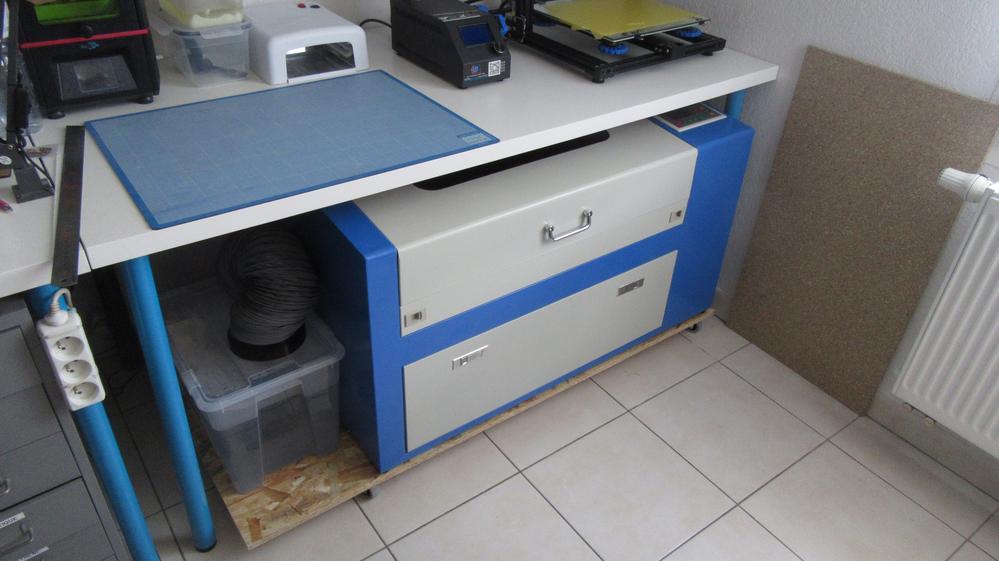

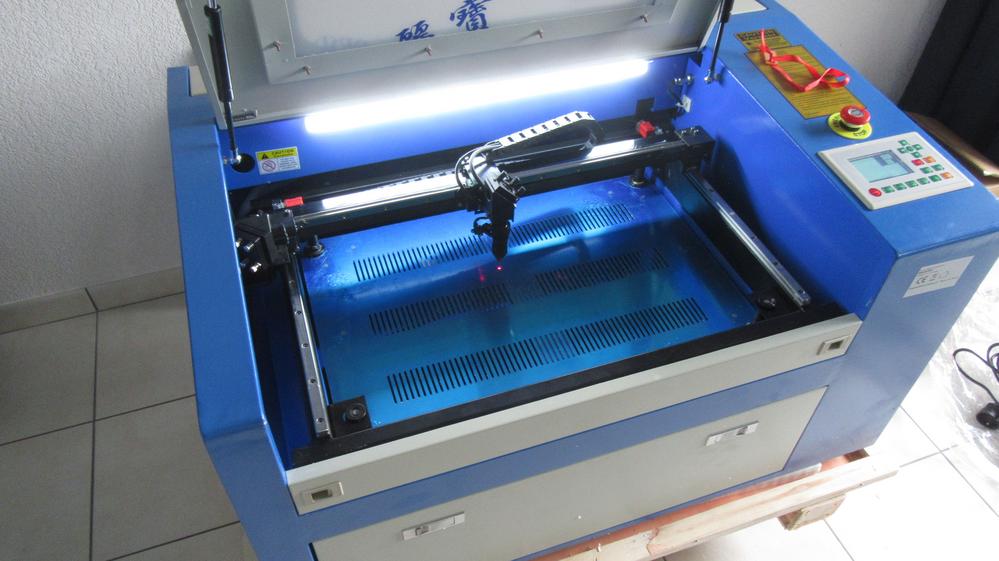

I bought a 50W Laser Cutting Machine !! It took me a little time to set it up and get it started, but it's good now. I realized that I was going to have a big need for laser cutting. At the FabLab I pay 35 $ / hour, the bill goes up very quickly so I preferred to invest to have one personally.

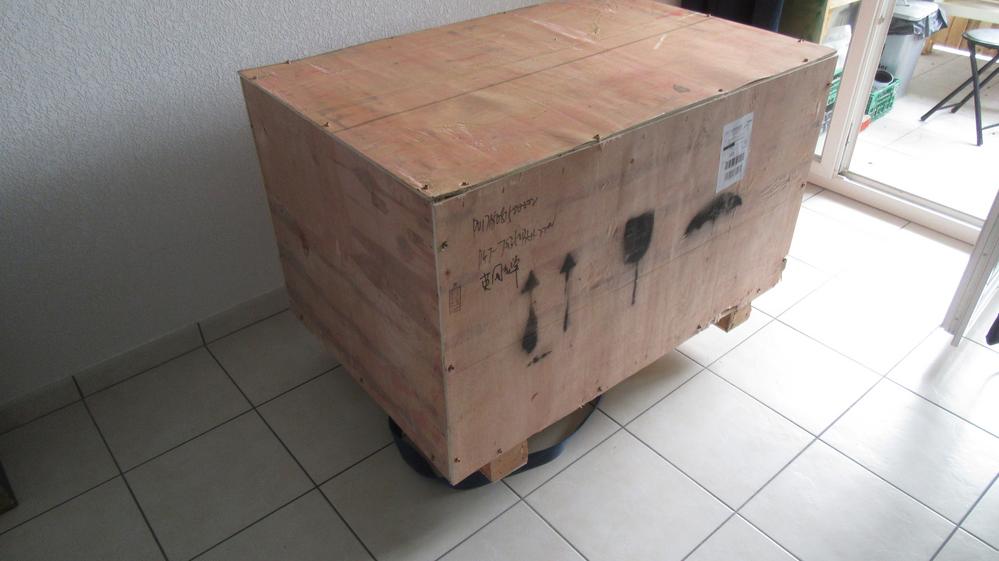

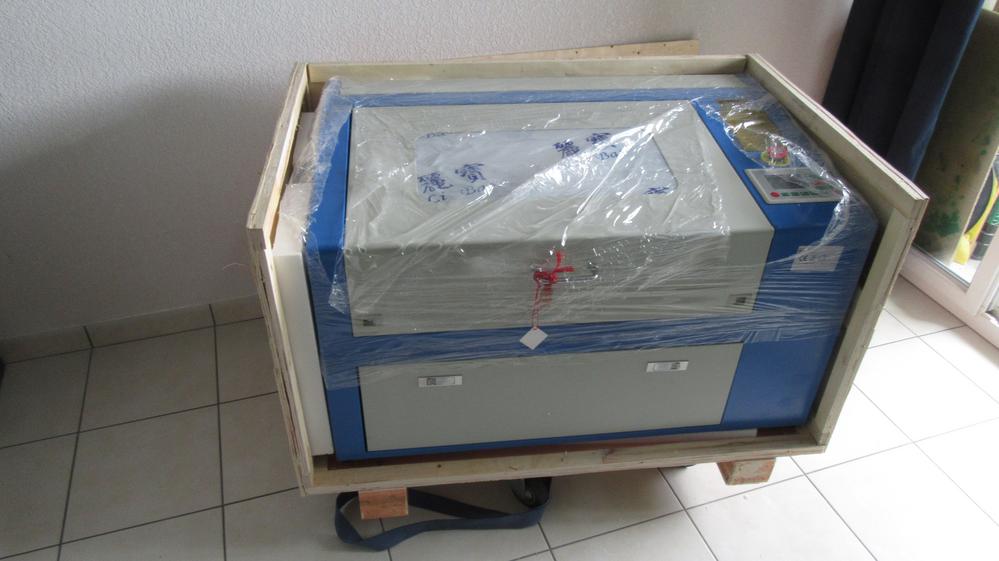

The big crate !








The perfect fit !

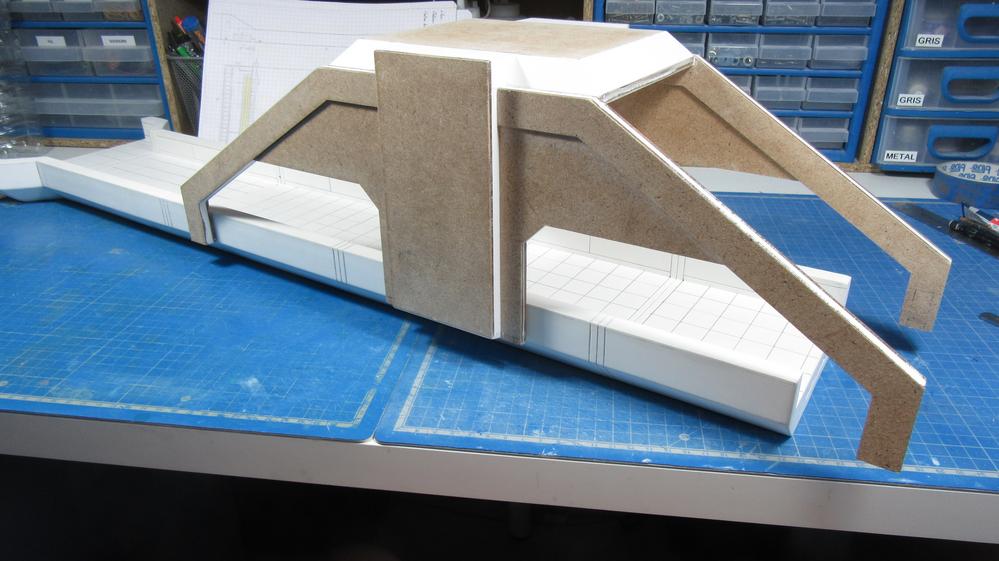

About the diorama : the footbridge has progressed well !

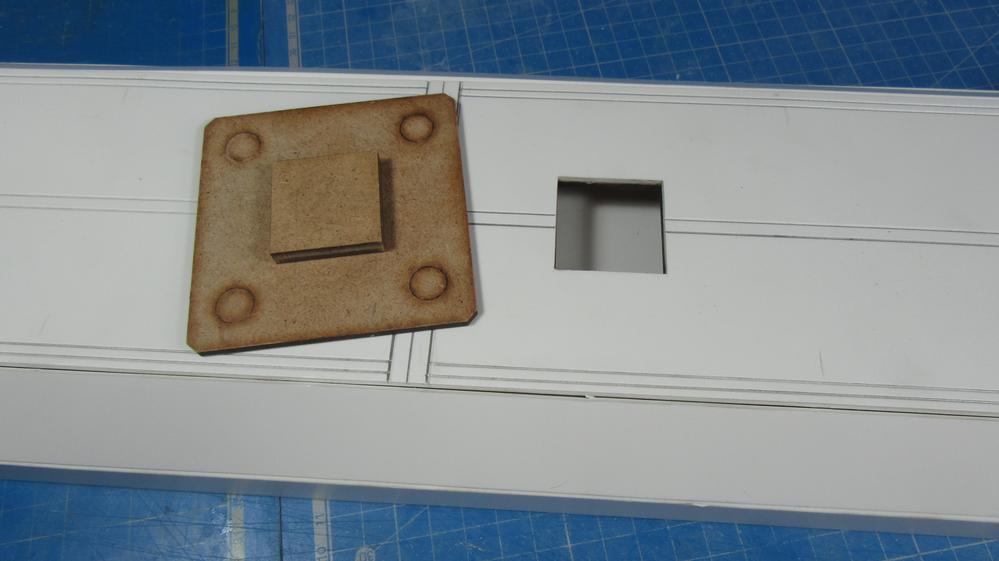

The square hole that can be seen will serve to nest the pillar because this part of the diorama is removable for an easier storage.

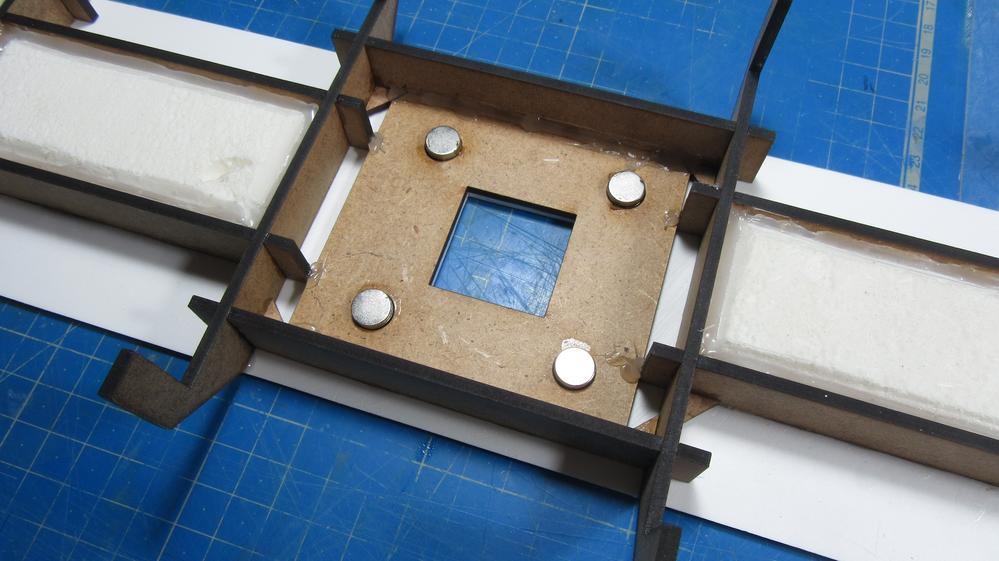

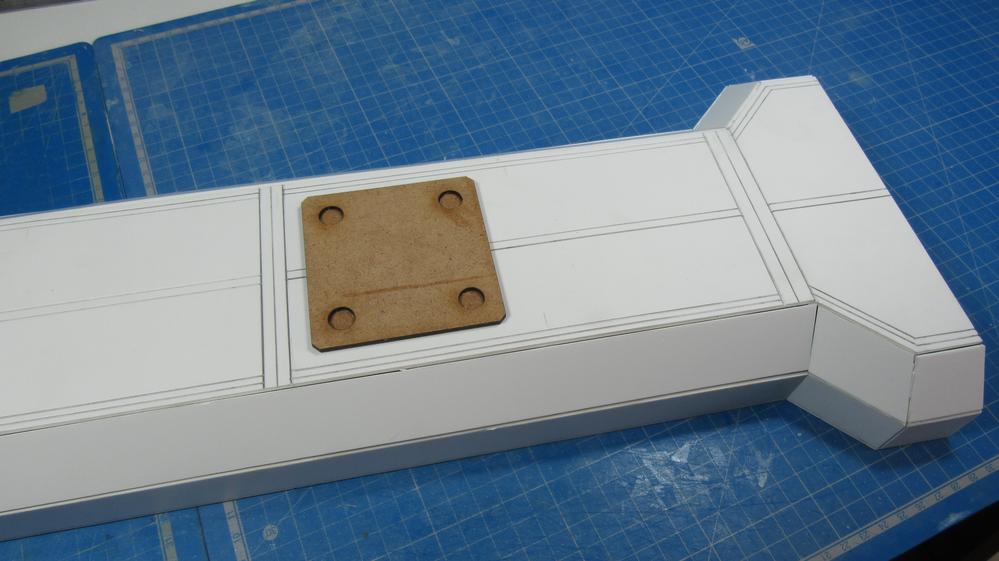

The hole seen from the inside, the magnets will help to hold the footbridge.


The top of the pillar will also have magnets.

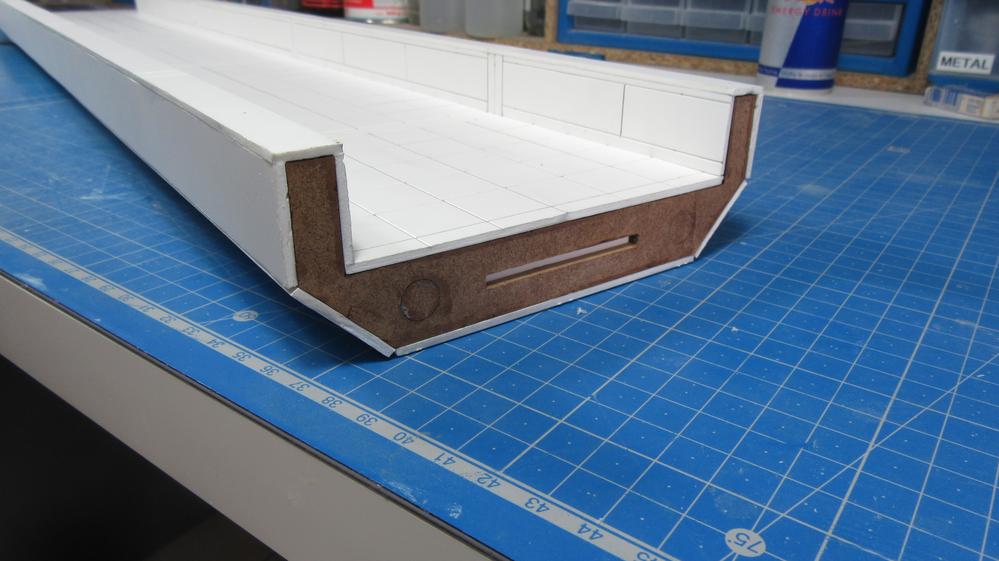

The ends are also equipped with magnets and a small notches to fit everything properly.




xXDashIVXx

Sr Member
Okay I found this gem on YouTube and well I think one of these guys might be up here with you.


Just gonna say it I know some other videos that might help you with detailing like tiny things if you want me to post it.
That video is awesome! And I love the thumbnail! That is the building in angel city fron titanfall! It looks sooooooooooo good!!!


Timuche

Active Member
Well this escalated quickly!
Yes it is true but when I think about it, it's not a bad investment knowing that I will have a big need of cutting for the internal structures of each furniture, buildings etc... :)

Okay I found this gem on YouTube and well I think one of these guys might be up here with you.

Just gonna say it I know some other videos that might help you with detailing like tiny things if you want me to post it.
I know this guy and his work, he is really very talented. I watch a lot of videos on Youtube, to inspire me with their techniques/tips.

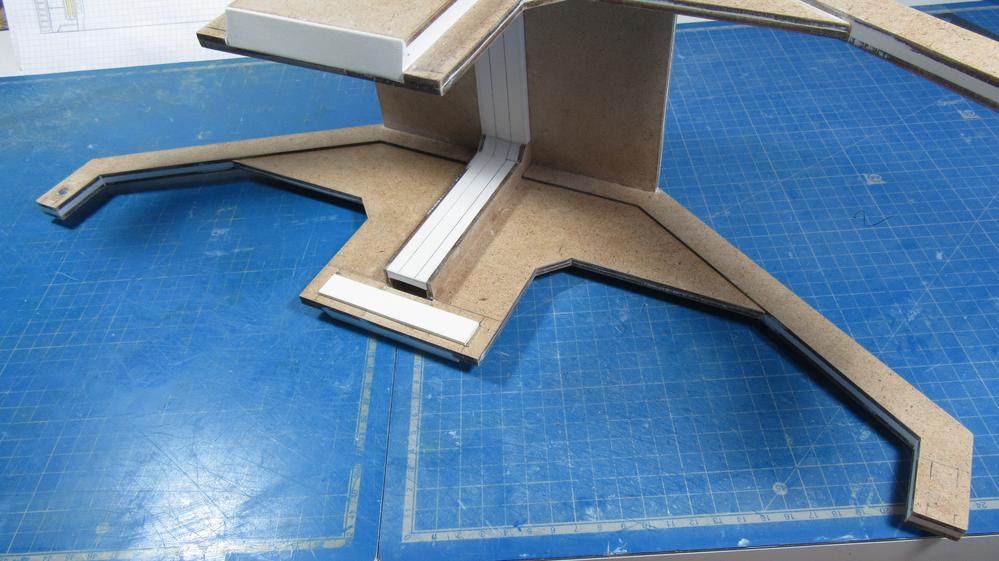

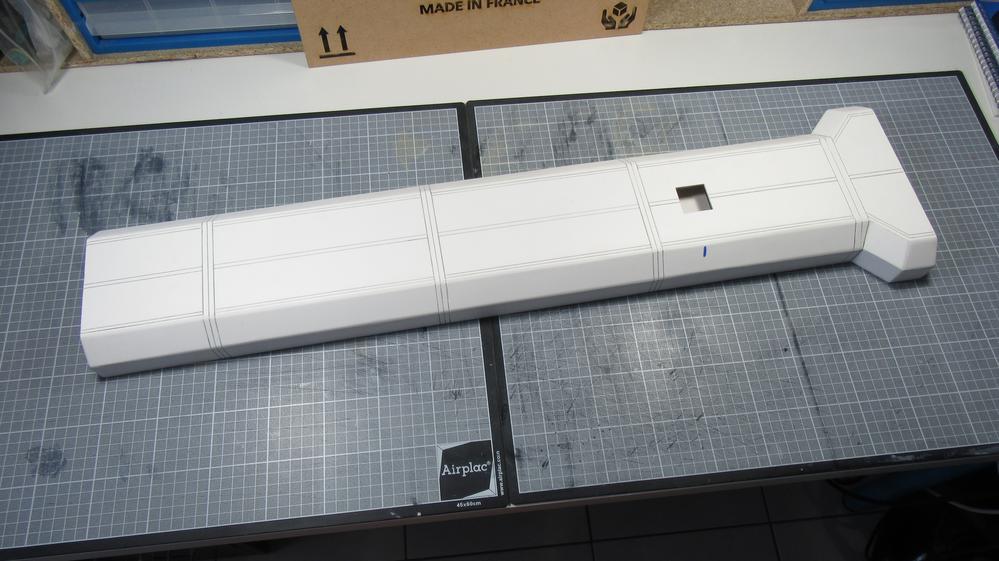

The footbridge and the pillar are finished ! I took a long time but the pillar is a hell to make, fortunately I don't have to do any more.

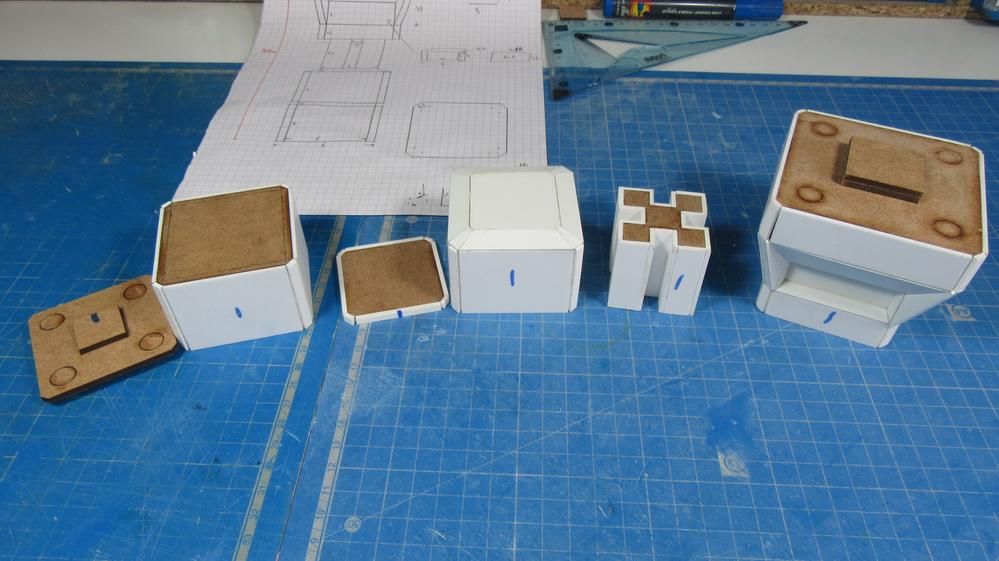

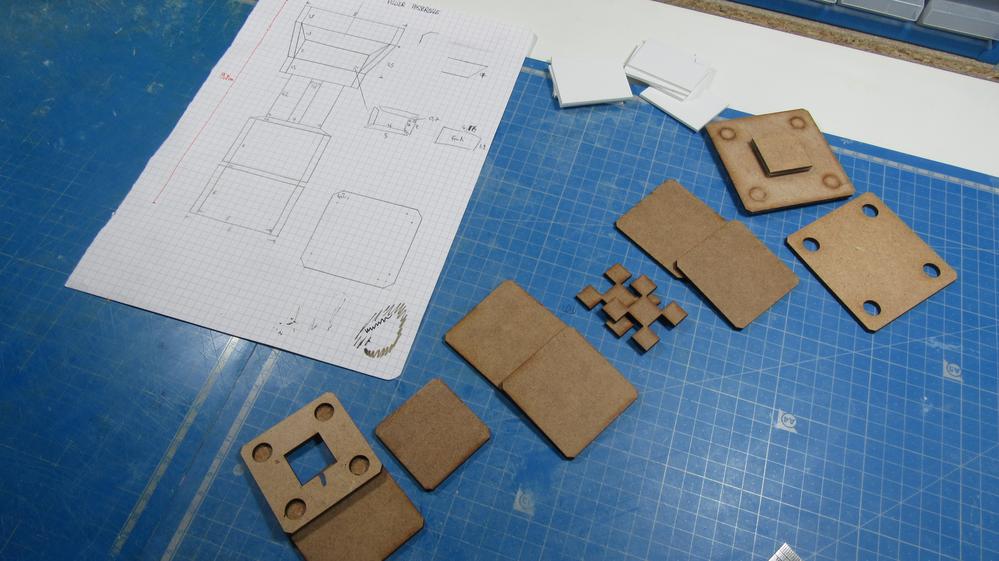

Knowing that everything will be removable for storage, I imagined a system with magnets to fit and maintain everything together.
I drew it on AutoCAD and my laser cutter took care of the rest !

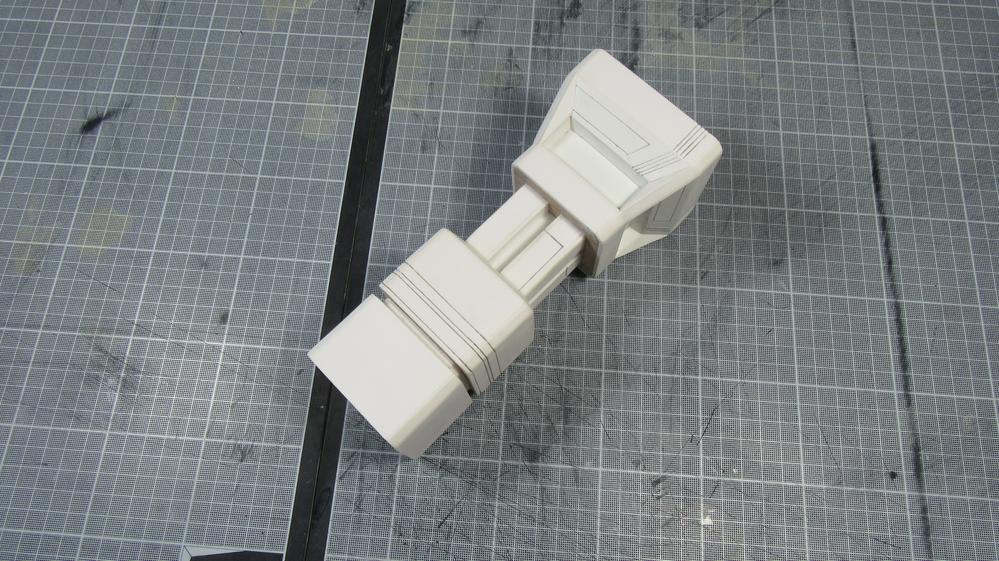

This is the pillar top part.

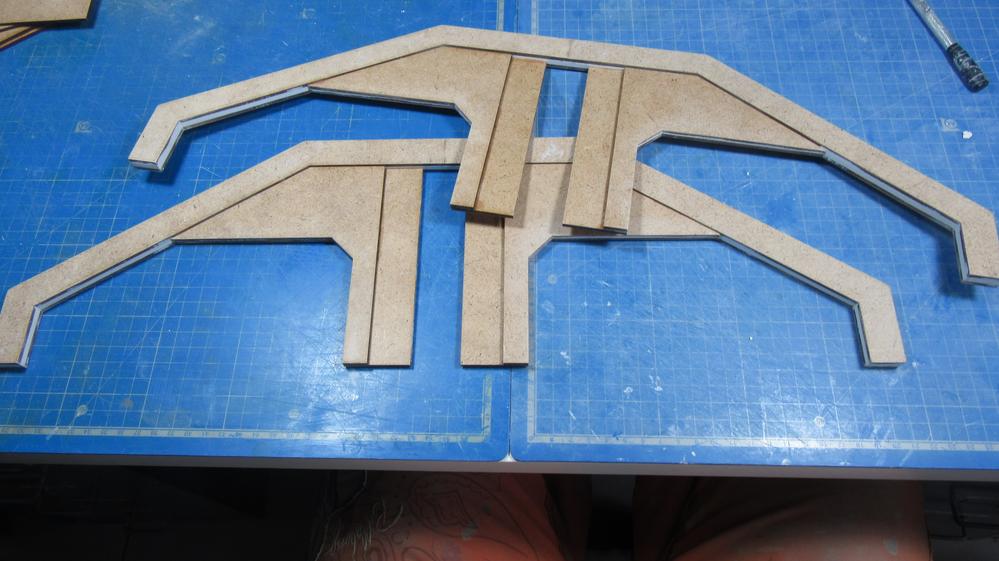

The pillar's making of :







Now I'm going to make this part :)


Timuche

Active Member
Hello everyone !

I'm back :)

As I explained it, I wanted to finish my projects of weapons replicas which I use to finance the diorama and it is done ! I finished all the HALO Magnums (I will post photos in the appropriate section). From now on I work on the diorama and nothing but the diorama.

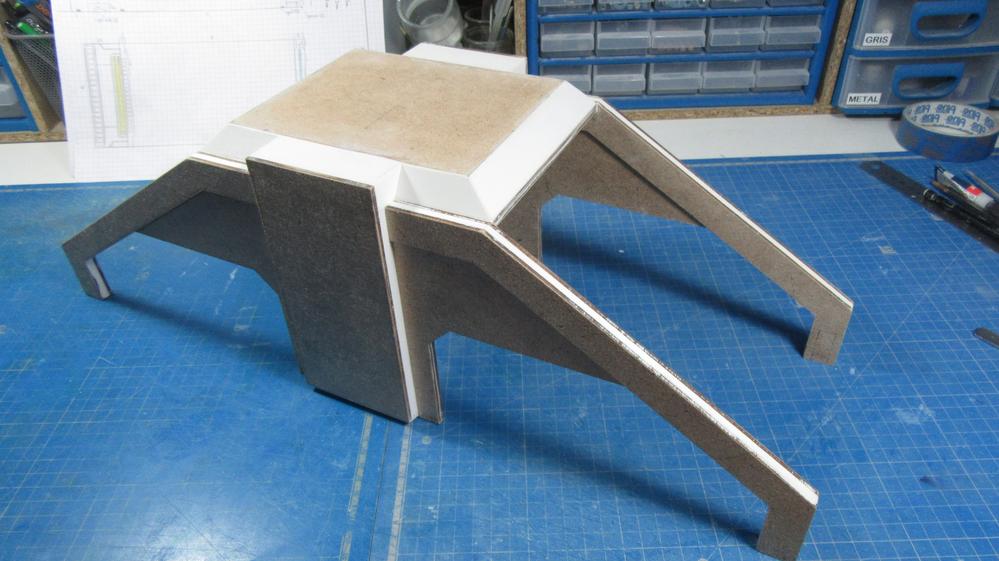

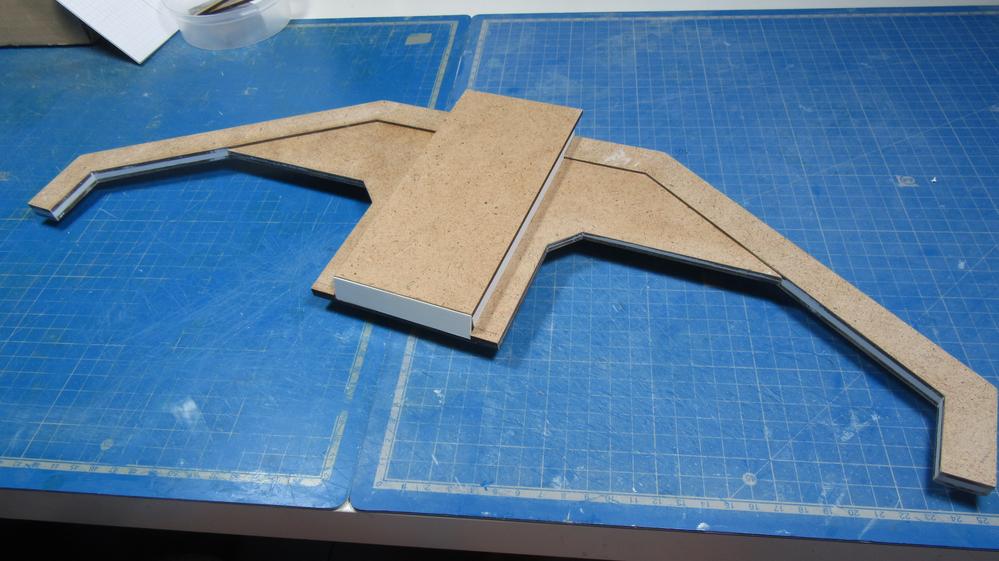

We resume where we were : the small roof that covers the footbridge !

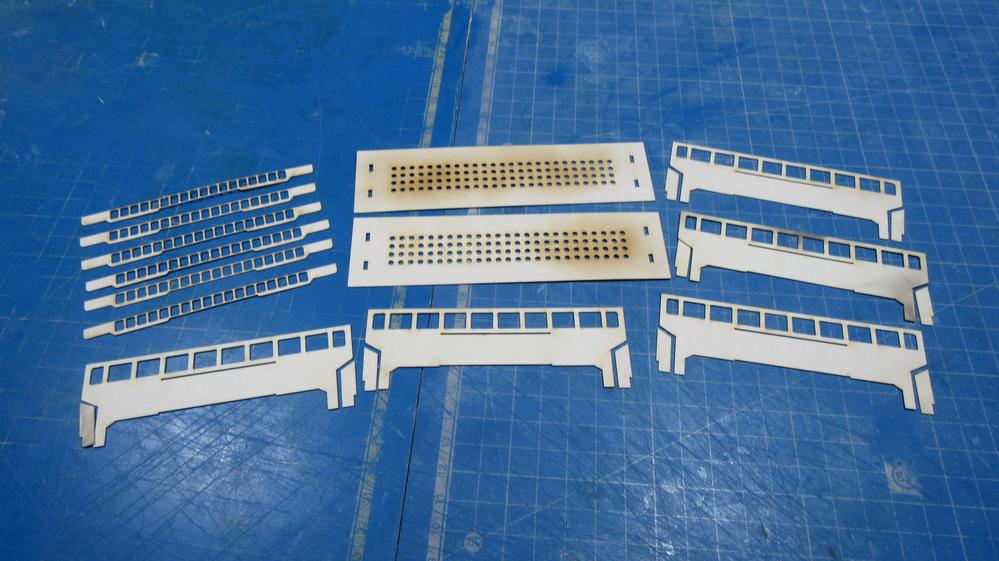

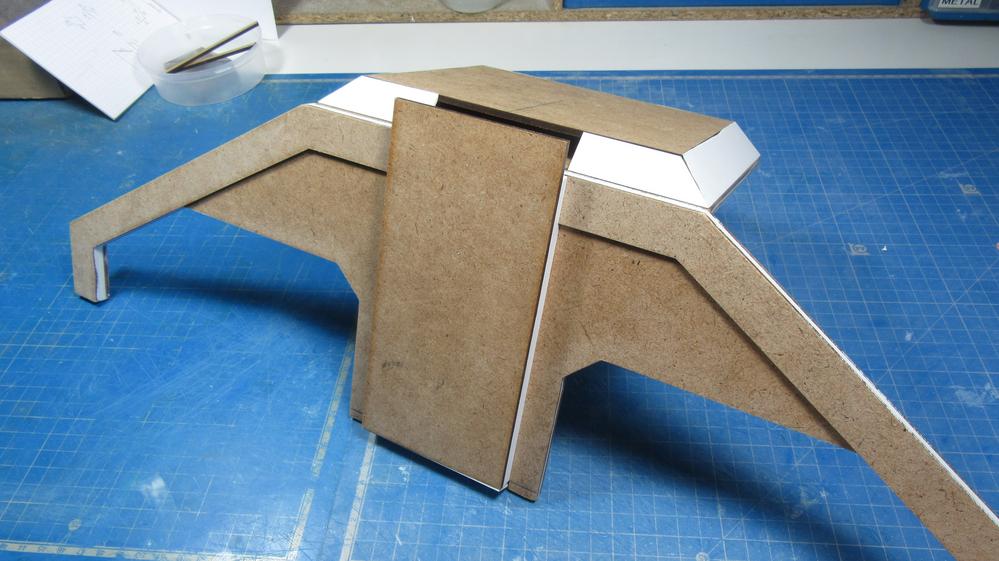

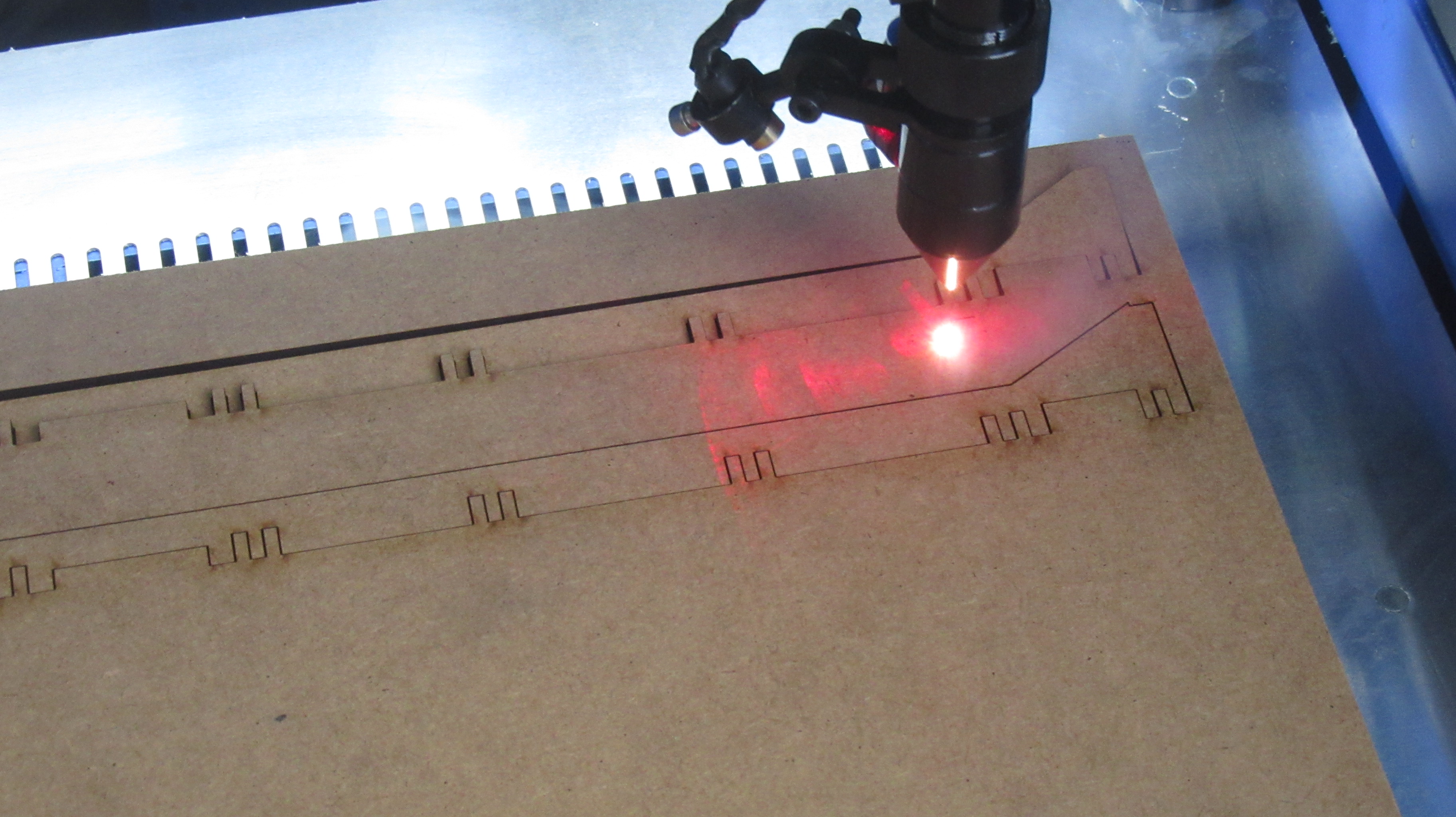

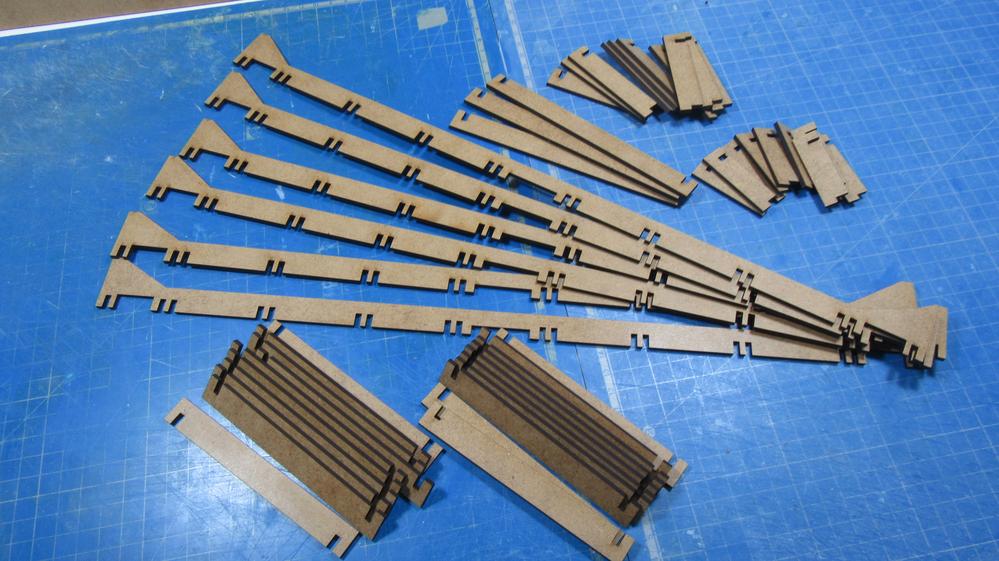

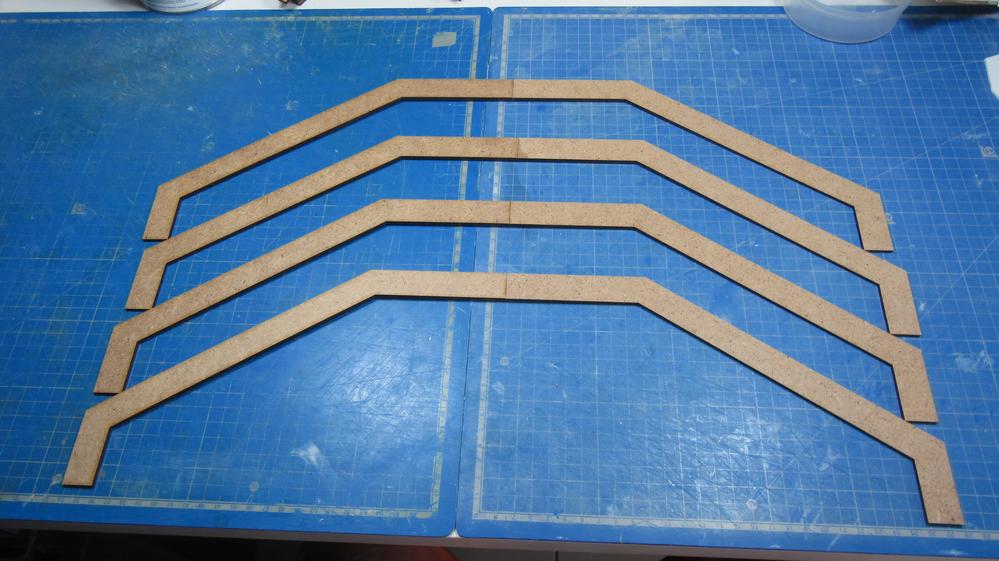

As usual, drawing on AutoCAD and homemade laser cutting.



















And here's the result :









The next thing to make is to be the road, a bit more complicated, but I have made good progress and I will show you that in a short time ;)


Vexzuhr

New Member
Wow! This is amazing, the attention to detail big and small like the city hologram on page 19, love it!

Keep up the great work! (y)


Timuche

Active Member
Wow! This is amazing, the attention to detail big and small like the city hologram on page 19, love it!

Keep up the great work! (y)
Thanks !!! Comments like yours push me to do my best ;)




Now the Road !
The most complex part of the entire diorama I think, because in the game there is a built in light-up the the road. And I have to build it in a space of up to 14 mm high.
Without forgetting that I will put a pedestrian crossing game accurate, terefore animated.

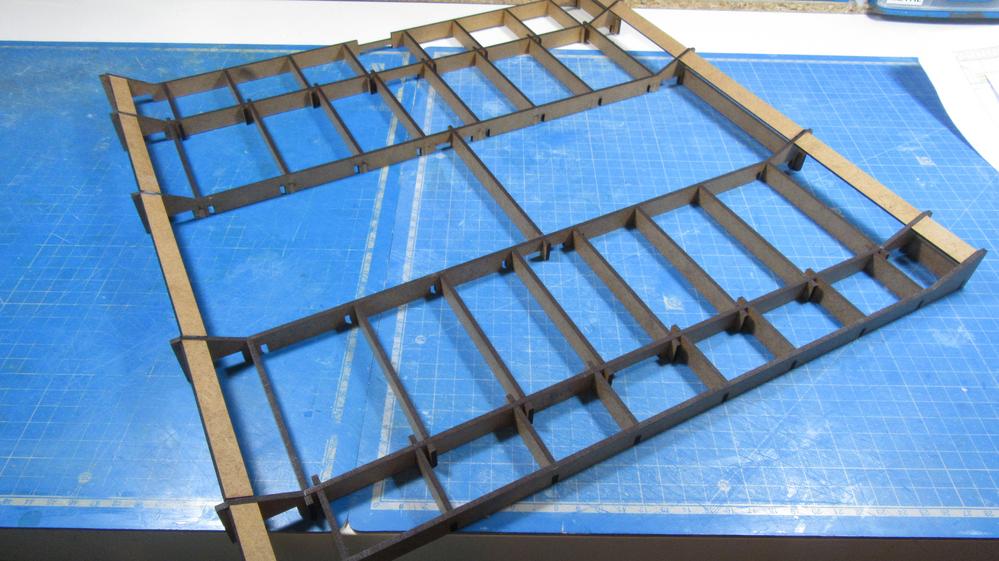

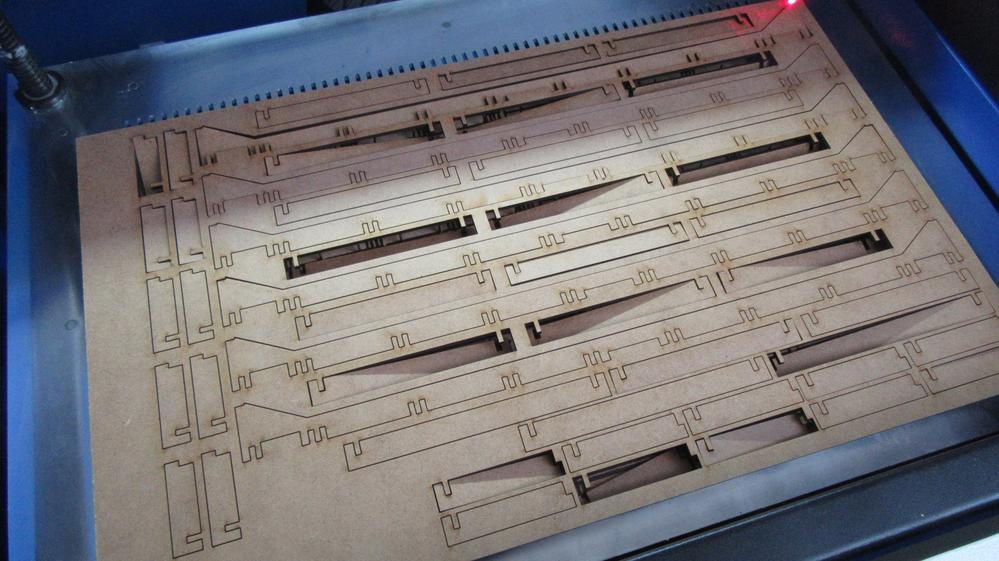

As usual, I design and draw my plans on the AutoCAD and I cut them in 3mm MDF with my laser cutter.

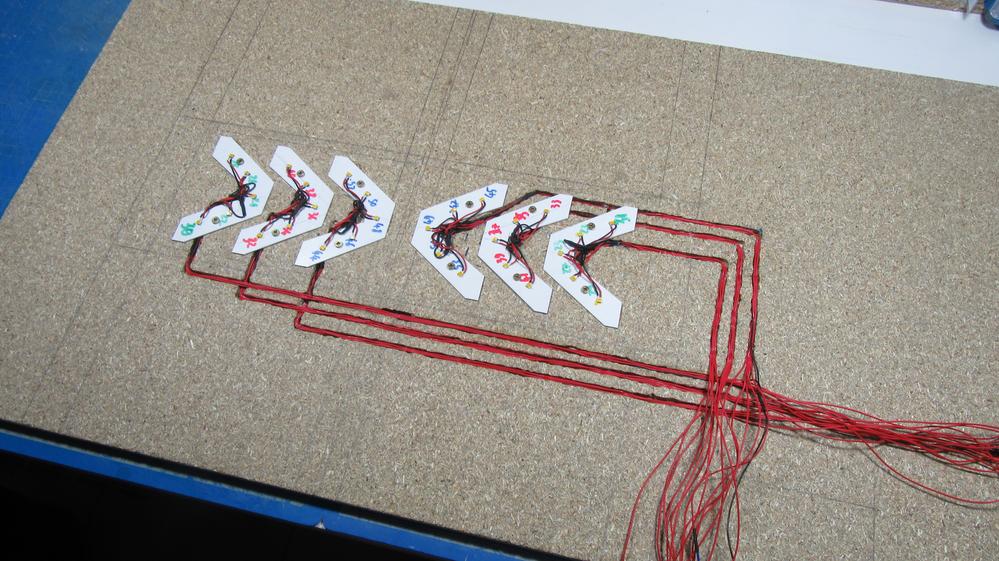

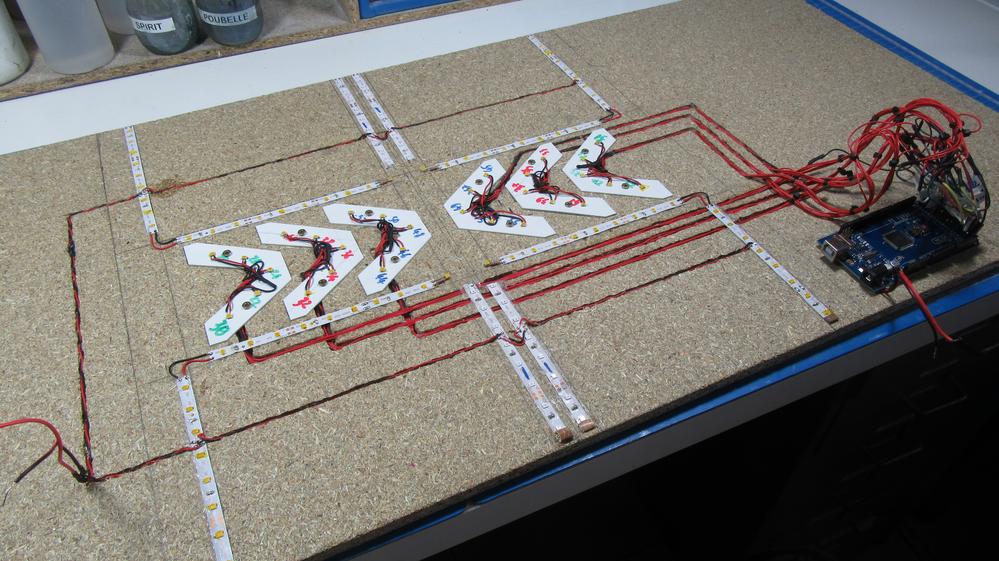

Now that the internal structure is ready, I begin the installation of the pedestrian crossing.







Then I set up the lights that will light the center of the road (blue) and the edges of the road (yellow).



In order to diffuse the light, I cut 1mm acrylic on which I stick white paper.


And I place them inside the road.


To make details and give relief to the road, I draw and cut parts in thin cardboard that I stick on the expanded PVC that will be the road.



Following soon ;)
