KAT ARMOR BUILD - with custom undersuit

LilTyrant

Member
**UPDATE**
A quick shot of the current build progress will be updated here. Check out my latest update post for more detailed info! :)

>> You can also look for updates on this and other projects at [url]www.facebook.com/LilTyrantCostumes[/URL] <<

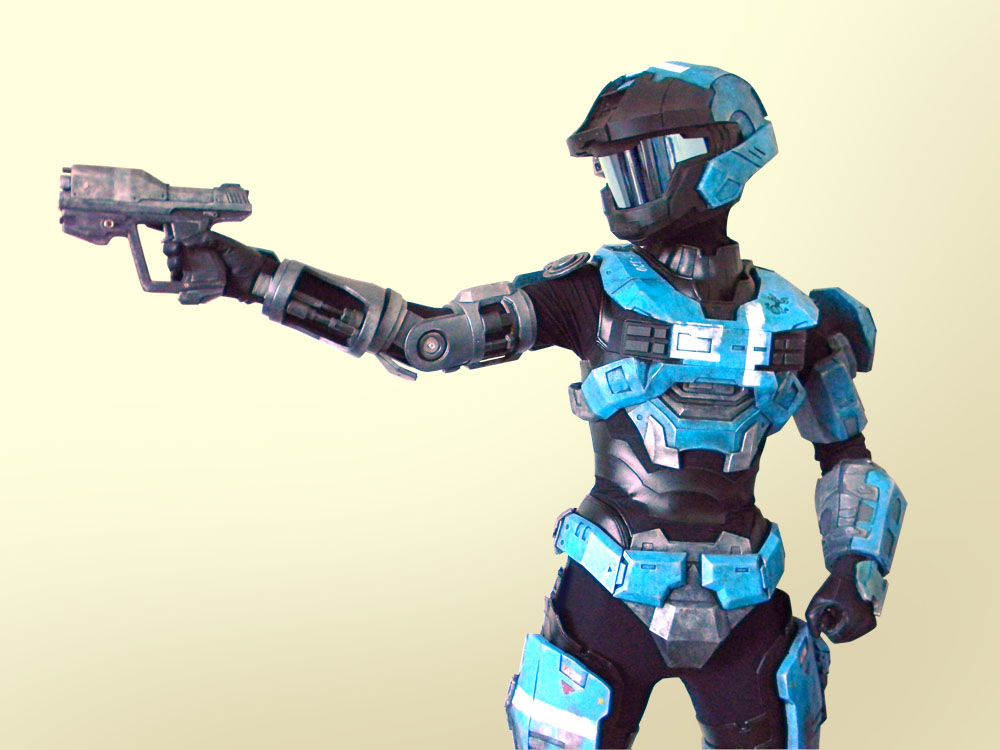

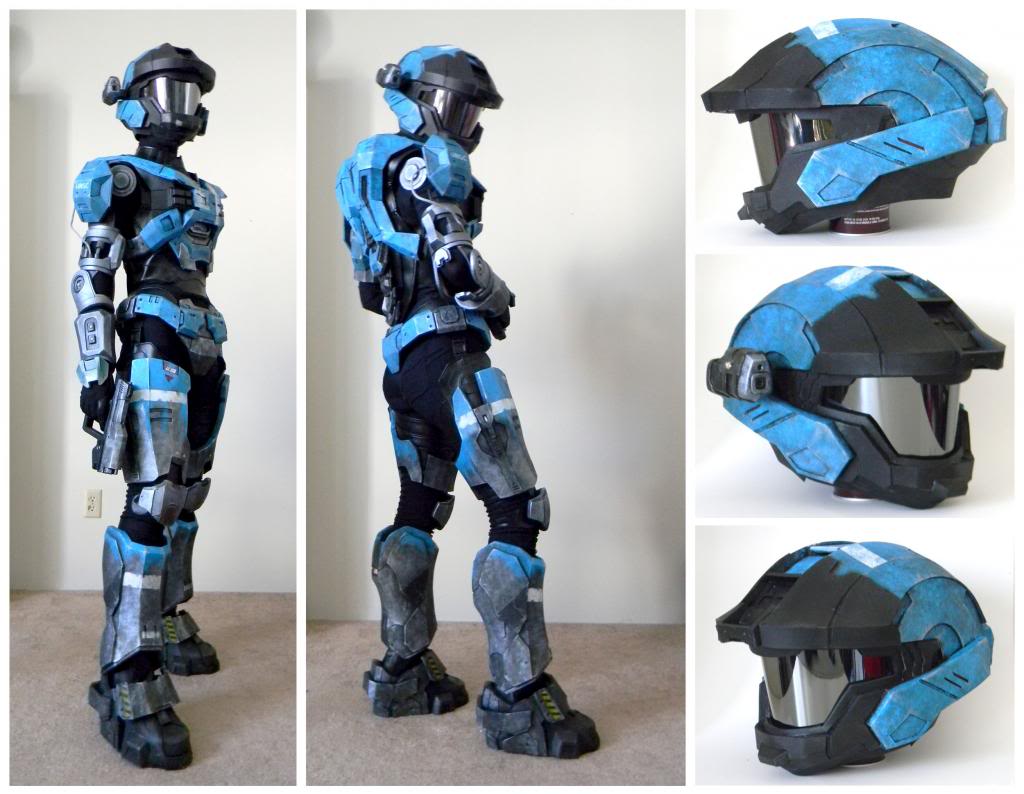

Prepping for SDCC :D Helmet/Tactical Case/Pistol Mods are done:





*****
Hello all! :)

I'm new to armor making and this whole forum thing, but I've often felt Spartan costumes were one of those "Awesome! I should do that some time!" type of things. Finally, after some stumbling, some research, and some lurking, I realized I should make "some time" now and do it!

My plan is to build a set of foam Kat armor with a custom undersuit. I'm going with foam in hopes it will be lighter, more comfortable, and less toxic a process than pepakura (Bondo has never been my friend :(). If all goes well with this build, weapons and a Jun suit for my guy will follow. So here goes nothin'...

Step 1: Spartan Undies - The Plan
>> First, I sketched up how I want the undersuit to look (using a photo underlay for scale reference). This will help me out when making the pattern.
>> I plan to make at least one prelim white model undersuit to test fit the pattern and mock up some armor pieces for sizing before moving on to the final. I'm hoping this way I can tweak the undersuit and armor to work better together.




Step 2: Spartan Undies - Rough it Out

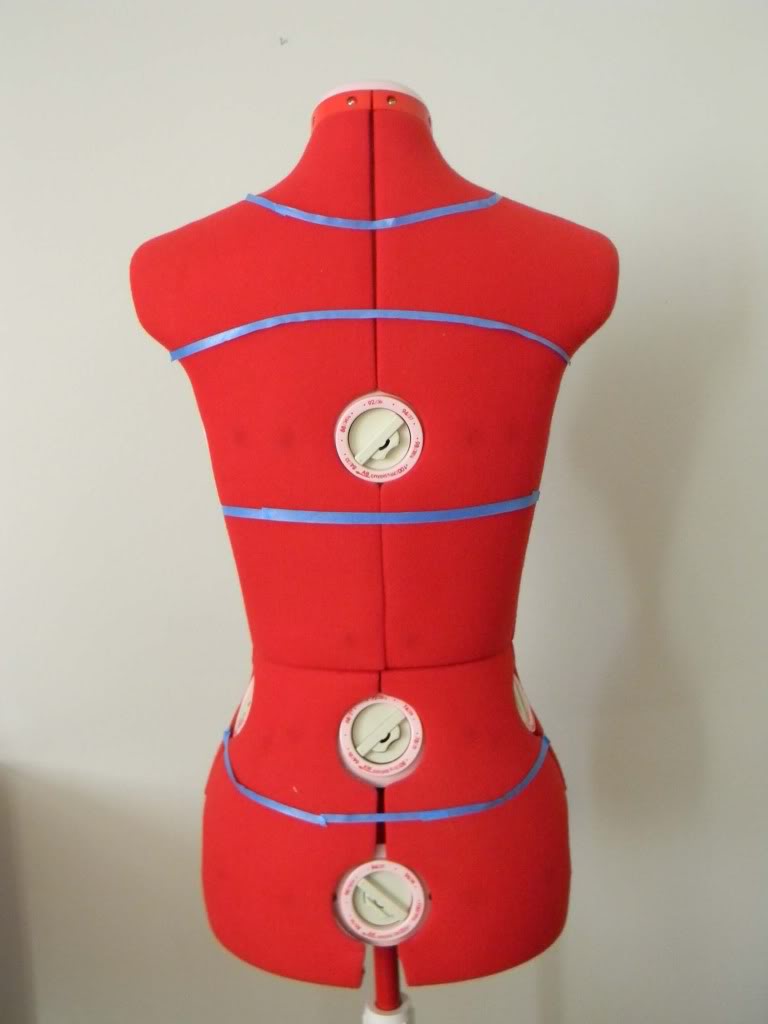

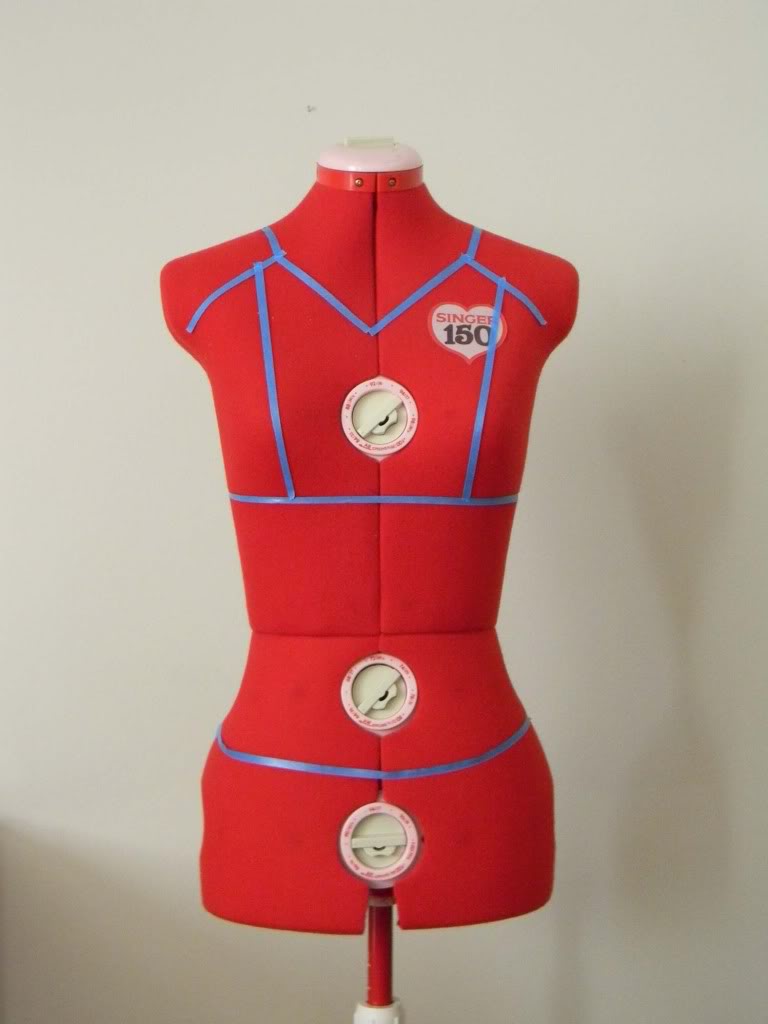

>> Using my sketch as reference, I taped up my dress form (that's girl talk for mannequin) to block out the basic pattern breaks. I'm starting just with the core part of the top. The sleeves and pants will come later.

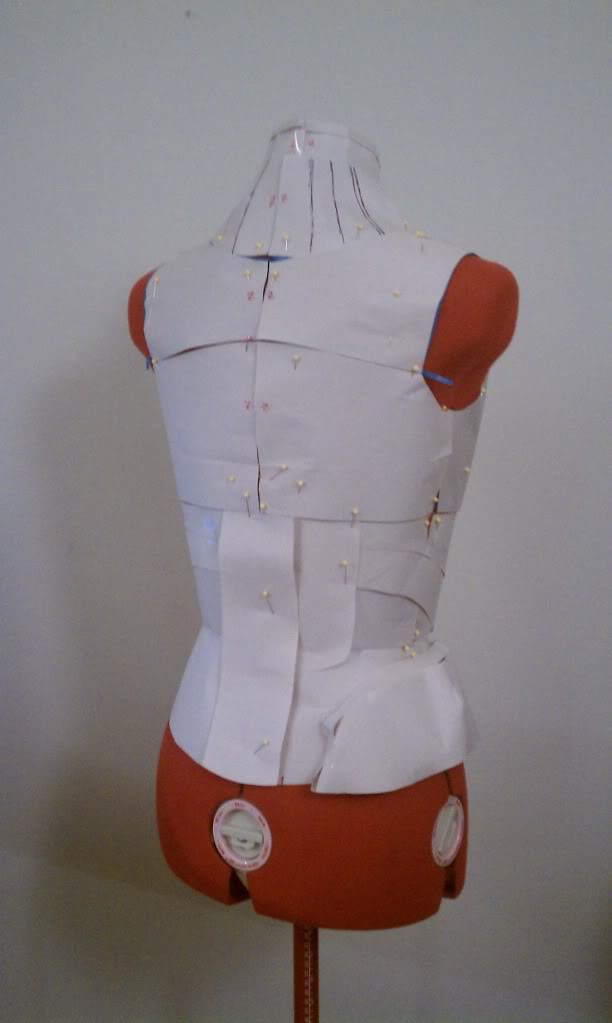

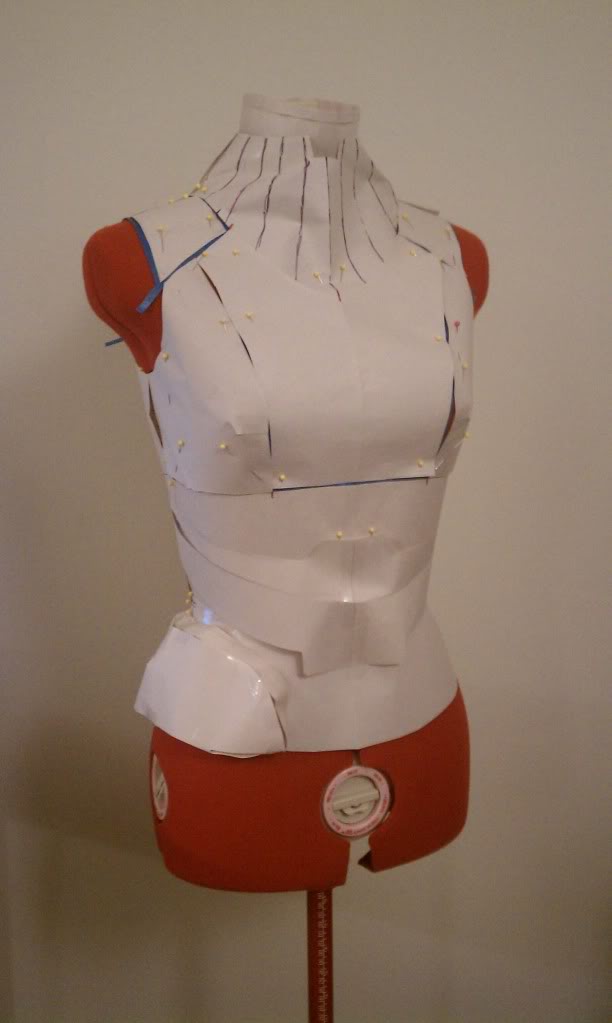

>> Next, I cut newsprint pieces to roughly fit the dress form and match my sketch. I use newsprint because it comes in big sheets and it's cheap :).





Step 3: Spartan Undies - Make a Pattern (v1)
>> Finally, I remove the newsprint from the dress form and retrace the pieces to clean them up and add in seam allowance. Seam allowance is the overlap created when two pieces of fabric are sewn together, since you can't sew edge to edge. Most clothes have 3/8 in. seam allowance, but you can get away with 1/4 in. if you want to save some fabric. Any less than that and you may start getting holes after wearing the garmet a few times.



>> I always label my pattern pieces with the pattern version, the piece name, how many pieces I need to cut, and what fabric I am cutting from. Otherwise, it can start to get pretty confusing.




That's all for now! Comments/thoughts are greatly appreciated!

-----
Next Up: The sewing begins :D

Last edited by a moderator:

Dinosaur

New Member
Pretty cool concept, and excellent start using newsprint/sheeting pattern. Thats what my mother does for costumes and I can honestly say (with bias of course) that she is the best seamstress I know.


TJX62

Member
Wow, very nice job so far with the undesuit. I'll definetly be watching this thread and coming back to it when I start my undersuit. Out of curiosity, what program did you use to do the sketchup? Cant wait to see more!


phixix

Jr Member
This is looking really promising O_O Can't wait to see more progress! There aren't enough seamstresses on 405th ^_^
It might be a little cheeky to ask at this point..But do you plan to share your pattern when you are done? :O

-Phi


RoxyRoo

Well-Known Member
I'm going to keep an eye on this build. The patterns look spot on to the game. Nice to see more people doing custom undersuits.
Goodluck!


kerbyg

Jr Member
Impressive! I am really looking forward to the results! I see you have a "light" and "heavy" texture fabric on the first picture, have you come to any ideas for what kind of material you would use?


LilTyrant

Member
Thanks guys for all the positive feedback...it definitely helps to keep me motivated!! :)

Pretty cool concept, and excellent start using newsprint/sheeting pattern. Thats what my mother does for costumes and I can honestly say (with bias of course) that she is the best seamstress I know.
It always seems mothers are the best at sewing ;)

Wow, very nice job so far with the undesuit. I'll definetly be watching this thread and coming back to it when I start my undersuit. Out of curiosity, what program did you use to do the sketchup? Cant wait to see more!
Glad to contribute some undersuit info :). I'll keep an eye out on your thread to see how yours goes. I did the digital sketch in Corel Painter X with a Wacom. Photoshop is awesome for rendering, but I like sketching in Painter...it feels a little more natural to me.

This is looking really promising O_O Can't wait to see more progress! There aren't enough seamstresses on 405th ^_^
It might be a little cheeky to ask at this point..But do you plan to share your pattern when you are done? :O

-Phi
Thanks! There's a lot I don't know about sewing, but I have done it before so hopefully a can help contribute a thing or two to the general 405th knowledge :). I'm not sure what I'll do with the patterns yet, but it'll have to wait at least until this project is done. Prepping patterns for shared use would be quite a task in itself! Plus, it may only be minimally helpful unless someone is my same size.

I'm going to keep an eye on this build. The patterns look spot on to the game. Nice to see more people doing custom undersuits.
Goodluck!
:) I used some screen shots (and Google, of course) as reference. Screen shots are in the Reach Reference Thread if anyone needs 'em!

Impressive! I am really looking forward to the results! I see you have a "light" and "heavy" texture fabric on the first picture, have you come to any ideas for what kind of material you would use?
Thanks! I'm still deciding what fabrics to use. For the heavy texture I'll probable use something like marine vinyl (pleather-ish). For the light texture I want to find something more breathable, but I'm still working that out. I might wind up overlapping a couple of different things. I'm still a ways away from the final, so we'll see how it goes!

-----
Hurray for Updates!

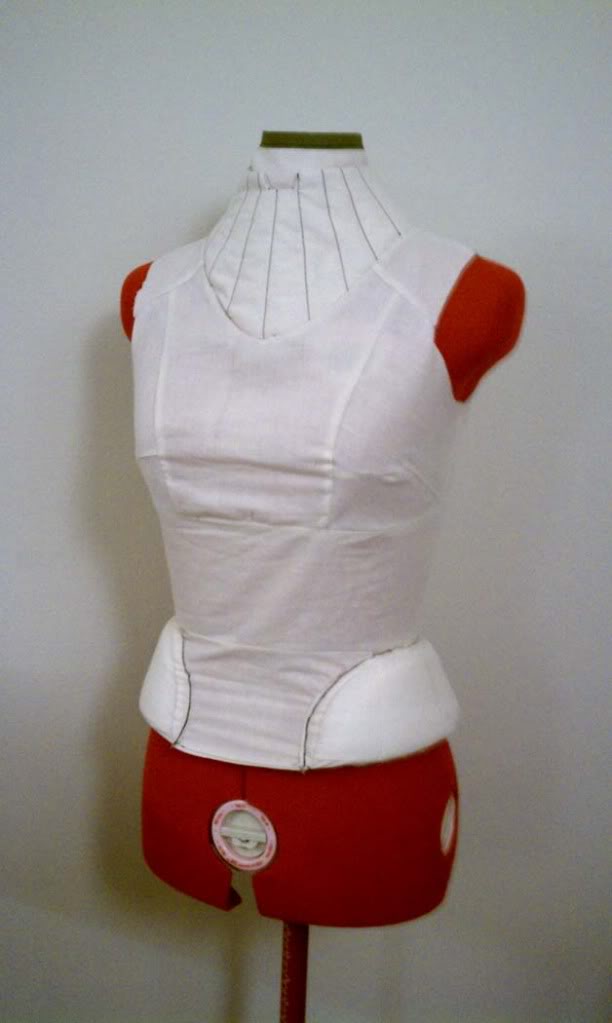

I've started putting together the prelim white model using muslin. I've got the main pieces together, but still need to add the zipper and the stomach/back details. Muslin is the fabric of choice because:

1. It's super cheap ($1-$2 a yard...and even cheaper if you sign up for coupons at JoAnn's...hurray!)
2. It's a light color (the better to mark up with any changes I want to make...and the easier to see my black thread in case some seam ripping needs to happen)
3. It doesn't have stretch (I plan on using non-stretchy fabric for the final)




A couple of sewing tips I find helpful:

>> Cutting is boring, but clean cuts on your pattern pieces make lining things up easier.

>> Before pinning/sewing, always double check your pieces are going together in the right orientation, with the right sides facing each other. Having to rip out your seams and re-sew is always a bummer and can get frustrating the more complex a piece is.

>> PINNING IS YOUR BEST FRIEND! The better you pin, the cleaner your seams turn out. But don't sew over your pins...that can lead to bent pins and broken needles (bent pins are annoying and nobody wants a needle in the eye). You may get away with it when using thin fabric, but once you go thicker or start layering up, it will become a definite problem. I am obsessed with excessively pinning. I like to use pins with big heads because they are more visible and easier to pull out as you go.

>> One more thing on pinning: don't just pin from one end to the other. More often than not (even if you have perfectly fitting pieces), the fabric won't line up right. Use the rule of halves: put one pin in each end, then one in the middle. From there, continue inserting pins at the halfway point between each already inserted pin. Also, pin perpendicular to your seam, with the pin heads sticking out over the edge.

>> Ironing is also your friend. Iron your fabric before you trace your pattern, and iron your seams after you sew.

Still a long way to go (and some tweaks to make before the final), but I'm excited to be started! Hopefully I can get the zipper in soon so I can see how it actually fits on me since my dress form is a little bigger than I am. Things may slow down a little during the week due to work but I'll try to keep pluggin' away!

-----
Next up: Wrap up on those pesky remaining pattern pieces!


LilTyrant

Member
Not a ton of progress, but I finished off the rest of the pattern pieces for the torso and got a zipper in.



Definitely needs some tweaks before the final...I feel like the fit isn't quite what I'd like. I think I'll probably try a few other things for the padding, too. We'll see.

Thoughts/input are appreciated! :)


zacic

Jr Member
This is really really sweet! Ive always said that I love all the projects and armor that people build on here but I have the look of the flat under suits, they just dont pop like they should! Cant wait to see more!!!


vshore100

Well-Known Member
Awesome work with everything thus far. Man I need to get myself a sewing machine and try my hand at this.:)


RoxyRoo

Well-Known Member
Nice that you have a mannequin. Those are quite handy.
Yay! Another seamstress! And you're building the game version. I guess with our two builds people can watch both kinds of under suits. haha.

What's your fabric choice for the final undersuit?


Katsu

Well-Known Member
It could use some adjustments only if you are going for a neoprene-ish super tight fit, but like you said, such tweaks are coming. The pattern is coming along well, I am not sure how you are transfering this pattern to darker fabrics though, but then I'm no seamstress, so that will be interesting to see when the time comes. Great work so far, I may be picking your awesome brain when it comes time to make my undersuit!


LilTyrant

Member
Thanks everyone for the kind words! :D :D

-----
Progress Update:
>> Work is hectic this week, so I haven't had much time at home. I did manage to get the pattern pieces/cut fabric together for the left (non-mechanical) arm. Hopefully I can get some sewing time in tomorrow night and get the sleeve on. Fingers crossed that I won't have to work super late!
-----

Man I need to get myself a sewing machine and try my hand at this.:)
Do it! Sewing is not just for old ladies anymore :)

Nice that you have a mannequin. Those are quite handy.
Yay! Another seamstress! And you're building the game version. I guess with our two builds people can watch both kinds of under suits. haha.

What's your fabric choice for the final undersuit?
Yes! Mannequins are awesome...this is only the second project I've used one on, and it definitely makes life easier. This one is on loan from my sis, so when she takes it back I'll have to get my own (now that I'm totally addicted). I'm not sure yet about the final fabric. I'll probably check out downtown LA garmet district before I decide...there may be something interesting lurking there. I'll be watching your suit, too :)

I am not sure how you are transfering this pattern to darker fabrics though, but then I'm no seamstress, so that will be interesting to see when the time comes. Great work so far, I may be picking your awesome brain when it comes time to make my undersuit!
Fabric stores usually carry some sort of white pencil/chalk for transferring patterns to dark fabrics, but (in my experience) they don't work very well. My weapon of choice is a silver sharpie. If any questions come up, feel free to ask away! Like I mentioned before, there's a lot I still don't know about sewing but I have learned a trick or two from previous mishaps :)

-----
Next Up: The weekend is coming! I foresee sewing in the future... ;)


thorn696

Well-Known Member
Most impressive. You're attention to the details (that most of us leave off) is Awesome. I too, am looking forward to seeing how this comes out, so thank you for taking the time to share this with us. :)


LilTyrant

Member
Most impressive. You're attention to the details (that most of us leave off) is Awesome. I too, am looking forward to seeing how this comes out, so thank you for taking the time to share this with us. :)
Thanks! Having this thread is definitely helping to keep me on task!

-----
And now for a little update...

The left arm is now attached to the main torso. Since I don't have limbs on my mannequin, I had to take measurements off of myself...which proved a bit difficult to do one handed. One trick is to use your own clothes as a guideline for fit--just be sure to take into account the stretch of the fabric. I'm still using mostly Muslin, but I've also added in some Polyester Ponte (slightly stretchy knit) and Spandex (you all know how stretchy that is) for areas that I think will need a little more range of motion (like the wrist and elbow). Again, I'm sticking with light colors for tweak marking ability.



Hurray for an arm :), but still more tweaks in store before the final. The elbow area will need to move down and loosen up, and the armpit area needs to be tighter. I may play with some other options for elbow assembly (depending on the effects of loosening). Bending the elbow all of the way is currently quite difficult :(

Sewing with Spandex (and other such super stretchy material) can sometimes get ugly. I haven't worked with stretchy material very often, but a couple of things that help me out are:

>> Use some sort of tear-away stabilizer or interfacing (they sell it by the yard and in pre-cut packages at JoAnn's). Pinning the stabilizer to the stretchy fabric helps to prevent the material from stretching all over the place (yuck) when you sew. Once you're done sewing, you just tear the stabilizer away!

>> Spandex is stretchy...your regular old stitch is not. Regular stitches break when you force them to stretch. Pay attention to where your seams are on your garmet. Wherever the seam falls, ask yourself, "Does it need to stretch here?" If the answer is "yes" then you need to use a stitch that stretches. I suspect most machines come with a stitch that will stretch. Mine has two, that look like this:

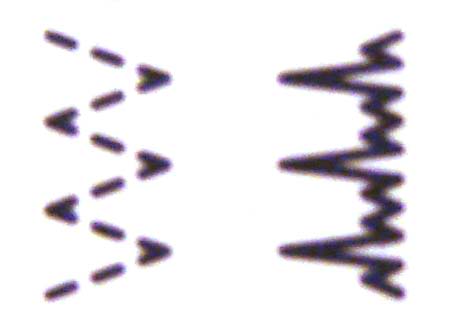

There are a few types of stretch stitches, so if you don't know what's what, you can always test your stitches on a scrap of fabric and see which one is stretchy.

-----
