Props Rocketlauncher

[WMHunterTLS]

That looks very good. What program are you using?



[Loess]

Bevbor's a god at SolidWorks. It's a solid modeling program mostly used for product design and engineering work. If you google it, there' a lot of tutorials and other info. If you're a student, you can get a two year license for 200 USD (at least you could when I was in college)



[bevbor]

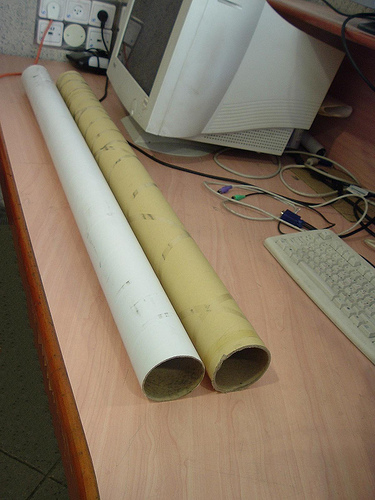

At last I've got barrels for life size model

​

Press pic to get the big one​



[Klowd 13]

wow that 3D Model is AMAZING especialy for having only 2 reference pics. When i seen this i thought my thread had been moved... lol mine WIP thread has the same title in the Noob Forum. Nope, Just bevbor working his magic.

Keep up the good work!

Cheers,
-John-



[BlacRoseImmortal]

OMG Bevbor, your actually building this thing?!?...Full scale?!?!?!?! lol



[bevbor]

OMG Bevbor, your actually building this thing?!?...Full scale?!?!?!?! lol

No, I'm making it in scale 1:43! Lol!
j/k, approx~ 0.7 of real size

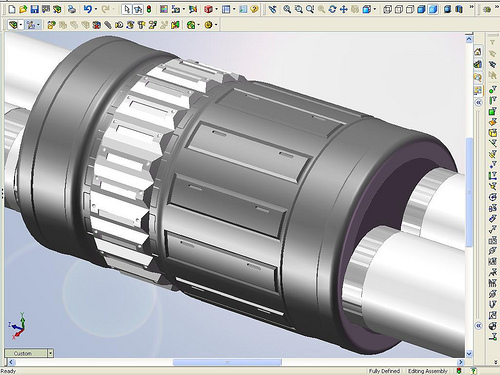

After long break I returned to this model. Now barrels holding drum looks much more complicated.
Less teeth, more detailz.
Press the picture to get bigger one.

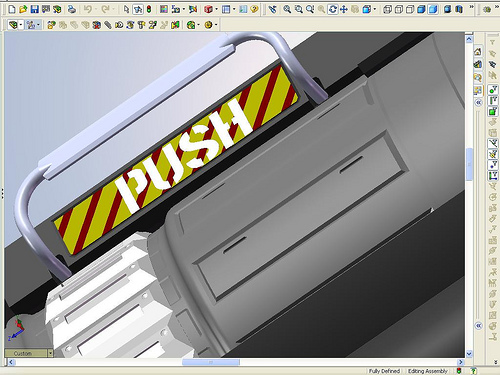

Update: "PUSH" thingy also changed a bit

wow that 3D Model is AMAZING especialy for having only 2 reference pics.

Now I have more than 30 of them thanks to Deadguy.



[DreadMullet]

bevbor.... i hate you!!!!!!!

dude how on earth am i going to add that much detail to my rocket launcher? your breaking my heart.


looks good tho man. how is your real one coming along?



[flying squirl]

hey bevbor, i know its a bit late but this might help with the detailing etc

http://www.4shared.com/file/56191658/731b6...t_launcher.html



[bevbor]

bevbor.... i hate you!!!!!!!
dude how on earth am i going to add that much detail to my rocket launcher? your breaking my heart.

Oops! (*quickly erasing all previously added details from his model*)

looks good tho man. how is your real one coming along?

Mmmm... Real one paused, for material collection

hey bevbor, i know its a bit late but this might help with the detailing etc

Thank you.



[DreadMullet]

when you have these completely done are you going to release some files? it would make life so much easier if i could get some high quality pics of it broken down.... instead of just looking at it on here.



[Klowd 13]

crap, now i have to work on my rocket launcher more again... lol

Amazing, simply amazing. Cant wait to see how the real one turns out.

Cheers,
-John-



[bevbor]

when you have these completely done are you going to release some files? it would make life so much easier if i could get some high quality pics of it broken down.... instead of just looking at it on here.

Yes, it will be like my MA5 model - rotatable, measurable and crosssectionviewable

crap, now i have to work on my rocket launcher more again... lol
Amazing, simply amazing. Cant wait to see how the real one turns out.

Be patient, my friend



[Loess]

*Sniff* Soooooo Pretty......

I wish I had more time to get my modeling skills back up to the level you work at, Bevbor.



[bevbor]

I wish I had more time to get my modeling skills back up to the level you work at, Bevbor.

You re right, time is only thing we have not enough always.
I wish you more time for creative things.



[box o crayons]

that is awsome. and are you going to make it into a pepakura



[bevbor]

that is awsome. and are you going to make it into a pepakura

no way man



[Keegan]

How many faces does this monster have so far?
Looks Awesome.



[bevbor]

How many faces does this monster have so far?
Looks Awesome.

Hi man,
it has no faces (in usual meaning) at all
it has solid bodies, curves and curved surfaces =(
if you'll look closely, you'll see that any cylinder here have only one cylindrical face, not a set of polygons around axis

this is CAD, not visualization program, this is very different.


Btw, people!
Be careful with real rocket launchers:



[BlacRoseImmortal]

AHAHAHAHAHAHAHAHA! That second video was GREAT! Those cowards, It's just a rocket :rolleyes GEEEEZ lol



[CPU64]

bevbor...
You mean like NURBS?
