Mech/Exoskeleton Build (Full-Size )

Discussion in 'Non-Halo Costumes and Props' started by GMer56, Dec 13, 2016.

  1. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    First test run, found the following issues:

    1) Roll cage is in way of control arms. Solution: add braces to roll cage
    2) Left Pilot cradle shin housing is loose. Solution: add brace to housing
    3) Difficult to insert legs into shin cradle. Solution: see #4
    4) Thighs are too short- pilot reported compression on thigh muscles. Solution: compound (double jointed knee) - will lengthen leg and provide more flexibility
    5) Left arm frozen. Solution: adjust tension on control cables & lubricate.

    Dirtdives and Lieutenant Jaku like this.
  2. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Built the double jointed shins before the rain got too bad. Will add tension cables when its not so wet.


    Honestly I was inspired by a gundam kit.


    Now the feets lay flat on the ground!

    Dirtdives and Lieutenant Jaku like this.
  3. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    It's definitely getting there GMer56. Looks better and better everytime I check in on your post. I may have to pick your brain here coming up towards the end of the year as I plan on building my own large mech. I want to make a Gypsy Danger build, but make it 10' tall and use the same rigging for the arms that your suit uses. But that's later down the road, I haven't even started making the legs yet lol.

    Dirtdives likes this.
  4. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    If you'd be willing to have a boxing match with 'em its a deal. Depends on when I get the video done of my to challenge Megabots.

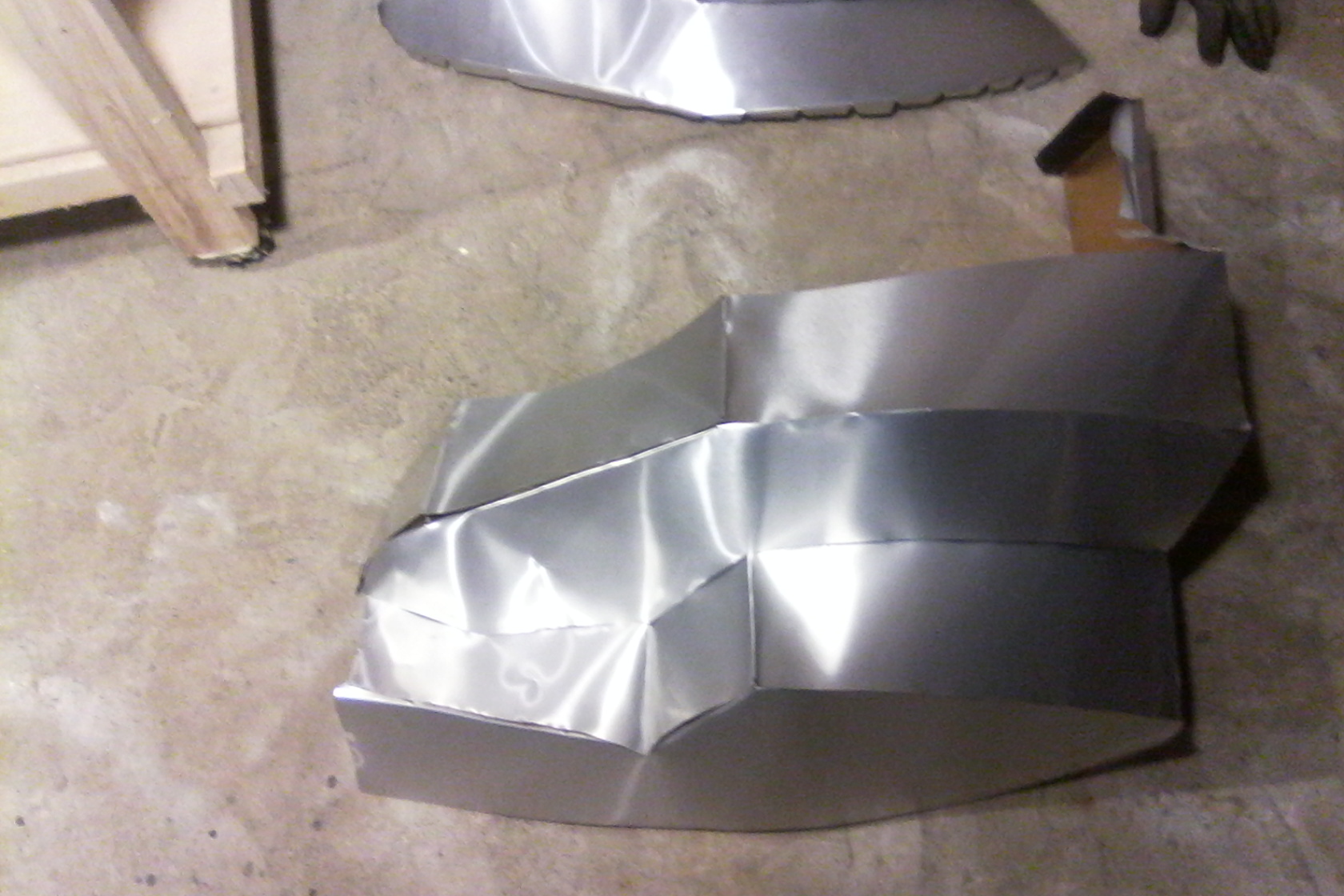

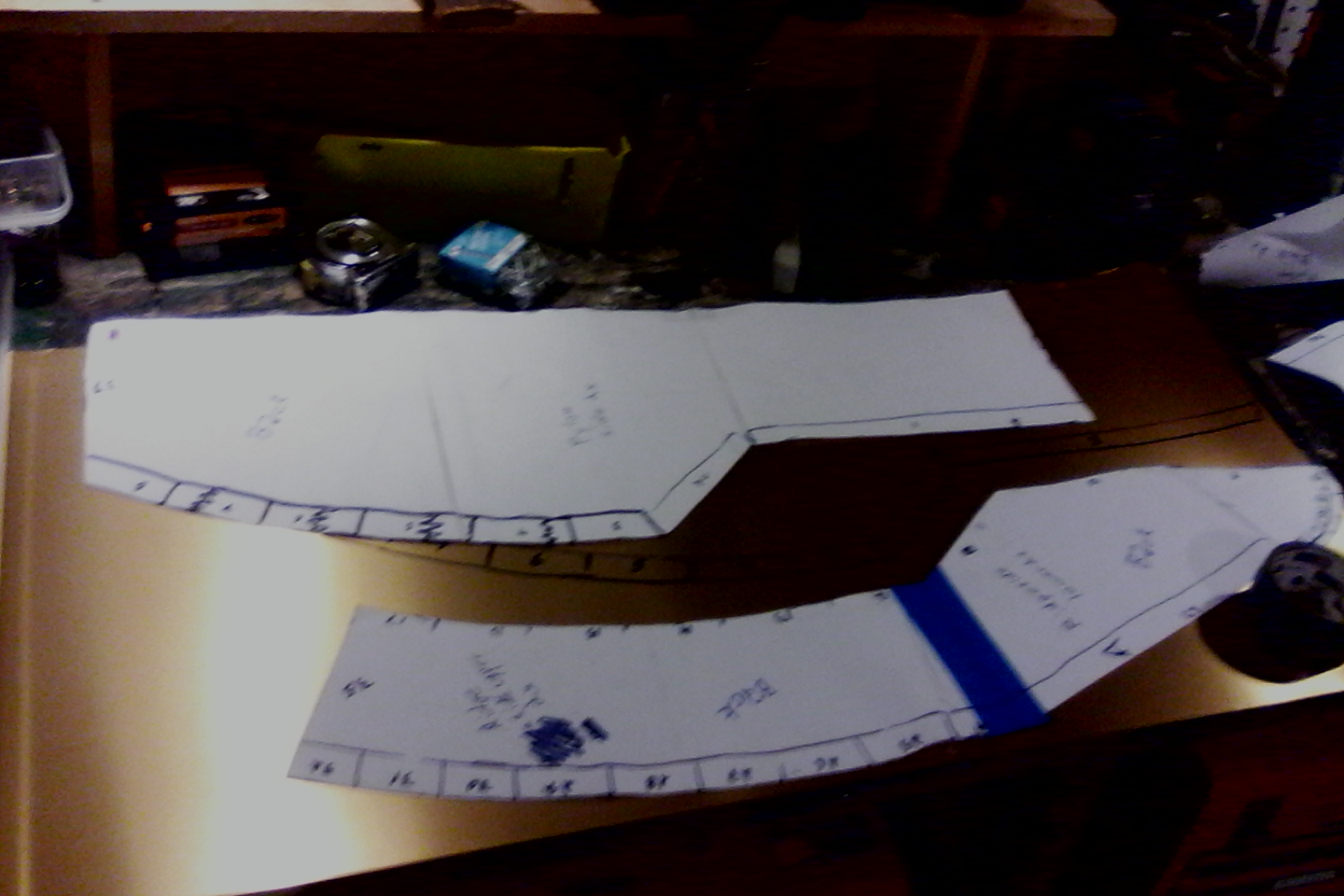

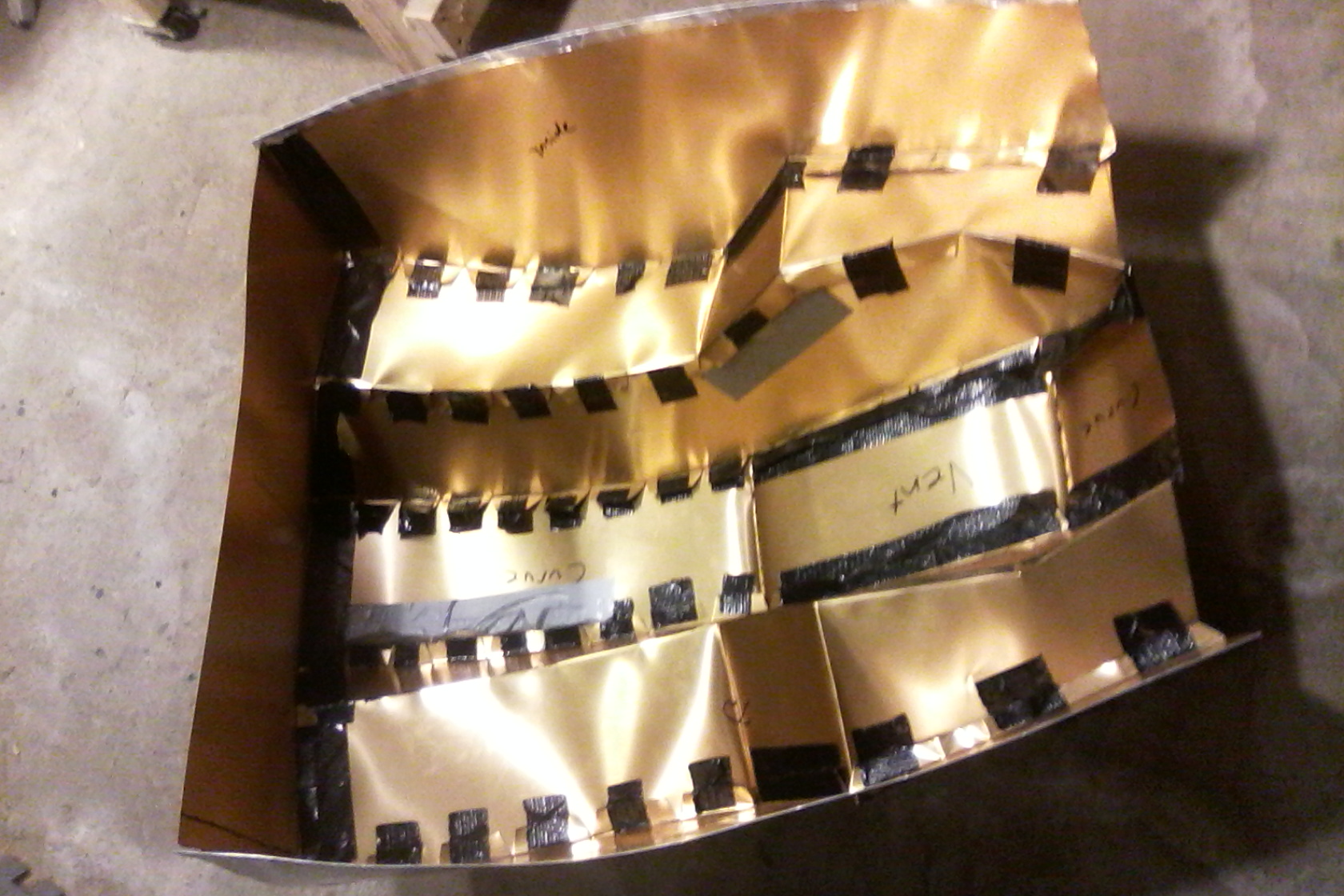

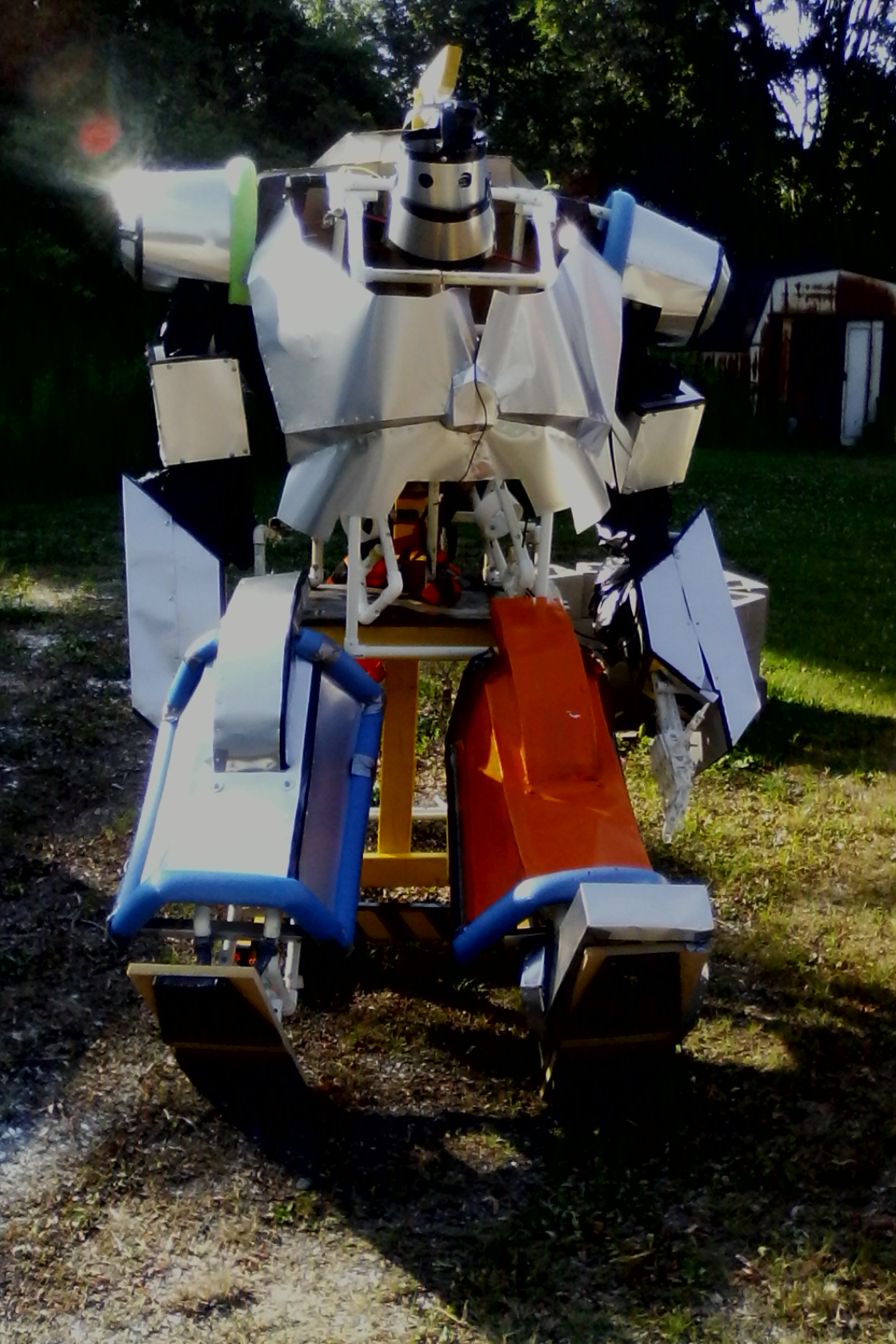

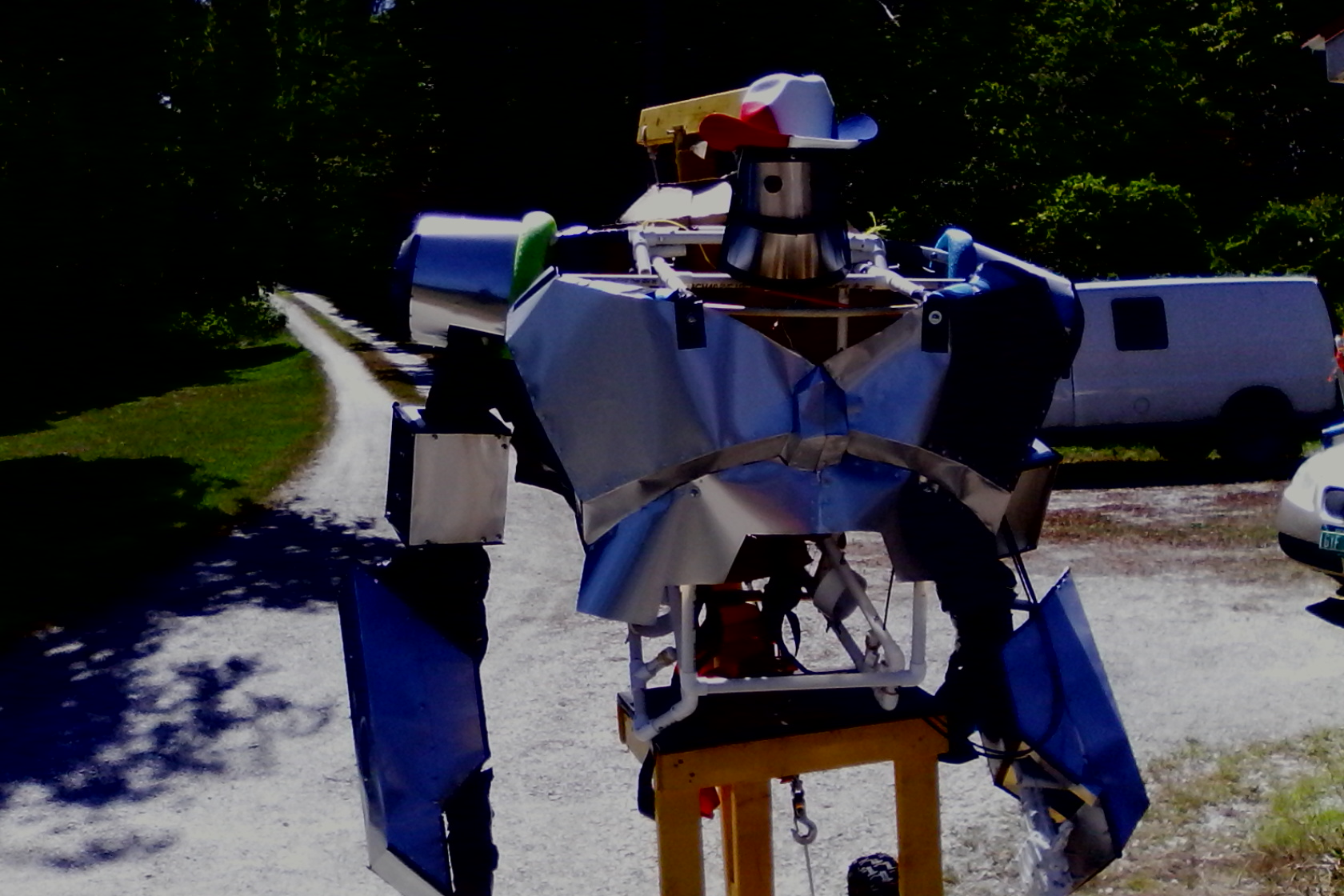

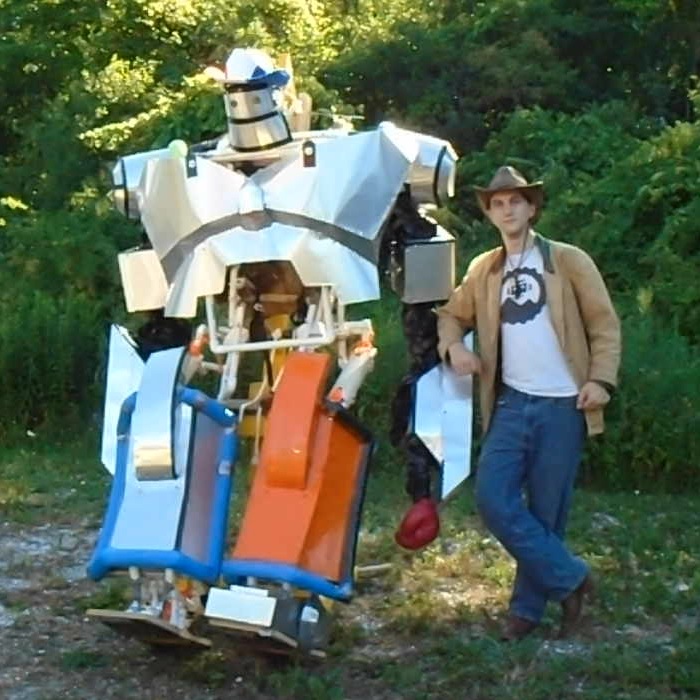

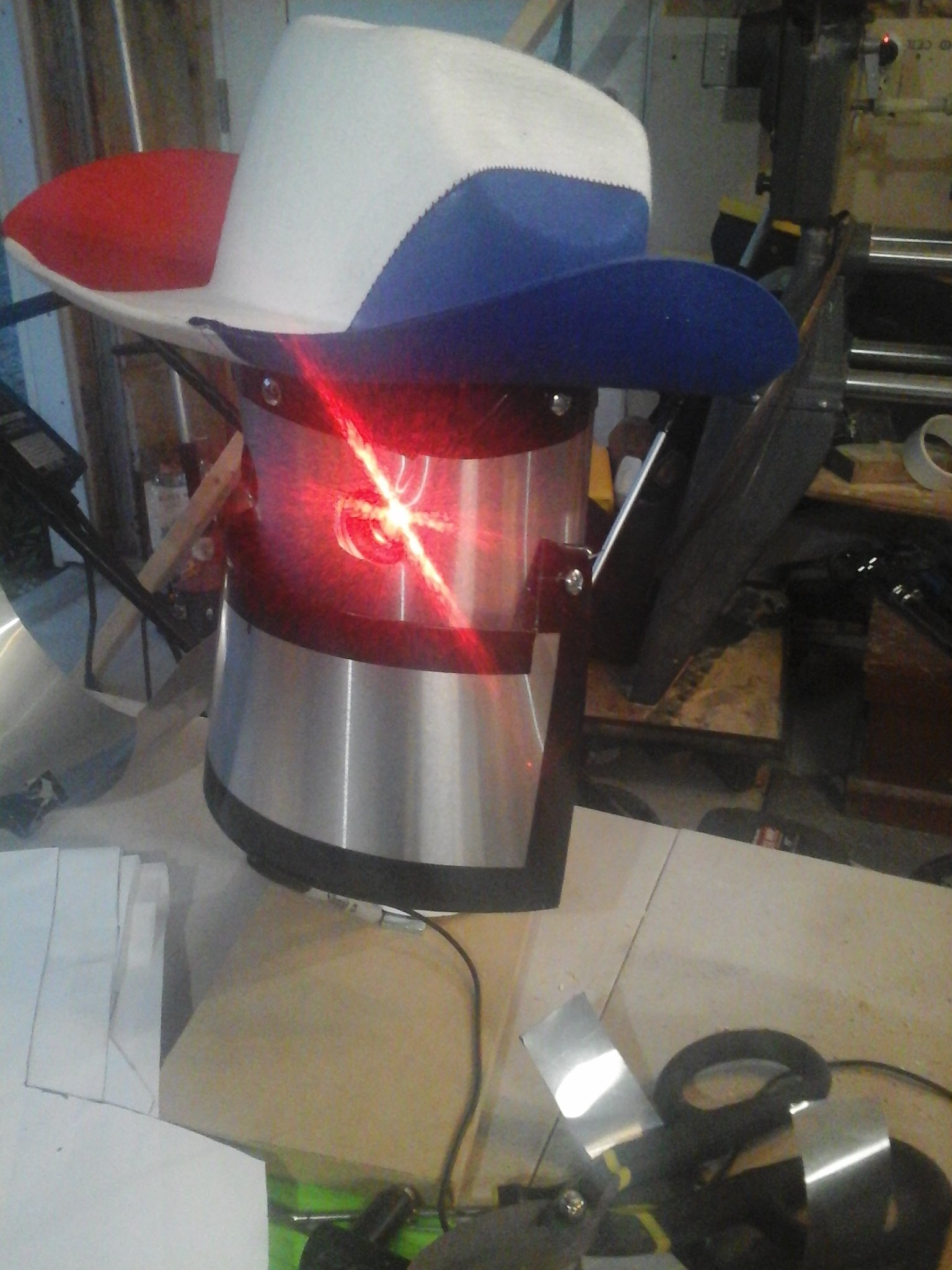

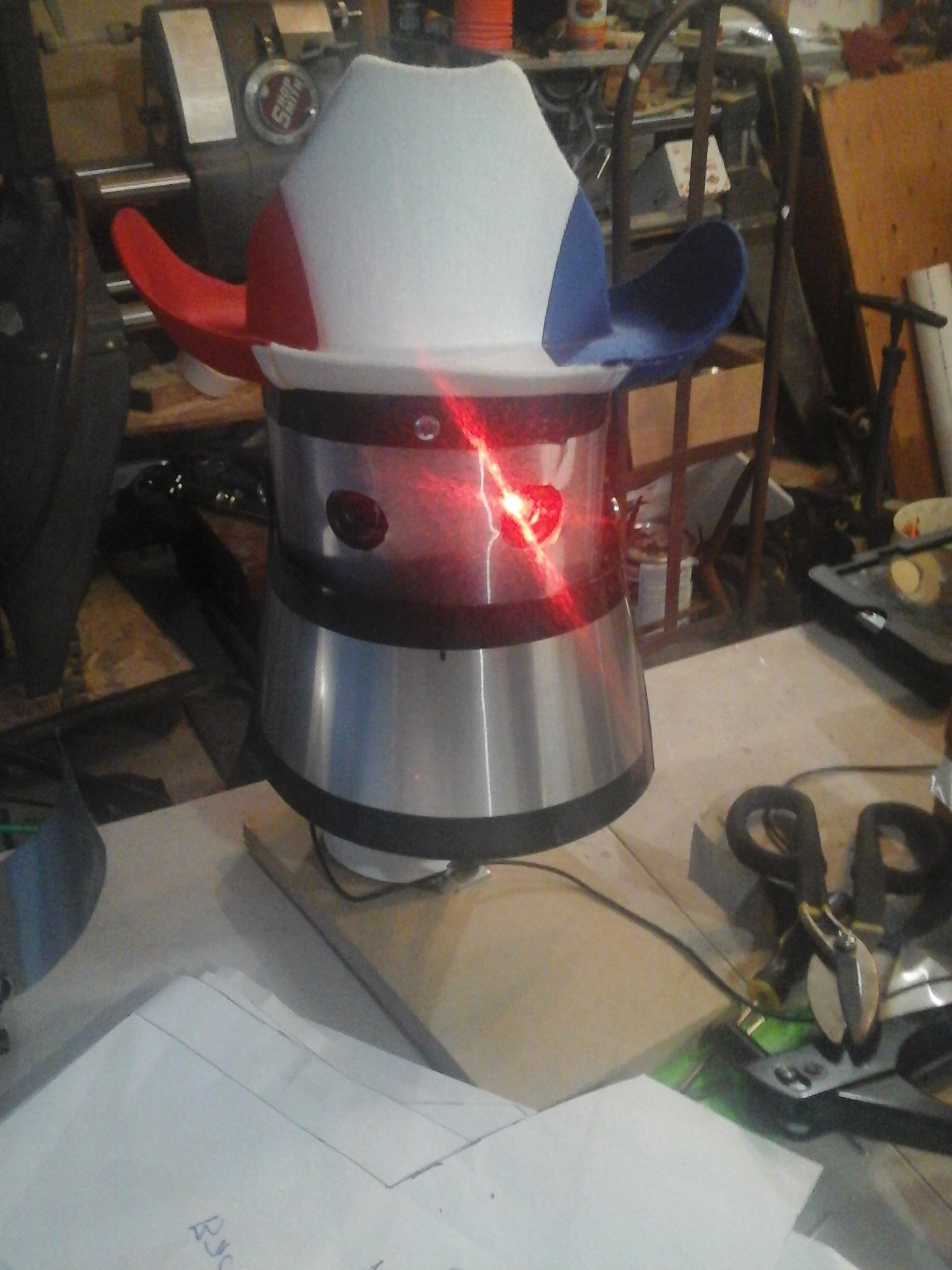

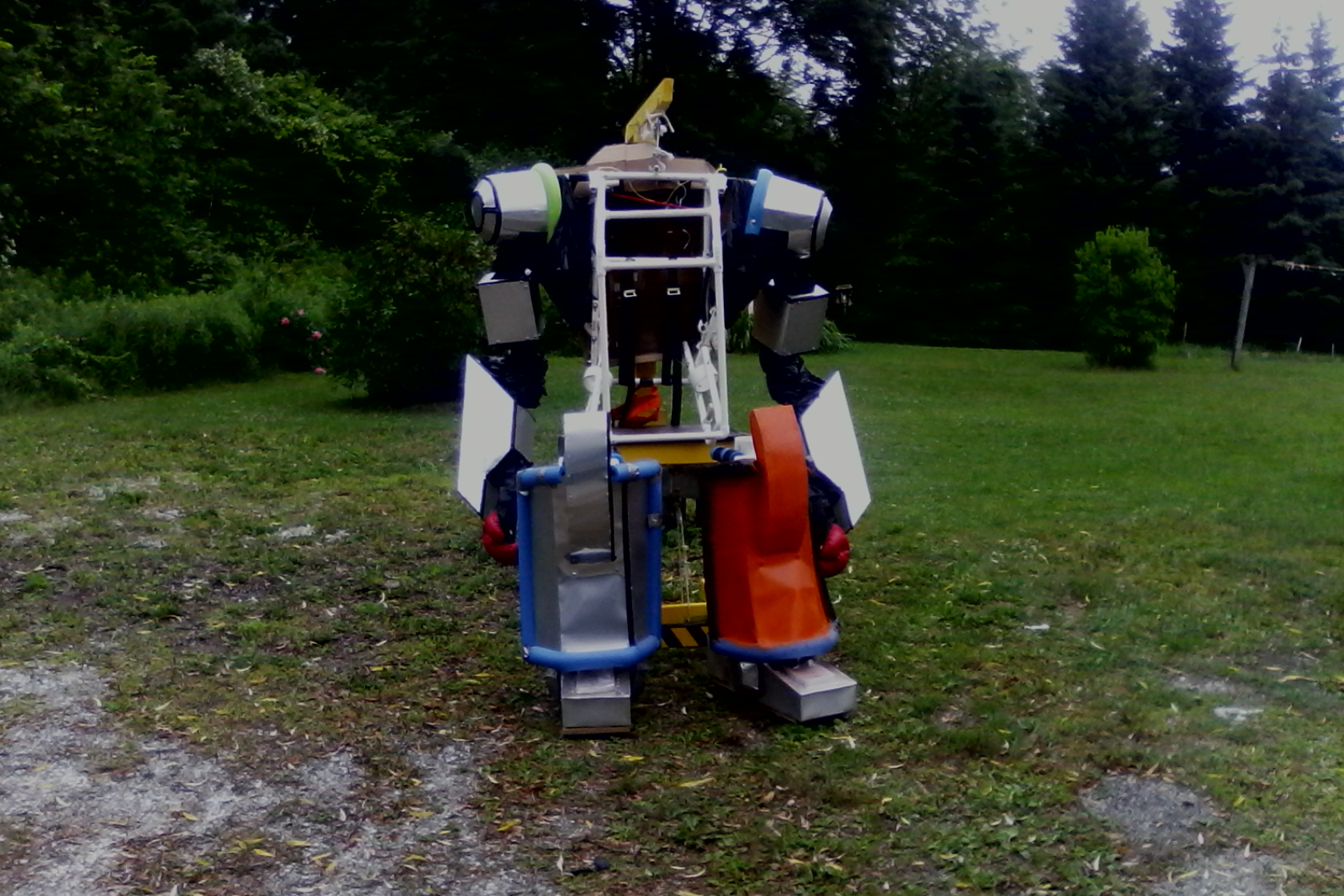

    Judd McStudd (My Mech) stands around 9 feet tall.

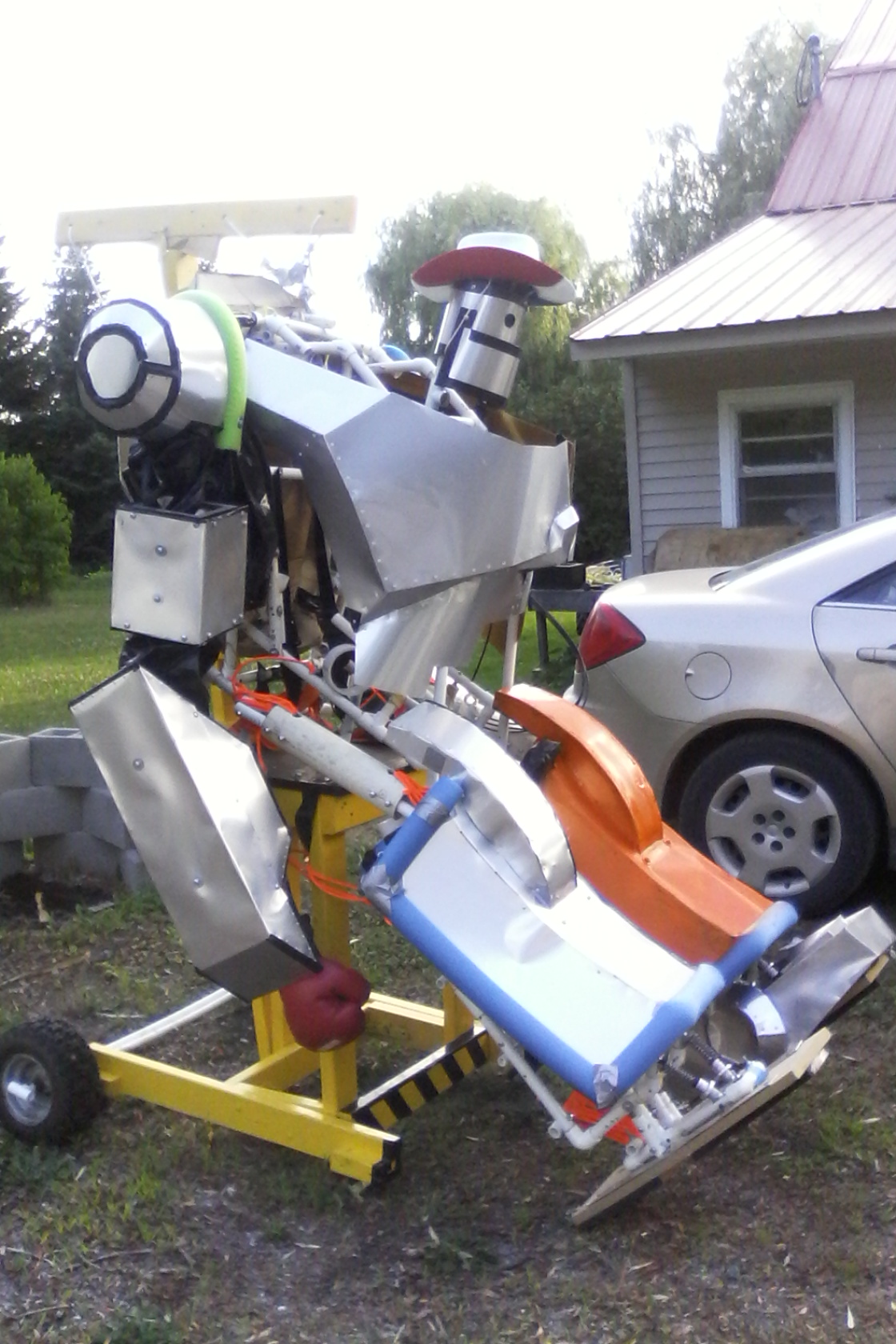

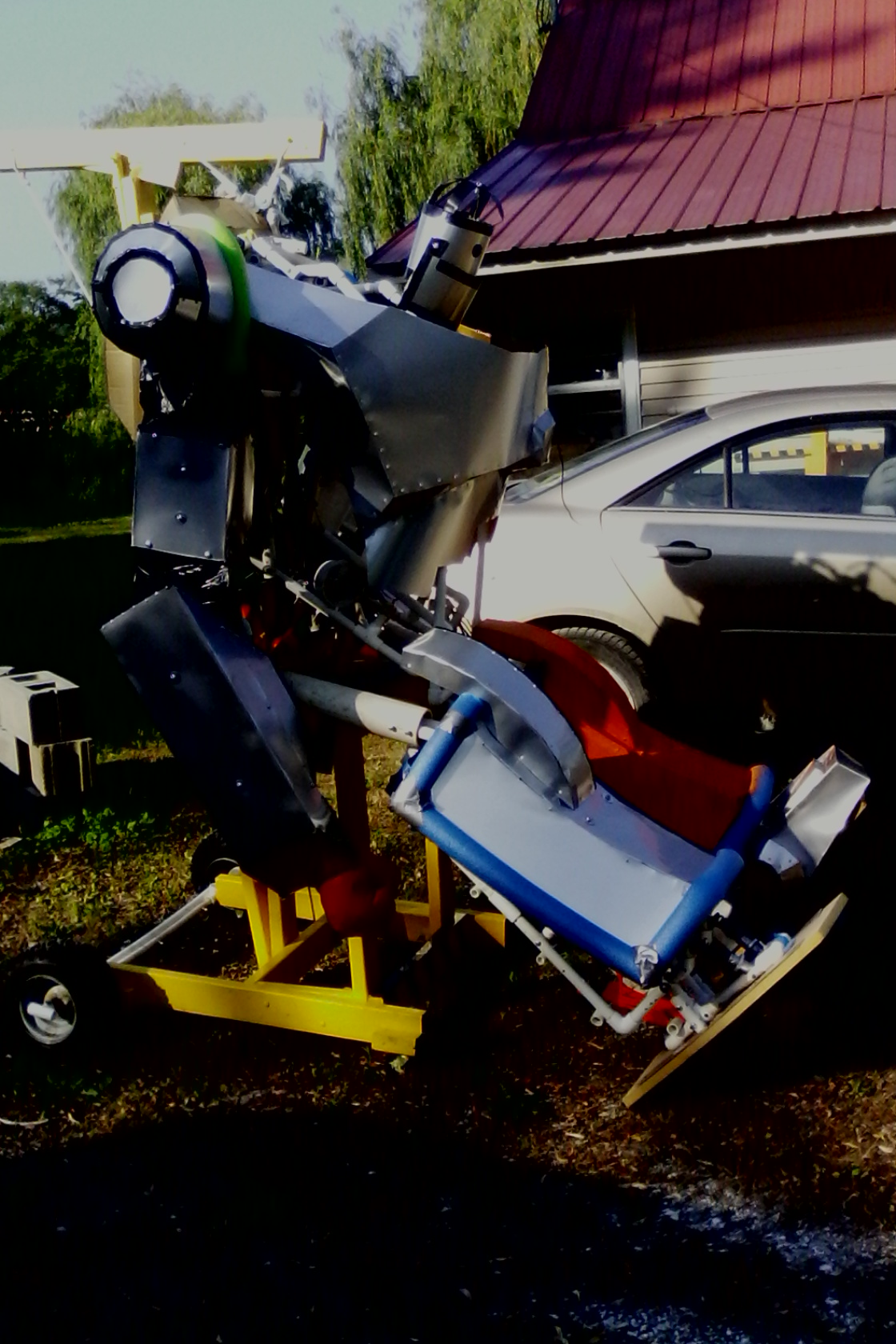

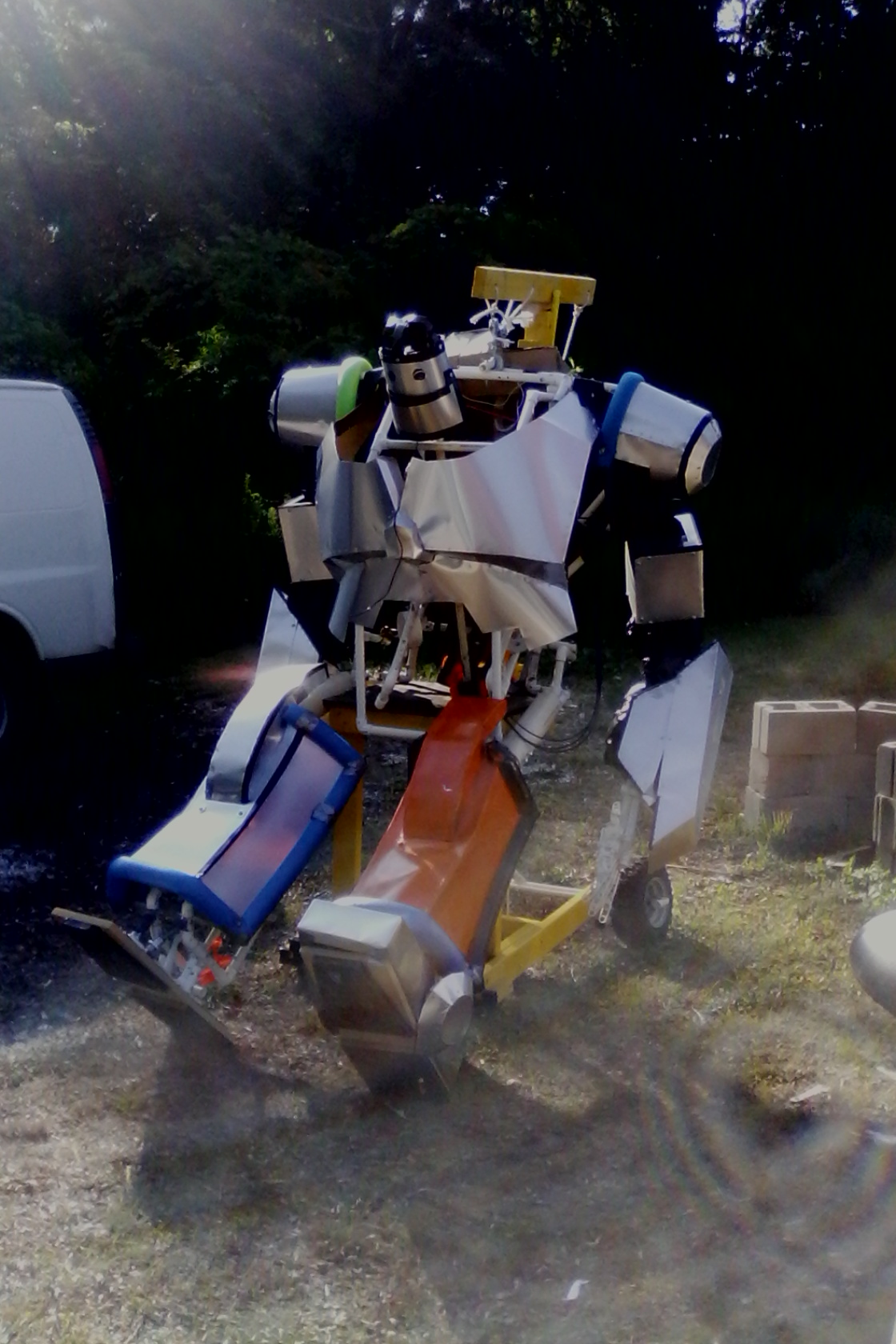

    And he fell down again. Must've been those beers last night. Minimal damage though 8)

    Dirtdives and Lieutenant Jaku like this.
  5. Benton188

    Benton188 Well-Known Member

    Trophy Points:
    765
    Yeah he looks a little hung over lol. Also, I think you might win this fight as yours is metal and mine will mostly be PVC and EVA foam...

    Dirtdives and Lieutenant Jaku like this.
  6. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815

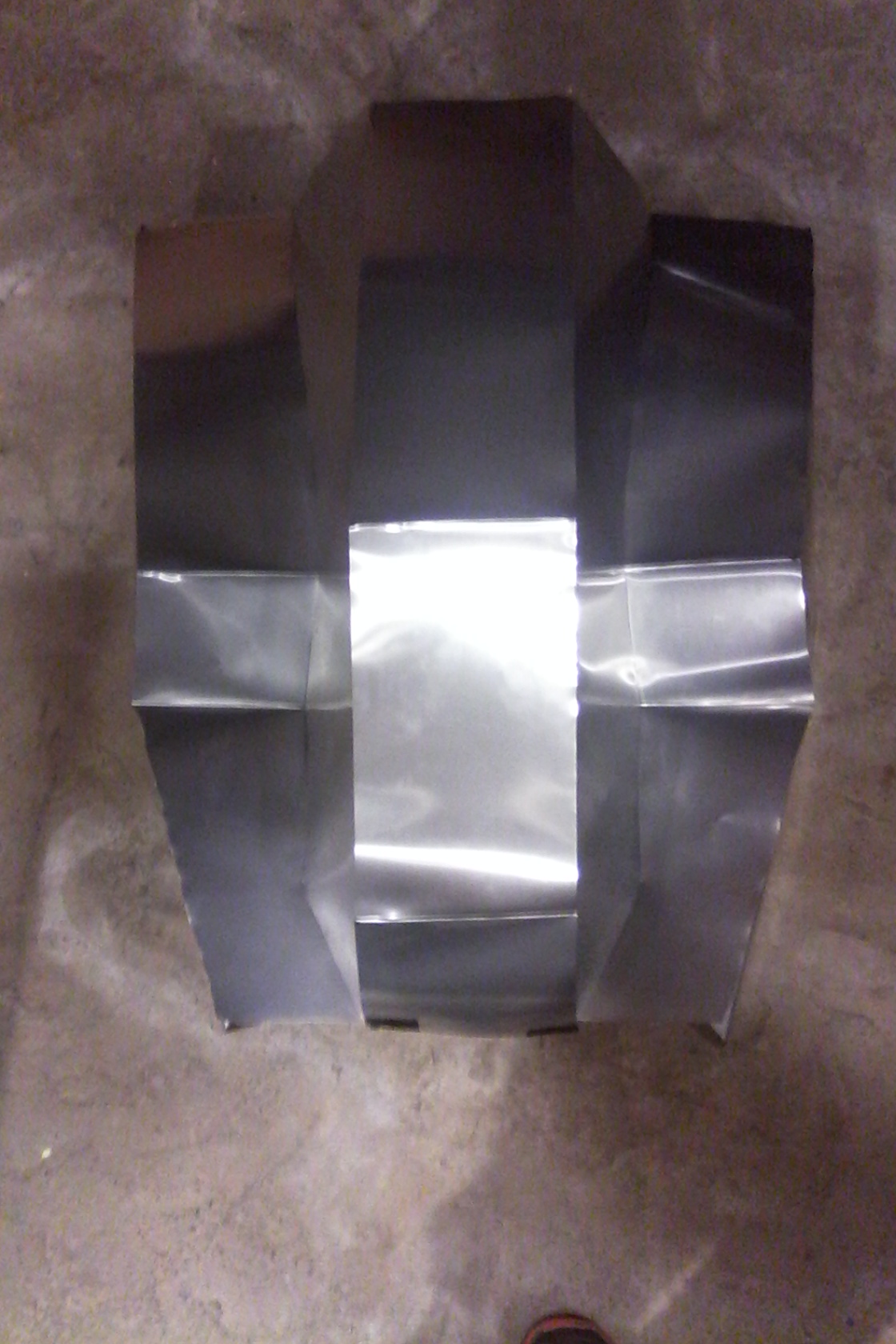

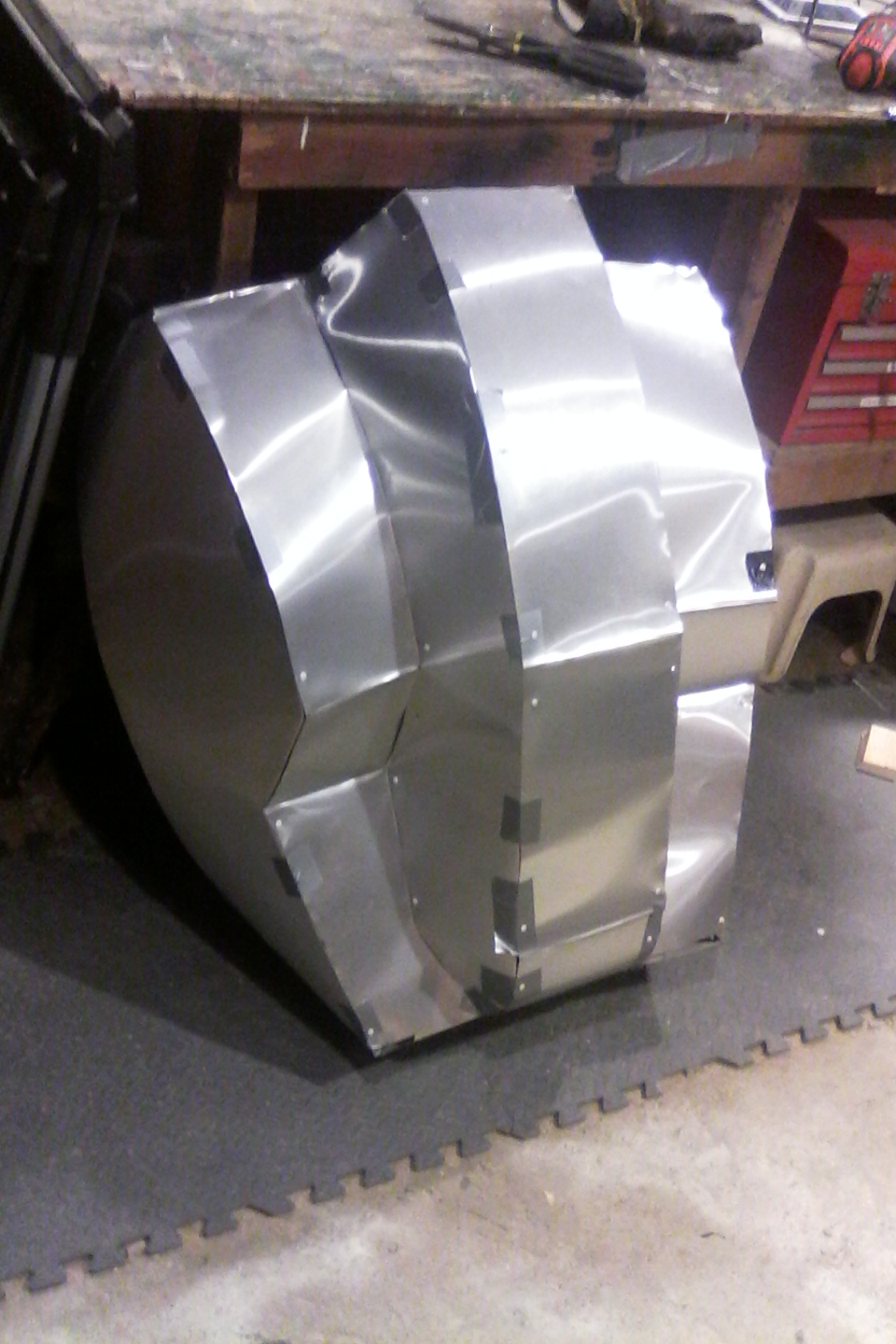

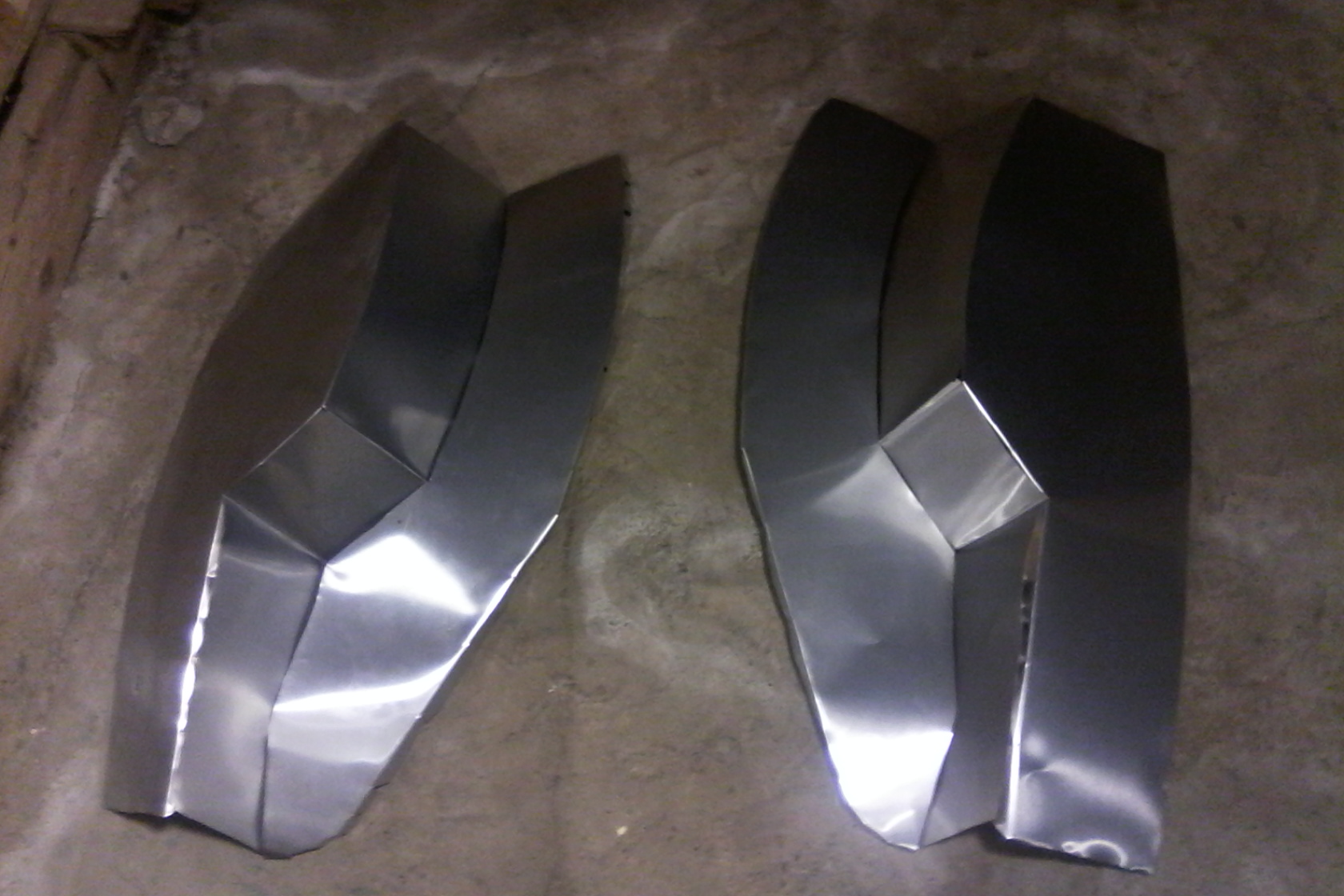

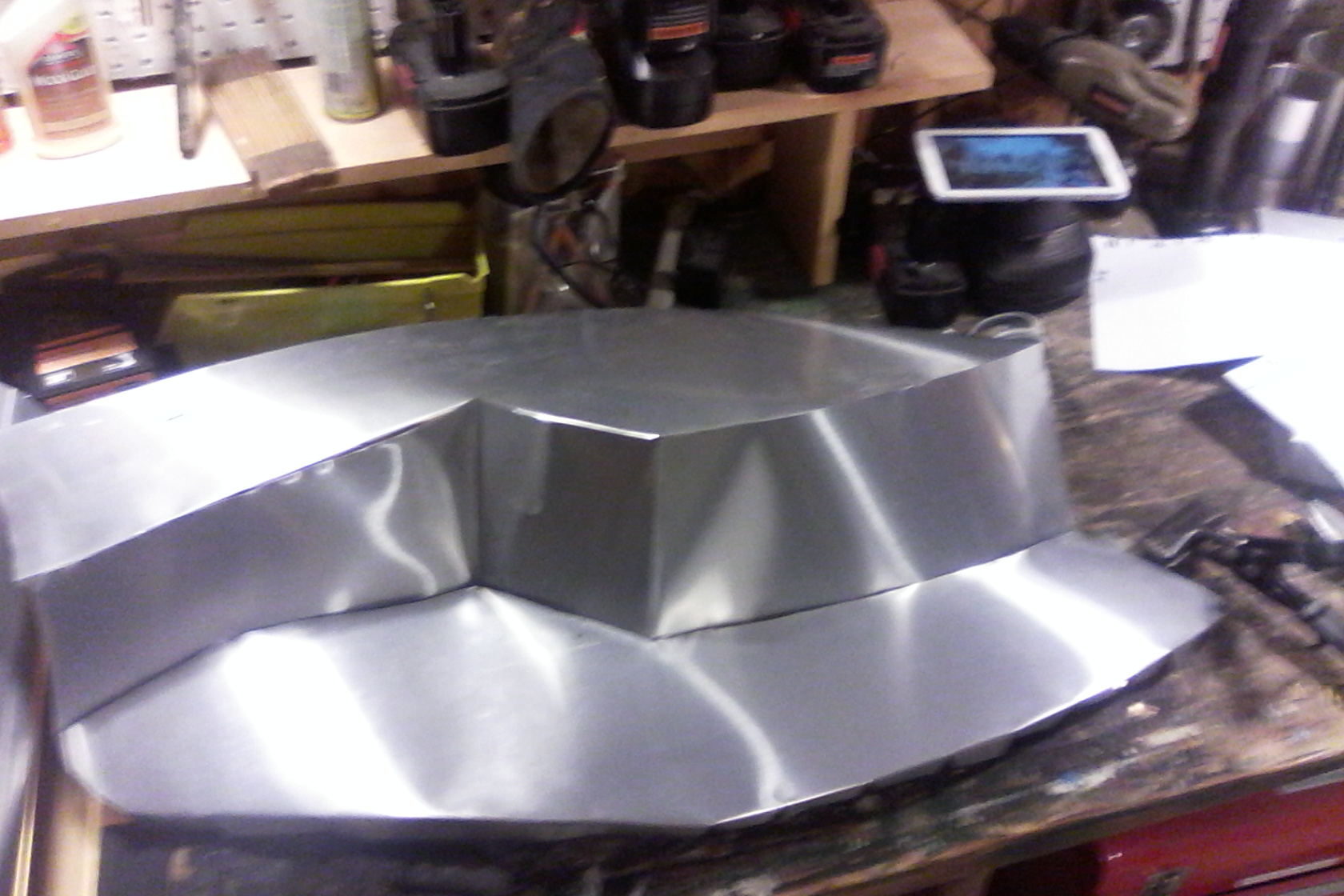

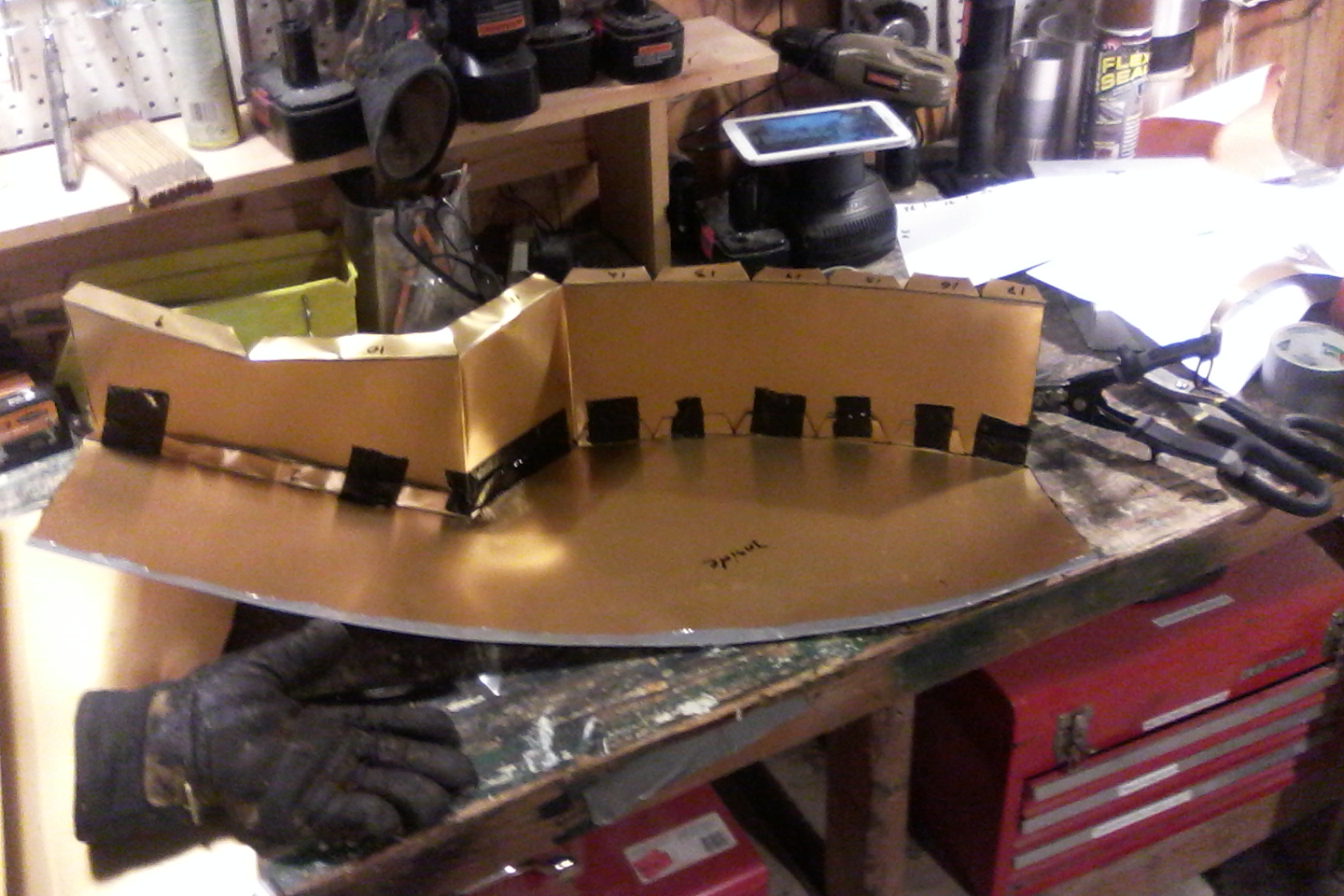

    You'd be surprised how durable Eva foam is: I hit my chestpiece hard several times while wearing and barely felt the impact (not that I recommend it for actual protection).

    Of course, I'm thinking a rockem sockem fight where the goal is to knock the opponents head off.

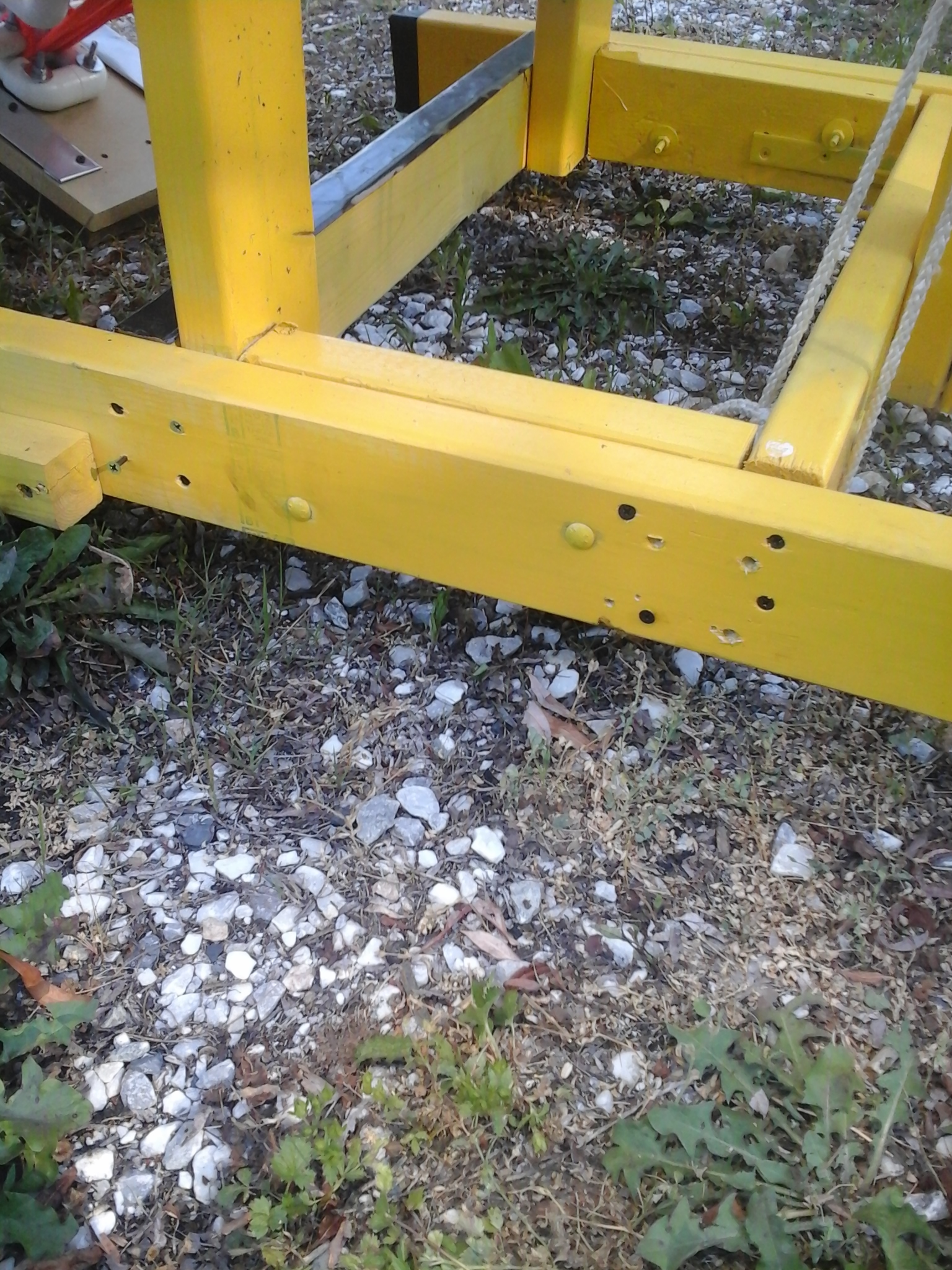

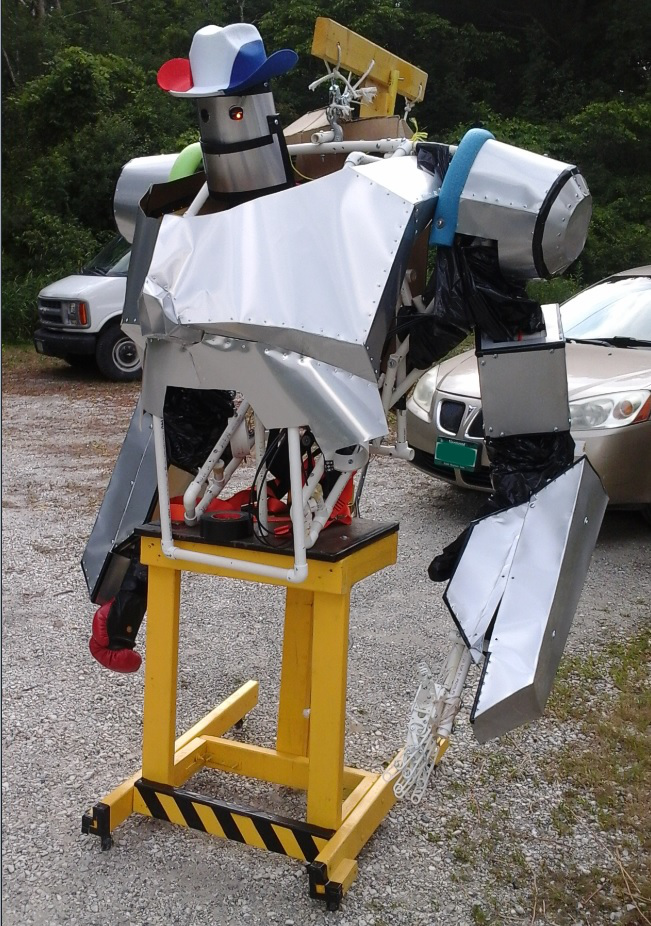

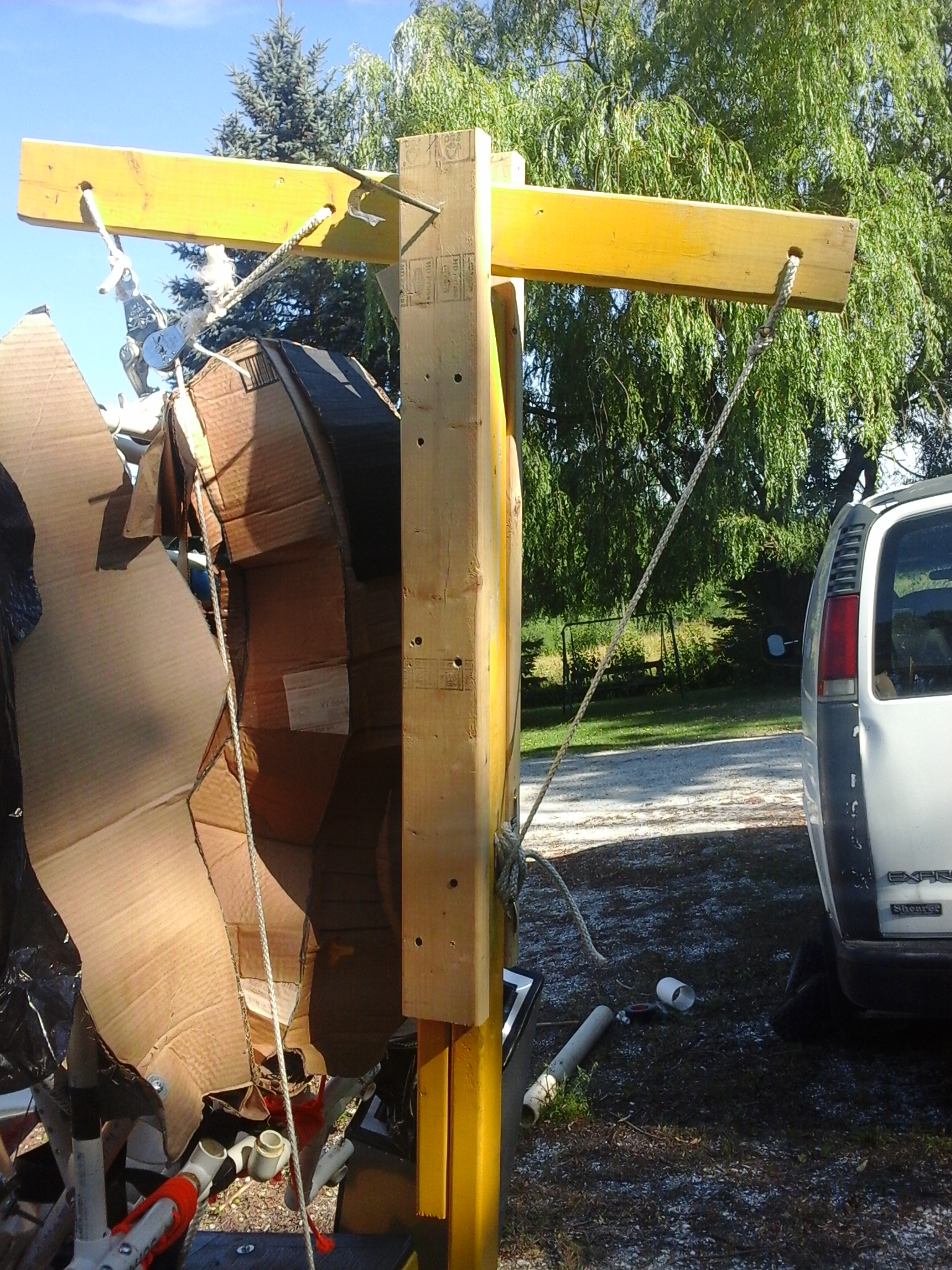

    Added a stabilizer to the stasis dock so Judd mcstudd doesn't fall down.


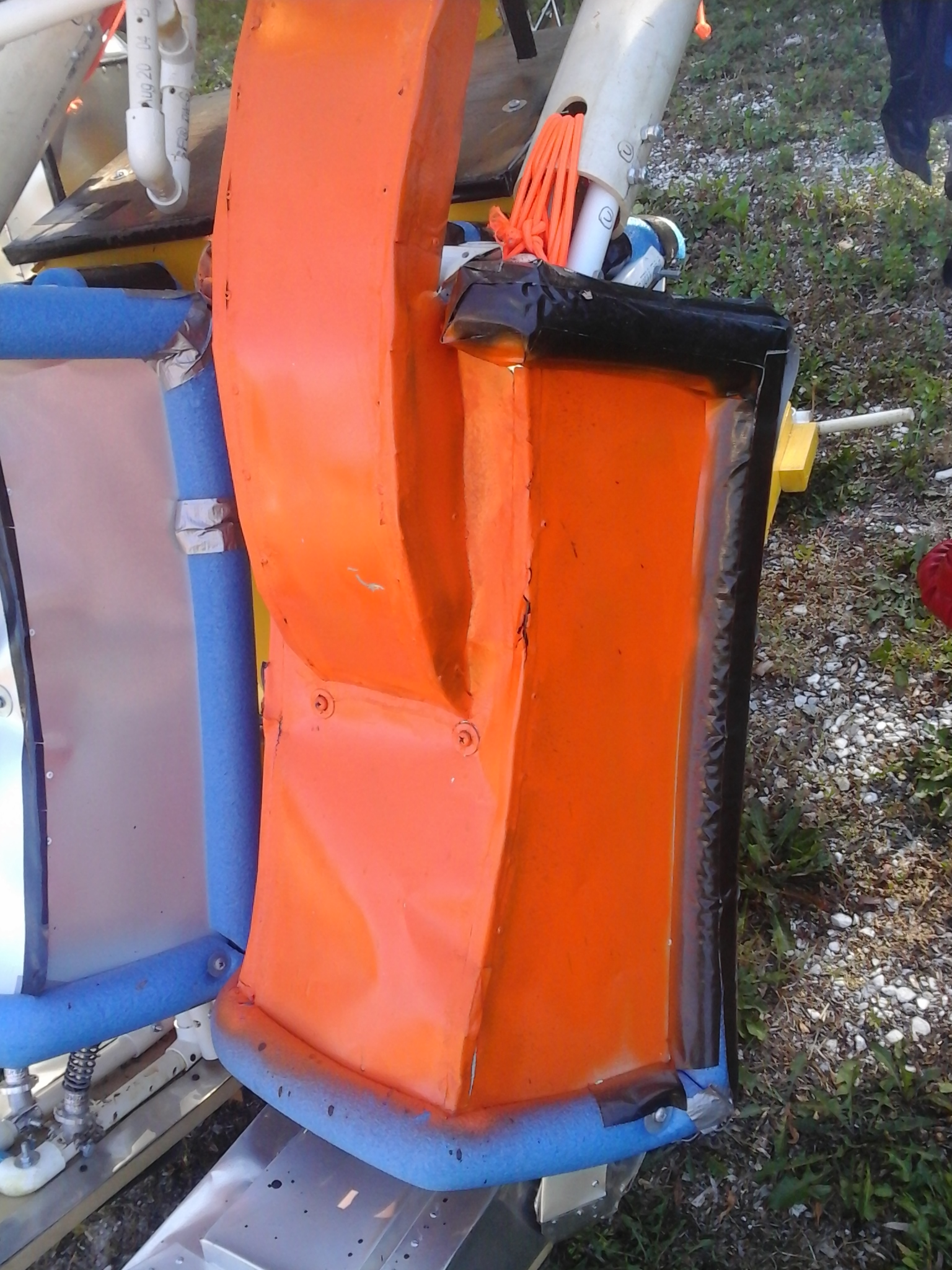

    Added tension cord to compound knees.


    And braces to the chest cage.


  7. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815

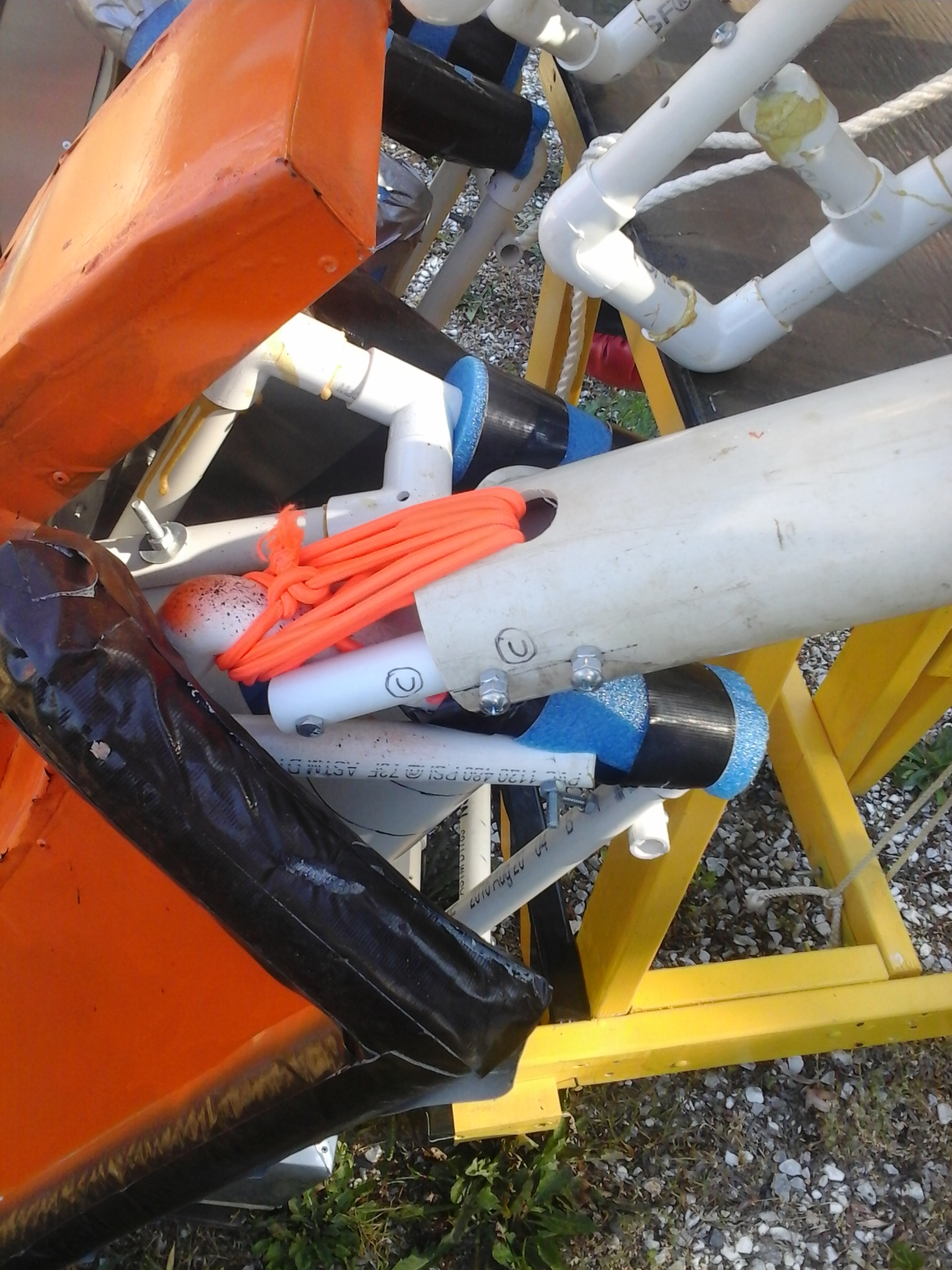

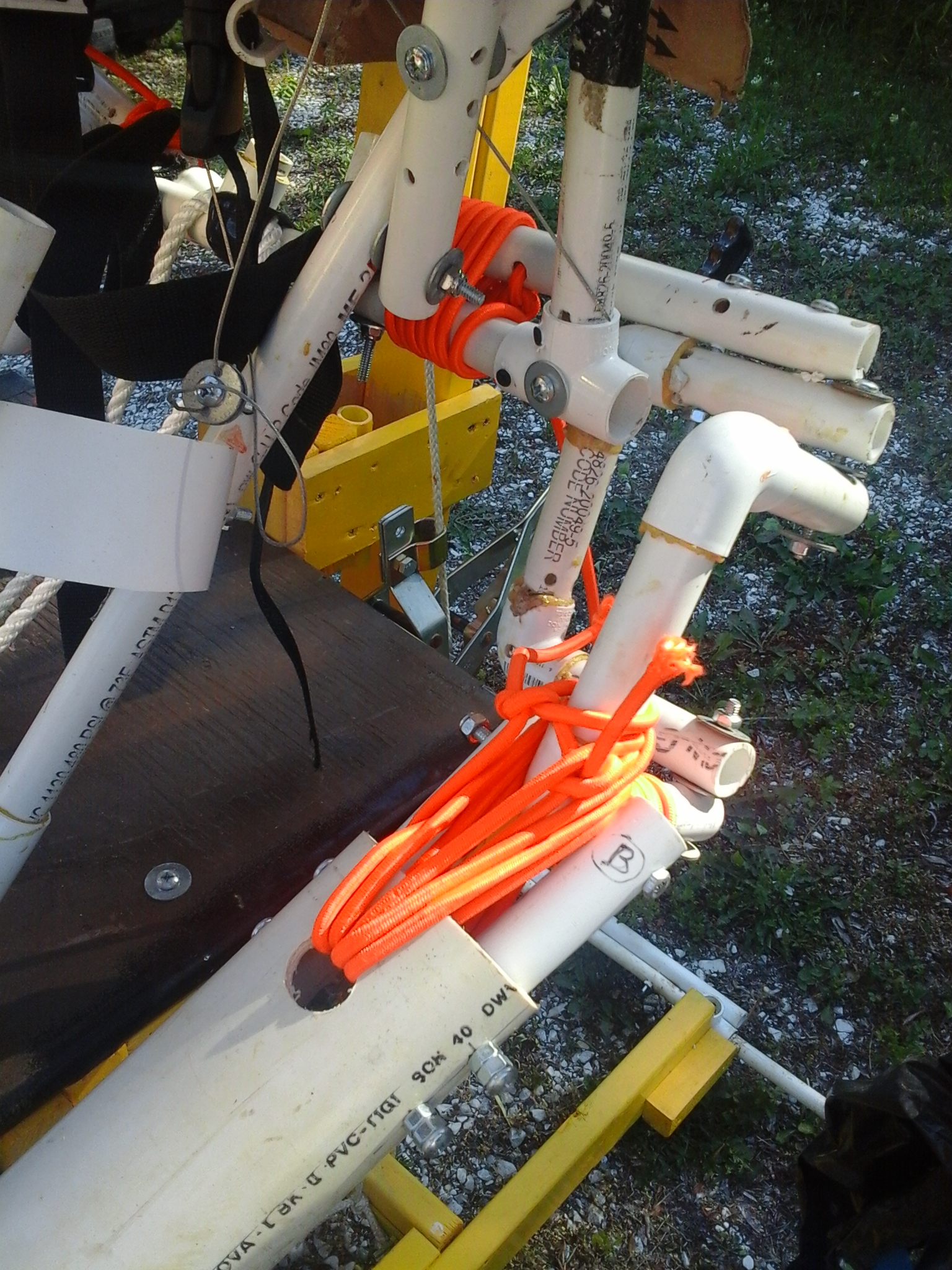

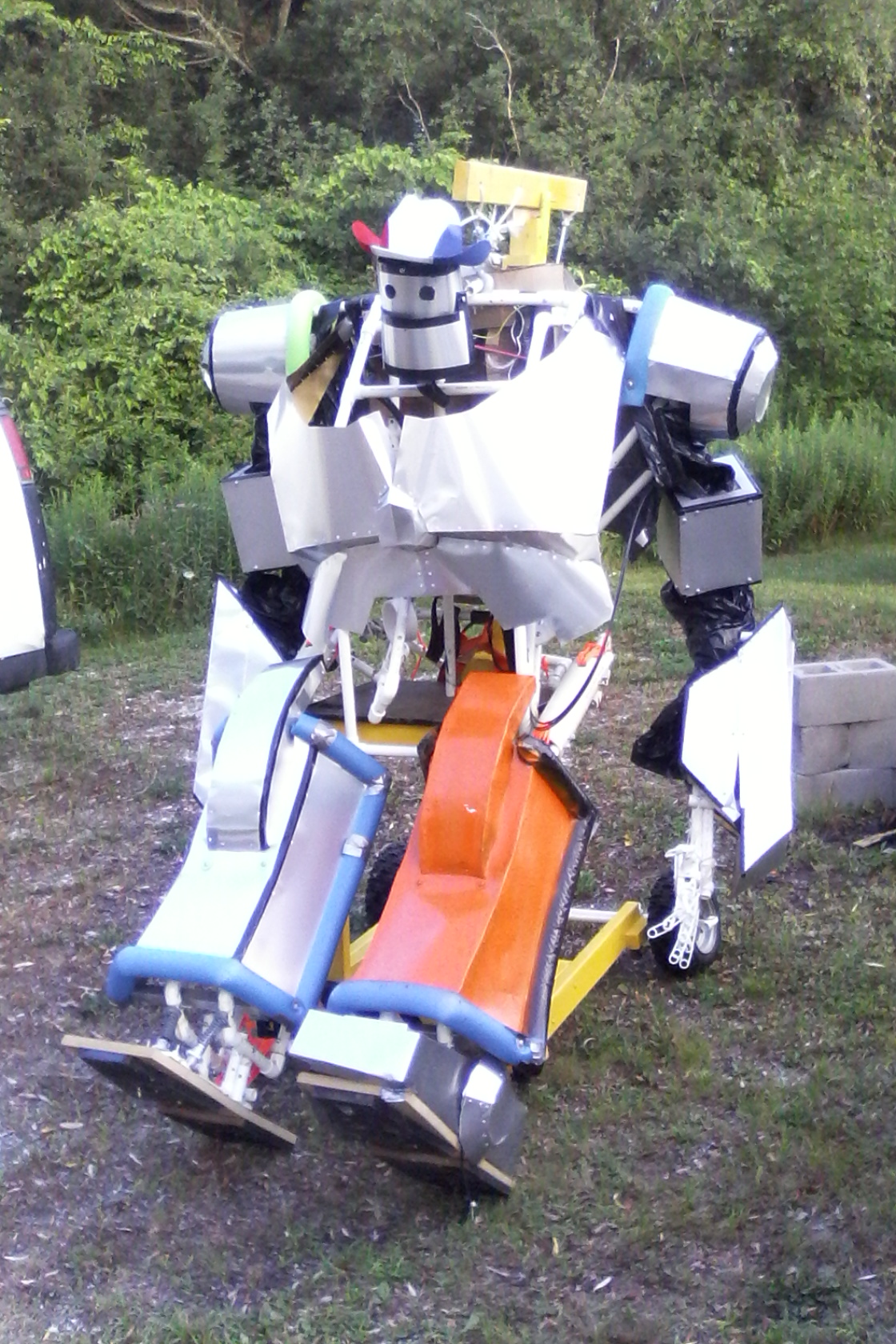

    Popped some rivets into the hip joints & added some metal reinforcement to the control arms.



    Boarded it and didn't feel any discomfort in my hamstrings: compound knees added just the right length and flexibility to the knee and thigh.



    Without that metal post the control arms bend like gumby :O

    And tomorrow I'll (hopefully) be able to film a test run. All the rain lately means I'll have to give the elbow cables some lube :oops:

    Last edited: Jul 27, 2018
    Dirtdives likes this.
  8. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    During the test run and a PVC joint on the ankle popped off. Gonna rivet all of 'em tomorrow.

    Dirtdives and Benton188 like this.
  9. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Strapping is a little funky (tends to slip oddly enough), and the shoulder bolts have bent compromising movement. Probably replace 'em with 3/8" bolts. Haven't given it a loooob job yet XD
    Definitely needs a back cushion!

    Processing video footage now, here's a screenie:


    Last edited: Jul 28, 2018
    Dirtdives and Lieutenant Jaku like this.
  10. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Okay, so I did a little more than a test:


  11. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Added a back cushion. Very comfy.


    Loooooooobed up the elbow cables too. Hooray!

    When Judd McStudd is laying down you can really get a sense of scale

    Looking under the dust cover, the shoulder paralellograms were not so paralell. So that's why he seemed drunk.

    Bolts were really bent!

    IMG_20180729_101255.jpg IMG_20180729_101355.jpg

    Replacing all eight 1/4"x3 shoulder bolts with 3/8" x3 bolts & locknuts. Cost $22! just for 8 pairs!

    Looking better:


    IMG_20180729_095409.jpg IMG_20180729_095405.jpg IMG_20180729_104427.jpg


    Put rivets everywhere on the right shin. Should come apart anytime soon. Really should've gotten that PVC cement instead.
    IMG_20180728_101414.jpg IMG_20180728_101410.jpg
    IMG_20180727_065851.jpg IMG_20180727_065841.jpg

    Last edited: Jul 30, 2018
    Dirtdives and Lieutenant Jaku like this.
  12. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    The back cushion is indeed comfy. Too comfy: it puts the pilot too far forward to grab the control arms and barely wriggle into the shins. Gives me an excuse to install a 3rd degree of freedom in the shoulder. Did I mention the cushion is comfy? Because it is.

    sketch share.png

    A rare sketch. oooo. Quick take notes guise!

    It pretty much makes the current parallelogram the anchor point for another paralellogram to shift left and right, transforming any rotational motion by the pilot to horizontal extension/flexion in the shoulder and extending the arms towarms the front by about 4", just the right amount to compensate for the cushion. Gotta get another 100 pak of lock nuts, 20 pak of 3" bolts and 2x 3/4"x8' PVC. Shop shop shop.

    The cushion is comfy :3

    Dirtdives and Lieutenant Jaku like this.
  13. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Slave parallelogram is proceeding: got the shipment of nylon lock nuts early.


    Finally got some PVC cement. Meet some permanent connections on the slave stabilizers (man its fun coming up with new terminology!) Don't worry: I wore gloves and a respirator :)


    Dirtdives likes this.
  14. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Judd mcstudd sees you...


    The arm mechanism is nifty, but impractical atm.


    Lieutenant Jaku likes this.
  15. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    IMG_20180820_203817.jpg So it finally happened:


    The shins gave out: pop rivets and gorilla glue won't last.

    See?


    So I made a new shin subframe to PVC cement tomorrow:


    Pilot Footprint is 4" longer so my feet can sit comfortably therein.

    And a random rocket:


    Dirtdives and Lieutenant Jaku like this.
  16. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Used PVC cement on the shins, and replaced the MDF with a PVC frame (with metal reinforcement) that takes at least 10lbs off each foot.
    Gonna get some wood underlayment to help pin the panels on and attach the Eva foam soles.

    The feet look more complicated, but I'm happy with the results... Until I find out I forgot to glue something XD

  17. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Doing some more cat watching for my folks this week.

    So I fit all of this:
    Into this.
    Plus clothes and groceries.
    Laying everything out reminded me of this:

    Expect a lot of progress this week.

    Assembled the arms, and the cushion is properly mounted! Need to fine tune the arm cables and loosen the webbing.

    Finished up the feets. Just need fine tuning on the pilot foot cradle angle.

    Lieutenant Jaku likes this.
  18. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Just a quick update: looks like I'll be using the mech in haloween show this year, so there might be a slight divergence from the mecha development while I dress it up as a giant demon. Cardboard base, cheap cloth painted skin.
    Maybe something like the baron of hell? Have to contact the grand poobah of the show for details.

  19. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    I underestimated the commute to work from my folks place via the interstate. At one onramp traffic daily came to a halt! IN VERMONT!

    Too hot today so I waited till things got shady to do some work.

    Like giving it some sole...


    Using some heavy plastic for dust covers.


    Funnily enough, now I have 2 core torso units... Hmmmmm...


    Last edited: Sep 16, 2018
  20. Dirtdives

    Dirtdives Sr Member

    Trophy Points:
    1,285
    Hmmmmmmmm........


  21. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Lieutenant Jaku likes this.
  22. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    So I am the be the queue entertainment.

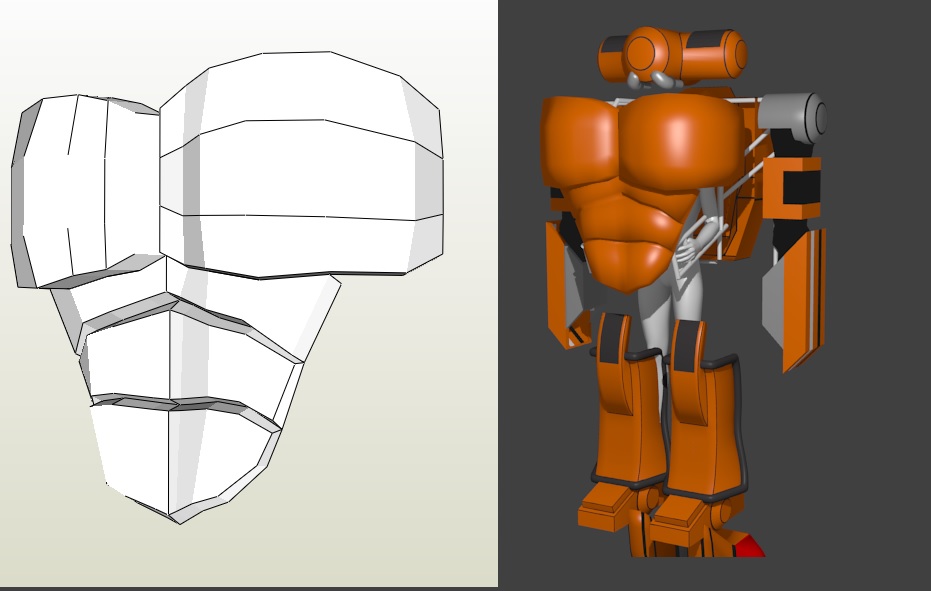

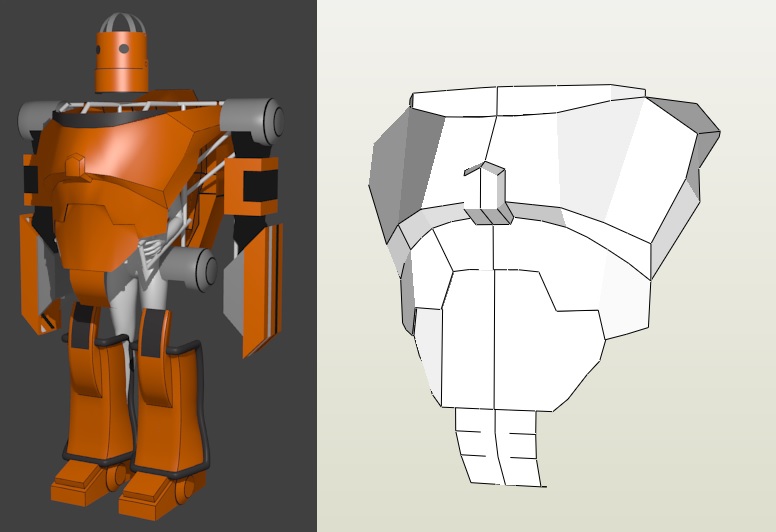

    Meanwhile started modeling the low-poly cardboard base:

    Planning to skin it with either cloth or plastic/paper bags. Too bad most of the plastic went out with the garbage last week :/ Might have to purchase some plastic rolls from home depot/aubuchons. And some paint...

    Lieutenant Jaku likes this.
  23. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Finally did that punching test:

    Lieutenant Jaku likes this.
  24. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Did a bit of work today securing the leg armor to the subframe, plan on shooting footage tomorrow with the arms and legs together.

    In the meantime I did some tests for motorising the ol' MARDUK (Perhaps A Phase II MARDUK?)


  25. GMer56

    GMer56 Well-Known Member

    Trophy Points:
    815
    Elbows were frozen, spent most of the afternoon freeing them and lubing the cables. I think I'm gonna store those bits under cover from now on. Garage or Van? Tough choice.

    Build the hop half of phase ii Marduk hips.


    Also made a handy infographic about IRL Mecha. Phase II MARDUK is a Centaur Class, while the USE Frame is a Musume class.

    Mecha Classes_smol.jpg
