Pipninja's custom noble VI

pipninja

Active Member
So I made a spine today

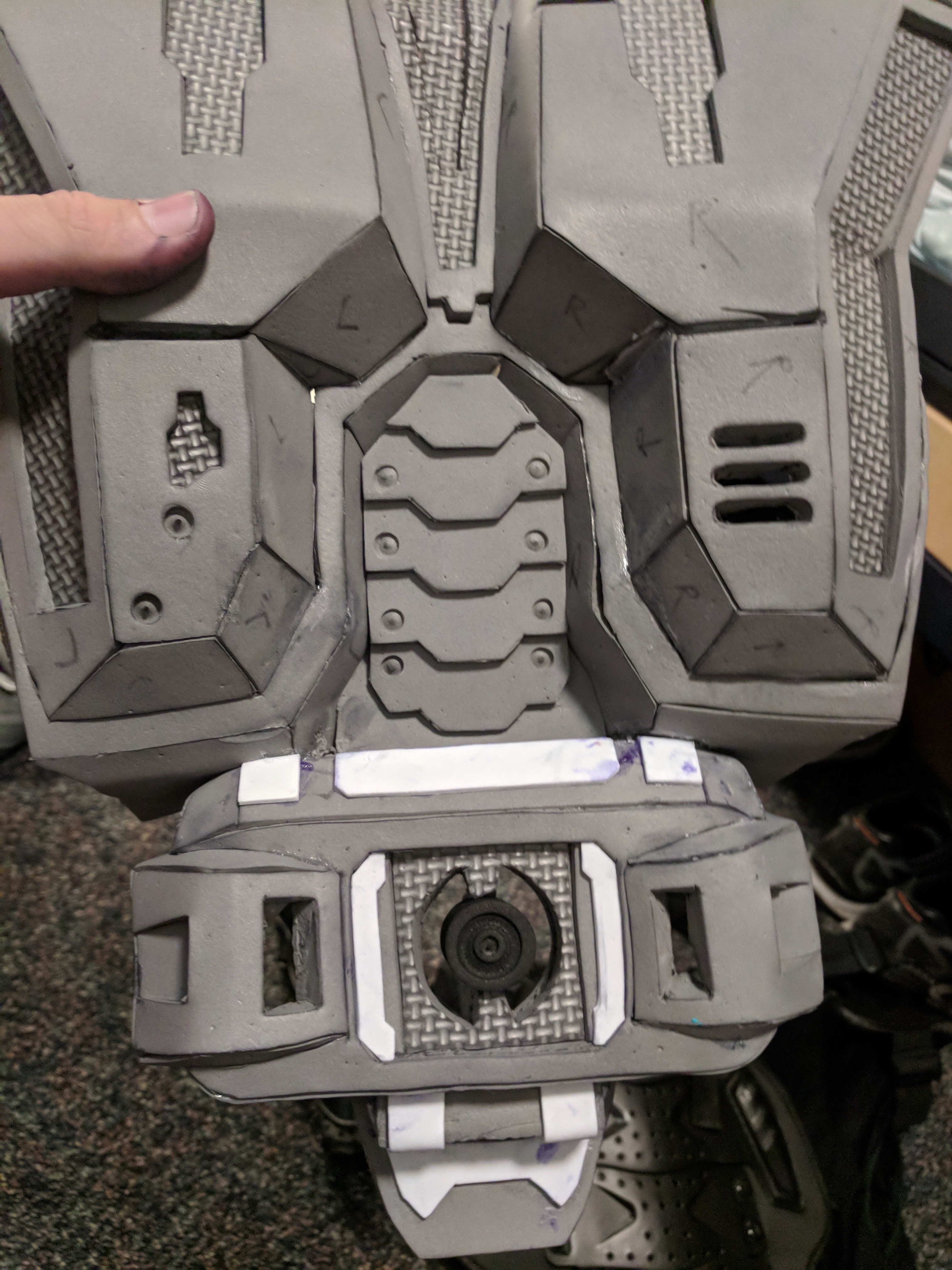

The armor ability fits nice and snug in the chest, because in game it replaces that under bit of the chest. I'm really happy with it

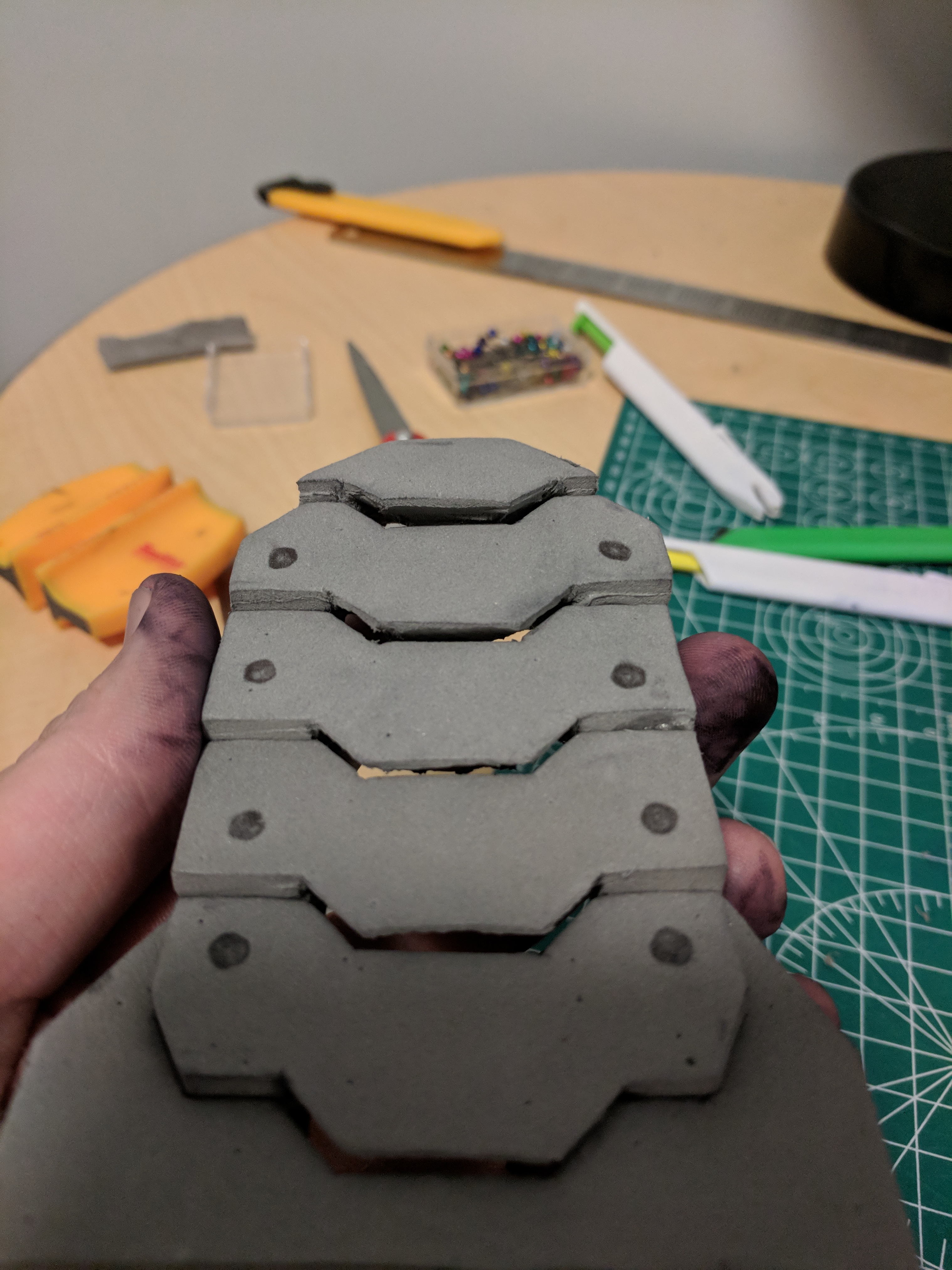

I also added holes for lights later in the spine


And a lil bit of Dremel for detail

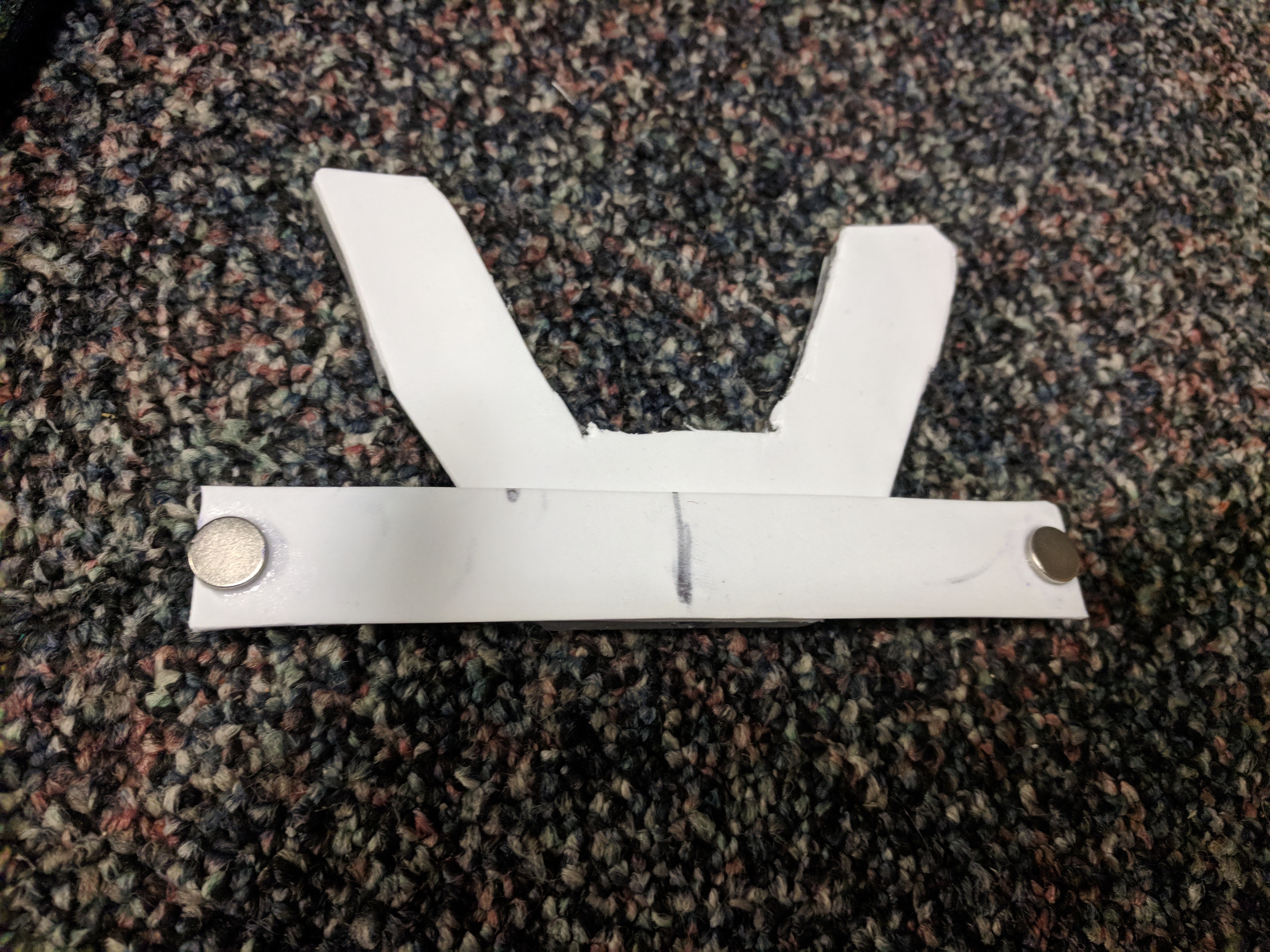

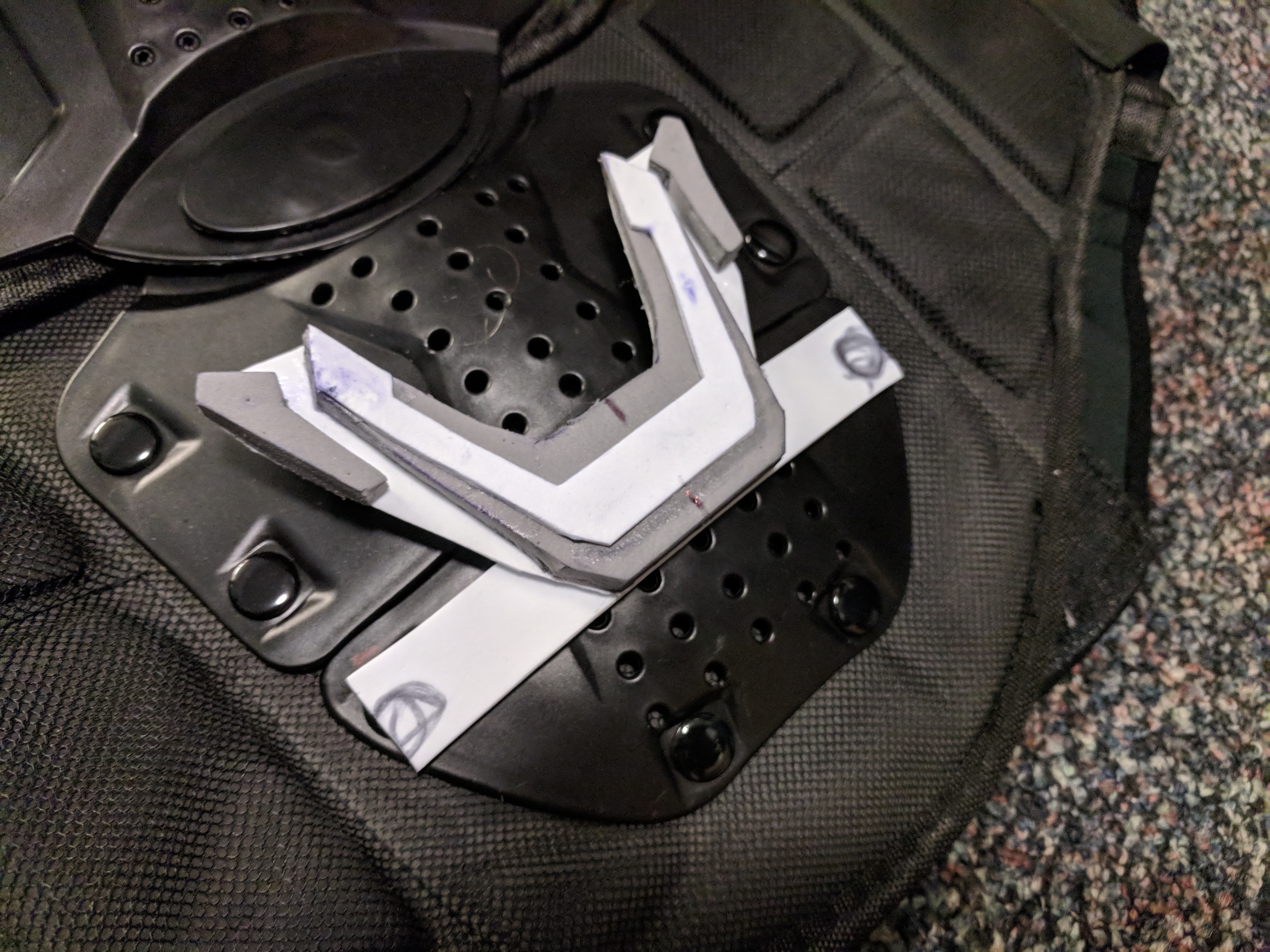

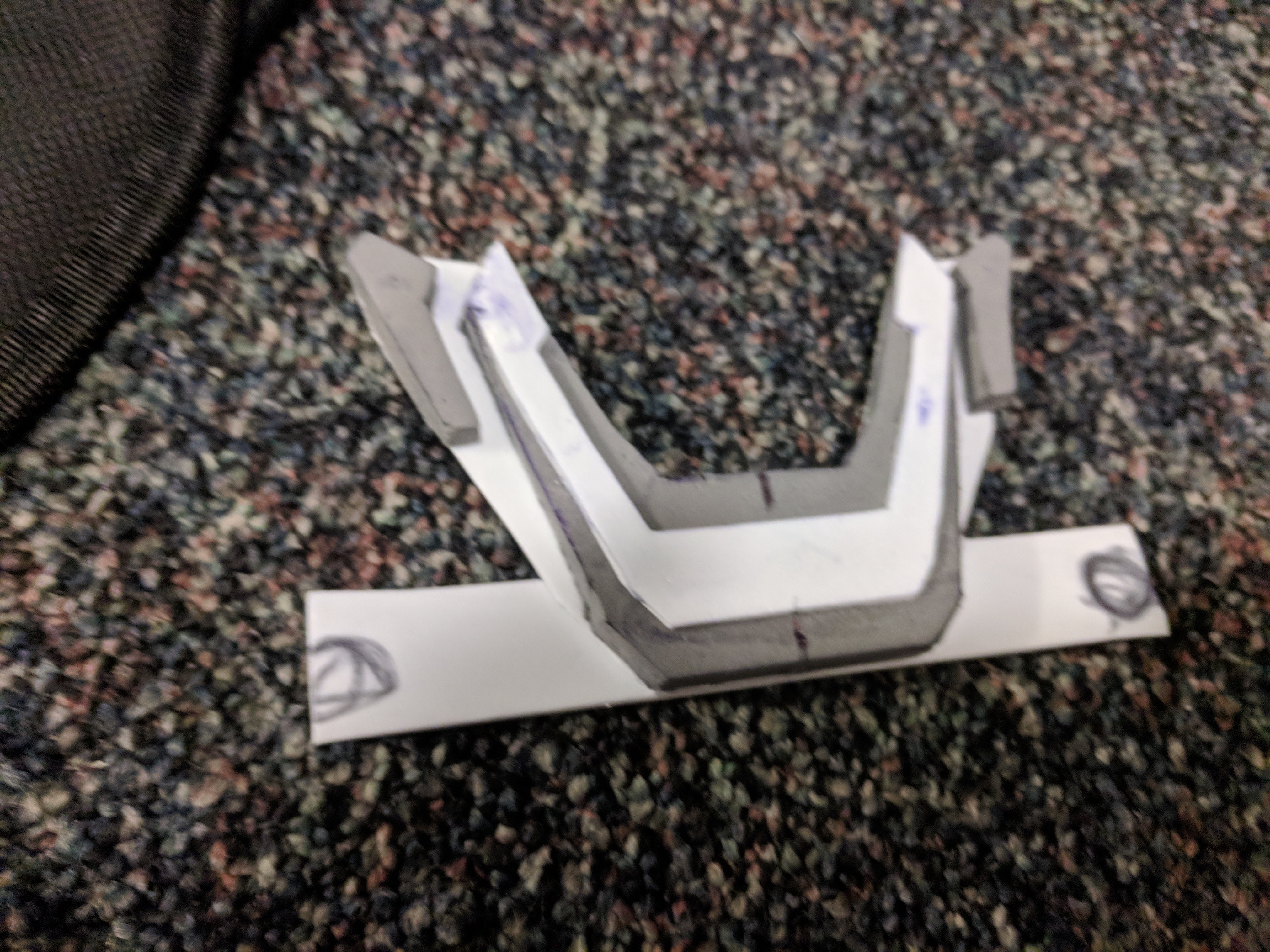

I also accidently found out how to attach the spine plates. I dropped a magnet on the back and realized the buttons are metal, so I used magnets


And one last thing, no matter how little I use it, I always accidently get my hands covered in super glue!


pipninja

Active Member
Also saftey glasses are important. With a bad combo of magnets and super glue, a single projectile drop beamed toward my eye. Fortunately for me, It cought in my eyelash, itritating my eye, but able to wash out quickly. So moral of the story, wear eye protection. You never know when you might need it.


zachturner009

Active Member

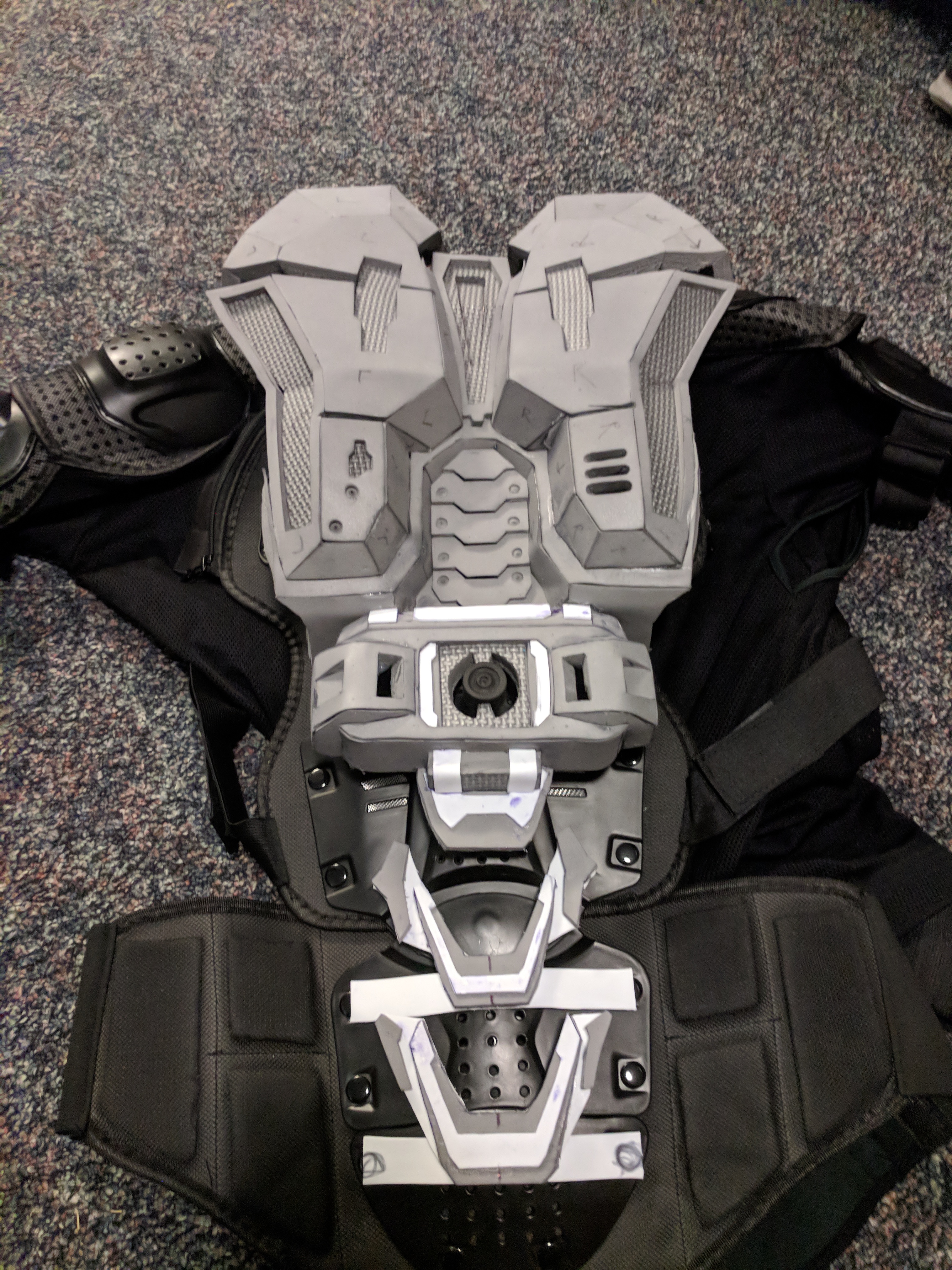

So I made a spine today View attachment 259569

The armor ability fits nice and snug in the chest, because in game it replaces that under bit of the chest. I'm really happy with it
View attachment 259570

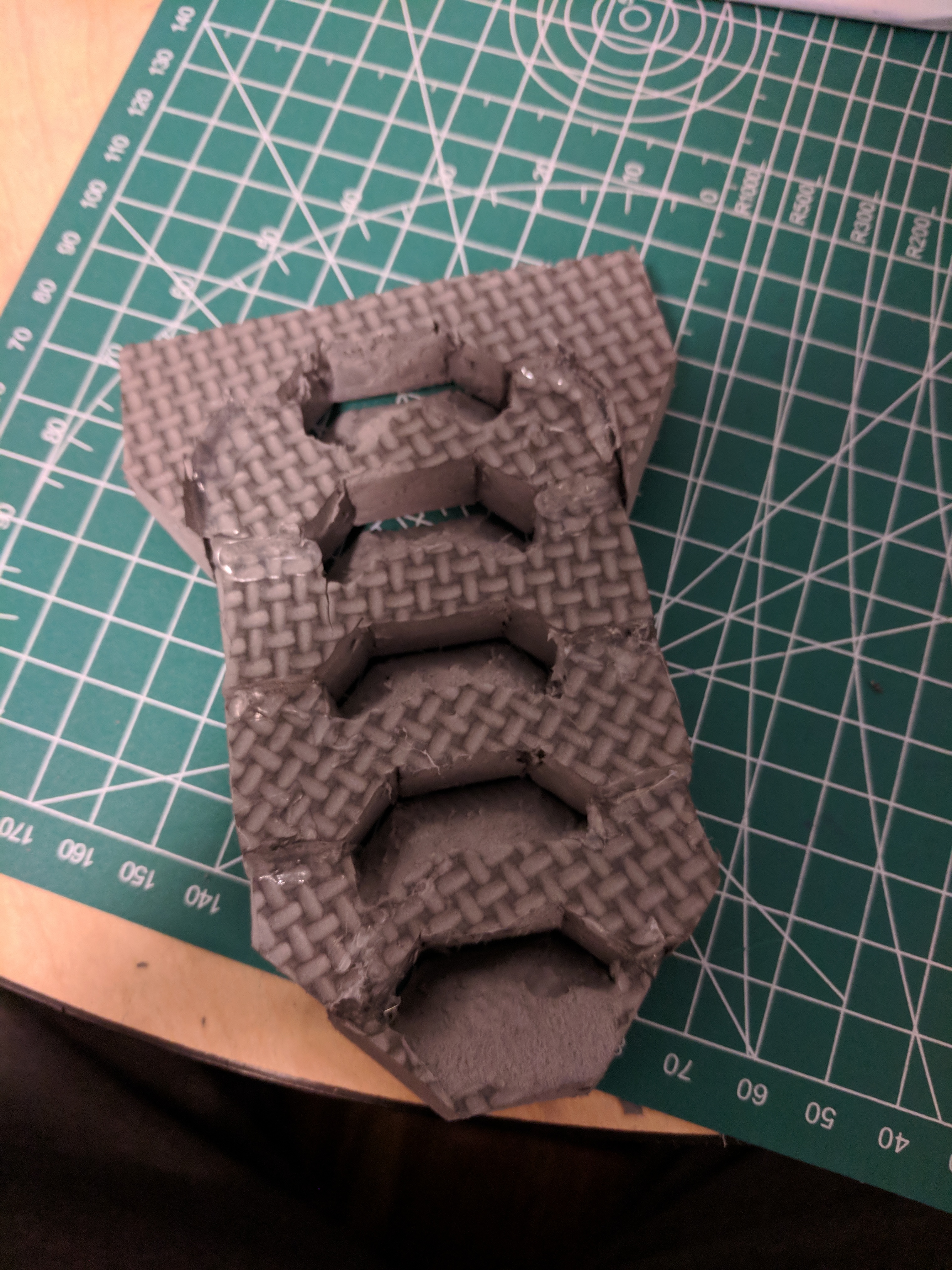

I also added holes for lights later in the spine View attachment 259576 View attachment 259575

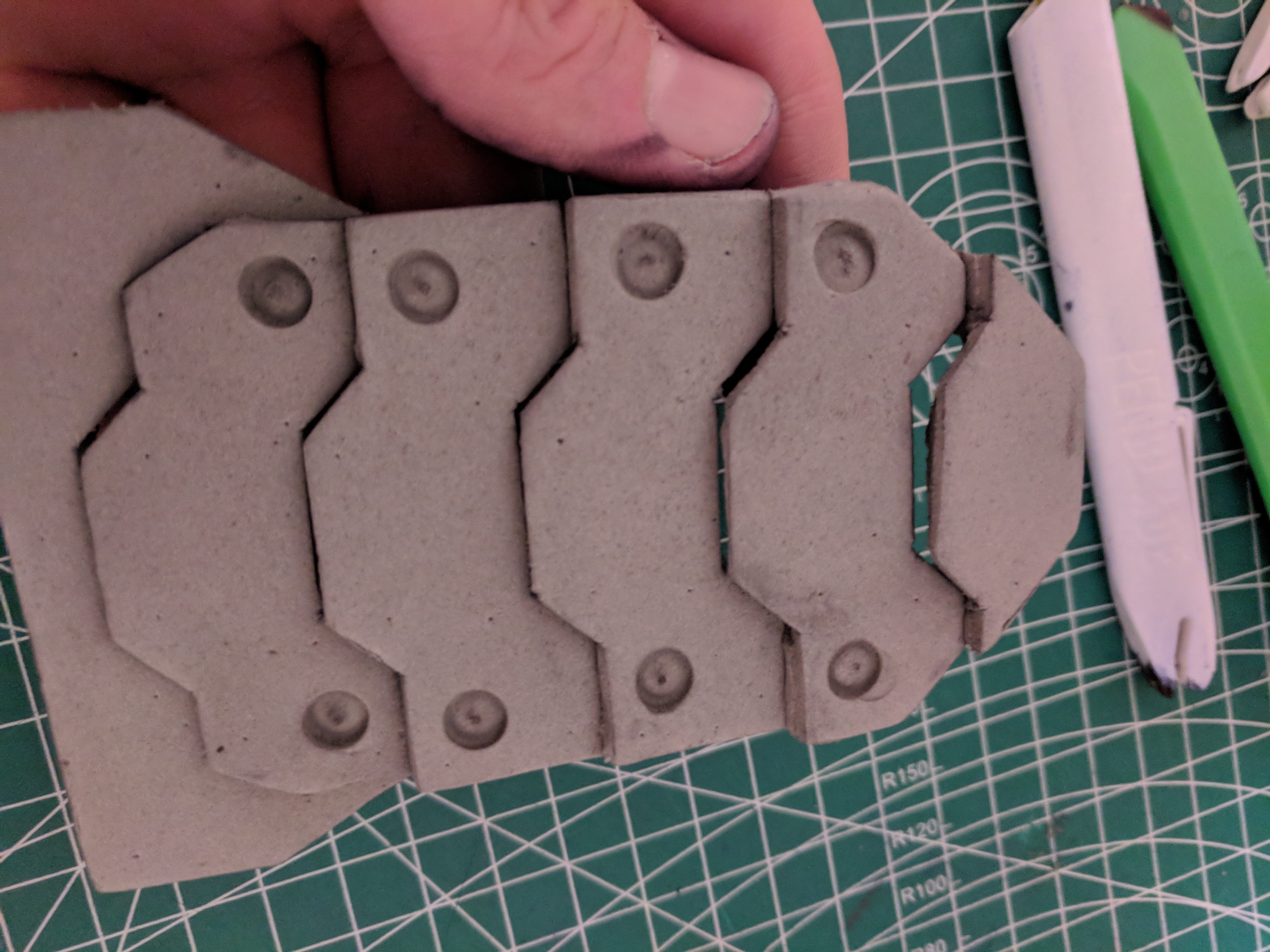

And a lil bit of Dremel for detail View attachment 259574

I also accidently found out how to attach the spine plates. I dropped a magnet on the back and realized the buttons are metal, so I used magnetsView attachment 259572 View attachment 259573 View attachment 259571

And one last thing, no matter how little I use it, I always accidently get my hands covered in super glue! View attachment 259568
Where did you find the file for the armor ability, been looking everywhere!


pipninja

Active Member
Where did you find the file for the armor ability, been looking everywhere!
It is the foam chest pattern in the halo reach base file here. It will be in the foam folder.

Halo: Reach - MJOLNIR Mark V - Standard

It has the spine and armor ability which makes it convenient for sizing.

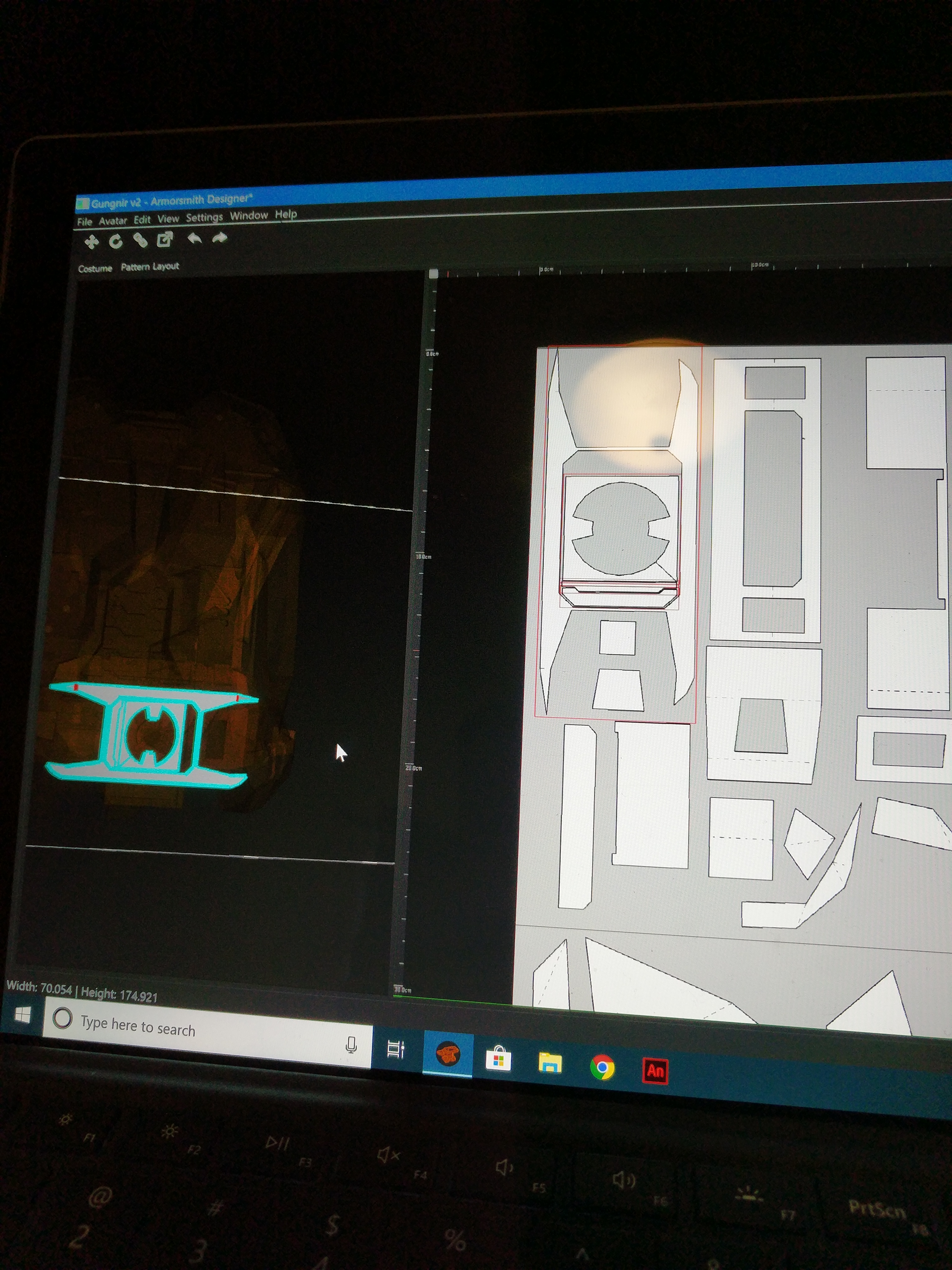

Also something to note, you will have to pull out your own patterns for this. In this center peice the inside patterns are smaller than the hole they go in, so I arranged them on top to cut them to that center width on paper. So you have to put some thought into how they are going to come together when you make your patterns.


zachturner009

Active Member
It is the foam chest pattern in the halo reach base file here. It will be in the foam folder.

Halo: Reach - MJOLNIR Mark V - Standard

It has the spine and armor ability which makes it convenient for sizing.

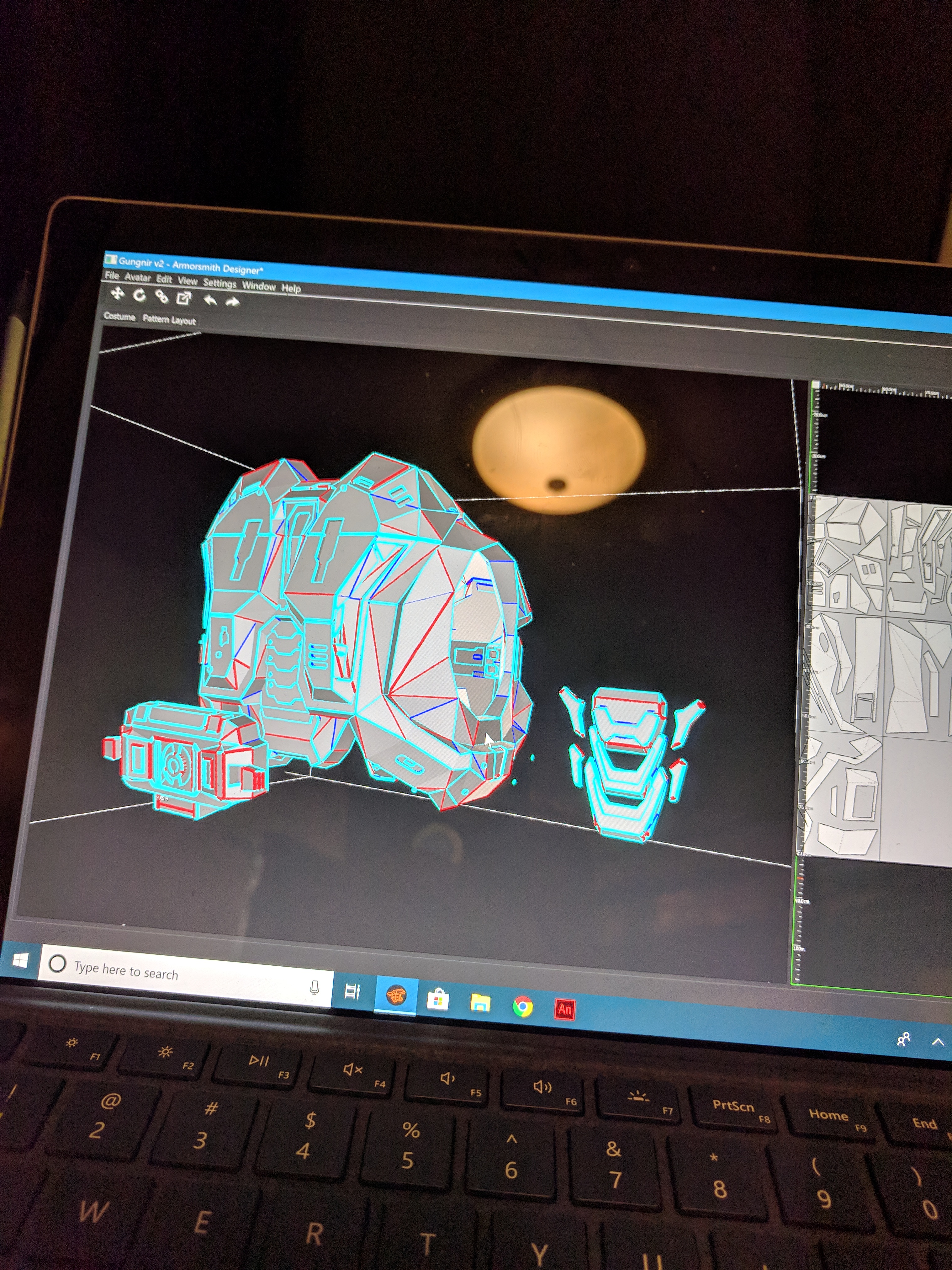

View attachment 259594

Also something to note, you will have to pull out your own patterns for this. In this center peice the inside patterns are smaller than the hole they go in, so I arranged them on top to cut them to that center width on paper. So you have to put some thought into how they are going to come together when you make your patterns. View attachment 259595
I will check that out, thank you!


pipninja

Active Member

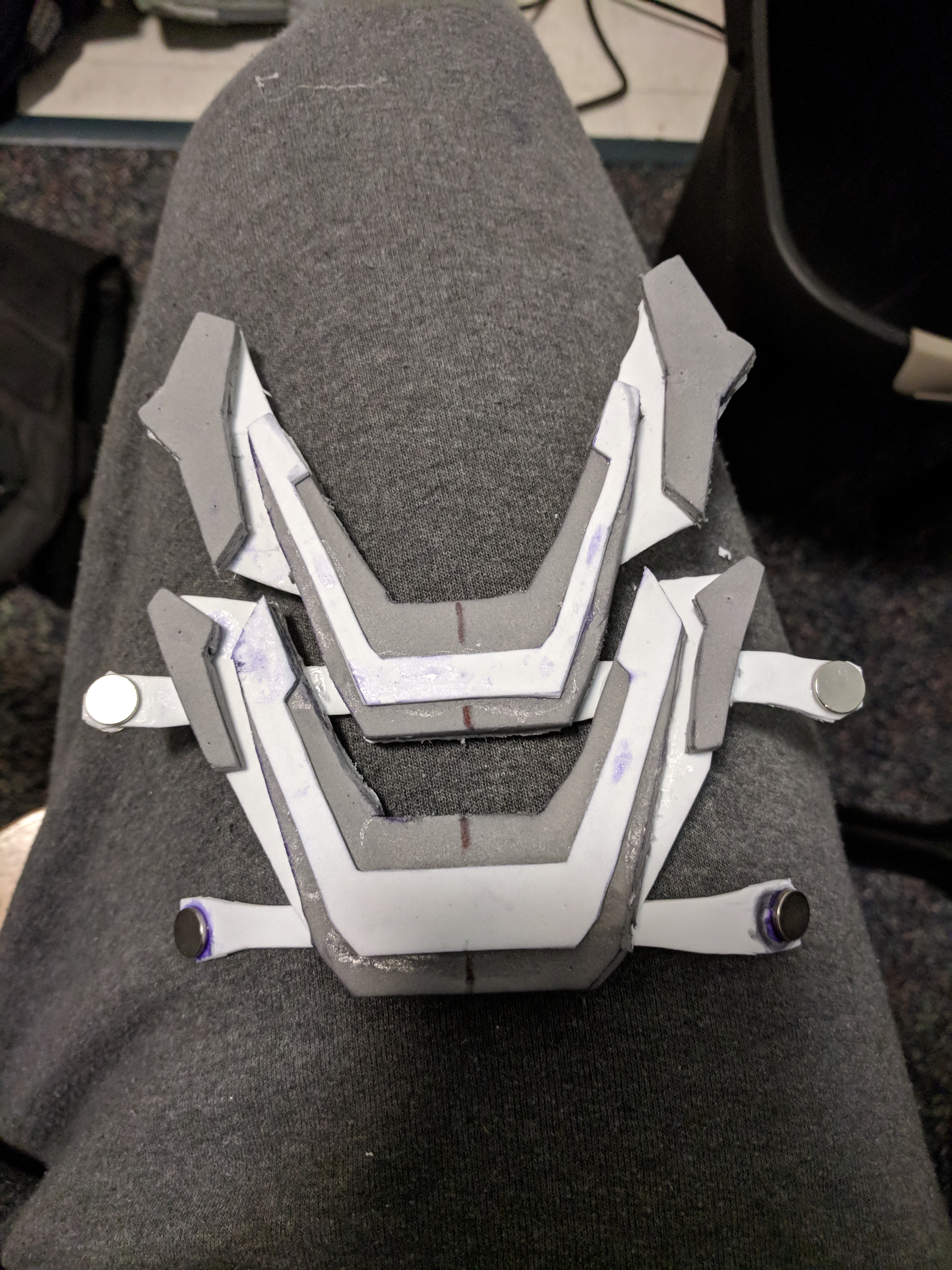

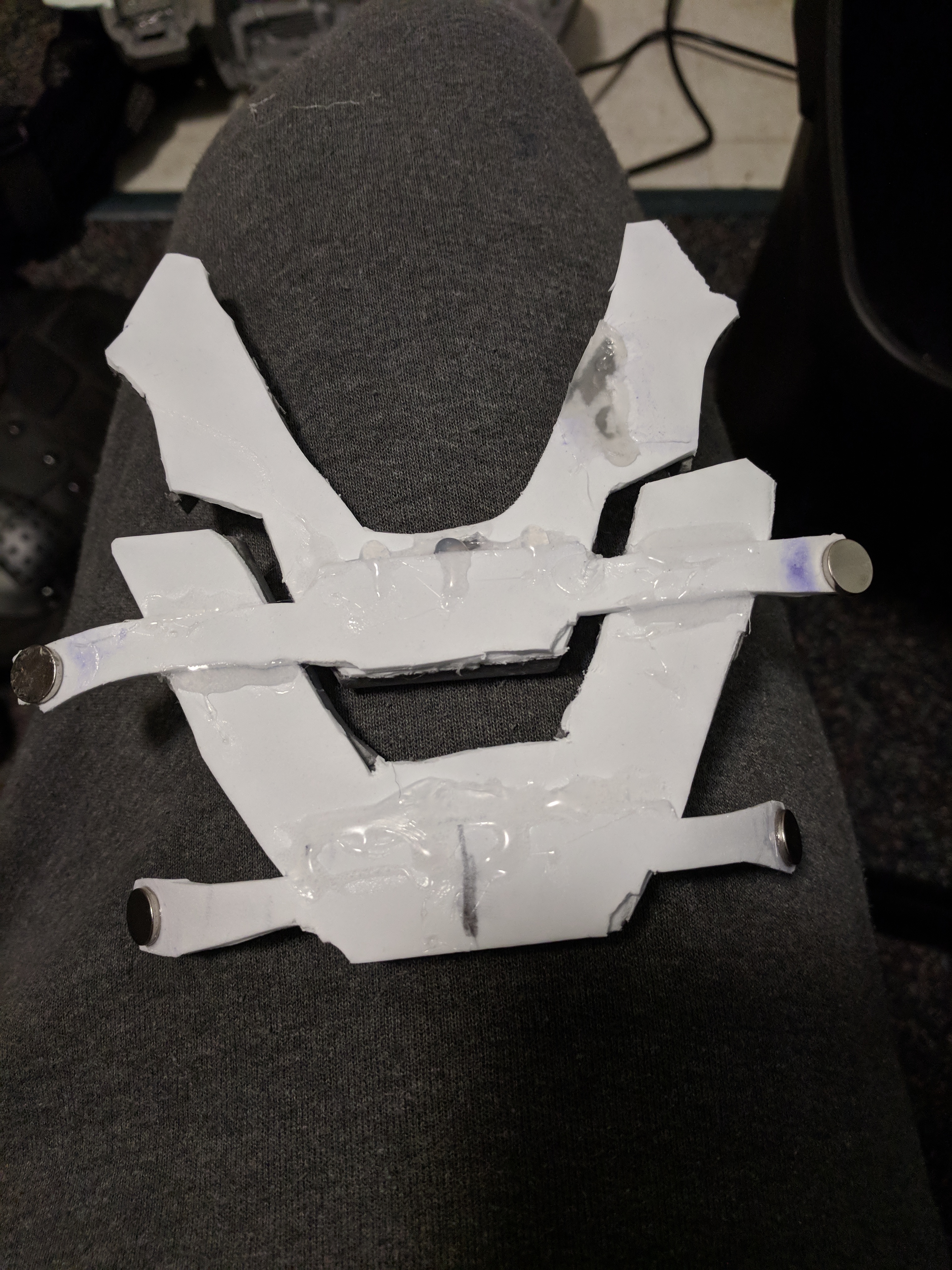

Well I am at work on the back, but while I was waiting for something to cool, I glued the two spine plates together. Then reinforced the back with hot glue. All in all, I am really happy, it is stronger, less likely to get knocked off, and I also put an extra magnet on each previous magnet to increase the magnet strength. Now it is secure, structuraly sound, and flexible. I am finally happy with them!


pipninja

Active Member

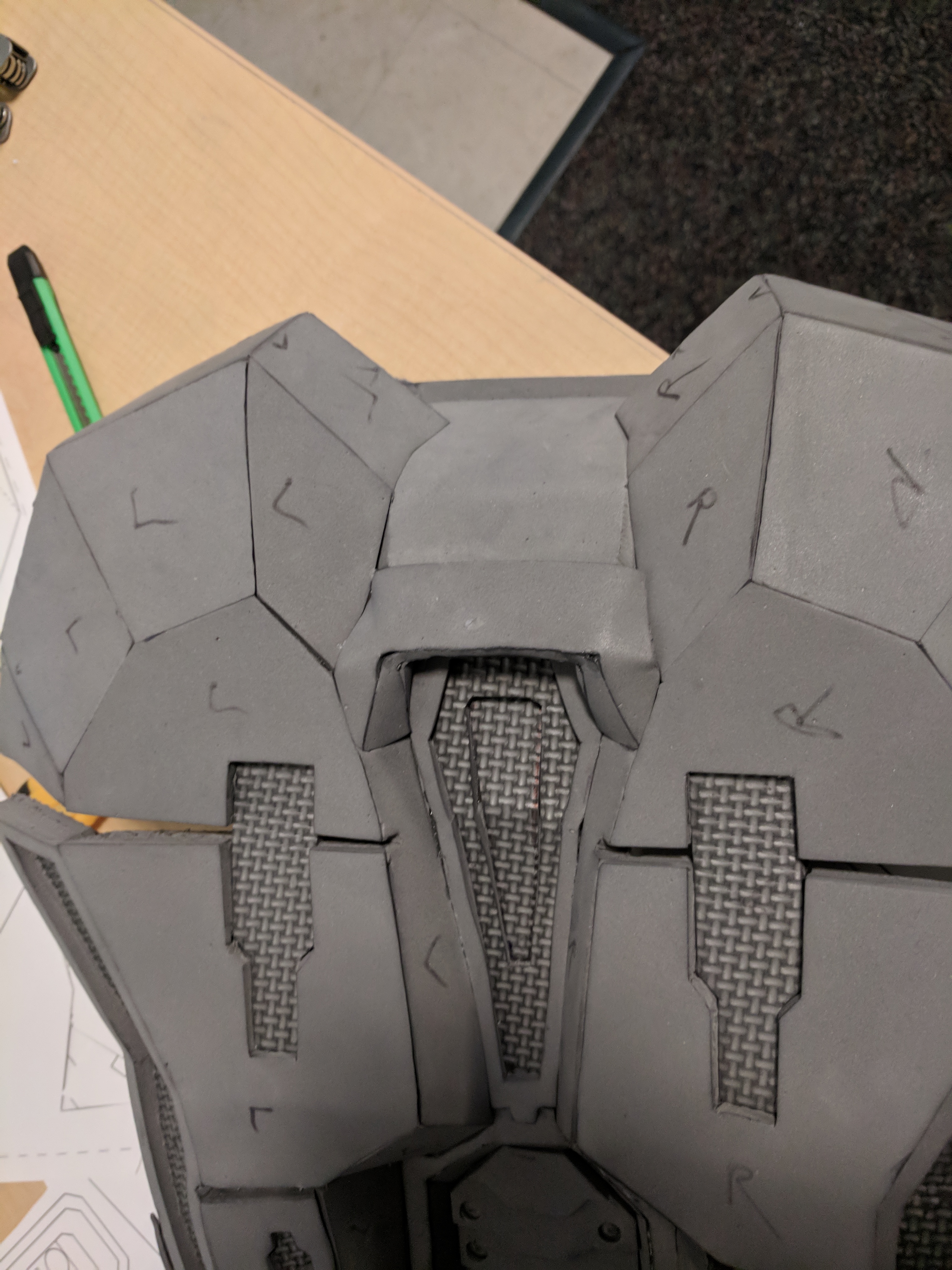

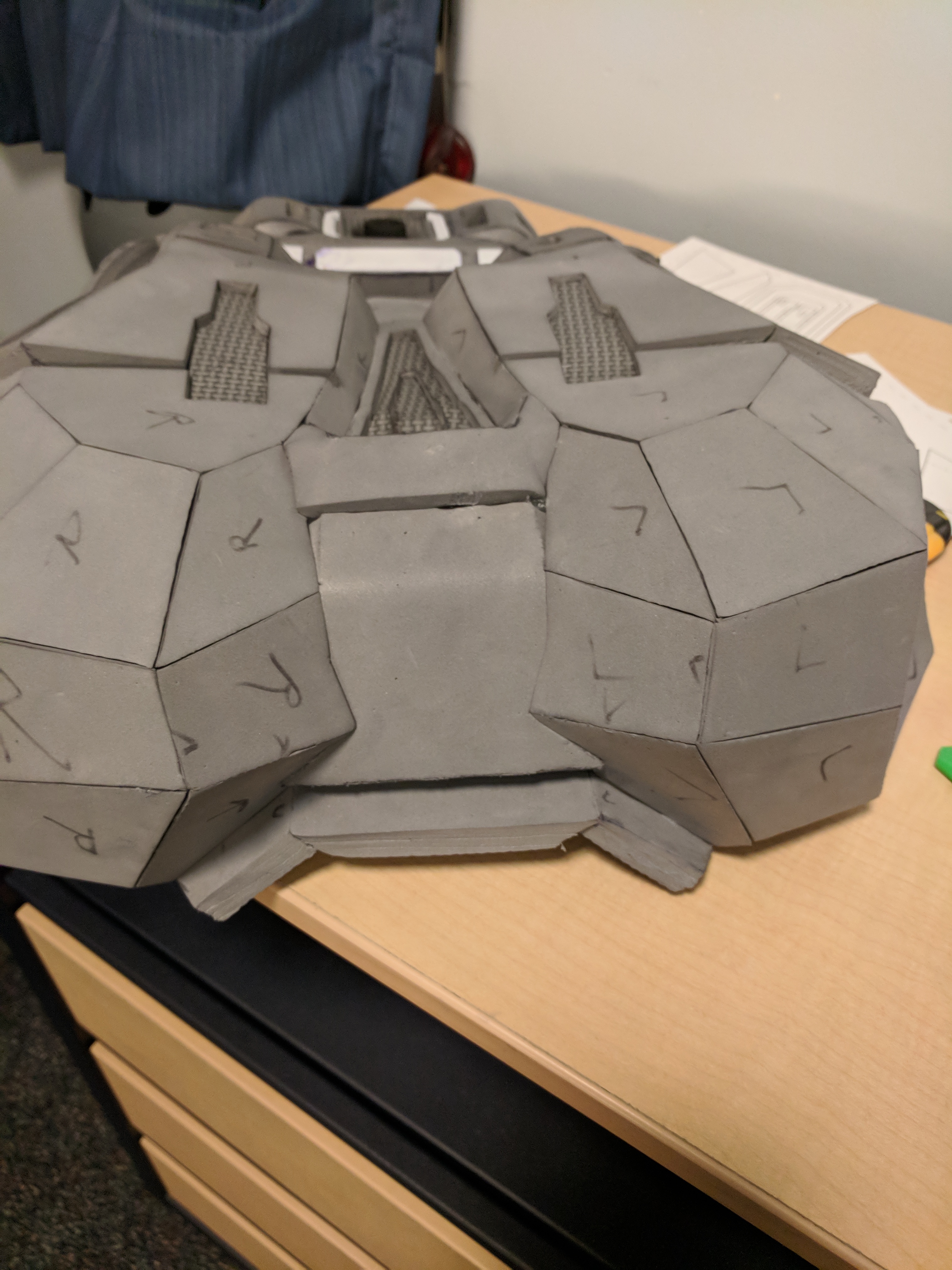

And the last bit of progress from tonight


And if your wondering I don't have any details in this upper section because it is going to have fabric over it later



pipninja

Active Member
Well it's been a minute. I've had a lot going on, I had to evacuate for hurricane Florance. I have made a significant progress on the chestplate, but I'm saving that for when I finish it. Kinda want to leave that one to a reveal. As of right now, I think I will be able to start work on the legs while I am away. I packed up all my essentials for armor making, can't afford to waist all this time lol


mumgoot

Member
Well it's been a minute. I've had a lot going on, I had to evacuate for hurricane Florance. I have made a significant progress on the chestplate, but I'm saving that for when I finish it. Kinda want to leave that one to a reveal. As of right now, I think I will be able to start work on the legs while I am away. I packed up all my essentials for armor making, can't afford to waist all this time lol
That's probably the best excuse I've ever heard for not working on a project. :D Stay safe man keep up the good work!


Lieutenant Jaku

Well-Known Member
Well it's been a minute. I've had a lot going on, I had to evacuate for hurricane Florance. I have made a significant progress on the chestplate, but I'm saving that for when I finish it. Kinda want to leave that one to a reveal. As of right now, I think I will be able to start work on the legs while I am away. I packed up all my essentials for armor making, can't afford to waist all this time lol
isn't florence on the east coast? does this mean you will be switching to the colonial regiment?
stay well and don't die in the hurricane. (y)


pipninja

Active Member
isn't florence on the east coast? does this mean you will be switching to the colonial regiment?
stay well and don't die in the hurricane. (y)
Yes it is on the east coast, but no I'm not switching. I'm in the Navy, and I'm at school right now. I'm trying to come back to Cali next year, if not, then im going to washington. If I Finnish my suit when I want to, then I might tag along for a visit sometime before I go lol.


pipninja

Active Member

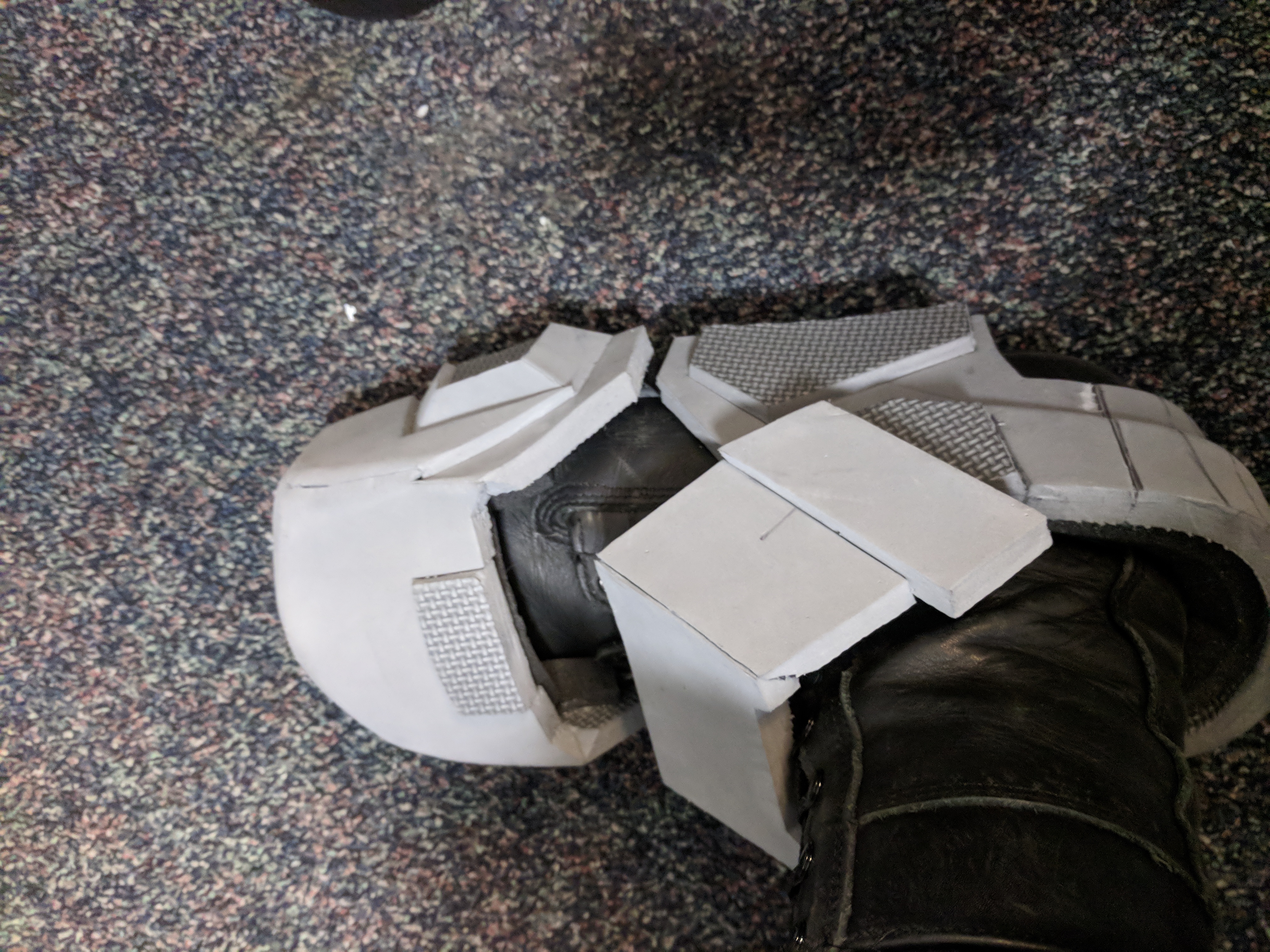

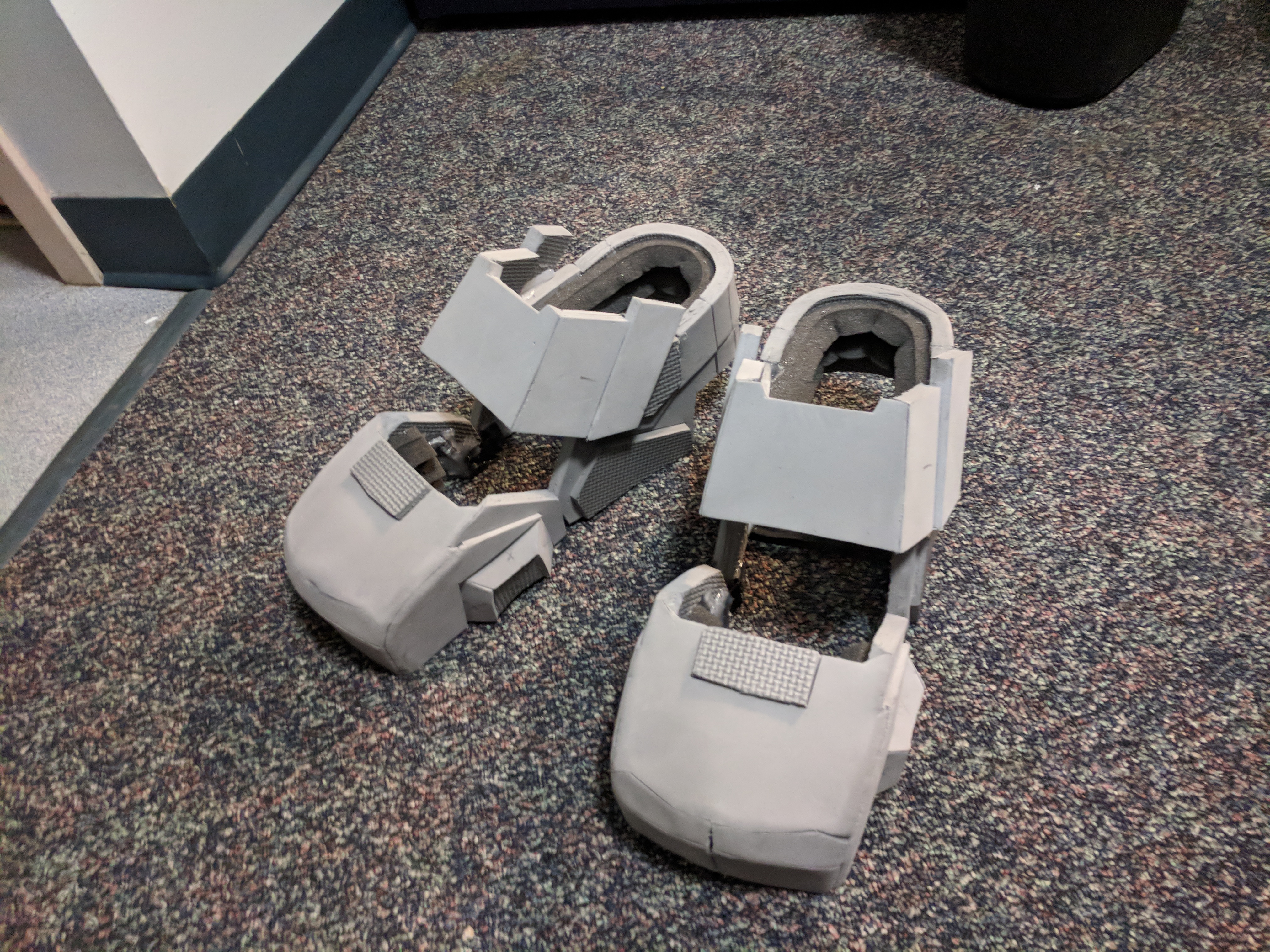

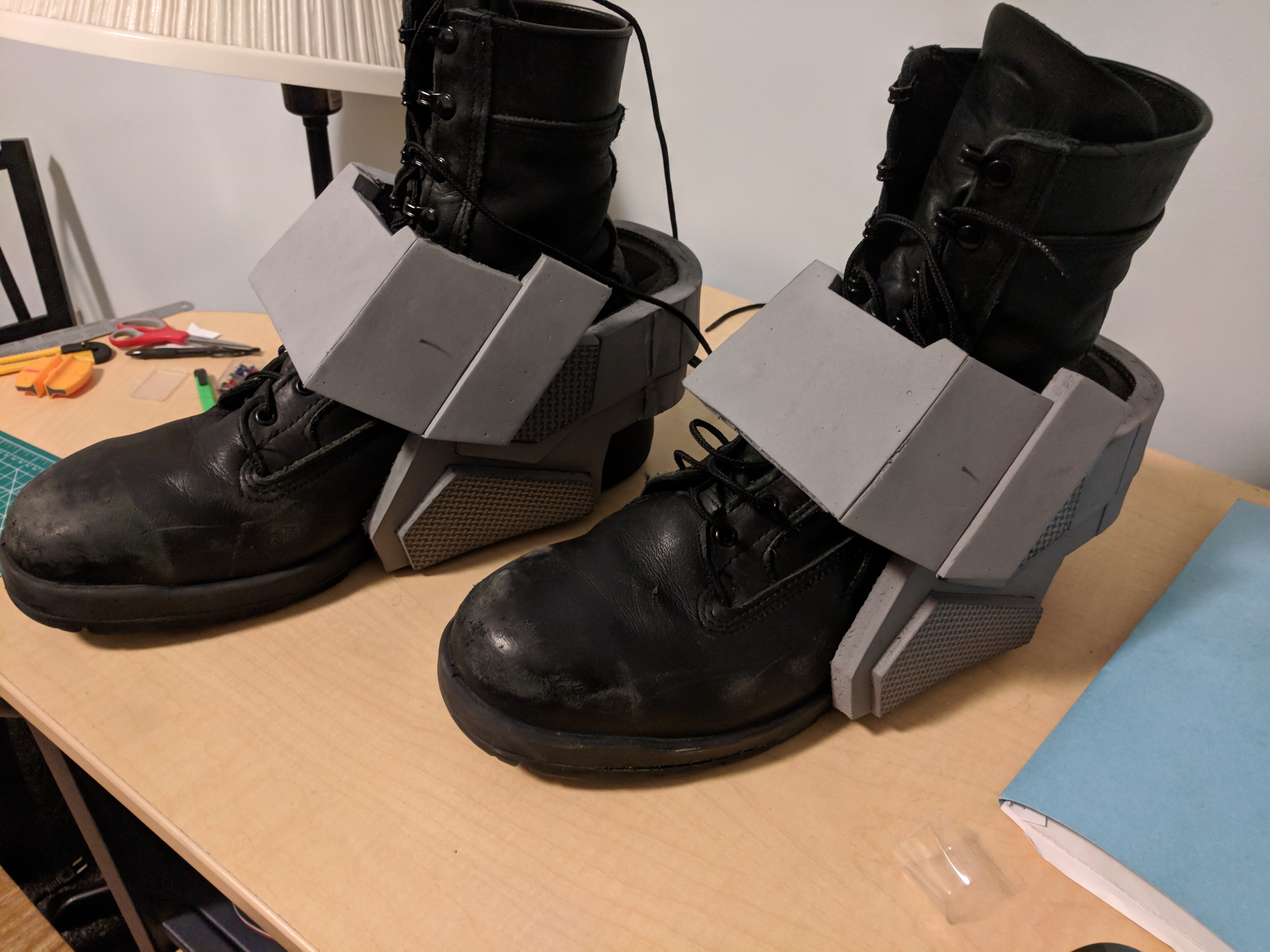

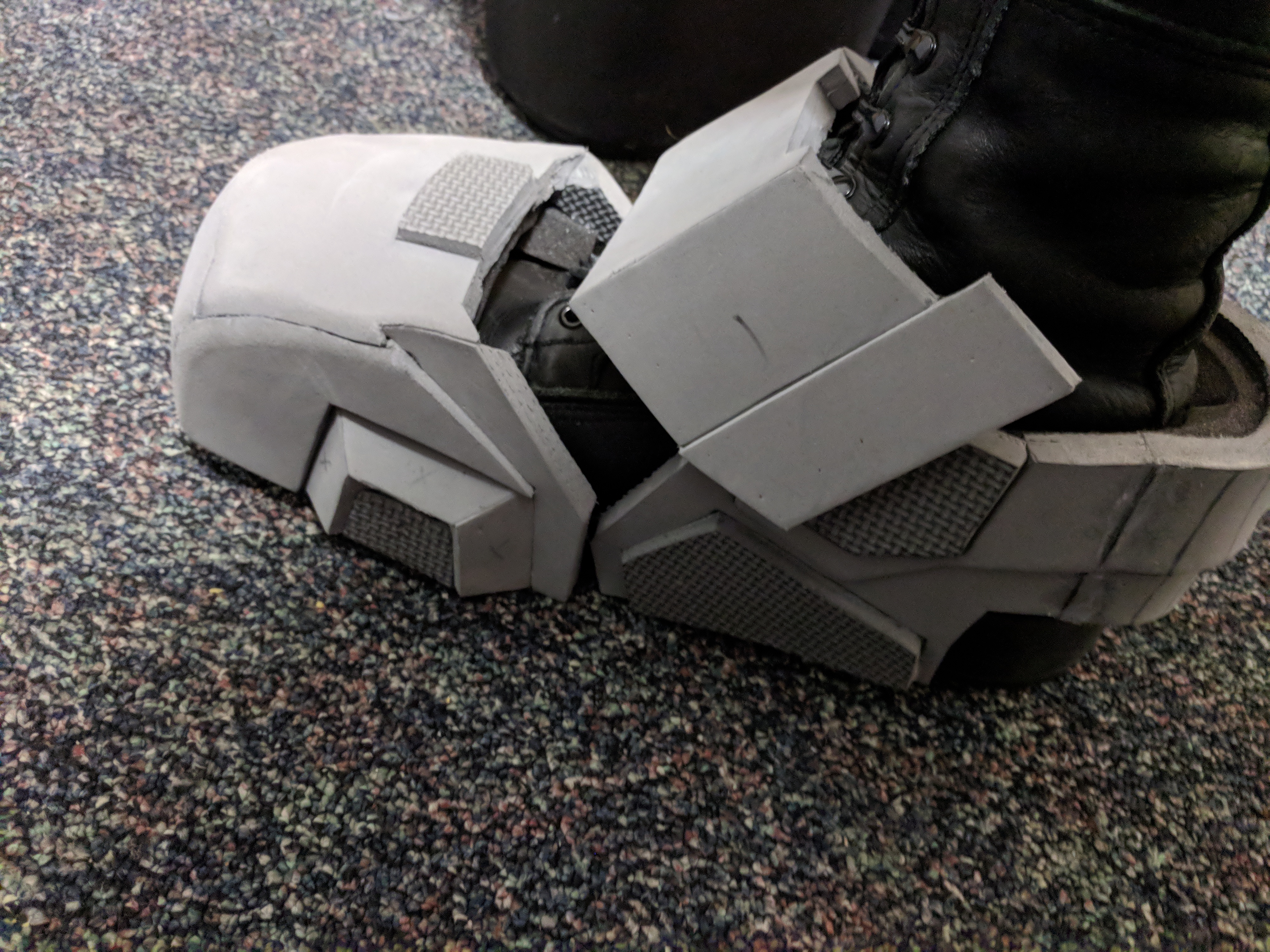

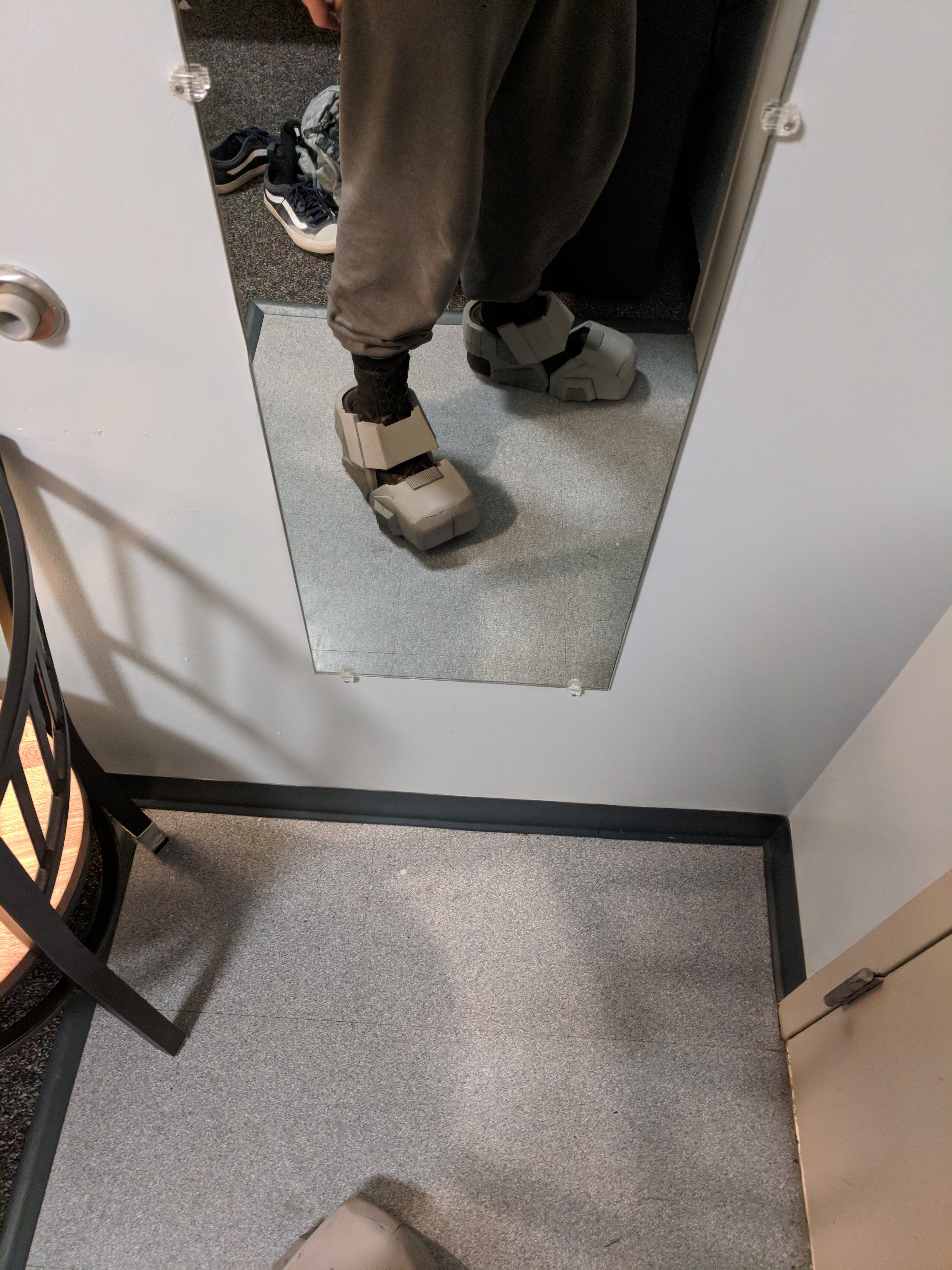

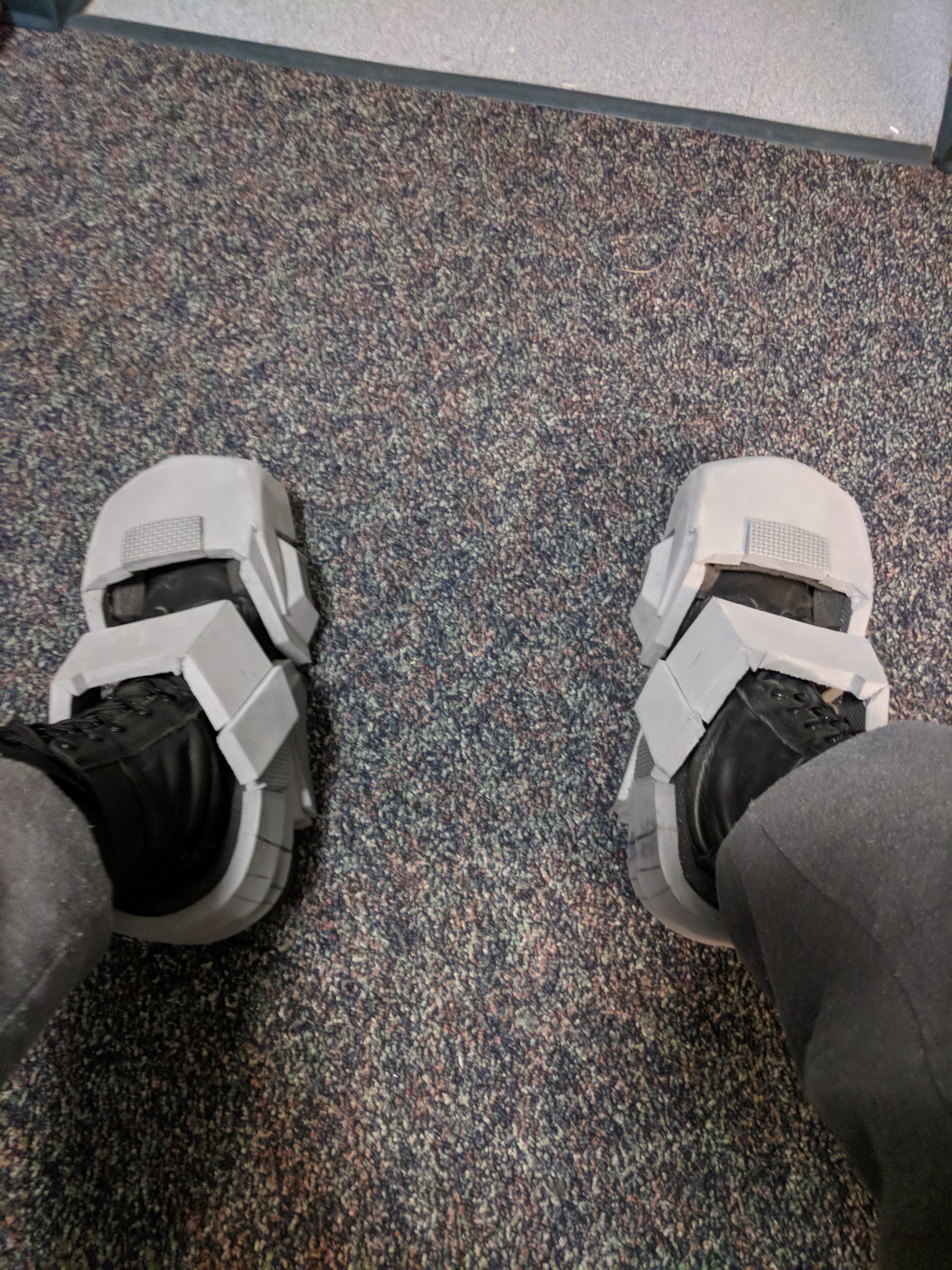

Finally! After a many of things in between me and my project, having to move rooms, study, etc, I finally am back! And I'm so giddy for some new shoes!

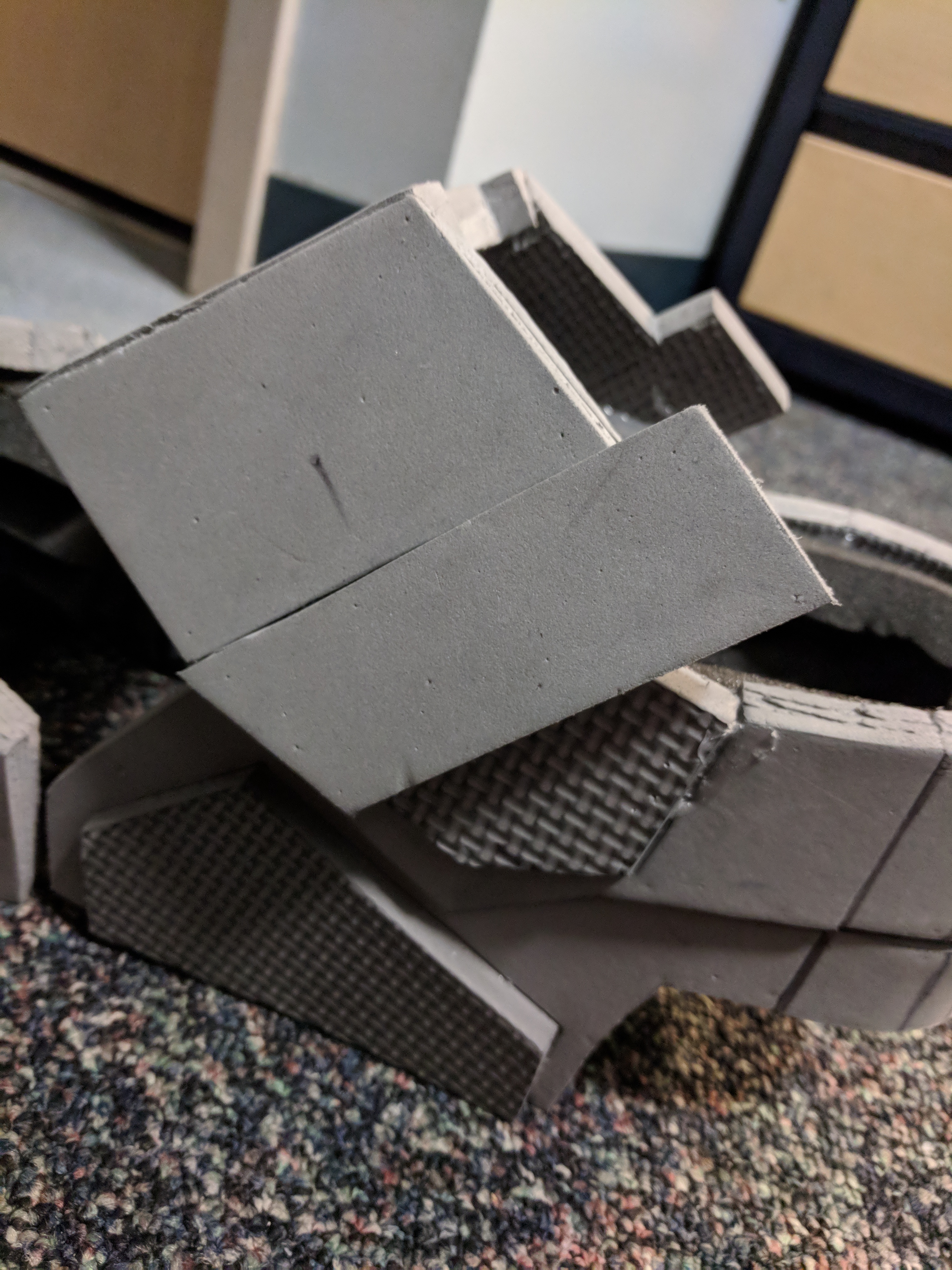

First thing, the modifications I did from the file.

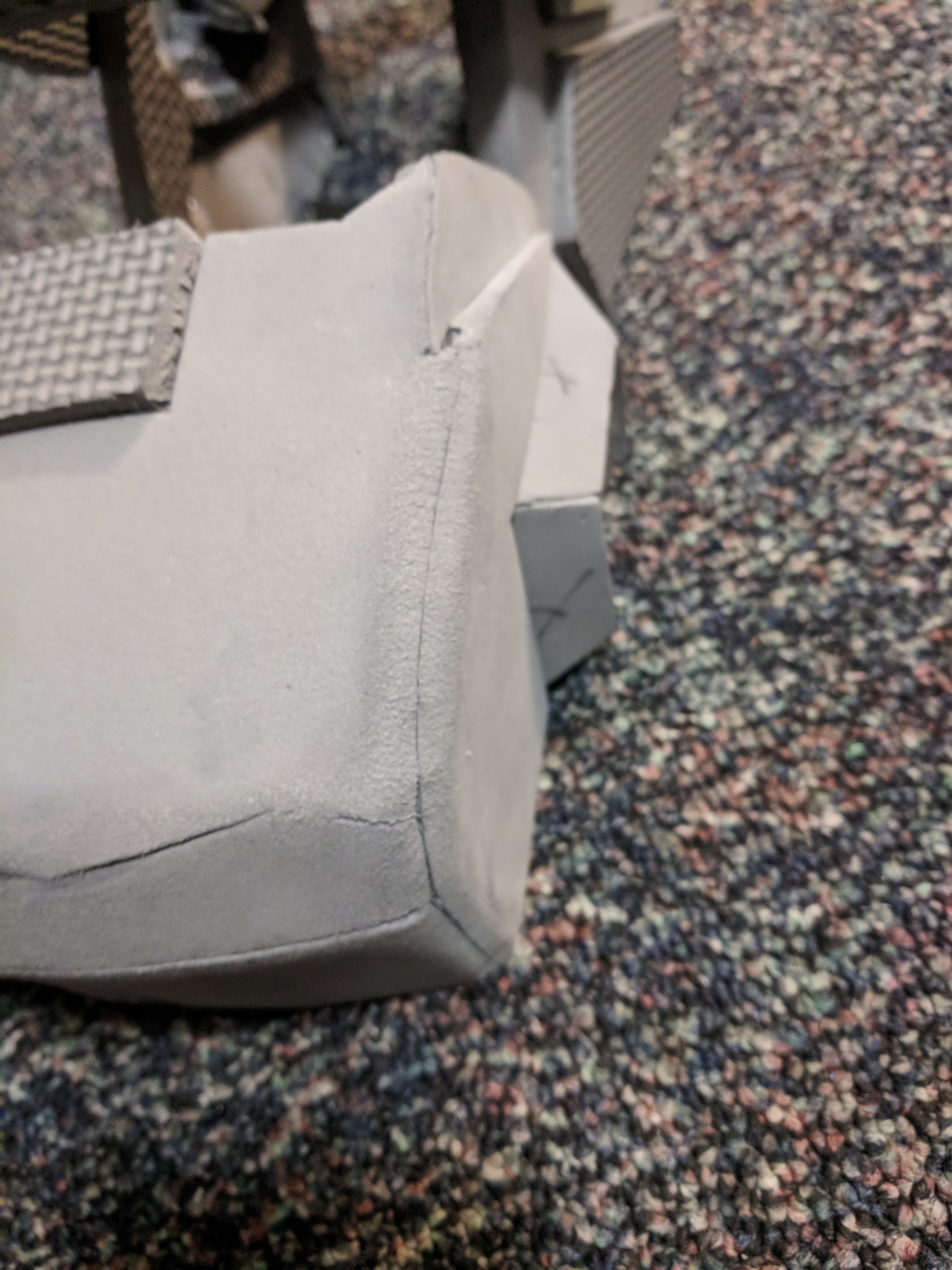

- First thing, I shortened the ring around the back of the boot to fit better.

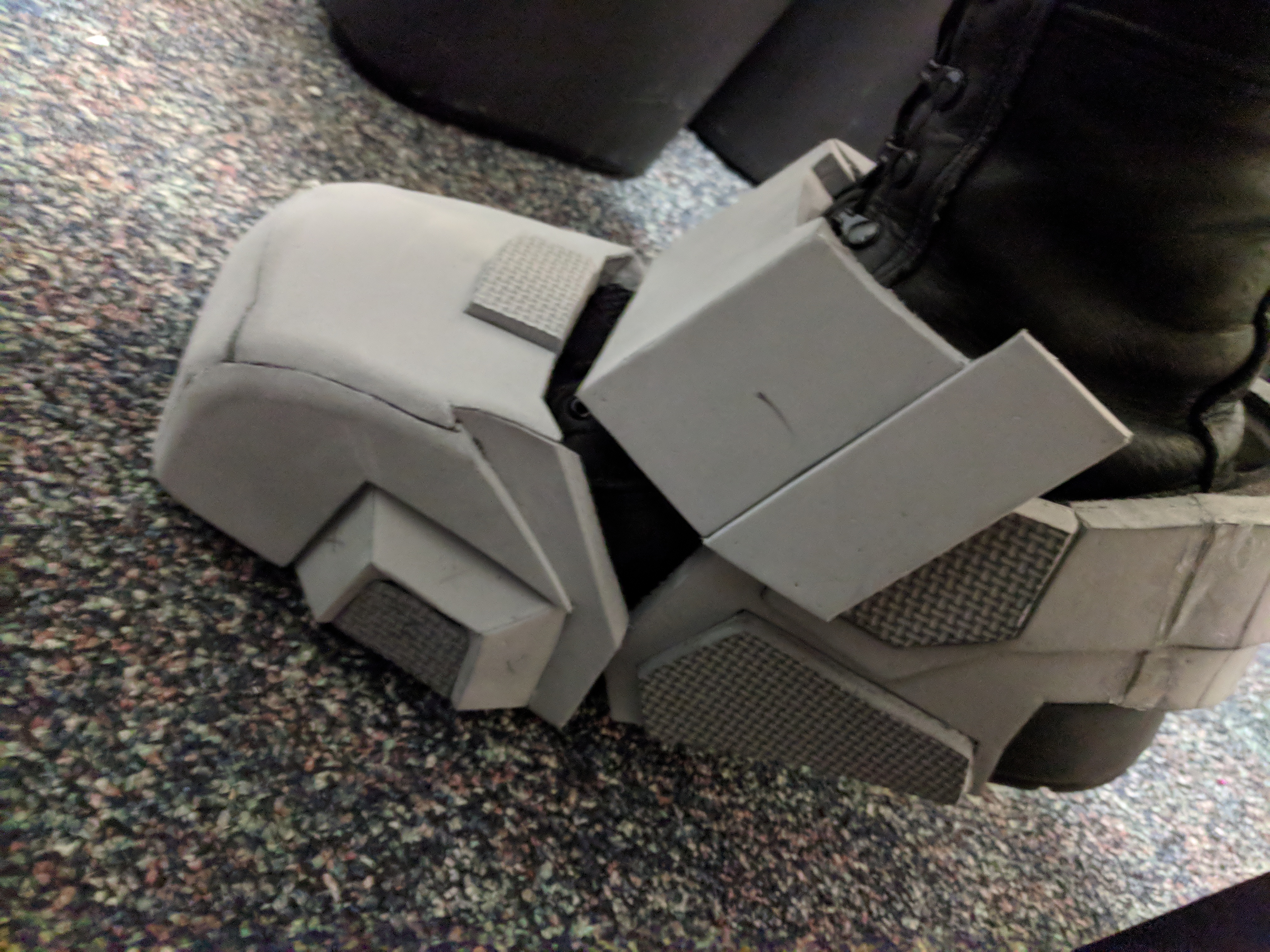

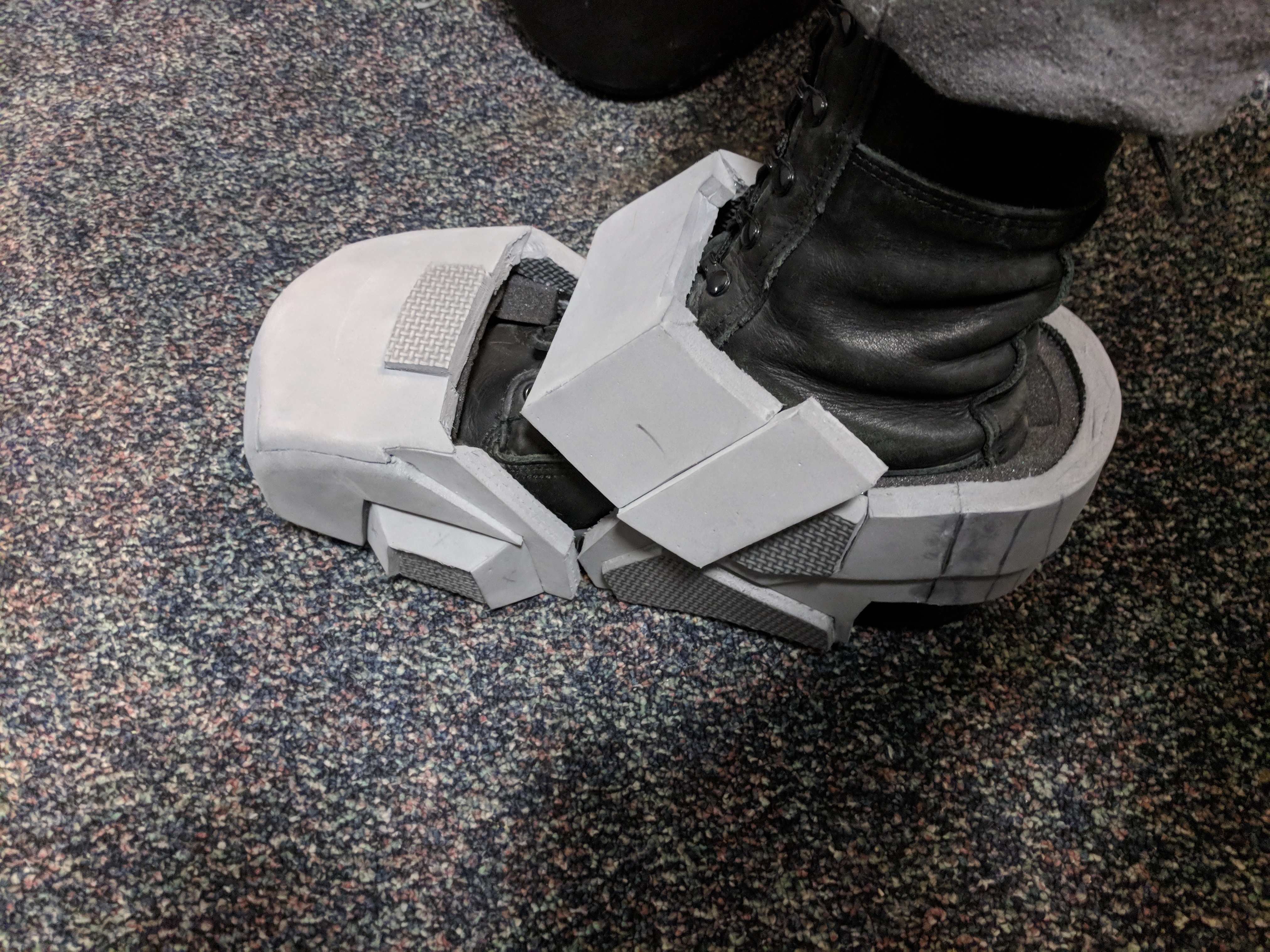

Then I attached the front piece farther back. I liked the way this looked compared to how it's set up in the game, also this allowed for it to fit the boot better, and allow more flexibility.

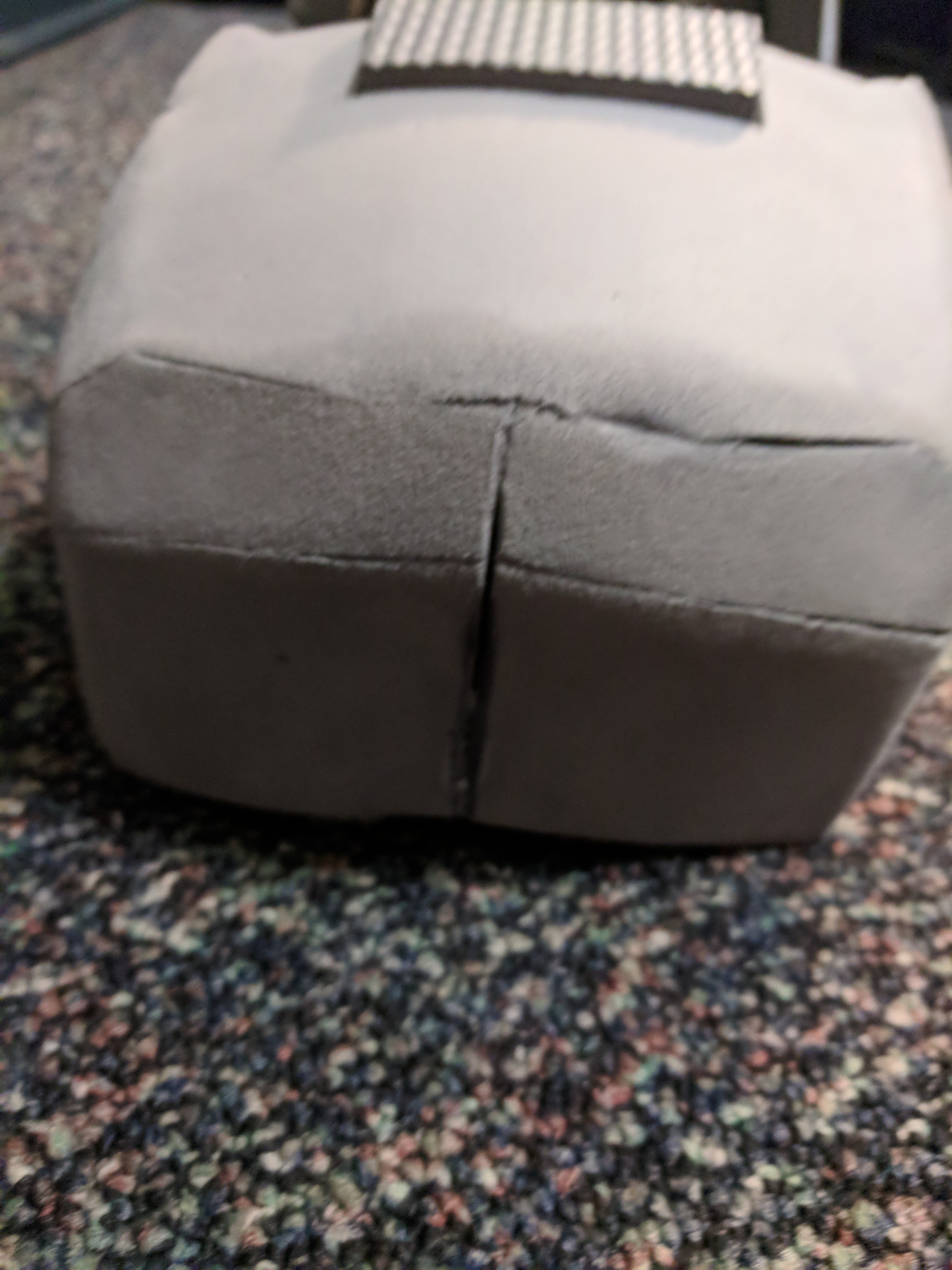

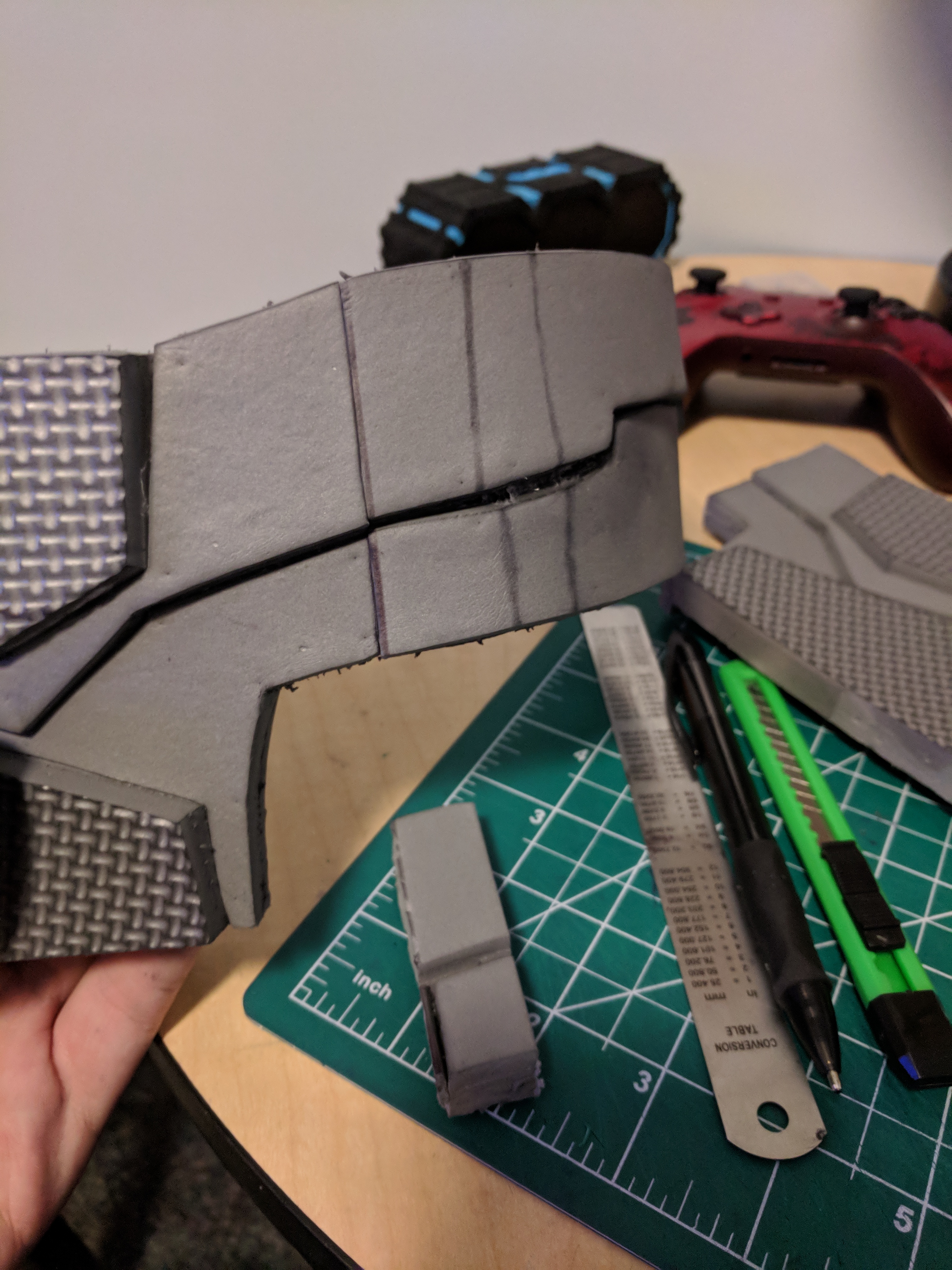

Next I took out the lip in the front on the pep file, and I cut out a wedge to narrow the front, once again, making it fit my boots.


I also used a sand paper block to round the edges

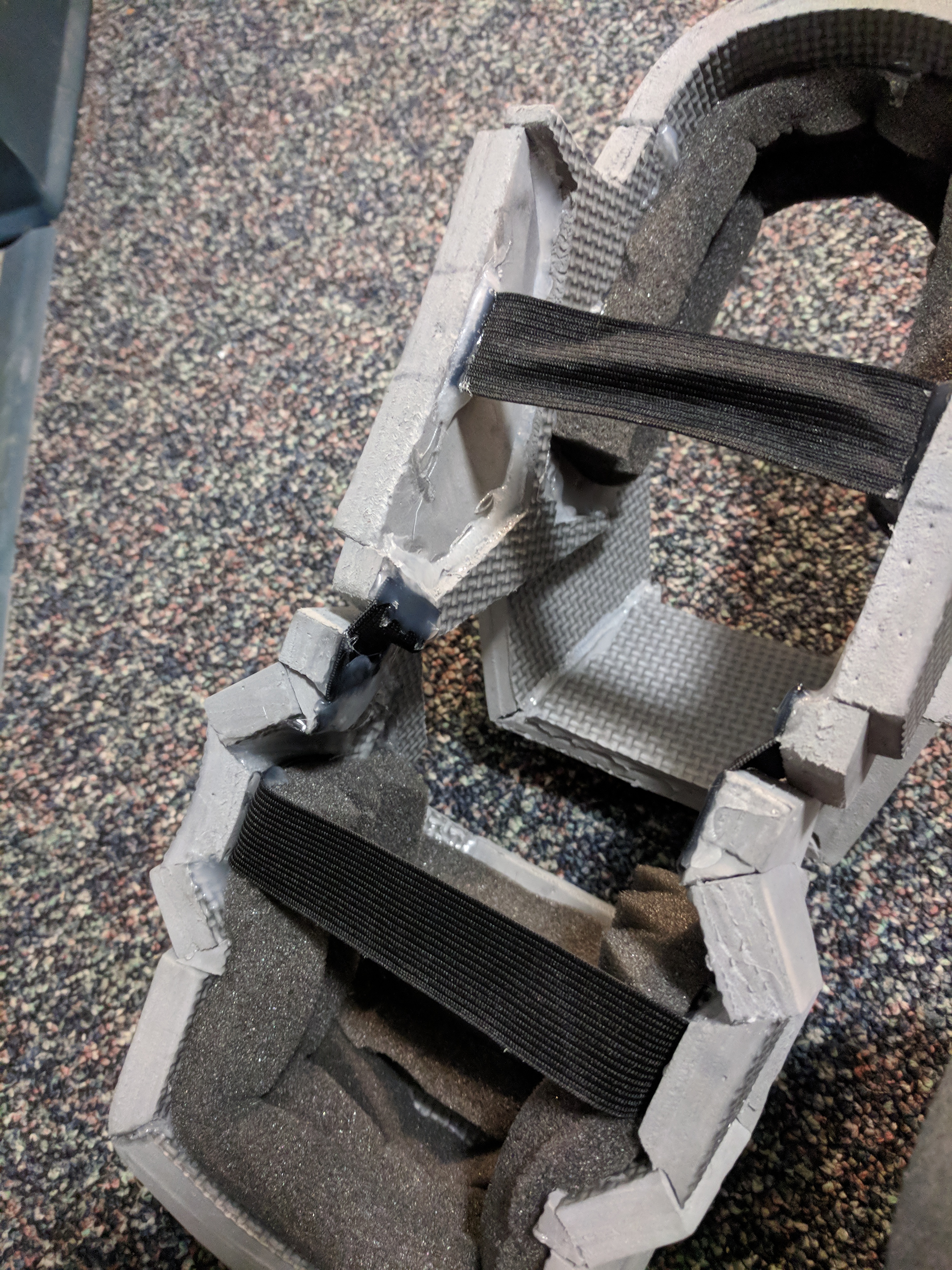

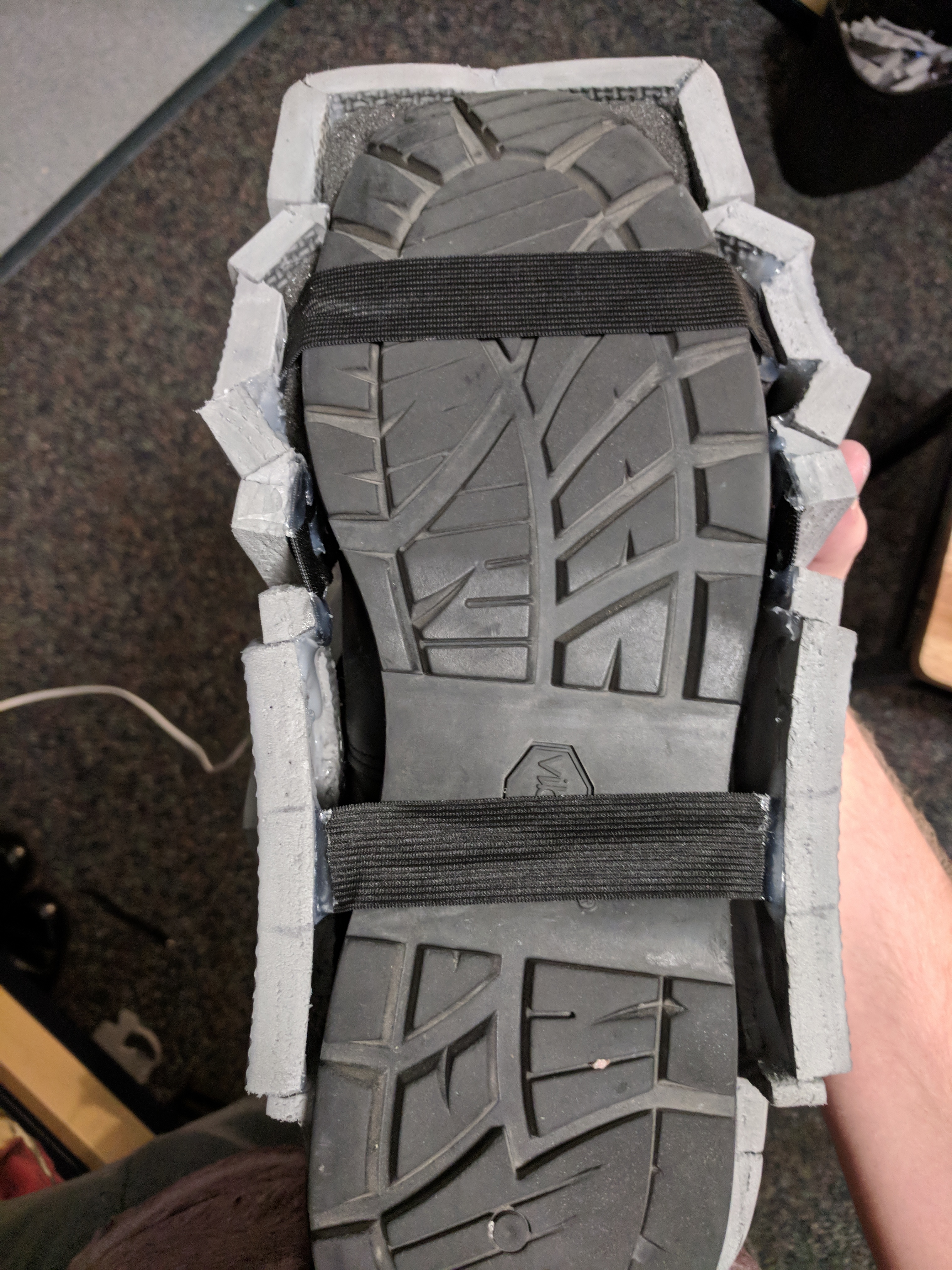

Next thing of note is the strapping. I wanted to attach this to my boots without permant adjustment to them, so I used elastic and some acoustic foam to hold the boot in place

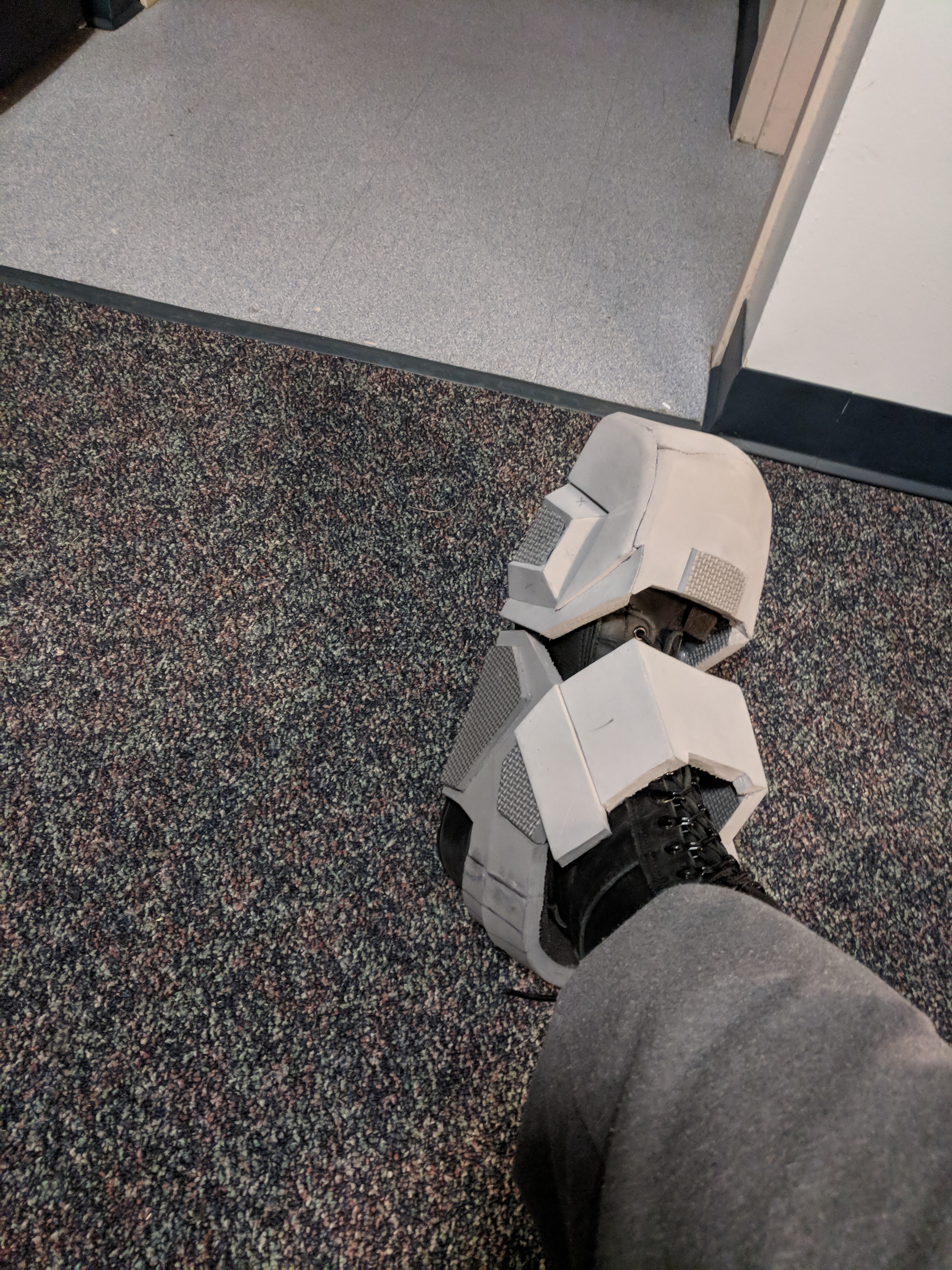

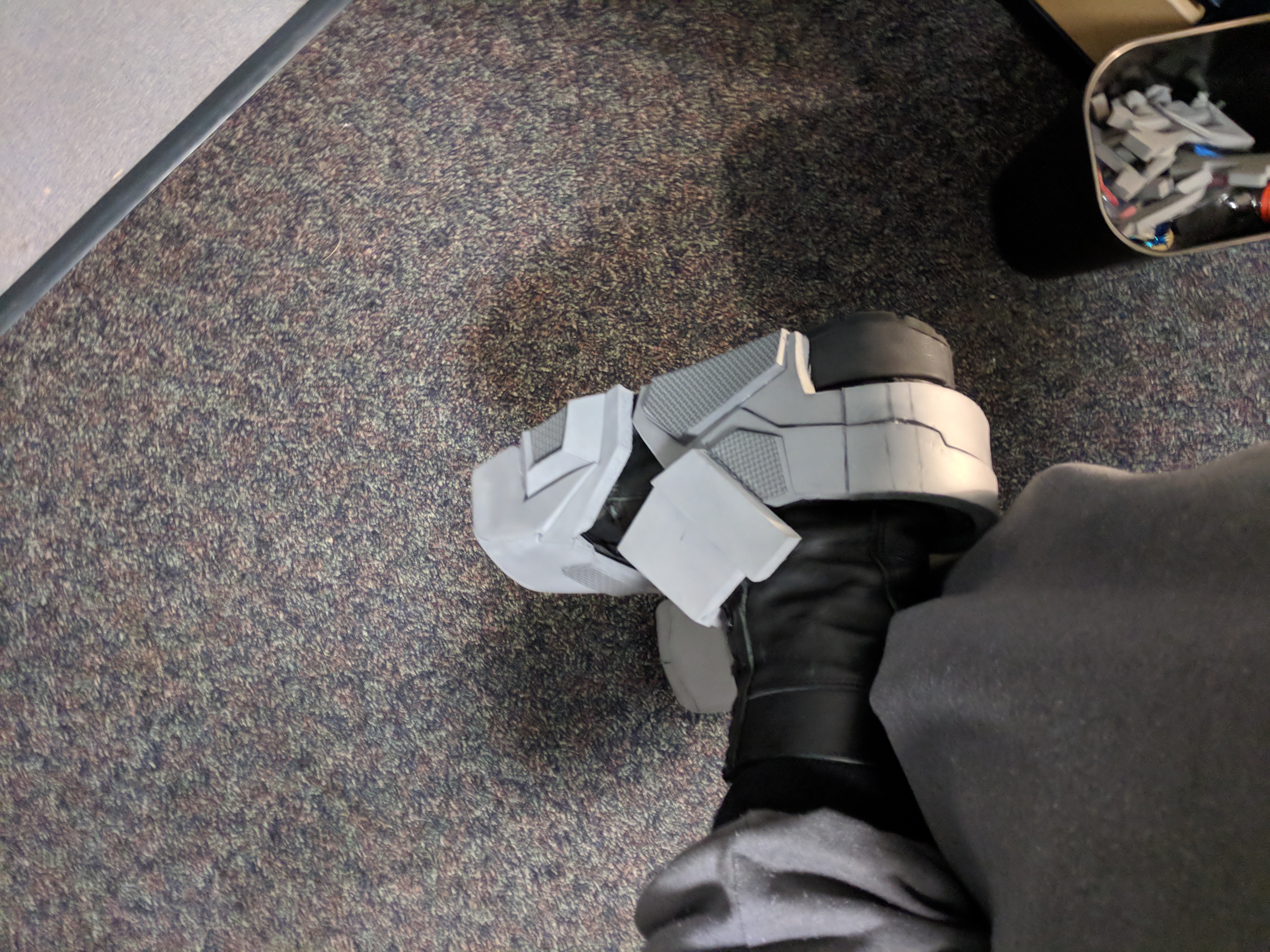

The next thing that was a really big deal was I wanted flexibility for my boot, it's why I sized it a little short in the first place. I have really good motion, it's secure on the boots, and it is so comfortable.

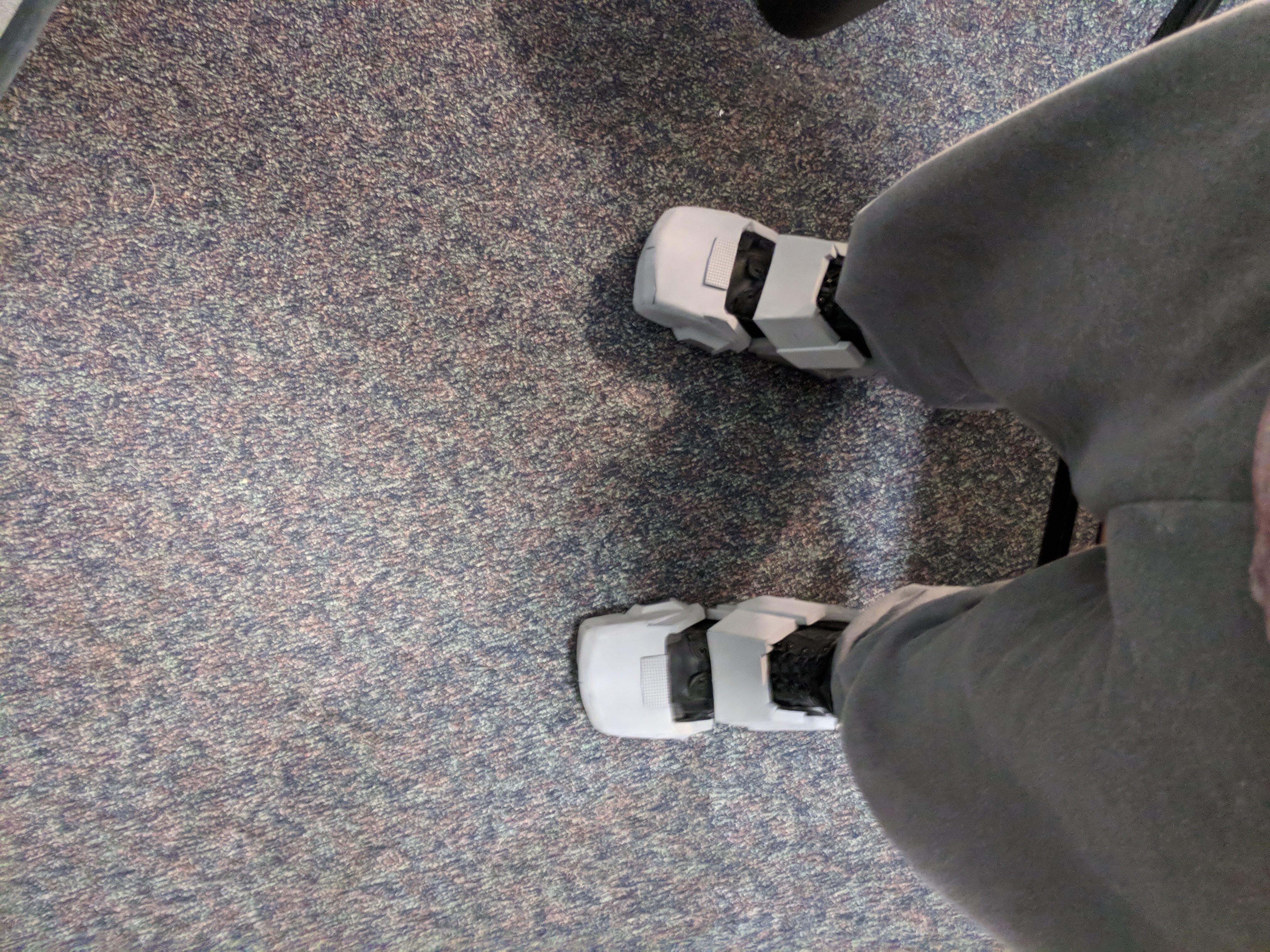

This should kick this project into gear now, I found a work flow that works for me better. For now, here are just some extra pictures







xXDashIVXx

Well-Known Member

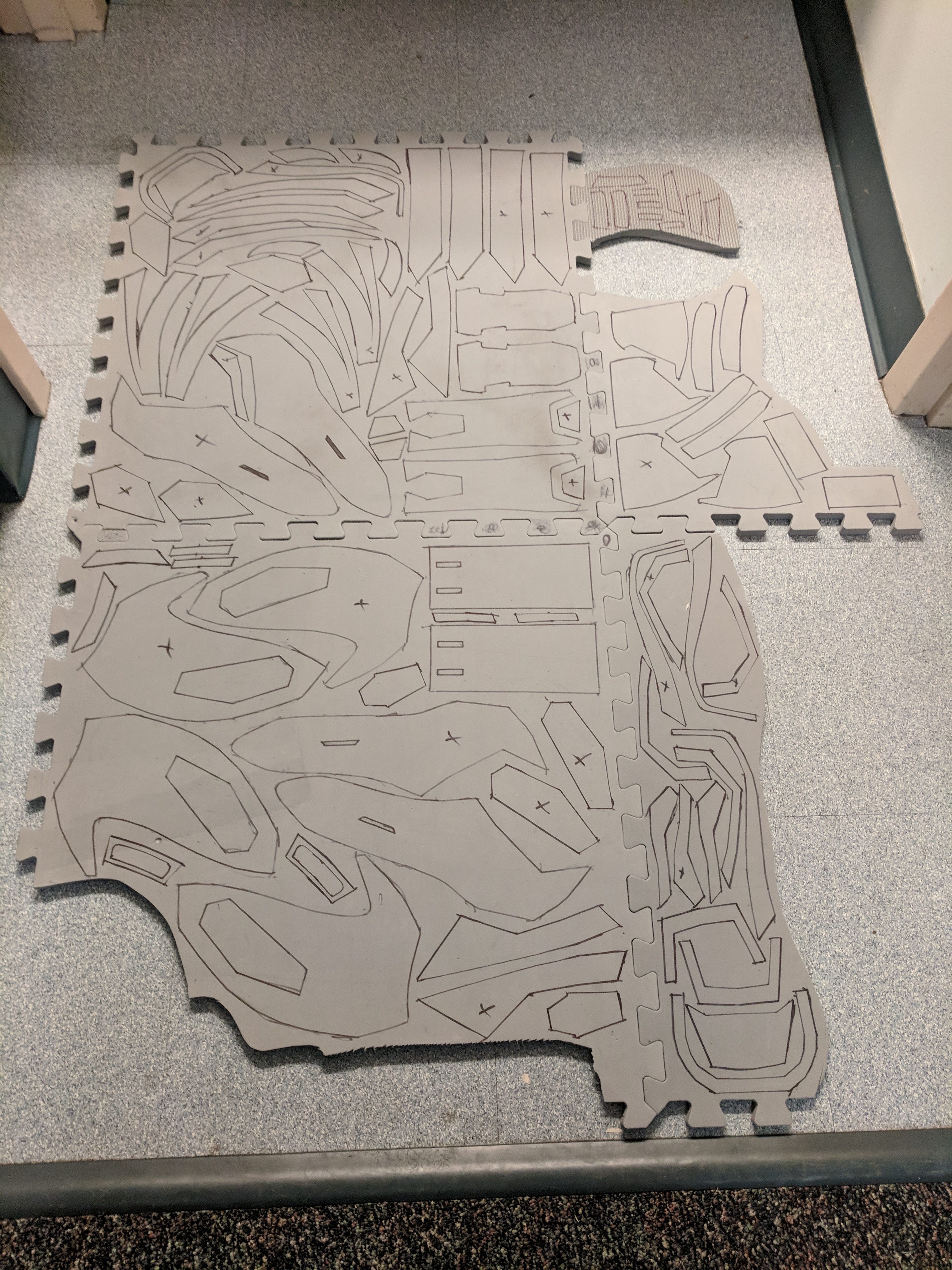

Tomorrow is going to be fun. The patterns for two shins and two knees! View attachment 260256
Looks good, and I like to conserve as much space as possible, but I usually leave a 1inch space between prices. Won't what you did be hard to cut clean because all the prices are practically touching each other? Wouldn't the blade go into the sides of other pieces?


Lieutenant Jaku

Well-Known Member
Looks good, and I like to conserve as much space as possible, but I usually leave a 1inch space between prices. Won't what you did be hard to cut clean because all the prices are practically touching each other? Wouldn't the blade go into the sides of other pieces?
Shared adges makes cutting time less as you get 2 sides with one cut
